  1. Introduction to LabVIEW GRAPHICAL PROGRAMMING FOR ENGINEERS AND SCIENTISTS

  2. Lab Goals • Become comfortable with the LabVIEW environment and data flow execution • Front panels • Block diagrams • Functions and Controls Palettes • Use built-in LabVIEW functions • Use LabVIEW to solve problems • Learn LabVIEWconcepts • Finding and using math and complex analysis functions • Working with data types, such as arrays and clusters • Displaying results

  3. Section I – LabVIEW Environment • Components to a LabVIEW Application • Front Panel • Block Diagram B. Programming Environment • Controls Palette • Functions Palette • Tools Palette • Status Toolbar C. Additional Help • Context Help Window • Tips for Working in LabVIEW

  4. Open and Run LabVIEW Start»AllPrograms»National Instruments LabVIEW8.6 » Startup Screen: Start from a blank VI: New»Blank VI Start from an example: Examples»Find Examples… or

  5. LabVIEWPrograms Are CalledVirtual Instruments (VIs) • Each VI has2 windows • Front Panel • User interface (UI) • Controls = Inputs • Indicators = Outputs • Block Diagram • Graphical code • Data travels on wires from controls through functions to indicators • Blocks execute by data flow

  6. (Place items on the front panel window) Controls Palette Customize Palette View Control: Numeric Indicator: Numeric Slide

  7. Functions Palette (Place items on the block diagram window) Structure: While Loop

  8. Searching for Controls, VIs, and Functions • Palettes are filled with hundreds of VIs • Press the search button to index all VIs for text searching • Click and drag an item from the search window to the block diagram • Double-click an item to open the owning palette

  9. Creating a VI Front Panel Window Graph Indicator Block Diagram Window Output Terminal Boolean Control Input Terminal

  10. Dataflow Programming • Block diagram execution • Dependent on the flow of data • Block diagram does NOT execute left to right • Note: • Node executes when data is available to ALL input terminals • Nodes supply data to all output terminals when done

  11. Automatic Selection Tool Operating Tool Positioning/Resizing Tool Labeling Tool Wiring Tool Tools Palette • Recommended: Automatic Selection Tool • Tools to operate and modify both front panel and block diagram objects Automatically chooses among the following tools:

  12. Status Toolbar Run Button Continuous Run Button Abort Execution Additional Buttons on the Diagram Toolbar Execution Highlighting Button Retain Wire Values Button Step Function Buttons

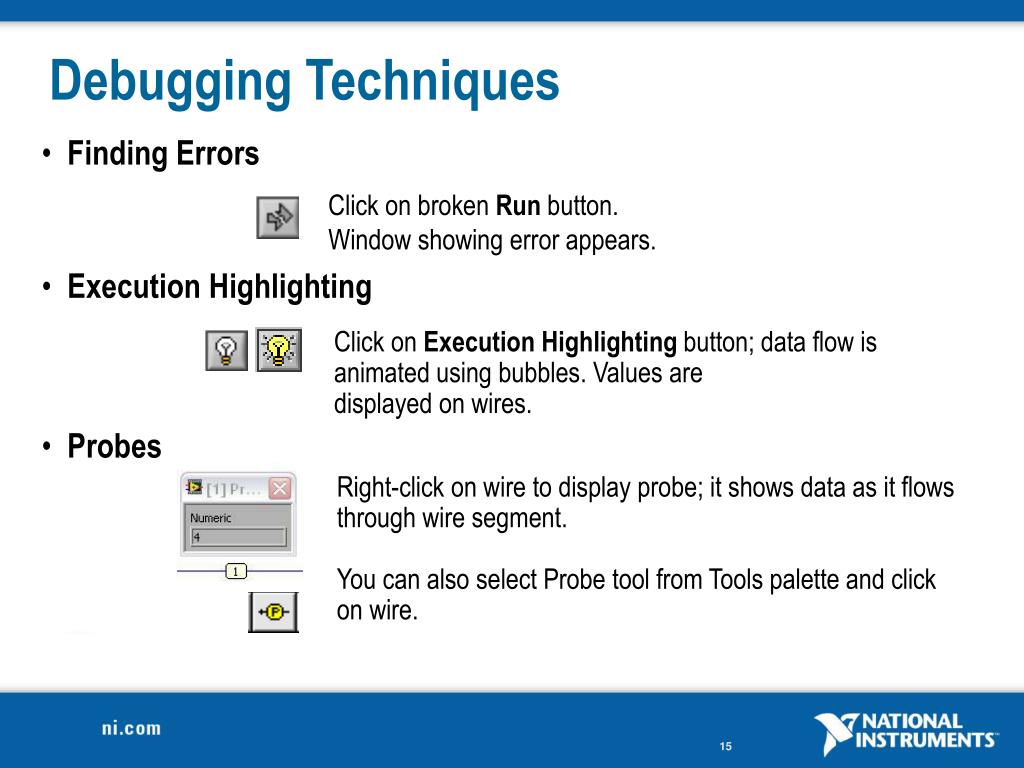

  13. Debugging Techniques • Finding Errors • Execution Highlighting • Probes Click on broken Run button. Window showing error appears. Click on Execution Highlighting button; data flow is animated using bubbles. Values are displayed on wires. Right-click on wire to display probe; it shows data as it flows through wire segment. You can also select Probe tool from Tools palette and click on wire.

  14. Context Help Window • Help»Show Context Help, press the <Ctrl-H> keys • Hover cursor over object to update window • Additional Help • Right-click on the VI icon and choose Help, or • Choose “Detailed help” on the context help window

  15. Section II – Elements of Typical Programs A. Data Types B. Loop Structures • While Loop • For Loop C. Conditional Statements • Case Structure • Select (simple If statement) D. Arrays

  16. A. Common Data Types Found in LabVIEW

  17. Block Diagram – Wires • Transfer data between block diagram objects through wires • Wires are different colors, styles, and thicknesses, depending on their data types • A broken wire appears as a dashed black line with a red X in the middle DBL Numeric Integer Numeric String Scalar 1D Array 2D Array

  18. Block Diagram – Wiring Tips • Press <Ctrl>-B to delete all broken wires • Right-click and select Clean Up Wire to reroute the wire

  19. B. Loop Structures While Loop • While Loop • Terminal counts iterations • Always runs at least once • Runs until stop condition is met For Loop • For Loop • Terminal counts iterations • Runs according to input N of count terminal

  20. Drawing a Loop 2. Enclose code to be repeated 1. Select the structure 3. Drop or drag additional nodes and then wire

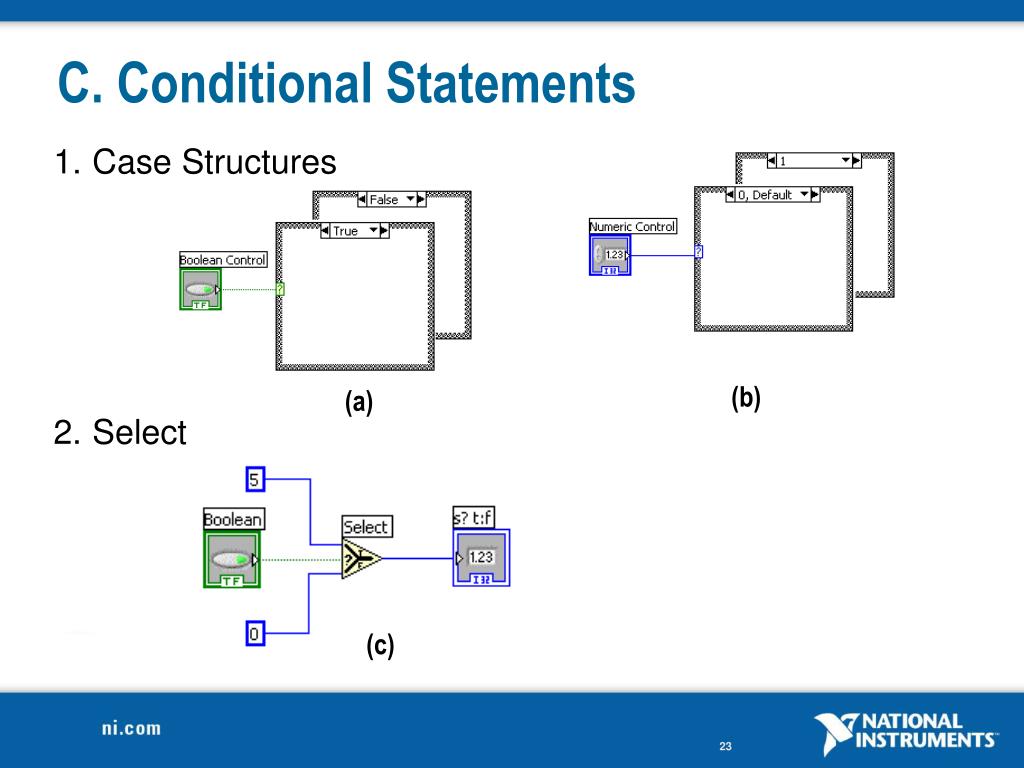

  21. C. Conditional Statements • Case Structures • Select (b) (a) (c)

  22. D. Building Arrays with Loops (Auto-Indexing) Auto-Indexing Enabled Wire becomes thicker • Loops can accumulate arrays at their boundaries with auto-indexing • For Loops auto-index by default • While Loops output only the final value by default • Right-click tunnel and enable/disable auto-indexing 1D Array 0 1 2 3 4 5 Auto-Indexing Disabled Wire remains the same size Only one value (last iteration) is passed out of the loop 5

  23. Creating an Array (Step 1 of 2) • Place an array shellfrom the Controls»Modern»Array, Matrix, and Clustersubpalette, select the Array icon. Drop it on the front panel.

  24. Create an Array (Step 2 of 2) 2. Insert data type into the shell (i.e., numeric control).

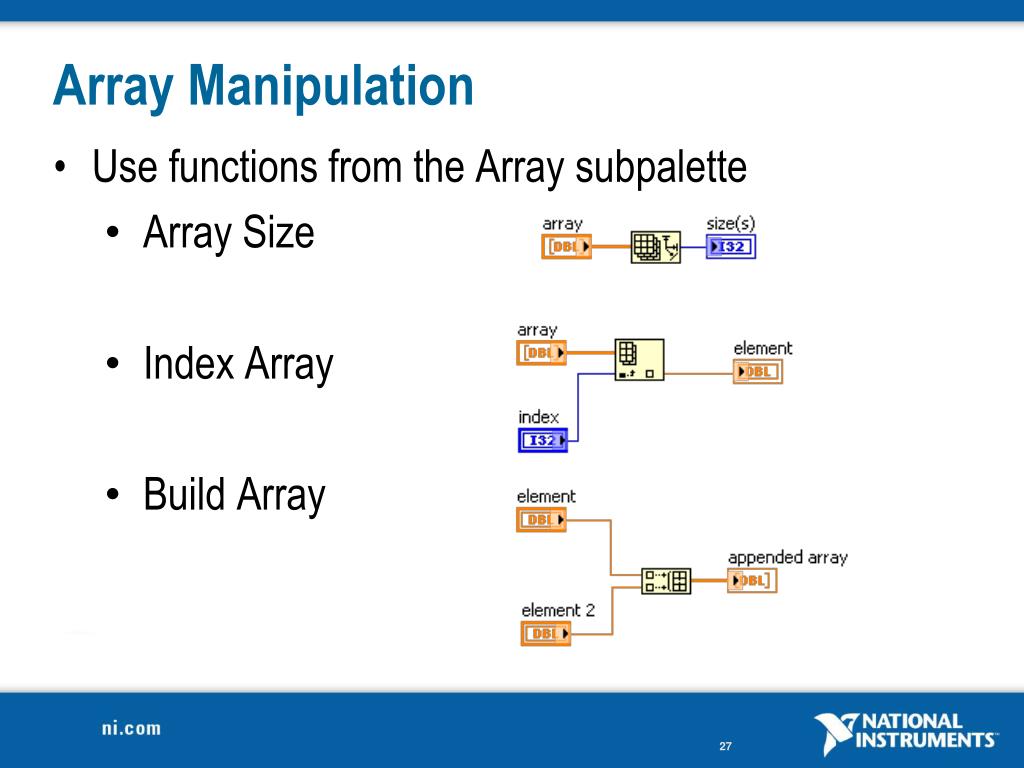

  25. Array Manipulation • Use functions from the Array subpalette • Array Size • Index Array • Build Array

  26. Section III–Presenting Your Results • Displaying Data on the Front Panel • Controls and Indicators • Graphs and Charts

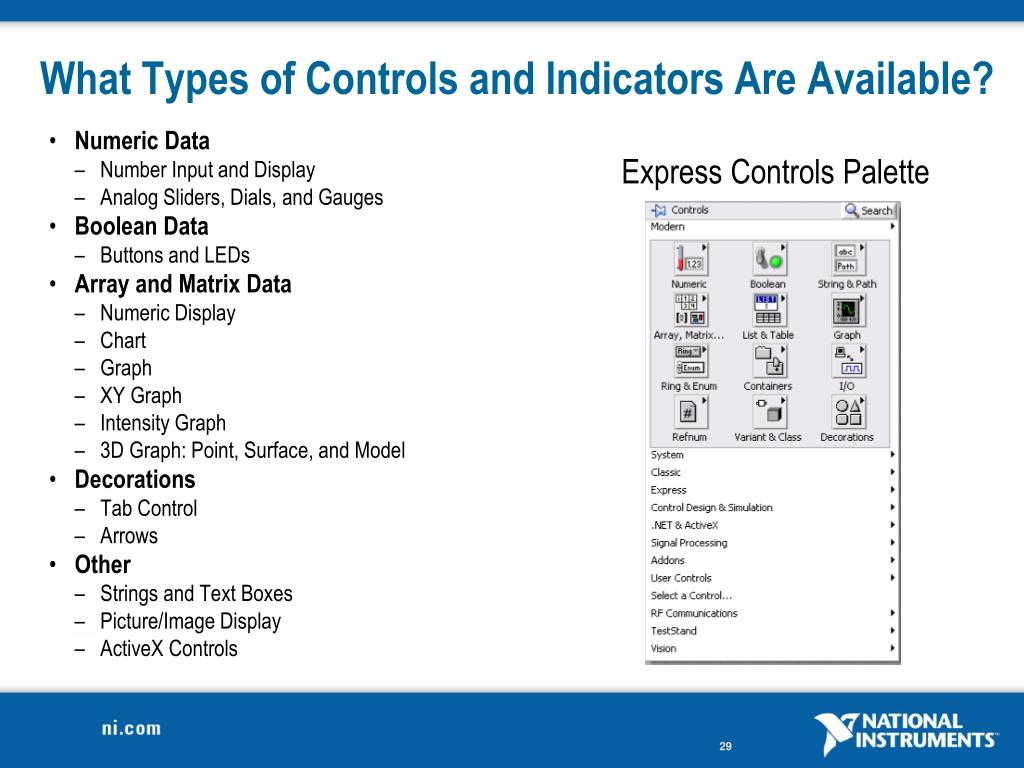

  27. What Types of Controls and Indicators Are Available? Express Controls Palette • Numeric Data • Number Input and Display • Analog Sliders, Dials, and Gauges • Boolean Data • Buttons and LEDs • Array and Matrix Data • Numeric Display • Chart • Graph • XY Graph • Intensity Graph • 3D Graph: Point, Surface, and Model • Decorations • Tab Control • Arrows • Other • Strings and Text Boxes • Picture/Image Display • ActiveX Controls

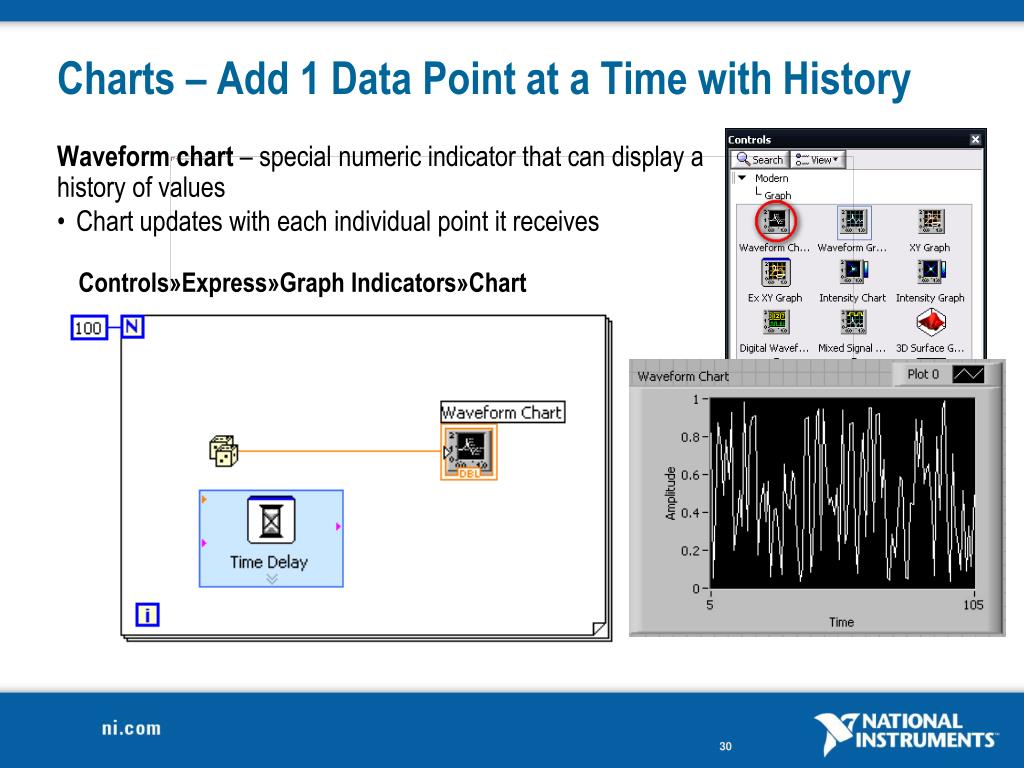

  28. Charts – Add 1 Data Point at a Time with History Waveform chart – special numeric indicator that can display a history of values • Chart updates with each individual point it receives Controls»Express»GraphIndicators»Chart

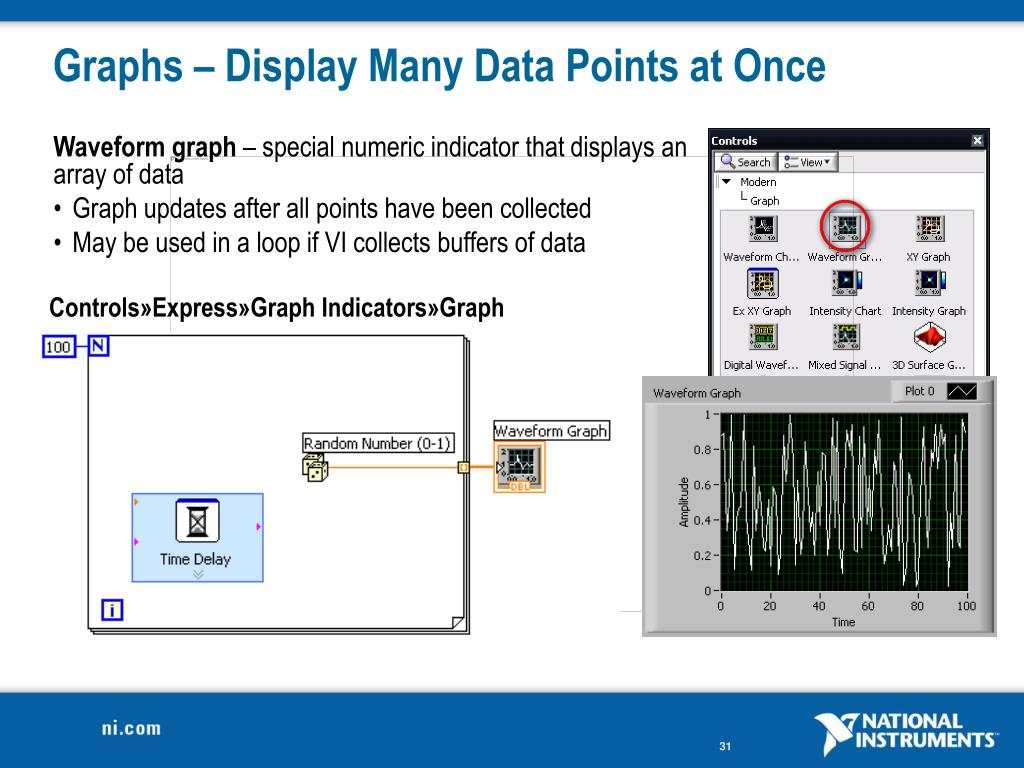

  29. Graphs – Display Many Data Points at Once • Waveform graph – special numeric indicator that displays an array of data • Graph updates after all points have been collected • May be used in a loop if VI collects buffers of data Controls»Express»GraphIndicators»Graph

  30. Tips for Working in LabVIEW • Keystroke Shortcuts • <Ctrl-H> – Activate/Deactivate Context Help Window • <Ctrl-B> – Remove Broken Wires from Block Diagram • <Ctrl-E> – Toggle between Front Panel and Block Diagram • <Ctrl-Z> – Undo (also in Edit menu) • <Right-Click> – Open Controls/Functions Palette • Tools»Options… – Set Preferences in LabVIEW
