Forced-Air Central Heaters and Boilers

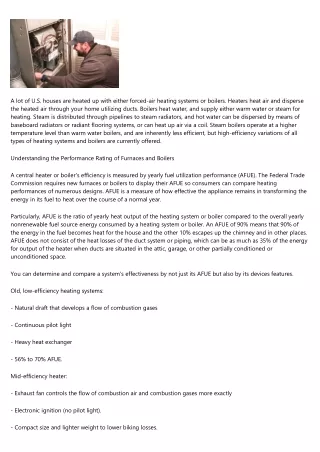

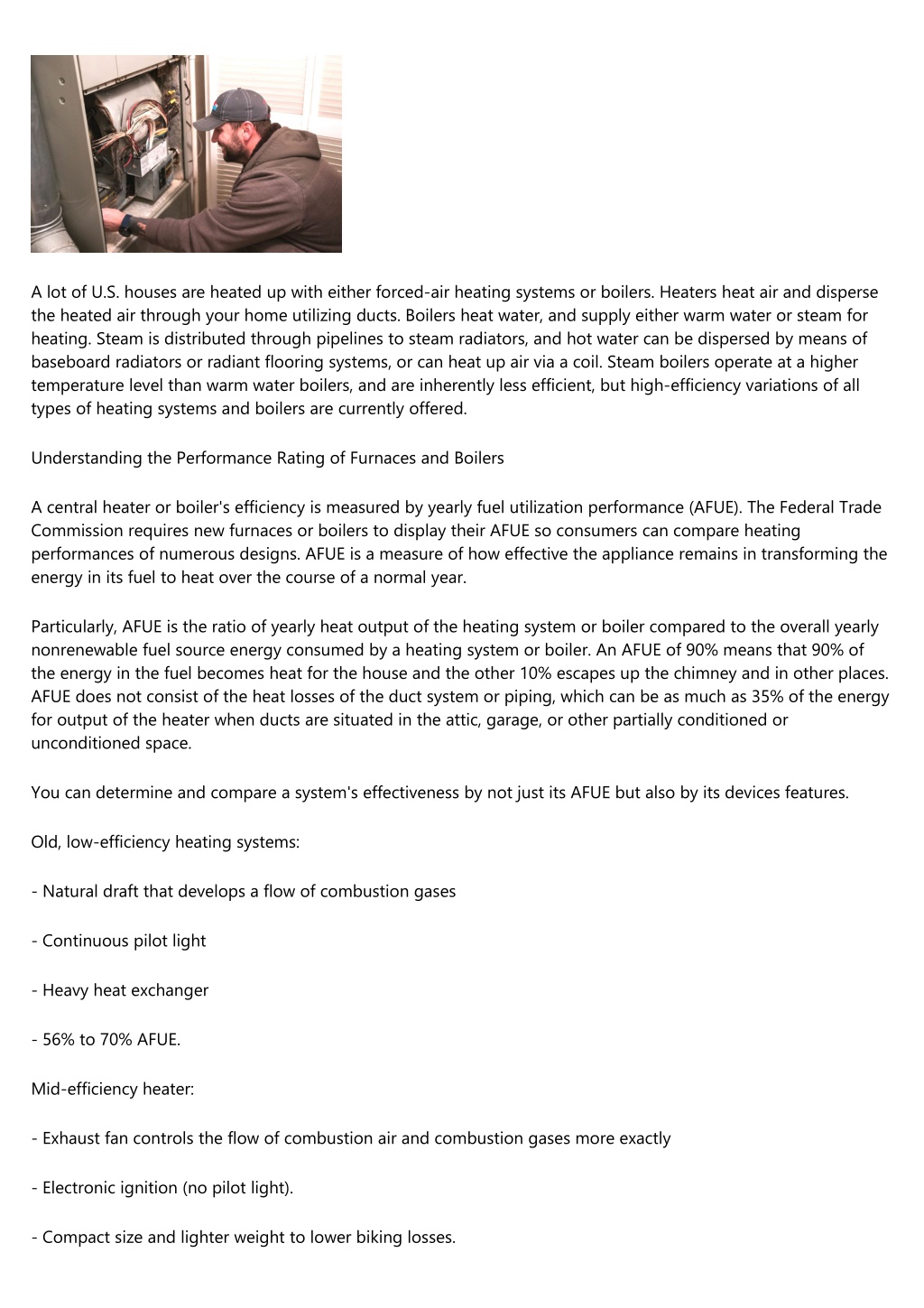

1. A lot of U.S. houses are heated up with either forced-air heating systems or boilers. Heaters heat air and disperse the heated air through your home utilizing ducts. Boilers heat water, and supply either warm water or steam for heating. Steam is distributed through pipelines to steam radiators, and hot water can be dispersed by means of baseboard radiators or radiant flooring systems, or can heat up air via a coil. Steam boilers operate at a higher temperature level than warm water boilers, and are inherently less efficient, but high-efficiency variations of all types of heating systems and boilers are currently offered. Understanding the Performance Rating of Furnaces and Boilers A central heater or boiler's efficiency is measured by yearly fuel utilization performance (AFUE). The Federal Trade Commission requires new furnaces or boilers to display their AFUE so consumers can compare heating performances of numerous designs. AFUE is a measure of how effective the appliance remains in transforming the energy in its fuel to heat over the course of a normal year. Particularly, AFUE is the ratio of yearly heat output of the heating system or boiler compared to the overall yearly nonrenewable fuel source energy consumed by a heating system or boiler. An AFUE of 90% means that 90% of the energy in the fuel becomes heat for the house and the other 10% escapes up the chimney and in other places. AFUE does not consist of the heat losses of the duct system or piping, which can be as much as 35% of the energy for output of the heater when ducts are situated in the attic, garage, or other partially conditioned or unconditioned space. You can determine and compare a system's effectiveness by not just its AFUE but also by its devices features. Old, low-efficiency heating systems: - Natural draft that develops a flow of combustion gases - Continuous pilot light - Heavy heat exchanger - 56% to 70% AFUE. Mid-efficiency heater: - Exhaust fan controls the flow of combustion air and combustion gases more exactly - Electronic ignition (no pilot light). - Compact size and lighter weight to lower biking losses.

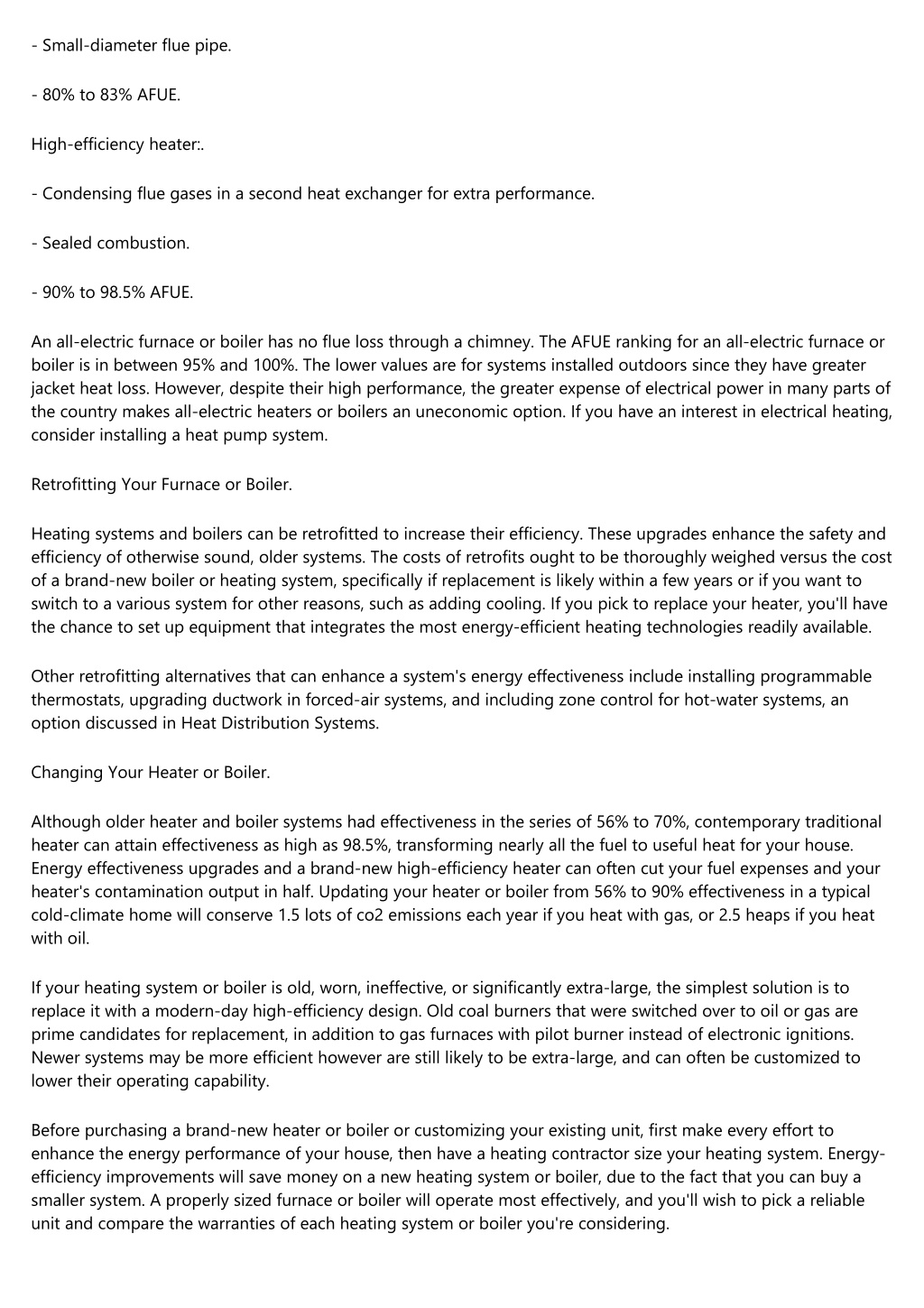

2. - Small-diameter flue pipe. - 80% to 83% AFUE. High-efficiency heater:. - Condensing flue gases in a second heat exchanger for extra performance. - Sealed combustion. - 90% to 98.5% AFUE. An all-electric furnace or boiler has no flue loss through a chimney. The AFUE ranking for an all-electric furnace or boiler is in between 95% and 100%. The lower values are for systems installed outdoors since they have greater jacket heat loss. However, despite their high performance, the greater expense of electrical power in many parts of the country makes all-electric heaters or boilers an uneconomic option. If you have an interest in electrical heating, consider installing a heat pump system. Retrofitting Your Furnace or Boiler. Heating systems and boilers can be retrofitted to increase their efficiency. These upgrades enhance the safety and efficiency of otherwise sound, older systems. The costs of retrofits ought to be thoroughly weighed versus the cost of a brand-new boiler or heating system, specifically if replacement is likely within a few years or if you want to switch to a various system for other reasons, such as adding cooling. If you pick to replace your heater, you'll have the chance to set up equipment that integrates the most energy-efficient heating technologies readily available. Other retrofitting alternatives that can enhance a system's energy effectiveness include installing programmable thermostats, upgrading ductwork in forced-air systems, and including zone control for hot-water systems, an option discussed in Heat Distribution Systems. Changing Your Heater or Boiler. Although older heater and boiler systems had effectiveness in the series of 56% to 70%, contemporary traditional heater can attain effectiveness as high as 98.5%, transforming nearly all the fuel to useful heat for your house. Energy effectiveness upgrades and a brand-new high-efficiency heater can often cut your fuel expenses and your heater's contamination output in half. Updating your heater or boiler from 56% to 90% effectiveness in a typical cold-climate home will conserve 1.5 lots of co2 emissions each year if you heat with gas, or 2.5 heaps if you heat with oil. If your heating system or boiler is old, worn, ineffective, or significantly extra-large, the simplest solution is to replace it with a modern-day high-efficiency design. Old coal burners that were switched over to oil or gas are prime candidates for replacement, in addition to gas furnaces with pilot burner instead of electronic ignitions. Newer systems may be more efficient however are still likely to be extra-large, and can often be customized to lower their operating capability. Before purchasing a brand-new heater or boiler or customizing your existing unit, first make every effort to enhance the energy performance of your house, then have a heating contractor size your heating system. Energy- efficiency improvements will save money on a new heating system or boiler, due to the fact that you can buy a smaller system. A properly sized furnace or boiler will operate most effectively, and you'll wish to pick a reliable unit and compare the warranties of each heating system or boiler you're considering.

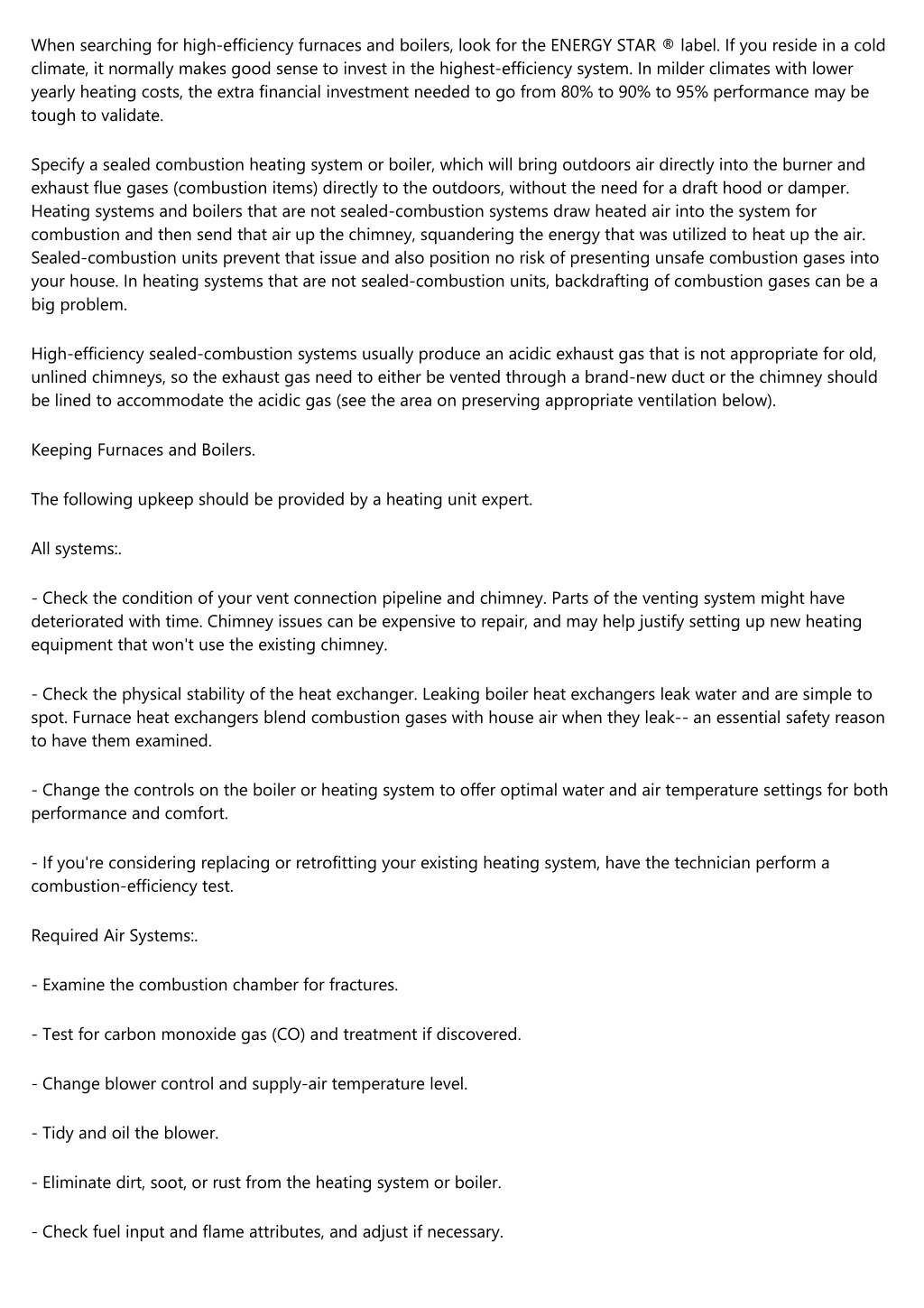

3. When searching for high-efficiency furnaces and boilers, look for the ENERGY STAR ® label. If you reside in a cold climate, it normally makes good sense to invest in the highest-efficiency system. In milder climates with lower yearly heating costs, the extra financial investment needed to go from 80% to 90% to 95% performance may be tough to validate. Specify a sealed combustion heating system or boiler, which will bring outdoors air directly into the burner and exhaust flue gases (combustion items) directly to the outdoors, without the need for a draft hood or damper. Heating systems and boilers that are not sealed-combustion systems draw heated air into the system for combustion and then send that air up the chimney, squandering the energy that was utilized to heat up the air. Sealed-combustion units prevent that issue and also position no risk of presenting unsafe combustion gases into your house. In heating systems that are not sealed-combustion units, backdrafting of combustion gases can be a big problem. High-efficiency sealed-combustion systems usually produce an acidic exhaust gas that is not appropriate for old, unlined chimneys, so the exhaust gas need to either be vented through a brand-new duct or the chimney should be lined to accommodate the acidic gas (see the area on preserving appropriate ventilation below). Keeping Furnaces and Boilers. The following upkeep should be provided by a heating unit expert. All systems:. - Check the condition of your vent connection pipeline and chimney. Parts of the venting system might have deteriorated with time. Chimney issues can be expensive to repair, and may help justify setting up new heating equipment that won't use the existing chimney. - Check the physical stability of the heat exchanger. Leaking boiler heat exchangers leak water and are simple to spot. Furnace heat exchangers blend combustion gases with house air when they leak-- an essential safety reason to have them examined. - Change the controls on the boiler or heating system to offer optimal water and air temperature settings for both performance and comfort. - If you're considering replacing or retrofitting your existing heating system, have the technician perform a combustion-efficiency test. Required Air Systems:. - Examine the combustion chamber for fractures. - Test for carbon monoxide gas (CO) and treatment if discovered. - Change blower control and supply-air temperature level. - Tidy and oil the blower. - Eliminate dirt, soot, or rust from the heating system or boiler. - Check fuel input and flame attributes, and adjust if necessary.

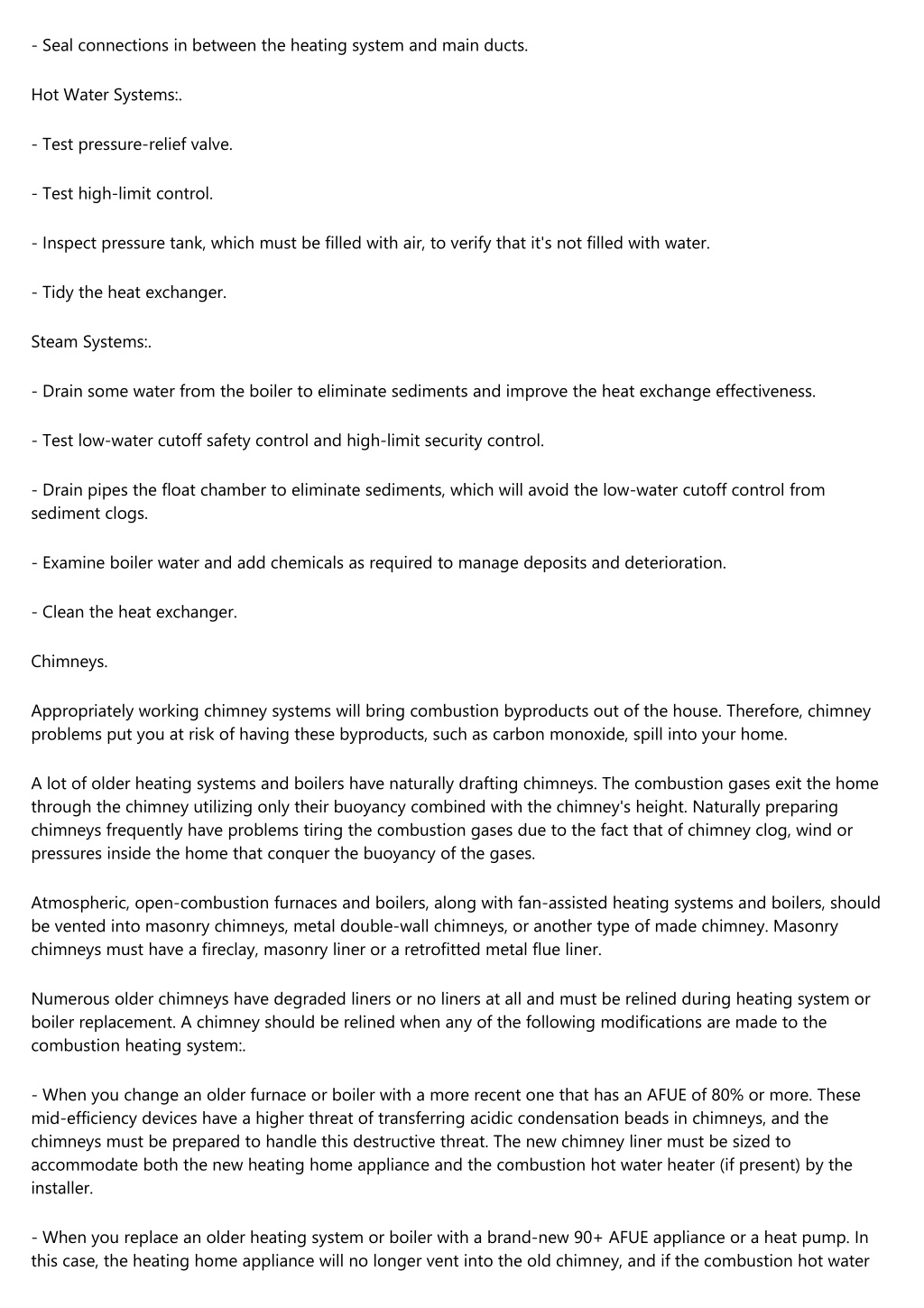

4. - Seal connections in between the heating system and main ducts. Hot Water Systems:. - Test pressure-relief valve. - Test high-limit control. - Inspect pressure tank, which must be filled with air, to verify that it's not filled with water. - Tidy the heat exchanger. Steam Systems:. - Drain some water from the boiler to eliminate sediments and improve the heat exchange effectiveness. - Test low-water cutoff safety control and high-limit security control. - Drain pipes the float chamber to eliminate sediments, which will avoid the low-water cutoff control from sediment clogs. - Examine boiler water and add chemicals as required to manage deposits and deterioration. - Clean the heat exchanger. Chimneys. Appropriately working chimney systems will bring combustion byproducts out of the house. Therefore, chimney problems put you at risk of having these byproducts, such as carbon monoxide, spill into your home. A lot of older heating systems and boilers have naturally drafting chimneys. The combustion gases exit the home through the chimney utilizing only their buoyancy combined with the chimney's height. Naturally preparing chimneys frequently have problems tiring the combustion gases due to the fact that of chimney clog, wind or pressures inside the home that conquer the buoyancy of the gases. Atmospheric, open-combustion furnaces and boilers, along with fan-assisted heating systems and boilers, should be vented into masonry chimneys, metal double-wall chimneys, or another type of made chimney. Masonry chimneys must have a fireclay, masonry liner or a retrofitted metal flue liner. Numerous older chimneys have degraded liners or no liners at all and must be relined during heating system or boiler replacement. A chimney should be relined when any of the following modifications are made to the combustion heating system:. - When you change an older furnace or boiler with a more recent one that has an AFUE of 80% or more. These mid-efficiency devices have a higher threat of transferring acidic condensation beads in chimneys, and the chimneys must be prepared to handle this destructive threat. The new chimney liner must be sized to accommodate both the new heating home appliance and the combustion hot water heater (if present) by the installer. - When you replace an older heating system or boiler with a brand-new 90+ AFUE appliance or a heat pump. In this case, the heating home appliance will no longer vent into the old chimney, and if the combustion hot water

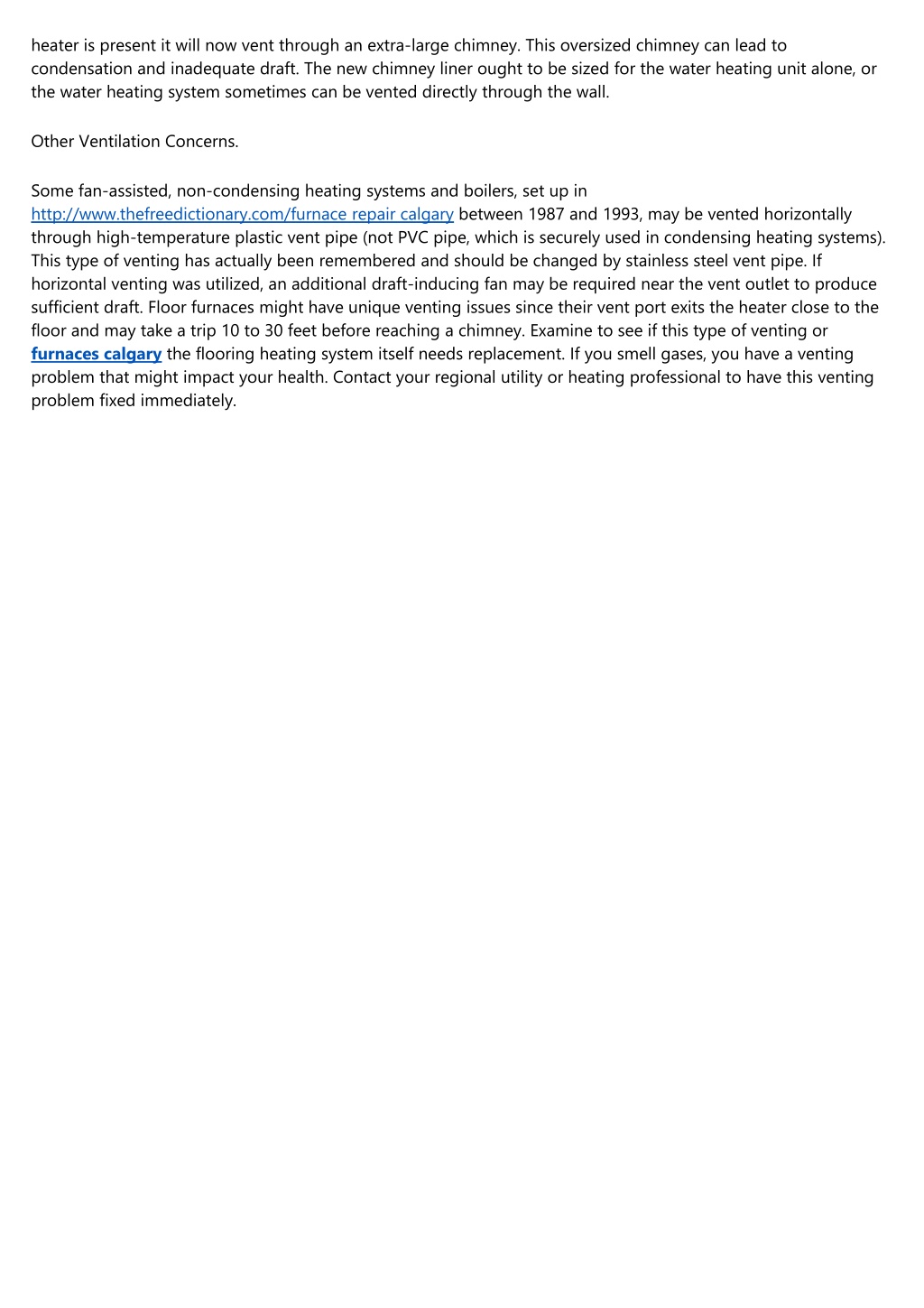

5. heater is present it will now vent through an extra-large chimney. This oversized chimney can lead to condensation and inadequate draft. The new chimney liner ought to be sized for the water heating unit alone, or the water heating system sometimes can be vented directly through the wall. Other Ventilation Concerns. Some fan-assisted, non-condensing heating systems and boilers, set up in http://www.thefreedictionary.com/furnace repair calgary between 1987 and 1993, may be vented horizontally through high-temperature plastic vent pipe (not PVC pipe, which is securely used in condensing heating systems). This type of venting has actually been remembered and should be changed by stainless steel vent pipe. If horizontal venting was utilized, an additional draft-inducing fan may be required near the vent outlet to produce sufficient draft. Floor furnaces might have unique venting issues since their vent port exits the heater close to the floor and may take a trip 10 to 30 feet before reaching a chimney. Examine to see if this type of venting or furnaces calgary the flooring heating system itself needs replacement. If you smell gases, you have a venting problem that might impact your health. Contact your regional utility or heating professional to have this venting problem fixed immediately.
