  1. SOLENOID DRIVEN CHEMICAL DOSING PUMP WWW.WRSDOSING.COM

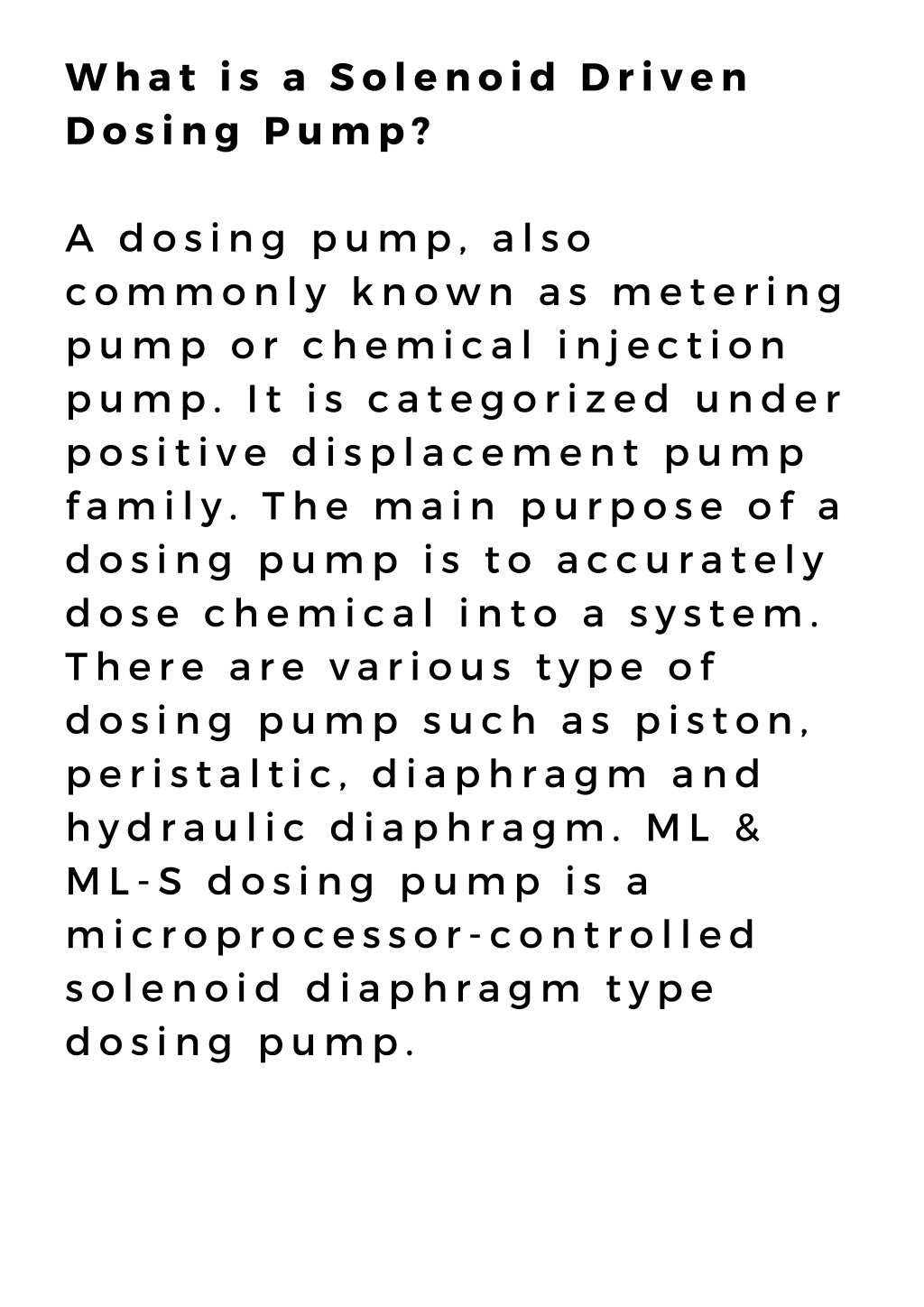

  2. What is a Solenoid Driven Dosing Pump? A dosing pump, also commonly known as metering pump or chemical injection pump. It is categorized under positive displacement pump family. The main purpose of a dosing pump is to accurately dose chemical into a system. There are various type of dosing pump such as piston, peristaltic, diaphragm and hydraulic diaphragm. ML & ML-S dosing pump is a microprocessor-controlled solenoid diaphragm type dosing pump.

  3. How does it work? Solenoid metering pump is the use of electromagnetic push rod driven diaphragm in the pump head reciprocating movement, causing the pump head chamber volume and pressure changes. Changes in pressure caused by suction valve and discharge valve opening and closing, to achieve quantitative liquid suction and discharge. A magnet moves the solenoid shaft forwards and backwards by switching on and off. This stroke movement is transferred to the diaphragm in the dosing head.

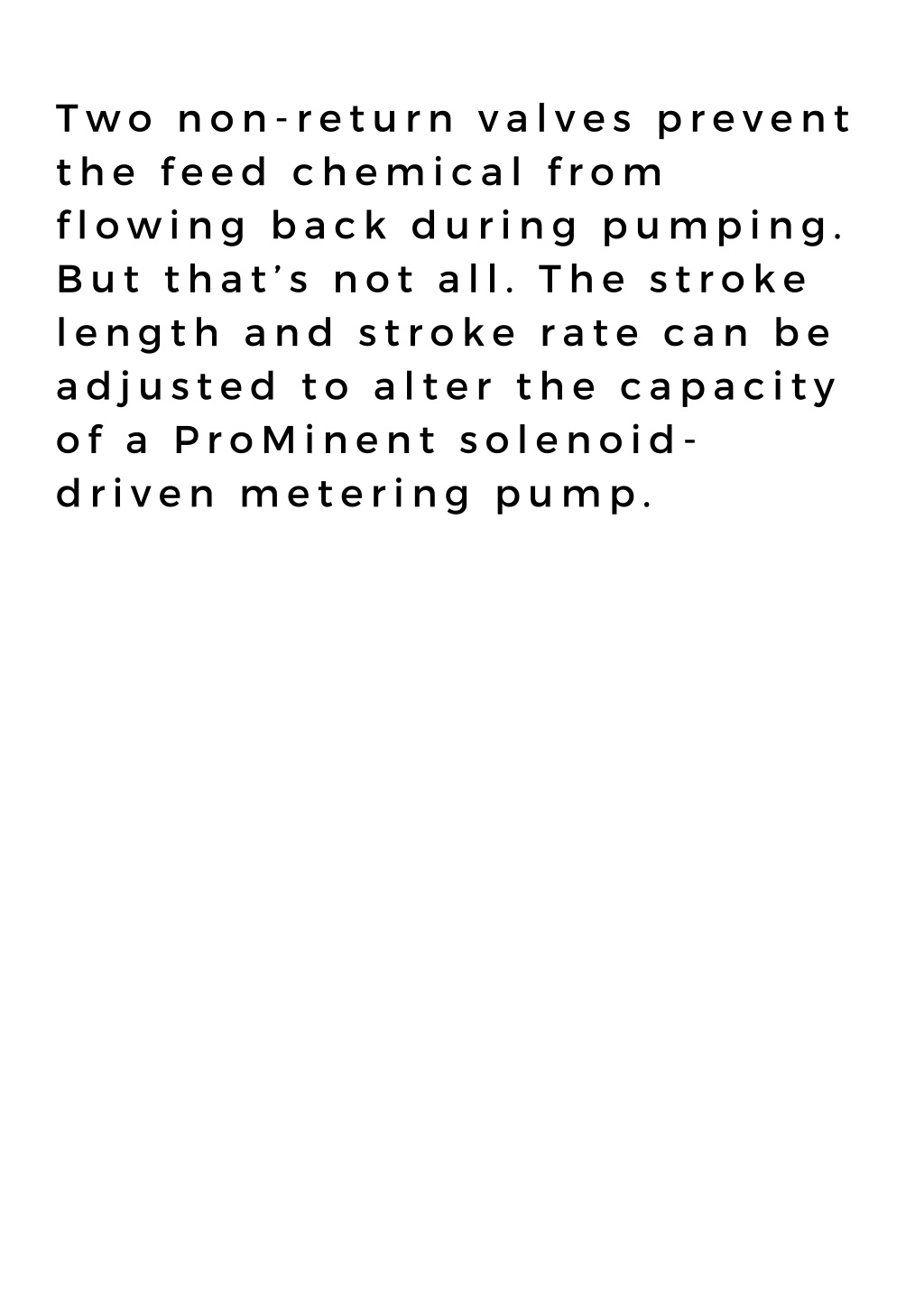

  4. Two non-return valves prevent the feed chemical from flowing back during pumping. But that’s not all. The stroke length and stroke rate can be adjusted to alter the capacity of a ProMinent solenoid- driven metering pump.

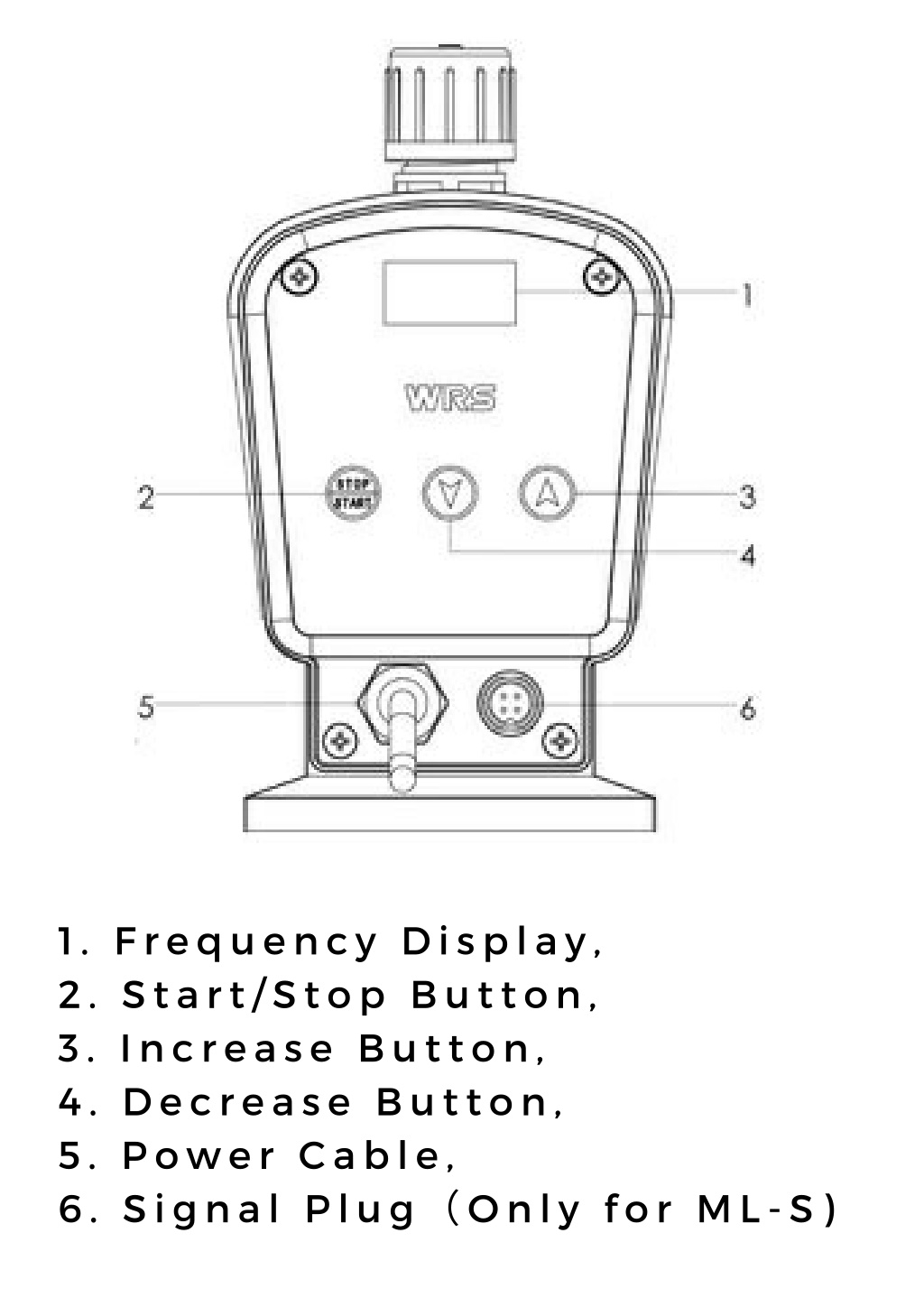

  5. 1. Frequency Display, 2. Start/Stop Button, 3. Increase Button, 4. Decrease Button, 5. Power Cable, 6. Signal Plug（Only for ML-S)

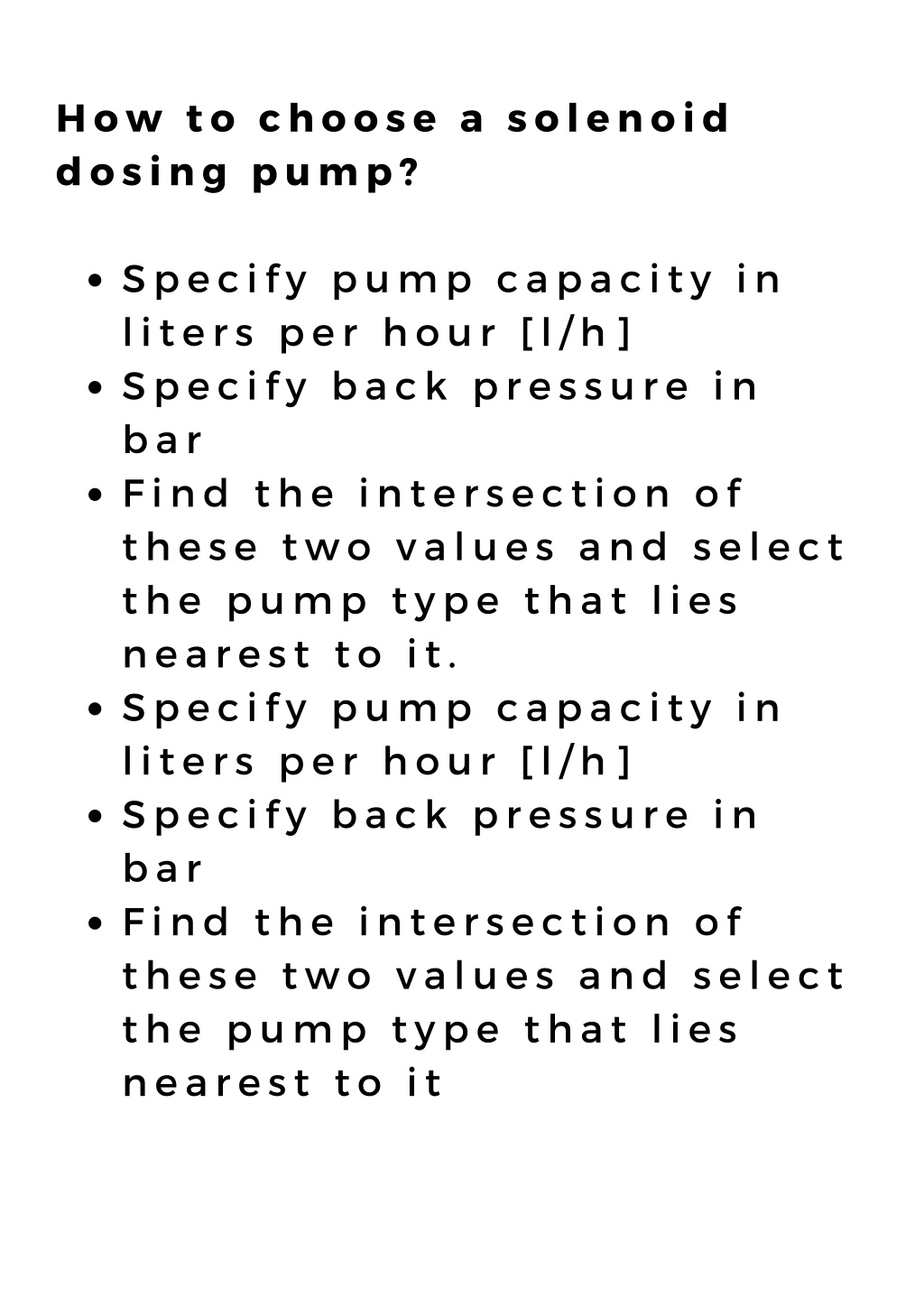

  6. How to choose a solenoid dosing pump? Specify pump capacity in liters per hour [l/h] Specify back pressure in bar Find the intersection of these two values and select the pump type that lies nearest to it. Specify pump capacity in liters per hour [l/h] Specify back pressure in bar Find the intersection of these two values and select the pump type that lies nearest to it

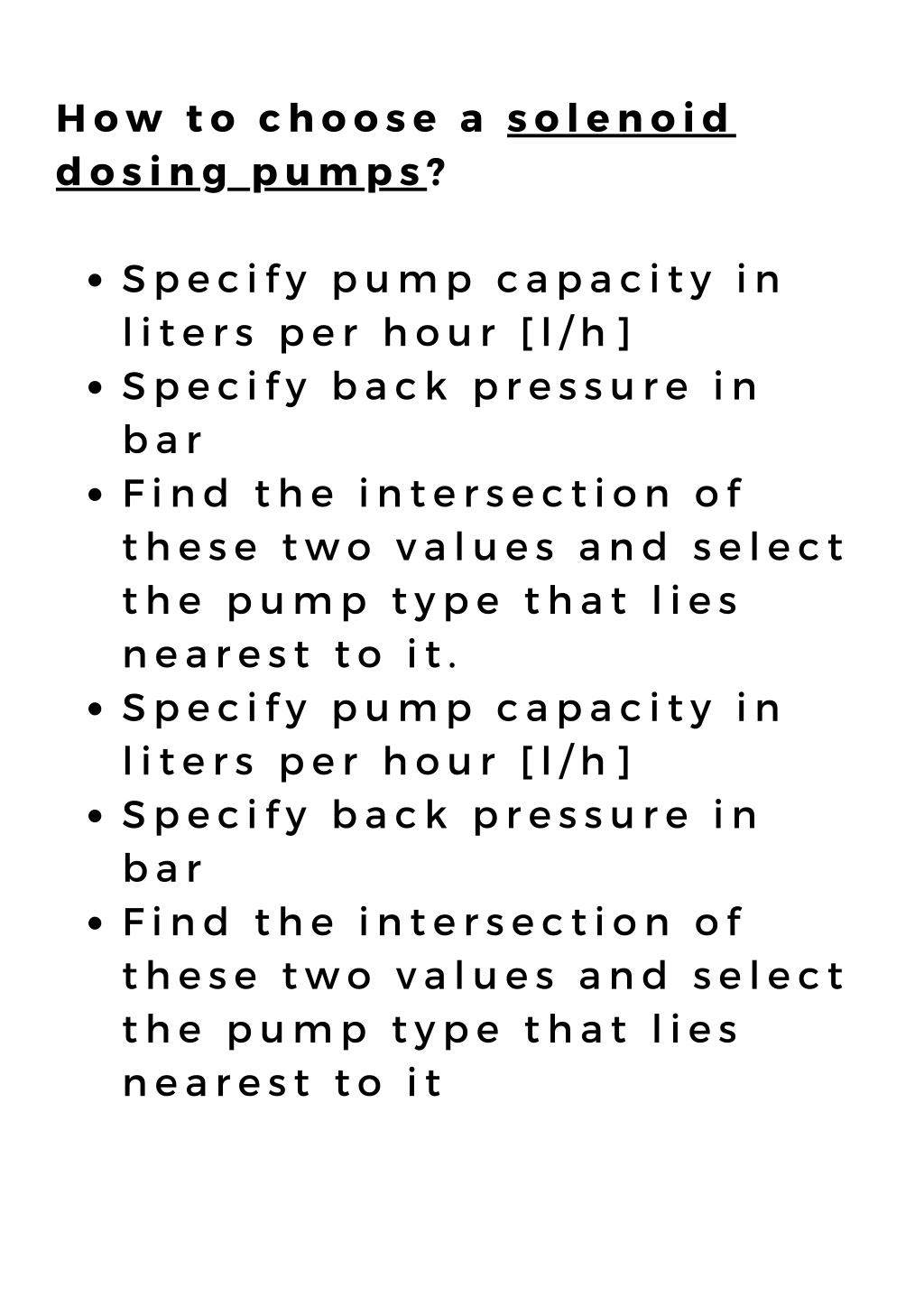

  7. How to choose a solenoid dosing pumps? Specify pump capacity in liters per hour [l/h] Specify back pressure in bar Find the intersection of these two values and select the pump type that lies nearest to it. Specify pump capacity in liters per hour [l/h] Specify back pressure in bar Find the intersection of these two values and select the pump type that lies nearest to it

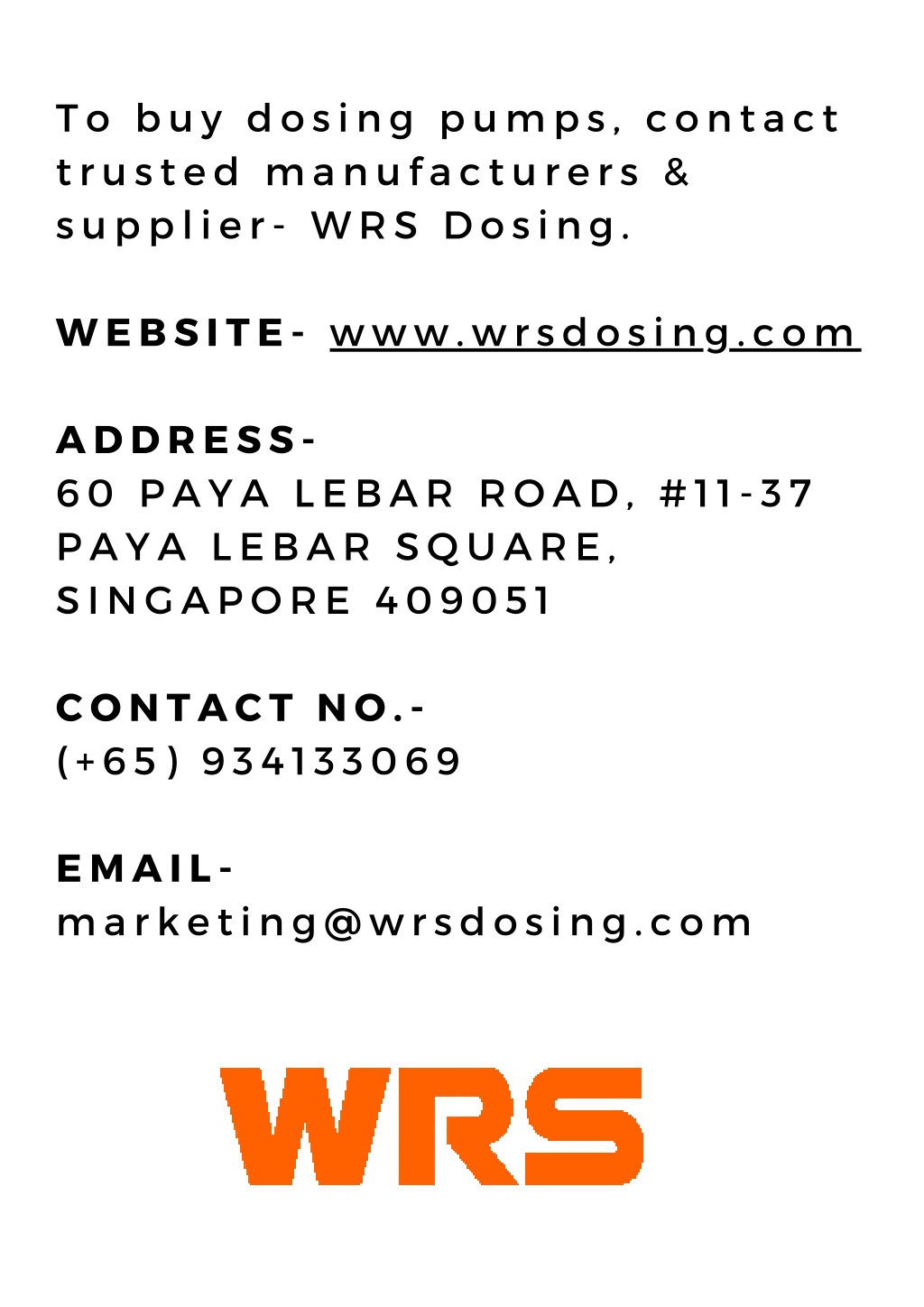

  8. To buy dosing pumps, contact trusted manufacturers & supplier- WRS Dosing. WEBSITE- www.wrsdosing.com ADDRESS- 60 PAYA LEBAR ROAD, #11-37 PAYA LEBAR SQUARE, SINGAPORE 409051 CONTACT NO.- (+65) 934133069 EMAIL- marketing@wrsdosing.com
