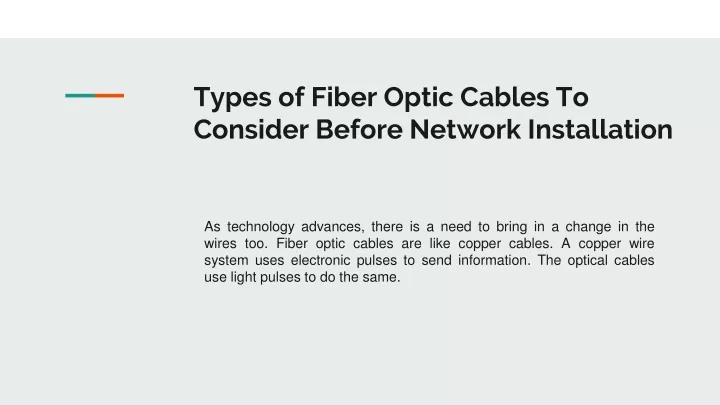

  1. Types of Fiber Optic Cables To Consider Before Network Installation As technology advances, there is a need to bring in a change in the wires too. Fiber optic cables are like copper cables. A copper wire system uses electronic pulses to send information. The optical cables use light pulses to do the same.

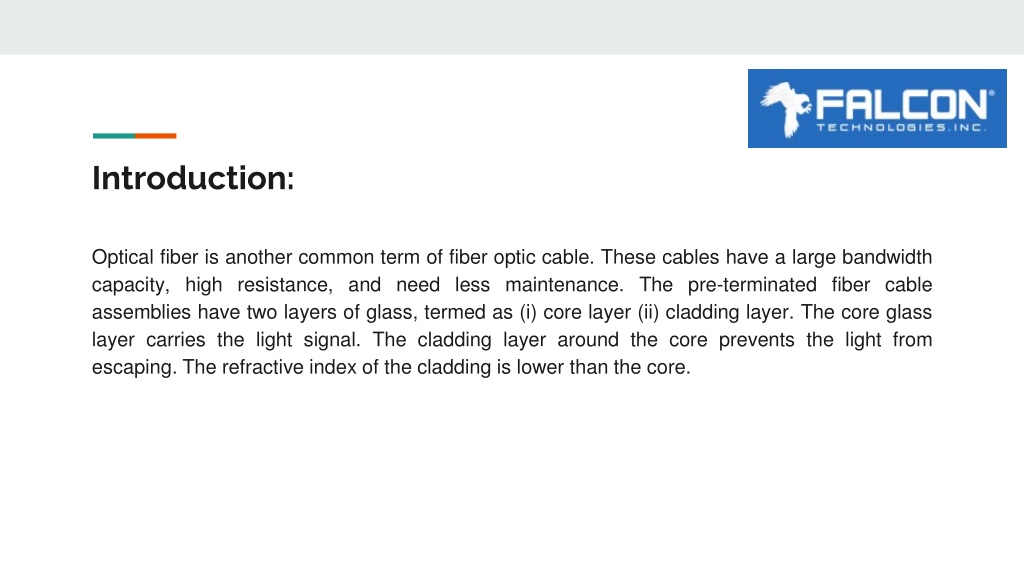

  2. Introduction: Optical fiber is another common term of fiber optic cable. These cables have a large bandwidth capacity, high resistance, and need less maintenance. The pre-terminated fiber cable assemblies have two layers of glass, termed as (i) core layer (ii) cladding layer. The core glass layer carries the light signal. The cladding layer around the core prevents the light from escaping. The refractive index of the cladding is lower than the core.

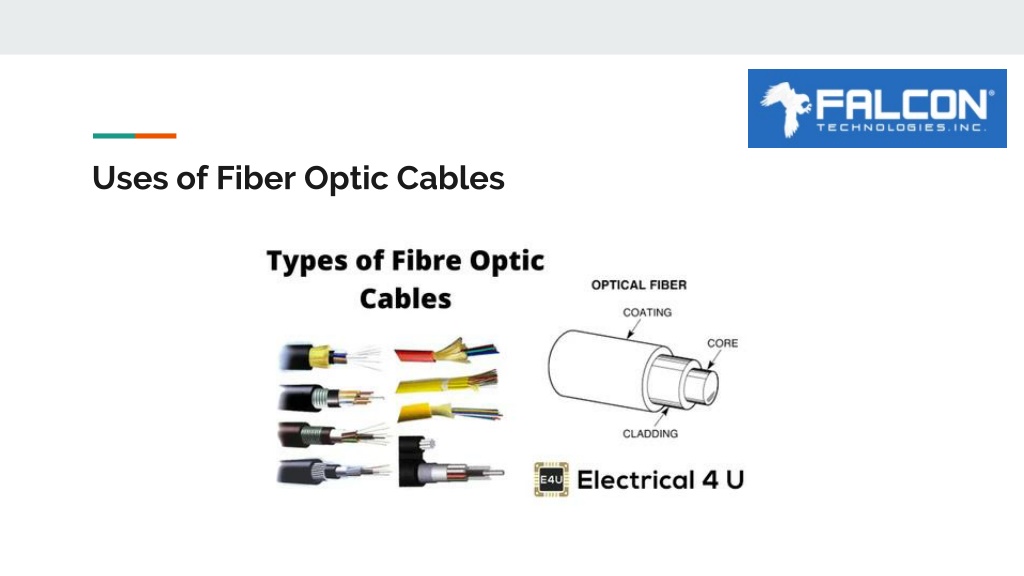

  3. Uses of Fiber Optic Cables

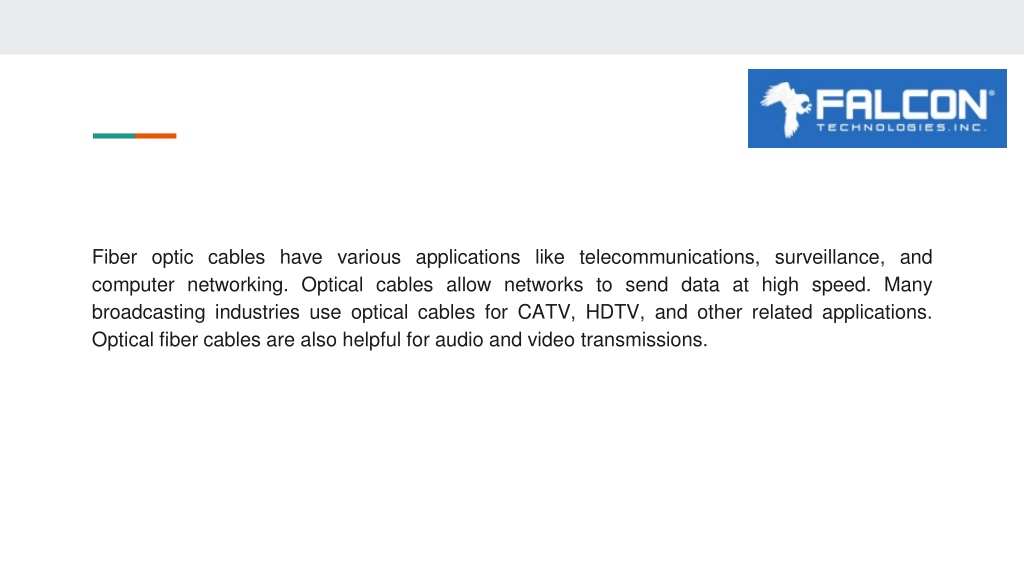

  4. Fiber optic cables have various applications like telecommunications, surveillance, and computer networking. Optical cables allow networks to send data at high speed. Many broadcasting industries use optical cables for CATV, HDTV, and other related applications. Optical fiber cables are also helpful for audio and video transmissions.

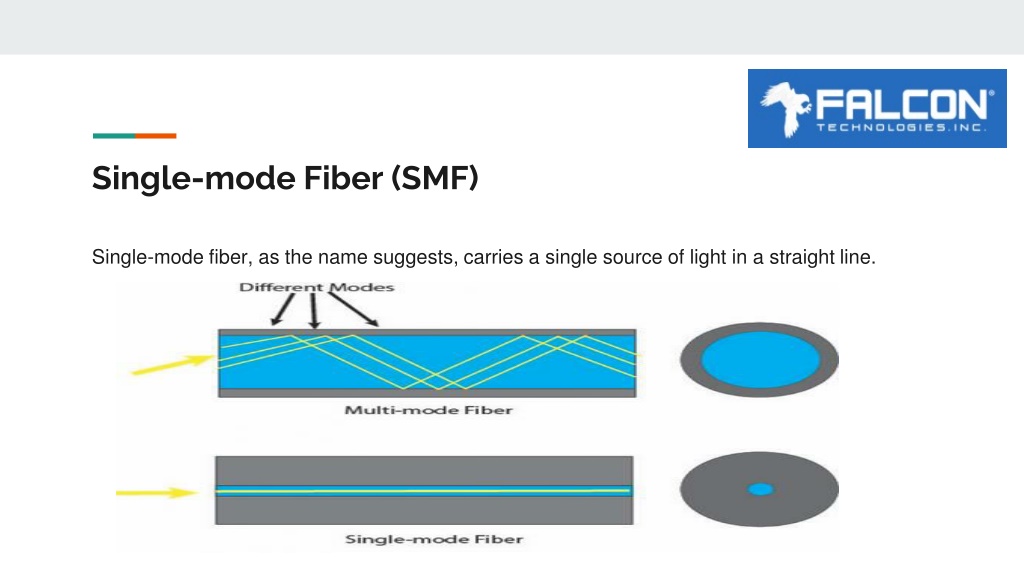

  5. Single-mode Fiber (SMF) Single-mode fiber, as the name suggests, carries a single source of light in a straight line.

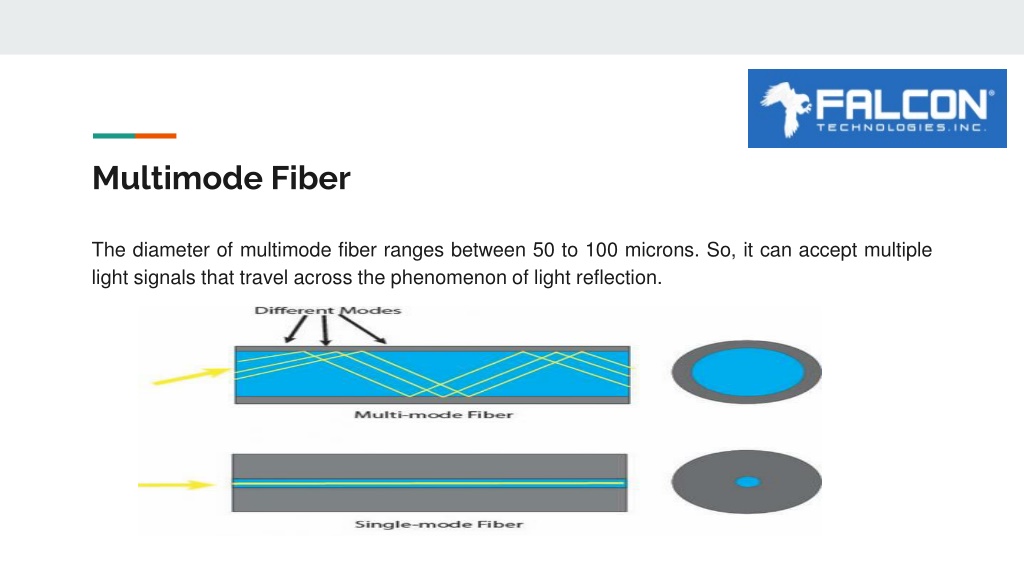

  6. Multimode Fiber The diameter of multimode fiber ranges between 50 to 100 microns. So, it can accept multiple light signals that travel across the phenomenon of light reflection.

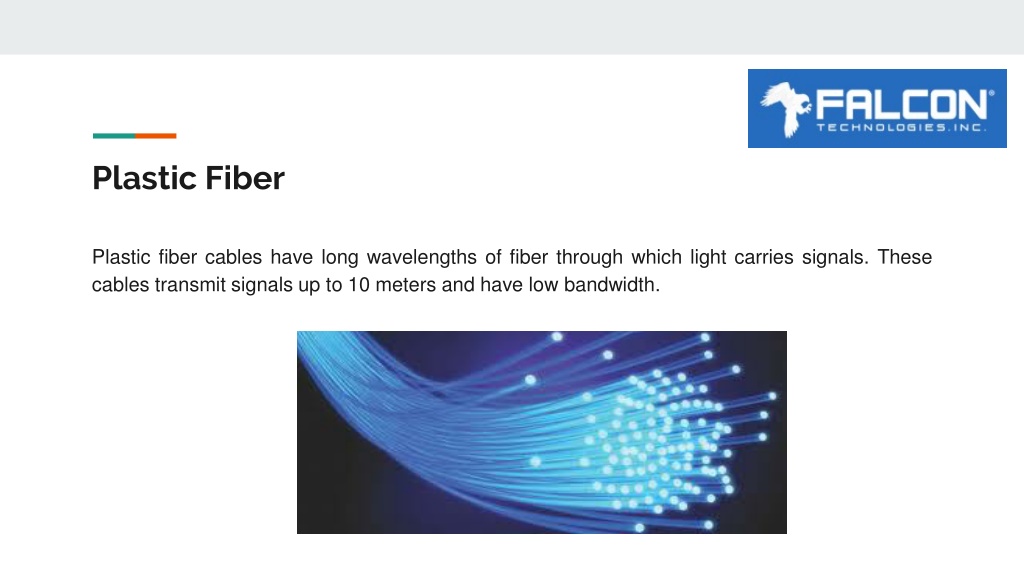

  7. Plastic Fiber Plastic fiber cables have long wavelengths of fiber through which light carries signals. These cables transmit signals up to 10 meters and have low bandwidth.

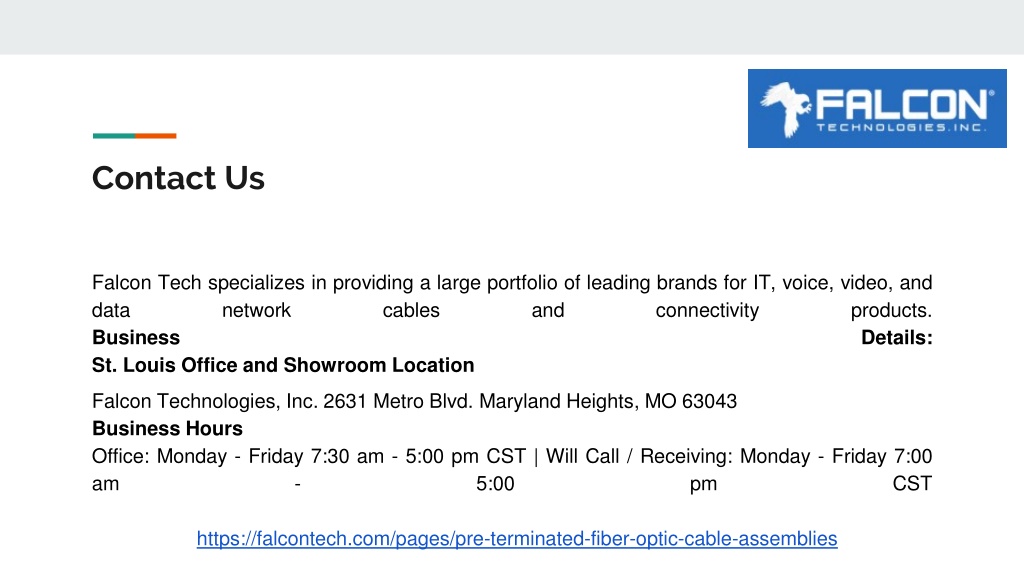

  8. Contact Us Falcon Tech specializes in providing a large portfolio of leading brands for IT, voice, video, and data network cables and connectivity products.Business Details:St. Louis Office and Showroom Location Falcon Technologies, Inc. 2631 Metro Blvd. Maryland Heights, MO 63043 Business Hours Office: Monday - Friday 7:30 am - 5:00 pm CST | Will Call / Receiving: Monday - Friday 7:00 am - 5:00 pm CSThttps://falcontech.com/pages/pre-terminated-fiber-optic-cable-assemblies
