  1. Single-Mode vs. Multimode Fiber Optic Cable: What’s the Difference? Setting up the network infrastructure is a game of choice. You have a plethora of options when it comes to selecting the different materials in a network.

  2. Introduction • copper wire cables for durability and cost-effective solutions • fiber optic cables for long-distance transmission and greater bandwidth. There is further bifurcation available in fiber optic types: • Single Mode Fiber Optic Cable • Multimode Fiber Optic Cable One point of difference lies in appearance, but there exist more. Choosing a suitable cable is vital as it has implications on the bandwidth, budget, and information travel distance. Hence it is essential to understanding the differences between both.

  3. What are Single-mode & Multimode Fiber Optic By functionality, both operate by reflecting light many times inside a glass core. Yet, the main difference between both of them lies in their construction. By definition, a single-mode fiber optic cable works by transmitting a single beam of focussed light over a large distance. In comparison, the multimode fiber optic cable can send many light sources at the same time within the same glass core.

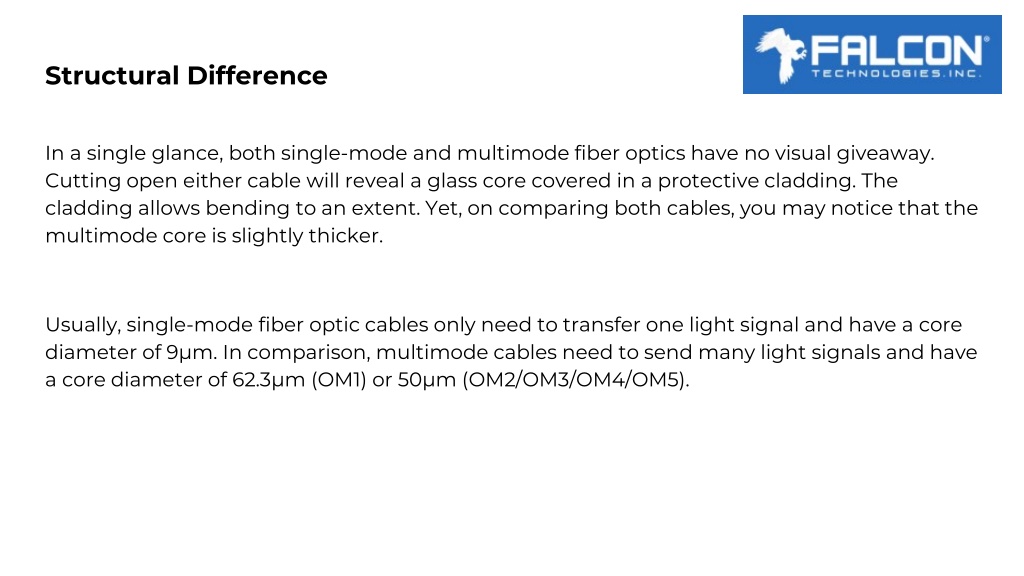

  4. Structural Difference In a single glance, both single-mode and multimode fiber optics have no visual giveaway. Cutting open either cable will reveal a glass core covered in a protective cladding. The cladding allows bending to an extent. Yet, on comparing both cables, you may notice that the multimode core is slightly thicker. Usually, single-mode fiber optic cables only need to transfer one light signal and have a core diameter of 9µm. In comparison, multimode cables need to send many light signals and have a core diameter of 62.3µm (OM1) or 50µm (OM2/OM3/OM4/OM5).

  5. Modal Dispersion

  6. Operation Mode You may have learned about two properties of light in your science classes: Multimode fiber optic operates as per the reflection property of the light. At the same time, a single-mode fiber optic cable transmits the light signal in a nearly straight path. Due to the constant reflection, the relative distance traveled by the multimode signals is less than the single-mode fiber signal. The signal loss from fiber bending is low in multimode fibers.

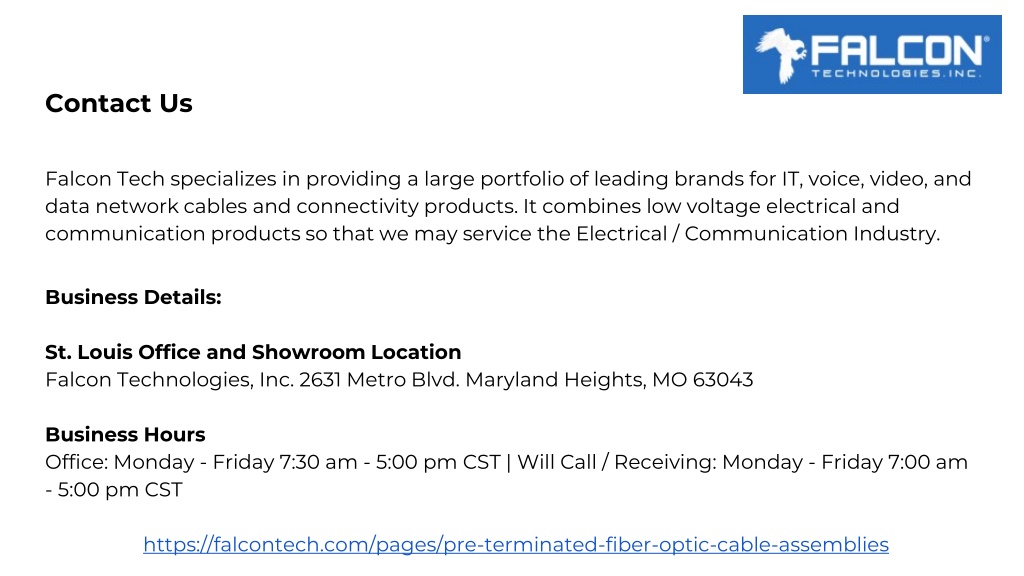

  7. Contact Us Falcon Tech specializes in providing a large portfolio of leading brands for IT, voice, video, and data network cables and connectivity products. It combines low voltage electrical and communication products so that we may service the Electrical / Communication Industry. Business Details:St. Louis Office and Showroom Location Falcon Technologies, Inc. 2631 Metro Blvd. Maryland Heights, MO 63043 Business Hours Office: Monday - Friday 7:30 am - 5:00 pm CST | Will Call / Receiving: Monday - Friday 7:00 am - 5:00 pm CSThttps://falcontech.com/pages/pre-terminated-fiber-optic-cable-assemblies
