  1. How To Pull the Pre-Terminated Fiber Optic Cable A Step by Step Guide

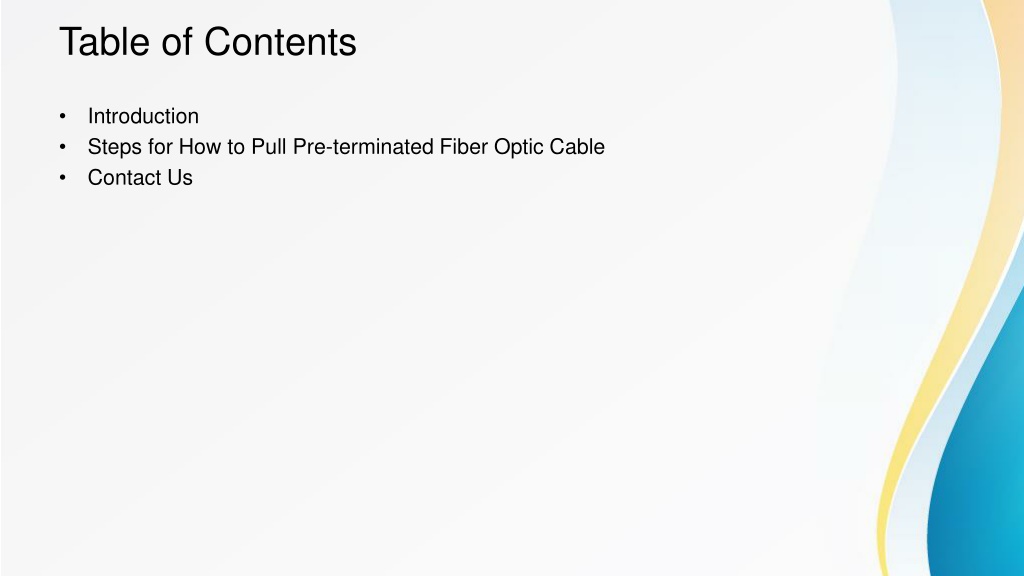

  2. Table of Contents

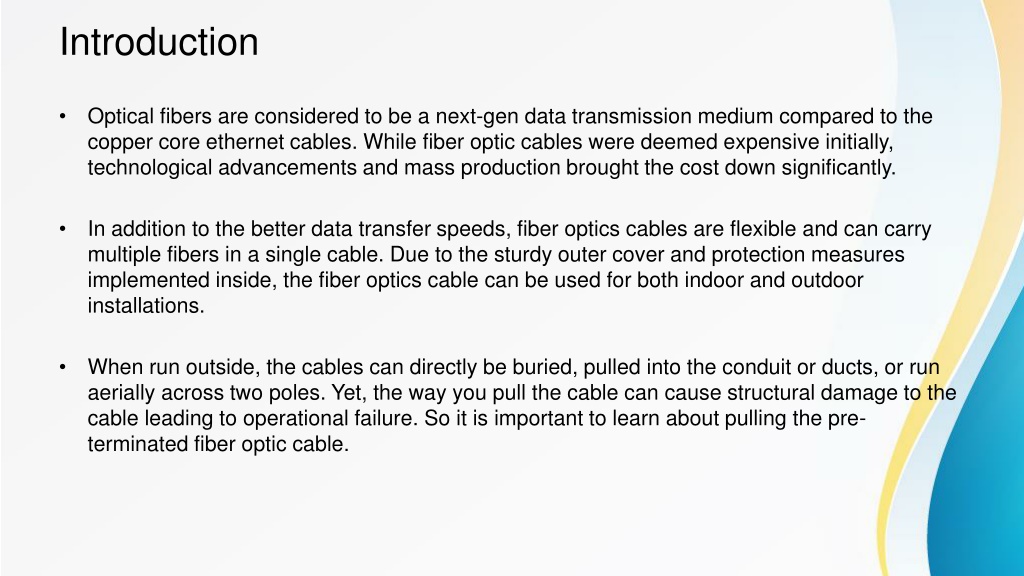

  3. Introduction

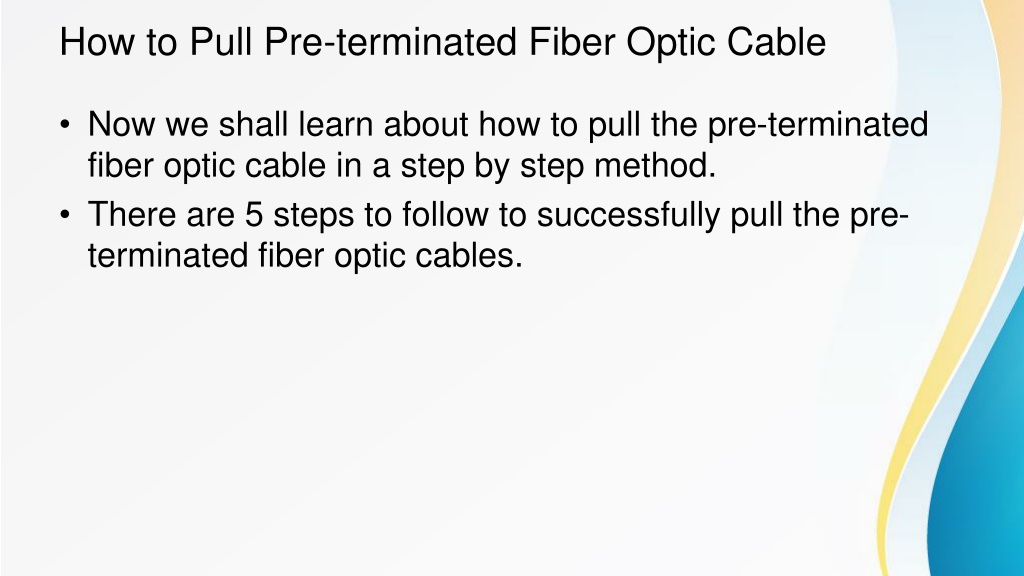

  4. How to Pull Pre-terminated Fiber Optic Cable

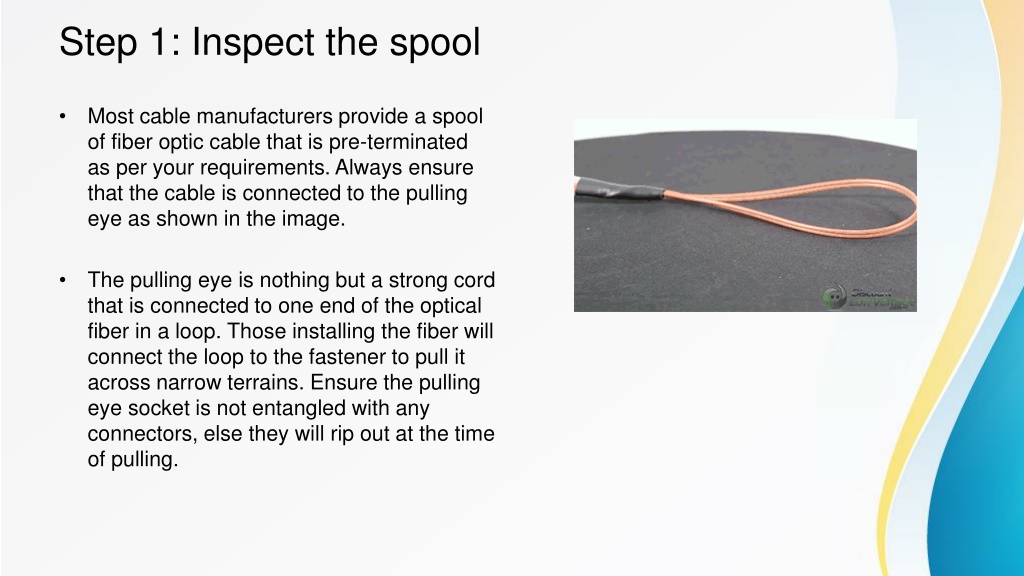

  5. Step 1: Inspect the spool • Most cable manufacturers provide a spool of fiber optic cable that is pre-terminated as per your requirements. Always ensure that the cable is connected to the pulling eye as shown in the image. • The pulling eye is nothing but a strong cord that is connected to one end of the optical fiber in a loop. Those installing the fiber will connect the loop to the fastener to pull it across narrow terrains. Ensure the pulling eye socket is not entangled with any connectors, else they will rip out at the time of pulling.

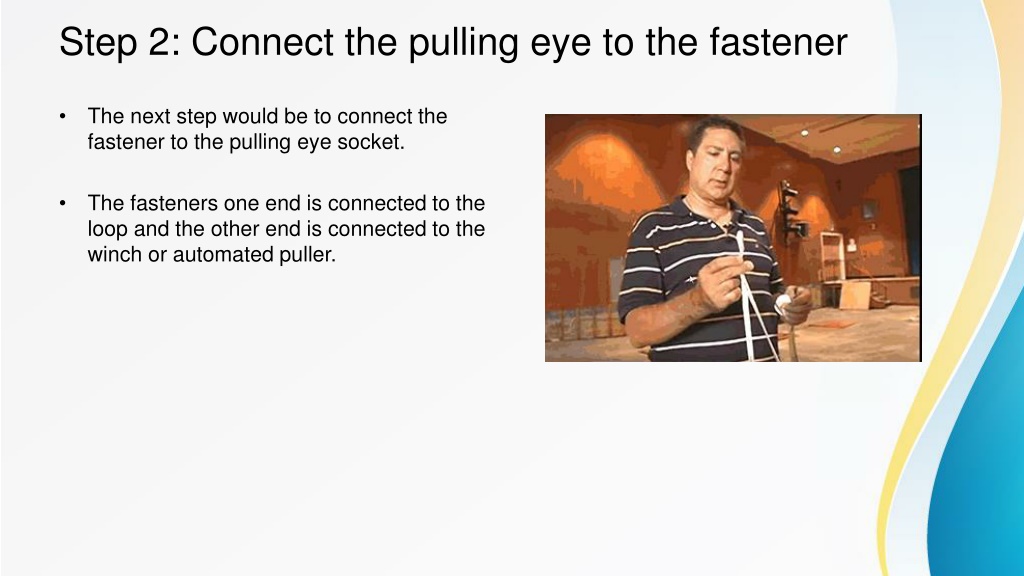

  6. Step 2: Connect the pulling eye to the fastener • The next step would be to connect the fastener to the pulling eye socket. • The fasteners one end is connected to the loop and the other end is connected to the winch or automated puller.

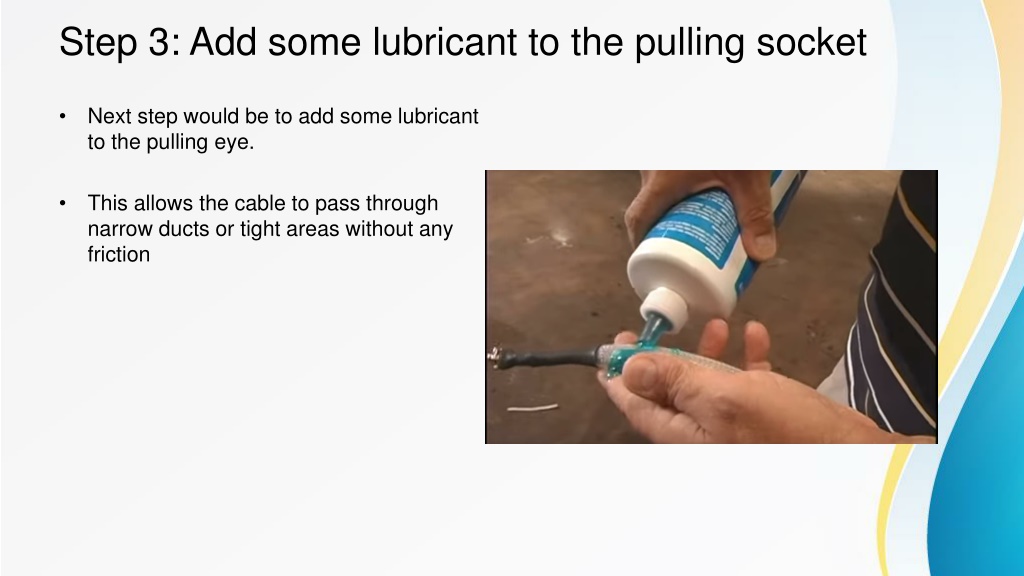

  7. Step 3: Add some lubricant to the pulling socket • Next step would be to add some lubricant to the pulling eye. • This allows the cable to pass through narrow ducts or tight areas without any friction

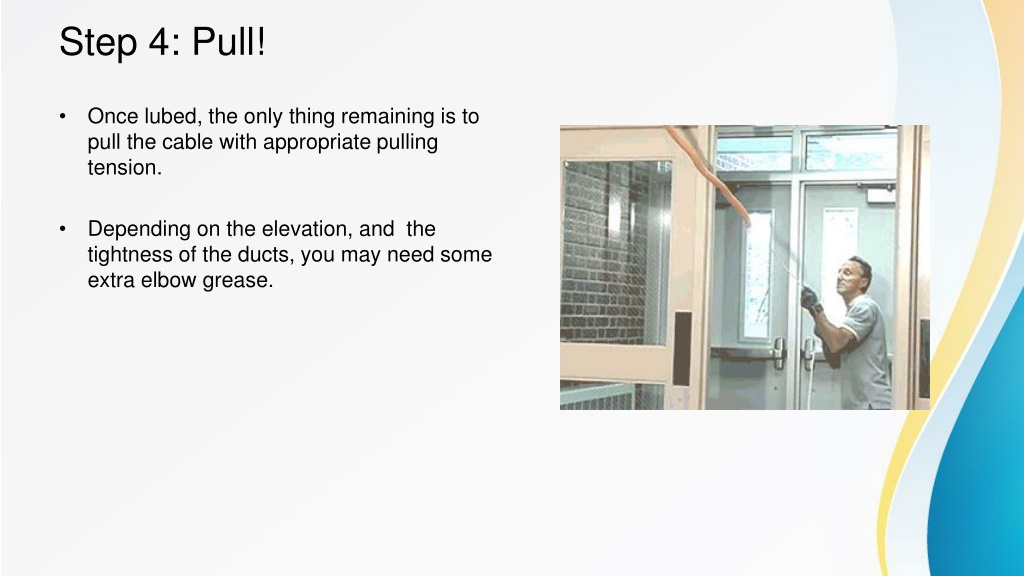

  8. Step 4: Pull! • Once lubed, the only thing remaining is to pull the cable with appropriate pulling tension. • Depending on the elevation, and the tightness of the ducts, you may need some extra elbow grease.

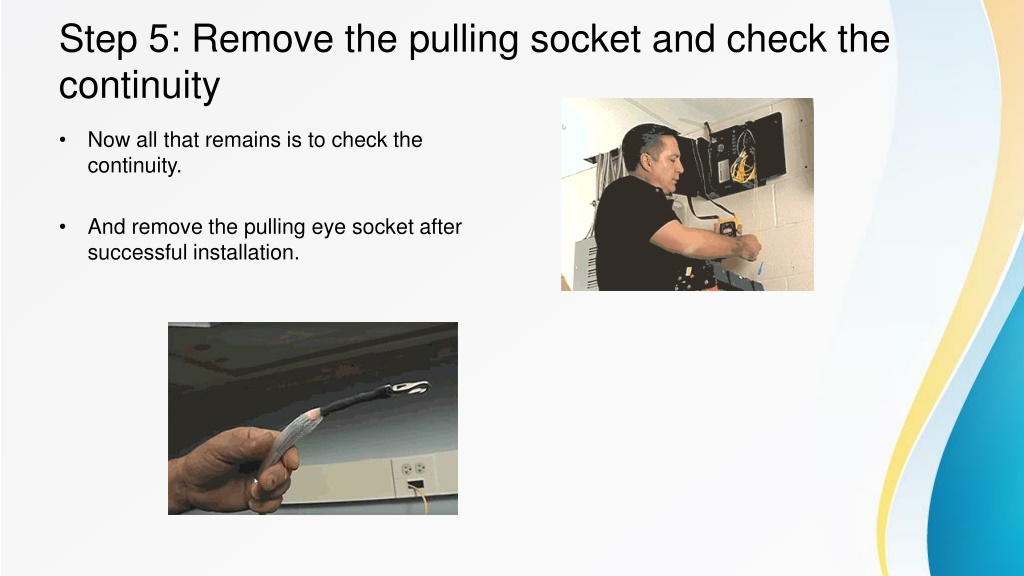

  9. Step 5: Remove the pulling socket and check the continuity • Now all that remains is to check the continuity. • And remove the pulling eye socket after successful installation.
