Presentation Transcript

Outline

- Developments in particle physics prior to the work on color.
- Discovery of color as a quantum number.
- Introduction of gauged SU(3) color.

Greenberg_Color

Particle physics prior to color

- The muon and pion had been discovered.
- Strange particles were found in cosmic rays.
- Lambda and Sigma hyperons.
- Kaon and antikaon, both charged and neutral.
- Xi, the cascade; the Omega minus.
- Tau-theta puzzle.

Greenberg_Color

Accelerators come online

- About 1½ V events per day in a bubble chamber on a medium-height mountain.
- Separated beams of ~106 K’s every 3 sec. at the AGS
- New problem: to avoid swamping the detectors.
- Major problem at the LHC.

Greenberg_Color

Paradox: copious production, slow decay.

- Attempt to understand using known dynamics
- Potential barriers, possibly connected with spin could inhibit decays—did not work.

Greenberg_Color

Paradox: copious production, slow decay, (continued).

- A. Pais, associated production.
- Strangeness is conserved for rapid production by strong and electromagnetic interactions
- Violated for slow decay by weak interactions.

Greenberg_Color

Gell-Mann, Nakano and Nishijima—displaced charge multiplets.

Nishijima, Gell-Mann formula, Q=I3+Y/2.

Weak interaction selection rules.

StrangenessGreenberg_Color

K-zero, K-zero bar complex

- K1, K2 with different decay modes, lifetimes.
- Particle mixing effects, regeneration.
- Beautiful illustration of superposition principle of quantum theory.

Greenberg_Color

Tau-theta puzzle, (continued)

- Dalitz analysis→different parities
- Parity was considered sacred
- The plot thickens
- The unexpected stimulates thought

Greenberg_Color

Tau-theta puzzle (continued)

- Suggestions by Lee and Yang
- Possible Interference Phenomena between Parity Doublets
- Question of Parity Conservation in Weak Interactions, 22 June 1956

Greenberg_Color

Tau-theta puzzle, (continued)

- Lee and Yang proposed parity doublets to explain this puzzle.
- Lee and Yang examined the data for conservation of parity, and found there was no evidence for parity conservation in weak interactions.
- Two solutions for one problem—can’t both be correct.

Greenberg_Color

Wigner’s comment

- Why should parity be violated before the rest of the Lorentz group?
- Why is that surprising?
- Discrete transformations are independent of the connected component of the Lorentz group.

Greenberg_Color

Parity violation was found earlier?

- Double scattering of beta decay electrons,

R.T. Cox, et al., PNAS 14, 544 (1928).

Redone with electrons from an electron gun with much higher statistics. No effect seen,

C.J. Davisson and L.H. Germer,

Phys. Rev. 33, 760 (1929).

Greenberg_Color

Wightman, Axiomatic Quantum Field Theory

- Asymptotic condition in quantum field theory—formalization of LSZ scattering theory.

Purely theoretical—no numbers, except to label pages and equations.

- Operator-valued distributions, relative mathematical rigor.

Greenberg_Color

Divergent influences

- Very simple ideas used to classify newly discovered particles.
- Sophisticated techniques based on quantum field theory.

Greenberg_Color

Interest in identical particles

- Why only bosons or fermions?
- Are there other possibilities?
- H.S. Green’s parastatistics (1953) as a generalization of each type.—
- Boson—paraboson, order p,
- Fermion—parafermion, order p;
- p=1 is Bose or Fermi.

Greenberg_Color

1962: Naples, Istanbul, SACLAY

- Axiomatic version of parastatistics with Dell’Antonio and Sudarshan in Naples.
- Presented at NATO summer school in Bebek, near Istanbul.
- Starting a collaboration with Messiah after giving a talk at SACLAY.

Greenberg_Color

Istanbul

- NATO summer school organized by Feza Gursey at the Robert College in Bebek
- Eduardo Caianiello, Sidney Coleman, David Fairlie, Shelly Glashow, Arthur Jaffe, Bruria Kauffman, Louis Michel, Giulio Racah, Eugene Wigner

Greenberg_Color

SACLAY with Messiah

- Albert Messiah, who fought with the Free French army of General Leclerc, was at SACLAY
- Entering SACLAY with guards on either side.

Greenberg_Color

Generalized statistics

- First quantized theory that allows all representations of the symmetric group.
- Theorems that show the generality of parastatistics—Green’s ansatz is not necessary.

Greenberg_Color

The crucial year, 1964

- Gell-Mann—”quarks”—current quarks.
- Zweig—”aces”—constituent quarks.
- Why only qqq and q-qbar?
- No reason in the original models.

Greenberg_Color

Background, Princeton, Fall 1964

- Relativistic SU(6), Gursey and Radicati
- Generalization of Wigner’s nonrelativistic nuclear physics idea to combine SU(2)I with SU(2)S to get an SU(4) to classify nuclear states.
- Gursey and Radicati combined SU(3)f with SU(2)S to get an SU(6) to classify particle states.

Greenberg_Color

SU(6) classifications

Greenberg_Color

Mesons

Greenberg_Color

Baryons

Greenberg_Color

Attempts to make a higher dimensional relativistic theory

- U(6,6)
- U(12)
- GL(12,C)
- Pais, Salam, et al, Freund, et al.
- Pais, Rev. Mod. Physics 38, 215 (1966).

Greenberg_Color

Previous calculations of magnetic moments

- Complicated calculations using pion clouds failed.
- Nobody even realized that the ratio was so simple.

Greenberg_Color

Significance of the magnetic moment calculation

- A simple one-line calculation gave the ratio accurate to 3%.
- Very convincing additional argument for the quark model.
- Quarks have concrete reality.

Greenberg_Color

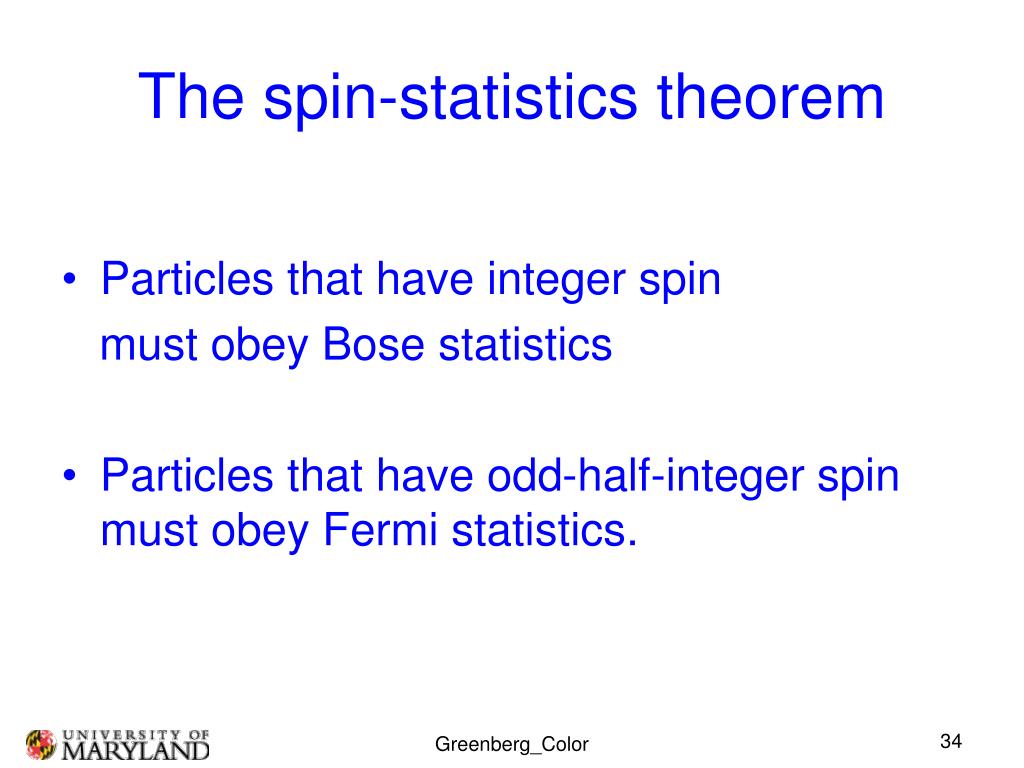

The spin-statistics theorem

- Particles that have integer spin

must obey Bose statistics

- Particles that have odd-half-integer spin must obey Fermi statistics.

Greenberg_Color

Generalized spin-statistics theorem

- Not part of general knowledge:
- Particles that have integer spin must obey parabose statistics and particles that have odd-half-integer spin must obey parafermi statistics.
- Each family is labeled by an integer p; p=1 is ordinary Bose or Fermi statistics.

Greenberg_Color

Parafermi quark model, 1964

- Suggested a model in which quarks carry order-3 parafermi statistics.
- This allows up to three quarks in the same space-spin-flavor state without violating the Pauli principle, so the statistics paradox is resolved.
- This leads to a model for baryons that is now accepted.

Greenberg_Color

Resolution of the statistics paradox

- Exhilarated—resolving the statistics problem seemed of lasting value.
- Not interested in higher relativistic groups; from O’Raifeartaigh’s and my own work I knew that combining internal and spacetime symmetries is difficult or impossible..

Greenberg_Color

No-go theorems

- Later work of Coleman and Mandula and of Haag, Lopuszanski and Sohnius showed that the only way to combine internal and spacetime symmetries in a larger group is supersymmetry.

Greenberg_Color

Baryon spectroscopy

- Hidden parafermi (color) degree of freedom takes care of the required antisymmetry of the Pauli principle.
- Quarks can be treated as Bosons in the visible space, spin and flavor degrees of freedom.

Greenberg_Color

Table of excited baryons

- Developed a simple bound state model with s and p state quarks in the 56, L=0 and 70, L=1 supermultiplets.

Greenberg_Color

Later developments of baryon spectroscopy

- OWG, Resnikoff
- Dalitz, and collaborators
- Isgur and Karl
- Riska and collaborators

Greenberg_Color

Gave Oppenheimer a preprint in Princeton

- Met him at a conference in Maryland
- “Greenberg, it’s beautiful!”

Greenberg_Color

Weinberg, ”The making of the standard model”

- ”At that time I did not have any faith in the existence of quarks.” (1967)

Greenberg_Color

Sources of skepticism

- Quarks had just been suggested.
- Fractional electric charges had never been seen.
- Gell-Mann himself was ambiguous.

Greenberg_Color

Gell-Mann’s comments

- ”It is fun to speculate …if they were physical particles of finite mass (instead of purely mathematical entities as they would be in the limit of infinite mass)….A search … would help to reassure us of the non-existence of real quarks.”

Greenberg_Color

Skepticism, continued

- Assuming a hidden degree of freedom on top of the fractionally charged unseen quarks seemed to stretch credibility to the breaking point.
- Some felt that parastatistics was inconsistent.

Greenberg_Color

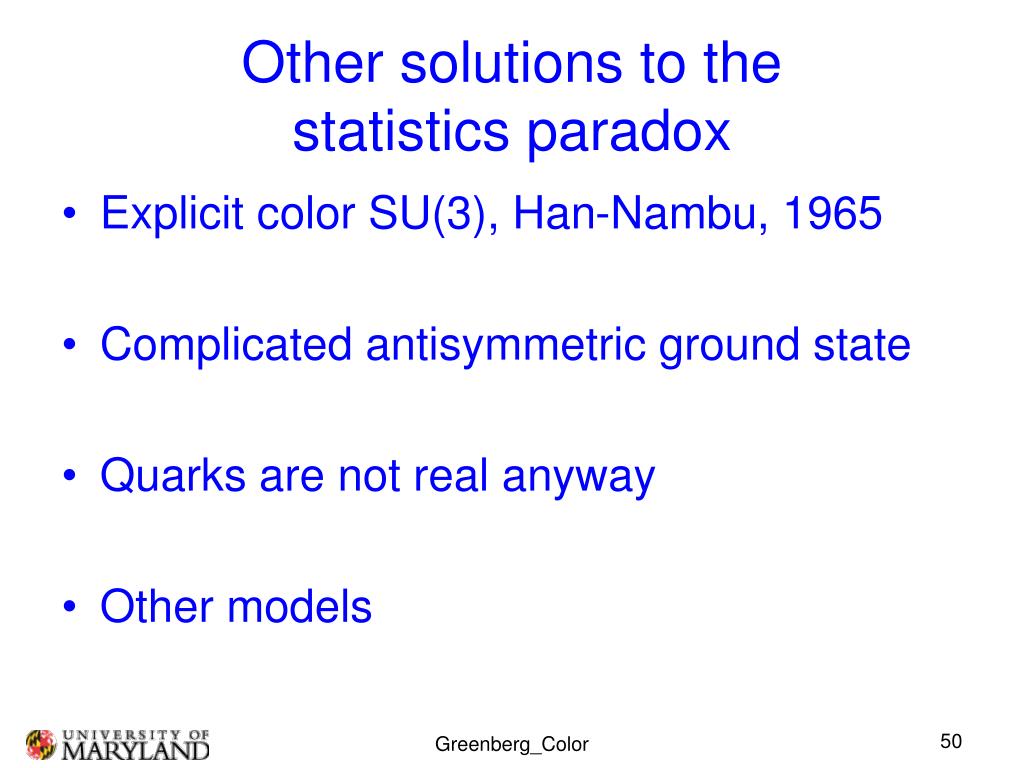

Other solutions to the statistics paradox

- Explicit color SU(3), Han-Nambu, 1965
- Complicated antisymmetric ground state
- Quarks are not real anyway
- Other models

Greenberg_Color

Other solutions

- Explicit color SU(3)—Han-Nambu, 1965;
- Used three dissimilar triplets in order to have integer charges.
- “Introduce now eight gauge vector fields which behave as (1,8), namely as an octet in SU(3)''.”

Greenberg_Color

Color & electromagnetism commute

- Identical fractional electric charges allow color & electromagnetism to commute.
- Allows color to be an exact, unbroken, symmetry.
- Crucial part of understanding of quantum chromodynamics, QCD.

Greenberg_Color

Attempt to avoid a new degree of freedom

- Dalitz preferred a complicated ground state that would avoid the statistics problem.
- As rapporteur Dalitz always put a model with Fermi quarks first.
- The first rapporteur who preferred the parastatistics model was Harari, Vienna, 1968.

Greenberg_Color

Arguments for a simple ground state

- General theorems lead to an s-wave ground state.
- The simplest antisymmetric polynomial in the quark coordinates is

Greenberg_Color

Arguments for a simple ground state (continued)

Then not clear what to choose for excited states.

- The polynomial

vanishes because the coordinates are linearly dependent.

Adding pairs leads to unseen “exploding SU(3) states” that are not seen.

Greenberg_Color

Arguments for a simple ground state (continued)

- Zeroes in the ground state wave function would lead to
- zeroes in the proton electric and magnetic form factors, which are not seen.

Greenberg_Color

If quarks are not “real?”

- If quarks are just mathematical constructs, then their statistics is irrelevant.

Greenberg_Color

Other models

- Baryonettes, in which 9 objects (baryonettes) compose a hadron.
- Many other models.

Greenberg_Color

Work with Zwanziger, 1966

- We surveyed existing models and constructed new models to account for saturation.
- The only models that worked were the parafermi model, order 3, and the equivalent three-triplet or color SU(3) models.

Greenberg_Color

Equivalence as a classification symmetry

States that are bosons or fermions in the parafermi model, order 3,

are in

one-to-one correspondence with the states that are color singlets in the SU(3) color model.

Greenberg_Color

Relations and differences between the models

Greenberg_Color

Properties that require gauge theory

- Confinement
- S. Weinberg, 1973
- D.J. Gross and F. Wilczek, 1973
- H. Fritzsch, M. Gell-Mann and H. Leutwyler, 1973

Greenberg_Color

Properties that require gauge theory (continued)

- Asymptotic freedom, Gross, Wilczek, 1973

Politzer, 1973

- Reconciles quasi-free quarks of the parton model with confined quarks of low-energy hadrons

Greenberg_Color

Properties that require gauge theory (continued)

- Running of coupling constants and precision tests of QCD.
- Jets in high-energy collisions.

Greenberg_Color

Two facets of strong interaction

- Color as a classification symmetry and a global quantum number
- parafermi model (1964)
- was the first introduction of color as a global quantum number.
- SU(3) color as a local gauge theory
- Han-Nambu model (1965) was the first introduction of gauged SU(3) color.

Greenberg_Color

Outstanding puzzles of the standard model

- The reason for three generations of quarks and leptons,
- Origin of quark masses and the CKM matrix,
- Does the Higgs exist, if not what replaces it?

Greenberg_Color

Conclusion

- I reviewed the discovery of color, one of the properties of the “standard model.”
- Not clear where the next advances will come from—simple physical ideas or deep mathematically motivated concepts. Time, and new experimental data, will tell.

Greenberg_Color
