Presentation Transcript

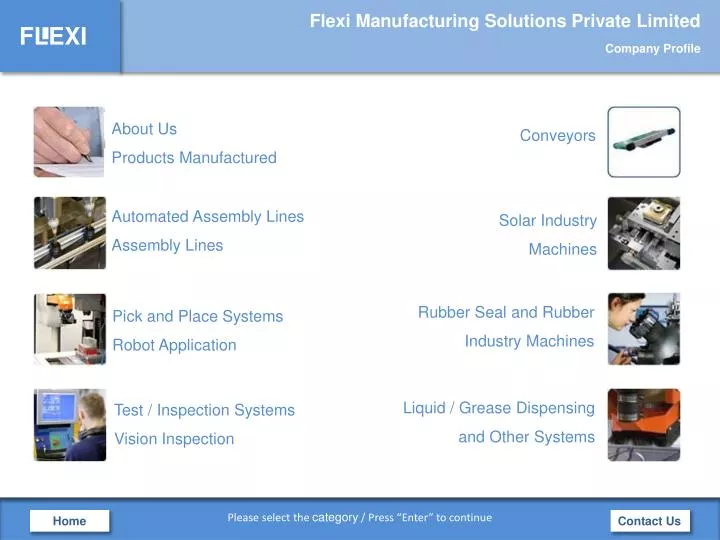

slide1

About Us

Products Manufactured

Conveyors

Automated Assembly Lines

Assembly Lines

Solar Industry Machines

Rubber Seal and Rubber Industry Machines

Pick and Place Systems

Robot Application

Liquid / Grease Dispensing and Other Systems

Test / Inspection Systems

Vision Inspection

Please select the category / Press “Enter” to continue

slide2

About Us

  • Company promoted by engineers with a vision of providing the Indian Industry with high Quality & Technology Automation systems
  • Many automated systems working satisfactorily with different customers
  • Having MNCs and renowned Indian Business Groups as customers
  • Doing an annual turnover of 40 Million INR. Growing at a speed of around 40% annually
  • Facility with a covered area of 6,000 square feet and located in Bangalore, on the Bangalore – Hosur Highway and well connected by road
slide3

About Us

  • Designing of Machines / Systems done using the latest 3D Modeling Software's
  • Believes in Customer delight
  • Designing of equipments done by experienced engineers
  • Comprehensive knowledge in designing and manufacturing systems using Pneumatics, Hydraulics, PLCs, HMIs, SCADA, Vision Systems and Robots
  • Experienced in providing equipments for Auto Components Industry, Automobile Industry, Rubber Industry, Plastic Moulding Industry and Solar Industry
slide4

Products Manufactured

  • Industrial Automation Systems
  • Assembly Lines (Automated / Semi Automated / Manual Lines)
  • Conveyors (Automated Conveying Systems / Belt and Roller Conveyors)
  • Pick and Place Systems
  • Robot Applications
  • Material Handling Systems
  • Testing / Inspection Systems
  • Camera Vision Applications
  • Rubber Industry Machines
  • Solar Industry Machines
  • Riveting Machines
  • Stacking / Pressing Machines
  • Greasing Applications
slide5

Assembly Lines

We offer a wide range of Assembly Line Solutions from Individual Manual Assembly Station to Fully Automatic Assembly Line with Conveyors. Lines are custom designed to assemble a complete product with automatic / semi automatic loading and unloading. The lines are ergonomically designed with proper balancing.

Pick Light / Bin System and Production Monitoring system are also available as standard option.

slide6

Assembly Lines

  • Products Offered:
  • Complete Assembly Line
  • Automated Assembly Line
  • Manual Assembly Station / Line
  • Stations with Kanban Feeding
  • Pick Light / Bin System
  • Production Monitoring System
  • Material Handling Systems
  • Industries Served:
  • Auto Components Industry
  • Electronic Industry
  • Solar Panel Manufacturing
  • Rubber Components Manufacturing
  • Car Seat Belt Manufacturing
  • Car Air Bag Manufacturing
  • General Assembly

* Please contact us for more details on the interested product

slide10

Pick and Place Systems and Robot Application

  • Pick and Place Systems are specially designed for handling any kind of components either soft or hard at higher level accuracy and performance. These systems can be integrated to the existing machines for automatic loading and unloading of the parts. Based on the application, Robots or Gantry Pick and Place can be selected for the optimum performance.
  • Typical Applications are:
  • Unloading from the existing processing machines
  • Component Pick and Place onto Trays
  • Staking of components in predefined orientation
  • CNC machine auto loading and unloading
slide15

Testing, Inspection and Camera Vision Applications

We provide complete solutions for your inspection or testing requirements with high reliability & accuracy. We take extreme care to use elements which are much suited for performing the required functions. Our systems use a PC or a Touch Screen HMI to interact with the user. The systems can also be integrated with existing information network.

These systems can eliminate Human error in Visual Inspection / Testing and improve productivity. Data Acquisition options helps in analyzing the process and to prove further.

slide16

Testing, Inspection and Camera Vision Applications

Camera Vision Applications:

Testing Applications / Parameters:

  • Component Visual Defects
  • Dimensional Variation in the Part
  • Missing parts in the Assembly
  • Component Orientation
  • Product Color Identification
  • Component Type Sorting
  • Character / Barcode Checking on the Printed Product
  • Product mix-up
  • Resistance Checking
  • Crack Checking
  • Dry Leakage
  • Wet Leakage
  • Performance
  • Endurance
  • Online / Off line Check
  • Force / Load
  • Linear Distance
  • Angle
  • Torque
  • Pressure
  • Vacuum
  • Current
  • Voltage
  • Velocity
  • Flow
  • Time
slide21

Conveyors

We are specialized in design, manufacture and install the following types of conveyors.

  • Pallet Conveying System
  • Roller Conveyors
  • Simple Belt Conveyors
  • Assembly Conveyors
  • Inspection Conveyors with Measurement or Vision Camera
  • Chain Conveyors
  • Vibratory Spiral Conveyors
  • Hopper Conveyors
slide26

Solar Industry Machines

We have exclusive range of products designed specially for Solar Industry. The Products range covers right from the Solar Cell handling to complete Panel Handling. The systems are listed below.

  • Solar Cell Pick and Place
  • Solar Cell Camera Inspection Line
  • Automatic / Semi Auto Tabbing System
  • Automatic Stringing Line
  • Solar Panel Framing Machine
  • Solar Panel Conveyors
  • Robot Trimming and Panel Handling Line
  • Infra Red Checking Table
  • Height Adjustable Soldering Tables
  • Flux / Chemical Dispensing
slide32

Rubber Industry Machines

  • Seal and Spring Assembly Line
  • Seal / Rubber Part Inspection Line
  • Seal / Rubber Testing Machines
  • Greasing and Checking System
  • Trimming Machines
  • Spiral Cooling Conveyor for Hot Blanks
  • Hot Rubber Conveying Systems
  • Chemical / Bonding Application
  • Temperature Control Chambers
slide36

Liquid Dispensing and Other Machines

We can provide solutions for your specialised applications. Some of the processes where we have the experience to provide solutions are

  • Ultrasonic Cleaning
  • Hydro Pneumatic Pressing
  • Hydraulic Rolling Machines
  • Riveting
  • Staking
  • Greasing / Glue Application
  • Chemical Spraying
  • Measuring
  • Welding
  • Feeding
  • Laser Marking
  • Pad Printing
  • Cutting
  • Automated Counting
slide41

Contact Us

Flexi Manufacturing Solutions Private Limited

174, Bommasandra Industrial Area, Hosur Main Road,

Bangalore – 560 099

Tel: +91 80 2783 5800

Website: www.flexisolutions.co.in

Email: marketing@flexisolutions.co.in

Mr. Kathirvel R

Managing Director

Mobile: +91 90080 29740

Email: kathir@flexisolutions.co.in

Mr. Ganesh Kumar K

Director - Marketing

Mobile: +91 90080 29741

Email: ganesh@flexisolutions.co.in
