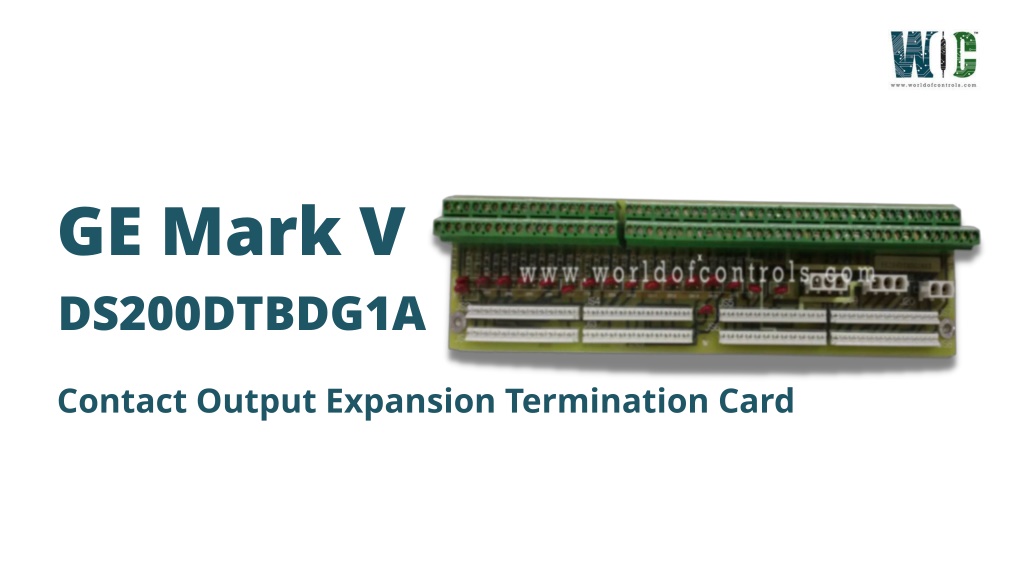

  1. GE Mark V DS200DTBDG1A Contact Output Expansion Termination Card

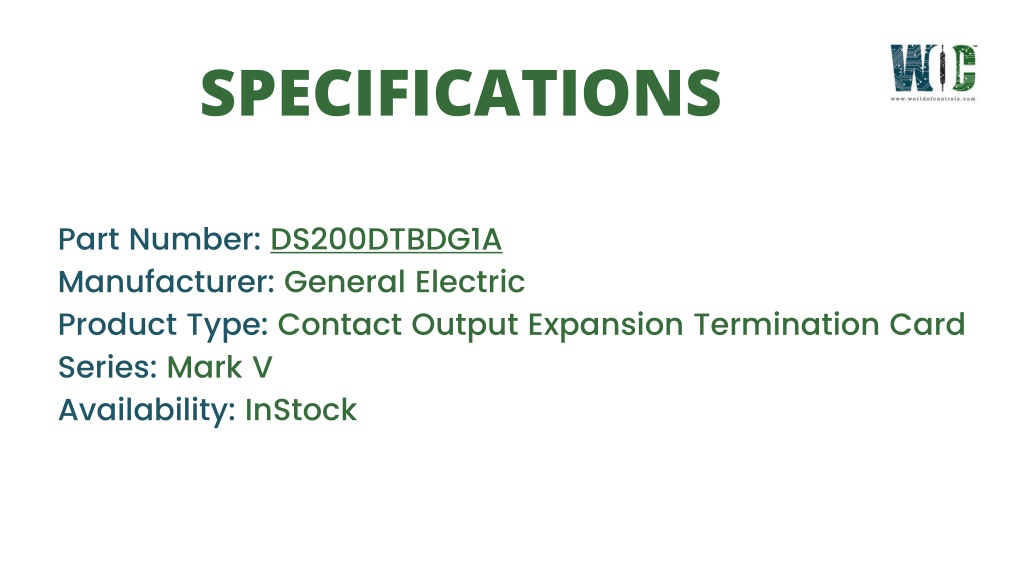

  2. SPECIFICATIONS Part Number:DS200DTBDG1A Manufacturer: General Electric Product Type: Contact Output Expansion Termination Card Series: Mark V Availability:InStock

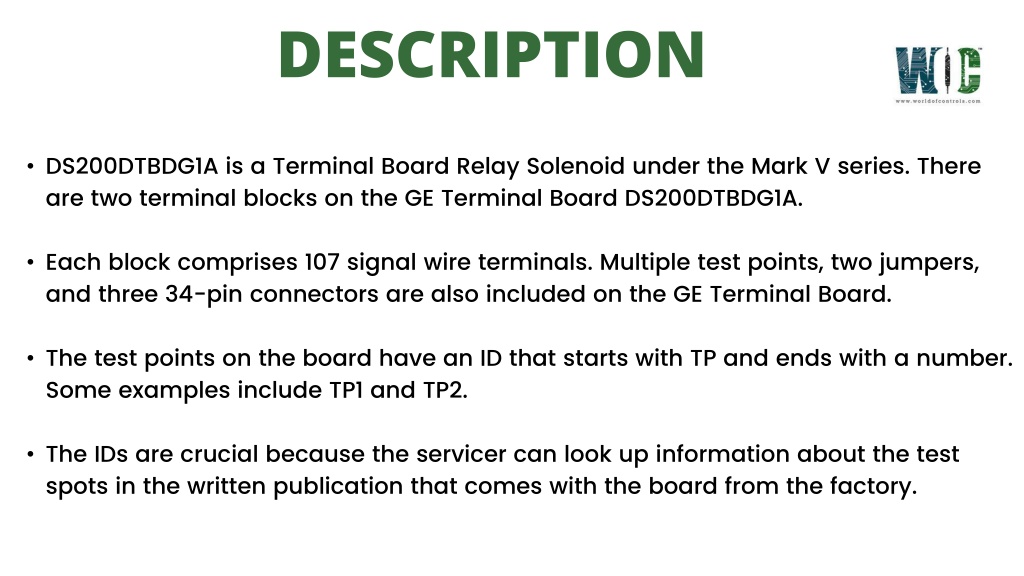

  3. DESCRIPTION • DS200DTBDG1A is a Terminal Board Relay Solenoid under the Mark V series. There are two terminal blocks on the GE Terminal Board DS200DTBDG1A. • Each block comprises 107 signal wire terminals. Multiple test points, two jumpers, and three 34-pin connectors are also included on the GE Terminal Board. • The test points on the board have an ID that starts with TP and ends with a number. Some examples include TP1 and TP2. • The IDs are crucial because the servicer can look up information about the test spots in the written publication that comes with the board from the factory.

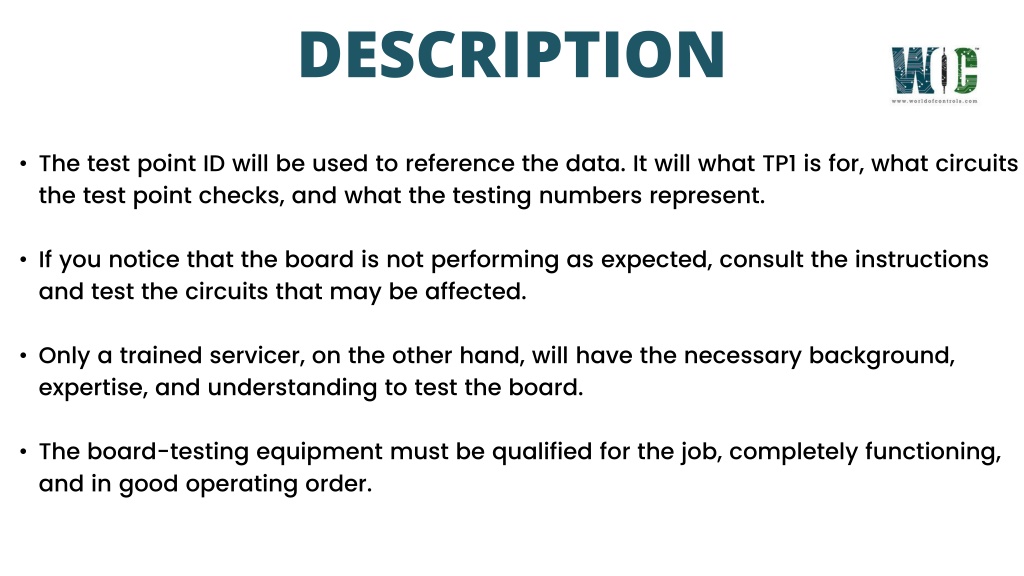

  4. DESCRIPTION • The test point ID will be used to reference the data. It will what TP1 is for, what circuits the test point checks, and what the testing numbers represent. • If you notice that the board is not performing as expected, consult the instructions and test the circuits that may be affected. • Only a trained servicer, on the other hand, will have the necessary background, expertise, and understanding to test the board. • The board-testing equipment must be qualified for the job, completely functioning, and in good operating order.

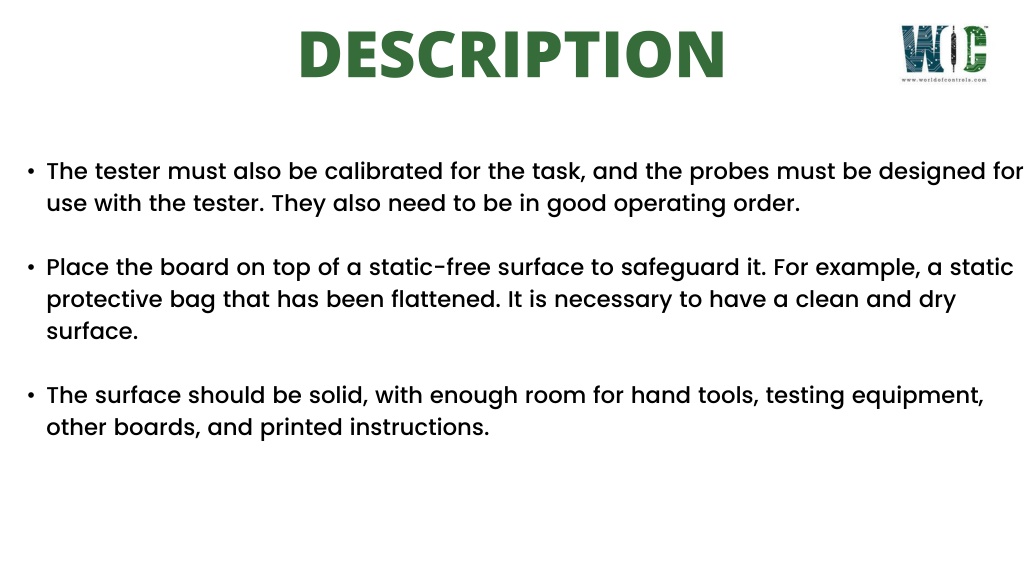

  5. DESCRIPTION • The tester must also be calibrated for the task, and the probes must be designed for use with the tester. They also need to be in good operating order. • Place the board on top of a static-free surface to safeguard it. For example, a static protective bag that has been flattened. It is necessary to have a clean and dry surface. • The surface should be solid, with enough room for hand tools, testing equipment, other boards, and printed instructions.

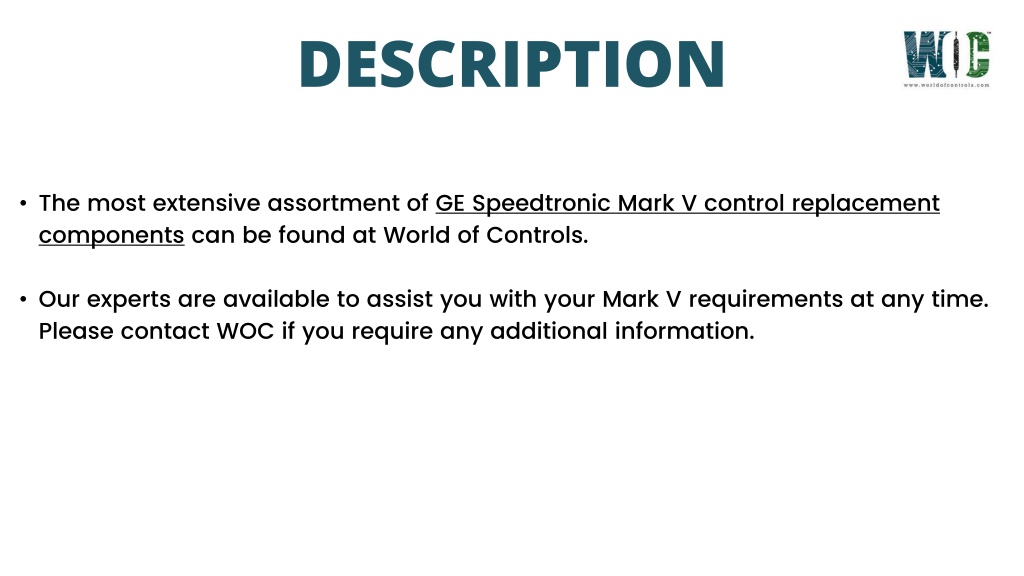

  6. DESCRIPTION • The most extensive assortment of GE Speedtronic Mark V control replacement components can be found at World of Controls. • Our experts are available to assist you with your Mark V requirements at any time. Please contact WOC if you require any additional information.

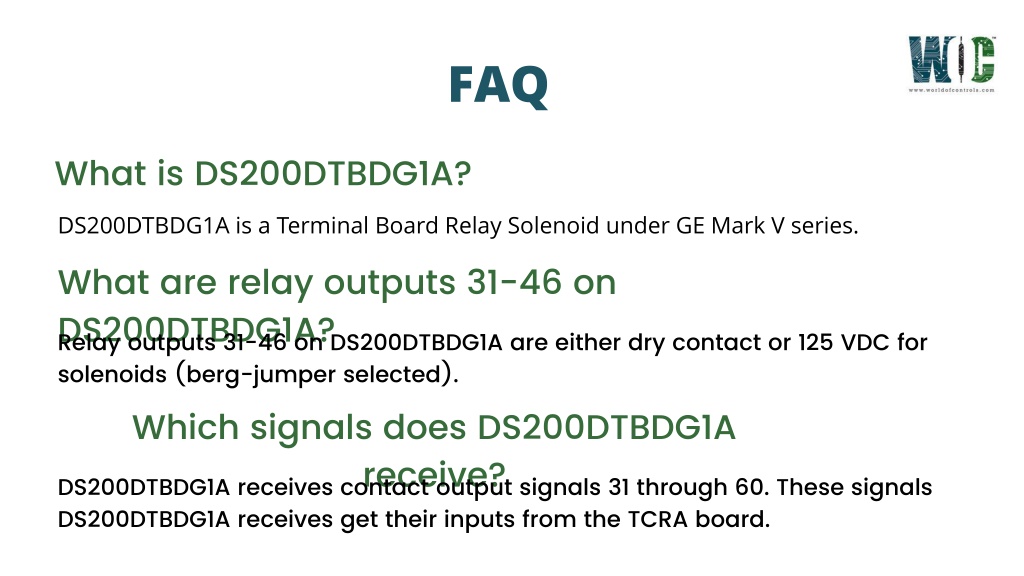

  7. FAQ What is DS200DTBDG1A? DS200DTBDG1A is a Terminal Board Relay Solenoid under GE Mark V series. What are relay outputs 31-46 on DS200DTBDG1A? Relay outputs 31-46 on DS200DTBDG1A are either dry contact or 125 VDC for solenoids (berg-jumper selected). Which signals does DS200DTBDG1A receive? DS200DTBDG1A receives contact output signals 31 through 60. These signals DS200DTBDG1A receives get their inputs from the TCRA board.

  8. GET A FREE INSTANT QUOTE +1 609 385 1231 sales@worldofcontrols.com www.worldofcontrols.com
