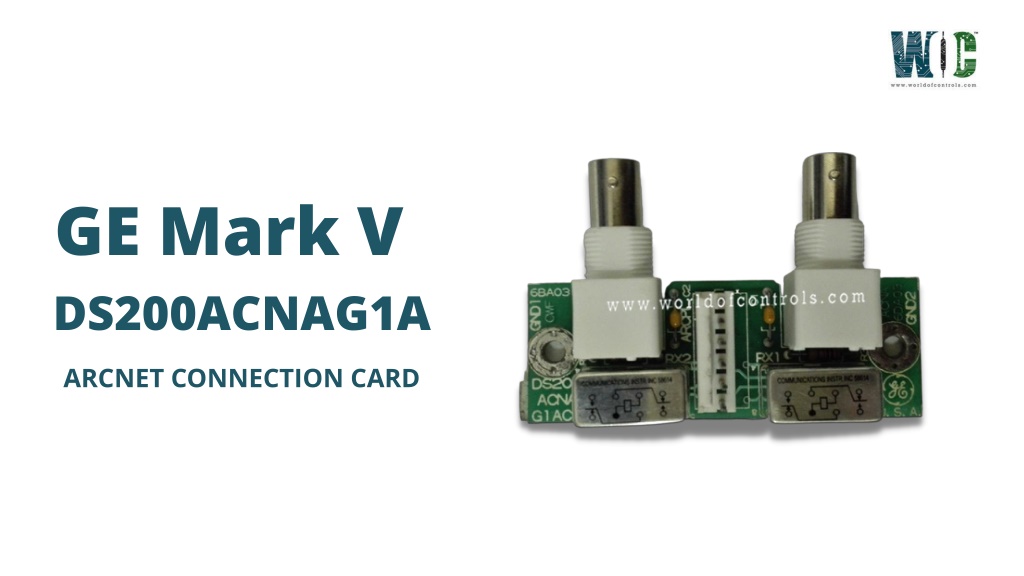

  1. GE Mark V DS200ACNAG1A ARCNET CONNECTION CARD

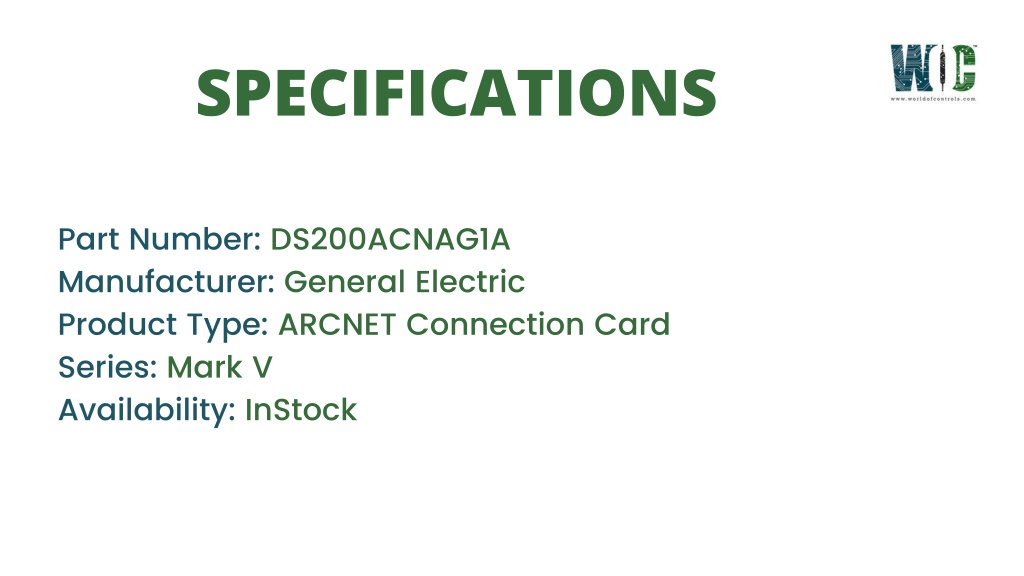

  2. SPECIFICATIONS Part Number: DS200ACNAG1A Manufacturer: General Electric Product Type: ARCNET Connection Card Series: Mark V Availability:InStock

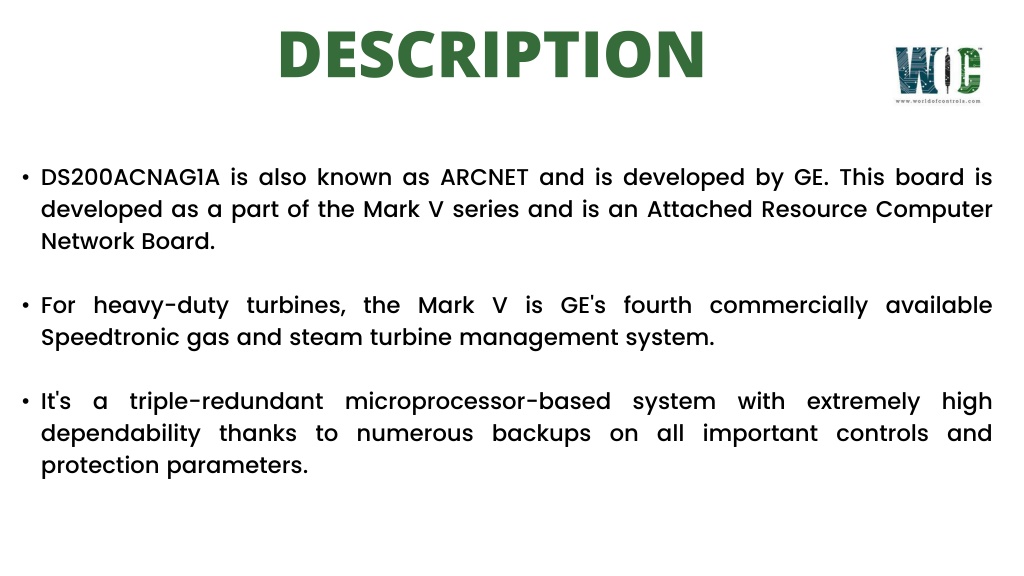

  3. DESCRIPTION • DS200ACNAG1A is also known as ARCNET and is developed by GE. This board is developed as a part of the Mark V series and is an Attached Resource Computer Network Board. • For heavy-duty turbines, the Mark V is GE's fourth commercially available Speedtronic gas and steam turbine management system. • It's a triple-redundant microprocessor-based system with extremely high dependability thanks to numerous backups on all important controls and protection parameters.

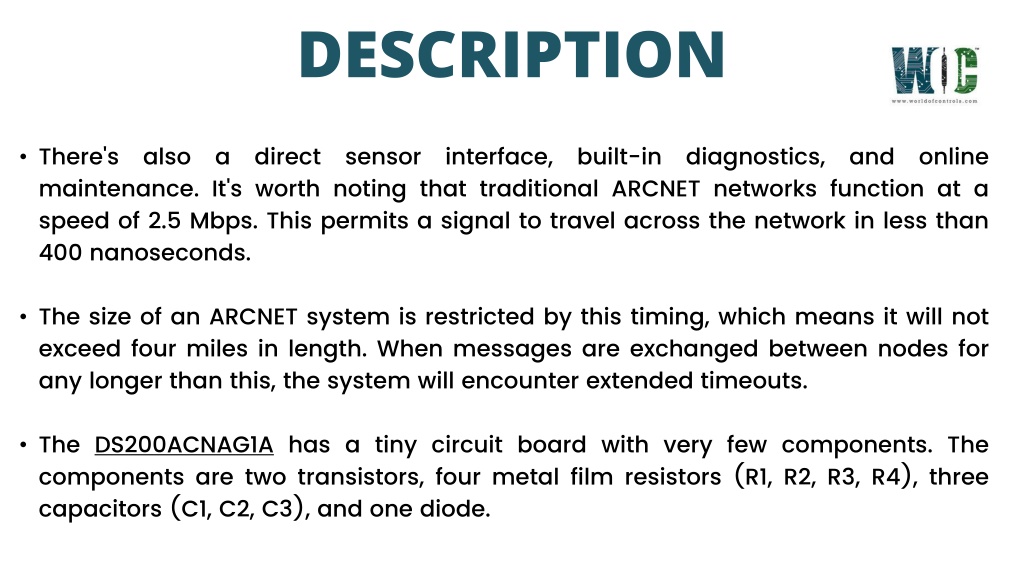

  4. DESCRIPTION • There's also a direct sensor interface, built-in diagnostics, and online maintenance. It's worth noting that traditional ARCNET networks function at a speed of 2.5 Mbps. This permits a signal to travel across the network in less than 400 nanoseconds. • The size of an ARCNET system is restricted by this timing, which means it will not exceed four miles in length. When messages are exchanged between nodes for any longer than this, the system will encounter extended timeouts. • The DS200ACNAG1A has a tiny circuit board with very few components. The components are two transistors, four metal film resistors (R1, R2, R3, R4), three capacitors (C1, C2, C3), and one diode.

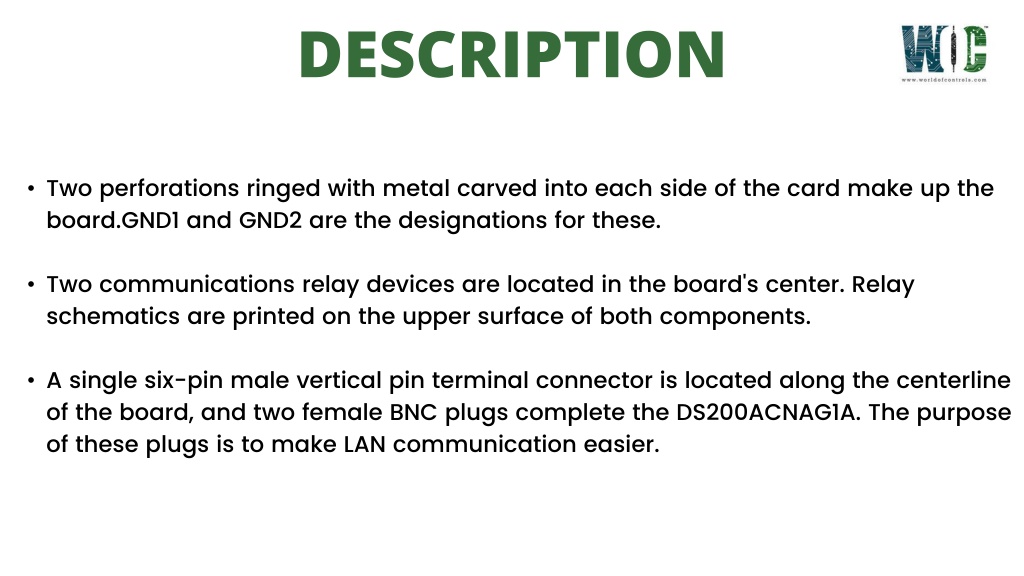

  5. DESCRIPTION • Two perforations ringed with metal carved into each side of the card make up the board.GND1 and GND2 are the designations for these. • Two communications relay devices are located in the board's center. Relay schematics are printed on the upper surface of both components. • A single six-pin male vertical pin terminal connector is located along the centerline of the board, and two female BNC plugs complete the DS200ACNAG1A. The purpose of these plugs is to make LAN communication easier.

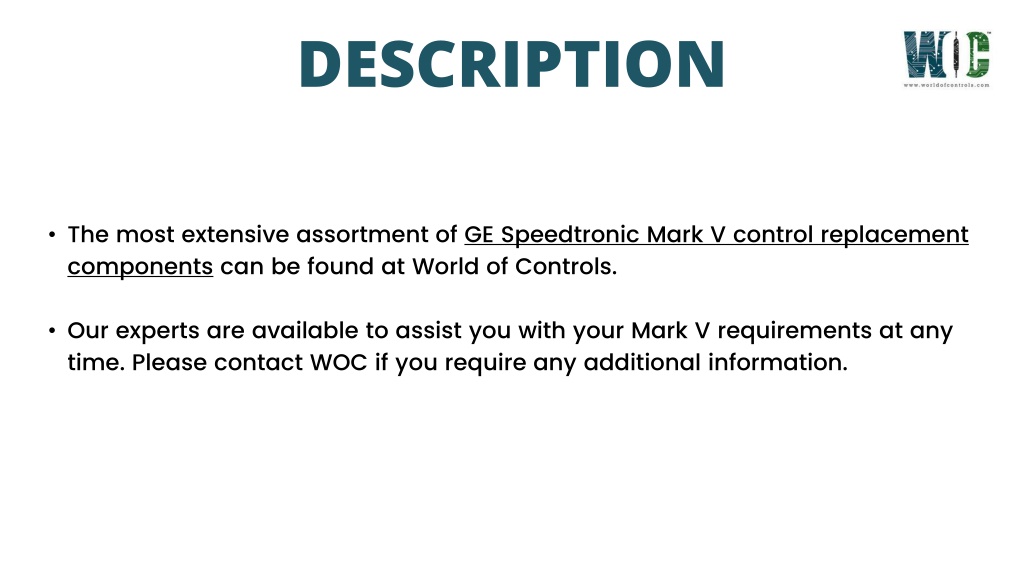

  6. DESCRIPTION • The most extensive assortment of GE Speedtronic Mark V control replacement components can be found at World of Controls. • Our experts are available to assist you with your Mark V requirements at any time. Please contact WOC if you require any additional information.
