slide1

Permafin

DermasetSeriesPolyurethane

2009-2010

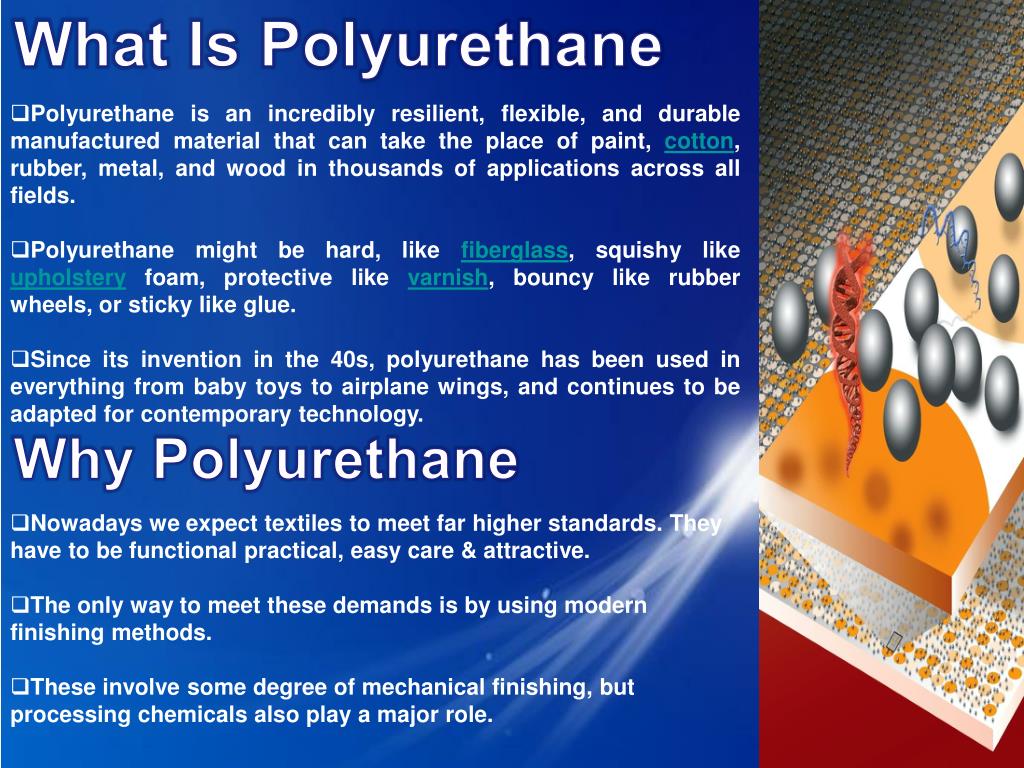

slide2

What Is Polyurethane

  • Polyurethane is an incredibly resilient, flexible, and durable manufactured material that can take the place of paint, cotton, rubber, metal, and wood in thousands of applications across all fields.
  • Polyurethane might be hard, like fiberglass, squishy like upholstery foam, protective like varnish, bouncy like rubber wheels, or sticky like glue.
  • Since its invention in the 40s, polyurethane has been used in everything from baby toys to airplane wings, and continues to be adapted for contemporary technology.

Why Polyurethane

  • Nowadays we expect textiles to meet far higher standards. They have to be functional practical, easy care & attractive.
  • The only way to meet these demands is by using modern finishing methods.
  • These involve some degree of mechanical finishing, but processing chemicals also play a major role.
slide3

Functional aspects of textile finishes

Function

  • Water & oil repellency
  • Water proofing
  • Flame retardancy

Compensating undesirable fibre properties

Natural fibres

CO Creasing

CV Shrinking

Linen Abrasion

Felting

Wool Moth damage

Abrasion

Washing

Silk Abrasion

Synthetic Fibres

Hydrophobic property

Electostatic charge

Fibre smoothness

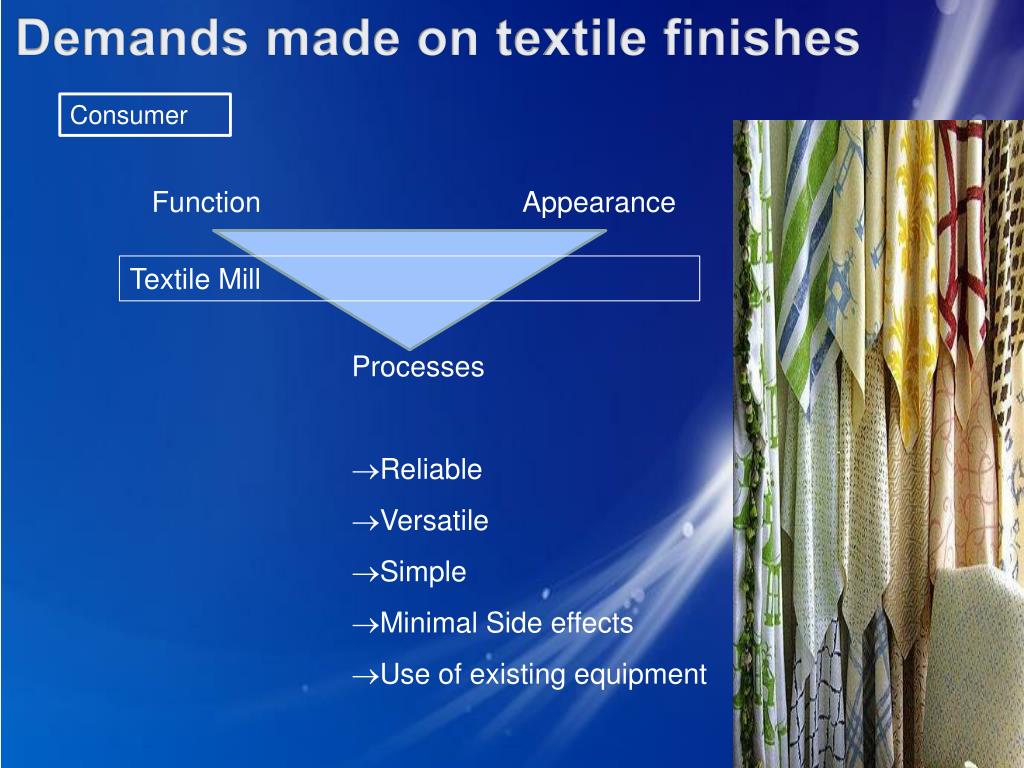

slide4

Demands made on textile finishes

Consumer

Function Appearance

Textile Mill

  • Processes
  • Reliable
  • Versatile
  • Simple
  • Minimal Side effects
  • Use of existing equipment

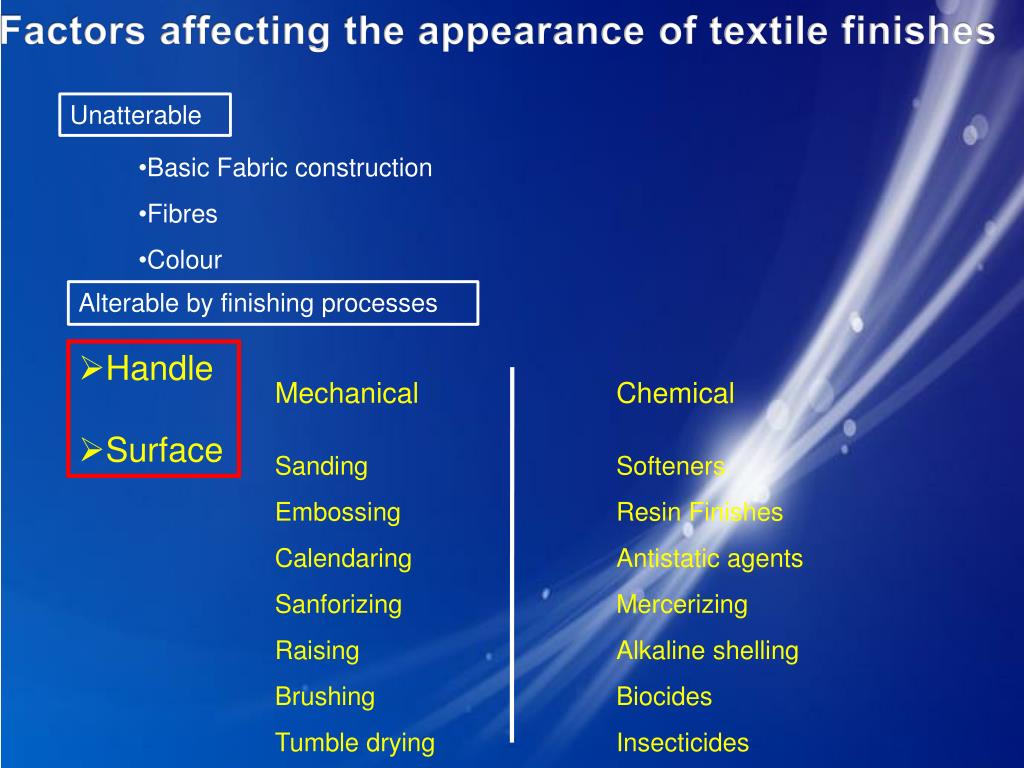

slide5

Factors affecting the appearance of textile finishes

Unatterable

  • Basic Fabric construction
  • Fibres
  • Colour

Alterable by finishing processes

  • Handle
  • Surface

Mechanical

Sanding

Embossing

Calendaring

Sanforizing

Raising

Brushing

Tumble drying

Chemical

Softeners

Resin Finishes

Antistatic agents

Mercerizing

Alkaline shelling

Biocides

Insecticides

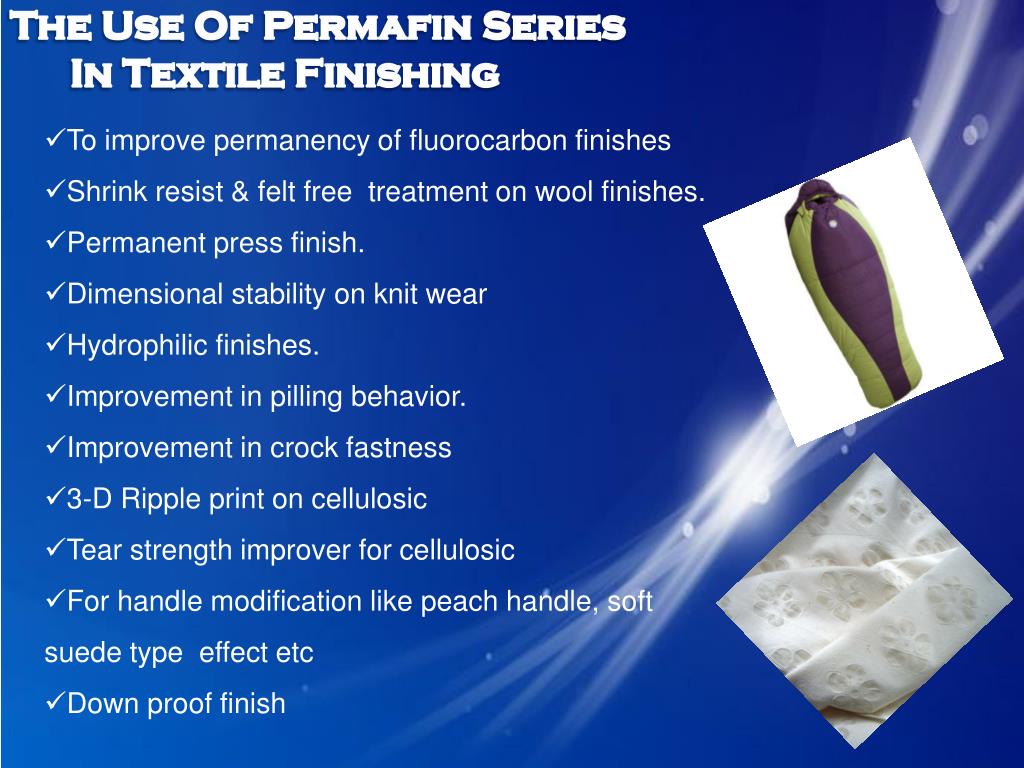

slide6

The Use Of Permafin Series

In Textile Finishing

  • To improve permanency of fluorocarbon finishes
  • Shrink resist & felt free treatment on wool finishes.
  • Permanent press finish.
  • Dimensional stability on knit wear
  • Hydrophilic finishes.
  • Improvement in pilling behavior.
  • Improvement in crock fastness
  • 3-D Ripple print on cellulosic
  • Tear strength improver for cellulosic
  • For handle modification like peach handle, soft suede type effect etc
  • Down proof finish

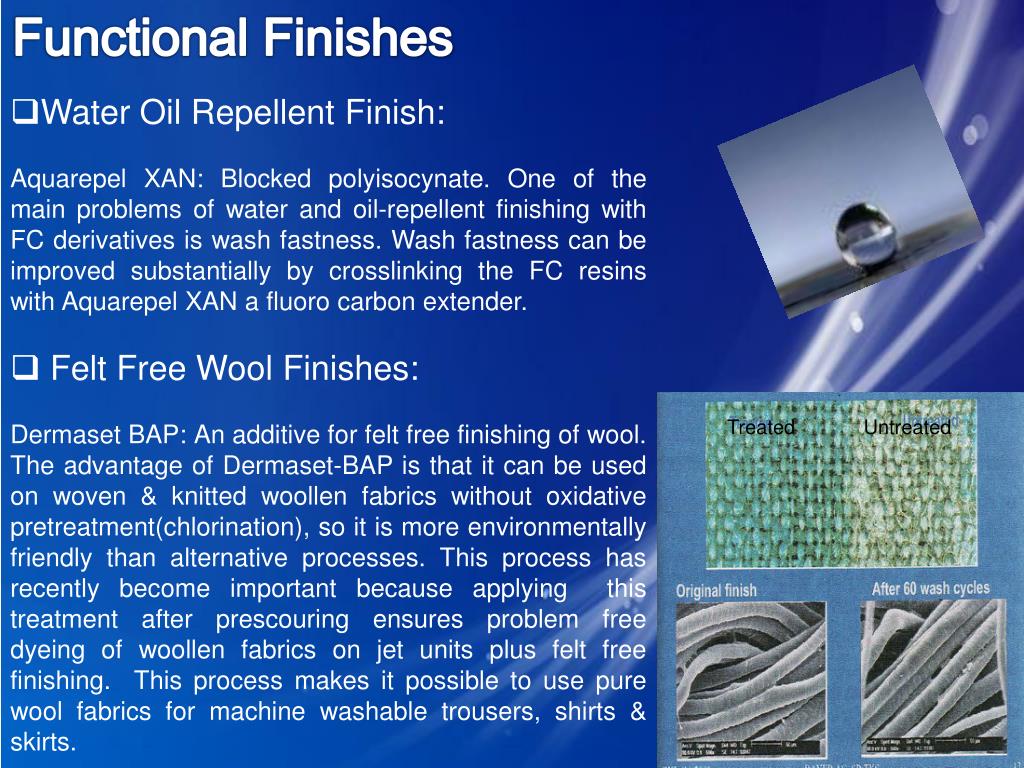

slide7

Functional Finishes

  • Water Oil Repellent Finish:
  • Aquarepel XAN: Blocked polyisocynate. One of the main problems of water and oil-repellent finishing with FC derivatives is wash fastness. Wash fastness can be improved substantially by crosslinking the FC resins with Aquarepel XAN a fluoro carbon extender.
  • Felt Free Wool Finishes:
  • Dermaset BAP: An additive for felt free finishing of wool. The advantage of Dermaset-BAP is that it can be used on woven & knitted woollen fabrics without oxidative pretreatment(chlorination), so it is more environmentally friendly than alternative processes. This process has recently become important because applying this treatment after prescouring ensures problem free dyeing of woollen fabrics on jet units plus felt free finishing. This process makes it possible to use pure wool fabrics for machine washable trousers, shirts & skirts.

Treated

Untreated

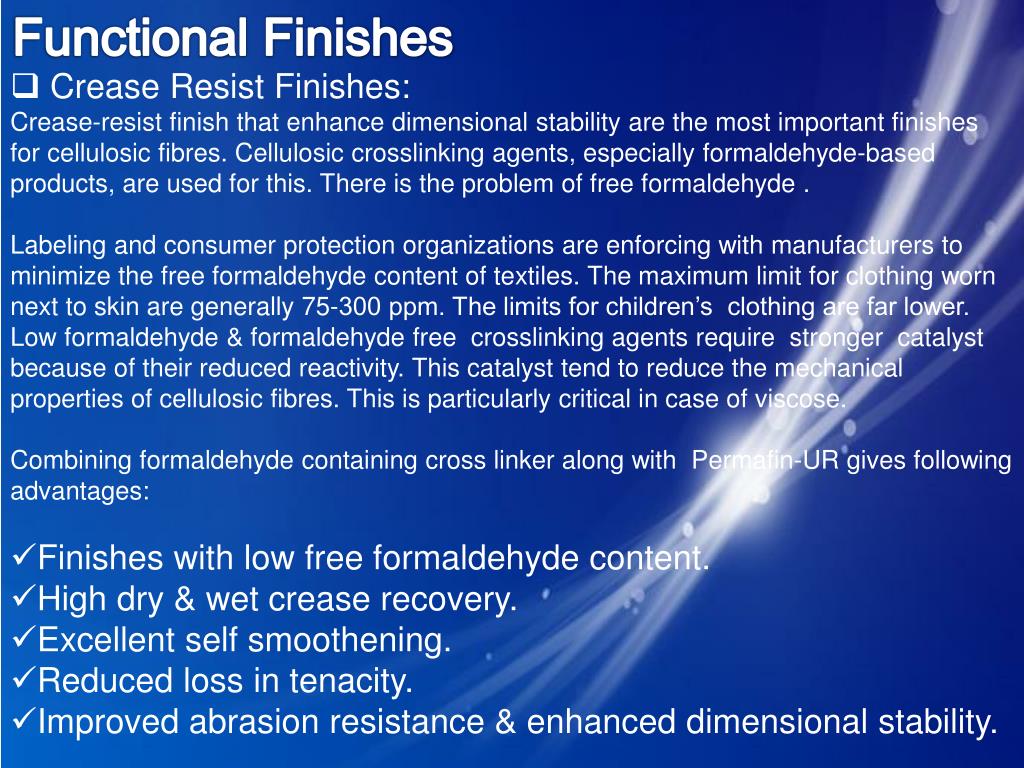

slide8

Functional Finishes

  • Crease Resist Finishes:
  • Crease-resist finish that enhance dimensional stability are the most important finishes for cellulosic fibres. Cellulosic crosslinking agents, especially formaldehyde-based products, are used for this. There is the problem of free formaldehyde .
  • Labeling and consumer protection organizations are enforcing with manufacturers to minimize the free formaldehyde content of textiles. The maximum limit for clothing worn next to skin are generally 75-300 ppm. The limits for children’s clothing are far lower. Low formaldehyde & formaldehyde free crosslinking agents require stronger catalyst because of their reduced reactivity. This catalyst tend to reduce the mechanical properties of cellulosic fibres. This is particularly critical in case of viscose.
  • Combining formaldehyde containing cross linker along with Permafin-UR gives following advantages:
  • Finishes with low free formaldehyde content.
  • High dry & wet crease recovery.
  • Excellent self smoothening.
  • Reduced loss in tenacity.
  • Improved abrasion resistance & enhanced dimensional stability.
slide9

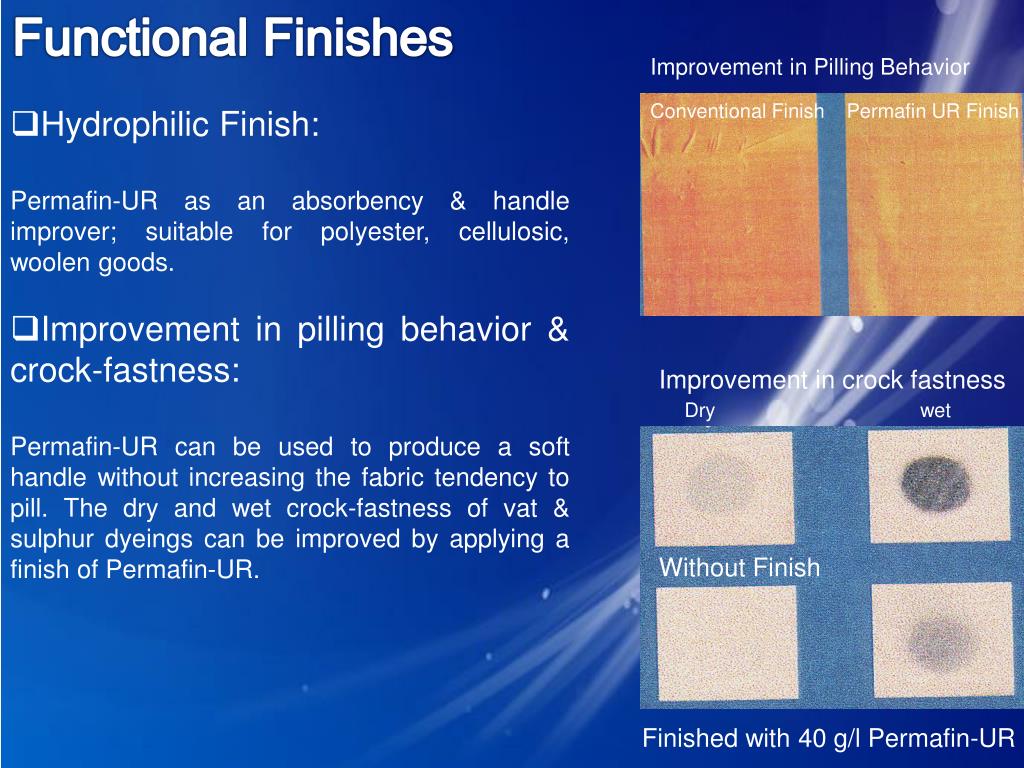

Functional Finishes

Improvement in Pilling Behavior

Conventional Finish

Permafin UR Finish

  • Hydrophilic Finish:
  • Permafin-UR as an absorbency & handle improver; suitable for polyester, cellulosic, woolen goods.
  • Improvement in pilling behavior & crock-fastness:
  • Permafin-UR can be used to produce a soft handle without increasing the fabric tendency to pill. The dry and wet crock-fastness of vat & sulphur dyeings can be improved by applying a finish of Permafin-UR.

Improvement in crock fastness

Dry

wet

Without Finish

Finished with 40 g/l Permafin-UR

slide10

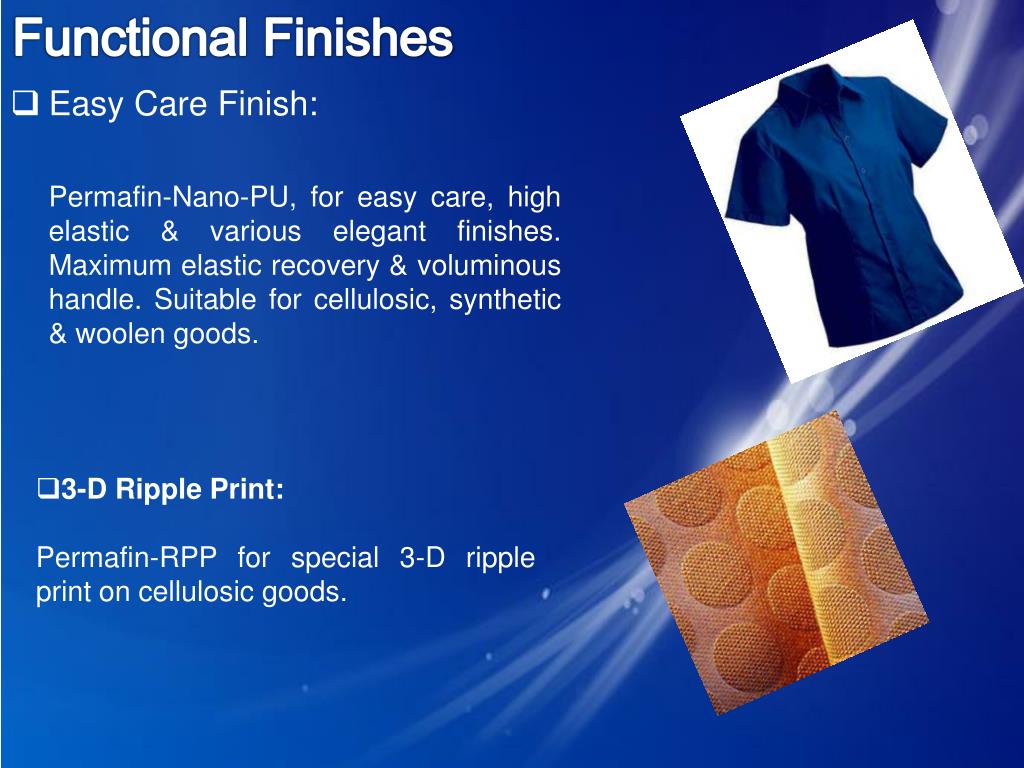

Functional Finishes

  • Easy Care Finish:

Permafin-Nano-PU, for easy care, high elastic & various elegant finishes. Maximum elastic recovery & voluminous handle. Suitable for cellulosic, synthetic & woolen goods.

  • 3-D Ripple Print:
  • Permafin-RPP for special 3-D ripple print on cellulosic goods.

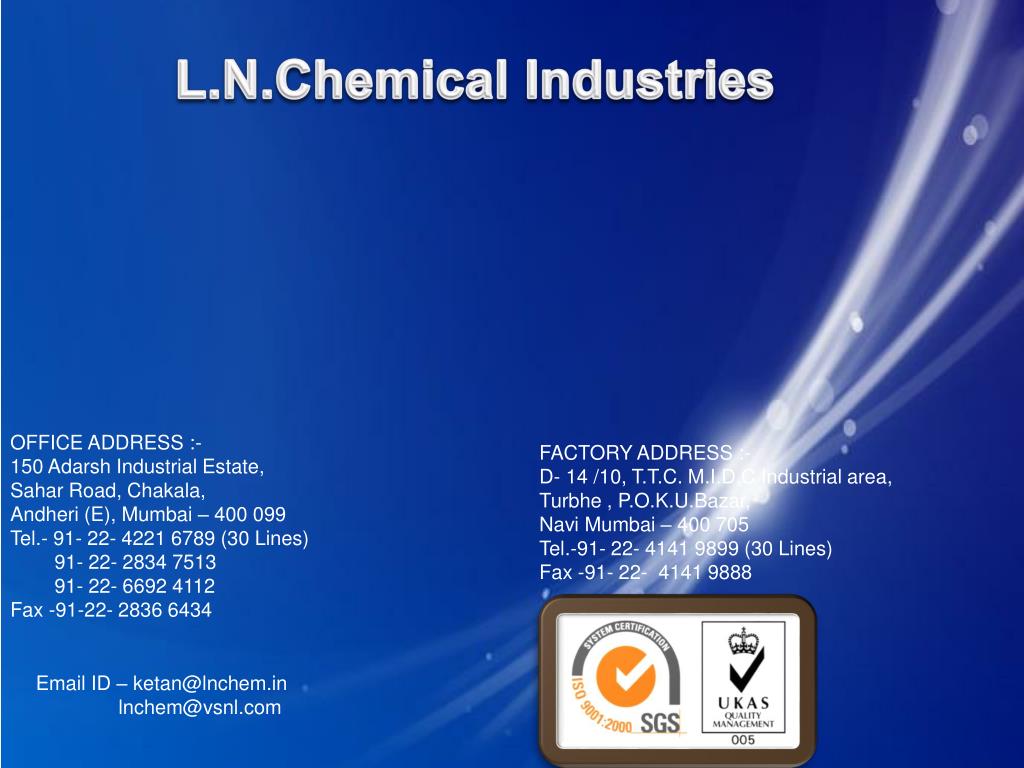

slide11

L.N.Chemical Industries

OFFICE ADDRESS :-

150 Adarsh Industrial Estate,

Sahar Road, Chakala,

Andheri (E), Mumbai – 400 099

Tel.- 91- 22- 4221 6789 (30 Lines)

91- 22- 2834 7513

91- 22- 6692 4112

Fax -91-22- 2836 6434

FACTORY ADDRESS :-

D- 14 /10, T.T.C. M.I.D.C Industrial area,

Turbhe , P.O.K.U.Bazar,

Navi Mumbai – 400 705

Tel.-91- 22- 4141 9899 (30 Lines)

Fax -91- 22- 4141 9888

Email ID – ketan@lnchem.in

lnchem@vsnl.com
