Presentation Transcript
herbivore plant interactions 2 seed slayers

Herbivore-Plant Interactions 2 :Seed-Slayers

Peter B. McEvoy

Oregon State University

  • The nature of seed slaying
    • Characteristics of seeds
    • Taxa engaged in attack seeds
  • Species packing among fig bugs
  • Impact of seed slayers
    • On plant communities
    • On plant populations
characteristics of seeds
Characteristics of Seeds
  • Nutrient values per unit volume high
  • Shorter time courses
  • Once dispersed, hard to find
  • Chemical defense might be greater – low self repair
  • Continuous seed production not required for survival of plant except in case of annual without a seed bank

Result: Seed timing, quality and quantity can be more freely manipulated by natural selection that those same characteristics of leaves and other vegetative parts

taxa engaged in seed slaying
Taxa engaged in seed slaying
  • Coleoptera (Curculionidae, Bruchidae)
  • Heteroptera (Lygaeidae, Phyrrhocoridae)
  • Lepidoptera (Pyralidae, Tortricidae, Olethreutidae, Lycaenidae)
  • Hymenoptera (Formicidae, Chalcidoidea)
  • Diptera (Tephritidae)
  • Mammals and Birds
Seed-Slaying Coleoptera:Seed weevils (Bruchidae) occasionally become pests of stored beans, cowpeas, and peas

Pea Weevil Bruchus pisorum (Linnaeus)

Acanthoscelides obtectus (Say) Bean weevil

weevil Curculio glandium

attacking acorn of English Oak Quercus robur

seed slaying heteroptera lygaeidae phyrrhocoridae
Seed Slaying Heteroptera (Lygaeidae, Phyrrhocoridae)

Oncopeltus fasciatus

Lygaeidae: Oncopeltus fasciatusfeeds on developing pods of milkweed, requires seeds for reproduction

Pyrrhocoridae : Dysdercus saturelluspest of cotton, damages developing bolls causing plant sap to exude from feeding site

seed slaying lepidoptera pyralidae
Ostrininia nubilalisSeed slaying Lepidoptera: Pyralidae

Ostrininia nubilalis

European Corn Borer

Ostrinia nubilalis attacks corn, sorghum, cotton, and many vegetables, causing damages in US > $ 1 billion annually. Introduced to NA in early 1900s.

spruce budworm choristoneura fumiferana tortricidae
Damage in cone; note frass massSpruce budwormChoristoneura fumiferanaTortricidae

Dispersing larva dangling on a silken thread

One of most destructive native pests of spruce and fir forests in eastern NA

Sister species, western spruce budworm, Choristoneura occidentalis, defoliator of coniferous forests in W NA

Adult and pupa

codling moth cydia pomonella lep tortricidae olethreutinae
Codling mothCydia pomonellaLep: Tortricidae, Olethreutinae

Multivoltine, destructive pest introduced to NA by EU settlers. Larvae tunnel into center of fruit where they feed and develop.

Oriental fruit moth Grapholitha molesta

mexican jumping bean mot lep tortricidae cydia saltitans
Mexican jumping bean mot Lep: Tortricidae Cydia saltitans

Mexican jumping bean - seed of Mexican shrubs of the genus Sebastiana (Euphorbiaceae) containing the larva of a moth whose movements cause the bean to jerk or tumble

hymenoptera formicidae chalcidoidea
Hymenoptera(Formicidae, Chalcidoidea)

Alfalfa Seed Chalcid

seed-harvesting ant species in the genera Messor, Pheidole and Pogonomyrmex

Pogonomyrmex (naegelii-group) imberbiculus

AntWeb California Academy of Sciences

diptera tephritidae
Diptera: Tephritidae

Above: Urophora stylata: female; and 2 males. Imported to NA for BC thistles

Photos by Albert Krebs

Right: Rhagoletis completa

breeds in the husks of walnuts (Juglans spp.).

Photo by Erwin Mani


mammals and birds
Mammals and Birds

Orangutans and parakeets feed on dipterocarp seeds. (B) A carpet of dipterocarp seedlings established during the 1987 mast-fruiting event. (D) Dipterocarp trees in Borneo's Gunung Palung National Park. ECOLOGY: Tropical Forest Synergies by Gary Hartshorn and Nora Bynum

effects of seeds on insects lygaeid bugs as seed predators of figs ficus spp moraceae
Effects of seeds on InsectsLygaeid bugs as seed predators of figs Ficus spp (Moraceae)
  • Arboreal feeders
  • Obligate terrestrial
    • Early species
    • Late species
  • Facultative terrestrial
  • Predispersal seeds are a concentrated resource
  • Mechanisms facilitating exploitation of a patchy resource, macroptery and ovoviparity

Slater 1977

fluctuations in abundance of fig foliage unrelated to herbivores
Fluctuations in abundance of fig foliage unrelated to herbivores

Fig leaves added after original fresco was painted, probably at the request of Cosimo III de' Medici in the late 17th century, who saw nudity as disgusting. Leaves were removed when painting restored in 1980s

MasaccioThe Expulsion Of Adam and Eve from Eden (1426-28) fresco in Florence

are plant populations seed limited
Are plant populations seed-limited?

Turnbull, L. A., M. J. Crawley, and M. Reese. 2000. Are plant populations seed-limited? A review of seed sowing experiments. Oikos 88:225-238.

  • Definition. They define seed limitation to be an increase in population size following seed addition.
  • Two types of experiments. They review two types of seed addition experiments: seed augmentation studies where seeds are added to existing populations; and seed introductions where seeds are sown in unoccupied sites.
  • Overall results. Approximately 50% of seed augmentation experiments show evidence of seed limitation. These studies show that seed limitation tends to occur more commonly in early successional habitats and in early successional species.
protocol recommended for seed addition experiments modified from turnbull et al 2000
Protocol recommended for seed addition experimentsmodified from Turnbull et al. 2000
  • Estimate seed output of natural population. Facilitate comparison by making seed addition some specified multiple of natural seed rain.
  • Manipulate seed outputs over a sufficient range.
  • Monitor response throughout the life cycle, at least to adult stage.
  • Manipulate seed-feeding herbivores as part of the design. Combine enhanced, control, and diminished seed predators with enhanced, control, and diminished seed rain.
  • Conduct additions on appropriate spatial and temporal scale. Mimic the spatial and temporal scale "sampled" by the life history of the organism.
seed limitation more common in early successional habitats

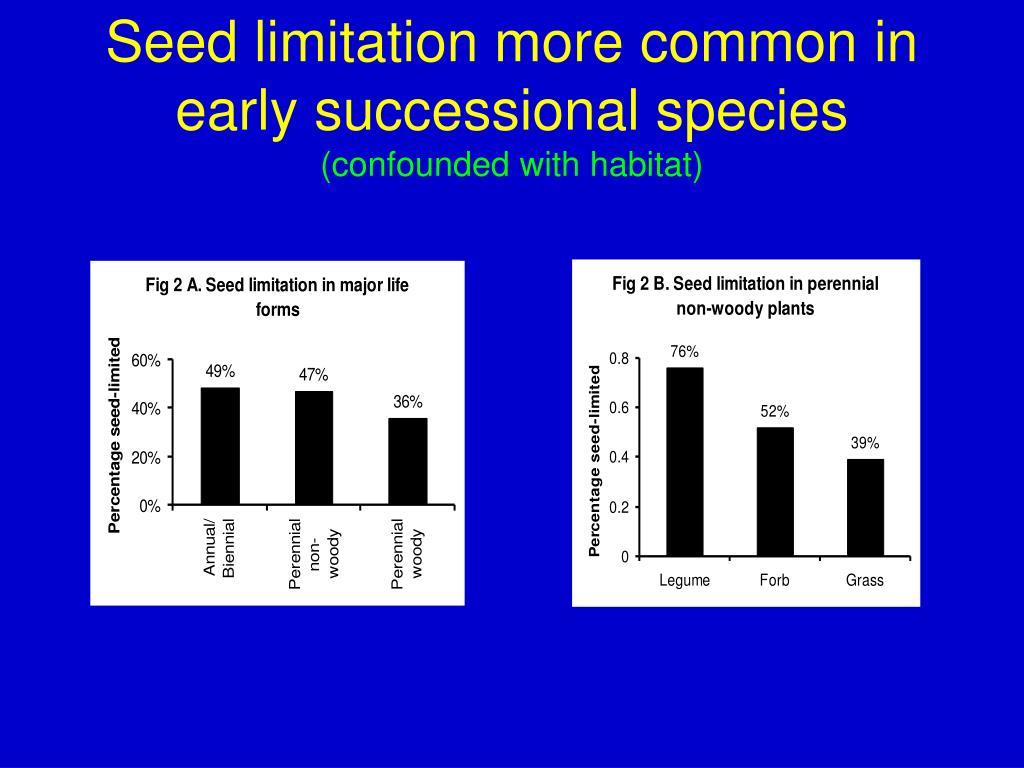

Seed limitation more common in early successional habitats

Varies from strong seed-limtation to strong micro-site limitation

impacts of seed predators on thistles studied by svata louda
Impacts of seed predators on thistles studied by Svata Louda

Introduced weevil invaded Nebraska sand dunes where Louda was studying native thistles

Rhinocyllus conicus

Svata Louda

Thistle in Sand Dune Habitat

effects of insects on reproductive success of cirsium canescens
Effects of Insects on Reproductive Success of Cirsium canescens
  • Removal experiment: insecticide

Herbivore effect = protected – exposed

  • Spatial, temporal, organizational scales of observation
    • Temporal scales (within and between years)
    • Spatial scales (region, habitat, between plant, within plant)
    • Organizational scales (plant/arthropod association, guild, and species within guild
  • Platte thistle inflorescence feeders
    • Tephritid flies Orelliaoccidentalis and Paracantha culta
    • Pyralid moth Hoemosoma stypetallum
seedling shadows with and without insecticide
Seedling Shadows with and without insecticide

Seed predator effect conditional on distance

Recruitment declines with distance from parent

Higher recruitment rate when insects are removed using an insecticide at shorter distances

plants responses to heavy exploitation by seed slayers
Plants responses to heavy exploitation by seed slayers
  • Evolving deterrents (may increase confer resistance or increase ‘handling time’ for consumer)
    • Hard Seed coat
    • Toxic chemistry
  • Mast cropping – escape in time -synchronous, mass production of fruits at interval of n years with very light crops or no crop in intervening years
    • May lead to Predator Satiation – producing so many seeds that slayer can’t use them all (saturates consumers functional response)
    • Intervals of little or no seed mitigiate risk of predator increase (counters consumer’s numerical response)
  • Rapid dispersal – escape in space
problem for community ecologists
Problem for Community Ecologists
  • Seeds slayers have been invoked in explanations of the extraordinary species richness of tropical forests
  • For example, how are we account for the more than 700 species of trees, shrubs and linas (vines) found on 17 km2 of Barro Colorado Island, Panama?
  • Two aspects of the problem
    • Evolutionary question – origins of so much diversity, so many species
    • Ecological question – maintenance of diversity, what prevents competitive exclusion
janzen connell model
Janzen-Connell Model
  • Seed Shadow (I curve) – seed density falls off with distance from the parent. Shape varies with size of seed crop and model of dispersal.
  • Probability of Survival (P curve) – increases with distance from the parent. Seed slaying varies with distance and/or density.
  • Population Recruitment Curve (PRC curve) – Taking the product of the I and P curves yields the recruitment curve
janzen connell model29
Distance from parent tree

Number of seeds per unit area

Prob. of survival

Janzen-Connell Model

Dispersal (I), Survivorship (P), Recruitment (PRC)

Distance from parent tree

  • To what extent can seed predation alone lead to variable recruitment patterns?
  • Which components of predator activity are responsible for this variation?
  • How are they responsible?

Model varies the

  • Number of dispersed seeds
  • Mean distances of dispersed seeds
  • Predator’s activity
basic model nathan and casagrandi 2004 j ecol
Basic Model(Nathan and Casagrandi 2004 J Ecol)

Dynamics of seeds S at distance ρ from the source over time t reflects balance in seed gains(the dispersal kernel Φ) and seed losses due to predation ( η ) and other causes ( ω)

Mass balance equation with one input (the dispersal kernel Φ) and two outputs (seed losses ω and η)

seed gains modeled by dispersal curve with 2 parameters
Seed Gains modeled by Dispersal Curve with2 Parameters
  • Seed rain α and mean dispersal distance D
  • Effect of increasing dispersal D
  • Effect of increasing fecundity α
seed losses partitioned into two components
Seed lossespartitioned into two components
  • Losses due to Predation depend on number of predators, their spatial distribution, searching efficiency, and handling times
    • Numerical response of predator
    • Functional response of predator
  • Losses due to all causes other than predation (e.g. micro-site limitation) depends on number of seeds, spatial distribution, and per capita morality rate
recruitment patterns obtained by the model
Recruitment patterns obtained by the model

The plots are based on the following parameter setting

fecundity α = 100,

seed handling time Th = 0.1

mortality not by predation µ = 0.1

searching rate a = 5

predation intensity β = 30

mean distance of predators q = 10

mean seed dispersal distance

(a) D = 20; (b) D = 10; (c) D = 3.

  • Seeds have distinctive features as a plant resource
  • Characteristics of seeds have shaped the life styles of consumers as in the fig-bug example
  • Characteristics of seed slayers have shaped seed production in plants including seed size and number, resistance, timing, and dispersal
  • Unclear to what degree recruitment in plants depends on available seeds, microsites for establishment, or escape from seed predators
