Combilift 542 - Two level independent pit puzzle parking system by Wohr

1. COMBILIFT 542 Add Title

2. Two level independent pit puzzle parking system by Wohr • Combilift 542

3. What is Puzzle Parking? • - Puzzle Parking is a car parking system with combination pallets that enable horizontal and vertical movement • of parking spaces - just like a puzzle. • This automated parking system is electromechanically operatedfor moving the pallet laterallyand uses • hydraulic systems to move the pallets vertically, depending on the position of the available vacant space. • Puzzle Parking systems are independent systems that offer low operating costs and comfort of parking. Cars • can be parked and retrieved with ease and speed. Add Title

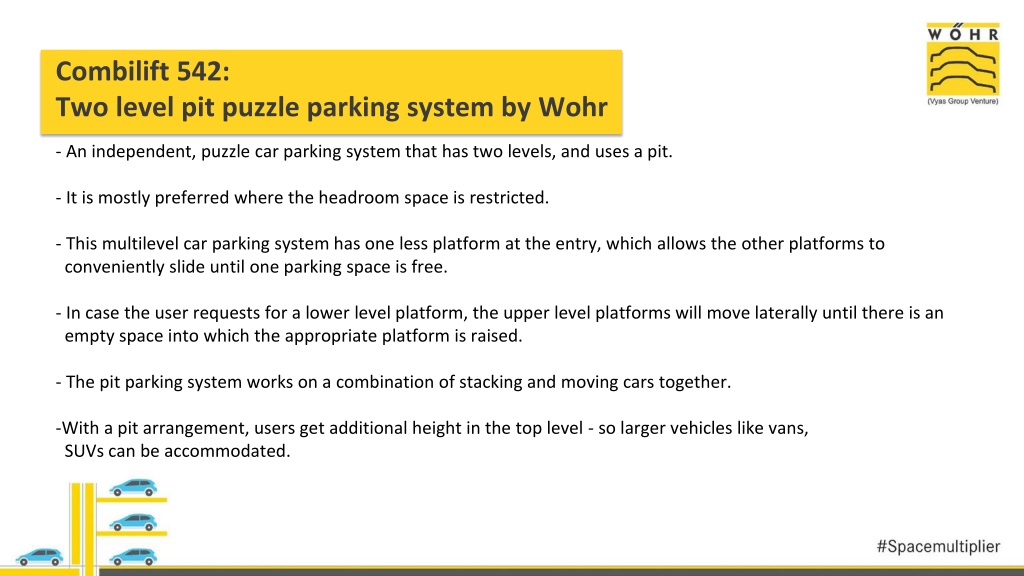

4. Combilift 542: Two level pit puzzle parking system by Wohr • - An independent, puzzle car parking system that has two levels, and uses a pit. • - It is mostly preferred where the headroom space is restricted. • This multilevel car parking system has one less platform at the entry, which allows the other platforms to • conveniently slide until one parking space is free. • In case the user requests for a lower level platform, the upper level platforms will move laterally until there is an • empty space into which the appropriate platform is raised. • - The pit parking system works on a combination of stacking and moving cars together. • With a pit arrangement, users get additional height in the top level - so larger vehicles like vans, • SUVs can be accommodated.

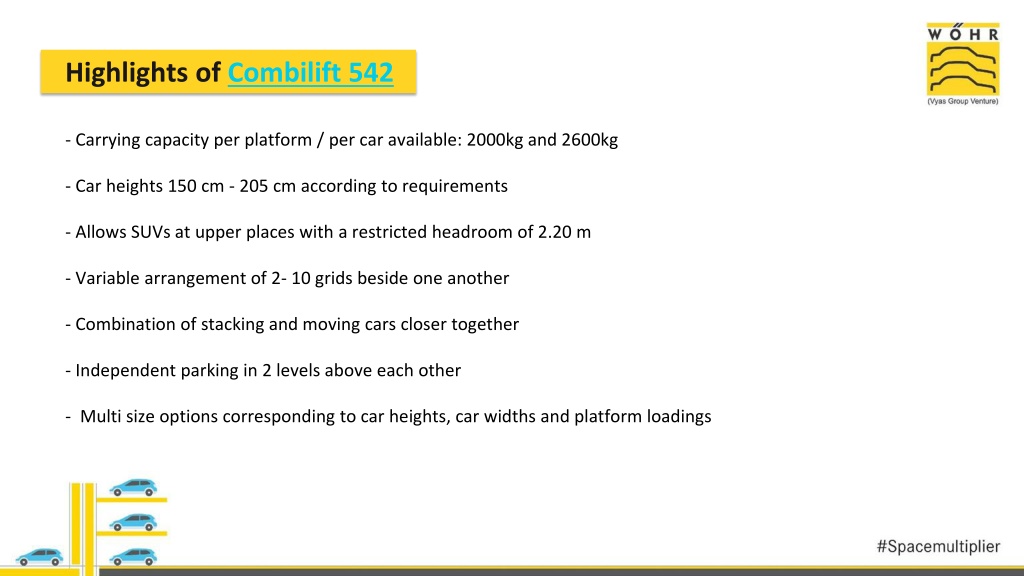

5. Highlights of Combilift542 • Carrying capacity per platform / per car available: 2000kg and 2600kg • Car heights 150 cm - 205 cm according to requirements • Allows SUVs at upper places with a restricted headroom of 2.20 m • Variable arrangement of 2- 10 grids beside one another • Combination of stacking and moving cars closer together • Independent parking in 2 levels above each other • - Multi size options corresponding to car heights, car widths and platform loadings Add Title

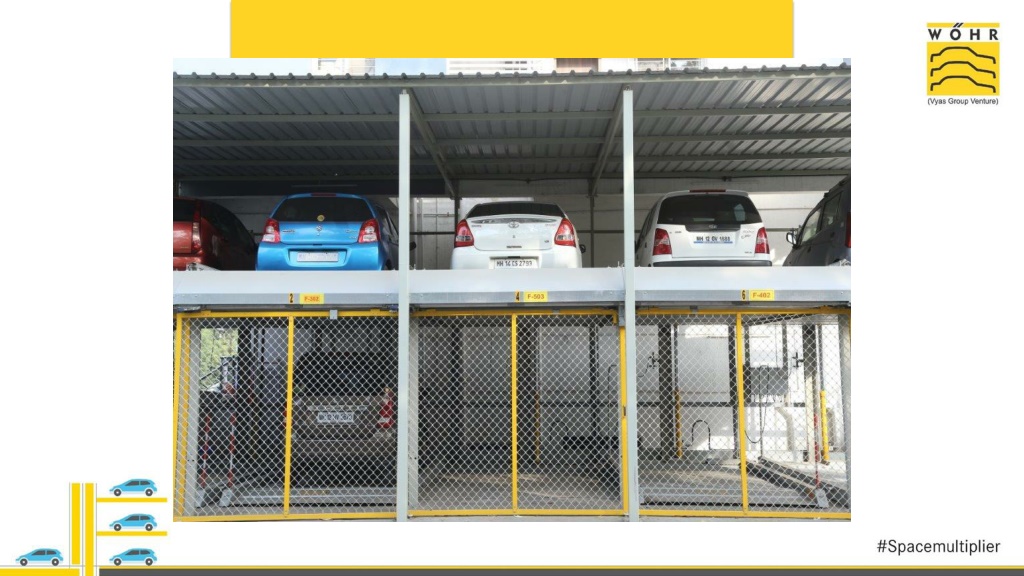

6. Add Title

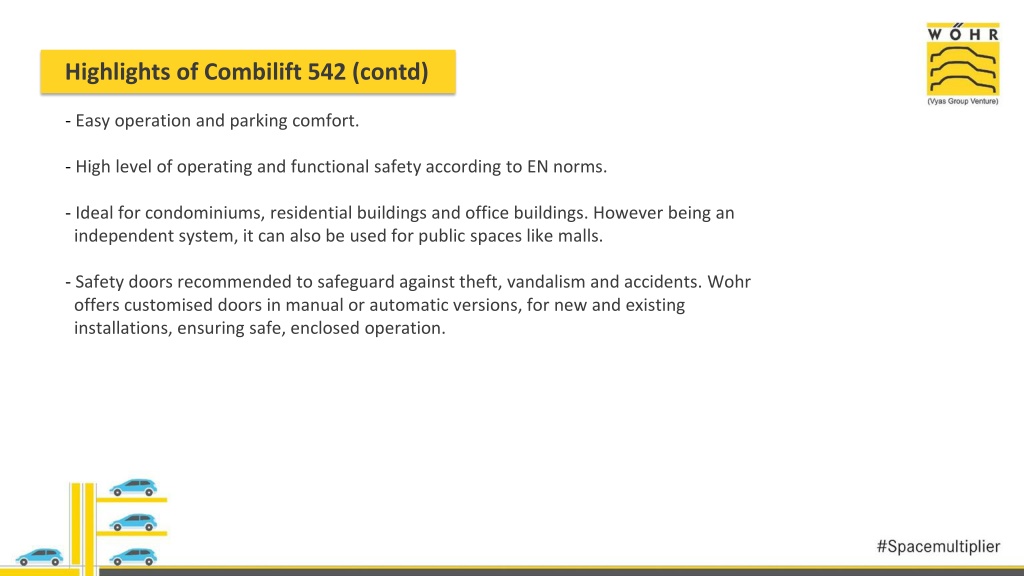

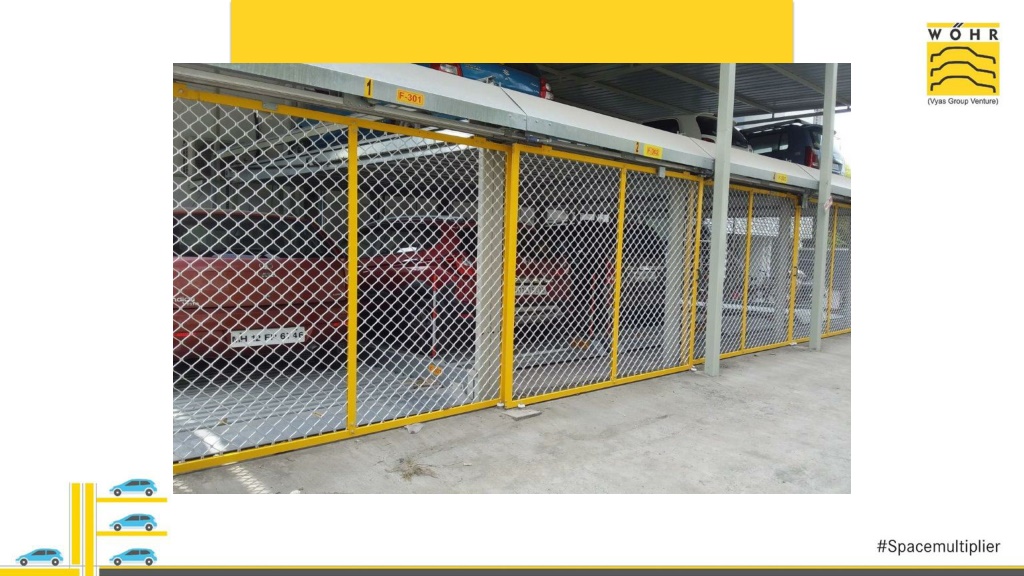

7. Highlights of Combilift 542 (contd) • Easy operation and parking comfort. • High level of operating and functional safety according to EN norms. • Ideal for condominiums, residential buildings and office buildings. However being an • independent system, it can also be used for public spaces like malls. • Safety doors recommended to safeguard against theft, vandalism and accidents. Wohr • offers customised doors in manual or automatic versions, for new and existing • installations, ensuring safe, enclosed operation. Add Title

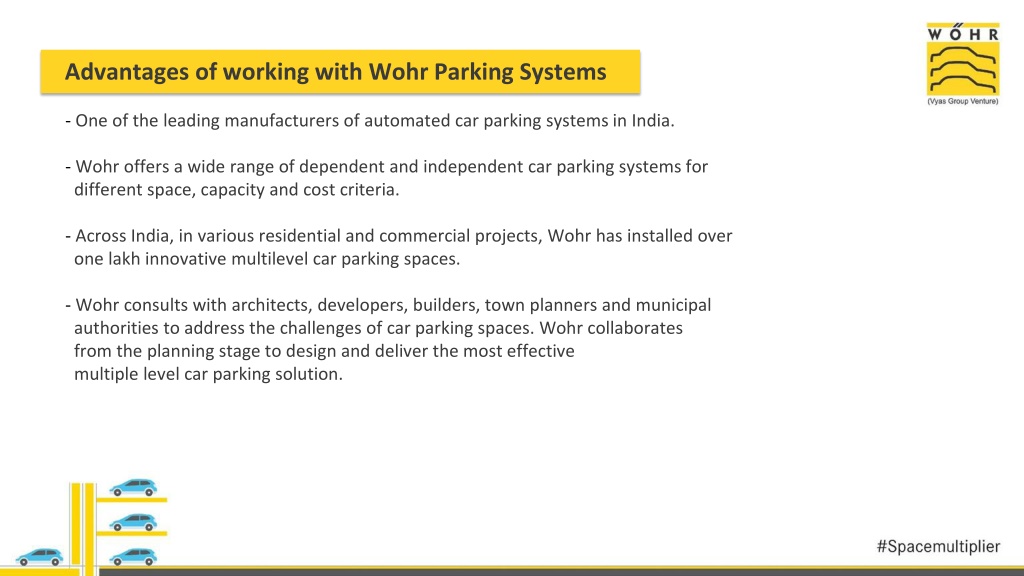

8. Advantages of working with Wohr Parking Systems • One of the leading manufacturers of automated car parking systems in India. • Wohr offers a wide range of dependent and independent car parking systems for • different space, capacity and cost criteria. • Across India, in various residential and commercial projects, Wohr has installed over • one lakh innovative multilevel car parking spaces. • Wohrconsults with architects, developers, builders, town planners and municipal • authorities to address the challenges of car parking spaces. Wohr collaborates • from the planning stage to design and deliver the most effective • multiple level car parking solution. Add Title

9. Add Title

10. Add Title
