oecd expert group on statistical data and metadata exchange

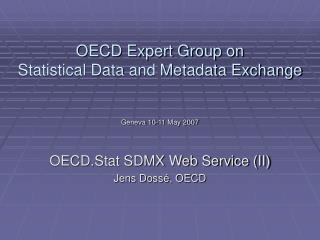

OECD Expert Group on Statistical Data and Metadata Exchange

Geneva 10-11 May 2007

OECD.Stat SDMX Web Service (II)

Jens Dossé, OECD

oecd sdmx web service
OECD SDMX web service
  • Fully conforms to SDMX standard v2
  • Currently two methods: extract data in GenericData message extract Data Structure Definitions (Key Families), concepts and code lists
  • Method planned for the future: extract Metadata
  • Secured access: integrates authorization to OECD.Stat
  • Still needs a few additional conventions bridging SDMX-ML limits
additional conventions i
Additional conventions I
  • For time series data, independently of the presence of a FREQUENCY dimension, the requested time frequency must be specified using a TIME_FORMAT attribute:<query:And><query:Attribute name="TIME_FORMAT">P1M</query:Attribute><query:Time><query:StartTime>1960-01</query:StartTime><query:EndTime>2005-12</query:EndTime></query:Time></query:And>Format values: P1Y=annual, P6M=semi-annual, P3M=quarterly and P1M=monthly data Time formats: yyyy, yyyy-mm or yyyy-mm-dd with digits y=year, m=month and d=day, e.g. '2005-09-01'. This attribute is then also present in the resulting generic data message at the Series level of time-series data.
  • Non-time-series data: omit all time specifications in the query message  The response messages will use 9999 as (obligatory) time periods
  • NEW: If the <query:StartTime> or <query:EndTime> nodes are not present then all the available values are returned
additional conventions ii
Additional conventions II
  • OECD.Stat data warehouse:Each dataset (multidimensional cube) has its own Data Structure Definition. Datasets can share common dimensions but which can have additional non-common codes
  • Several datasets within one message Query message can request data from several datasets NEW: Different datasets can now be returned within one SDMX generic message using “MessageGroup”s
additional conventions iii
Additional conventions III
  • For simplicity during the start-up of this generic web service, the returned message headers only contain required information
  • Maximum size of generic data message: 5 MB message is truncated if necessary Requests need to be split if this limit is exceeded
still open challenges for sdmx web services
(Still) open challenges for SDMX web services
  • !!!: Big message sizes for any data format: need standard for compression
  • !!!: Security: need standard for authentication/encryption
  • !!!: Need for another message format: generic cross-sectional format  remove the special status of the Time dimension (as not all statistical data are time series)
  • Registering SDMX web services in the SDMX registry
  • Multilaterally connecting organisations’ SDMX web services to build international networks
oecd sdmx web service client example
OECD SDMX web service client example
  • Simple web application
  • Provides example query messages
  • Source code freely available
  • Secured access to all data in data warehouse (integrates authentication and authorization to OECD.Stat)
contacts links
Contacts/Links
  • jens.dosse@oecd.orgdouglas.paterson@oecd.org
  • http://stats.oecd.org/OECDStatWS_SDMX/SDMX.asmx
  • http://stats.oecd.org/OECDStatWS_SDMX/Test_SDMX.aspx
