  1. Weather Instruments IGCSE Geography

  2. Temperature • Max Min Thermometer • Six’s Thermometer • Max-Mercury • Min-Alcohol • Measures shade temperature (Stevenson’s screen) • Read off at bottom of the index (reset with magnet) • Read at eye level • Measured in ºC

  3. Humidity • Wet/Dry Bulb thermometer • Hygrometer • Wick and reservoir of water • Comparison tables • Calculate depression of wet bulb (Dry – Wet) • Read off table • Measures in shade (Stevenson’s screen) • Units = % Relative humidity

  4. Wind Speed • Anemometer • Cups or blades • Clear unobstructed location • Km per hour

  5. Wind Direction • Wind Vane • Recorded on Wind Rose • Compass Directions

  6. Air Pressure • Aneoid Barometer • Barograph • Plots changes in pressure • Millibars • Measured in shade (Stevenson’s screen)

  7. Rainfall • Rain gauge • Siting factors • Clear view of sky • Recessed into ground • Approx 30cm above ground • Grassy surface (avoid splash back) • Read off at eye level • Regular intervals (24hours)

  8. Sunshine • Sunshine recorder • Burns a timeline • Traces sun shine not hours of daylight • Glass ball focuses light • Burns line onto card • Units = Hours

  9. Stevenson’s Screen • Houses temperature / humidity /pressure instruments • Features • Insulated roof • Painted white to reflect heat • Louvered (slatted) sides aid air circulation • Located 1.25-2m above ground

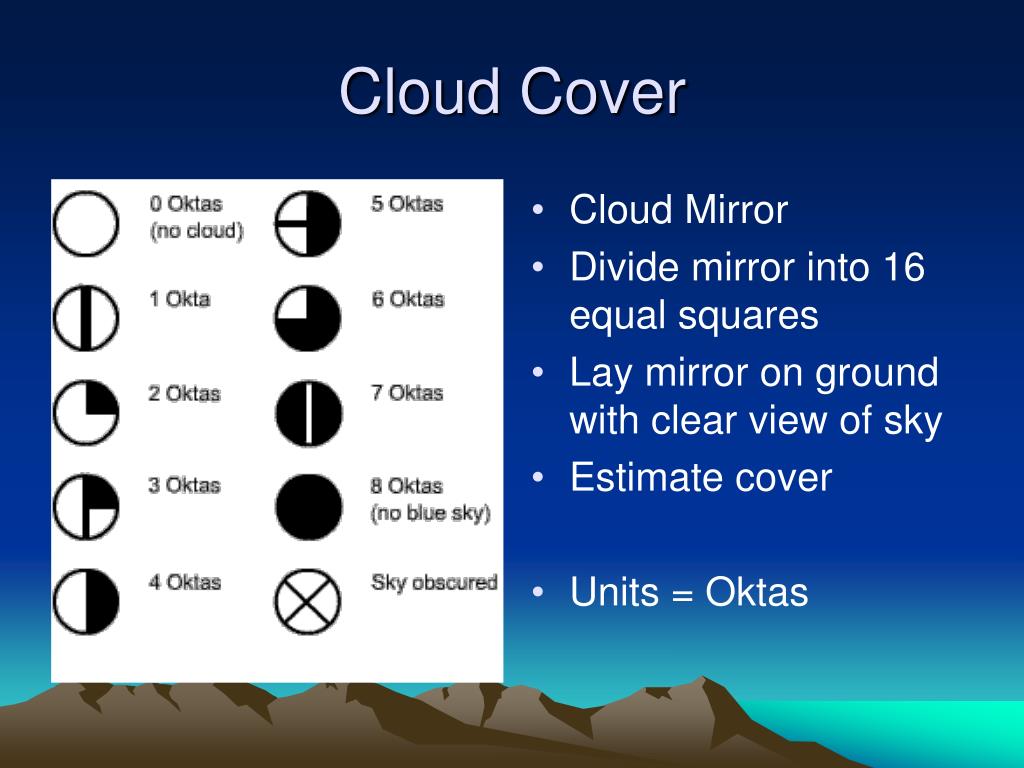

  10. Cloud Cover • Cloud Mirror • Divide mirror into 16 equal squares • Lay mirror on ground with clear view of sky • Estimate cover • Units = Oktas
