announcements

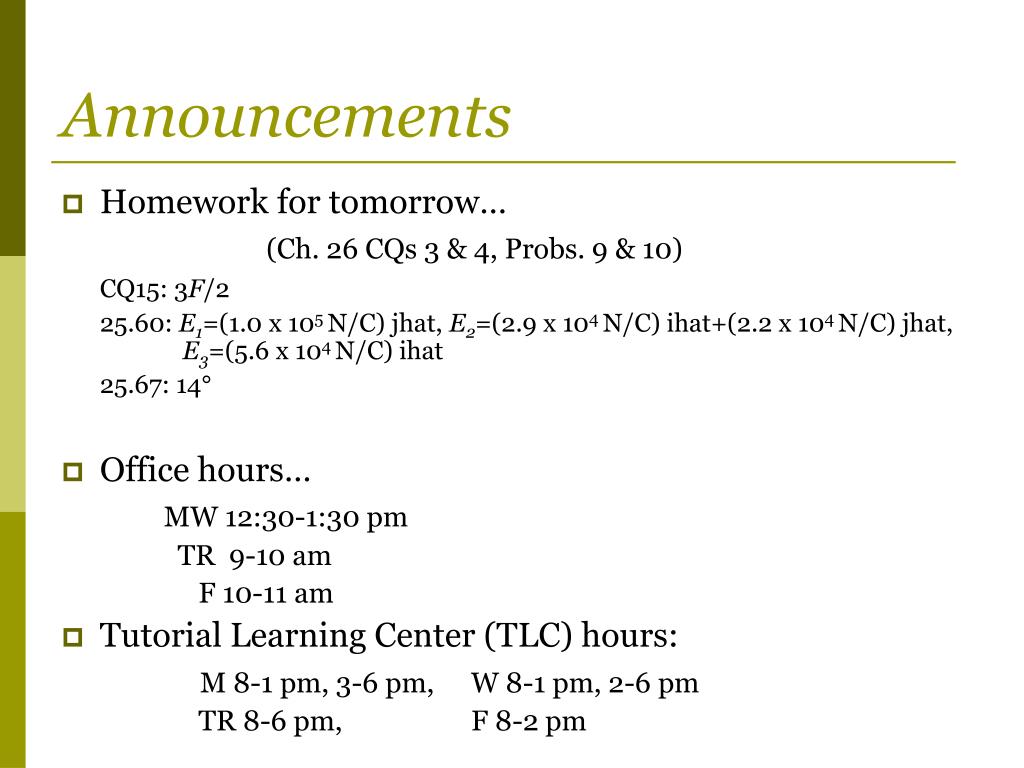

Announcements
  • Homework for tomorrow…

(Ch. 26 CQs 3 & 4, Probs. 9 & 10)

CQ15: 3F/2

25.60: E1=(1.0 x 105 N/C) jhat, E2=(2.9 x 104 N/C) ihat+(2.2 x 104 N/C) jhat, E3=(5.6 x 104 N/C) ihat

25.67: 14°

  • Office hours…

MW 12:30-1:30 pm

TR 9-10 am

F 10-11 am

  • Tutorial Learning Center (TLC) hours:

M 8-1 pm, 3-6 pm, W 8-1 pm, 2-6 pm

TR 8-6 pm, F 8-2 pm

chapter 26

Chapter 26

The Electric Field

(The E-Field of a Continuous Charge Distribution)

last time
Last time…
  • Dipole Moment
  • E-field of a dipole on the dipoleaxis
  • E-field of a dipole in the bisecting plane

Notice: r is distance measured from the center of dipole.

+q

s

-q

picturing the e field

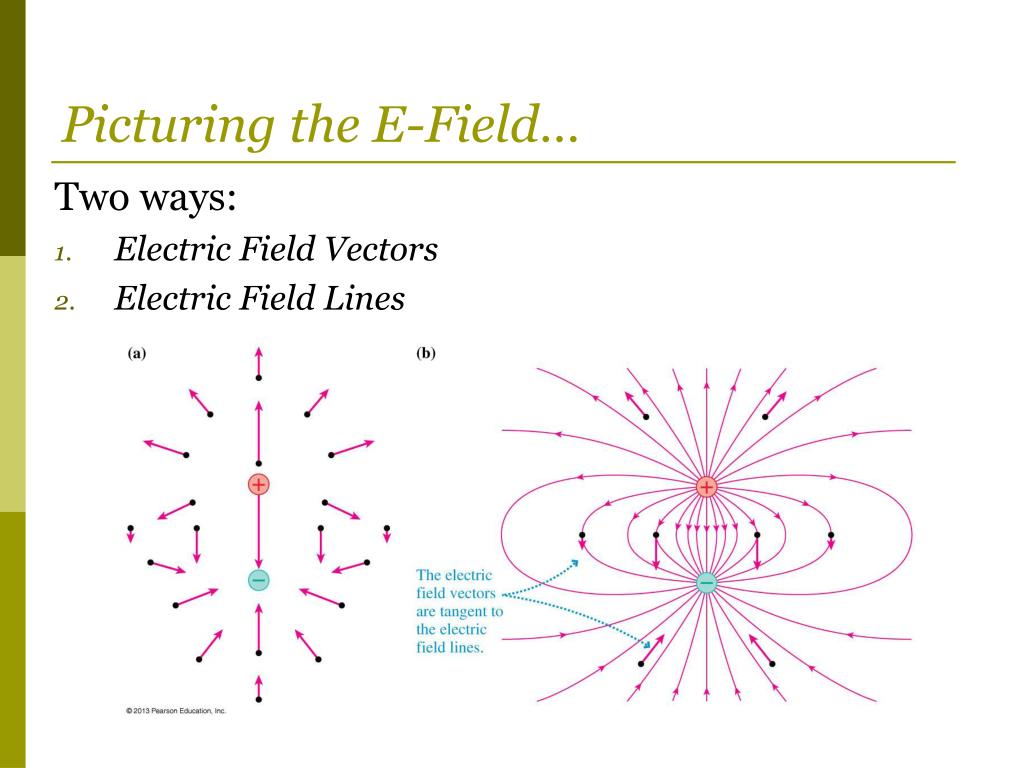

Picturing the E-Field…

Two ways:

  • Electric Field Vectors
  • Electric Field Lines
electric field line rules
Electric Field Line Rules:
  • Lines start on + charges and end on – charges.
  • As lines get closer, fields get stronger.
  • Arrows point in direction of force on a positive test charge.
  • Force is tangent to field lines.
  • Field lines CAN’T cross.
quiz question 1
Quiz Question 1

The diagram shows the electric field lines due to two charged metal plates. We can conclude that:

  • The upper plate is positive and the lower plate is negative.
  • A + charge at X would experience the same force if it were placed at Y.
  • A + charge X experiences a greater force than if it were placed at Z.
  • A + charge at X experiences less force than if it were placed at Z.
  • A - charge at X could have it’s weight balanced by the electrical force.

Y

Z

X

charge densities
Charge Densities

Point Charge

Line Charge

Surface Charge

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

L

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

Area A

i e 26 3 e field of a line of charge
i.e. 26.3E-field of a line of charge..

Figure 26.11 shows a thin, uniformly charged rod of length L with total charge Q. Find the electric field strength at radial distance r in the plane that bisects the rod.

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

r

L

P

i e 26 3 e field of a line of charge1

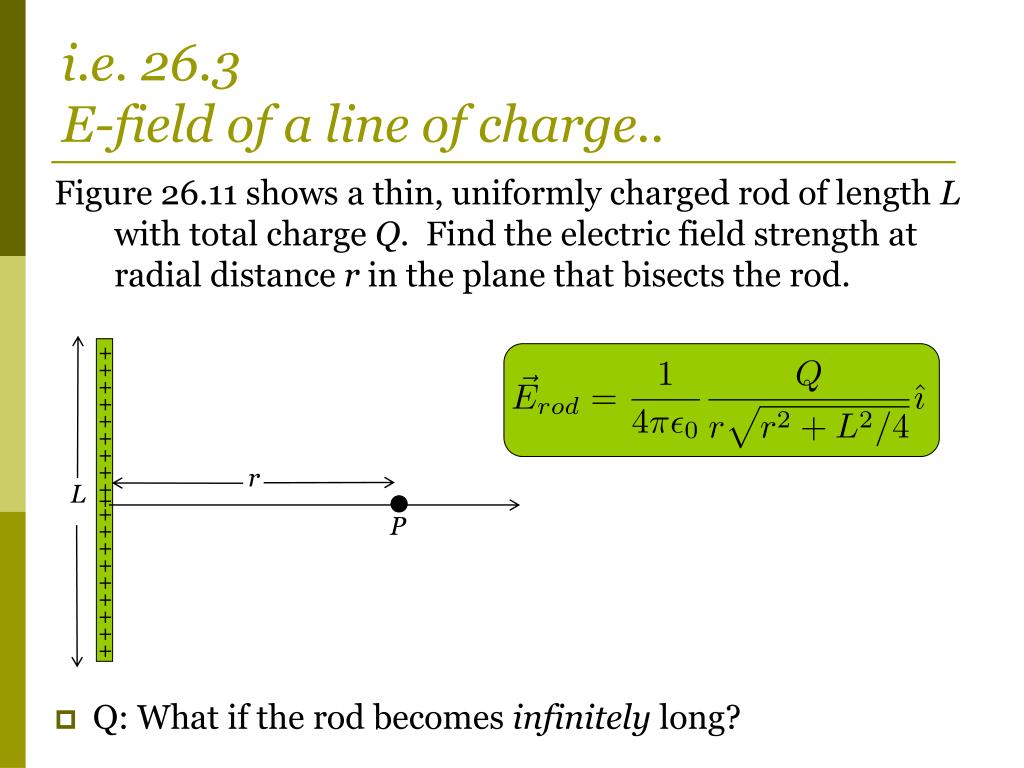

i.e. 26.3E-field of a line of charge..

Figure 26.11 shows a thin, uniformly charged rod of length L with total charge Q. Find the electric field strength at radial distance r in the plane that bisects the rod.

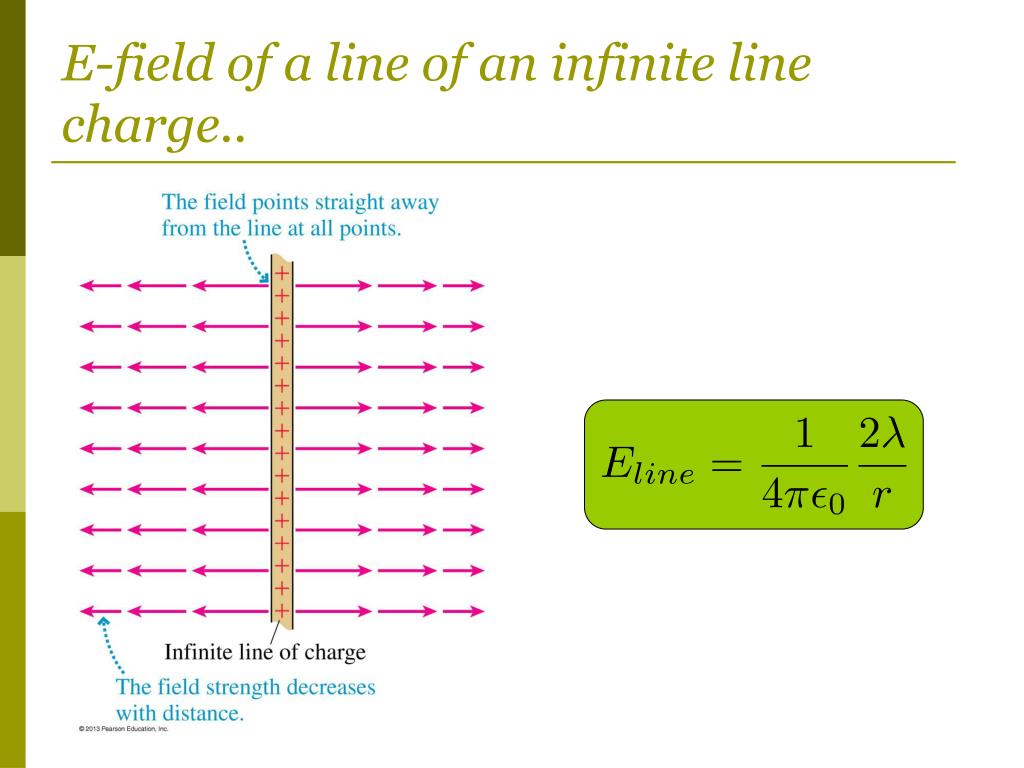

  • Q: What if the rod becomes infinitely long?

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

r

L

P
