  1. Presentation to the Smartcard Networking Forum11th April 2006 e-purse case study Jayne Ward Bracknell Forest Borough Council Jayne.ward@bracknell-forest.gov.uk

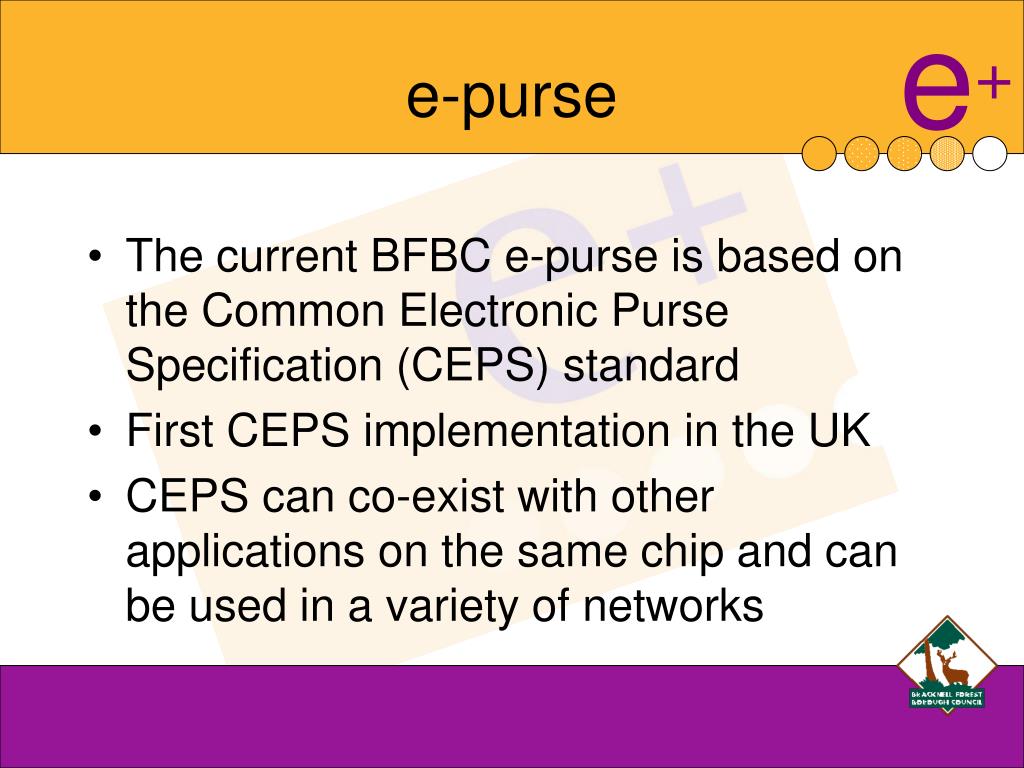

  2. e-purse • The current BFBC e-purse is based on the Common Electronic Purse Specification (CEPS) standard • First CEPS implementation in the UK • CEPS can co-exist with other applications on the same chip and can be used in a variety of networks

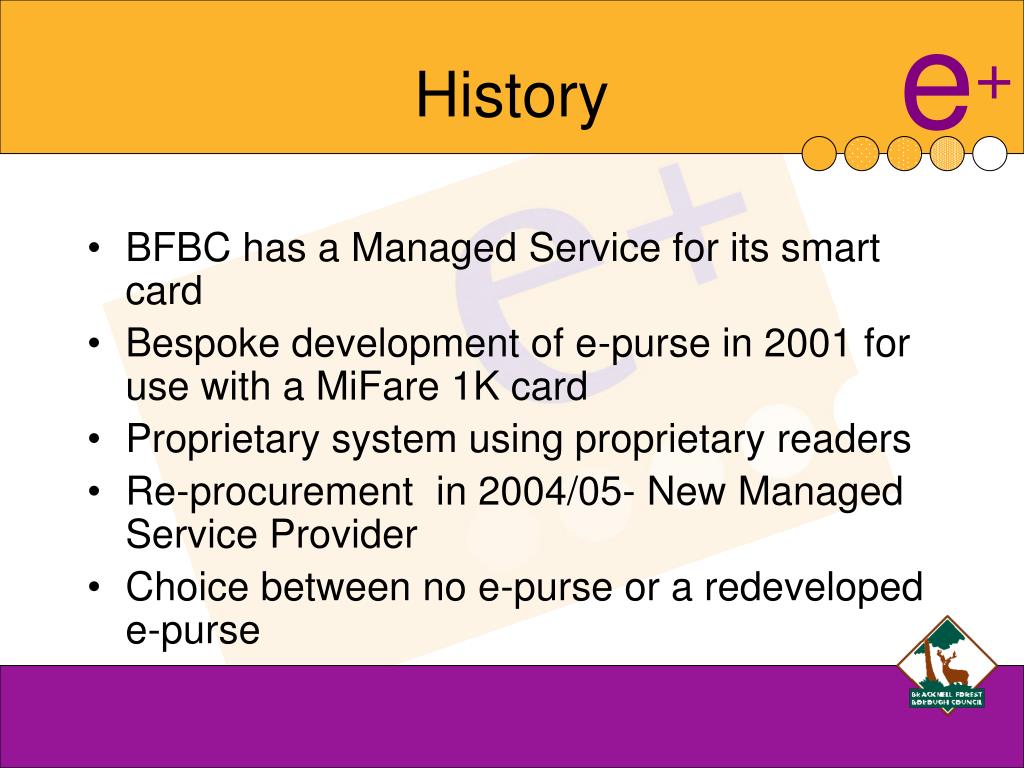

  3. History • BFBC has a Managed Service for its smart card • Bespoke development of e-purse in 2001 for use with a MiFare 1K card • Proprietary system using proprietary readers • Re-procurement in 2004/05- New Managed Service Provider • Choice between no e-purse or a redeveloped e-purse

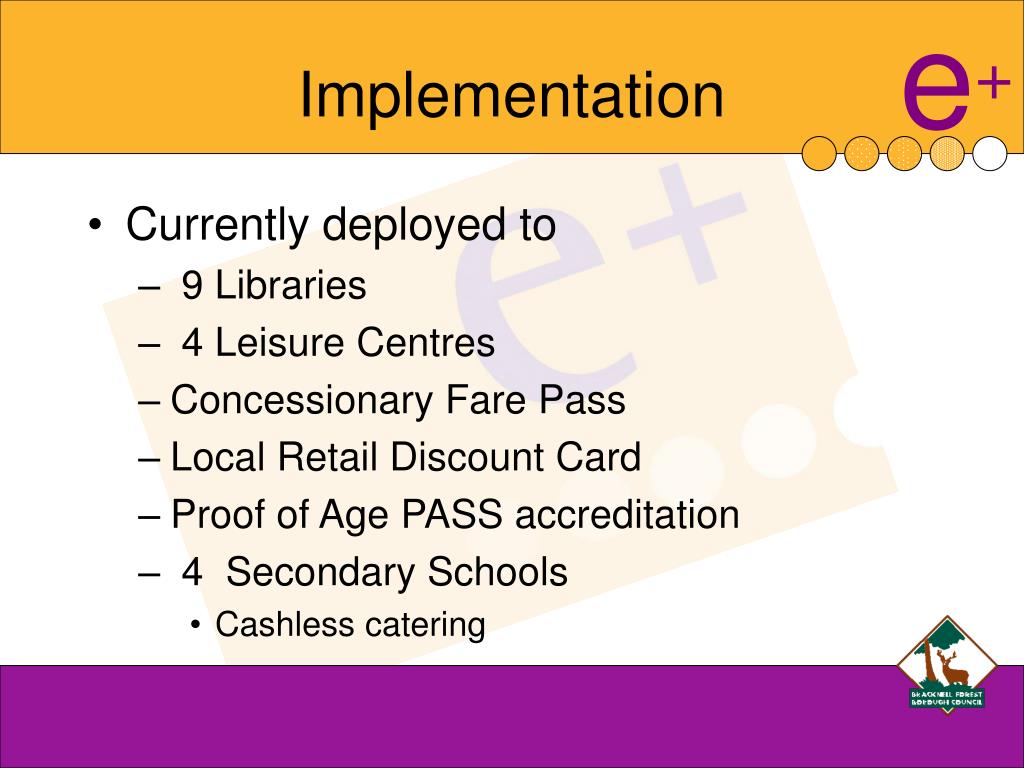

  4. Implementation • Currently deployed to • 9 Libraries • 4 Leisure Centres • Concessionary Fare Pass • Local Retail Discount Card • Proof of Age PASS accreditation • 4 Secondary Schools • Cashless catering

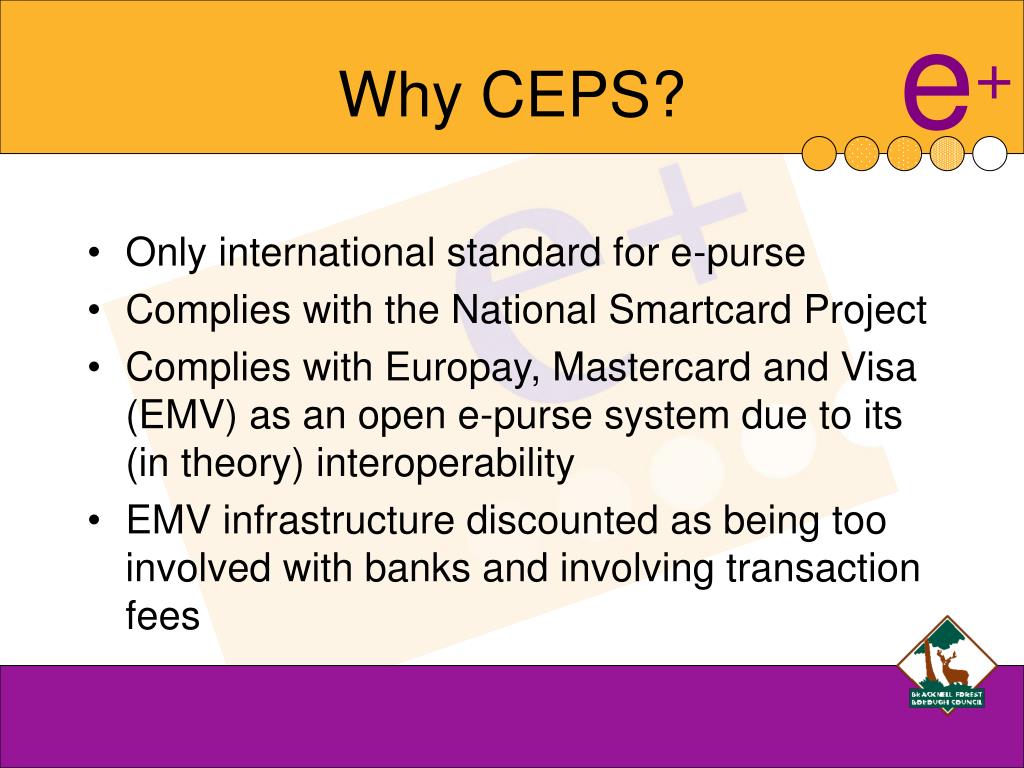

  5. Why CEPS? • Only international standard for e-purse • Complies with the National Smartcard Project • Complies with Europay, Mastercard and Visa (EMV) as an open e-purse system due to its (in theory) interoperability • EMV infrastructure discounted as being too involved with banks and involving transaction fees

  6. Why CEPS? • Wish to move towards interoperability • Did not want another proprietary e-purse • Need to be open rather than closed and inclusive • New provider, familiar with CEPS, offered ‘CEPS Lite’ • Royalty free right in perpetuity available to all ACTVaR councils • Not a lot of alternatives

  7. What is CEPS Lite ? • CEPS with multicurrency and incremental purchase capabilities stripped out • Adapted to fit on the e+ JCOP 30 card • Card application and terminal application written to work on standard PC’s • Purchase Secure Access Module (PSAM) software deployed to keep the cost of readers down

  8. The Bad News • All existing cards in circulation needed to be converted to work with new e-purse • To allow the e-purse balance on the contactless chip to be read via a contact reader • Conversion done by frontline staff on first presentation of card

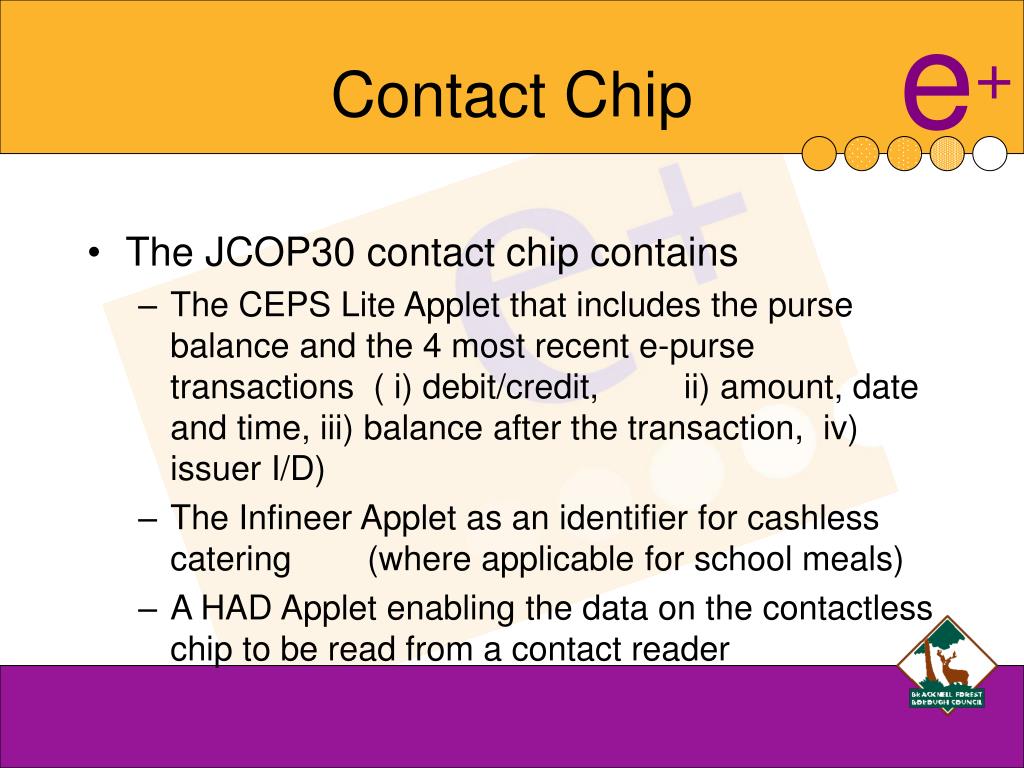

  9. Contact Chip • The JCOP30 contact chip contains • The CEPS Lite Applet that includes the purse balance and the 4 most recent e-purse transactions ( i) debit/credit, ii) amount, date and time, iii) balance after the transaction, iv) issuer I/D) • The Infineer Applet as an identifier for cashless catering (where applicable for school meals) • A HAD Applet enabling the data on the contactless chip to be read from a contact reader

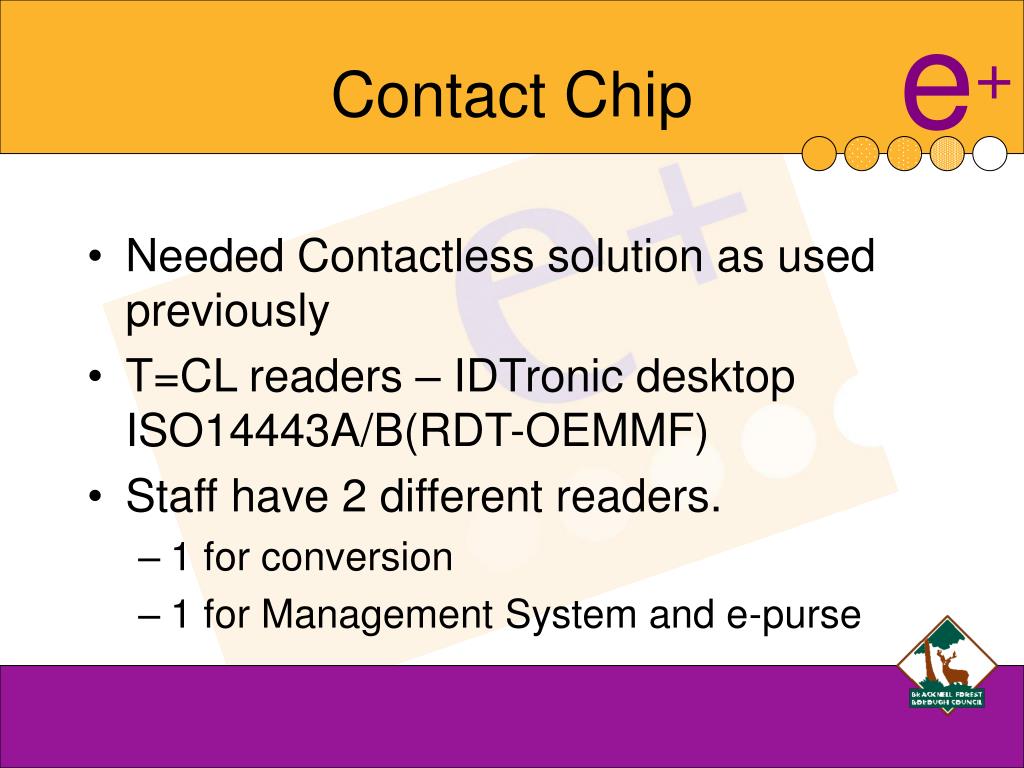

  10. Contact Chip • Needed Contactless solution as used previously • T=CL readers – IDTronic desktop ISO14443A/B(RDT-OEMMF) • Staff have 2 different readers. • 1 for conversion • 1 for Management System and e-purse

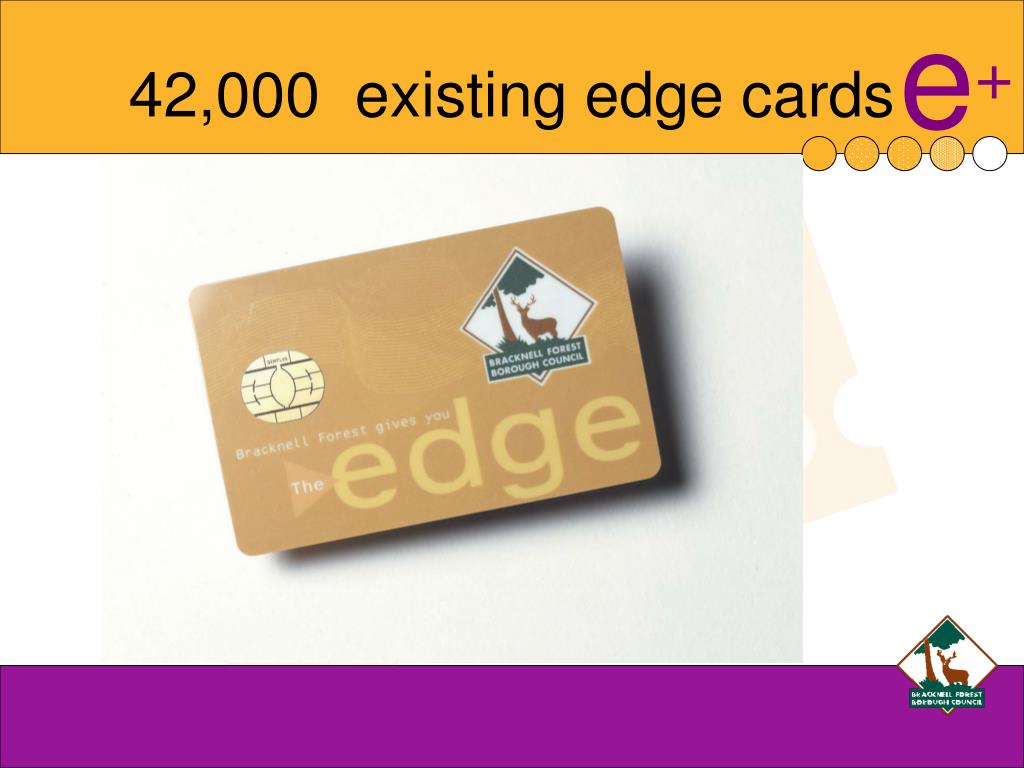

  11. 42,000 existing edge cards

  12. New Branding • edge re-branded to e+ • Happened at same time as change to new provider • All edge cards in circulation needed to be converted before they would work with new ChipPURSE e-purse system • Post Issuance solution using a contact reader • All e+ cards work on the new system

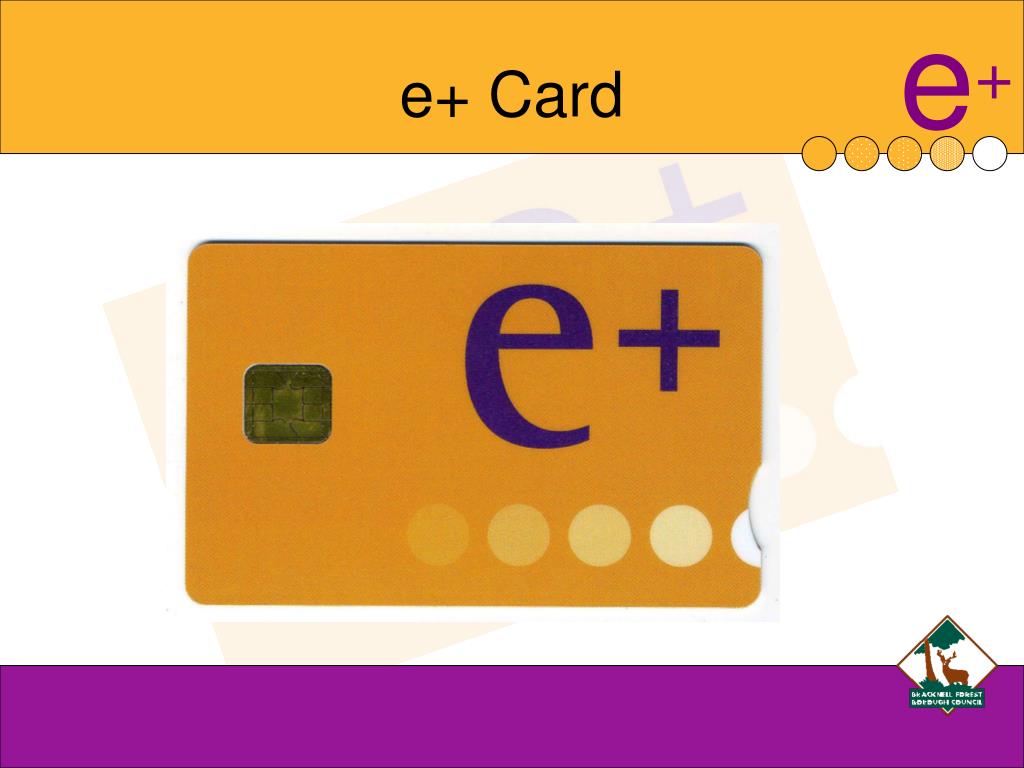

  13. e+ Card

  14. Card Conversion • A DLL software security module was required • Cards converted using a contact reader

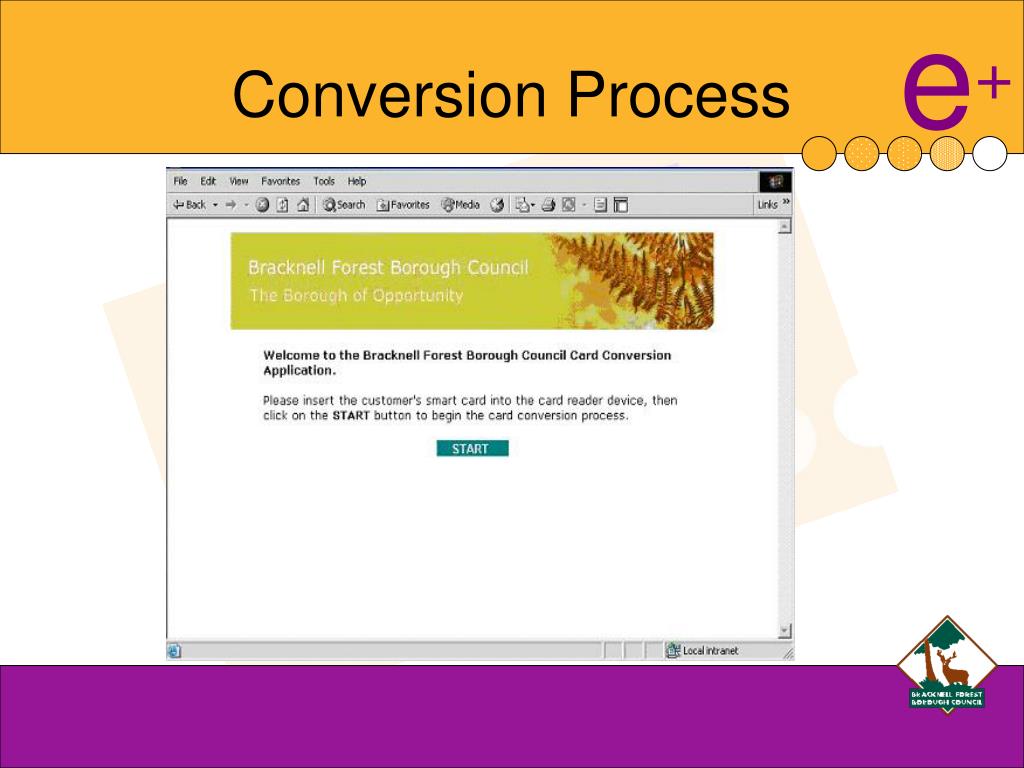

  15. Conversion Process

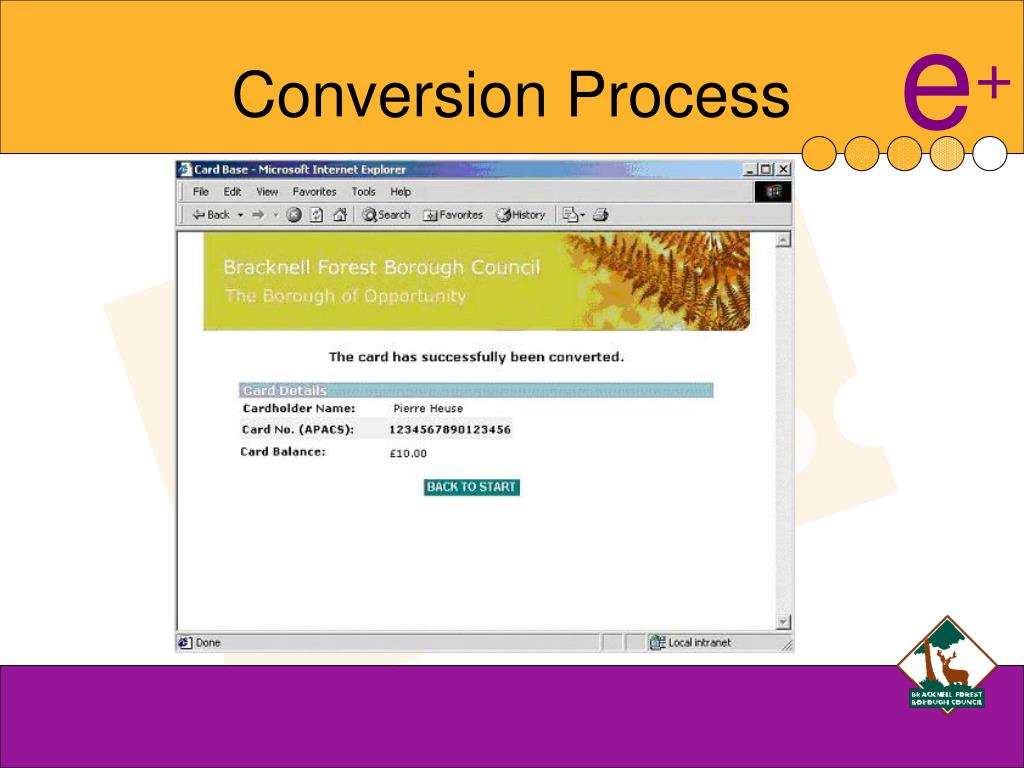

  16. Conversion Process

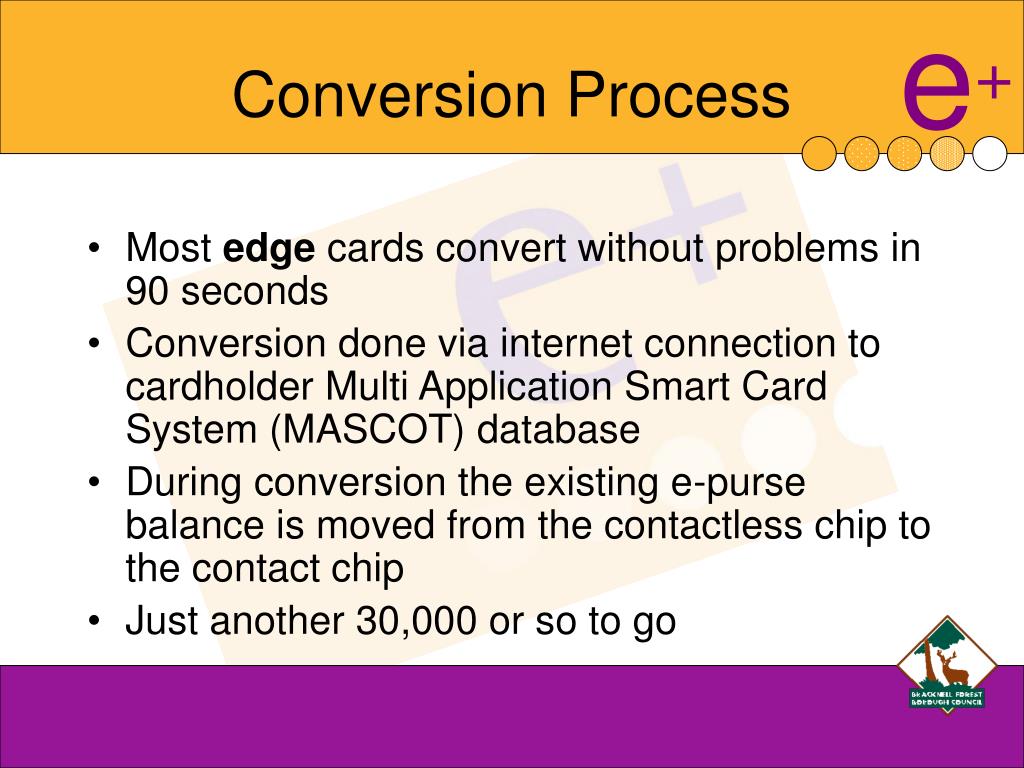

  17. Conversion Process • Most edge cards convert without problems in 90 seconds • Conversion done via internet connection to cardholder Multi Application Smart Card System (MASCOT) database • During conversion the existing e-purse balance is moved from the contactless chip to the contact chip • Just another 30,000 or so to go

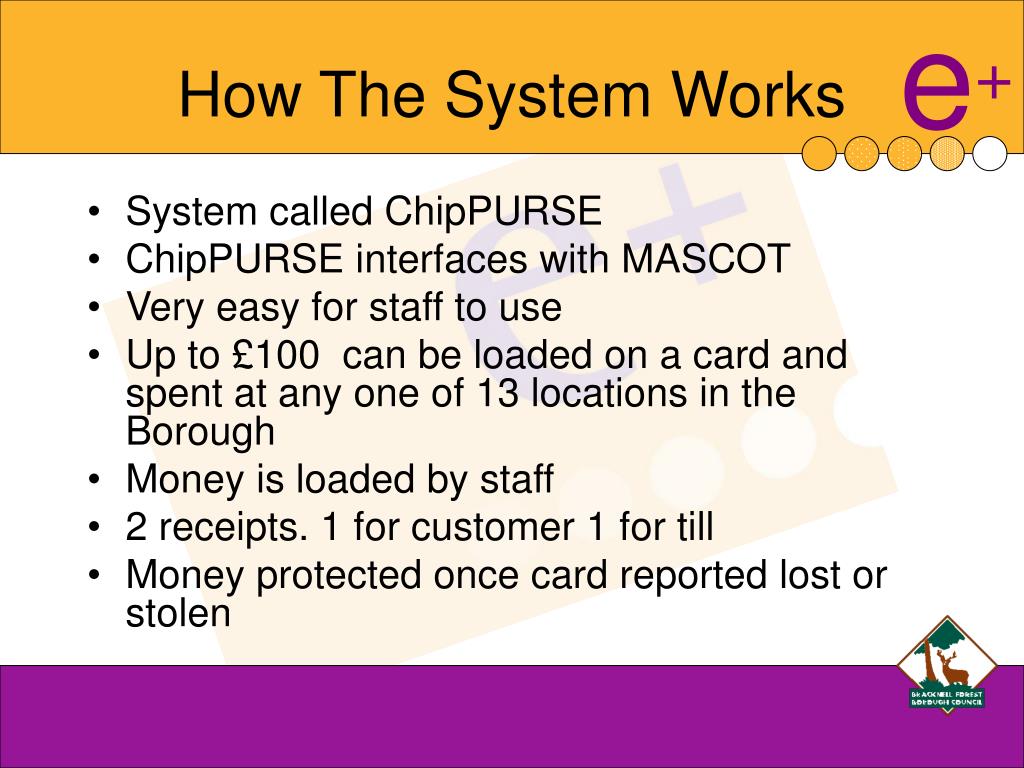

  18. How The System Works • System called ChipPURSE • ChipPURSE interfaces with MASCOT • Very easy for staff to use • Up to £100 can be loaded on a card and spent at any one of 13 locations in the Borough • Money is loaded by staff • 2 receipts. 1 for customer 1 for till • Money protected once card reported lost or stolen

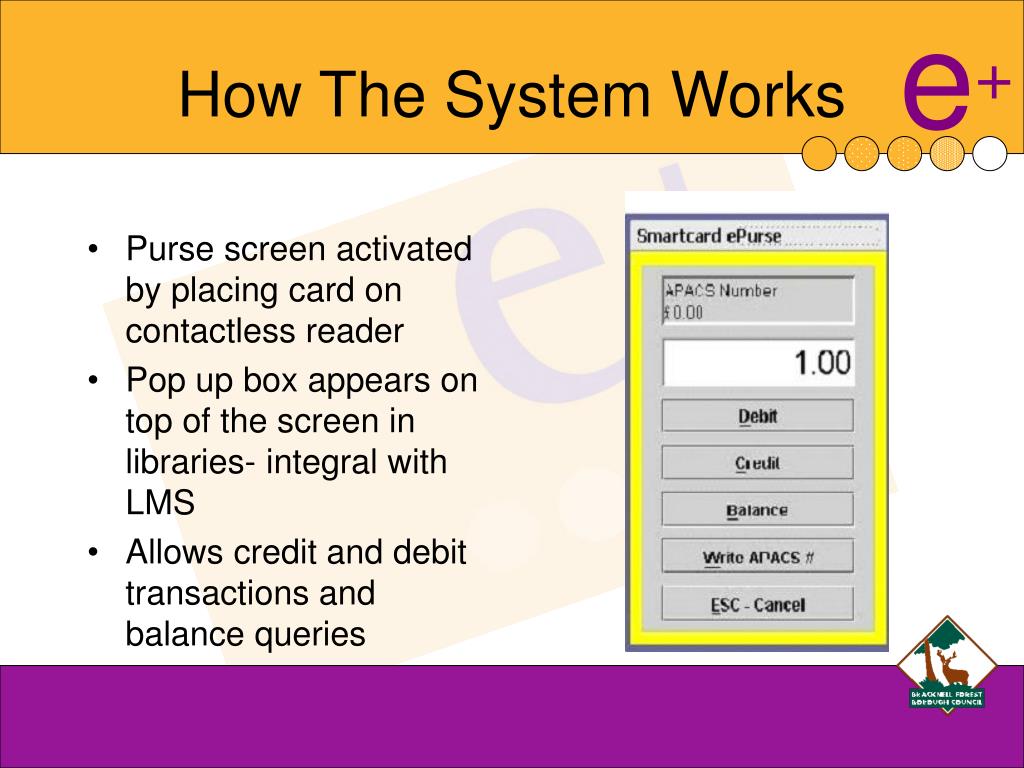

  19. How The System Works • Purse screen activated by placing card on contactless reader • Pop up box appears on top of the screen in libraries- integral with LMS • Allows credit and debit transactions and balance queries

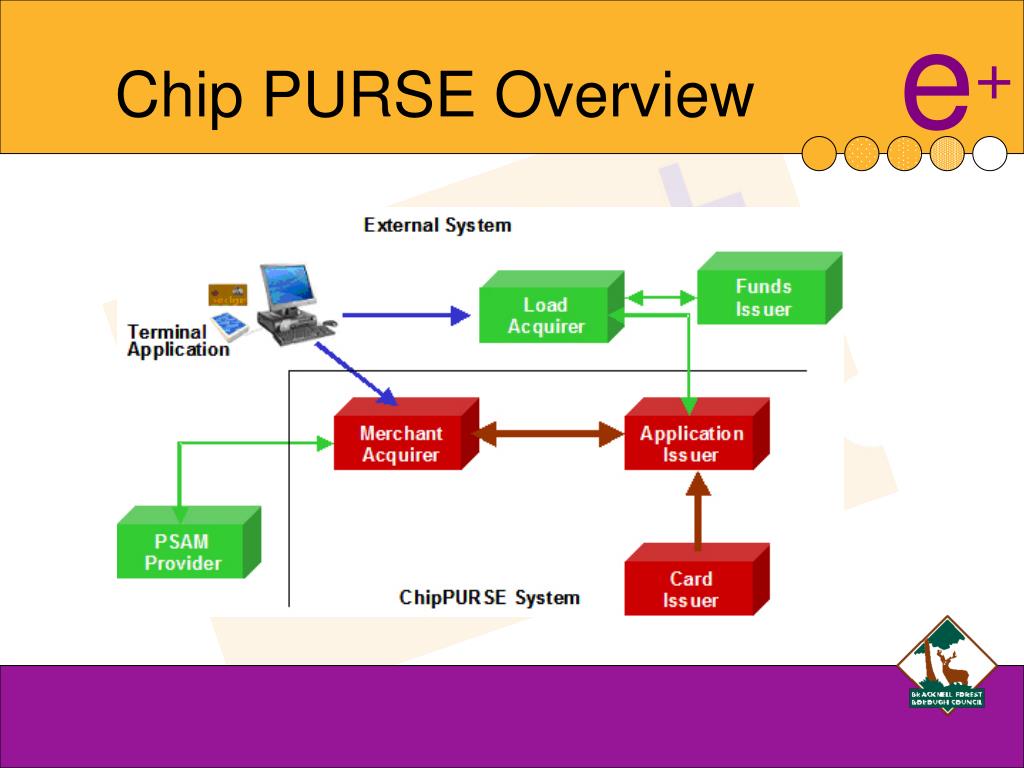

  20. Chip PURSE Overview

  21. How The System Works • Only credit transactions need an on-line connection to MASCOT • Debit transactions do not need to be on-line and are downloaded to the MASCOT database daily • No transactions are PIN protected • The CEPS transactions are uploaded directly to the merchant acquirer (entity responsible to clear and settle transactions) on start up of the terminal application

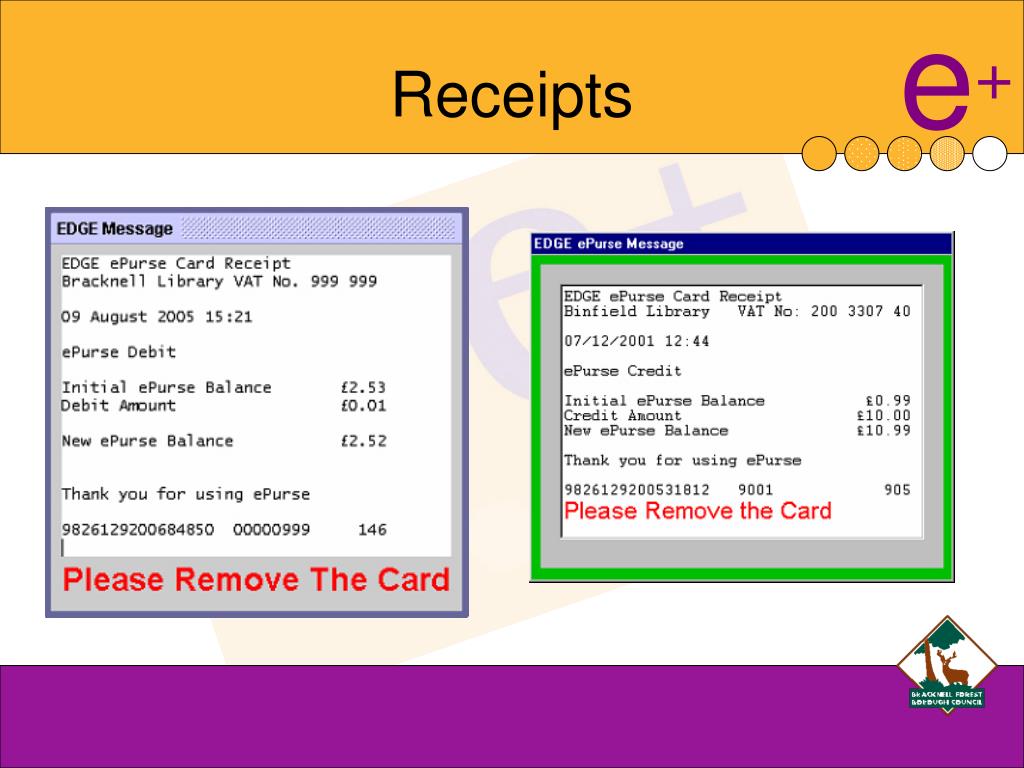

  22. Receipts

  23. Replacement Cards • No funds on replacement cards • Letter stating e-purse balance sent out with card • Cardholder presents letter at library / leisure centre for balance to be loaded • Letter retained for audit trail

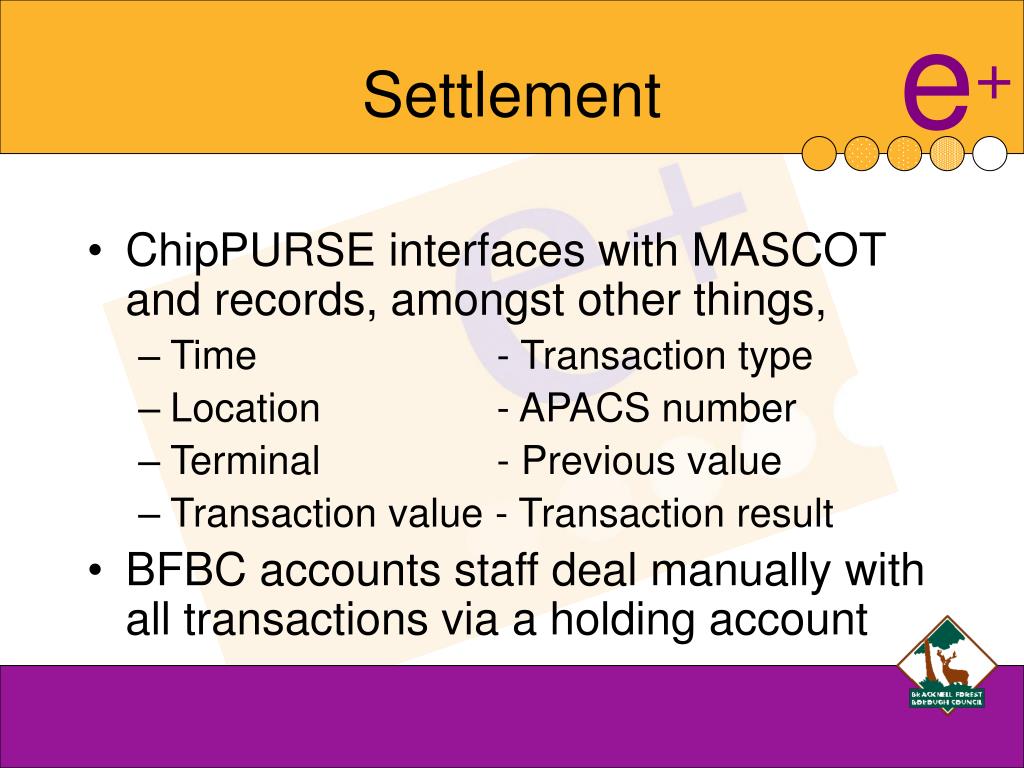

  24. Settlement • ChipPURSE interfaces with MASCOT and records, amongst other things, • Time - Transaction type • Location - APACS number • Terminal - Previous value • Transaction value - Transaction result • BFBC accounts staff deal manually with all transactions via a holding account

  25. Reports • On-line reports available detailing • Cardholder statement • Daily totals of debits and credits • List of each daily transaction • List of all balances including total of all balances representing the amount of funds held by the Council which have not been used by the cardholder • Library staff can get daily and weekly reported including all branch PC’s

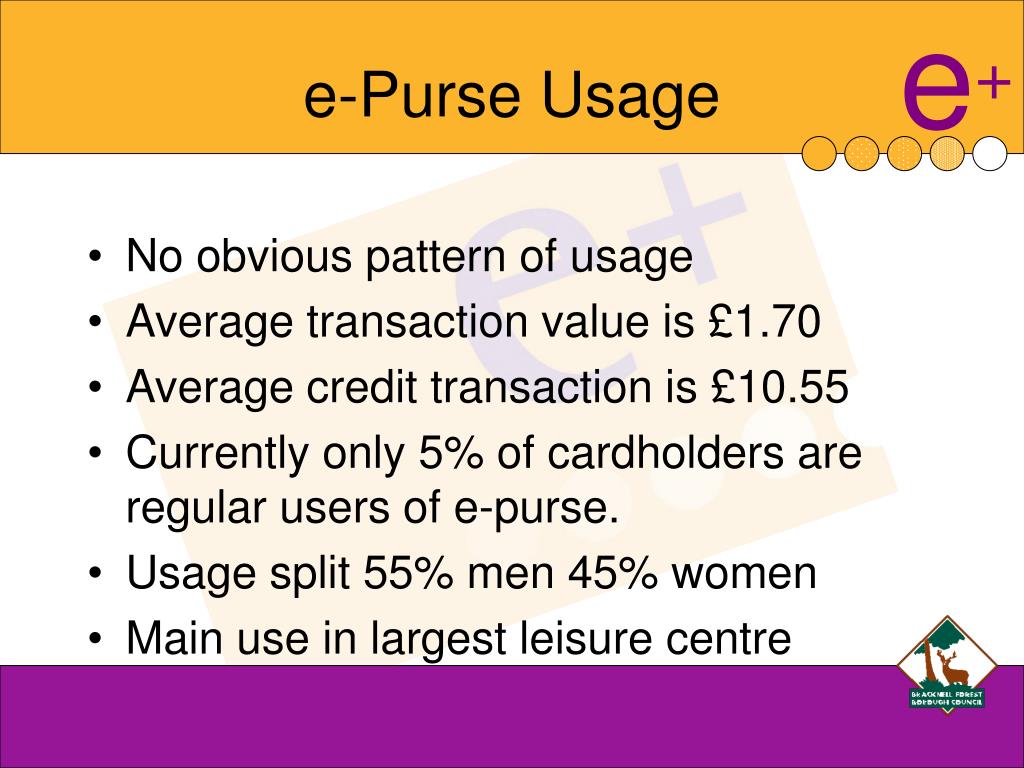

  26. e-Purse Usage • No obvious pattern of usage • Average transaction value is £1.70 • Average credit transaction is £10.55 • Currently only 5% of cardholders are regular users of e-purse. • Usage split 55% men 45% women • Main use in largest leisure centre

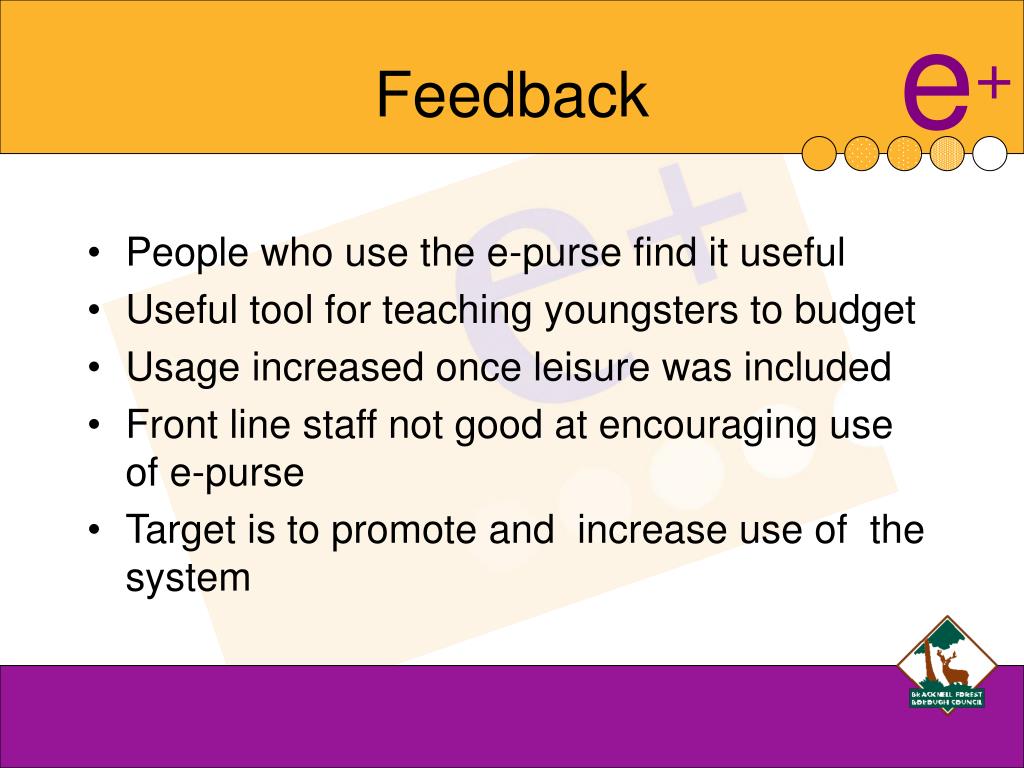

  27. Feedback • People who use the e-purse find it useful • Useful tool for teaching youngsters to budget • Usage increased once leisure was included • Front line staff not good at encouraging use of e-purse • Target is to promote and increase use of the system

  28. The End Any Questions ?
