  1. The Ashkenazi Genome Project Shai Carmi Pe’er lab, Columbia University and The Ashkenazi Genome Consortium (TAGC) Boston September 2013

  2. Outline • Ashkenazi Jewish (AJ) Genetics and TAGC • Basic Variant Statistics • Utility in AJ Medical Genetics • Demographic History of AJ and Europeans • Summary

  3. Ashkenazi Jewish (AJ) Genetics & TAGC

  4. Recent History of Ashkenazi Jews (AJ) • Mediterranean origin (?) • Ca. 1000: Small communities in Northern France, Rhineland • Migration east • Expansion • Migration to US and Israel • ≈10M today • Relative isolation

  5. Ashkenazi Jewish Genetics • Recently, AJ shown to be genetically distinct • Close to Middle-Easterners & South-Europeans 300 Jewish individuals; SNP arrays Jewish non-AJ AJ Europeans Middle-Eastern Price et al., PLoSGenet., 2008 Olshen et al., BMC Genet., 2008 Need et al., Genome Biol., 2009 Kopelman et al., BMC Genet., 2009 Atzmonet al., AJHG, 2010 Behar et al., Nature, 2010 Bray et al., PNAS, 2010 Guha et al., Genome Biol., 2012

  6. Recent Demography & IBD • Recent, strong genetic drift leads to long identical-by-descent haplotypes. • IBD sharing common in AJ(Gusev et al., MBE, 2011 and others) • Inferred bottleneck of just ≈300 individuals ≈800 ya(Palamara et al., AJHG, 2012) B A A B A shared segment

  7. Ashkenazi-Jewish (AJ) Genetic Risk Factors • Multitude of Mendelian disorders • Carrier screening: A success story • Breast and ovarian cancer: BRCA1, BRCA2 • Parkinson’s disease: LRRK2, GBA Gravel et al., 2001 Tay-Sachs births

  8. AJ Genetics: Summary & Prospects • Large population (≈10M) • Narrow bottleneck (≈300) • Mostly isolated • Recruitable • Well studied • Insight on both European and Middle-Eastern past • No genealogies • Mobile • Some recent admixture • Significant ancient admixture

  9. The Ashkenazi Genome Consortium Goal: • 11+5 labs, mostly from the NY area • Sequence to high coverage hundreds of healthy AJ • Use as a reference panel for imputation and clinical interpretation • Improve understanding of population history and functional genetic variation in AJ • Phase I: • 128 AJ personal genomes • Healthy controls • Unrelated, PCA-validated AJ • Technology: Complete Genomics

  10. Basic Variant Statistics

  11. Variant Statistics &Comparison to Europeans • Comparison panels: • 1000 Genomes Europeans • 26 Flemish from Belgium, sequenced by Complete Genomics Projection method: Gravel et al., PNAS, 2011

  12. Allele Frequency Spectrum

  13. Utility in AJ Medical Genetics

  14. Screening AJ Genomes An ancestry-matched reference panel is expected to filter more benign variants in clinical genomes.

  15. A Catalog of Mutations in Known AJ Disease Genes • Tens of genes harbor known mutations for AJ-prevalent Mendelian disorders or risk factors for multifactorial diseases. • Tay-Sachs disease, Gaucher disease, Familial dysautonomia, Niemann-Pick disease, Torsion dystonia, Canavandisease, Bloom syndrome, etc. • Breast cancer (BRCA1/2), Colon cancer (APC), Parkinson’s (LRRK2), etc. • We mapped 73 mutations in 48 genes. • Detected carriers of 35 known disease mutations. • Detected 184 missense and 18 loss-of-function novel (dbSNP135) variants. • Catalog will be made available.

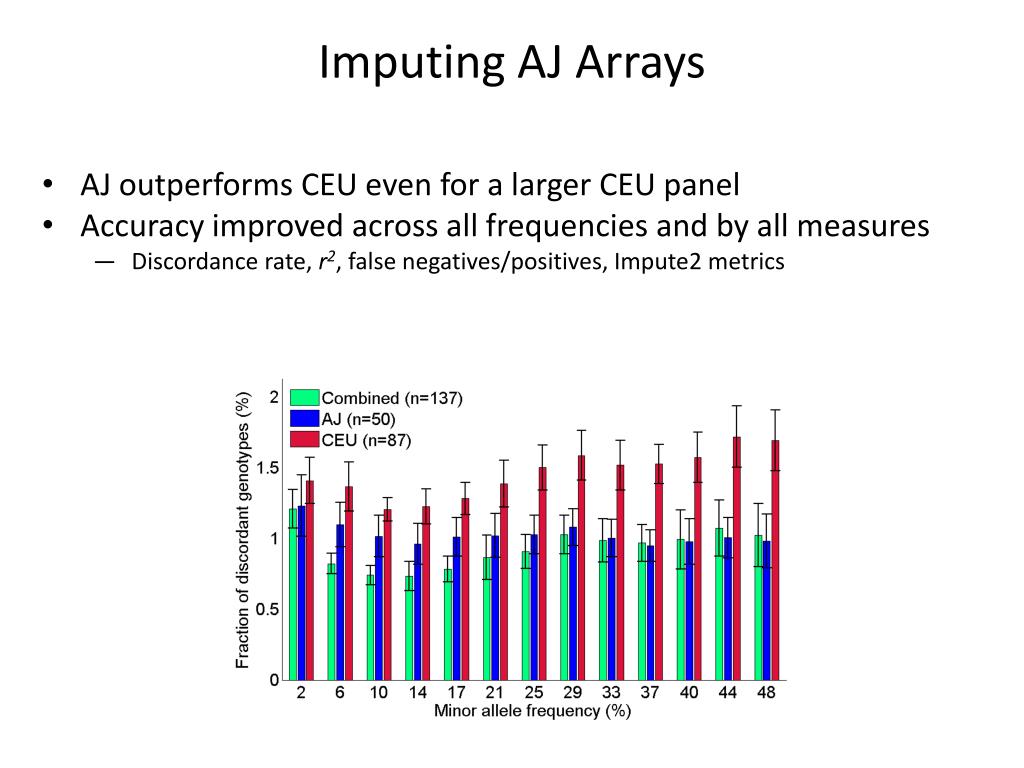

  16. Imputing AJ Arrays • AJ outperforms CEU even for a larger CEU panel • Accuracy improved across all frequencies and by all measures • Discordance rate, r2, false negatives/positives, Impute2 metrics

  17. Imputation by IBD • Impute by copying long IBD segments from a fully sequenced genome into a sparsely genotyped one. • Only 1-2 recent mutations per segment are expected • IBD detected using Germline with additional filtering. >3cM Fit to:

  18. A Short Detour:A Model for the Expected Coverage

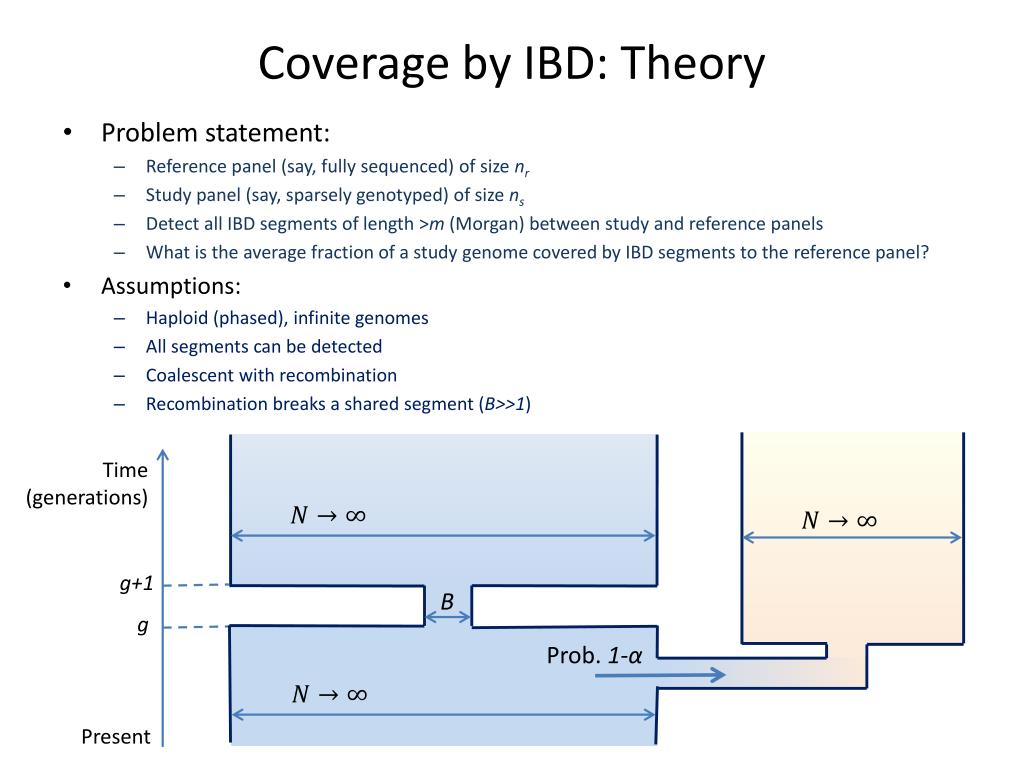

  19. Coverage by IBD: Theory • Problem statement: • Reference panel (say, fully sequenced) of size nr • Study panel (say, sparsely genotyped) of size ns • Detect all IBD segments of length >m (Morgan) between study and reference panels • What is the average fraction of a study genome covered by IBD segments to the reference panel? • Assumptions: • Haploid (phased), infinite genomes • All segments can be detected • Coalescent with recombination • Recombination breaks a shared segment (B>>1) Time (generations) g+1 B g Prob. 1-α Present

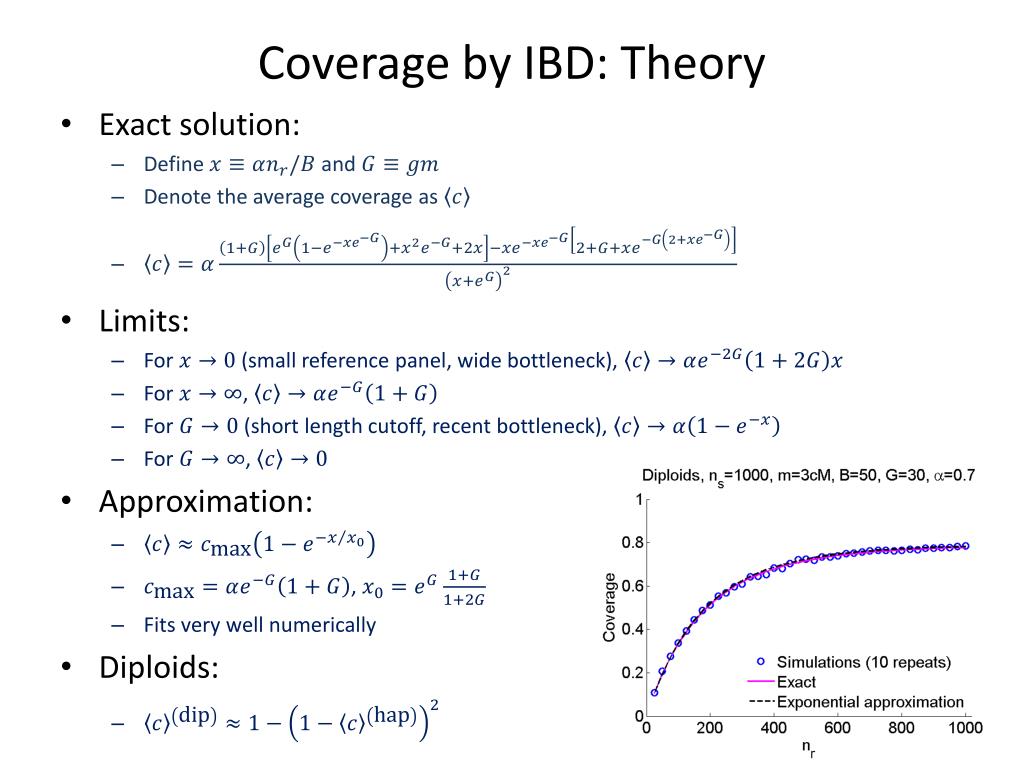

  20. Coverage by IBD: Theory • Exact solution: • Define and • Denote the average coverage as • Limits: • For (small reference panel, wide bottleneck), • For , • For (short length cutoff, recent bottleneck), • For , • Approximation: • , • Fits very well numerically • Diploids:

  21. Demographic History of AJ & Europeans

  22. Recent AJ History Using IBD • Assume a population of historical size diploids • Time scaled by 2N0 • Fraction of the genome in segments of length : Palamara et al., AJHG 2012 • Detect IBD in sample Infer history

  23. Ancient History, One Population at a Time • Fit the allele frequency spectrum, computed using diffusion • (∂a∂I, Gutenkunst et al., PLoS Genetics, 2009)

  24. A Consequence • Number of segregating sites Sn(t) • Zivkovicand Stephan, Theor. Pop. Biol. 2011 • n: #diploid samples; θ=4N0μ;μ: mutation rate per generation

  25. Principal Component Analysis

  26. Ancient History What we know/learned so far: • AJ are a Middle-Eastern:Europeanmix • Slightly higher heterozygosity (+2.4%) • Larger ancient population size • Admixture • Recent explosive growth • Many more AJ-specific variants • +14% for 25x25 genomes • Out-of-Africa (Henn et al., PNAS, 2012) • ≈50-60 kya • Serial founder model: Africa → Middle-East → Europe • Hunter-gatherers in Europe at ≈40-45 kya(Higham et al., Nature, 2011) • Bottleneck and expansion at each step

  27. The Joint AFS • Allele frequencies correlated but substructure exists. • Experimenting with inference using the joint AFS • For our sample size, can infer at most ≈10 parameters • Hard to infer very recent history • Hard to infer migration rates

  28. Time A Proposed Model N0 Nb,OOA Nb,EU Tb,OOA Tb,EU fa Ta Nf,AJ Nf,EU Present AJ Flemish

  29. The Inferred Model Time (years ago) 6500 2300 52,000 Out-of-Africa? Middle-East/Levant? 1800 Early Neolithic migrants? 10,800 Jewish diaspora? 1700 55% 7500 58,000 Flemish AJ Present

  30. European Origins Farming began in Europe ≈5-8kya (“the Neolithic revolution”) Spread of ideas (“cultural diffusion”) Human migration(“demic diffusion”) • For cultural diffusion, split from Middle-Easterners at ≈40-45 kya. • We estimate ≈11 kya • Earlier than ≈5-8 kyaperhaps due to • Early substructure before actual migration • Incomplete replacement of hunter-gatherers • Traces of recovery from the Last Glacial Maximum

  31. Confidence Intervals • Parametric bootstrap: • Simulate whole genomes with the maximum likelihood parameters • MaCS, Chen et al., Genome Res., 2009 • Infer using the simulated datasets

  32. Hmmm… Model specification Mutation rate

  33. Mutation Rate • We used per bp per generation: the “phylogenetic rate”. • The “de-novo rate” is , and would double all population sizes and times. • We preferred the phylogenetic rate for a few (weak) reasons • False negatives may exist in some de-novo studies • The de-novo rate does not account for selection • With the de-novo rate, the Out-of-Africa time would be >100 kya • A decrease of 50% in the mutation rate will bring the split time to ≈16 kya • Support the LGM recovery hypothesis • Identify the Middle-East as the source of the recovery • (Haber et al, PLoS Genetics, 2013; Pala et al., AJHG 2012) • Still suggests genetic discontinuity from first hunter-gatherers who colonized Europe • Debate is still open

  34. Model Specification We tried several alternative models • All models support >50% European ancestry in AJ and European-Middle-Eastern split 10-15 kya. • For example, a two-wave model for the population of Europe supports LGM recovery + Neolithic replacement:

  35. Summary & Outlook • We sequenced 128 healthy AJ genomes to high coverage. • Our reference panel will improve: • Screening of AJ clinical genomes or known disease genes • Imputation of AJ SNP arrays • IBD sharing indicates a very recent bottleneck and expansion. • The AJ-European joint allele frequency spectrum suggests: • Over 50% European ancestry in AJ • Europeans diverged from Middle-Easterners only ≈10-15 kya • Made possible by sequencing population with partly Middle-Eastern ancestry • In the future: • Sequence ≈200 more genomes to cover entire bottleneck • Use genomes from more populations to fine-tune demographic models

  36. Thank you! TAGC consortium members: Columbia University Computer Science: Itsik Pe’erFillan Grady, Ethan Kochav, James XueShlomo Hershkop Long-Island Jewish Medical Center: Todd Lencz, Semanti Mukherjee, SauravGuha Columbia University Medical Center: Lorraine Clark, Xinmin Liu Albert Einstein College of Medicine: Gil Atzmon, Harry Ostrer, NirBarzilai, KinnariUpadhyay, Danny Ben-Avraham Mount Sinai School of Medicine: Inga Peter, Laurie Ozelius Memorial Sloan Kettering Cancer Center: Ken Offit, Joseph Vijai Yale School of Medicine: Judy Cho, Ken Hui, Monica Bowen The Hebrew University of Jerusalem: Ariel Darvasi VIB, Gent, Belgium Herwig Van Marck, StephanePlaisance Complete GenomicsOmicia Funding: Human Frontiers Science program

  37. AJ Genetics UK AJ t 2,300 Years ago Power of imputation by IBD 45,000 270 800 4,300,000 N Present Effective size Palamara et al., AJHG 2012

  38. Complete Genomics WGS

  39. Quality Control • 128 samples from two labs were sequenced in 3 batches • Minimal batch effects • Some results are for the first batch of 57 genomes Ti/Tv

  40. Quality Control • False positive rate assessment • Counting (the few) hetsinside long runs of homozygosity • A duplicate sample • Genome wide extrapolation: • SNVs: ≈10-40k FP per genome (FDR: 0.3-1.3%) • Indels: ≈10-30k FP per genome (FDR: 2-6%) • QC: • Remove indels and poly-allelic variants • Remove HWE violations, low call rate • FP after QC: ≈5k per genome. hets roh

  41. Concordance with Arrays Asymptotic discordance 0.05%

  42. Processing and Cleaning Pipeline AJ complete project AJ Flemish 128 Complete Genomics masterVar (hg19) 58 Complete Genomics masterVar (hg19) 26 Complete Genomics masterVar (hg18) CGA tools mkvcf CGA tools CGA tools Summary stats, array concordance, and duplicates analyses testvariants file VCF file VCF file Ti/Tv statistics testvariants file Local cleaning Local cleaning Custom script Custom script; Plink/Seq Local cleaning Custom script Remove low-quality, half-called, or non-SNVs Remove variants not fully called in at least one individual Remove inbred individual Liftover hg18 => hg19 Remove low-quality, half-called, or non-SNVs Remove variants not fully called in at least one individual Remove low-quality, half-called, or non-SNVs Remove variants not fully called in at least one individual Cohort-based cleaning Cohort-based cleaning Cohort-based cleaning Remove poly-alleleic variants Remove variants with high no-call rate or that are not in Hardy-Weinberg equilibrium Remove poly-alleleic variants Remove variants with high no-call rate or that are not in Hardy-Weinberg equilibrium Monomorphic non-ref and runs-of-homozygosity analyses Plink file Plink file Plink file Initial filtering SHAPEIT Remove coordinates with reference mapping problem Remove variants with AJ-Flemish incompatible alleles Phase and impute sporadically missing values Variant in one cleaned file and not at all in other? seqphase Variant in both cleaned files? Variant in one cleaned file and in the VCF of the other? Validate AJ ancestry Validate no cryptic relatedness Keep Keep and set other as hom-ref Phase using molecular phasing information Discard Merge AJ-Flemish genotypes Remove variants incompatible with 1000 Genomes SHAPEIT; using 1000 Genomes panel Phase and impute sporadically missing genotypes

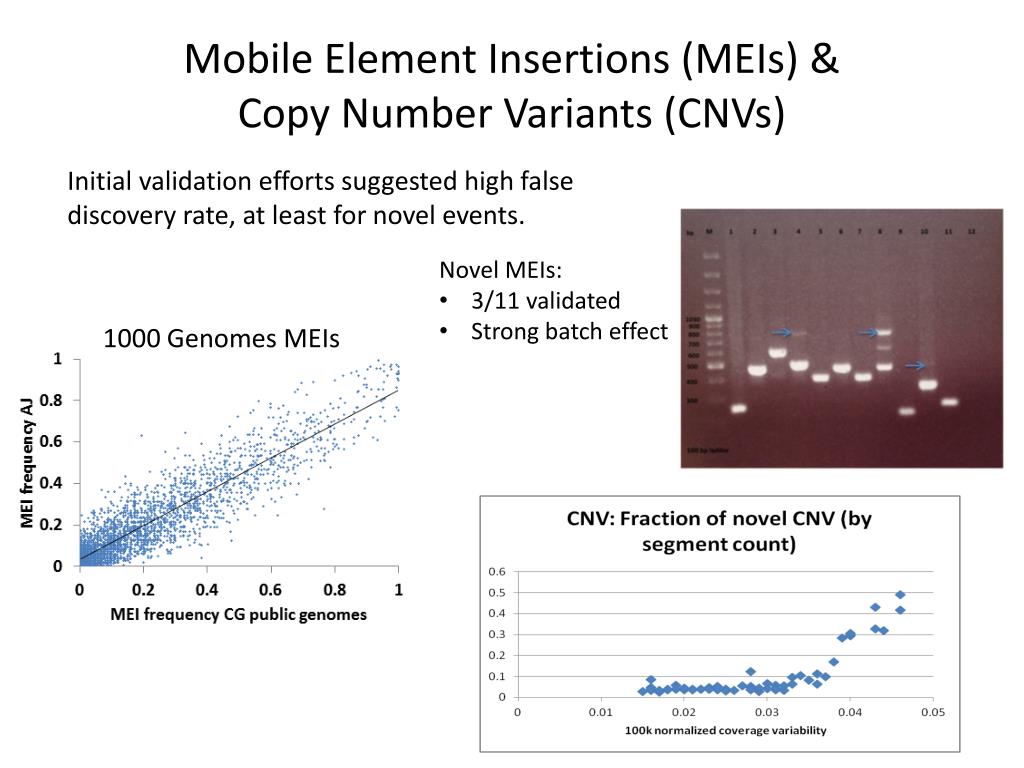

  43. Mobile Element Insertions (MEIs) & Copy Number Variants (CNVs) Initial validation efforts suggested high false discovery rate, at least for novel events. • Novel MEIs: • 3/11 validated • Strong batch effect 1000 Genomes MEIs

  44. Variant Statistics

  45. Imputing AJ Arrays Compare imputation accuracy of AJ SNP arrays when using either AJ or European reference panels. 1000 Genomes CEU (87) Phased AJ Sequences (57) AJ Arrays (1000) 7 Reduce to unphased arrays 87 87 1000 50 50 AJ arrays (1007) Reference Panel 1 (50) Reference Panel 2 (87) Reference Panel 3 (137) Phase (ShapeIT) Study Panel (1007) Imputed Study Panel 3 Impute (Impute2) Imputed Study Panel 2 Imputed Study Panel 1

  46. Mutation Burden in AJ • Theoretically, a narrow bottleneck should increase the load of deleterious variants (e.g., Lohmuller, Nature, 2008) • Or not? (Simons et al., arXiv, 2013) • Expect higher load in AJ. • Define deleterious: • Derived? Minor? Non-reference? Rare? • How to weight each variant? • Account for demography, sequencing errors? • Define significance? • Compare 26 AJ and 26 Flemish. • AJ have between 1-10% more deleterious variants than expected (using Flemish as baseline). P-values between 0.2 and 10-60.

  47. Mutation Burden in Disease Categories • Many diseases have been suggested to be more prevalent in AJ (Goodman 1979) • Several Mendelian disorders • Some cancers • Inflammatory bowel diseases • Diabetes, obesity • Some psychiatric diseases, myopia • Annotate genes according to disease category (OmiciaInc). • Compare non-synonymous variant load between AJ and Flemish. • No category comes out significant in Gene Set Enrichment Analysis.

  48. Het/Hom Ratio Years ago t AJ EU IBD observed Present
