2.4.4: Define diffusion and osmosis

2.4.4: Define diffusion and osmosis Diffusion : The passive movement of particles from a region of high concentration to a region of low concentration until equilibrium is reached. (Molecules still move after equilibrium is reached) . 2.4.4: Diffusion. 2.4.4: Define diffusion and osmosis.

wilmer
Download Presentation

2.4.4: Define diffusion and osmosis

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. 2.4.4: Define diffusion and osmosis Diffusion: The passive movement of particles from a region of high concentration to a region of low concentration until equilibrium is reached. (Molecules still move after equilibrium is reached)

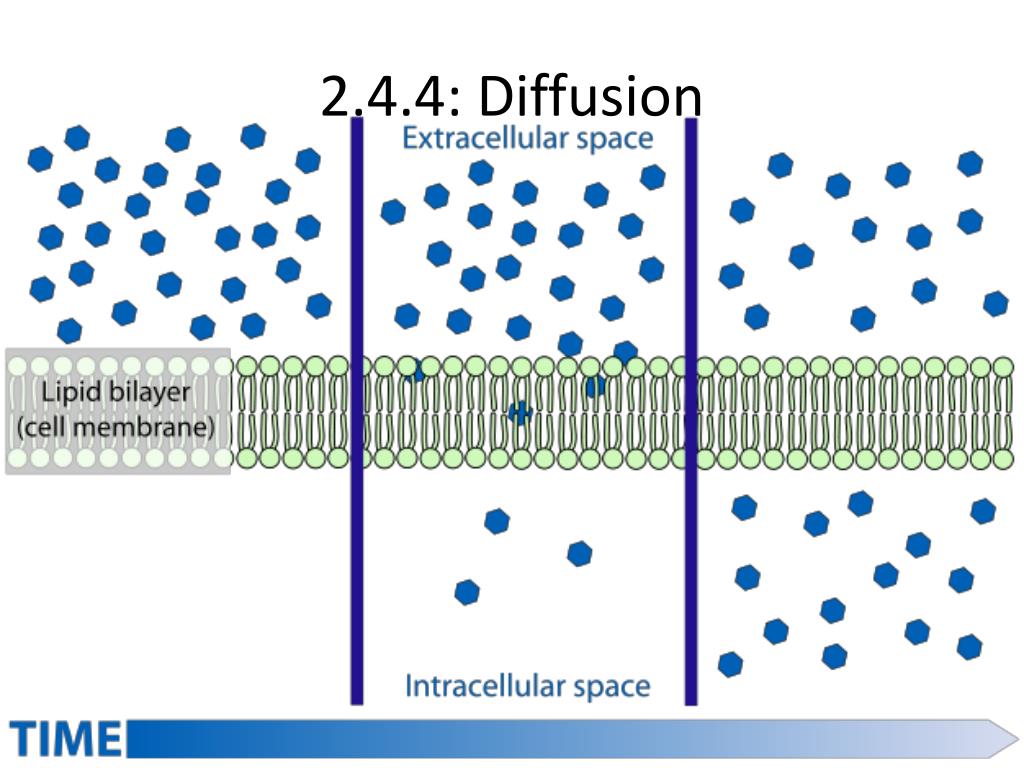

  2. 2.4.4: Diffusion

  3. 2.4.4: Define diffusion and osmosis Osmosis: The passive net movement of water molecules, across a partially permeable membrane, from a region of lower solute concentration to a region of higher solute concentration.

  4. REMEMBER THIS SUMMARY Simple diffusion small and non-polar molecules e.g. oxygen PASSIVE TRANSPORT Facilitated diffusion large or polar or ions e.g. glucose, sodium ions ACTIVE TRANSPORT sodium ions, potassium ions

  5. IB question: Compare simple diffusion with facilitated diffusion as mechanisms to transport solutes across membranes. [5]

  6. IB question: Compare simple diffusion with facilitated diffusion as mechanisms to transport solutes across membranes. [5] Actual IB mark scheme

  7. 2.4.5: Passive Transport

  8. 2.4.6: Active Transport

  9. IB Question: Describe the process of active transport across membranes. [5]

  10. IB Question: Describe the process of active transport across membranes. [5] goes against concentration gradient / from low concentration to high concentration; requires hydrolysis of ATP / requires energy from ATP; proteins in membrane utilized; specificity of carriers; e.g. Na+-K+ pump / other suitable examples; may involve conformational change in carrier protein; moves ions / solutes; maintains chemical / electrical gradient; [5 max]

  11. IB question: Distinguish between active and passive movements of materials across plasma membranes,using named examples. [4]

  12. IB question: Distinguish between active and passive movements of materials across plasma membranes,using named examples. [4]

  13. 2.4.7: Vesicle Transport

  14. 2.4.8: Endo/Exocytosis

  15. Transport across membranes summary Simple diffusion Passive Facilitated diffusion Transport across membrane Active transport Active Exocytosis Phagocytosis Endocytosis Pinocytosis

  16. IB Question: Outline how vesicles are used to transport materials secreted by a cell. [6]

  17. IB Question: Outline how vesicles are used to transport materials secreted by a cell. [6] vesicles formed from rER transport proteins to Golgi apparatus; these vesicles fuse with membranes of Golgi apparatus; proteins are processed as they move through Golgi apparatus; (transport) vesicles bud off/leave Golgi apparatus; vesicles move through cytoplasm; (vesicles) fuse with plasma membrane; contents released to outside of cell / exocytosis; cells use vesicles to secrete substances such as hormones/digestive enzymes/other appropriate example; vesicles may contain cell products other than proteins; [6 max] Credit drawings which fully explain the points above.

  18. IB question: Describe the process of endocytosis. [5]

  19. IB question: Describe the process of endocytosis. [5] endocytosis occurs when a membrane encloses a target particle; fluidity of membrane permits movement of membrane; membrane sinks inwardly/forms pit/invaginates to enclose particle; membrane seals back on itself / edges fuse; one membrane layer / two phospholipid layers enclose particle making vesicle; inner phospholipid layer of (original) membrane becomes outer phospholipid layer of vesicle membrane; outer phospholipid layer of (original) membrane becomes inner phospholipid layer of vesicle membrane; vesicle breaks away from membrane/moves into cytoplasm; changes in membrane shape require energy; specific example of endocytosis (e.g. pinocytosis, phagocytosis); [5 max] Accept any of the above points in an annotated diagram.

  20. IB question: Outline the various means of transfer of different types of molecules through the plasma membrane. [4]

  21. IB question: Outline the various means of transfer of different types of molecules through the plasma membrane. [4] diffusion is the movement of particles down a concentration gradient / higher to lower concentration / is passive; osmosis is passive transport / diffusion of water; osmosis is movement from lower solute concentration to higher / higher to lower water potential; facilitated diffusion involves channels (in membranes); active transport requires protein pumps/ATP/energy; active transport is movement against concentration gradient; correct reference to endocytosis/exocytosis/pinocytosis; [4 max]

  22. IB question: Explain the processes of active and passive transport that move materials across a membrane.[8]

  23. IB question: Explain the processes of active and passive transport that move materials across a membrane.[8] active transport: lower to higher (solute) concentration / against concentration gradient; uses energy / ATP; protein pumps/channels; gives a cell control; protein pumps transport specific substances; phagocytosis / pinocytosis; example of active transport; passive transport: diffusion; from high to low concentration; low to high; (but must be in context of random movement of particles) partial/selective permeability of membrane; example of simple diffusion; facilitated diffusion; protein channels; example of facilitated diffusion; [8 max] Award [4 max] for an account that deals with only one of active or passive transport.

  24. 2.4.5: Passive Transport

  25. 2.4.6: Active Transport

  26. IB Question: Describe the process of active transport across membranes. [5]

  27. IB Question: Describe the process of active transport across membranes. [5] goes against concentration gradient / from low concentration to high concentration; requires hydrolysis of ATP / requires energy from ATP; proteins in membrane utilized; specificity of carriers; e.g. Na+-K+ pump / other suitable examples; may involve conformational change in carrier protein; moves ions / solutes; maintains chemical / electrical gradient; [5 max]

  28. IB question: Distinguish between active and passive movements of materials across plasma membranes,usingnamed examples. [4]

  29. IB question: Distinguish between active and passive movements of materials across plasma membranes,usingnamed examples. [4]

  30. IB Question: Outline how vesicles are used to transport materials secreted by a cell. [6]

  31. IB Question: Outline how vesicles are used to transport materials secreted by a cell. [6] vesicles formed from rER transport proteins to Golgi apparatus; these vesicles fuse with membranes of Golgi apparatus; proteins are processed as they move through Golgi apparatus; (transport) vesicles bud off/leave Golgi apparatus; vesicles move through cytoplasm; (vesicles) fuse with plasma membrane; contents released to outside of cell / exocytosis; cells use vesicles to secrete substances such as hormones/digestive enzymes/other appropriate example; vesicles may contain cell products other than proteins; [6 max] Credit drawings which fully explain the points above.

  32. 2.4.8: Endo/Exocytosis

  33. IB question: Describe the process of endocytosis. [5]

  34. IB question: Describe the process of endocytosis. [5] endocytosis occurs when a membrane encloses a target particle; fluidity of membrane permits movement of membrane; membrane sinks inwardly/forms pit/invaginates to enclose particle; membrane seals back on itself / edges fuse; one membrane layer / two phospholipid layers enclose particle making vesicle; inner phospholipid layer of (original) membrane becomes outer phospholipid layer of vesicle membrane; outer phospholipid layer of (original) membrane becomes inner phospholipid layer of vesicle membrane; vesicle breaks away from membrane/moves into cytoplasm; changes in membrane shape require energy; specific example of endocytosis (e.g. pinocytosis, phagocytosis); [5 max] Accept any of the above points in an annotated diagram.

  35. IB Question: Outline, with an example, the process of exocytosis. [5] vesicles carry material to plasma membrane; vesicle fuses with membrane; (by joining of) phospholipidbilayers; aided by the fluidity of the membrane; material released/expelled from the cell; membrane flattens; name of example e.g. exocytosis of neurotransmitter / exocrine secretion/endocrine secretion / hormone secretion / release of cortical granules; outline of example: (in the presence of calcium), neurotransmitter vesicles release their contents into the synapse / hormones released from one cell have an effect on another cell etc.; [5 max] Accept these points if clearly made in an annotated diagram. [4 max] if no example given.

  36. IB Question: Outline, with an example, the process of exocytosis. [5]

  37. IB question: Outline the various means of transfer of different types of molecules through the plasma membrane. [4]

  38. IB question: Outline the various means of transfer of different types of molecules through the plasma membrane. [4] diffusion is the movement of particles down a concentration gradient / higher to lower concentration / is passive; osmosis is passive transport / diffusion of water; osmosis is movement from lower solute concentration to higher / higher to lower water potential; facilitated diffusion involves channels (in membranes); active transport requires protein pumps/ATP/energy; active transport is movement against concentration gradient; correct reference to endocytosis/exocytosis/pinocytosis; [4 max]

  39. IB question: Explain the processes of active and passive transport that move materials across a membrane.[8]

  40. IB question: Explain the processes of active and passive transport that move materials across a membrane.[8] active transport: lower to higher (solute) concentration / against concentration gradient; uses energy / ATP; protein pumps/channels; gives a cell control; protein pumps transport specific substances; phagocytosis / pinocytosis; example of active transport; passive transport: diffusion; from high to low concentration; low to high; (but must be in context of random movement of particles) partial/selective permeability of membrane; example of simple diffusion; facilitated diffusion; protein channels; example of facilitated diffusion; [8 max] Award [4 max] for an account that deals with only one of active or passive transport.
