  1. Modelling, calibration and rendition of colour logarithmic CMOS image sensors Dileepan Joseph and Steve Collins Department of Engineering Science University of Oxford

  2. Outline • Logarithmic CMOS image sensors • Modelling sensor response • Image sensor calibration • Fixed pattern noise • Sensation of colour • Rendition of images • CIE Lab (perceptual error) • IEC sRGB (standard display) • Summary and future work IMTC 2002

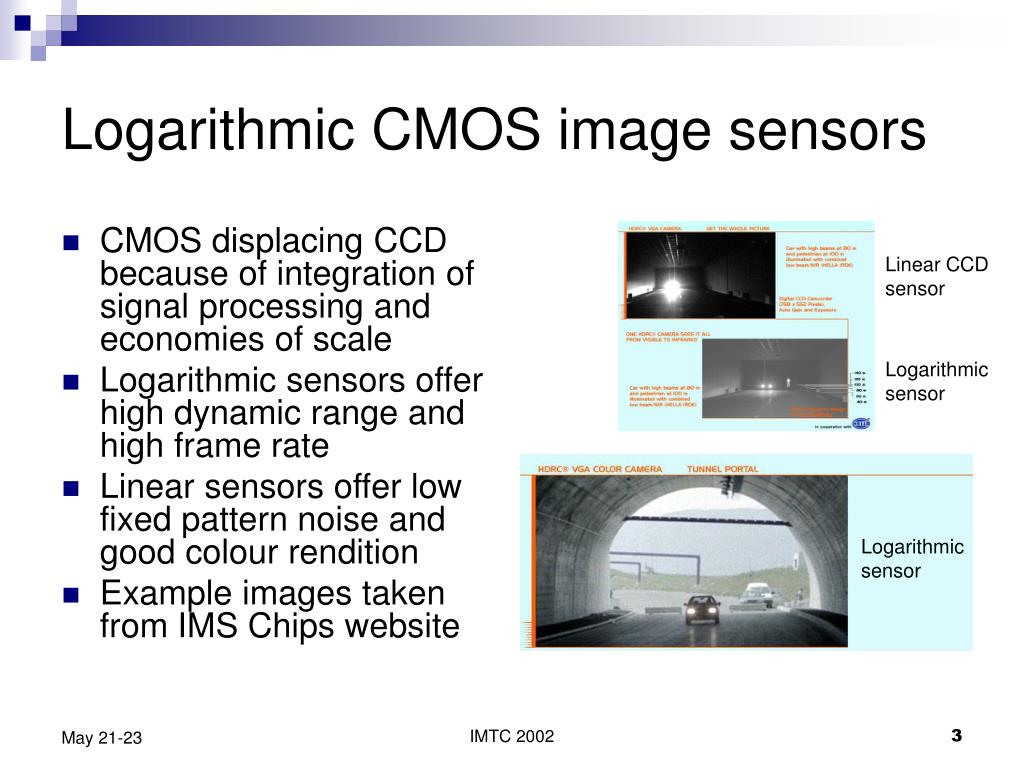

  3. Logarithmic CMOS image sensors • CMOS displacing CCD because of integration of signal processing and economies of scale • Logarithmic sensors offer high dynamic range and high frame rate • Linear sensors offer low fixed pattern noise and good colour rendition • Example images taken from IMS Chips website Linear CCD sensor Logarithmic sensor Logarithmic sensor IMTC 2002

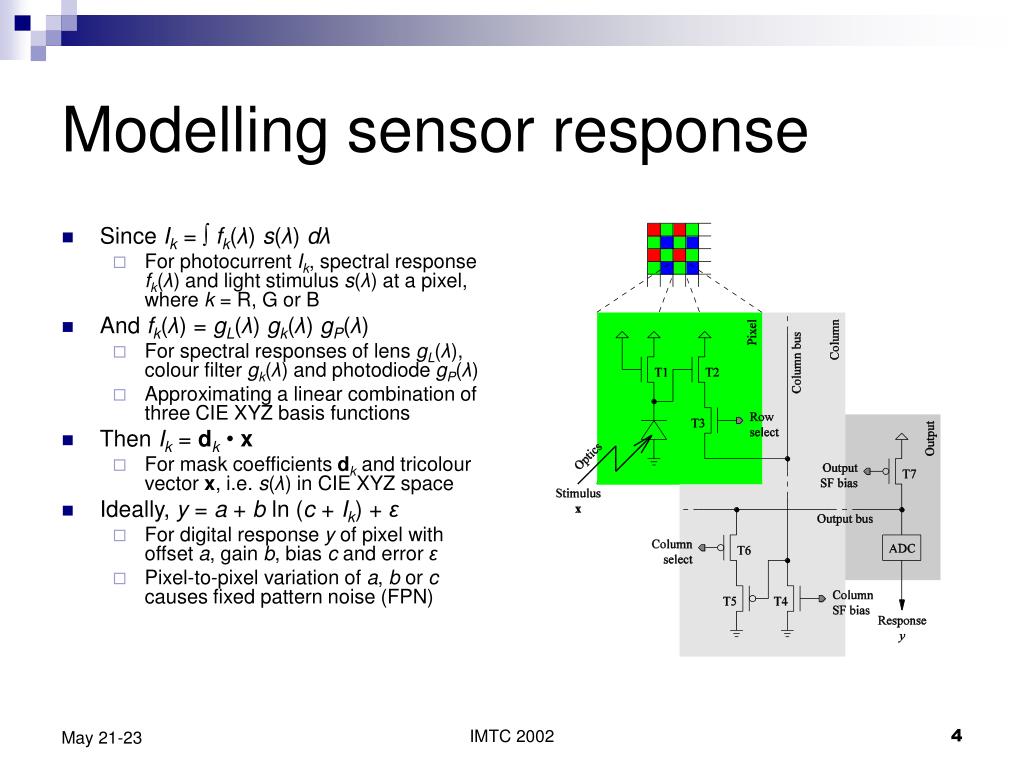

  4. Modelling sensor response • Since Ik = ∫ fk(λ) s(λ) dλ • For photocurrent Ik, spectral response fk(λ) and light stimulus s(λ) at a pixel, where k = R, G or B • And fk(λ) = gL(λ) gk(λ) gP(λ) • For spectral responses of lens gL(λ), colour filter gk(λ) and photodiode gP(λ) • Approximating a linear combination of three CIE XYZ basis functions • Then Ik = dk• x • For mask coefficients dk and tricolour vector x, i.e. s(λ) in CIE XYZ space • Ideally, y = a + b ln (c + Ik) + ε • For digital response y of pixel with offset a, gain b, bias c and error ε • Pixel-to-pixel variation of a, b or c causes fixed pattern noise (FPN) IMTC 2002

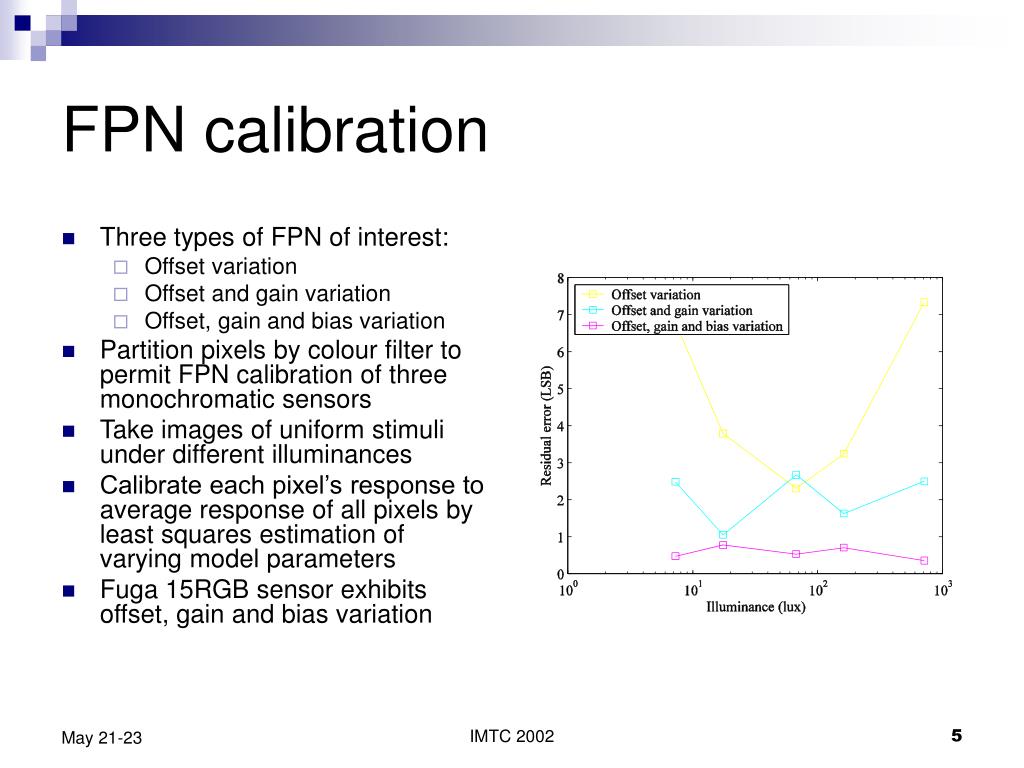

  5. FPN calibration • Three types of FPN of interest: • Offset variation • Offset and gain variation • Offset, gain and bias variation • Partition pixels by colour filter to permit FPN calibration of three monochromatic sensors • Take images of uniform stimuli under different illuminances • Calibrate each pixel’s response to average response of all pixels by least squares estimation of varying model parameters • Fuga 15RGB sensor exhibits offset, gain and bias variation IMTC 2002

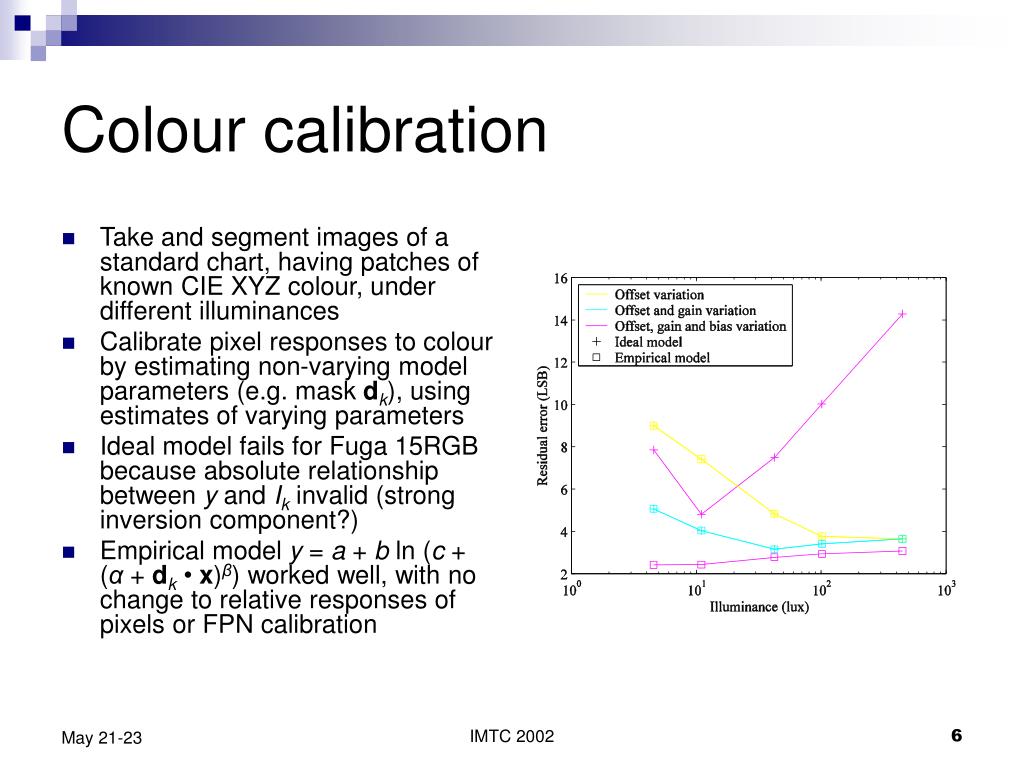

  6. Colour calibration • Take and segment images of a standard chart, having patches of known CIE XYZ colour, under different illuminances • Calibrate pixel responses to colour by estimating non-varying model parameters (e.g. mask dk), using estimates of varying parameters • Ideal model fails for Fuga 15RGB because absolute relationship between y and Ik invalid (strong inversion component?) • Empirical model y = a + b ln (c + (α + dk • x)β) worked well, with no change to relative responses of pixels or FPN calibration IMTC 2002

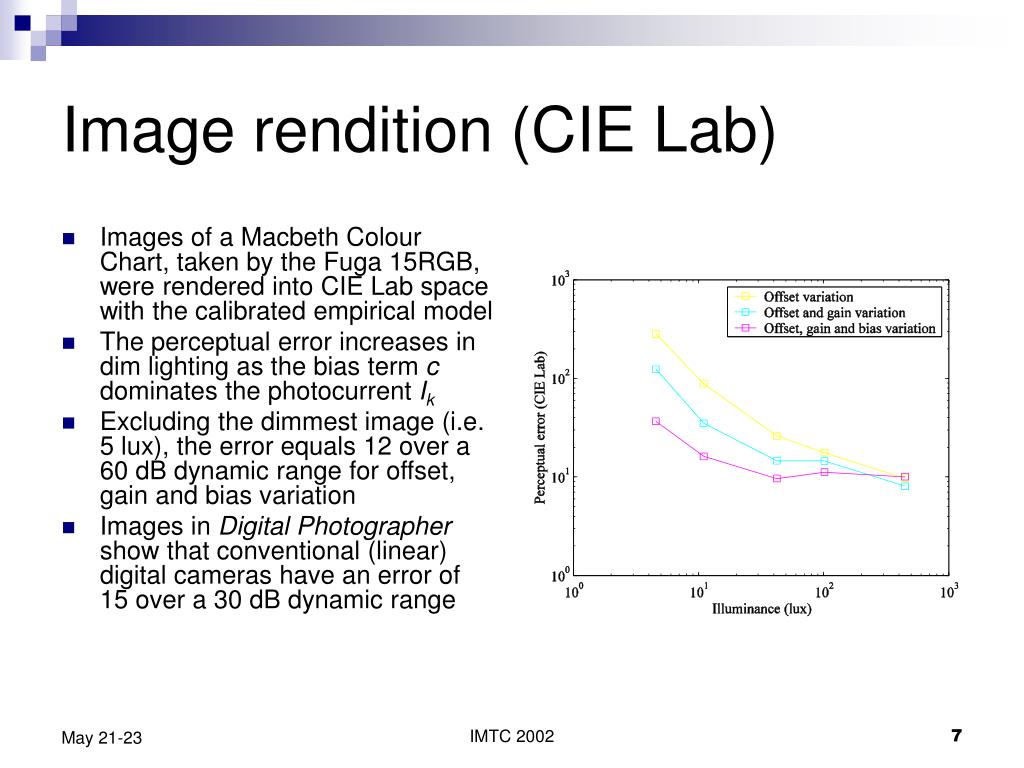

  7. Image rendition (CIE Lab) • Images of a Macbeth Colour Chart, taken by the Fuga 15RGB, were rendered into CIE Lab space with the calibrated empirical model • The perceptual error increases in dim lighting as the bias term c dominates the photocurrent Ik • Excluding the dimmest image (i.e. 5 lux), the error equals 12 over a 60 dB dynamic range for offset, gain and bias variation • Images in Digital Photographer show that conventional (linear) digital cameras have an error of 15 over a 30 dB dynamic range IMTC 2002

  8. Image rendition (IEC sRGB) • A Fuga 15RGB image of the Macbeth Chart, taken in 11 lux of illuminance, was rendered into IEC sRGB space with the calibrated empirical model • Results for offset variation (top-left), offset and gain variation (top-right), offset, gain and bias variation (bottom-left) and true colours (bottom-right) are shown • Two types of residual deviation for the rendered patches are visible: • Fixed pattern noise • Colour desaturation IMTC 2002

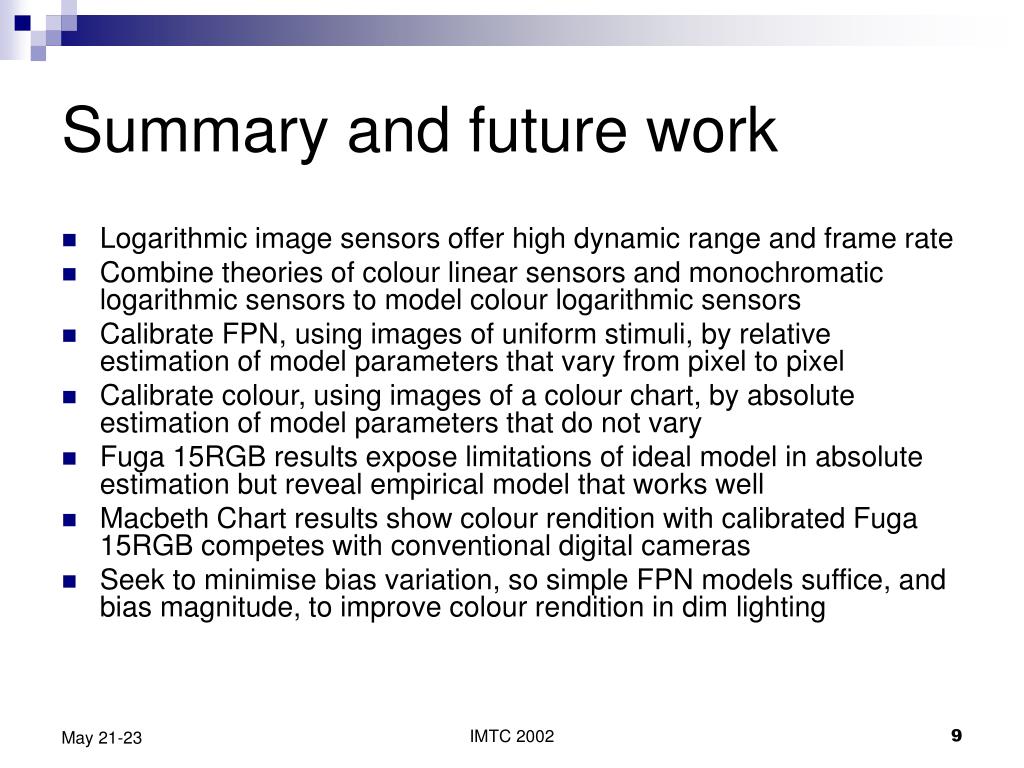

  9. Summary and future work • Logarithmic image sensors offer high dynamic range and frame rate • Combine theories of colour linear sensors and monochromatic logarithmic sensors to model colour logarithmic sensors • Calibrate FPN, using images of uniform stimuli, by relative estimation of model parameters that vary from pixel to pixel • Calibrate colour, using images of a colour chart, by absolute estimation of model parameters that do not vary • Fuga 15RGB results expose limitations of ideal model in absolute estimation but reveal empirical model that works well • Macbeth Chart results show colour rendition with calibrated Fuga 15RGB competes with conventional digital cameras • Seek to minimise bias variation, so simple FPN models suffice, and bias magnitude, to improve colour rendition in dim lighting IMTC 2002

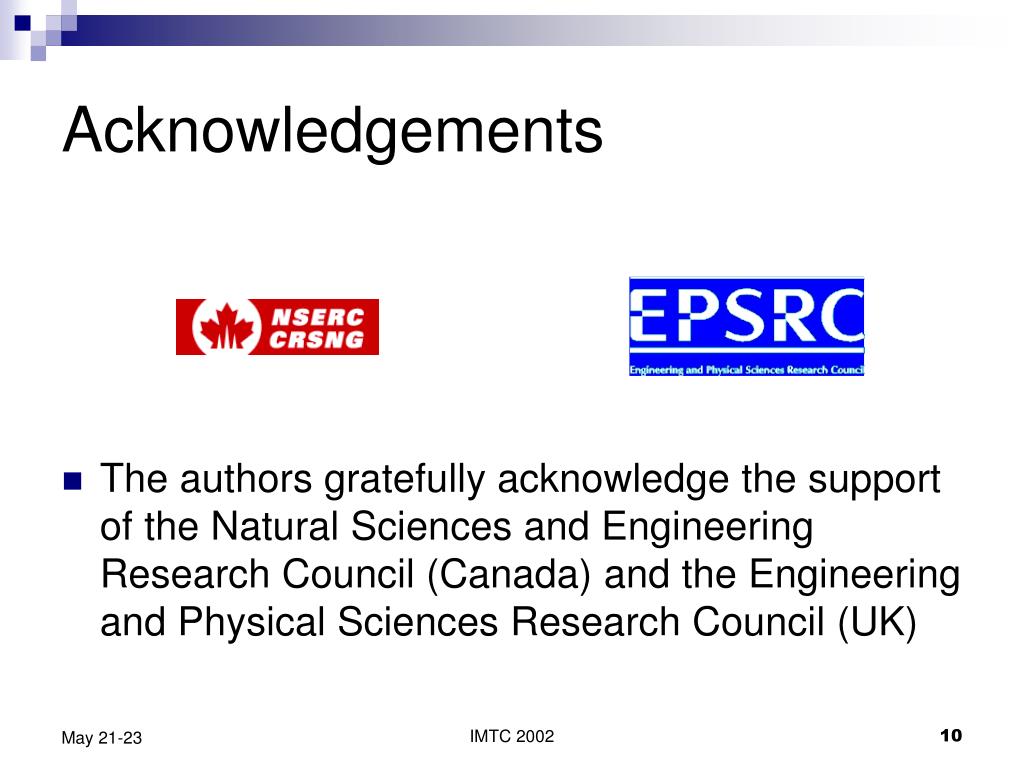

  10. Acknowledgements • The authors gratefully acknowledge the support of the Natural Sciences and Engineering Research Council (Canada) and the Engineering and Physical Sciences Research Council (UK) IMTC 2002
