NMR-and IR-Spectroscopy of Polymers

POLYCHAR 13 Short Course. NMR-and IR-Spectroscopy of Polymers. Michael Hess University Duisburg-Essen Campus Duisburg 47048 Duisburg, Germany e-mail: hi259he@uni-duisburg.de. Introduction and Scope of this Course (Mission Impossible [1] ) Spectroscopic methods that means: ·       .

willard
Download Presentation

NMR-and IR-Spectroscopy of Polymers

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. POLYCHAR 13 Short Course NMR-and IR-Spectroscopy of Polymers Michael Hess University Duisburg-Essen Campus Duisburg 47048 Duisburg, Germany e-mail: hi259he@uni-duisburg.de

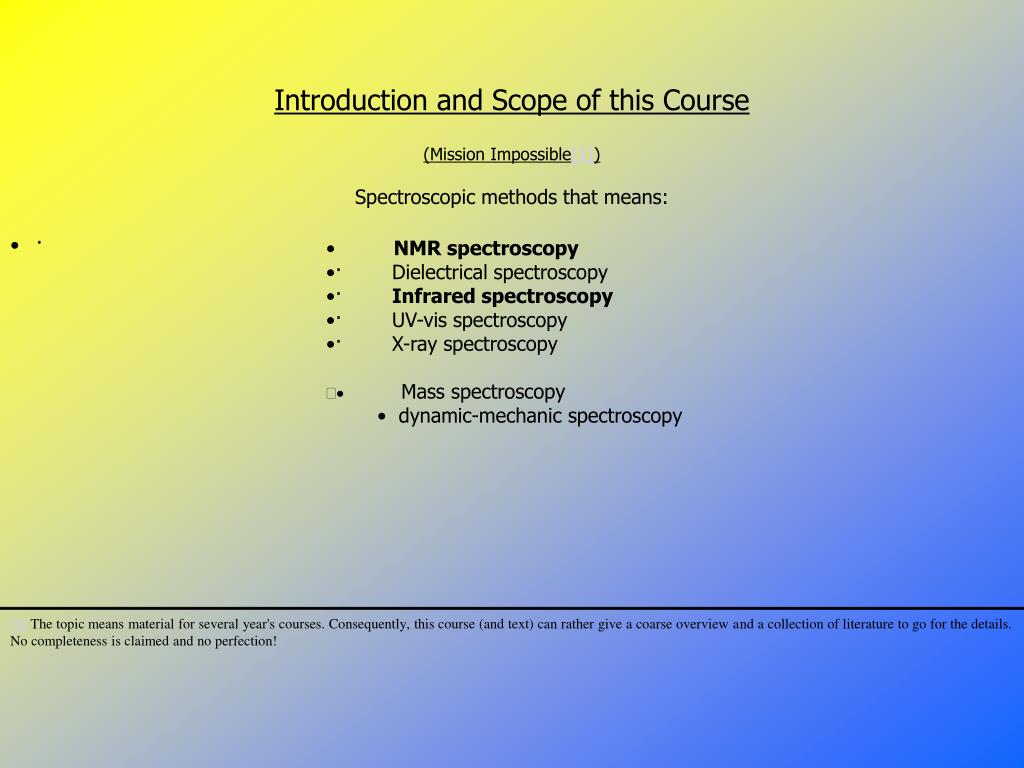

  2. Introduction and Scope of this Course • (Mission Impossible[1]) • Spectroscopic methods that means: • ·        • NMR spectroscopy • ·        Dielectrical spectroscopy • ·        Infrared spectroscopy • ·        UV-vis spectroscopy • ·        X-ray spectroscopy • ·Mass spectroscopy • dynamic-mechanic spectroscopy [1] The topic means material for several year's courses. Consequently, this course (and text) can rather give a coarse overview and a collection of literature to go for the details. No completeness is claimed and no perfection!

  3. Material properties of polymers: • Chemical structure • Configuration • Conformation • Physical Structure • Dynamics in the liquid and in the solid state

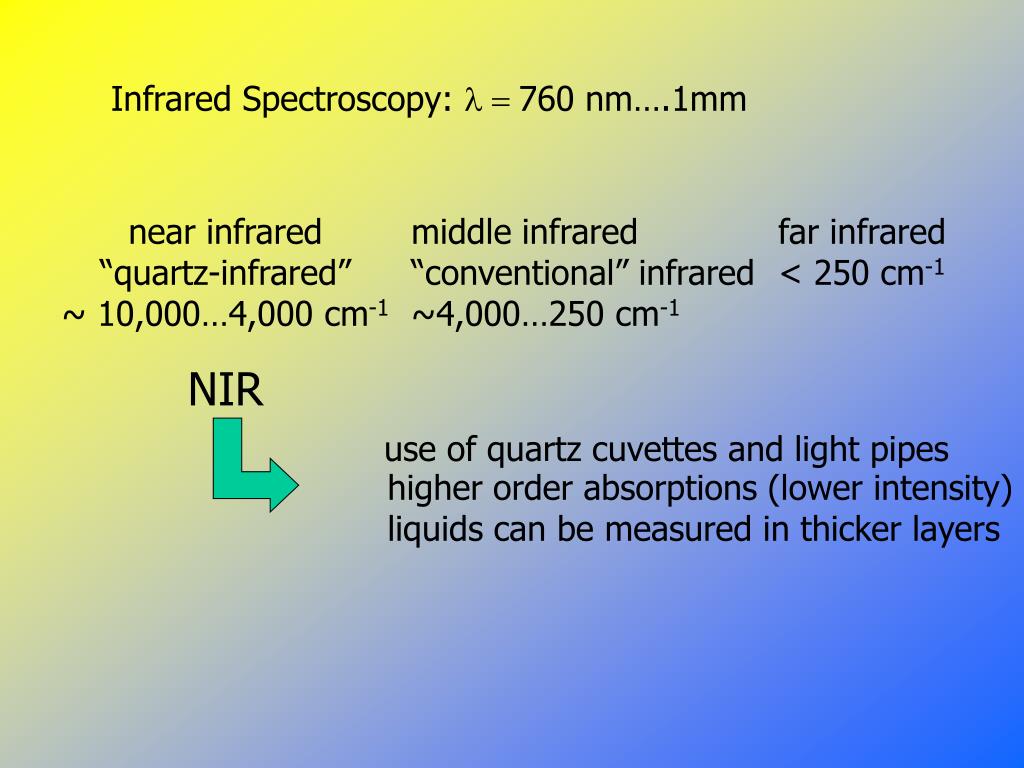

  4. Infrared Spectroscopy: l = 760 nm….1mm near infrared “quartz-infrared” ~ 10,000…4,000 cm-1 NIR middle infrared “conventional” infrared ~4,000…250 cm-1 far infrared < 250 cm-1 use of quartz cuvettes and light pipes higher order absorptions (lower intensity) liquids can be measured in thicker layers

  5. 4000 cm-1…50 cm-1 fundamental vibrations 4000 cm-1…400 cm-1 fundamental vibrations 12500 cm-1…4000 cm-1 overtones & combinations scattering absorption absorption monochromatic excitation source dispersed polychromatic radiation information from scattered radiation information from absorbed radiation homonuclear functionalities changes in polarizability polar functionalities changes in dipol moment CH/OH/NH functionalities high structural selectivity high structural selectivity low structural selectivity Lambert-Beer-Law Lambert-Beer-Law Iraman~ c sample preparation required (except ATIR) no sample preparation required no sample preparation required sample volume µL sample thickness µm sample volume µL sample thickness µm sample thickness up to cm-range light-fibre optics >100 m light-fiber optics >100 m limited Raman NIR MIR

  6. Infrared-spectroscopical Polymer Identification 1790-1720 very strong no yes 1610-1590, 1600-1580 and 1510-1490 1610 –1590, 1600 – 1580 and 1510 - 1490 All numbers have the meaning of wave numbers and are given in cm-1 3500 - 3200 840 - 820 3500 - 3200 1680 - 1630 strong 1450 -1410 sharp strong 1450 - 1410 sharp 1550 - 1530 1100 - 1000 Alkylsilicone, aliphatic hy= drocarbons, Polytetra= Fluorethylene, Thiokol Alkyd-, Polyesters, Cellulose= ether, PVC (plasticized) Acrylics, Polyester Polystyrenes, Arylsilicones, Aryl-alkyl= Silicone Co= polymers Polyamides, amines Nitrocellulose cellophan Cellophan, Alkylcellulose, PVA, PEO Modif. Epoxies Polycarbo= nates Polyvinyl= acetate, PVC-copo= lymers Cellulose= ester Polyure= thane Phenol derivatives, Epoxies PAN, PVC, Polyvinyliden chlorid, POM

  7. Determination of a Layer Thickness Intensity, arbitrary units wave length 1/d= 2/n (1/l1 -1/l2) n = number of minima between two maxima l1and l2

  8. Interference pattern caused by a PTFE-film

  9. 1790-1720 cm-1 3500-3200 cm-1 1680-1630 cm-1 1550-1530 cm-1 epoxies, polycarbonate,alkyd resins, polyesters, cellulose-ether, PVC poly(vinyl acetate), PVC-copoly., cellulose ester, PU acryl polymers 1610-1590 1600-1580 cm-1 1510-1490 Phenol resins, epoxies, aryl polymers Polyamid

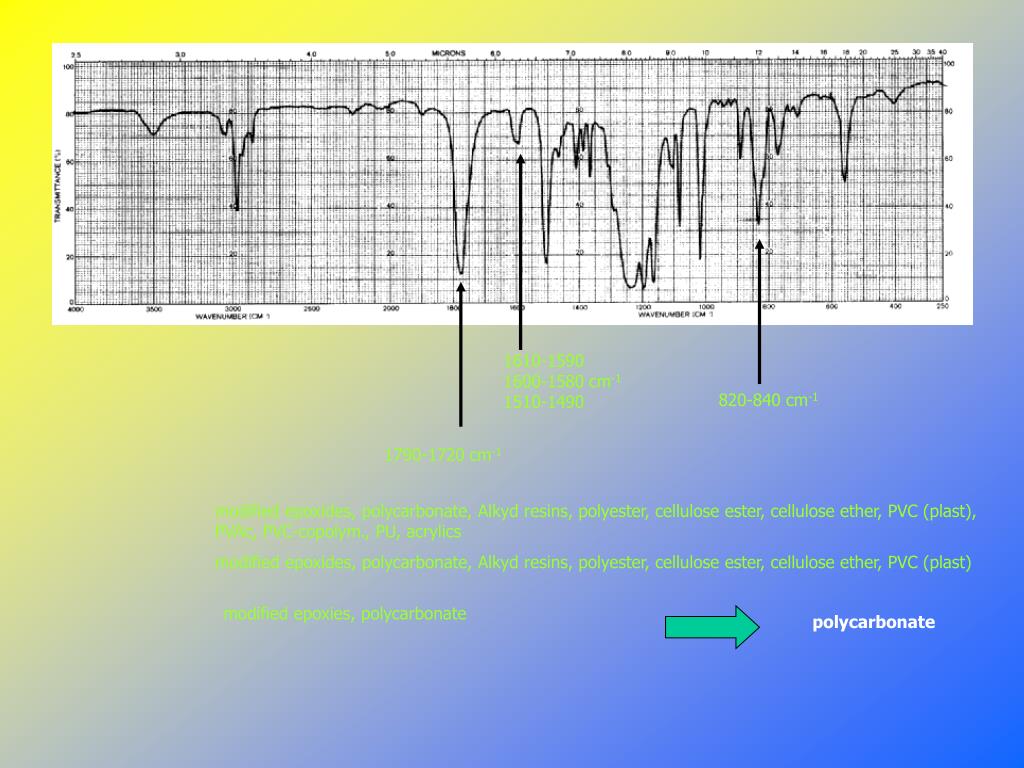

  10. 1610-1590 1600-1580 cm-1 1510-1490 820-840 cm-1 1790-1720cm-1 modified epoxides, polycarbonate, Alkyd resins, polyester, cellulose ester, cellulose ether, PVC (plast), PVAc, PVC-copolym., PU, acrylics modified epoxides, polycarbonate, Alkyd resins, polyester, cellulose ester, cellulose ether, PVC (plast) modified epoxies, polycarbonate polycarbonate

  11. ? typical pattern of PU polycarbonate typical pattern of normal PC C-O-C-ether region ? cellulose ester or polyurethane ? 1610-1590 1600-1580 cm-1 1510-1490 1100-1000 cm-1 1450-1410 cm-1 Poly (ether urethane)

  12. Infrared Spectroscopy: l = 760 nm….1mm near infrared “quartz-infrared” ~ 10,000…4,000 cm-1 NIR middle infrared “conventional” infrared ~4,000…250 cm-1 far infrared < 250 cm-1 use of quartz cuvettes and light pipes higher order absorptions (lower intensity) liquids can be measured in thicker layers

  13. NIR • Hydrogen-containing groups are dominant • Information is often implicid, coupled vibrations • Not suited for trace analysis • Easy analysis of aqueous solutions • Process-analysis • Use of light-pipes even without cuvette (reflection) • Easy analysis of powders using diffuse reflection • Characterisation of fillers • Determination of water contents in liquids and solids

  14. 2D-Spectroscopy (general scheme) general pertubation mechanical, electric, electro-magnetic, chemical,… dynamic spectrum system Electro-magnetic probe IR X-ray, UV-vis, NMR,… 2D-correlation spectrum

  15. 2 dimensional correlation vibrational spectroscopy Samples are exposed to external pertubations such as: temperature pressure stress Resolution (the large number) of overlapping NIR bands can be enhanced and MIR and NIR correlation spectra are very useful for peak assignement

  16. NMR = No More Research?? Nobel Laureate R. R. Ernst: "It's sometimes close to magic" Nuclear Magnetic Resonance

  17. NMR can provide information about: • Polymers in Solution • The microstucture of polymer chains • Resonance assignement • regioisomerism • Stereochemical configuration • Geometric isomerism • Isomerism in diene polymers • Asymmetric centres in the main chain • Branching and cross-linking • End groups • Configurational statistics • Copolymerization sequences • Chain conformation in solution • Intermolecular association

  18. 1H: natural abundance 99.9844 % • relative sensitivity 1 • chemical shift range 10 ppm • 1H-1H-spin-spin coupling chemical environment • chemical structure, regiochemistry, stereochemistry, • conformation • 13C: natural abundance 1.108% • relative sensitivity 1.59´10-2 • Chemical shift range 250 ppm • long relaxation times • sensitive to subtle changes in the near electronic • environment but insensitive for long-range inter- • actions (solvent effects, diamagnetic anisotropy of • neighbouring groups) • no homonuclear coupling • Separate resonance for every C in a molecule But also other e. g.: Si, O, N, P, Al, Xe (!)…can be important

  19. Characterization in the Solid State Chain conformation in the solid state Solid-solid transitionsOrganization in the solid state In multi-phase polymers Orientation ImagingDynamics of Polymers in the Solid State Semicristalline polymers Amorphous polymers Polymer Systems Polymer blends and miscibility Multiphase systems

  20. "Spectral Editing" with hf- Pulse Sequences “Many of the substantial improvements in NMR are the result of the spin gymnastics that can be orchestrated by the spectroscopist”*) on the Hamiltonean with a mystic zoo of weird pulse sequences**) • spin-echo pulses • selective scalar-spin decoupling • off-resonance decoupling • selective 13C-excitation • selective multiplet acquisitation (DANTE) • signal enhancement by polarisation tranfer • proton multiplicity on carbons (INEPT, DEPT) • C-C connectivity (INADEQUATE) • 2-Dimensional (and higher) NMR (COSY, NOESY) *) T. C. Farrar **)M. Hess

  21. Experimental Techniques • “Advances in liquid and solid state NMR techniques have so changed • the picture that it is now possible to obtain detailed information about • the mobilities of specific chain units • domain structures • end groups • run numbers • number-average molecular weights • minor structure aberations • in many synthetic and natural products at a level of • 1 unit per 10,000 carbon atoms and below” • J. C. Randall (eds.) NMR and Macromolecules, ACS-Symp. Ser. 247, • American Chemical Society, Washington DC (1984), p. 245

  22. 2H echo dynamic range measured by different NMR-techniques T1r dipolar lineshape CSA lineshape 2H lineshape T1, T2, NOE 2D exchange 10-12 10-10 10-8 10-6 104 102 100 correlation times [s]

  23. The very Basics of NMR nuclei with a spin quantum number I*) angular momentum J = ħ{I (I+1)}1/2 magnetic moment mI = I, I-1, I-2…0…-I (2I+1) states nuclear magnetic moment (z-component) µz = **)ħ mI in an external field B0: energy of the state: E = µzB0 = - ħ mI B0 Larmor-frequency: 0 = 20 =  B0mI an ensemble of isolated spins I =  1/2 in an external field B0 split up into two states  (lower) and  (higher) energy difference: E = E-E=h0= ħ0=  ħB0 *)integers are Bosons others are Fermions **) (experimental)magnetogyric ratio

  24. N E = h =w0 ħ =ħB 0 DE(B0=14.1T) @ 0.5 J N N = N exp(-  kbT)

  25. B0 w0 DE=mB0=w0ħ (spin =1/2 nuclei) m Q B1 B =  H B or H ?? A question of “taste” B ~ origin of the field H ~ field properties B = magnetic flux density (induction) [T]*) H = magnetic field strength [A m-1]  = permeability H0 T = kg s-2 A-1 = V s m-2 =104 G

  26. laboratory (static) frame: coordinates x, y, z rotating frame: coordinates x’, y’, z’ rf-transmission and Detection coil (antenna)

  27. The Basic Pulse-NMR Experiment

  28. Chemical shift and Structure • branching in PE • thermal oxidation in PE • stereoregularity e.g. PMMA, PP • directional isomerism (regio-isomerism: head-tail,…) • copolymer structure

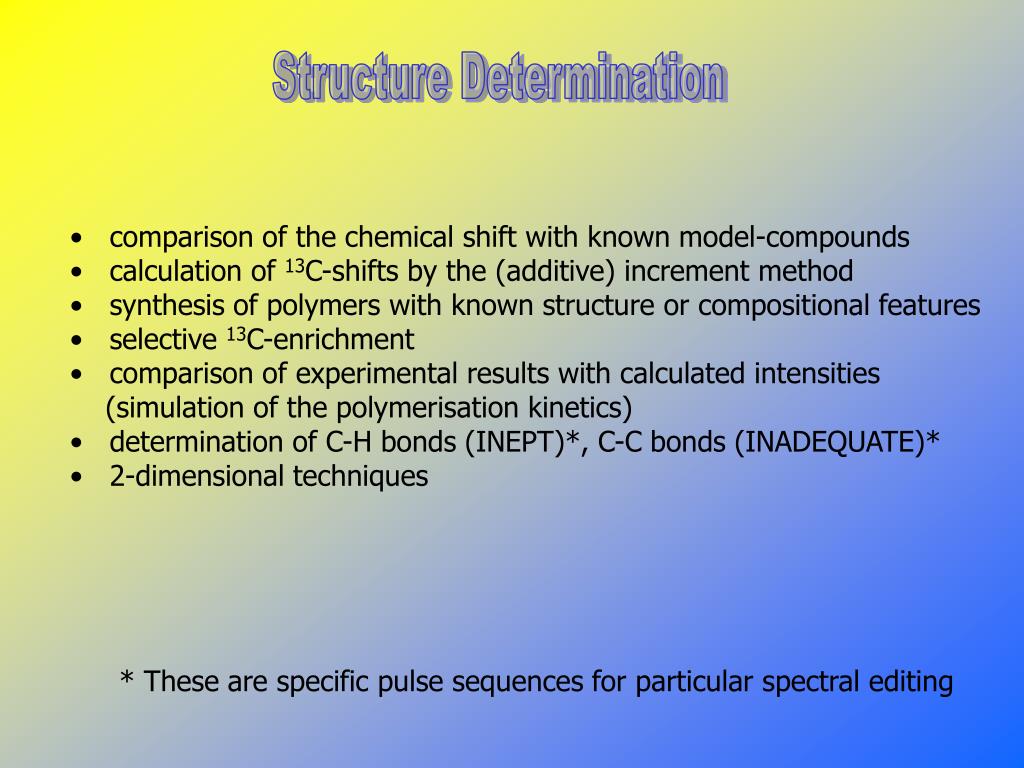

  29. Structure Determination • comparison of the chemical shift with known model-compounds • calculation of 13C-shifts by the (additive) increment method • synthesis of polymers with known structure or compositional features • selective 13C-enrichment • comparison of experimental results with calculated intensities • (simulation of the polymerisation kinetics) • determination of C-H bonds (INEPT)*, C-C bonds (INADEQUATE)* • 2-dimensional techniques * These are specific pulse sequences for particular spectral editing

  30. z=z’ B0 w0 m rotating frame y’ B1 y X’ static laboratory frame x Rotating Frame “The concept of the rotating frame is of paramount importance in NMR-spectroscopy. For almost all classical descriptions of NMR- experiments are described using this frame of reference” D. E. Traficante the frame is rotating with the frequency of the applied rf-field a nucleus with the Larmor frequency equal to the rotation of the frame is static with respect to the frame Q

  31. Relaxation • the original focussed and in-phase in the x-y plane rotating magnetisation • decreases by two effects: • interaction with the environment (“the lattice”) • Relaxation time T1 (spin-lattice relaxation, longitudinal relaxation) • interaction with neighbouring spins (dephasing) • Relaxation time T2 (spin-spin relaxation, transversal relaxation) Mz(t)-Mz(t=0) ~ exp [-t/T1] My(t)-My(t=0) ~ exp [-t/T2] the “effective” T2 (T2*) is responsible for the line broadening (transversal relaxation + inhomogeneous field broadening): 1/2= 1/(T2*) 1/2= line-width at ½ of the peak-height [Hz] T1 is the longitudinal relaxation time in the rotating frame. T1 >T1

  32. 13C-Relaxations in solids and in solutions of high polymers: T1>>T2 non-viscous liquids T1 = T2 T1sensitive to motions 5-500 MHz*) T2 is affected by molecular motion at the Larmor frequency and low-frequency motions around 102-103 Hz T1 is sensitive to motions in the tens kHz-range *)short range, high frequency segmental motions, local environment is reflected

  33. Spin echos dephasing 90°-pulse 180°-pulse slow fast fast slow Re-focussing re-focussed and echo only the “inhomogeneous”contribution of the T2is refocus= sed the result of the “true” T2-process is not re-focussed the echo decays according to the true T2

  34. Exchange Processes Direct chemical exchange (e. g.: the hydroxyl proton of an alcohol with water protons) Magnetization exchange (e. g.: cross-polarization, NOE)

  35. Decoupling of heteronuclear spin coupling causes the NUCLEAR OVERHAUSER EFFECT (NOE) Decoupling 1H-13C saturates 1H and changes the 13C-spin population excess 13C in the lower level compared with the equilibrium distribution more energy is absorbed better S/N DE = 1 + (gH/2gC) NOE depends on the specific resonance makes quantification difficult The Nuclear Overhauser-Effect (NOE) The NOE is sensitive to the distance  NOESY experiment

  36. Solid State Interaction The total Hamilton operator is given by the sum of the individual interactions:  = z + q + dd +  + k + J z = zeeman interaction with the external magnetic field (constant term) q = quadrupol interaction dd = direct dipolar interaction  = magnetic shielding (chemical shift) reflects the chemical environment k = knight shift J = indirect coupling zq ddkJ

  37. Chemical Shift Anisotropy (CSA) A-B A-B B0 2 single crystals AB with different orientation with respect to B0 powder pattern of a polycrystalline AB “iso” corresponds to an (isotropic) solution powder pattern of a polycrystalline AB but fully anisotropic, tensor components as indicated

  38. Relaxations in the Solid State The relaxation times are correlated with molecular motions Cross-Polarization and Magic Angle Spinning CPMAS

  39. Cross-Polarization Hartmann-Hahn condition HBrf1H = CBrf1C TCH 13C spins TC 1H spins TH spin temperature spin temperature T1C T1C T1H T1H lattice

  40. Solid-State NMR Broad lines …but line shape can also tell us a lot narrow is beautiful

  41. 2D-Experiments can be useful: • for the separation of shifts and scalar couplings in isotropic phase • in particular in weakly coupled homo-and heteronuclear systems • in oriented phase, especially in static powders or magic-angle spinning • samples information can be extracted by separation of dipolar • couplings and anisotropic chemical shifts that cannot be obtained (easily) • from 1D-spectra • isotropic and anisotropic chemical shift components can be • separated in two frequency domains in the solid state

  42. separate different interactions (shifts, couplings) • Correlate transitions of coupled spins • Study dynamic processes (chemical exchange, cross-relaxation, • transient Overhauser effects, spin diffusion…) 2D-Experiments can be designed to

  43. 2-dimensional*) NMR In fact projections (contour plots) of 3D-spectra The many possible experiments can be categorised as: molecular connectivities, distances • correlated 2D-NMR • exchange 2D-NMR • resolved 2D- NMR molecular motion, environment interactions Advantage over e. g. decoupling: no loss of information, just unravelling of overlapping signals *) and higher

  44. collect incremented FIDs 2D-NMR Spectroscopy • The properties and motions of a spin system are represented by the • Hamilton Operator H*) • When H contains contributions of different physical origin • (e. g.: chemical shift, dipolar or scalar couplings…) • it is sometimes possible • to separate these effects in a multi-dimensional plot preparation evolution mixing detection • system is prepared in a coherent non-equilibrium state • System evolves under the influence • of what ever modification (pulse sequence) • Transformation into transversal magnetization • Measurement of the transversal magnetization *) in fact in NMR a reduced Hamiton spin operator Hs is sufficient

  45. Important Types of 2-D NMR Experiments and Their Information

  46. J-coupling 2D-spectra, if the spins are modulated By spin-spin, chemical shift or dipole-dipole Interactions during the evolution time Coupling resolved spectra: y- axis coupling information x- axis  chem shift information Coupling correlated spectra: y- axis chem shift information x- axis  chem shift information correlated through homo-or heteronuclear or dipolar coupling Exchange spectra: y- axis chem shift information x- axis chem shift information correlated through chemical exchange, conformational or motional effects, or Overhauser effects from non-bonded H

  47. sampling of the magnetization components protons arrange according to their phases controlled by their individual chemical shift COSY-experiment Evolution: -t1- -t2 diagonal: all auto-correlated H off-diagonal: cross-correlated H with another H, shows connectivities

  48. CH3 PIB CH3 CH2 C C CH2 CH3 ppm (1H) n CH2 CH3 ppm 13C Hetero-nuclear-2D- spectrum, no diagonal peaks
