  1. Shenzhen Hi-Link Lighting Co.,LtdAdress:RM.01,3/F,Huachuangda-Yijing Building, 45th Block Bao`an District,Shenzhen Hi-LINK the colorful Life Shenzhen HI-LINK Lighting Co.,Ltd

  2. Company Info Parent company : Hi-level Technology Limited Member Companies: Hi-keen Technology Limited Hi-link Techology(HK) Limited Shenzhen Inone Light Co.,Ltd Shenzhen Hi-link Lighting Co.,Ltd

  3. Established Date Oct, 2000Capital US$6.2 Million President Mr. Benson ChangEmployee 127 Sales Performance 2011=>US$ 110M Headquarters Hong KongBranch Office Shenzhen & Shanghai & New Delhi (India) Head : HI-LEVEL Technology Limited A 3C technology oriental semiconductor component distributor of semiconductor marketing and solution development. Total solution of electronic  components Turnkey Solutions design  & development  (Consumer、DC、IT、 LCD Multimedia….).  Designer service and Technical  support for production Authorized China region agent of following famous product lines: SUNPLUS、EON、WOLFSON、ANPEC、GENERALPLUS、 SKYMEDI、BITEK、CHESEN 、E-LAN.

  4. Subsidiary Company : HI-KEEN Technology Limited Established Date Oct, 2005 Capital RMB 5M President Mr. Benson Chang Employee 105 (70 engineers) Sales Performance 2011=>US$ 20M Located Shenzhen Total solution design House of LCD& LED TV NO.3 TV PCBA Provider in China Main market: Europe, Japanese

  5. Samsung LED Chip Authorized China region agent LED Light manufactory and desinger 2 comoanies for manufacture,design and market shenzhen Inone light Co.,ltd----- manufacture,design & domestic market; shenzhen hi-link Lighting Co.,ltd----International Market Established Date Oct, 2006 Capital RMB2M President Mr. Benson Chang Employee 50 Sales Performance 2011=>US$1.5M Located Shenzhen Subsidiary Company : HI-LINK Technology(HK) Limited

  6. Factory: Shenzhen Inone light Co., Ltd • Established in 2008 • Subordinate to HI-LINK Technology Limited • Equiped with 2 assembling and age lines; integrating sphere… • Focuses on LED Manufacture,Devolopment and domestic marketing • Main Market: Domestic market only; • Main clients: Domestic Project such as hotel project,outdoor Lighting

  7. Products for Domestic Market • LED Flood Light • LED high bay Light • LED T5/T8/T10 Tube light • LED Spoting Light • LED Ceiling Light • LED Bulb light

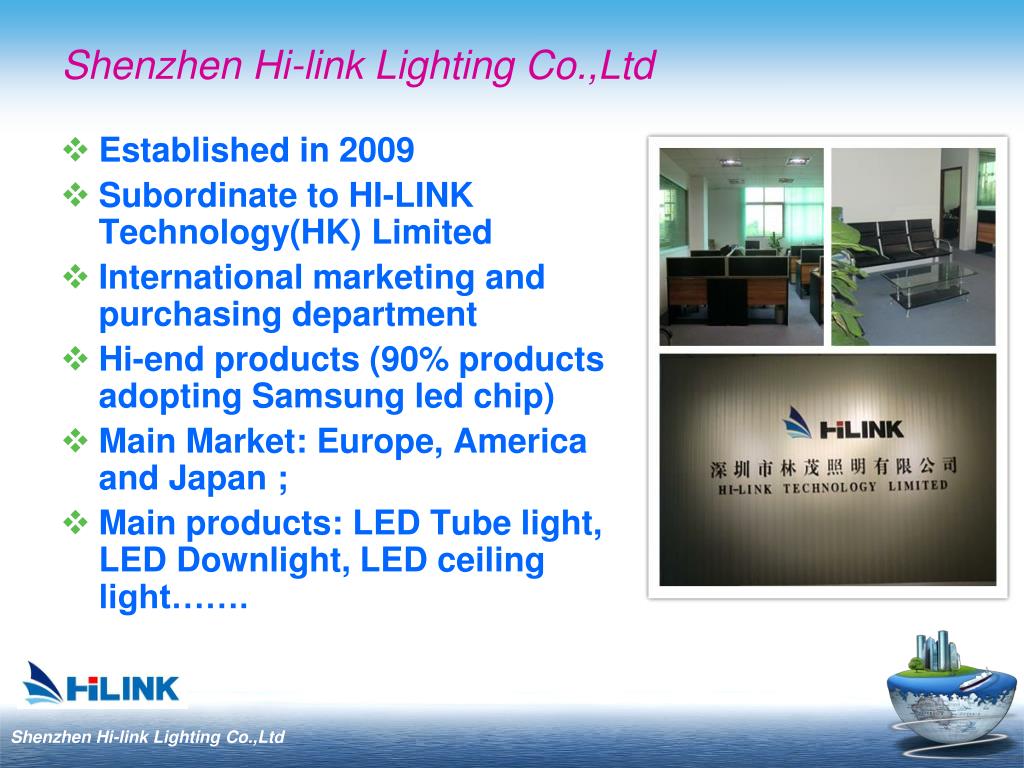

  8. Shenzhen Hi-link Lighting Co.,Ltd • Established in 2009 • Subordinate to HI-LINK Technology(HK) Limited • International marketing and purchasing department • Hi-end products (90% products adopting Samsung led chip) • Main Market: Europe, America and Japan; • Main products: LED Tube light, LED Downlight, LED ceiling light…….

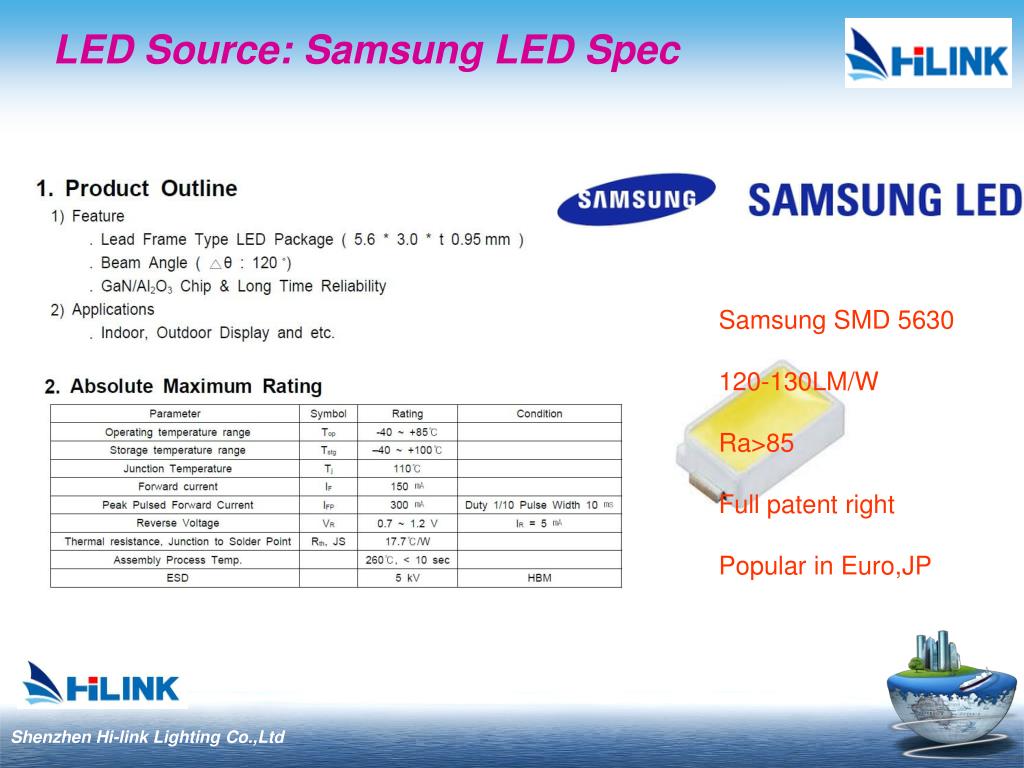

  9. LED Source: Samsung LED Spec Samsung SMD 5630 120-130LM/W Ra>85 Full patent right Popular in Euro,JP

  10. LED Source: Samsung LED Flux

  11. High efficiency: LED Driver – the key part of LED fixture 1) Reduce the working temperature and slow light decay; 2) low loss, low temperature rise; A 100W LED drive power efficiency up to 95%, and its loss is 5.2W when efficiency is only 85%, the loss of 17.6W, which is 3.4 times higher than the former, the experiment showed that under the same conditions the former lower than the latter temperature 10 ~ 15 ℃. LED chip temperature rise will lead to changes in the electro-optical conversion efficiency of light-emitting device performance decay, even when serious failure, experimental tests show: LED itself temperature increase of 5 degrees, the luminous flux decreased by 3%.significantly improve. If I choose to 105 degrees, the life expectancy of 10,000 hours of high-temperature electrolytic capacitors, electrolytic capacitor life estimates traffic company "for every 10 degrees, the doubling of life expectancy, it is to work in an environment of 95 degrees life of 20,000 hours at 85 degrees environment working life of 40,000 hours, such as tyjb drive power generally working temperature up to 60 degrees, the temperature of the electrolytic capacitor control roughly around 85 degrees, the life expectancy of up to 40,000 hours, such as working 12 hours per day count life for nearly fifteen years. The low power factor which represents the low power performance and lower power depletion value represents a higher proportion of the power in the distribution network, if a low power factor is not corrected, power companies in addition to the active power, but also to provide greater reactive power, which leads to require a larger generators, transformers, power lines, etc., in order to compensate for losses. Power supply with PFC function can improve its own energy usage, reduce losses, and also can reduce the harmonic pollution on the grid. With the reduction of the power supply temperature, IC, the improvement of the working environment of the power semiconductor MTBF (mean time between failures) will significantly improve. 3) high reliability; 4) long life; • High PFC (Power Factor Corrector): to reduce the current harmonics; to increase power system capacity; to reduce line losses, and save energy.

  12. The LED Driver We are using Reputed Supplier in LED driver bunisess for years Certifications: PSE(200-640mA), CQC, UL, FCC, TUV, CE Efficiency : 86% PFC: AC110V  PF≥  0.95  AC220V  PF≥  0.9 Protective Function : open circuit protection short circuit protection

  13. Hot seller led lighting led FPL(GY10Q) tube, led PLL(2G11) Tube led T8-G13 tube led down light

  14. Quick-selling Product ---LED GY10&2G11Tube External LED Driver Series Features: ● Adopting Samsung LED chips  ● own-designed Mould: Same size as Traditional energy-saving FPL lamp. ● CE Rohs PSE approved ● External LED driver listed by PSE,UL,TUV. ●GY10Q for Japan only

  15. Quick-selling Product ---LED GY10&2G11Tube Internal LED Driver Series Features: ● Adopting Samsung LED chips ) ● own-designed Mould: Same size as Traditional energy-saving FPL lamp. ● CE Rohs approved ● Isolative Internal LED driver listed by PSE,UL,TUV.

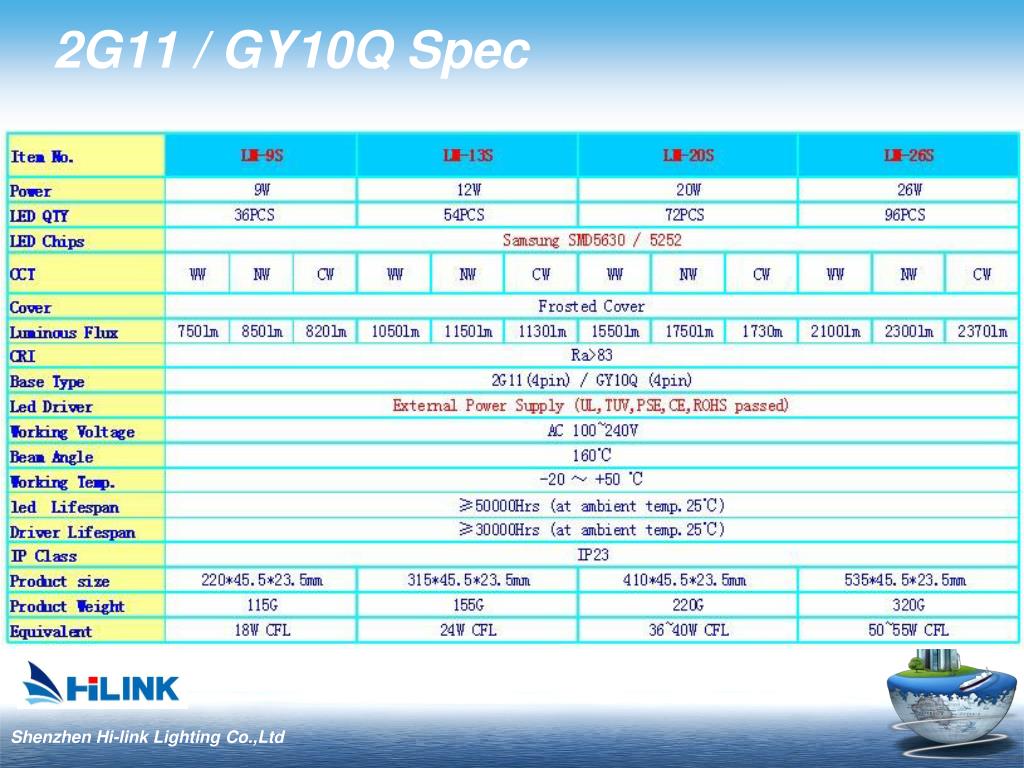

  16. 2G11 / GY10Q Spec

  17. 2G11 / GY10Q Test Report

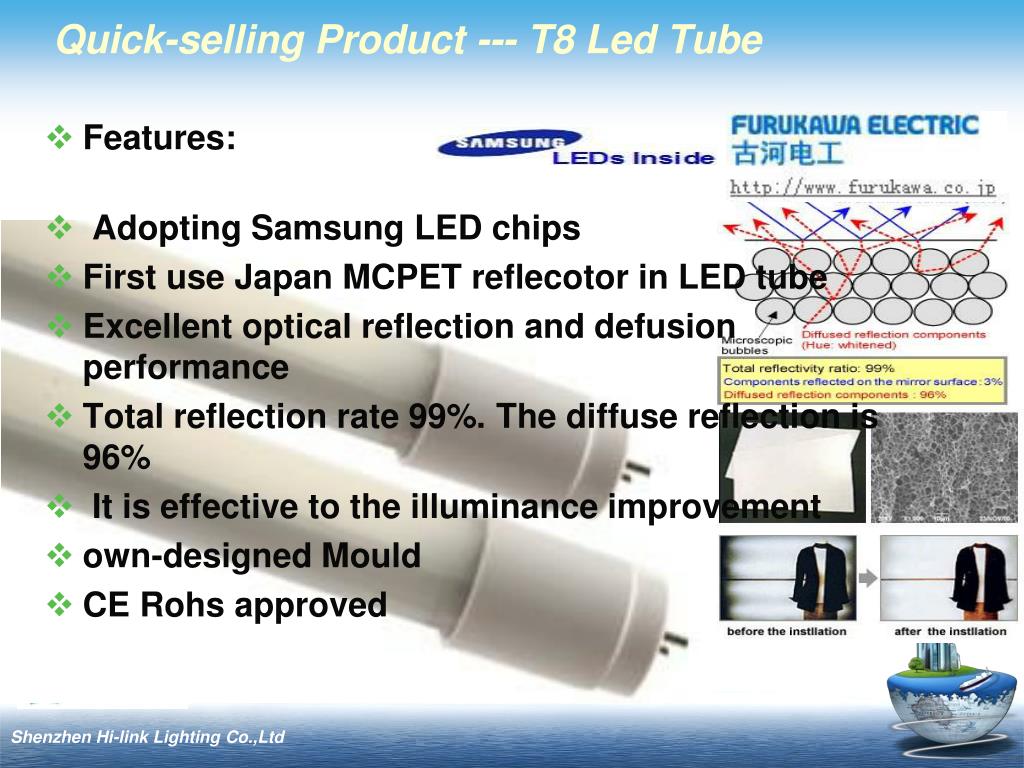

  18. Quick-selling Product --- T8 Led Tube • Features: •  Adopting Samsung LED chips  • First use Japan MCPET reflecotor in LED tube • Excellent optical reflection and defusion performance • Total reflection rate 99%. The diffuse reflection is 96% • It is effective to the illuminance improvement • own-designed Mould • CE Rohs approved

  19. T8 SPEC

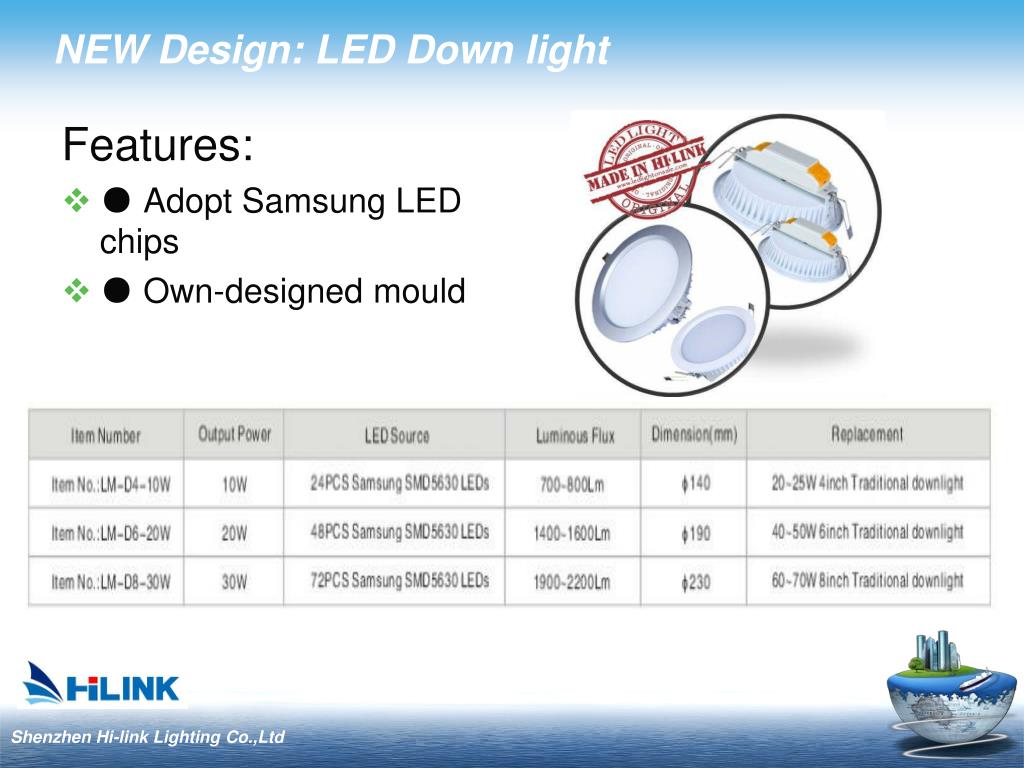

  20. NEW Design: LED Down light Features: • ● Adopt Samsung LED chips • ● Own-designed mould

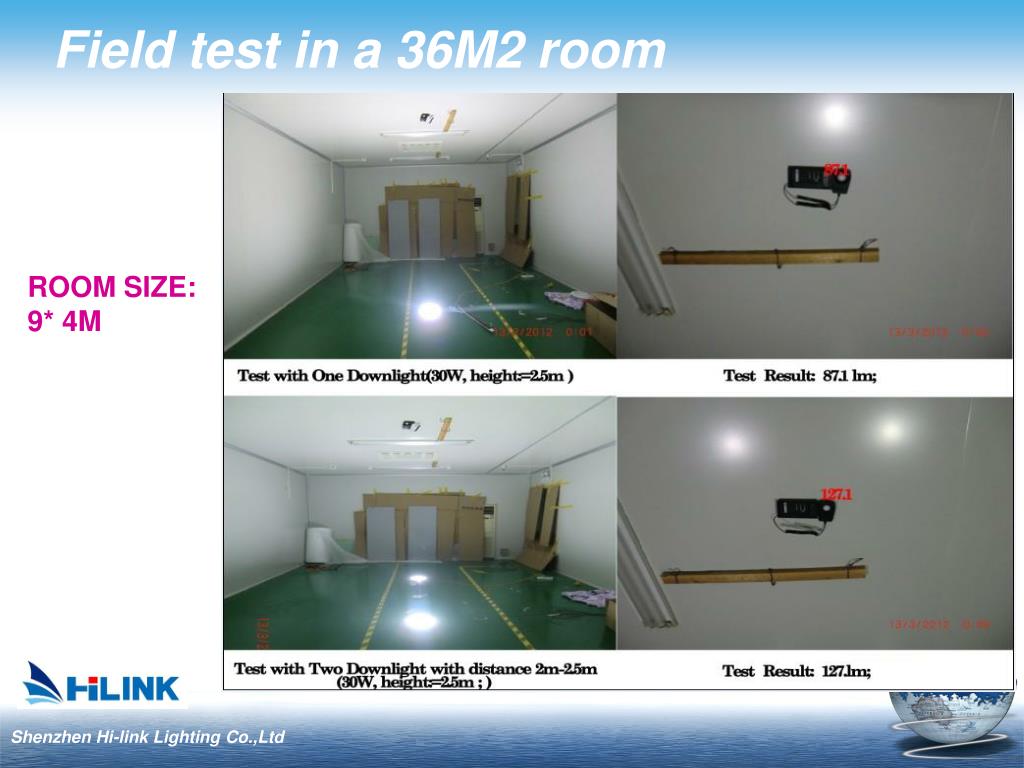

  21. Field test in a 36M2 room ROOM SIZE: 9* 4M

  22. LED Downlight: test report

  23. LED Smart Bulb Function: • Brightness and color temperature simultaneously dimmable led light bulb. • Ranging from a pleasing warm white to a cooler daylight white to match the weather, the season, time of day, purpose, or other preferences. • The user can select a favorite brightness and Color temperature by using an accessory remote controller according to different atmosphere and situation. • The user can store the preferred brightness and Color temperature by a hot-key, and next time when the user presses the key, the bulb will show the brightness and Color temperature stored. The remote controller has 6 hot-key.

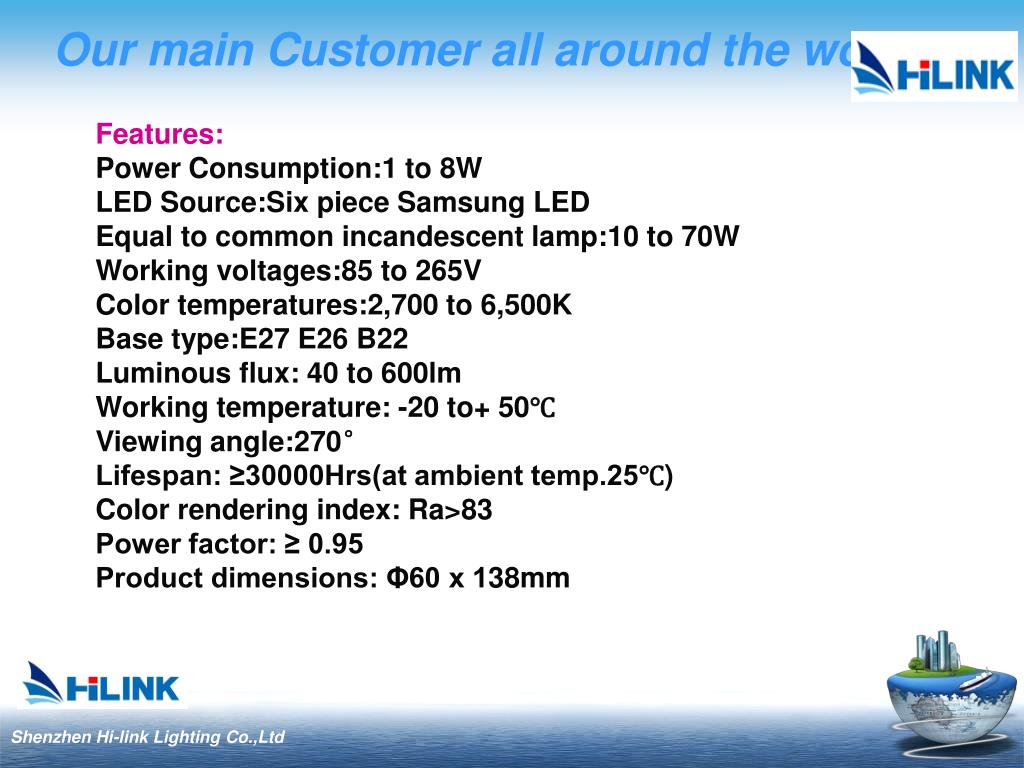

  24. Our main Customer all around the world Features: Power Consumption:1 to 8W LED Source:Six piece Samsung LED Equal to common incandescent lamp:10 to 70W Working voltages:85 to 265V Color temperatures:2,700 to 6,500K Base type:E27 E26 B22 Luminous flux: 40 to 600lm Working temperature: -20 to+ 50℃ Viewing angle:270° Lifespan: ≥30000Hrs(at ambient temp.25℃) Color rendering index: Ra>83 Power factor: ≥ 0.95 Product dimensions: Φ60 x 138mm

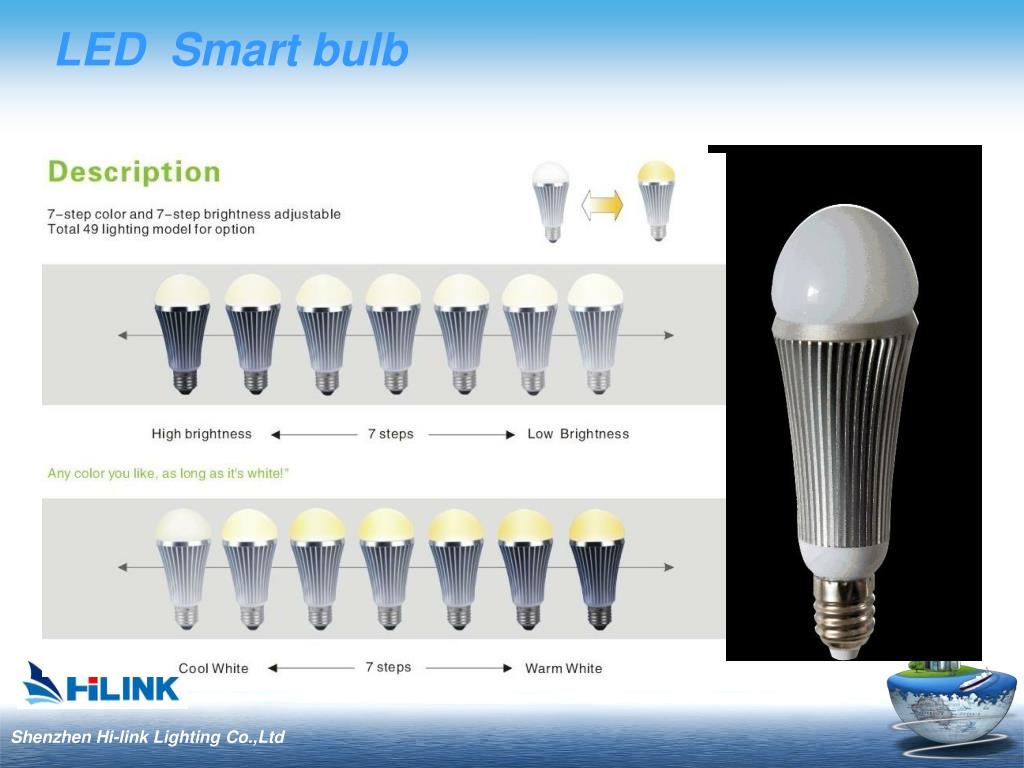

  25. LED Smart bulb

  26. LED Smart bulb---indoor effect

  27. Test report

  28. Japan Clients: EU Clients: US Clients: Other Asia Clients:

  29. Hi-LINK Light up the Digital and colorful Life Thank You ! Shenzhen HI-LINK Lighting Co.,Ltd
