  1. Multiple Audio Sources Detection and Localization Guillaume Lathoud, IDIAP Supervised by Dr Iain McCowan, IDIAP

  2. Outline • Context and problem. • Approach. • Discretize: ( sector, time frame, frequency bin ). • Example. • Experiments. • Multiple loudspeakers. • Multiple humans. • Conclusion.

  3. Context • Automatic analysis of recordings: • Meeting annotation. • Speaker tracking for speech acquisition. • Surveillance applications.

  4. Context • Automatic analysis of recordings: • Meeting annotation. • Speaker tracking for speech acquisition. • Surveillance applications. • Questions to answer: • Who? What? Where? When? • Location can be used for very precise segmentation.

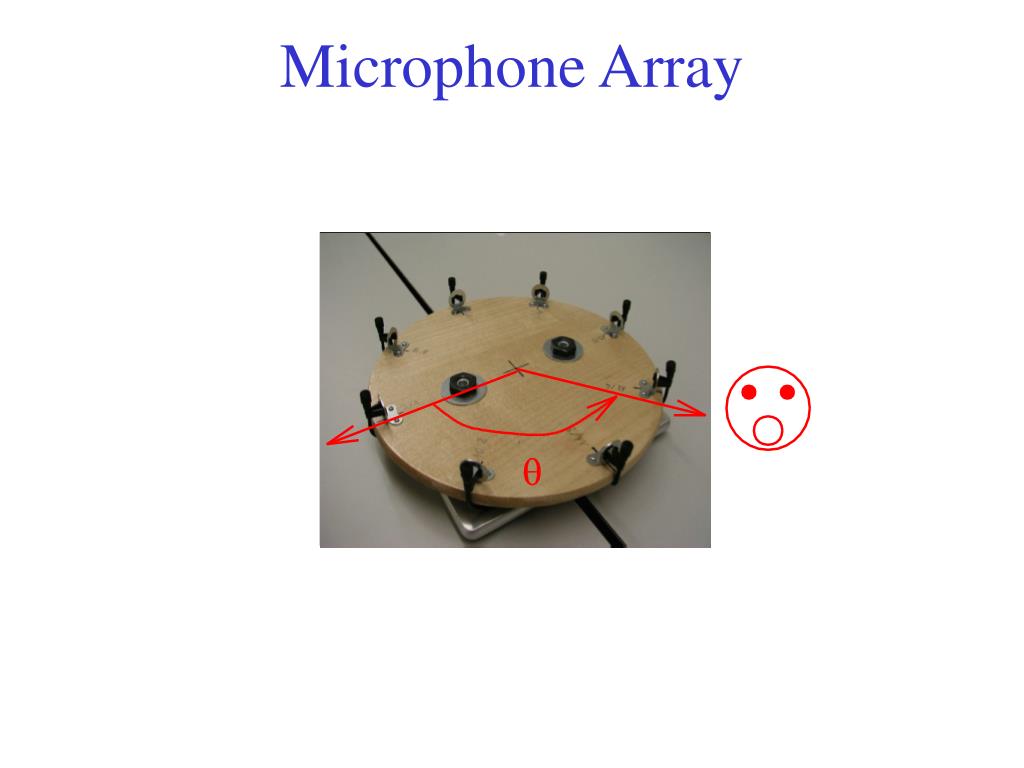

  5. Microphone Array

  6. Why Multiple Sources? • Spontaneous multi-party speech: • Short. • Sporadic. • Overlaps.

  7. Why Multiple Sources? • Spontaneous multi-party speech: • Short. • Sporadic. • Overlaps. • Problem: frame-levelmultisoure localization and detection. One frame = 16 ms.

  8. Why Multiple Sources? • Spontaneous multi-party speech: • Short. • Sporadic. • Overlaps. • Problem: frame-level multisoure localization and detection. One frame = 16 ms. • Many localization methods exist…But: • Speech is wideband. • Detection issue: how many?

  9. Outline • Context and problem. • Approach. • Discretize: ( sector, time frame, frequency bin ). • Example. • Experiments. • Multiple loudspeakers. • Multiple humans. • Conclusion.

  10. Sector-based Approach Question: is there at least one active source in a given sector?

  11. Sector-based Approach Question: is there at least one active source in a given sector?  Answer it for each frequency bin separately

  12. Frame-level Analysis • One time frame every 16 ms. • Discretize both space and frequency. s Sector of space f Frequency bin

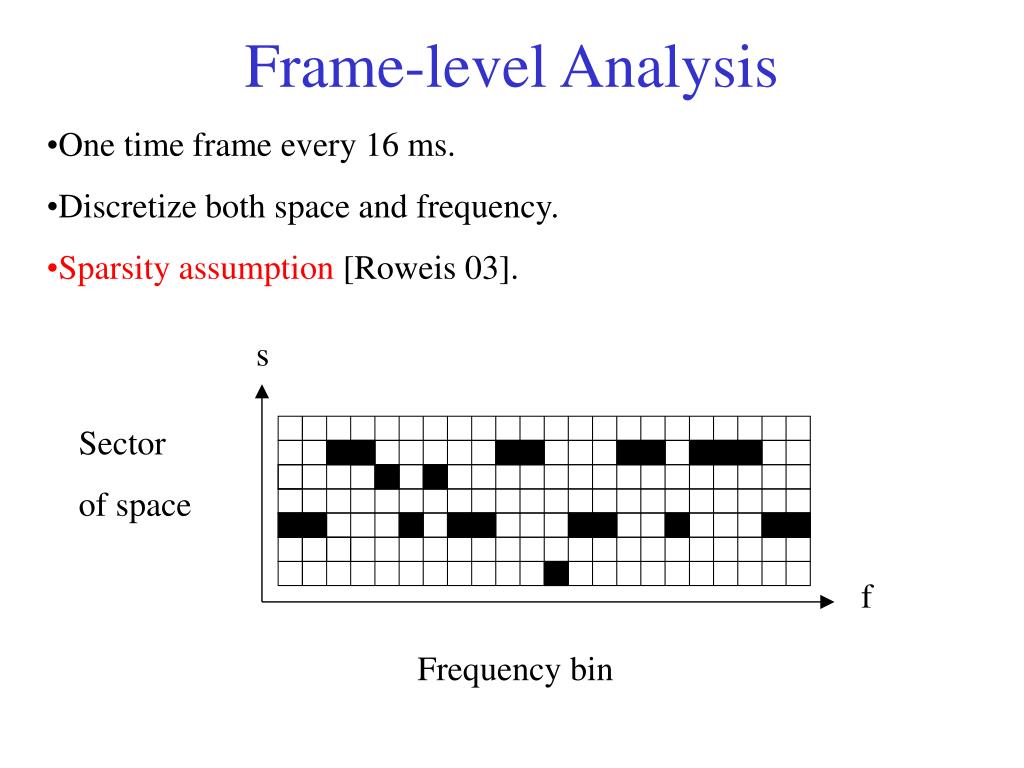

  13. Frame-level Analysis • One time frame every 16 ms. • Discretize both space and frequency. • Sparsity assumption [Roweis 03]. s Sector of space f Frequency bin

  14. Frame-level Analysis • One time frame every 16 ms. • Discretize both space and frequency. • Sparsity assumption[Roweis 03]. s 0 Sector of space 9 2 0 10 0 1 f Frequency bin

  15. Frame-level Analysis • One time frame every 16 ms. • Discretize both space and frequency. • Sparsity assumption[Roweis 03]. s 0 Sector of space 9 2 0 10 0 1 f Frequency bin

  16. Frequency Bin Analysis • Compute phase between 2 microphones: q(f) in [-p,+p]. • Repeat for all P microphone pairs: Q(f) = [q1(f) …qP(f)]. P=M(M-1)/2

  17. Frequency Bin Analysis • Compute phase between 2 microphones: q(f) in [-p,+p]. • Repeat for all P microphone pairs: Q(f) = [q1(f) …qP(f)]. • For each sector s, compare measured phases Q(f) with the centroidFs: pseudo-distance d( Q(f), Fs ). P=M(M-1)/2 d( Q(f), F1 ) d( Q(f), F2 ) sector d( Q(f), F3 ) … d( Q(f), F7 ) f

  18. Frequency Bin Analysis • Compute phase between 2 microphones: q(f) in [-p,+p]. • Repeat for all P microphone pairs: Q(f) = [q1(f) …qP(f)]. • For each sector s, compare measured phases Q(f) with the centroid Fs: pseudo-distance d( Q(f), Fs ). • Apply sparsity assumption: • The best one only is active. P=M(M-1)/2

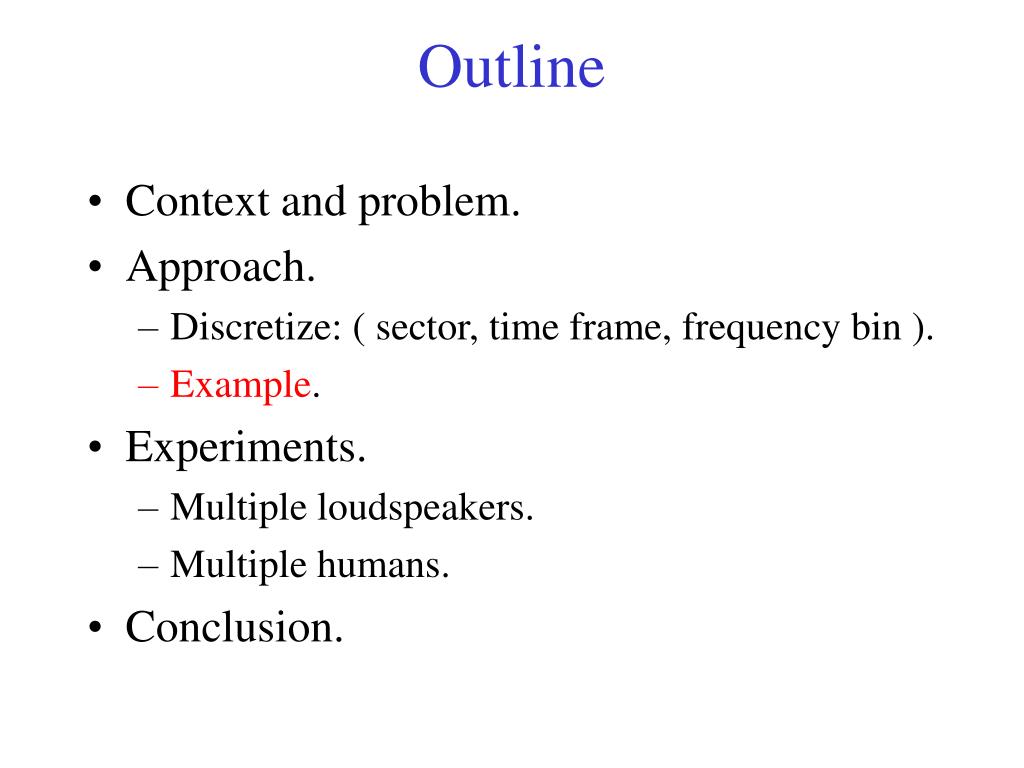

  19. Outline • Context and problem. • Approach. • Discretize: ( sector, time frame, frequency bin ). • Example. • Experiments. • Multiple loudspeakers. • Multiple humans. • Conclusion.

  20. Real Data: Single Speaker Without sparsity assumption [SAPA 04] similar to [ICASSP 01]

  21. Real Data: Single Speaker Without sparsity assumption [SAPA 04] similar to [ICASSP 01] With sparsity assumption (this work)

  22. Outline • Context and problem. • Approach. • Discretize: ( sector, time frame, frequency bin ). • Example. • Experiments. • Multiple loudspeakers. • Multiple humans. • Conclusion.

  23. Real Data: Multiple Loudspeakers

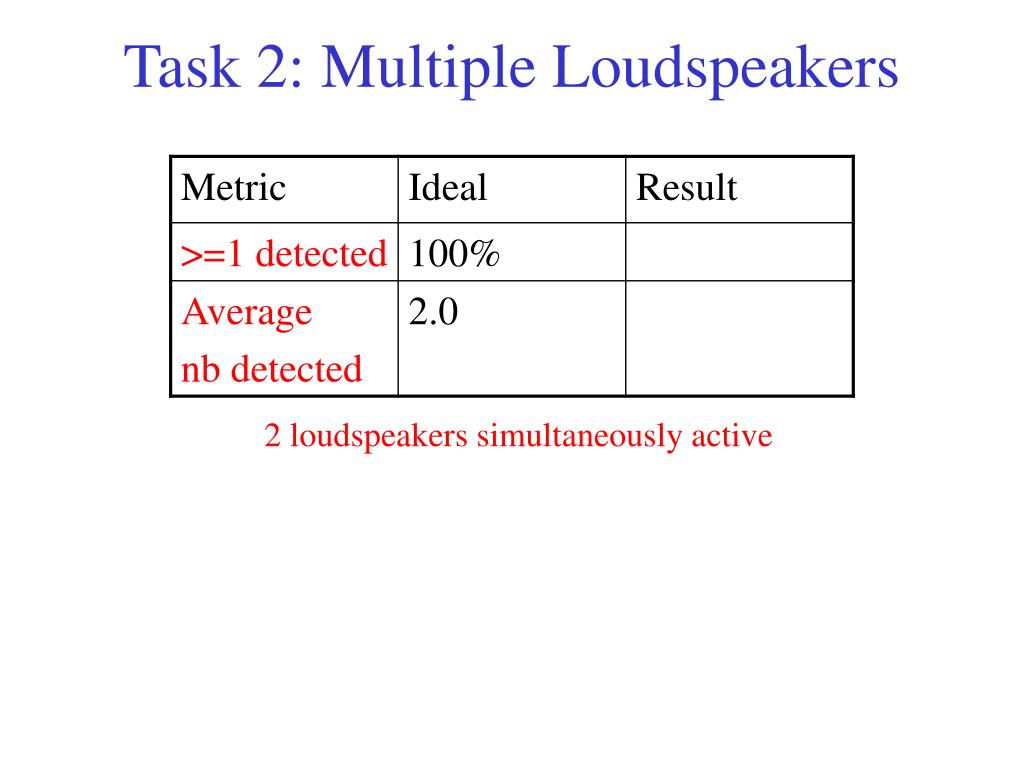

  24. Task 2: Multiple Loudspeakers 2 loudspeakers simultaneously active

  25. Real Data: Multiple Loudspeakers 2 loudspeakers simultaneously active

  26. Real Data: Multiple Loudspeakers 3 loudspeakers simultaneously active

  27. Outline • Context and problem. • Approach. • Discretize: ( sector, time frame, frequency bin ). • Example. • Experiments. • Multiple loudspeakers. • Multiple humans. • Conclusion.

  28. Real data: Humans

  29. Real data: Humans 2 speakers simultaneously active (includes short silences)

  30. Real data: Humans 3 speakers simultaneously active (includes short silences)

  31. Conclusion • Sector-based approach. • Localization and detection. • Effective on real multispeaker data.

  32. Conclusion • Sector-based approach. • Localization and detection. • Effective on real multispeaker data. • Current work: • Optimize centroids. • Multi-level implementation. • Compare multilevel with existing methods.

  33. Conclusion • Sector-based approach. • Localization and detection. • Effective on real multispeaker data. • Current work: • Optimize centroids. • Multi-level implementation. • Compare multilevel with existing methods. • Possible integration with Daimler.

  34. Thank you!

  35. Pseudo-distance • Measured phases Q(f) = [q1(f) …qP(f)]in [-p,+p]P. • For each sector a centroid Fs=[Fs,1… Fs,P]. • d( Q(f), Fs ) = Sp sin2( (qp(f) – Fs,p) / 2 ) • cos(x) = 1 – 2 sin2( x / 2 )  argmax beamformed energy = argmin d

  36. Delay-sum vs Proposed (1/3) With delay-sum centroids (this work) With optimized centroids (this work)

  37. Delay-sum vs Proposed (2/3) 2 loudspeakers simultaneously active 3 loudspeakers simultaneously active

  38. Delay-sum vs Proposed (3/3) 2 humans simultaneously active 3 humans simultaneously active

  39. Energy and Localization
