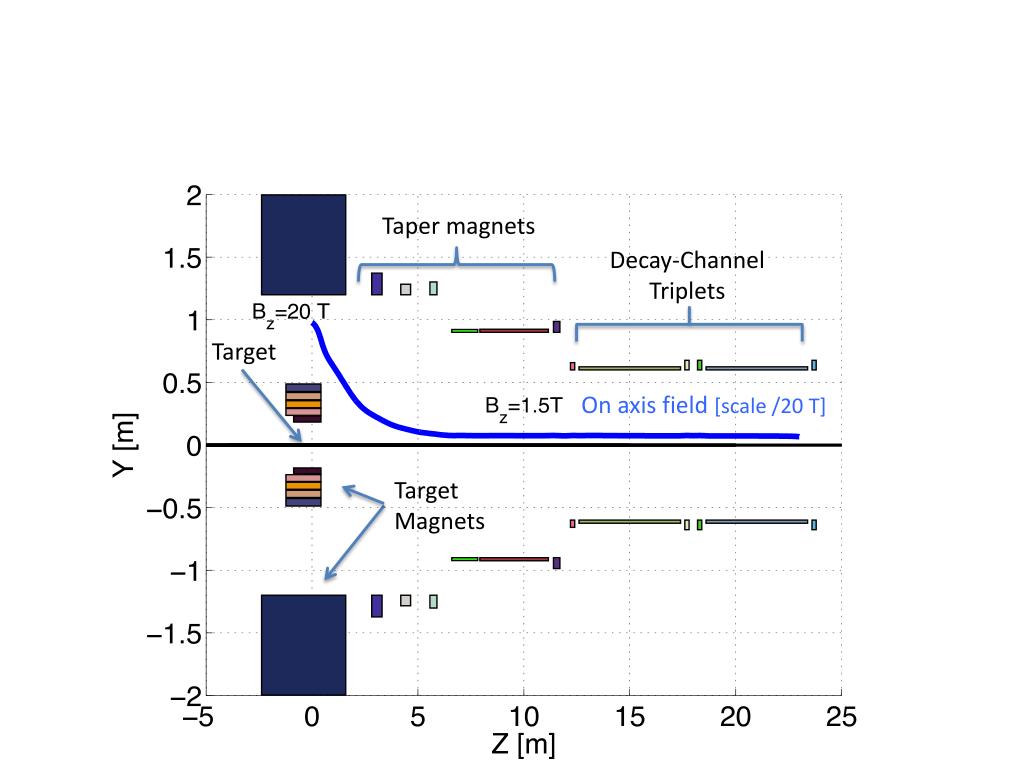

  1. Taper magnets Decay-Channel Triplets Target On axis field [scale /20 T] Target Magnets

  2. RCS or Compressor Matching Septum Beam dump 230 m Collimation Arc Beam Window Final focus Target

  3. Target Position

  4. Mercury Module: collection pool, mercury jet Superconducting coils Cryostat Shielding Module: Tungsten beads, He-gas cooled

  5. Superconducting magnets Tungsten beads, He gas cooled Be window Proton beam and Mercury jet Resistive magnets Mercury collection pool with splash mitigator

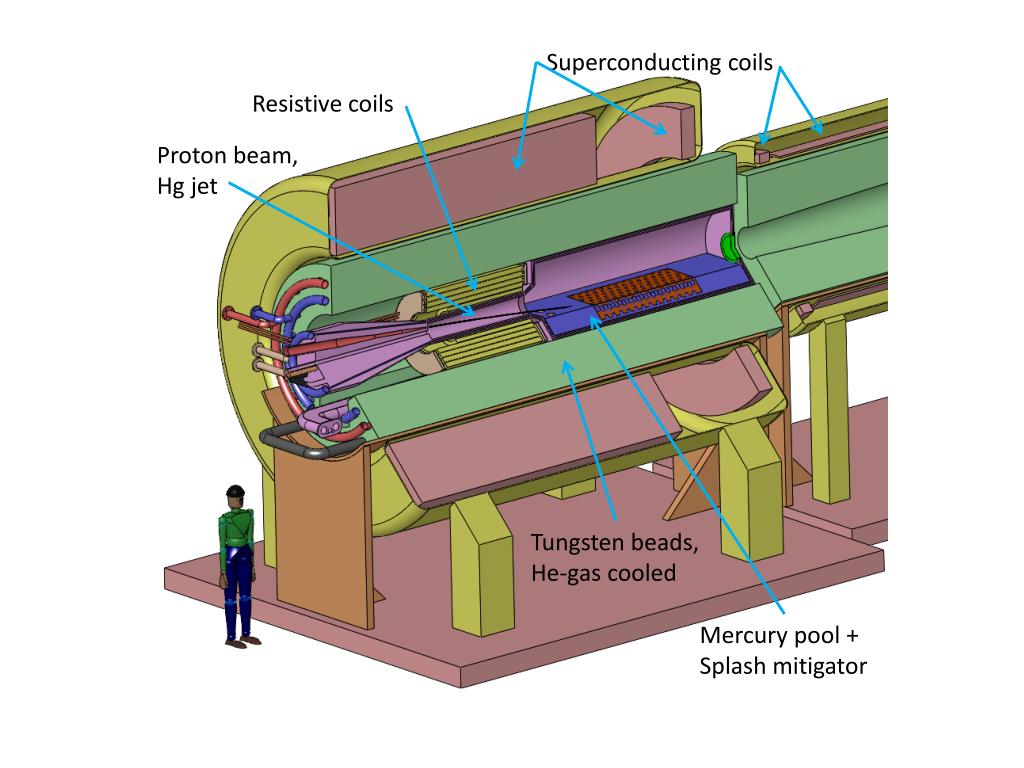

  6. Superconducting coils Resistive coils Proton beam, Hg jet Tungsten beads, He-gas cooled Mercury pool + Splash mitigator

  7. Superconducting coils Mercury Module: mercury jet, collection pool + resistive coils Cryostat Shielding Module: Tungsten beads, He-gas cooled

  8. IDS120_15-1.5T7m3+4 Utility Connections

  9. IDS120k, IDS12020-1.5T7m2+5, IDS120_15-15.7m3+4

  10. Particle Beam Lasers

  11. IDS120_20-1.5T7m2+5 Shielding Helium Mercury Supply Beam Entrance Resistive Coil Power Vents Resistive Coil Cooling Shielding Remote Handling Mercury Drains

  12. IDS120_20-1.5T7m2+5 Utility Connections Shielding Helium Resistive Coil Power Nozzle Supply Resistive Coil Cooling Beam Entrance Vents Shielding Remote Handling Mercury Drains

  13. IDS120_15-1.5T7m3+4 Utility Connections

  14. IDS120_20-1.5T7m2+5

  15. IDS120_15-1.5T7m3+4

  16. IDS120_15-1.5T7m3+4

  17. IDS120_20to1.5T7m

  18. IDS120_20to1.5T7m

  19. IDS120_20to1.5T7m

  20. IDS120_20to1.5T7m

  21. IDS120_20to1.5T7m

  22. Axial field (T) Axial distance (m)
