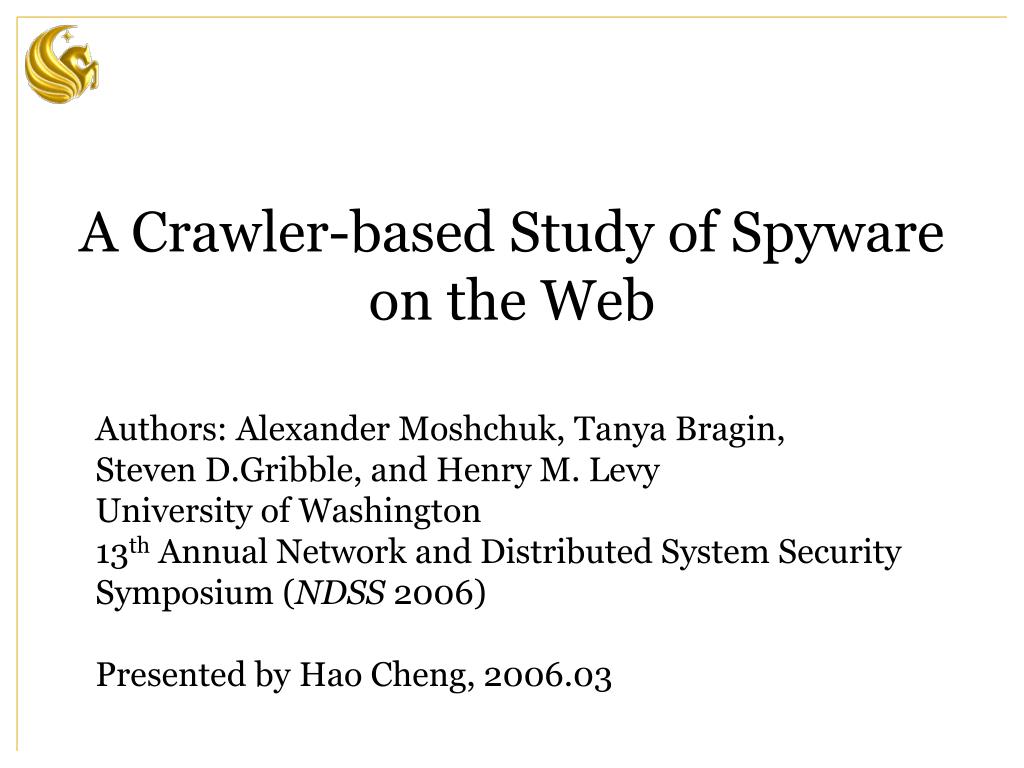

  1. A Crawler-based Study of Spyware on the Web Authors: Alexander Moshchuk, Tanya Bragin, Steven D.Gribble, and Henry M. LevyUniversity of Washington13th Annual Network and Distributed System Security Symposium (NDSS 2006)Presented by Hao Cheng, 2006.03

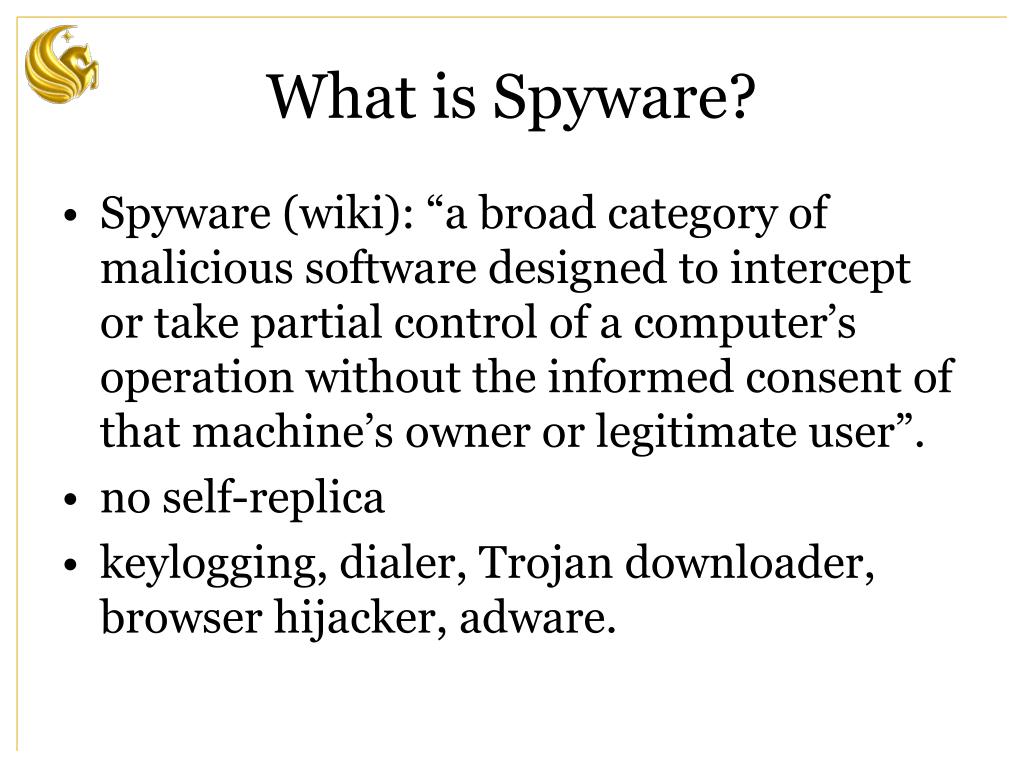

  2. What is Spyware? • Spyware (wiki): “a broad category of malicious software designed to intercept or take partial control of a computer’s operation without the informed consent of that machine’s owner or legitimate user”. • no self-replica • keylogging, dialer, Trojan downloader, browser hijacker, adware.

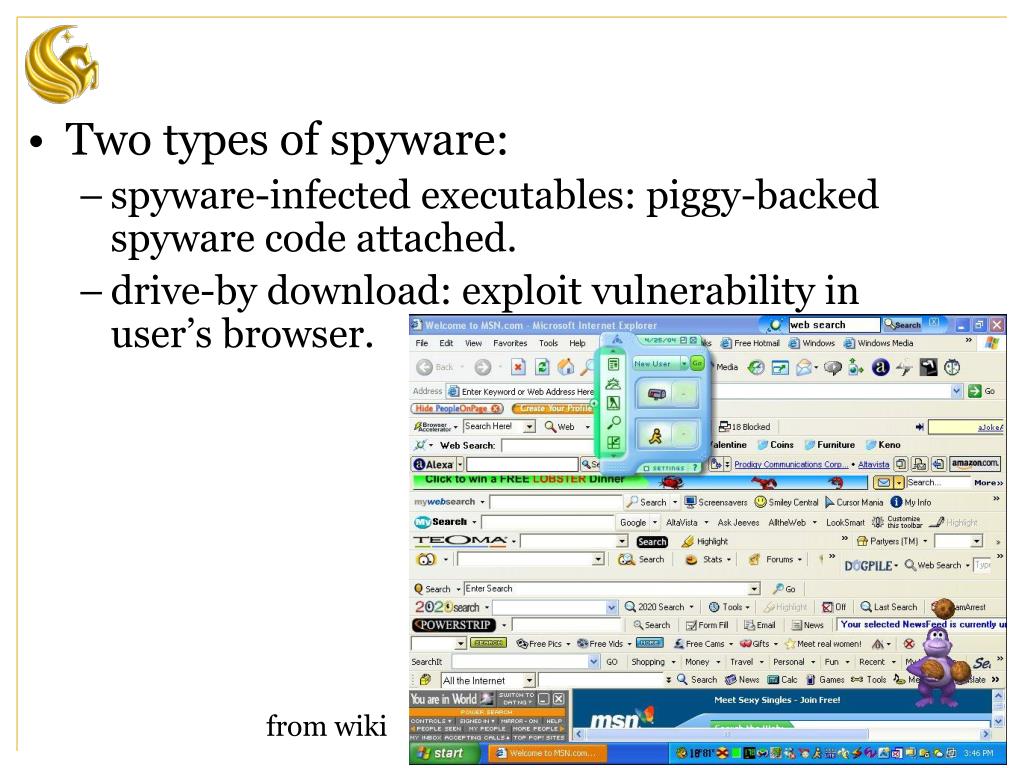

  3. Two types of spyware: • spyware-infected executables: piggy-backed spyware code attached. • drive-by download: exploit vulnerability in user’s browser. from wiki

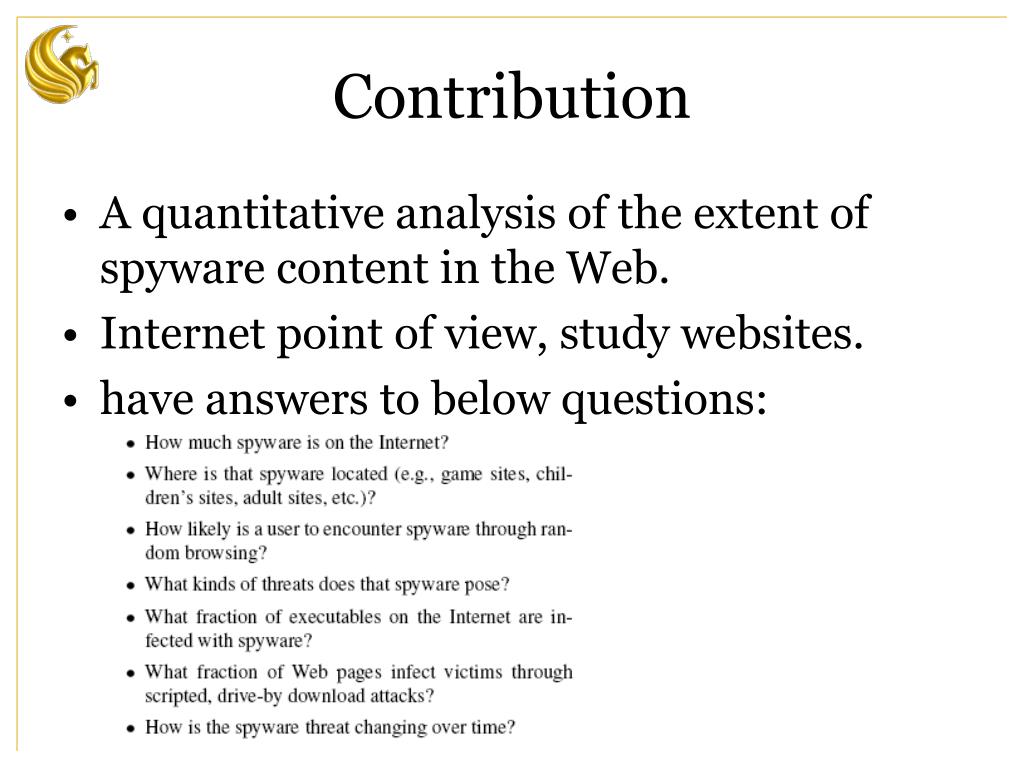

  4. Contribution • A quantitative analysis of the extent of spyware content in the Web. • Internet point of view, study websites. • have answers to below questions:

  5. . • Crawl webpages • May 2005, 18.2 millions URL • Oct 2005, 21.8 millions URL • Virtual Machine (VM) to sandbox and analyze malicious content • spyware-infected executables: commercial anti-spyware tools • Drive-by download: heuristic triggers

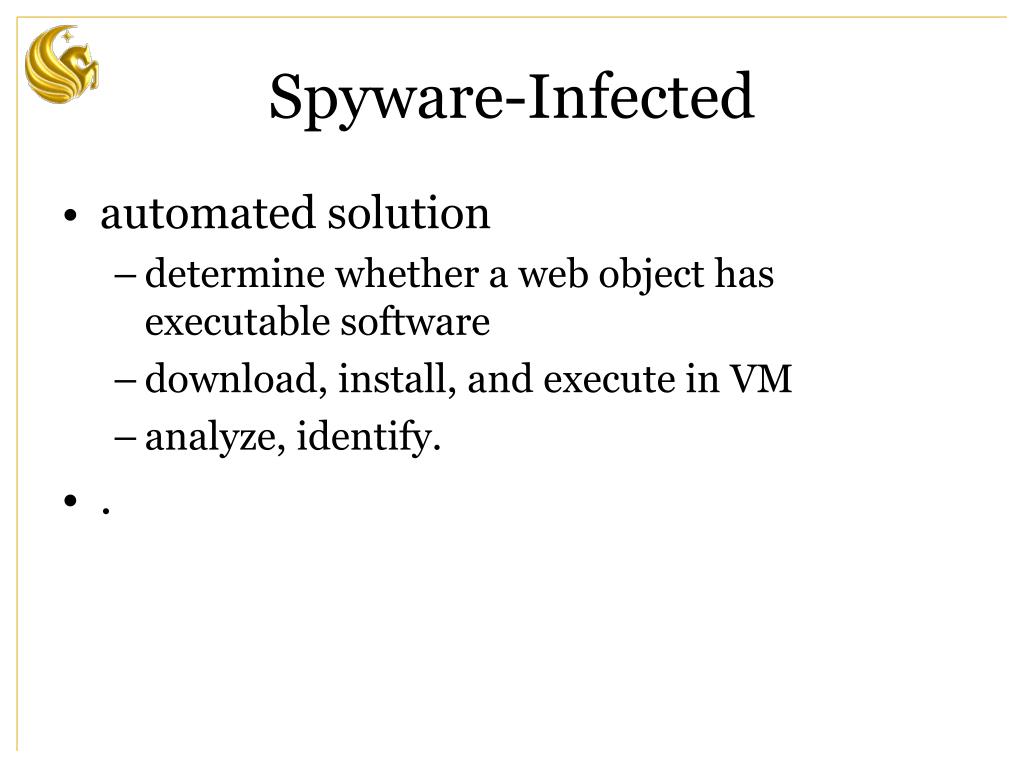

  6. Spyware-Infected • automated solution • determine whether a web object has executable software • download, install, and execute in VM • analyze, identify. • .

  7. steps • Finding executables in web • HTTP header content-type = application/octet-stream • URL has extension (.exe, .cab, .msi) • After downloading, the beginning bits in a file to identify file type. • Automatic Install • use heuristic to simulate common user interaction during the process of installation.

  8. steps • The last step- Analyze • Lavasoft AdAware anti-spyware tool. (use signature within its detection database). • script to launch the installed software and collect the logs generated by the anti-spyware tool. • identify functions of those spywares. • .

  9. Drive-by Download • automated solution • visit potential malicious webpage in unmodified browser in a clean VM • any attempt to break out of security sandbox of browser- suspicious • perform AdAware scan to detect installed spyaware. • .

  10. Complex web content • Complex web content (JavaScript) • Time bomb code (occur in some future): accelerate OS wall-clock 15 times • Page-close code, simulate page-close by fetching a clear webpage to cause code insurgence. • Pop-up code, wait for all pop-up window to finish loading and then closed them in order to trigger any potential codes.

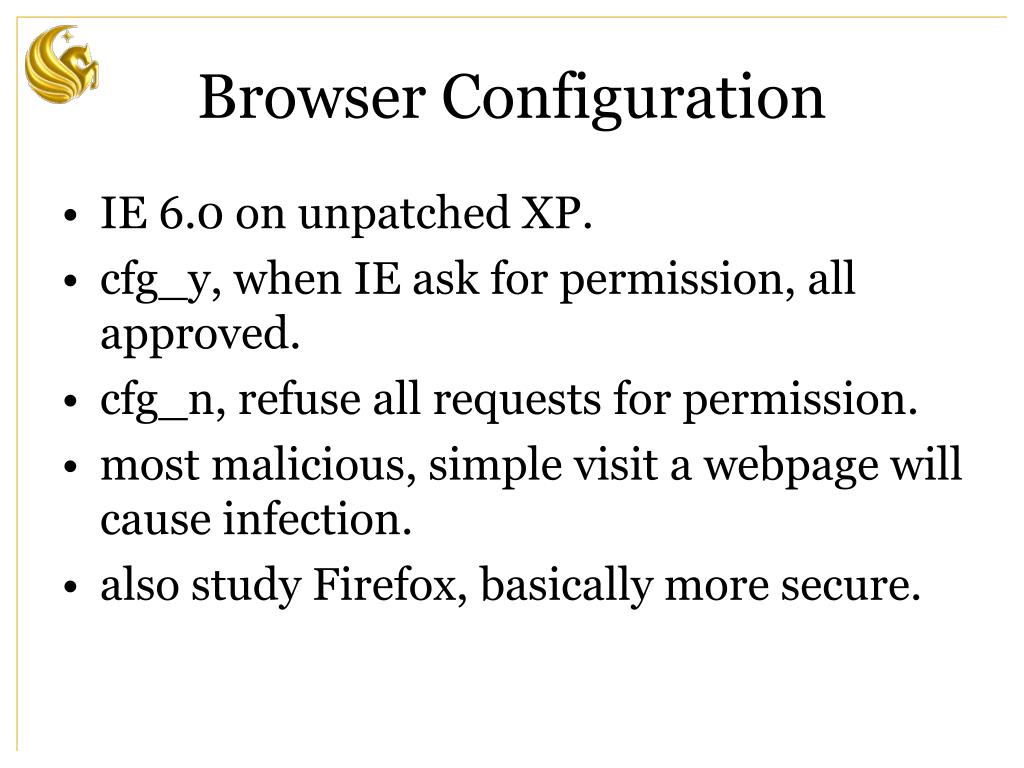

  11. Browser Configuration • IE 6.0 on unpatched XP. • cfg_y, when IE ask for permission, all approved. • cfg_n, refuse all requests for permission. • most malicious, simple visit a webpage will cause infection. • also study Firefox, basically more secure.

  12. System • 10-node cluster • dual-processor, 4GB RAM, 80GB disk • one VM per processor

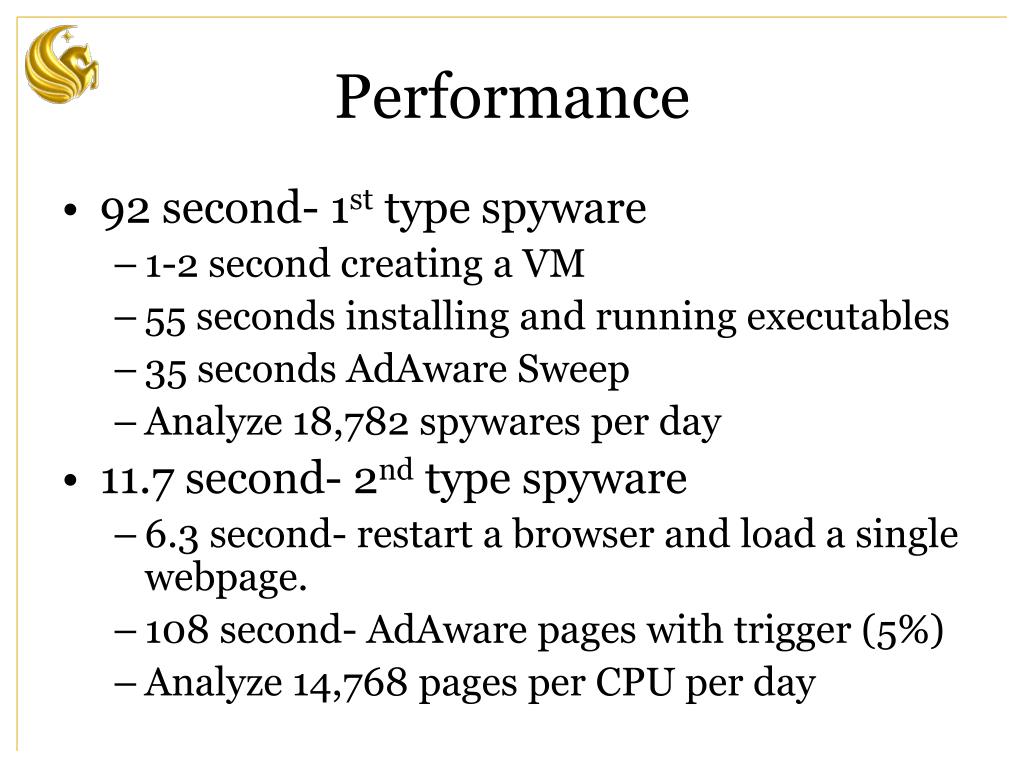

  13. Performance • 92 second- 1st type spyware • 1-2 second creating a VM • 55 seconds installing and running executables • 35 seconds AdAware Sweep • Analyze 18,782 spywares per day • 11.7 second- 2nd type spyware • 6.3 second- restart a browser and load a single webpage. • 108 second- AdAware pages with trigger (5%) • Analyze 14,768 pages per CPU per day

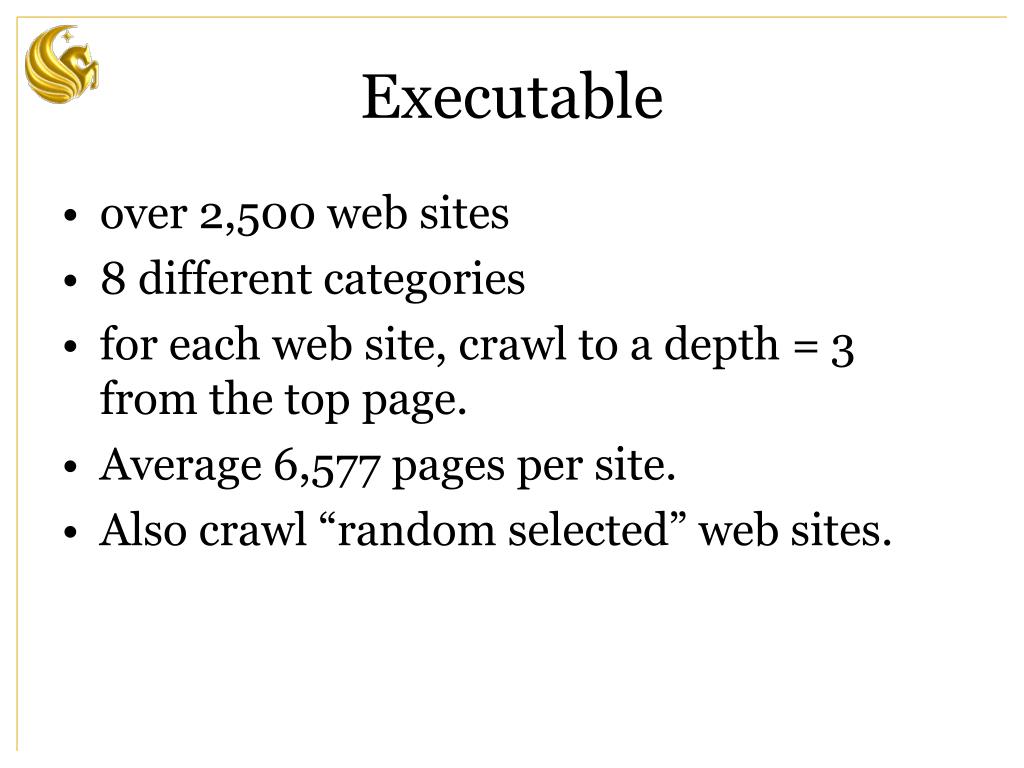

  14. Executable • over 2,500 web sites • 8 different categories • for each web site, crawl to a depth = 3 from the top page. • Average 6,577 pages per site. • Also crawl “random selected” web sites.

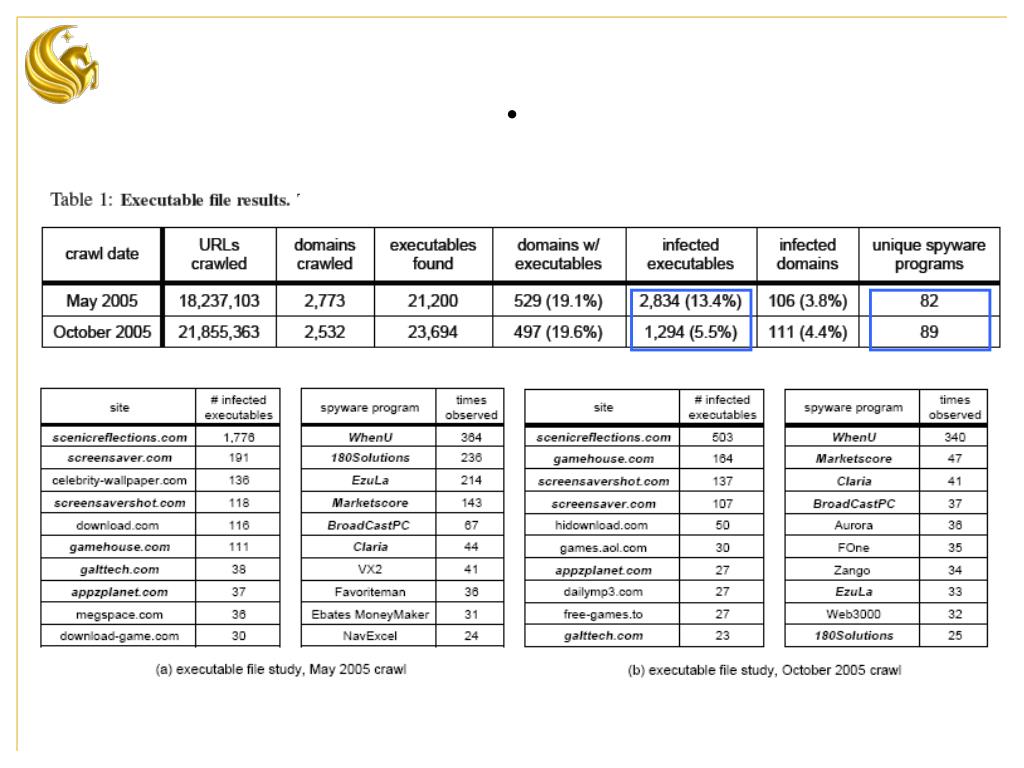

  15. .

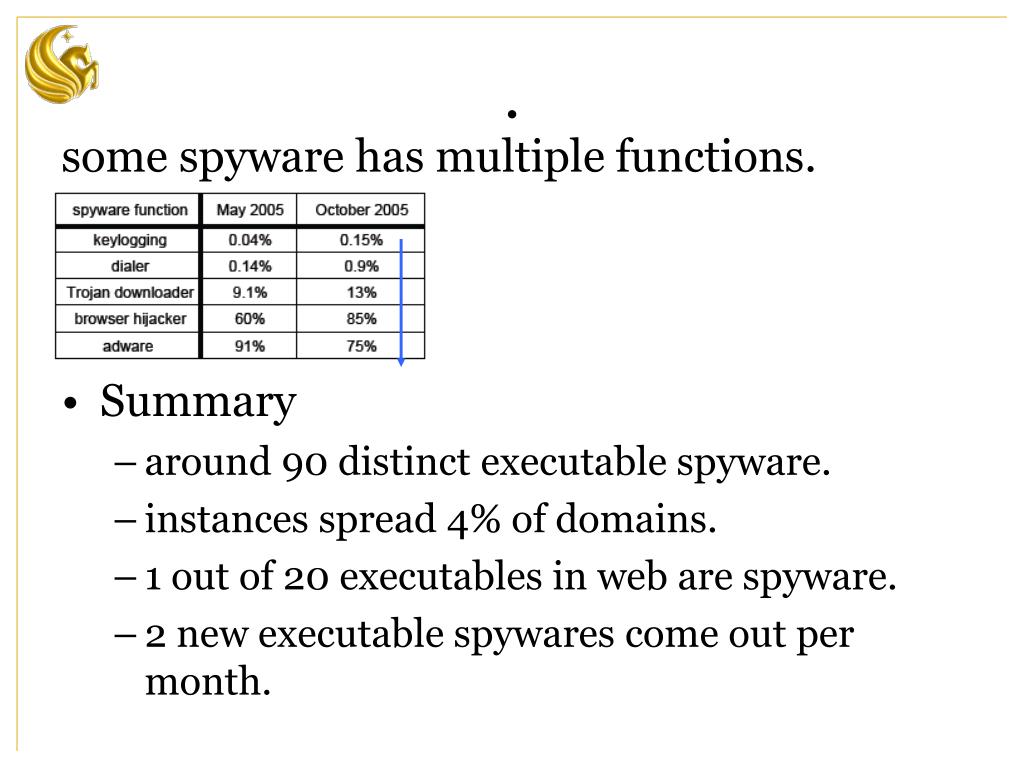

  16. . some spyware has multiple functions. • Summary • around 90 distinct executable spyware. • instances spread 4% of domains. • 1 out of 20 executables in web are spyware. • 2 new executable spywares come out per month.

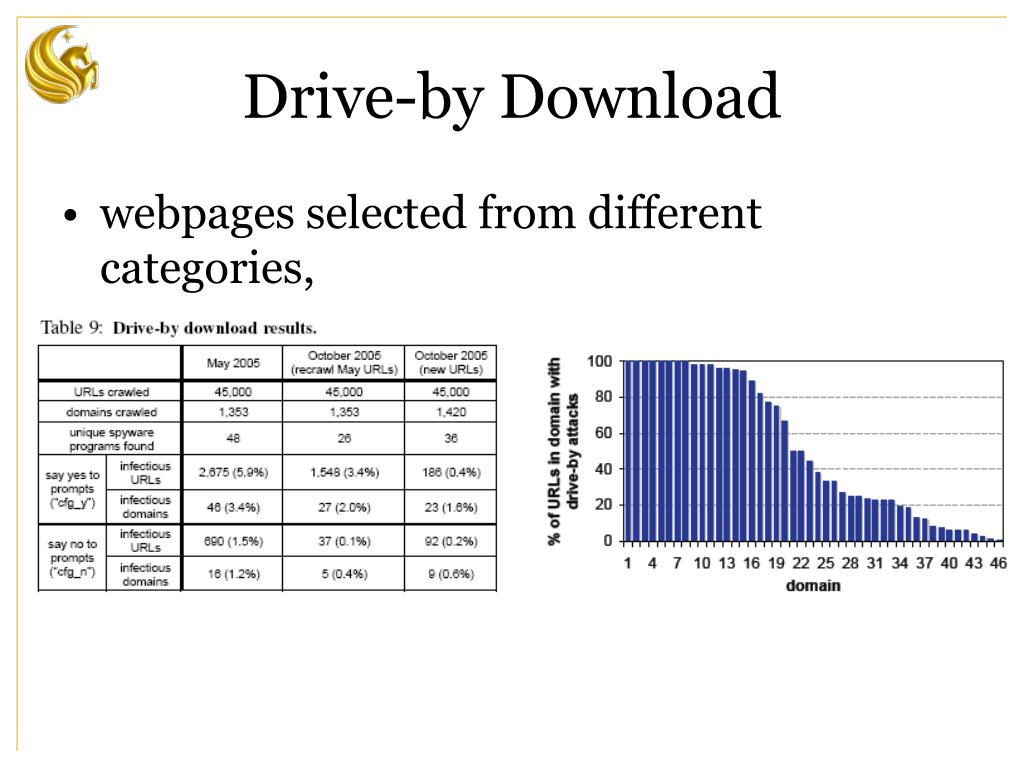

  17. Drive-by Download • webpages selected from different categories,

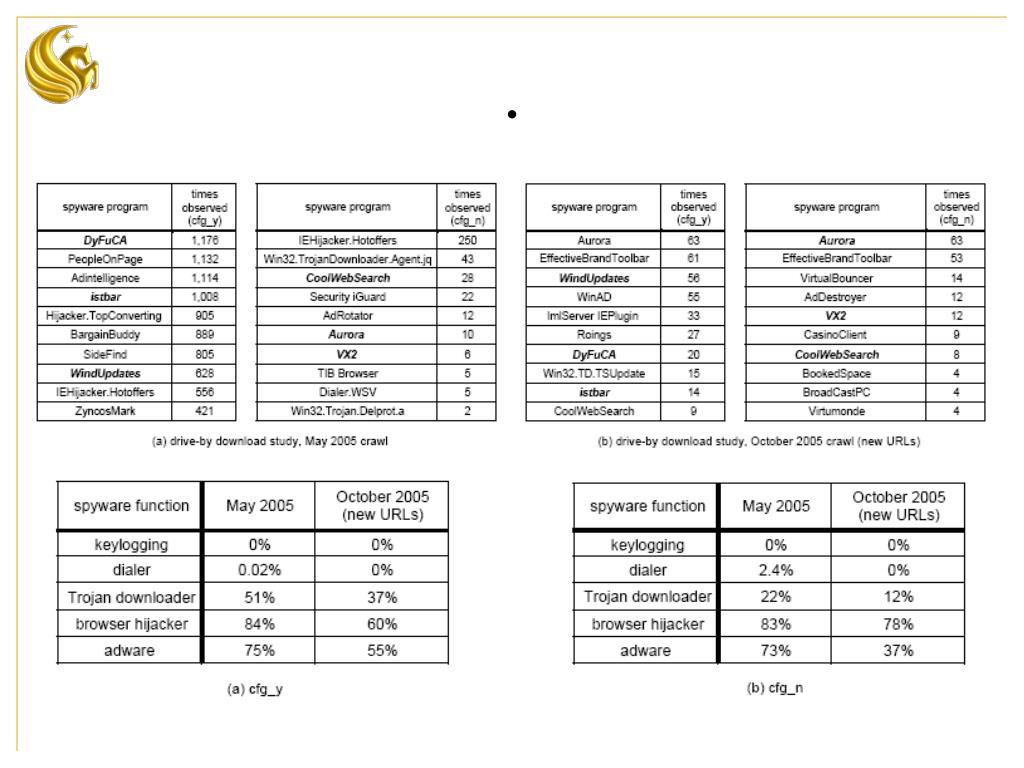

  18. .

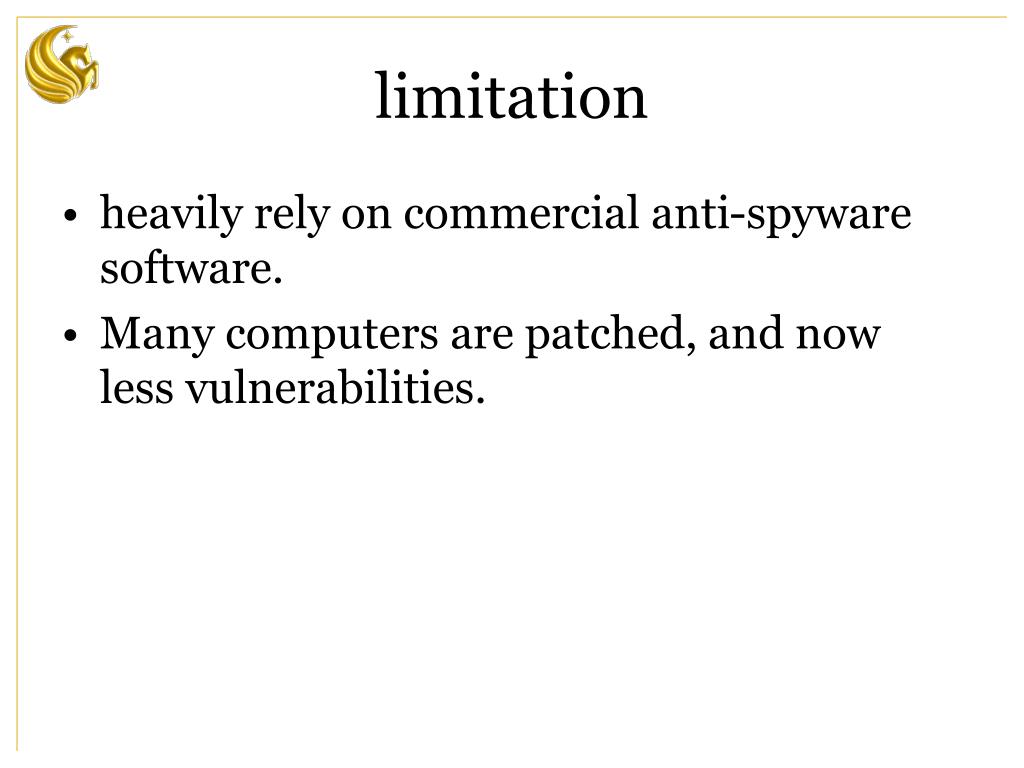

  19. limitation • heavily rely on commercial anti-spyware software. • Many computers are patched, and now less vulnerabilities.

  20. Questions?
