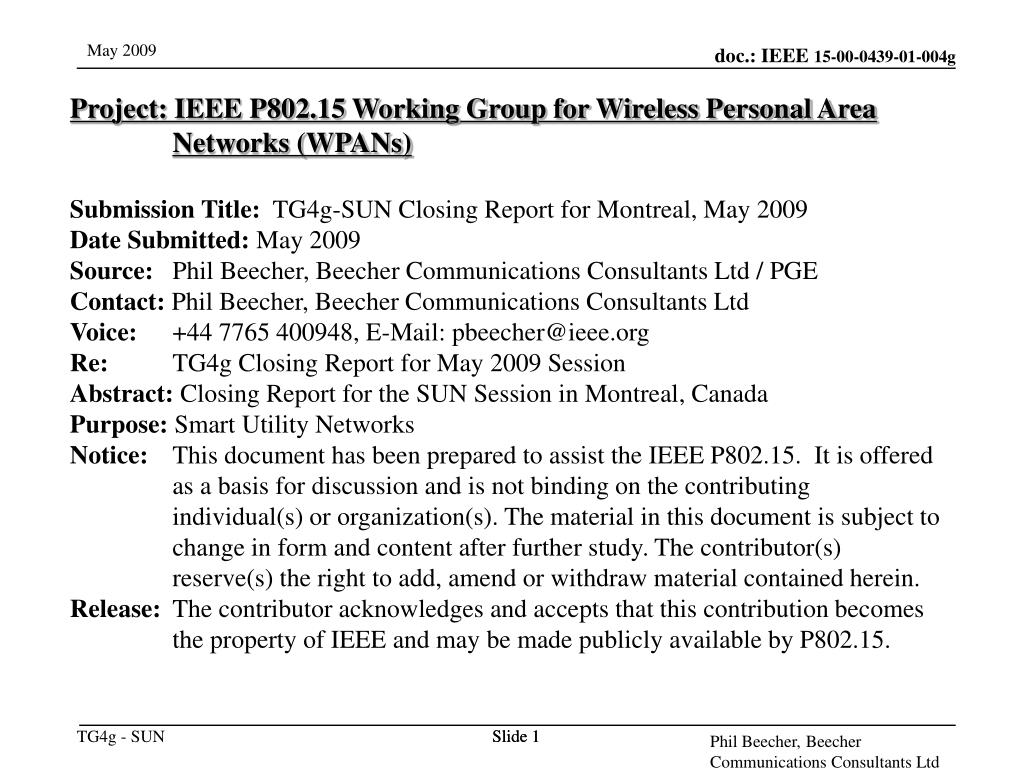

  1. Project: IEEE P802.15 Working Group for Wireless Personal Area Networks (WPANs) Submission Title: TG4g-SUN Closing Report for Montreal, May 2009 Date Submitted: May 2009 Source: Phil Beecher, Beecher Communications Consultants Ltd / PGE Contact: Phil Beecher, Beecher Communications Consultants Ltd Voice: +44 7765 400948, E-Mail: pbeecher@ieee.org Re: TG4g Closing Report for May 2009 Session Abstract: Closing Report for the SUN Session in Montreal, Canada Purpose: Smart Utility Networks Notice: This document has been prepared to assist the IEEE P802.15. It is offered as a basis for discussion and is not binding on the contributing individual(s) or organization(s). The material in this document is subject to change in form and content after further study. The contributor(s) reserve(s) the right to add, amend or withdraw material contained herein. Release: The contributor acknowledges and accepts that this contribution becomes the property of IEEE and may be made publicly available by P802.15. Slide 1

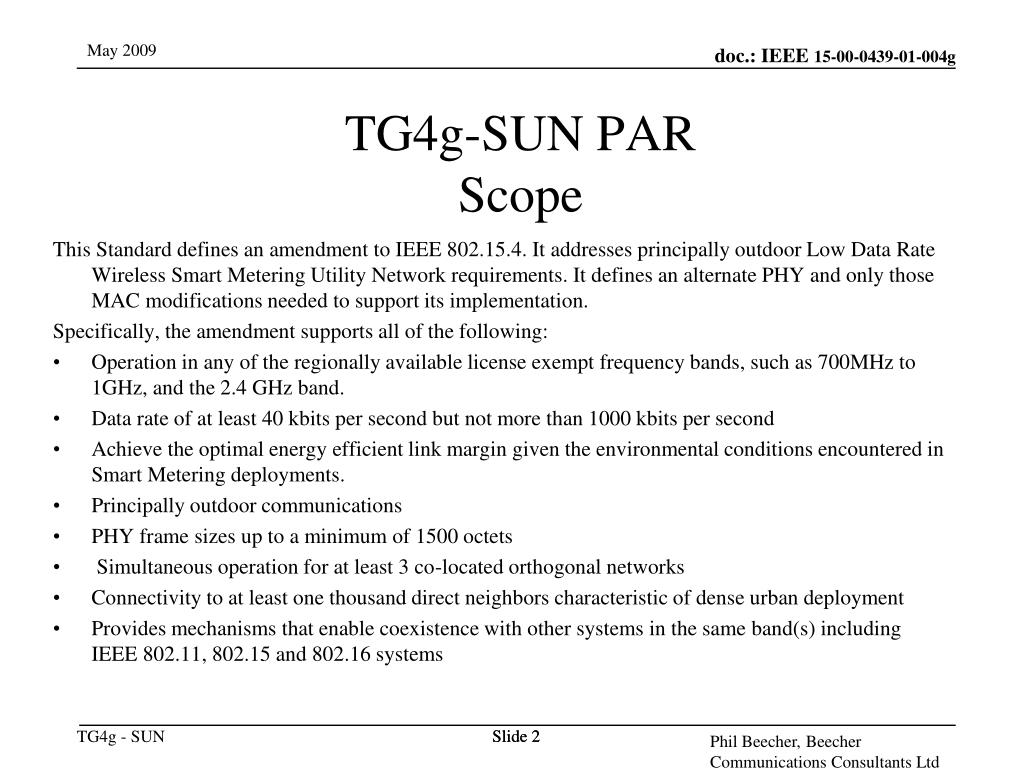

  2. TG4g-SUN PAR Scope This Standard defines an amendment to IEEE 802.15.4. It addresses principally outdoor Low Data Rate Wireless Smart Metering Utility Network requirements. It defines an alternate PHY and only those MAC modifications needed to support its implementation. Specifically, the amendment supports all of the following: Operation in any of the regionally available license exempt frequency bands, such as 700MHz to 1GHz, and the 2.4 GHz band. Data rate of at least 40 kbits per second but not more than 1000 kbits per second Achieve the optimal energy efficient link margin given the environmental conditions encountered in Smart Metering deployments. Principally outdoor communications PHY frame sizes up to a minimum of 1500 octets Simultaneous operation for at least 3 co-located orthogonal networks Connectivity to at least one thousand direct neighbors characteristic of dense urban deployment Provides mechanisms that enable coexistence with other systems in the same band(s) including IEEE 802.11, 802.15 and 802.16 systems Slide 2

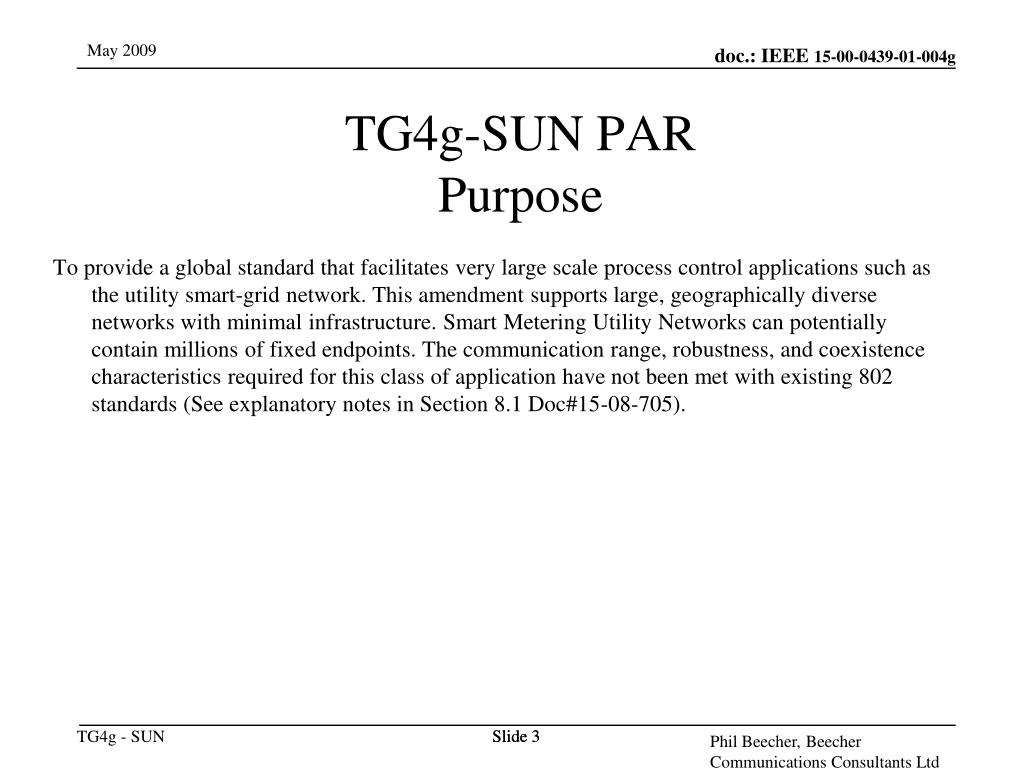

  3. TG4g-SUN PAR Purpose To provide a global standard that facilitates very large scale process control applications such as the utility smart-grid network. This amendment supports large, geographically diverse networks with minimal infrastructure. Smart Metering Utility Networks can potentially contain millions of fixed endpoints. The communication range, robustness, and coexistence characteristics required for this class of application have not been met with existing 802 standards (See explanatory notes in Section 8.1 Doc#15-08-705). Slide 3

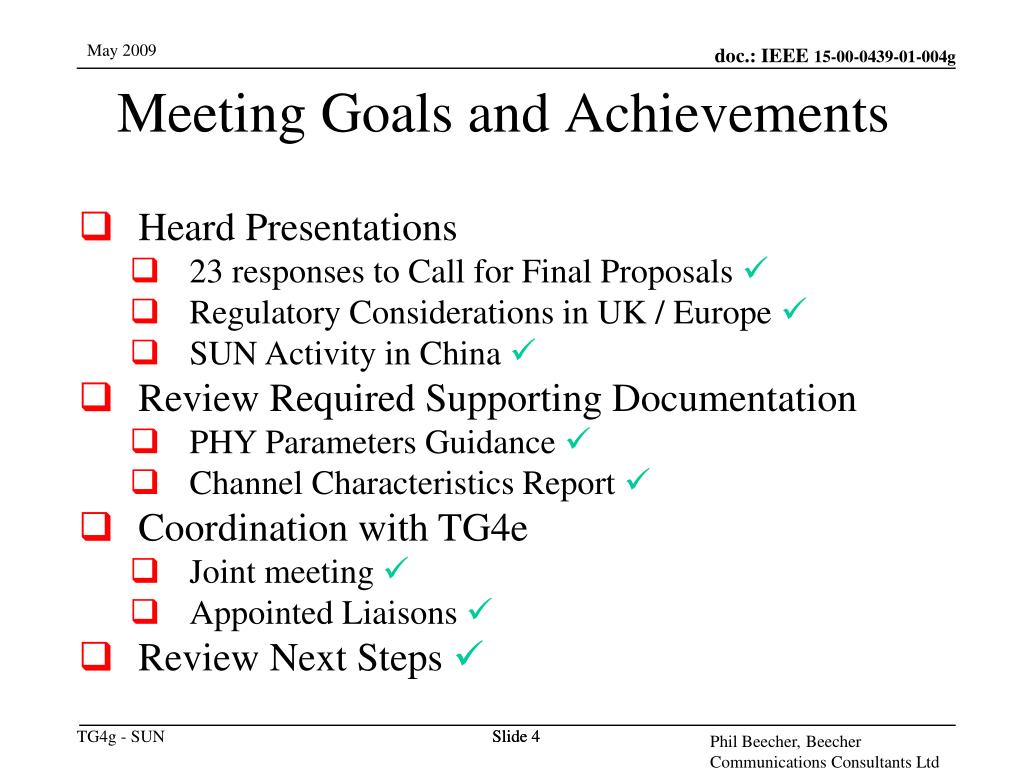

  4. Meeting Goals and Achievements • Heard Presentations • 23 responses to Call for Final Proposals  • Regulatory Considerations in UK / Europe  • SUN Activity in China  • Review Required Supporting Documentation • PHY Parameters Guidance  • Channel Characteristics Report • Coordination with TG4e • Joint meeting • Appointed Liaisons  • Review Next Steps  Slide 4

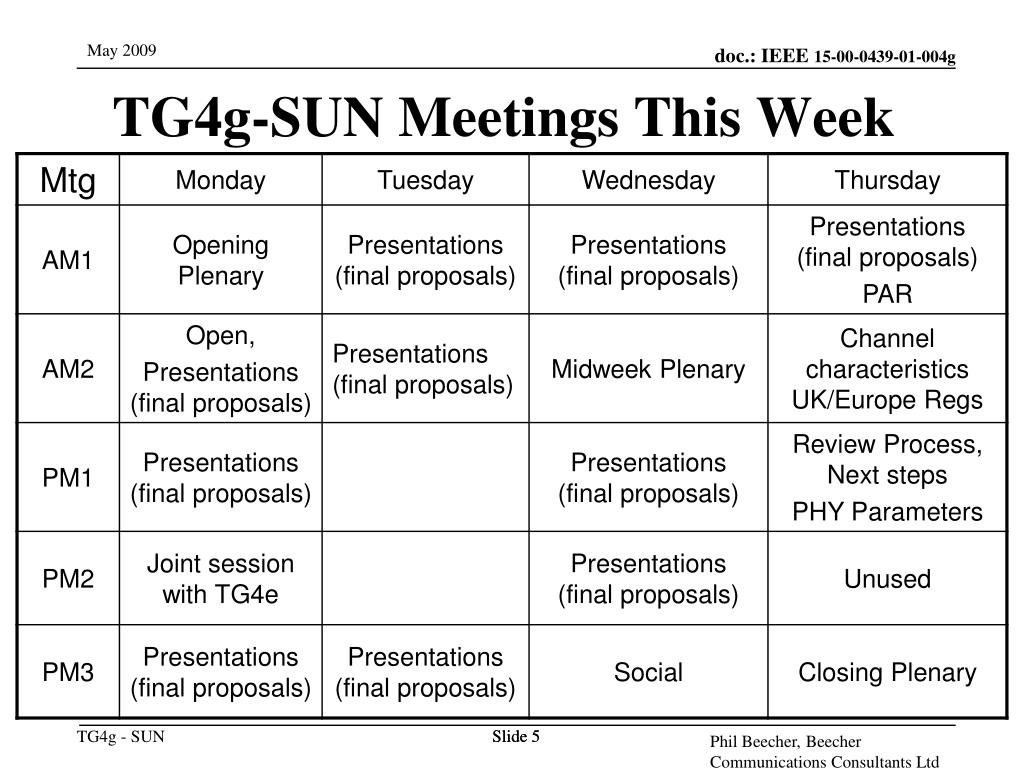

  5. TG4g-SUN Meetings This Week Slide 5

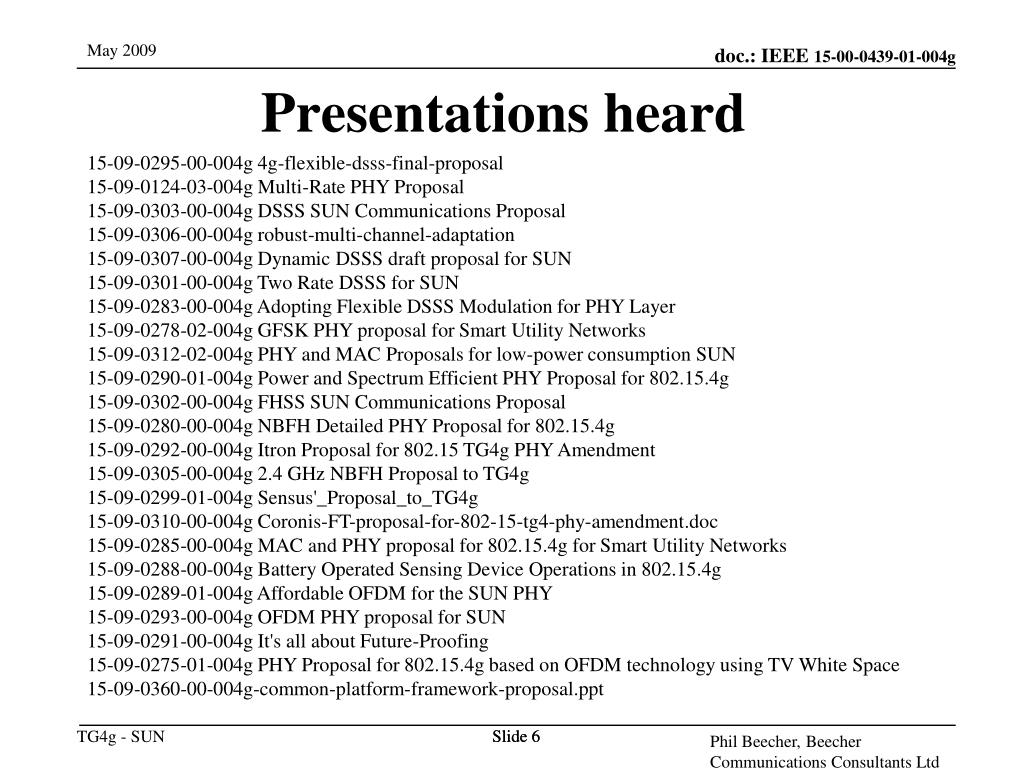

  6. Presentations heard 15-09-0295-00-004g 4g-flexible-dsss-final-proposal 15-09-0124-03-004g Multi-Rate PHY Proposal 15-09-0303-00-004g DSSS SUN Communications Proposal 15-09-0306-00-004g robust-multi-channel-adaptation 15-09-0307-00-004g Dynamic DSSS draft proposal for SUN 15-09-0301-00-004g Two Rate DSSS for SUN 15-09-0283-00-004g Adopting Flexible DSSS Modulation for PHY Layer 15-09-0278-02-004g GFSK PHY proposal for Smart Utility Networks 15-09-0312-02-004g PHY and MAC Proposals for low-power consumption SUN 15-09-0290-01-004g Power and Spectrum Efficient PHY Proposal for 802.15.4g 15-09-0302-00-004g FHSS SUN Communications Proposal 15-09-0280-00-004g NBFH Detailed PHY Proposal for 802.15.4g 15-09-0292-00-004g Itron Proposal for 802.15 TG4g PHY Amendment 15-09-0305-00-004g 2.4 GHz NBFH Proposal to TG4g 15-09-0299-01-004g Sensus'_Proposal_to_TG4g 15-09-0310-00-004g Coronis-FT-proposal-for-802-15-tg4-phy-amendment.doc 15-09-0285-00-004g MAC and PHY proposal for 802.15.4g for Smart Utility Networks 15-09-0288-00-004g Battery Operated Sensing Device Operations in 802.15.4g 15-09-0289-01-004g Affordable OFDM for the SUN PHY 15-09-0293-00-004g OFDM PHY proposal for SUN 15-09-0291-00-004g It's all about Future-Proofing 15-09-0275-01-004g PHY Proposal for 802.15.4g based on OFDM technology using TV White Space 15-09-0360-00-004g-common-platform-framework-proposal.ppt Slide 6

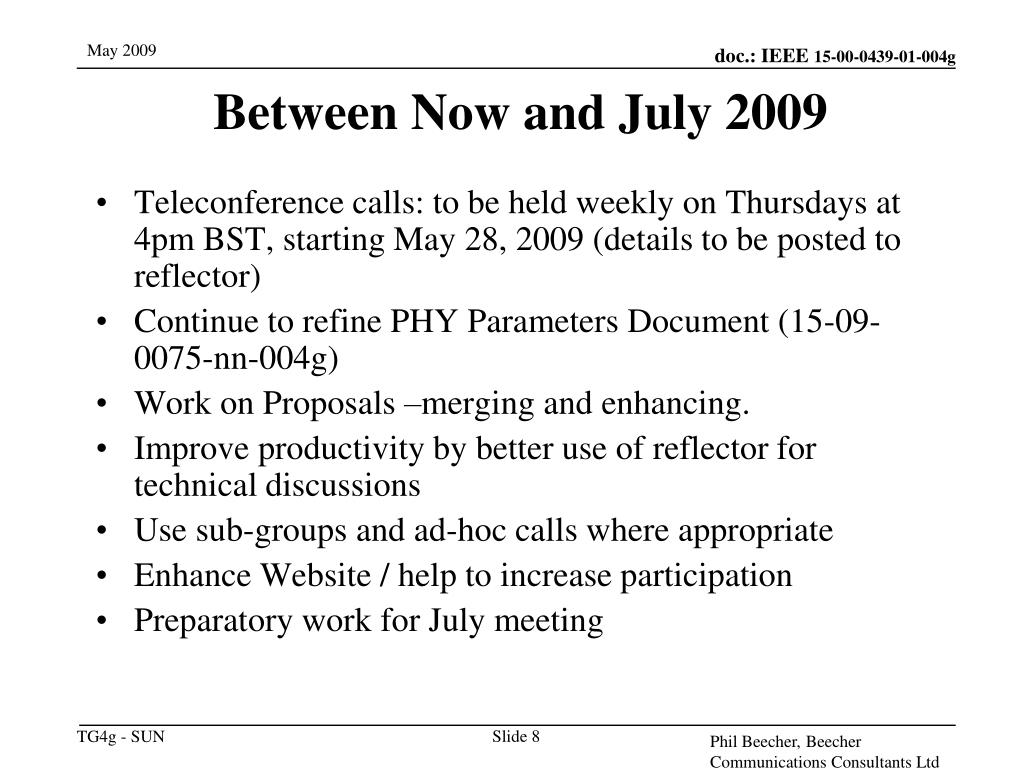

  7. Between Now and July 2009 Teleconference calls: to be held weekly on Thursdays at 4pm BST, starting May 28, 2009 (details to be posted to reflector) Continue to refine PHY Parameters Document (15-09-0075-nn-004g) Work on Proposals –merging and enhancing. Improve productivity by better use of reflector for technical discussions Use sub-groups and ad-hoc calls where appropriate Enhance Website / help to increase participation Preparatory work for July meeting
