  1. Lesson 3 Radio Frequency Components, Measurements, and Mathematics Dr. Tahseen Al-Doori

  2. Objectives • The Components of RF Communications • Transmitter • Receiver • Antenna • Isotropic Radiator • Intentional Radiator (IR) • Equivalent Isotropically Radiated Power (EIRP) Dr. Tahseen Al-Doori

  3. Objectives • Units of Power and Comparison • Watt • Milliwatt • Decibel (dB) • dBi • dBd • dBm • RF Mathematics • System Operating Margin (SOM)/Link Budget • Fade Margin • Inverse Square Law Dr. Tahseen Al-Doori

  4. RF Components • Many components contribute to the successful transmission and reception of an RF signal. Figure 1 shows the key components that will be covered in this section. In addition to understanding the function of the components, it is important to understand how the strength of the signal is specifically affected by each of the components. Dr. Tahseen Al-Doori

  5. Dr. Tahseen Al-Doori

  6. Transmitter • The transmitter is the initial component in the creation of the wireless medium. The computer hands the data off to the transmitter, and it is the transmitter’s job to begin the RF communication. • The transmitter will take the data provided and modify the AC signal using a modulation technique to encode the data into the signal. This modulated AC signal is now a carrier signal, containing the data to be transmitted. The carrier signal is then transported either directly to the antenna or through a cable to the antenna. Dr. Tahseen Al-Doori

  7. In addition to generating a signal at a specific frequency, the transmitter is responsible for determining the amplitude, or what is more commonly referred to as the power level, of the signal. • The higher the amplitude of the wave, the more powerful the wave is and the further it will travel. The power levels that the transmitter is allowed to generate are determined by the local regulatory body, such as the Federal Communications Commission (FCC) in the United States. Dr. Tahseen Al-Doori

  8. Although we are explaining the transmitter and receiver separately, and although functionally they are different components, typically they are one device that is referred to as a transceiver (transmitter/receiver). • Typical wireless devices that have transceivers built into them are access points, bridges, and client adapters. Dr. Tahseen Al-Doori

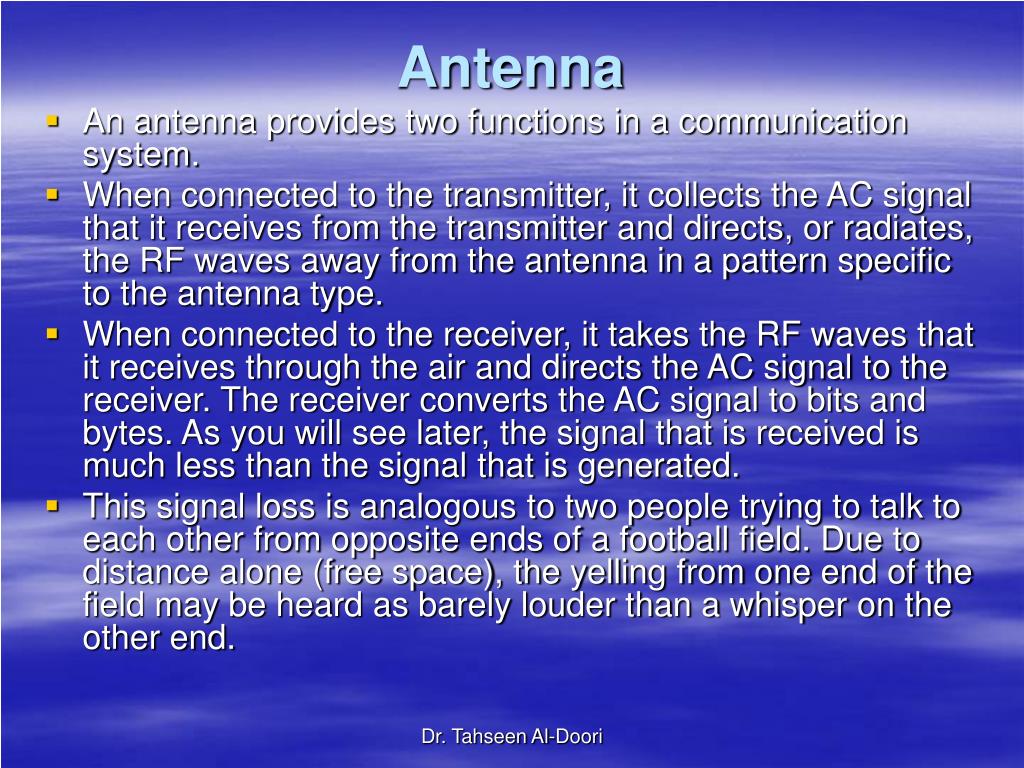

  9. Antenna • An antenna provides two functions in a communication system. • When connected to the transmitter, it collects the AC signal that it receives from the transmitter and directs, or radiates, the RF waves away from the antenna in a pattern specific to the antenna type. • When connected to the receiver, it takes the RF waves that it receives through the air and directs the AC signal to the receiver. The receiver converts the AC signal to bits and bytes. As you will see later, the signal that is received is much less than the signal that is generated. • This signal loss is analogous to two people trying to talk to each other from opposite ends of a football field. Due to distance alone (free space), the yelling from one end of the field may be heard as barely louder than a whisper on the other end. Dr. Tahseen Al-Doori

  10. The signal of an antenna is usually compared or referenced to an isotropic radiator . • An isotropic radiator is a point source that radiates signal equally in all directions. The sun is probably one of the best examples of an isotropic radiator. It generates equal amounts of energy in all directions. • Unfortunately, it is not possible to manufacture an antenna that is a perfect isotropic radiator. The structure of the antenna itself influences the output of the antenna, similar to the way the structure of a lightbulb affects the bulb’s ability to emit light equally in all directions. Dr. Tahseen Al-Doori

  11. There are two ways to increase the power output from an antenna. • The first is to generate more power at the transmitter, as stated in the previous section. The other is to direct, or focus, the RF signal that is radiating from the antenna. This is similar to how you can focus light from a flashlight. If you remove the lens from the flashlight, the bulb is typically not very bright and radiates in almost all directions. To make the light brighter, you could use more powerful batteries, or you could put the lens back on. The lens is not actually creating more light. It is focusing the light that was radiating in all different directions into a narrow area. • Some antennas radiate waves as the bulb without the lens does, while some radiate focused waves as the flashlight with the lens does. Dr. Tahseen Al-Doori

  12. Receiver • The receiver is the final component in the wireless medium. • The receiver takes the carrier signal that is received from the antenna and translates the modulated signals into 1s and 0s. It then takes this data and passes it to the computer to be processed. The job of the receiver is not always an easy one. The signal that is received is a much less powerful signal than what was transmitted due to the distance it has traveled and the effects of free space path loss. • The signal is also often altered due to interference from other RF sources and multipath. Dr. Tahseen Al-Doori

  13. Intentional Radiator (IR) • intentional radiator (IR) is “a device that intentionally generates and emits radio frequency energy by radiation or induction.” • Basically, it’s something that is specifically designed to generate RF as opposed to something that generates RF as a byproduct of its main function, such as a motor that incidentally generates RF noise. Dr. Tahseen Al-Doori

  14. Regulatory bodies such as the FCC limit the amount of power that is allowed to be generated by an IR. • The IR consists of all the components from the transmitter to the antenna but not including the antenna, as see in Fig 1 • The power output of the IR is thus the sum of all the components from the transmitter to the antenna, again not including the antenna. Dr. Tahseen Al-Doori

  15. The components making up the IR include the transmitter, all cables and connectors, and any other equipment (grounding, lightning arrestors, amplifiers, attenuators, etc.) between the transmitter and the antenna. • The power of the IR is measured at the connecter that provides the input to the antenna. Since this is the point where the IR is measured and regulated, we often refer to this point alone as the IR. Using the flashlight analogy, the IR is all of the components up to the lightbulb socket but not the bulb and lens. This is the raw power, or signal, that is provided, and now the bulb and lens can focus the signal. Dr. Tahseen Al-Doori

  16. Equivalent Isotropically Radiated Power (EIRP) • Equivalent isotropically radiated power (EIRP) is the highest RF signal strength that is transmitted from a particular antenna. • To understand this better, think of our flashlight example for a moment. Let’s assume that the bulb without the lens generates 1 watt of power. When you put the lens on the flashlight, it focuses that 1 watt of light. If you were to look at the light now, it would appear much brighter. If you were to measure the brightest point of the light that was being generated by the flashlight, due to the effects of the lens, it may be equal to the brightness of an 8 watt bulb. So by focusing the light, you are able to make the equivalent isotropically radiated power of the focused bulb equal to 8 watts. Dr. Tahseen Al-Doori

  17. Units of Power and Comparison • When an 802.11 wireless network is designed, two key components are coverage and performance. A good understanding of RF power, comparison, and RF mathematics can be very helpful during the network design phase. • Here, I will introduce you to an assortment of units of power and units of comparison. It is important to know and understand the different types of units of measurement and how they relate to each other. • Some of the numbers that you will be working with will represent actual units of power and others will represent relative units of comparison. Actual units are ones that represent a known or set value. Dr. Tahseen Al-Doori

  18. Comparative units of measurement are useful when working with units of power. • As you will see later, we can use these comparative units of power to compare the area that one access point can cover versus another access point. • Using simple mathematics, we can determine things such as how many watts are needed to double the distance of a signal from an access point. Dr. Tahseen Al-Doori

  19. Dr. Tahseen Al-Doori

  20. Decibel (dB) • The first thing you should know about the decibel (dB) is that it is a unit of comparison, not a unit of power. • Therefore, it is used to represent a difference between two values. • In wireless networking, decibels are often used to either compare the power of two transmitters or, more often, compare the difference or loss between the EIRP output of a transmitter and the amount of power received by the receiver. Dr. Tahseen Al-Doori

  21. Let’s look at an example: • An access point transmits data at 100 mW. Laptop1 receives the signal at a power level of 10 mW, and laptop2 receives the signal at a power level of 1 mW. The difference between the signal from the access point (100 mW) to laptop1 (10 mW) is 100:10, or a 10:1 ratio, or 1 bel. The difference between the signal from laptop1 (10 mW) to laptop2 (1 mW) is 10:1, also a 10:1 ratio, or 1 bel. So the power difference between the access point and laptop2 is 2 bels. Dr. Tahseen Al-Doori

  22. Bels can be looked at mathematically using logarithms. Not everyone understands or remembers logarithms, so we will review them. • First, we need to look at raising a number to a power. If you take 10 and raise it to the third power (10^3 = y), what you are actually doing is multiplying three 10s (10 × 10 × 10). If you do the math, you will calculate that y is equal to 1,000. So the completed formula is 10^3 =1,000. When calculating logarithms, you change the formula to 10^y = 1,000. Here you are trying to figure out what power 10 needs to be raised to in order to get to 1,000. You know in this example that the answer is 3. • You can also write this equations as y = log10(1,000). • So the complete equation is 3 = log10(1,000). Here are some examples of power and log formulas: Dr. Tahseen Al-Doori

  23. 10^1=10 log10(10)=1 • 10^2=100 log10(100)=2 • 10^3=1000 log10(1000)=3 • 10^4=10,000 log10(10,000)=4 Dr. Tahseen Al-Doori

  24. Example • Now let’s go back and calculate the bels from the access point to the laptop2 example using logarithms. • Remember that bels are used to calculate the ratio between two powers. So let’s refer to the power of the access point as Pap and the power of laptop1 as PL1 . So the formula for this example would be y = log10(Pap/PL1). If you plug in the power values, the formula becomes y = log10(100/1), or y = log10(100). • So this equation is asking 10 raised to what power equals 100. The answer is 2 bels (102 = 100). Dr. Tahseen Al-Doori

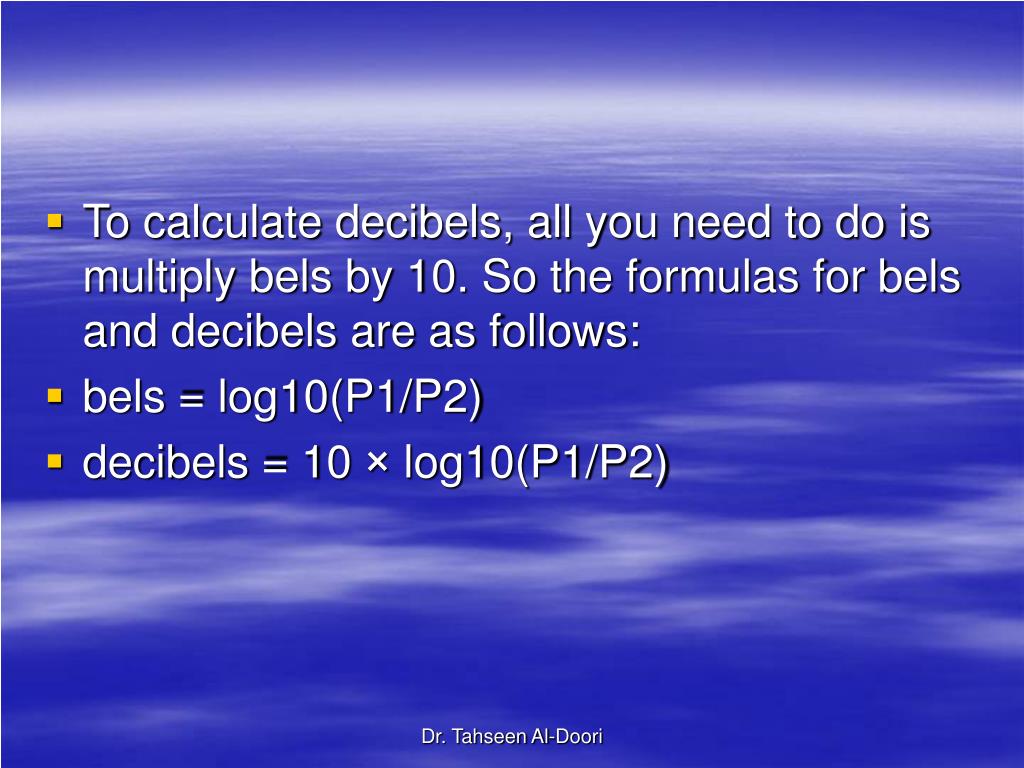

  25. To calculate decibels, all you need to do is multiply bels by 10. So the formulas for bels and decibels are as follows: • bels = log10(P1/P2) • decibels = 10 × log10(P1/P2) Dr. Tahseen Al-Doori

  26. Now let’s go back and calculate the decibels of the access point to laptop2 example. So the formula now is y = 10 × log10(Pap/PL1). • If you plug in the power values, the formula becomes y = 10 × log10(100/1), or y = 10 × log10(100). So the answer is 20 decibels. Dr. Tahseen Al-Doori

  27. Now that you have learned about decibels, you are probably still wondering why you can’t just work with milliwatts. • You can if you want, but since power changes are logarithmic, the differences between values can become extremely large and more difficult to deal with. • It is easier to say that a 100 mW signal decreased by 70 decibels than to say that it decreased to .00001 milliwatts. Dr. Tahseen Al-Doori

  28. dBi • The gain or increase of power from an antenna when compared to what an isotropic radiator would generate is known as decibels isotropic (dBi). Another way of phrasing this is “decibel gain relative to an isotropic radiator.” • Since you are comparing two antennas, and since antennas are measured in gain, not power, you can conclude that dBi is a comparative measurement and not a power measurement. • The dBi value is measured at the strongest point or the focus point of the antenna signal. Since antennas always focus their energy more in one direction than another, the dBi value of an antenna is always a positive gain and not a loss. Dr. Tahseen Al-Doori

  29. A common antenna used on access points is the half-wave dipole antenna. • The half-wave dipole antenna is a small, typically rubber-encased, general purpose antenna and has a dBi value of 2.14. •  Any time you see dBi, think antenna gain. Dr. Tahseen Al-Doori

  30. dBd The antenna industry uses two different dB scales to describe the gain of antennas. • The first scale, which you just learned about, is dBi. • The other scale used to describe antenna gain is decibels dipole (dBd), or “decibel gain relative to a dipole antenna.” • So a dBd value is the increase in gain of an antenna when it is compared to the signal of a dipole antenna. Like dBi, since dBd is comparing two antennas, and since antennas are measured in gain, not power, you can also conclude that dBd is a comparative measurement and not a power measurement. • The definition of dBd seems simple enough, but what happens when you want to compare two antennas and one is represented with dBi and the other with dBd? Dr. Tahseen Al-Doori

  31. This is actually quite simple. • A standard dipole antenna has a dBi value of 2.14. If an antenna has a value of 3 dBd, this means that it is 3 dB greater than a dipole antenna. Since the value of a dipole antenna is 2.14 dBi, all you need to do is add 3 plus 2.14. So a 3 dBd antenna is equal to a 5.14 dBi. • When working with 802.11 equipment, it is not often that you will have an antenna with a dBd value. 802.11 antennas typically are measured using dBi. On the rare occasion that you do run into one, just add 2.14 and you now know the antenna’s dBi value. Dr. Tahseen Al-Doori

  32. dBm • dBm provides a comparison, but instead of comparing a signal to another signal, it is used to compare a signal to 1 milliwatt of power. • dBm means “decibels relative to 1 milliwatt.” So what you are doing is setting dBm to 0 (zero) and equating that to 1 milliwatt of power. • Since dBm is a measurement that is compared to a known value, 1 milliwatt, then dBm is actually a measure of power. • You can now state that 0 dBm is equal to 1 milliwatt. Using the formula • dBm = 10 × log10(PmW), • you can determine that 100 mW of power is equal to 20 dBm. Dr. Tahseen Al-Doori

  33. RF Mathematics To convert: • mW to dBm use this formula: dBm=10Log(mW) • dBm to mW use this formula mW=10^(dBm/10) • dBi to dBd dBd=dBi-2.14 • mW to dBW dBW=10Log(mW/1) Dr. Tahseen Al-Doori

  34. Exercises • 1. convert the following: • 400mW ______dBm • 14dBm ______mW • 7dBW ______dBm • 250mW ______dBW Dr. Tahseen Al-Doori

  35. Calculator • http://www.terabeam.com/support/calculations/index.php Dr. Tahseen Al-Doori

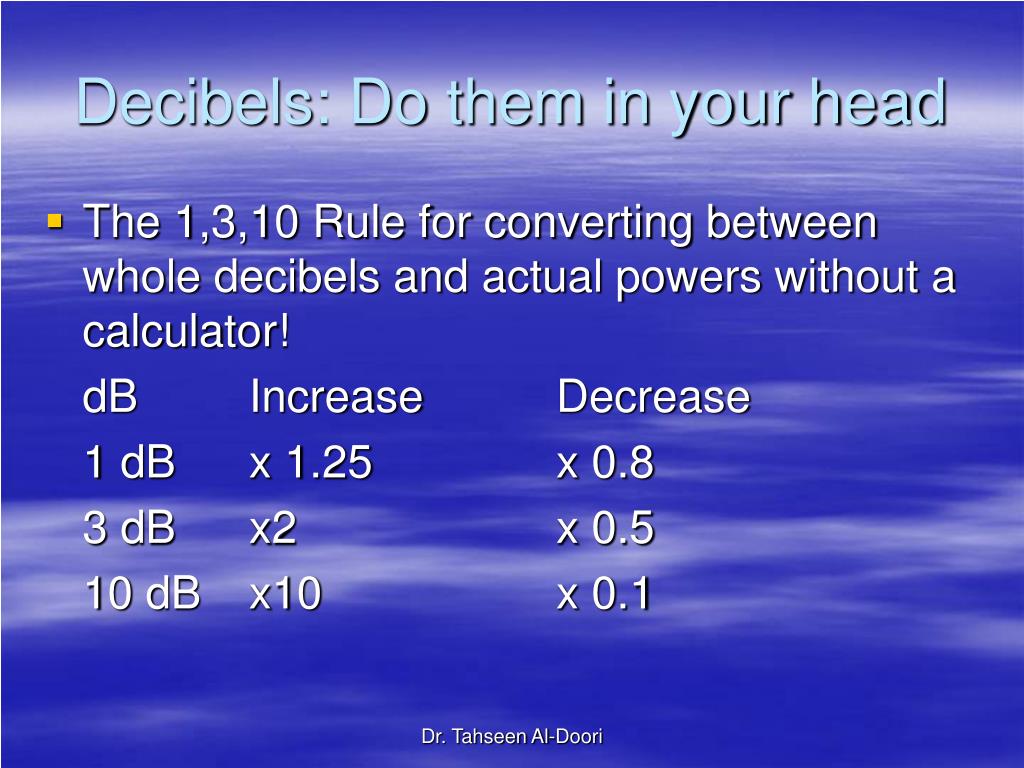

  36. Decibels: Do them in your head • The 1,3,10 Rule for converting between whole decibels and actual powers without a calculator! dB Increase Decrease 1 dB x 1.25 x 0.8 3 dB x2 x 0.5 10 dB x10 x 0.1 Dr. Tahseen Al-Doori

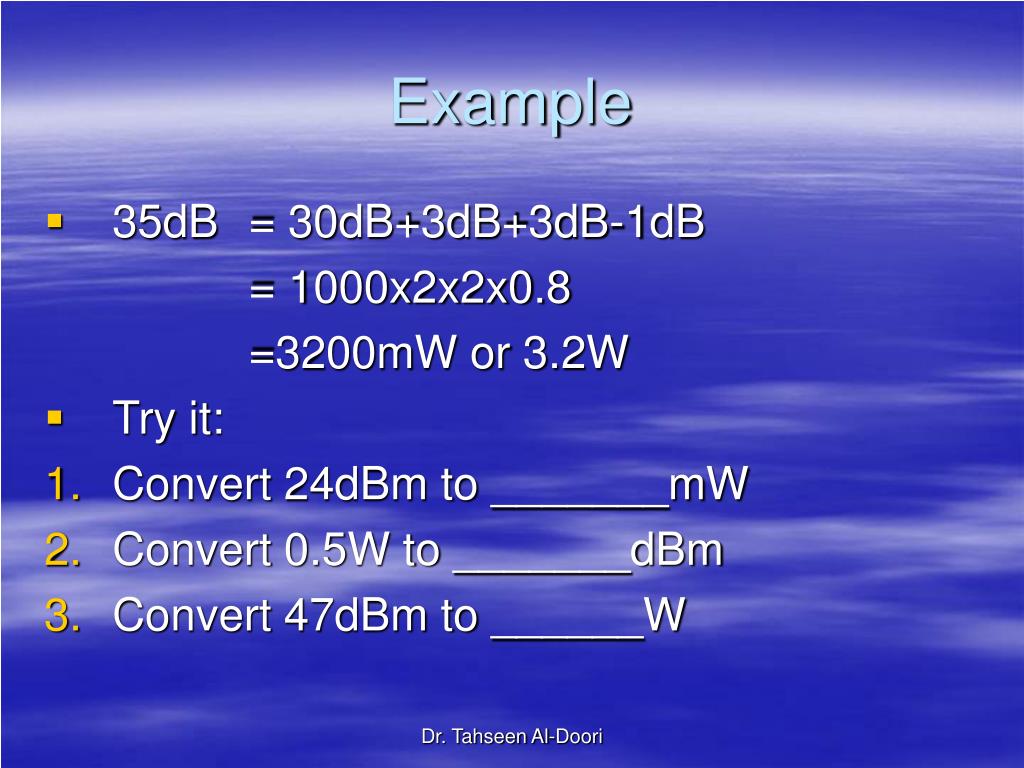

  37. Example • 35dB = 30dB+3dB+3dB-1dB = 1000x2x2x0.8 =3200mW or 3.2W • Try it: • Convert 24dBm to _______mW • Convert 0.5W to _______dBm • Convert 47dBm to ______W Dr. Tahseen Al-Doori

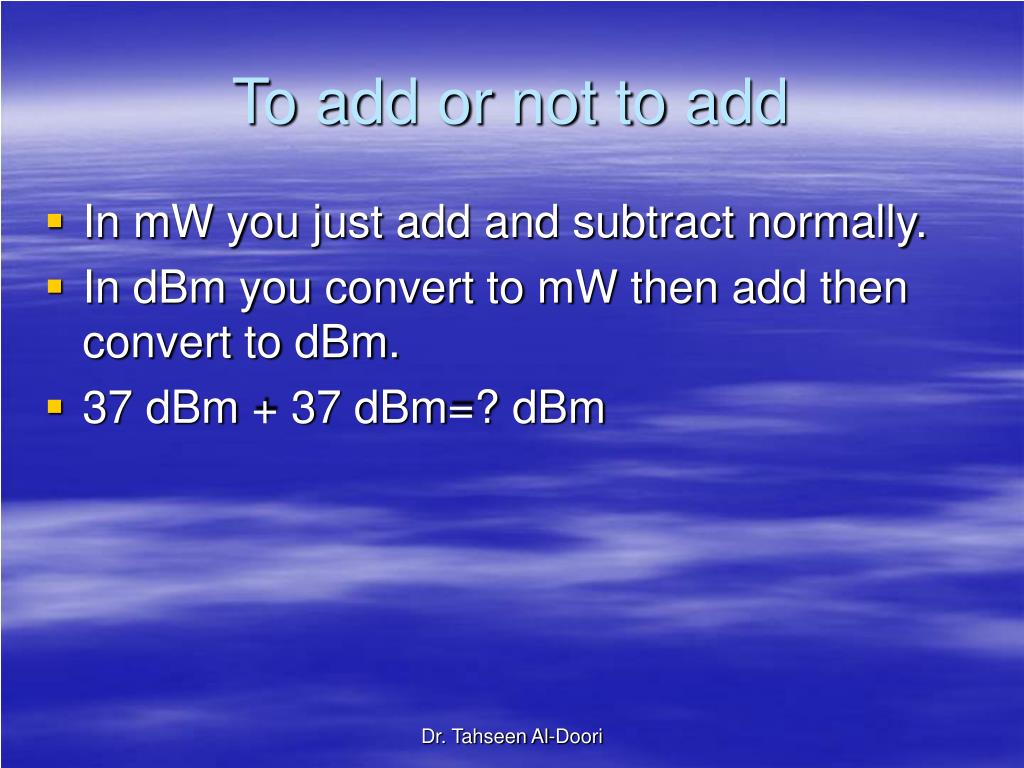

  38. To add or not to add • In mW you just add and subtract normally. • In dBm you convert to mW then add then convert to dBm. • 37 dBm + 37 dBm=? dBm Dr. Tahseen Al-Doori

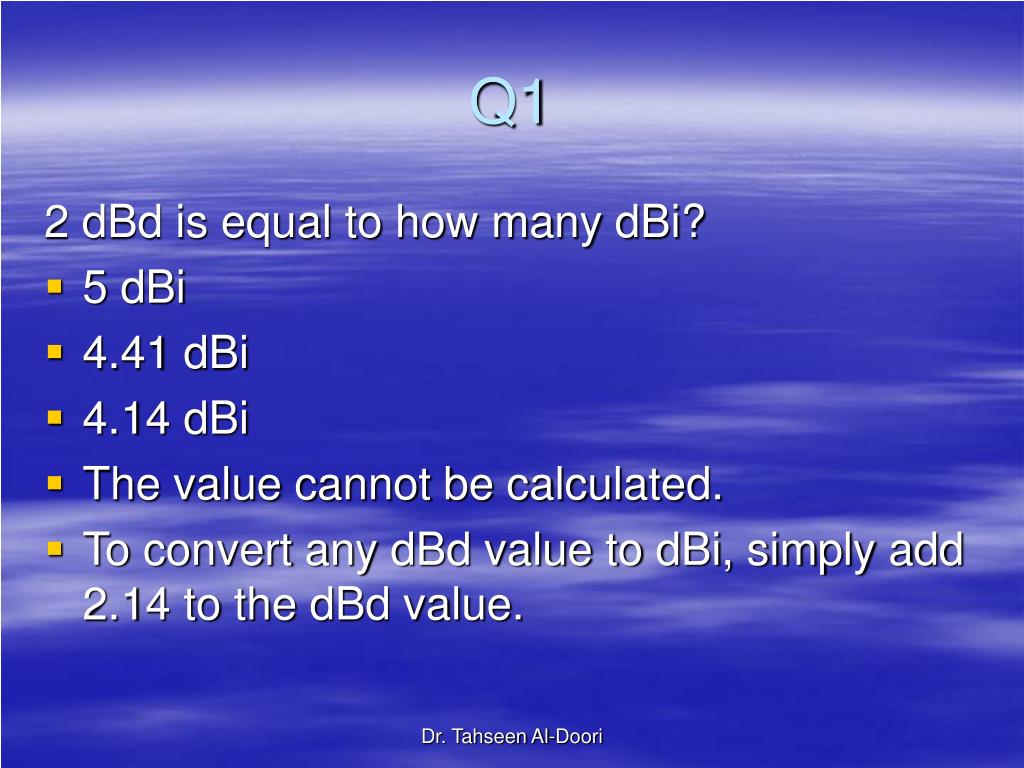

  39. Q1 2 dBd is equal to how many dBi? • 5 dBi • 4.41 dBi • 4.14 dBi • The value cannot be calculated. • To convert any dBd value to dBi, simply add 2.14 to the dBd value. Dr. Tahseen Al-Doori

  40. Q2 23 dBm is equal to how many mW? • 200 mW • 14 mW • 20 mW • 23 mW • 400 mW • To convert to mW, first calculate how many 10s and 3s are needed to add up to 23, which is 0 + 10 + 10 + 3. To calculate the mW, you must multiply 1 × 10 × 10 × 2, which calculates to 200 mW. Dr. Tahseen Al-Doori

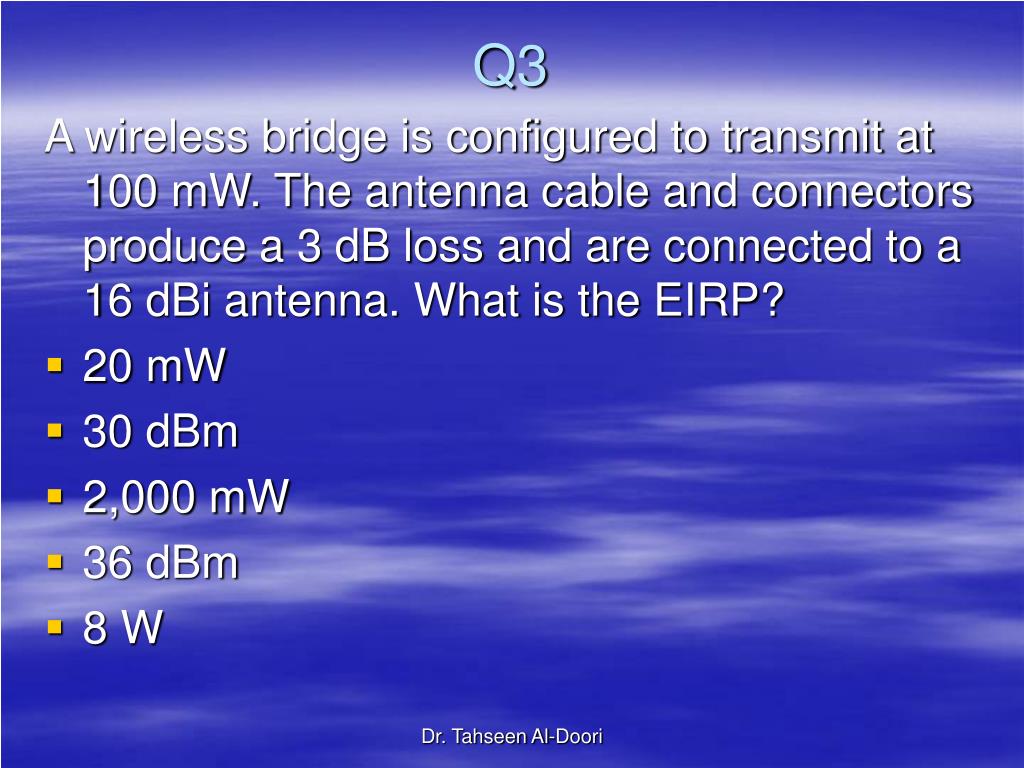

  41. Q3 A wireless bridge is configured to transmit at 100 mW. The antenna cable and connectors produce a 3 dB loss and are connected to a 16 dBi antenna. What is the EIRP? • 20 mW • 30 dBm • 2,000 mW • 36 dBm • 8 W Dr. Tahseen Al-Doori

  42. To reach 100 mW, you can use 10s and 2s and multiplication and division. • Multiplying by two 10s will accomplish this. • This means that on the dBm side, you must add two 10s, which equals 20 dBm. • Then subtract the 3 dB of cable loss for a dBm of 17. • Since you subtracted 3 from the dBm side, you must divide the 100 mW by 2, giving you a value of 50 mW. • Now add in the 16 dBi by adding a 10 and two 3s to the dBm column, giving a total dBm of 33. • Since you added a 10 and two 3s, you must multiply the mW column by 10 and two 2s, giving a total mW of 2,000, or 2 W. Dr. Tahseen Al-Doori

  43. Q4 Which of the following are valid calculations when using the rule of 10s and 3s? (Choose all that apply.) • Multiply dBm by 3 and add 2 to mW. • Add 10 to dBm and multiply mW by 10. • Add 3 to dBm and multiply mW by 3. • Subtract 10 from dBm and divide mW by 10. • Divide dBm by 10 and subtract 10 from mW. Dr. Tahseen Al-Doori

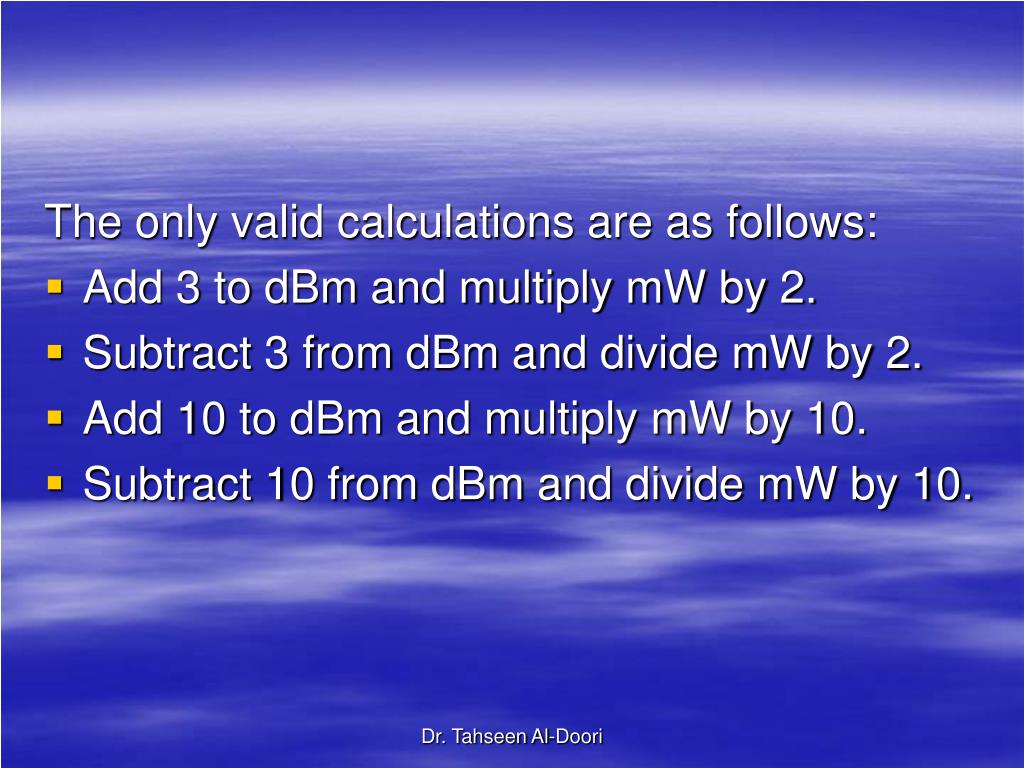

  44. The only valid calculations are as follows: • Add 3 to dBm and multiply mW by 2. • Subtract 3 from dBm and divide mW by 2. • Add 10 to dBm and multiply mW by 10. • Subtract 10 from dBm and divide mW by 10. Dr. Tahseen Al-Doori

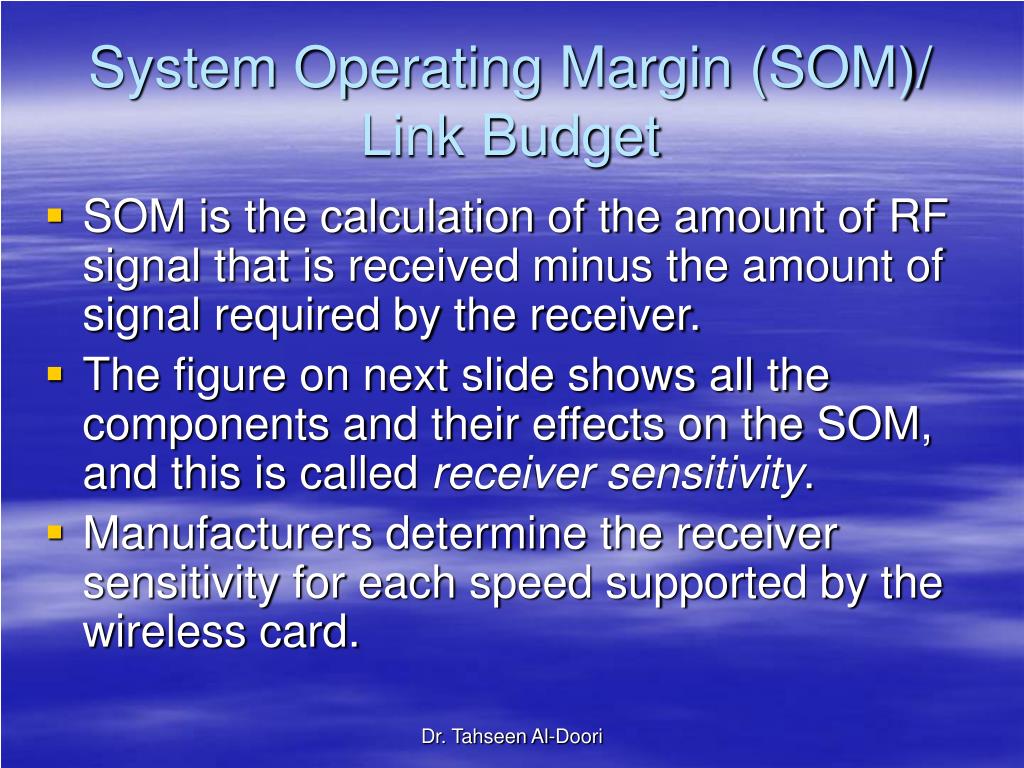

  45. System Operating Margin (SOM)/ Link Budget • SOM is the calculation of the amount of RF signal that is received minus the amount of signal required by the receiver. • The figure on next slide shows all the components and their effects on the SOM, and this is called receiver sensitivity. • Manufacturers determine the receiver sensitivity for each speed supported by the wireless card. Dr. Tahseen Al-Doori

  46. Dr. Tahseen Al-Doori

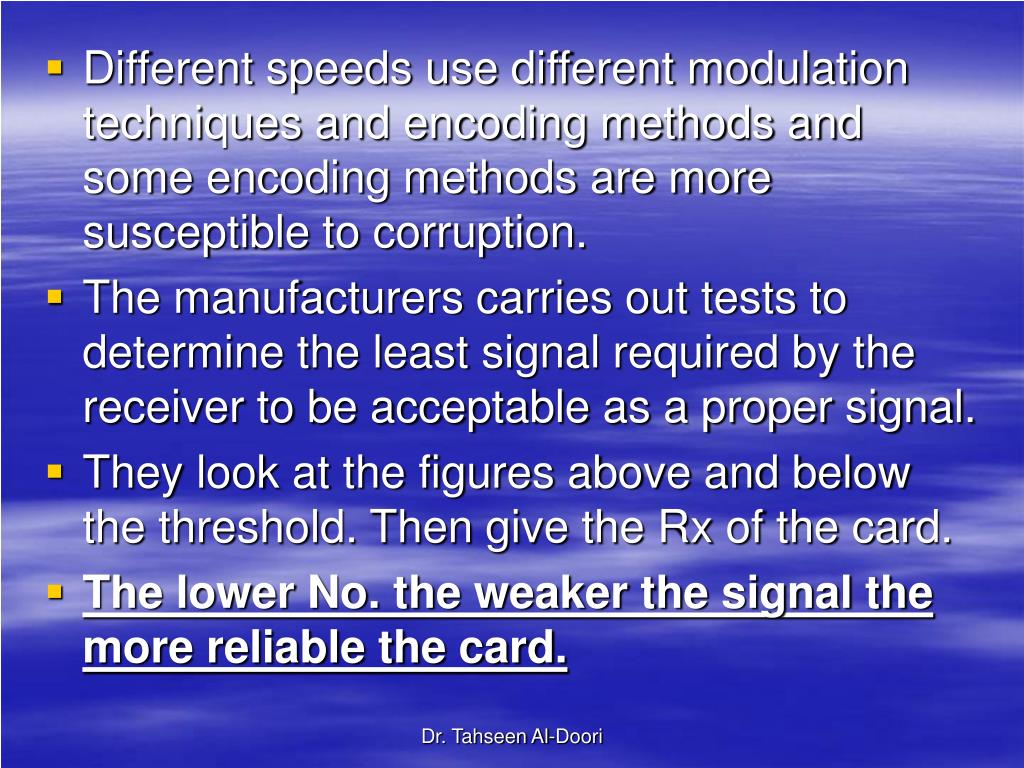

  47. Different speeds use different modulation techniques and encoding methods and some encoding methods are more susceptible to corruption. • The manufacturers carries out tests to determine the least signal required by the receiver to be acceptable as a proper signal. • They look at the figures above and below the threshold. Then give the Rx of the card. • The lower No. the weaker the signal the more reliable the card. Dr. Tahseen Al-Doori

  48. As you can see we are dealing with negative nos. Therefore, -71 dBm is the highest Rx Dr. Tahseen Al-Doori

  49. Typically, the faster the speed, the higher the receiver sensitivity. • Have you noticed that we are dealing with negative nos., and so far we have been working with positive dBm. • WHY? Dr. Tahseen Al-Doori

  50. Case 1 • The Diagram below shows simple summary of gains and losses in an office. Dr. Tahseen Al-Doori
