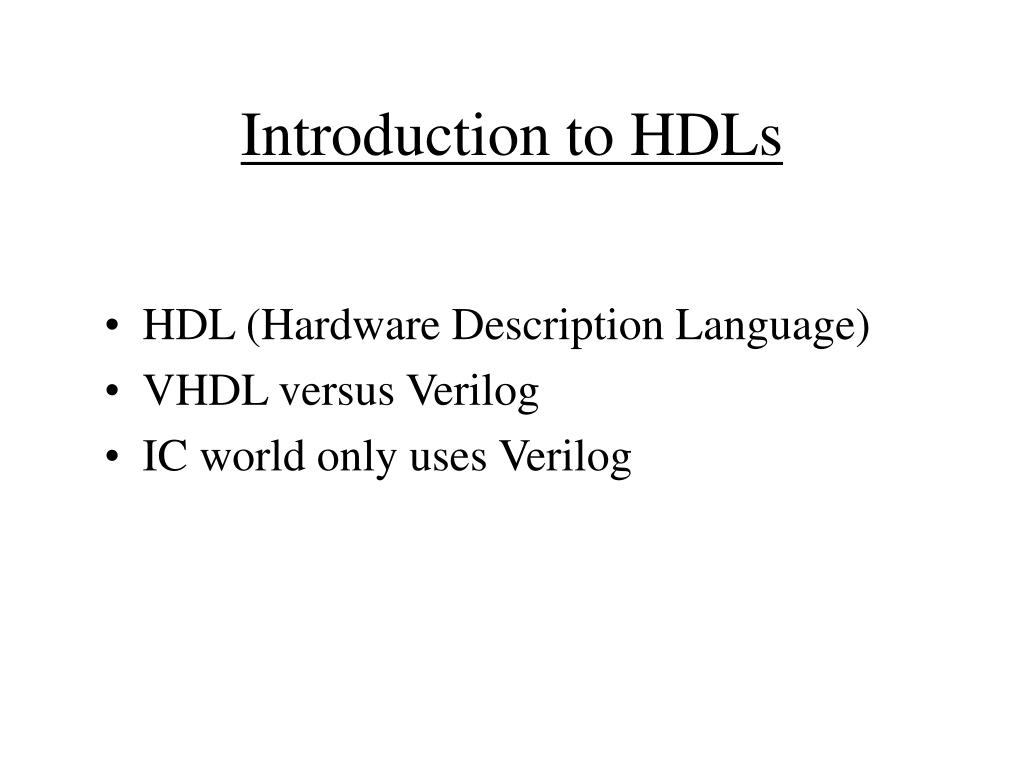

  1. Introduction to HDLs • HDL (Hardware Description Language) • VHDL versus Verilog • IC world only uses Verilog

  2. How do IC designers use Verilog? • Can be used for simulation • Simulation at behavioral level, gate level, and at the switch level! • Can be used for circuit synthesis • Can be used to verify post-synthesis timing

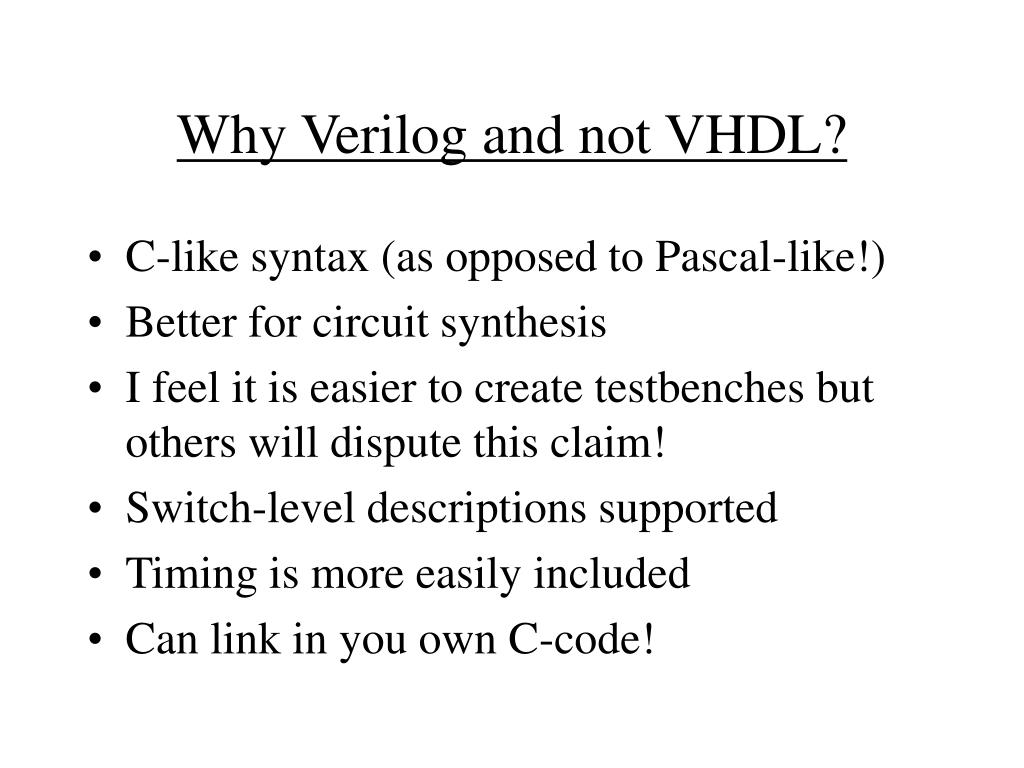

  3. Why Verilog and not VHDL? • C-like syntax (as opposed to Pascal-like!) • Better for circuit synthesis • I feel it is easier to create testbenches but others will dispute this claim! • Switch-level descriptions supported • Timing is more easily included • Can link in you own C-code!

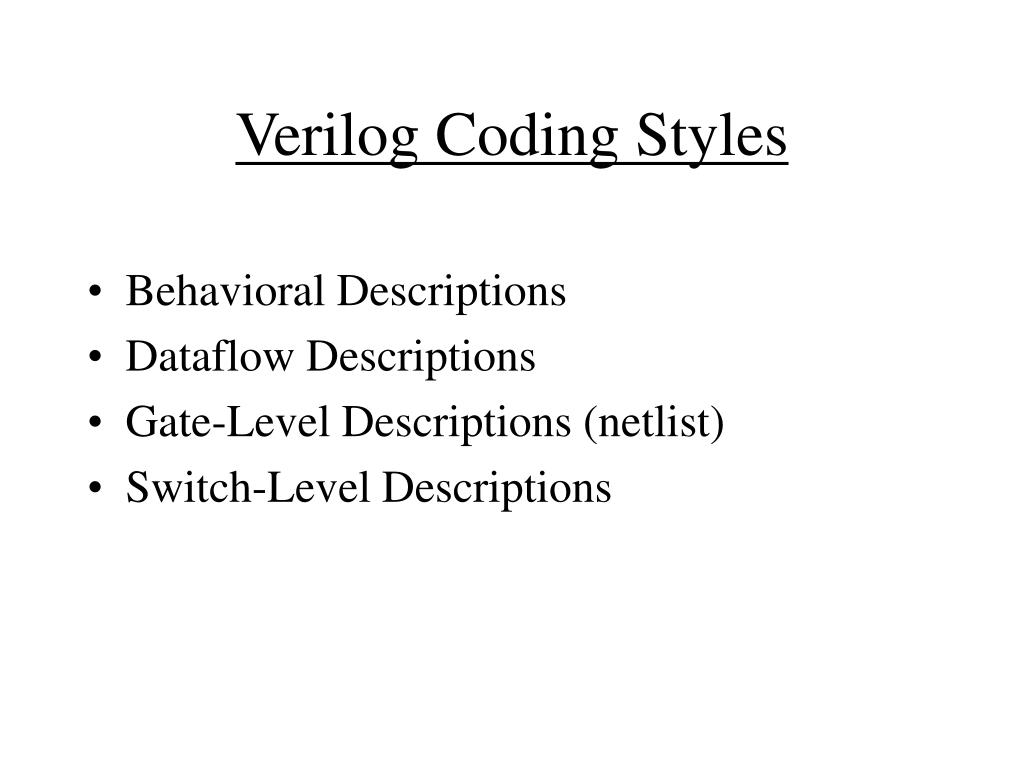

  4. Verilog Coding Styles • Behavioral Descriptions • Dataflow Descriptions • Gate-Level Descriptions (netlist) • Switch-Level Descriptions

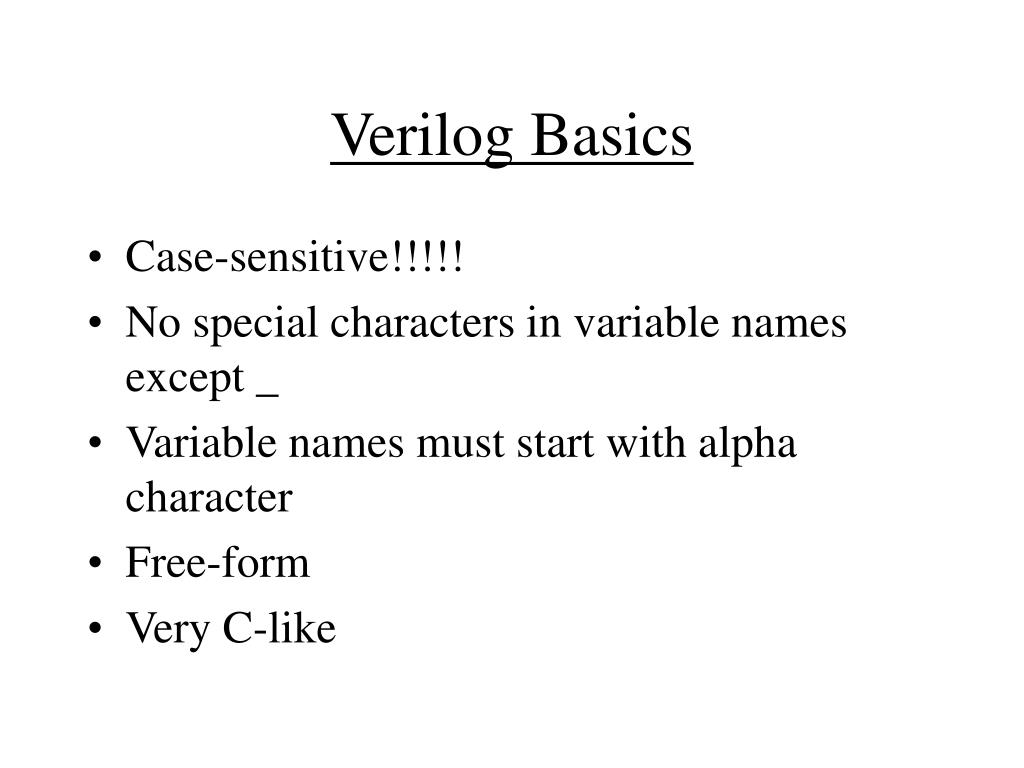

  5. Verilog Basics • Case-sensitive!!!!! • No special characters in variable names except _ • Variable names must start with alpha character • Free-form • Very C-like

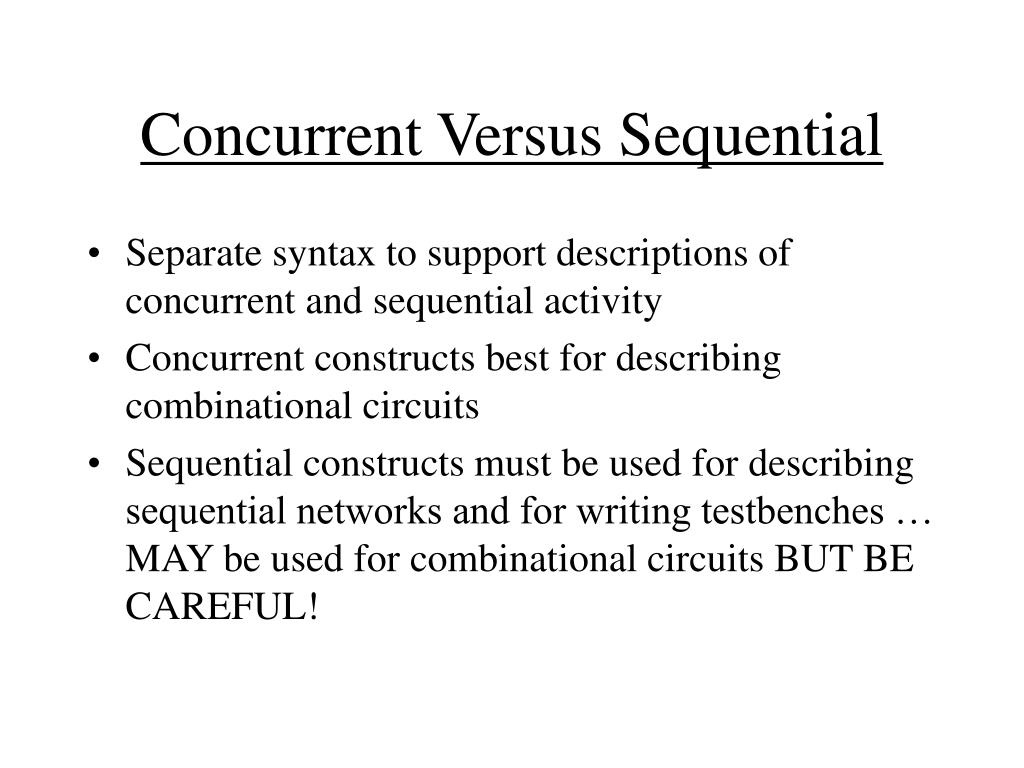

  6. Concurrent Versus Sequential • Separate syntax to support descriptions of concurrent and sequential activity • Concurrent constructs best for describing combinational circuits • Sequential constructs must be used for describing sequential networks and for writing testbenches … MAY be used for combinational circuits BUT BE CAREFUL!

  7. First Example // // First example // module first_example(f, x, y, z) ; input x, y, z ; output f ; assign f = (x & y & ~z) | (x & ~y & z) | (~x & ~y & ~z) ; endmodule

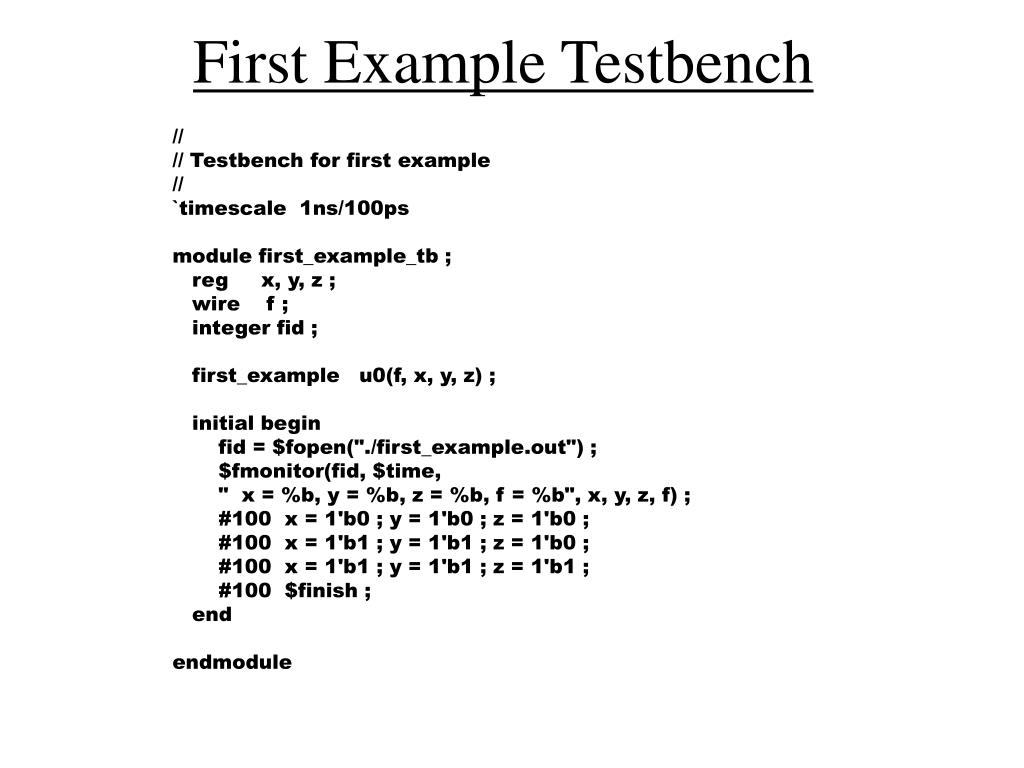

  8. First Example Testbench // // Testbench for first example // `timescale 1ns/100ps module first_example_tb ; reg x, y, z ; wire f ; integer fid ; first_example u0(f, x, y, z) ; initial begin fid = $fopen("./first_example.out") ; $fmonitor(fid, $time, " x = %b, y = %b, z = %b, f = %b", x, y, z, f) ; #100 x = 1'b0 ; y = 1'b0 ; z = 1'b0 ; #100 x = 1'b1 ; y = 1'b1 ; z = 1'b0 ; #100 x = 1'b1 ; y = 1'b1 ; z = 1'b1 ; #100 $finish ; end endmodule

  9. Running Verilog XL To simulate “first example” do the following: % verilog first_example_tb.v first_example.v OR Create a file called, for example, “modules” and on separate Lines place the two filenames from above and give the Command % verilog –f modules
