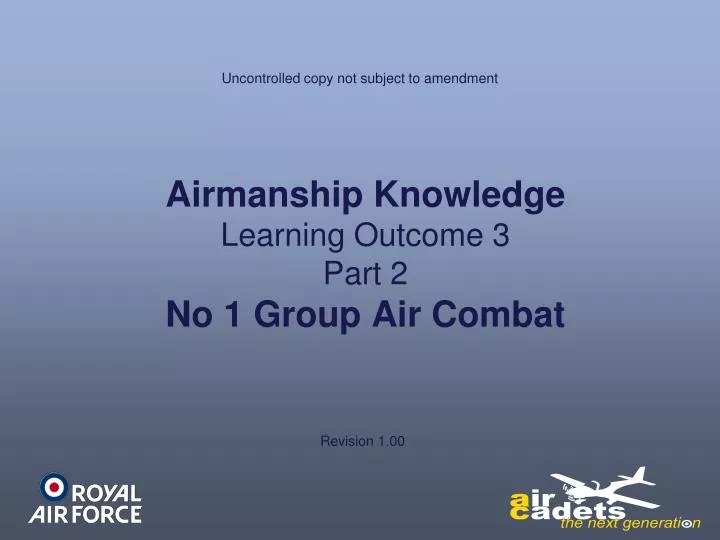

  1. Uncontrolled copy not subject to amendment Airmanship KnowledgeLearning Outcome 3Part 2No 1 Group Air Combat Revision 1.00

  2. Airmanship KnowledgeLearning Outcome 3Know the aircraft in service with the British Armed Forces

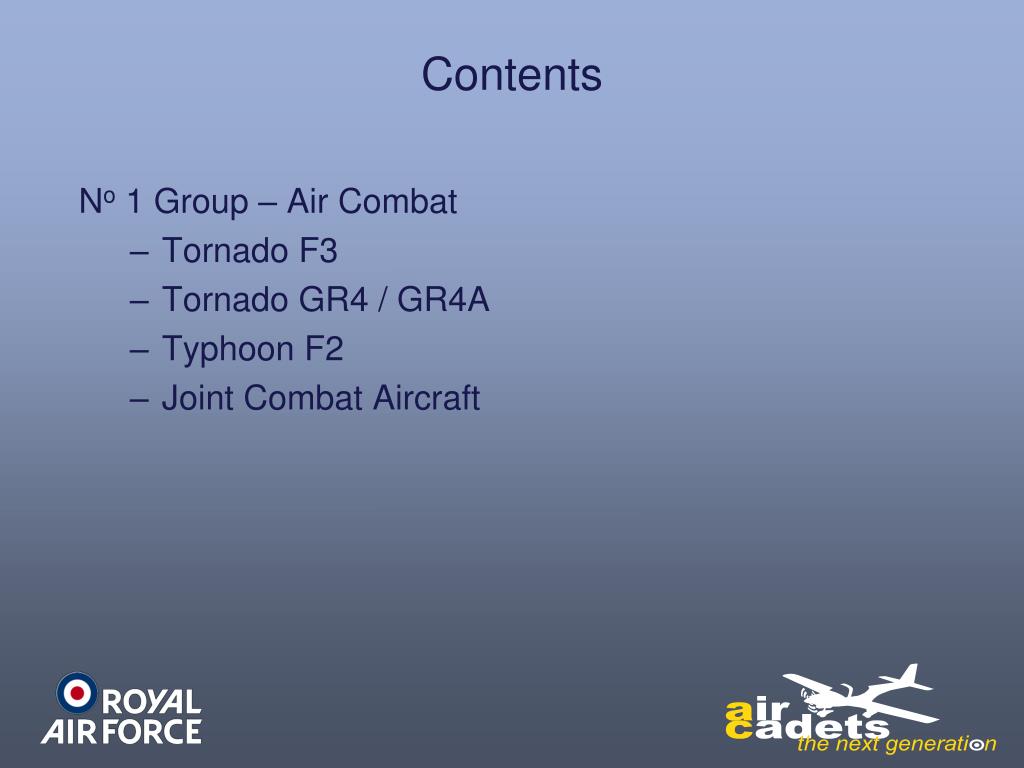

  3. Contents No 1 Group – Air Combat Tornado F3 Tornado GR4 / GR4A Typhoon F2 Joint Combat Aircraft

  4. Tornado F3 Reporting Name Tornado Role Letters & Marks F3 Role Air Defence

  5. Tornado F3

  6. Tornado F3

  7. Tornado F3

  8. Tornado F3

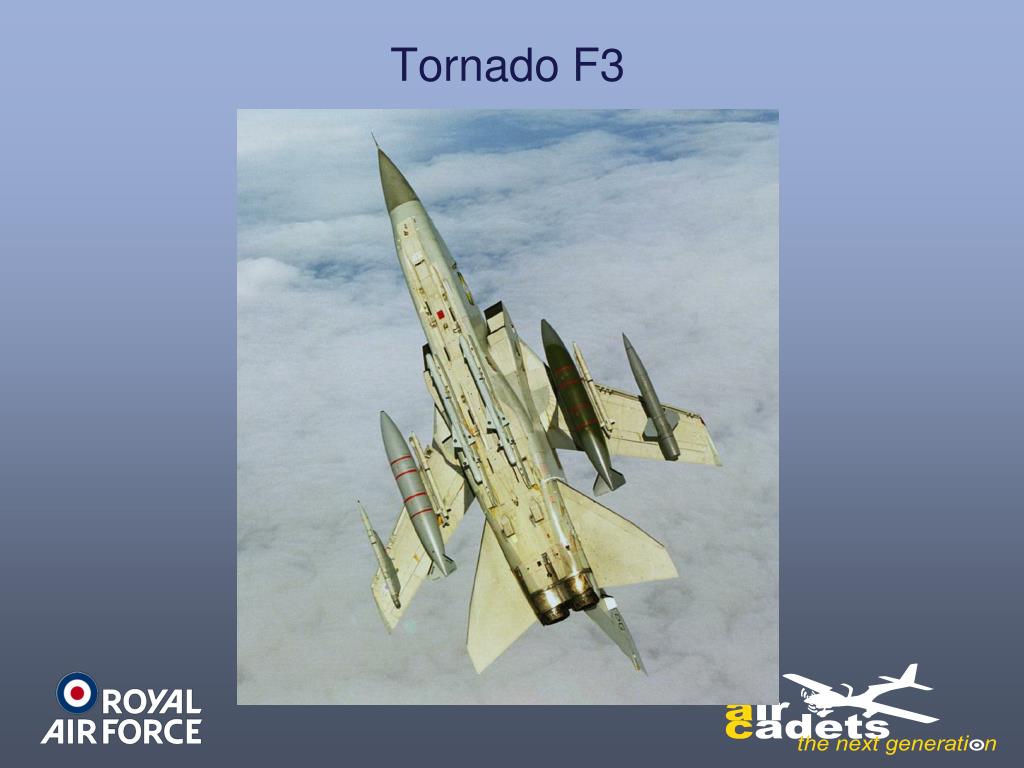

  9. Tornado F3

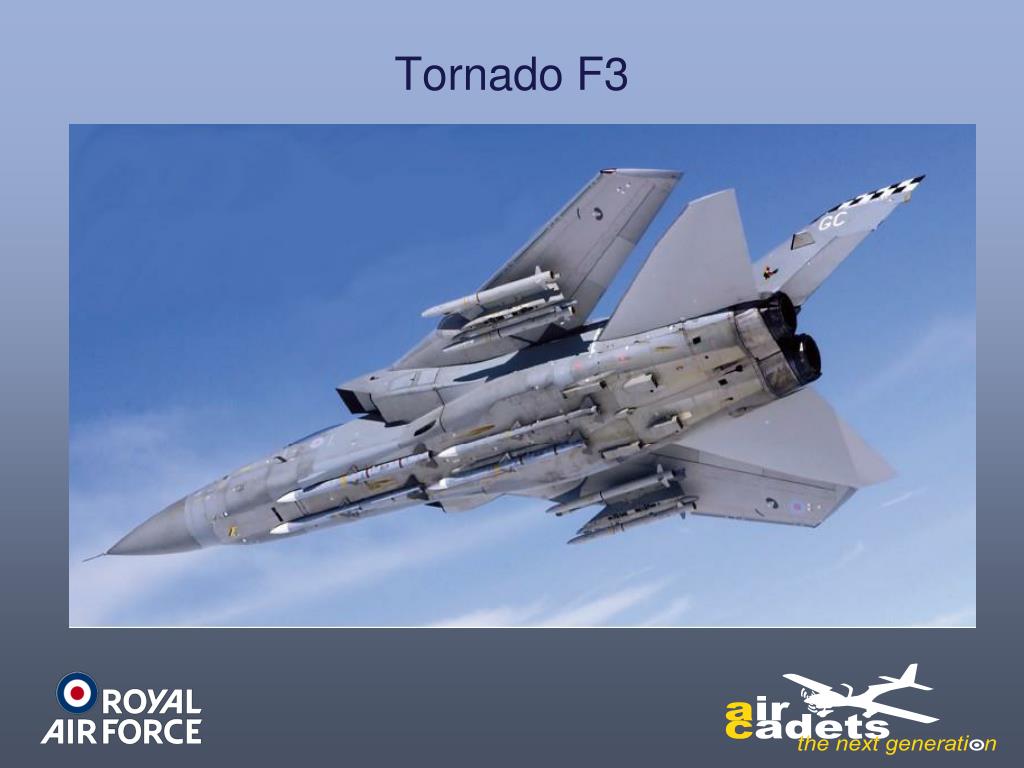

  10. Tornado F3

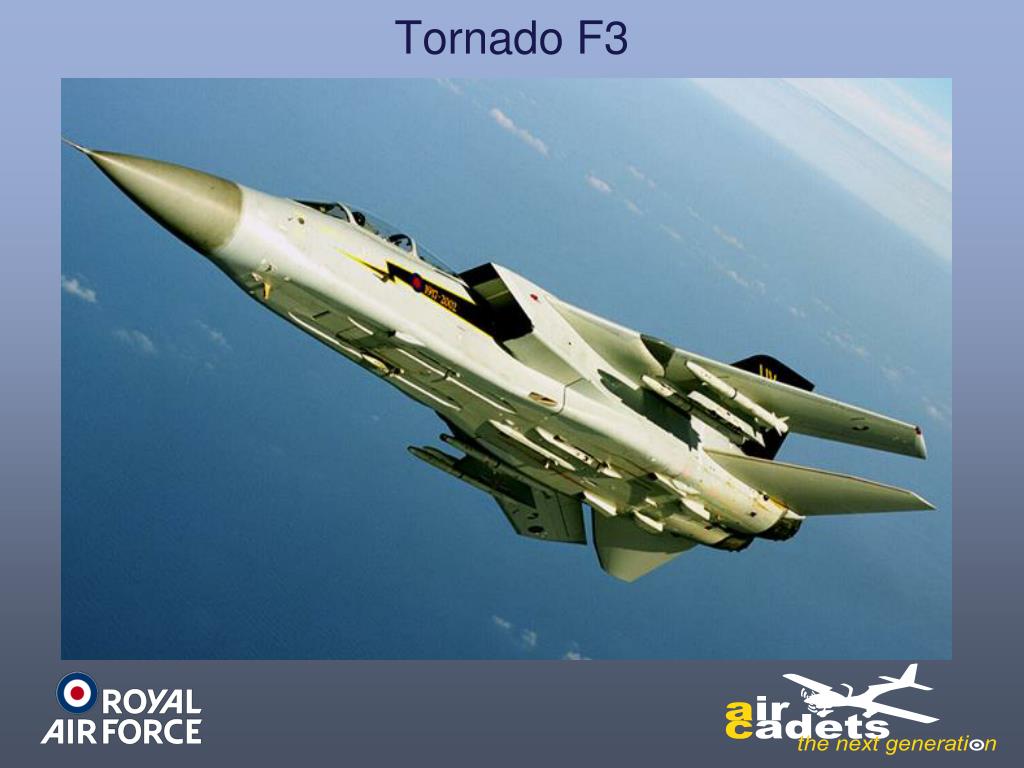

  11. Tornado F3 Long-range air defence interceptor. Variable sweep wing for high supersonic speed or high loiter duration. All-weather day/night operation with beyond visual- range engagement capability. Patrols for over 3 hours at 300nmls from base. Carries a full range of advanced air-to-air missiles.

  12. Tornado F3 Technical Data WING SPAN 13.9M fully forward 8.6M fully swept LENGTH 16.45M CREW 2 MAXIMUM SPEED 800kts (1480km/h) (Mach 1.2) at sea level ENGINES Two Turbo Union RB199 turbofans

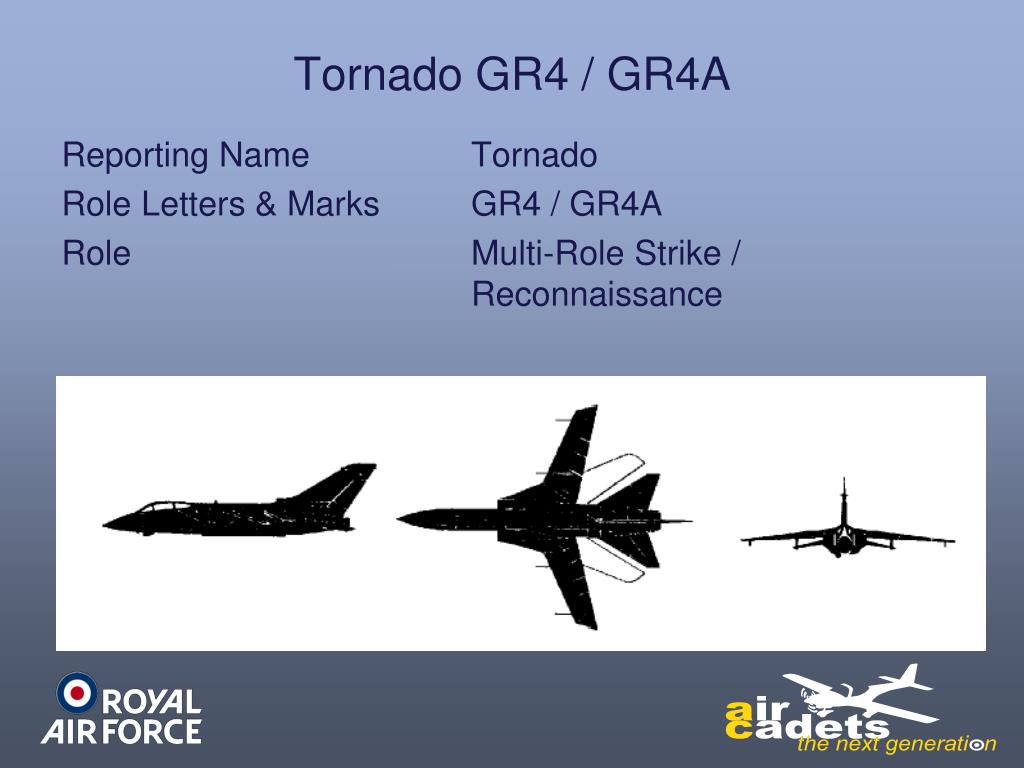

  13. Tornado GR4 / GR4A Reporting Name Tornado Role Letters & Marks GR4 / GR4A Role Multi-Role Strike / Reconnaissance

  14. Tornado GR4 / GR4A

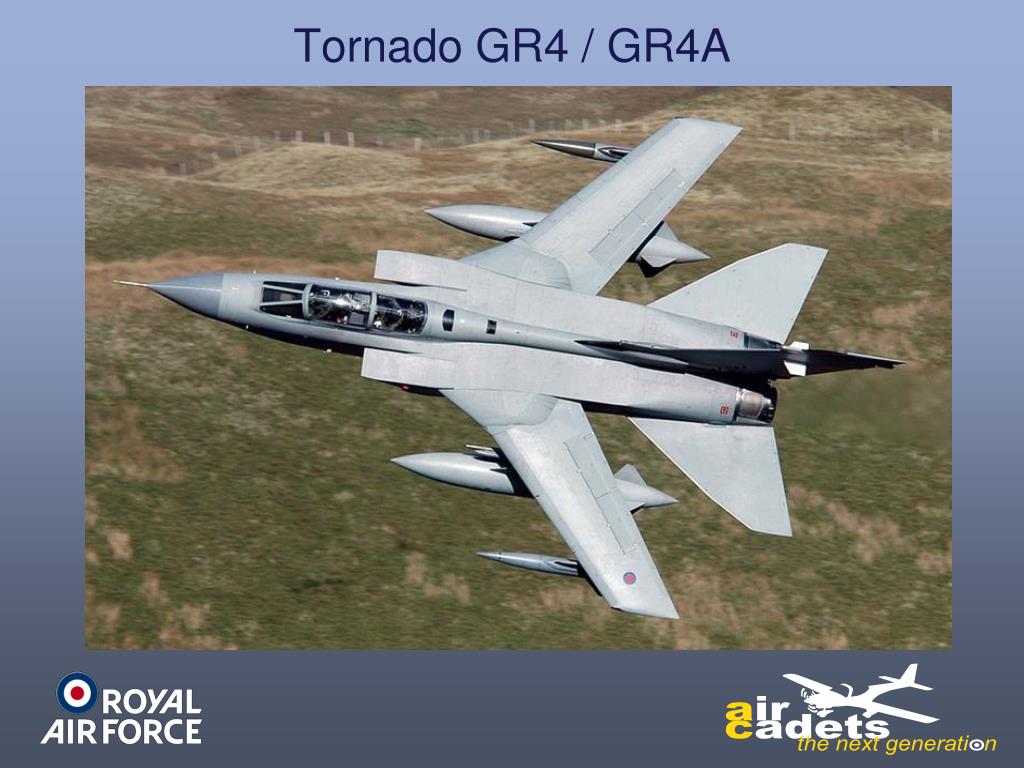

  15. Tornado GR4 / GR4A

  16. Tornado GR4 / GR4A

  17. Tornado GR4 / GR4A

  18. Tornado GR4 / GR4A

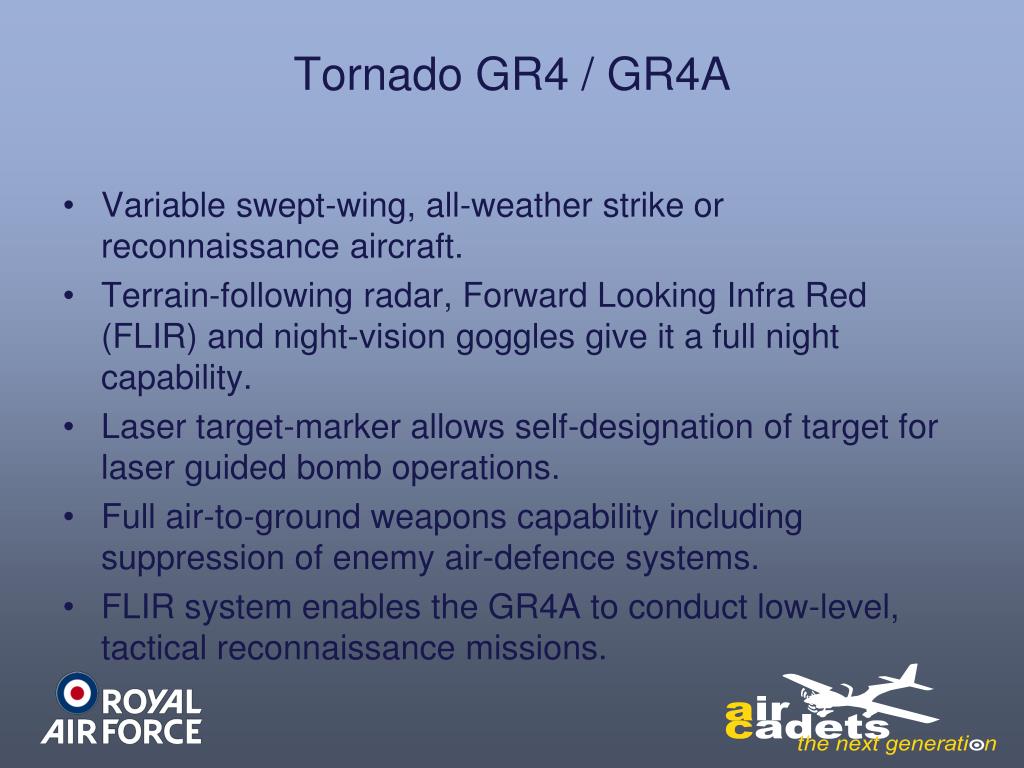

  19. Tornado GR4 / GR4A Variable swept-wing, all-weather strike or reconnaissance aircraft. Terrain-following radar, Forward Looking Infra Red (FLIR) and night-vision goggles give it a full night capability. Laser target-marker allows self-designation of target for laser guided bomb operations. Full air-to-ground weapons capability including suppression of enemy air-defence systems. FLIR system enables the GR4A to conduct low-level, tactical reconnaissance missions.

  20. Tornado GR4/A Technical Data WING SPAN 13.9M fully forward 8.6m fully swept LENGTH 16.7M CREW 2 MAXIMUM SPEED 800kts (1480km/h) (Mach 1.2) at sea level ENGINES Two turbo union RB199 turbofans

  21. Comparing F3 & GR4A Tornado F3 Longer nose Skyflash Missiles FLIR Tornado GR4A

  22. The Tornado Test 1 2 3 4 5 6 7

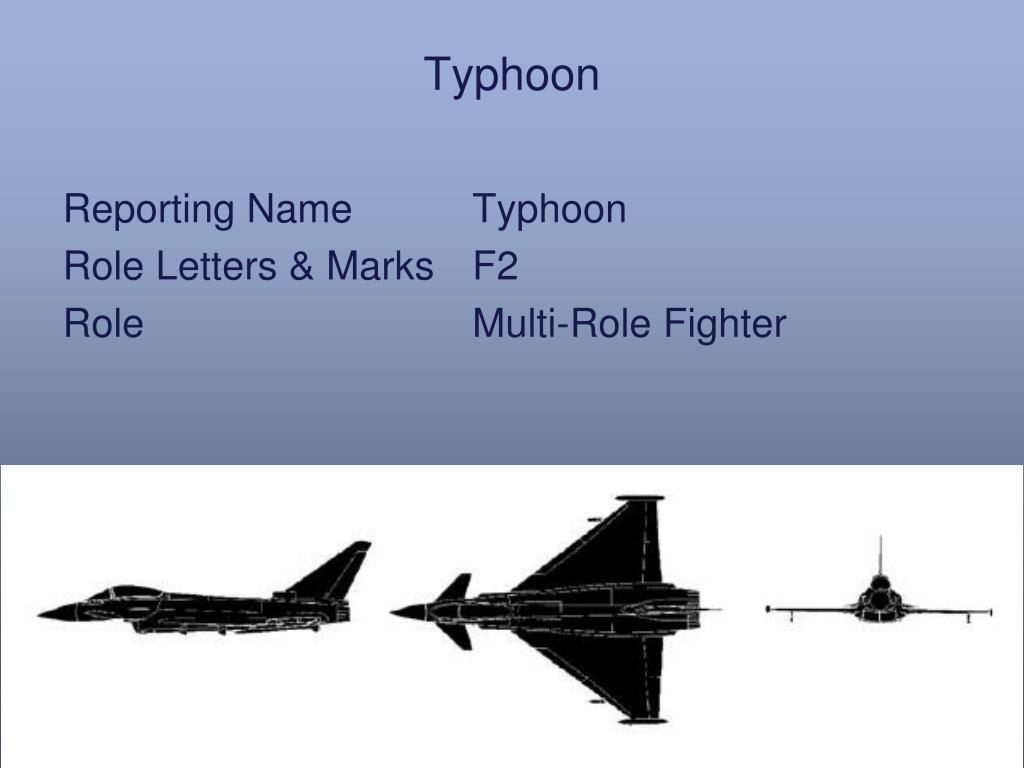

  23. Typhoon Reporting Name Typhoon Role Letters & Marks F2 Role Multi-Role Fighter

  24. Typhoon

  25. Typhoon

  26. Typhoon

  27. Typhoon

  28. Typhoon

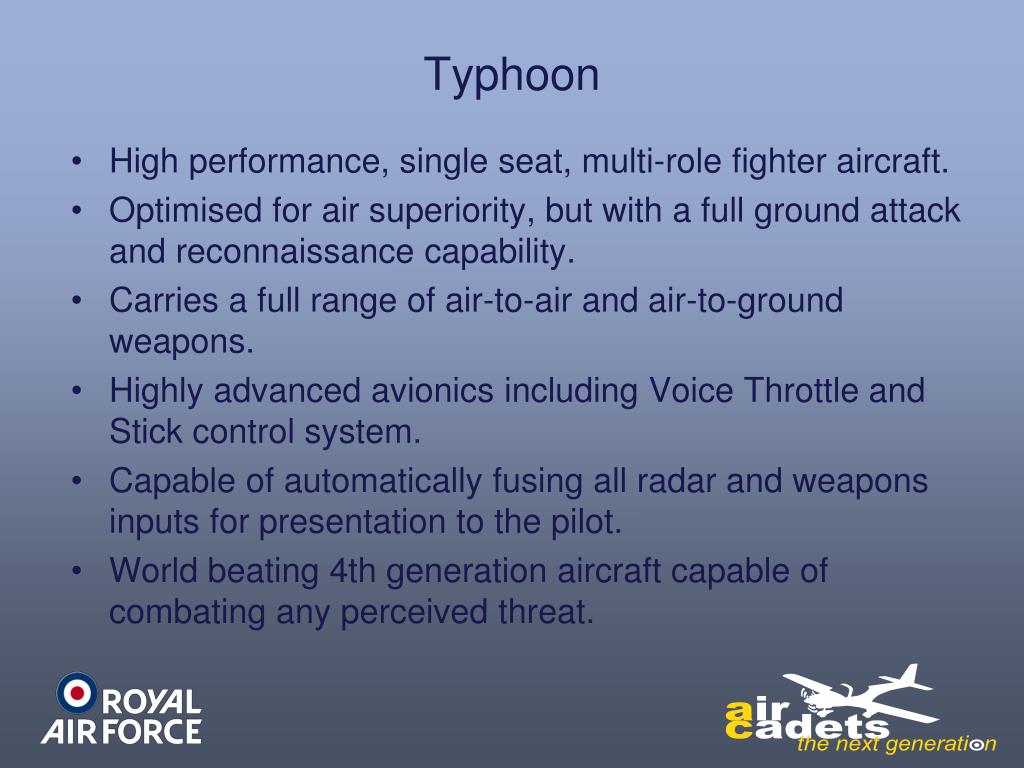

  29. Typhoon High performance, single seat, multi-role fighter aircraft. Optimised for air superiority, but with a full ground attack and reconnaissance capability. Carries a full range of air-to-air and air-to-ground weapons. Highly advanced avionics including Voice Throttle and Stick control system. Capable of automatically fusing all radar and weapons inputs for presentation to the pilot. World beating 4th generation aircraft capable of combating any perceived threat.

  30. Typhoon Technical Data WING SPAN 10.50M LENGTH 15.96M CREW 1 MAXIMUM SPEED 1,147kts (2125km/h) (Mach 2.0) at 36,090ft ENGINES Two Eurojet EJ200 Turbofans

  31. Joint Combat Aircraft Reporting Name Joint Combat Aircraft Role Letters & Marks Role STOVL multi-role fighter/attack

  32. Joint Combat Aircraft

  33. Joint Combat Aircraft

  34. Joint Combat Aircraft

  35. Joint Combat Aircraft

  36. Joint Combat Aircraft

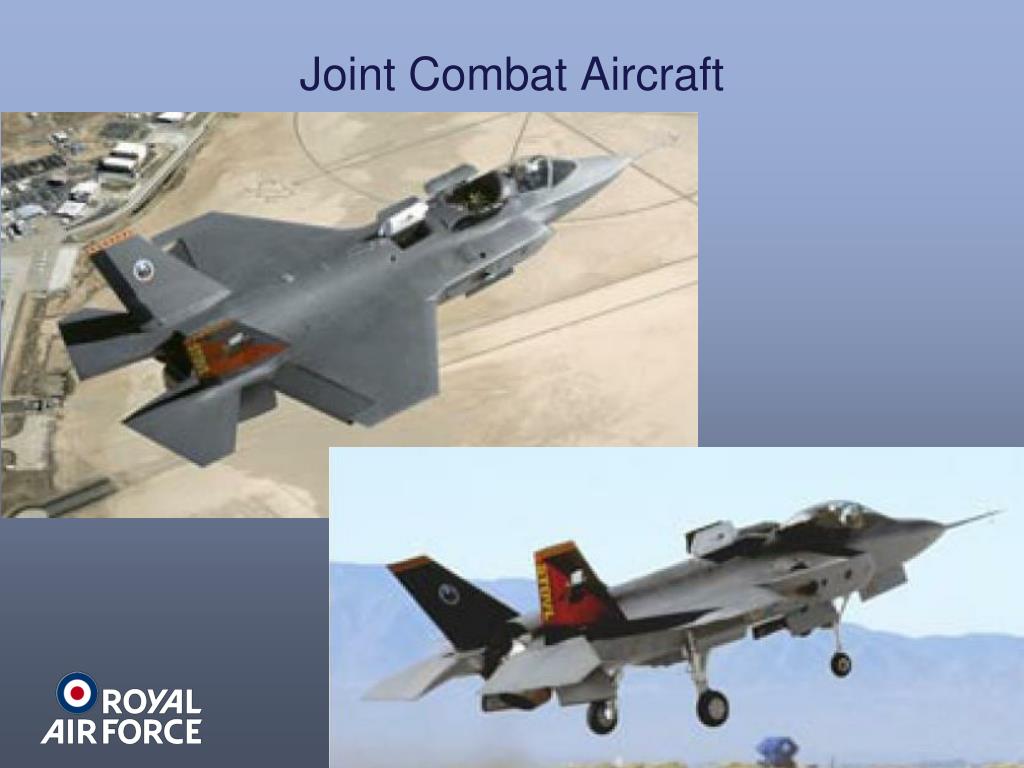

  37. Joint Combat Aircraft Short Take-Off Vertical Landing (STOVL) multirole fighter/attack aircraft Planned in-service date of 2012 to replace Harrier GR7/GR9 Capable of all-weather, day and night air support and reconnaissance operations Embraces stealth design techniques producing a very low radar signature Sophisticated avionics and weapon-targeting systems using advanced technology Known as F35 Lightening II in USA service

  38. Joint Combat Aircraft Technical Data WING SPAN 10.67M LENGTH 15.52M CREW 1 MAXIMUM SPEED Mach 1.8 ENGINES Pratt & Whitney F-135 turbofan

  39. Questions?
