Stepwise Refinement and Reuse: The Key to ESL

1. Stepwise Refinement and Reuse: The Key to ESL Ashok B. Mehta Senior Manager (DTP/SJDMP) TSMC Technology, Inc. Dan Gardner Technical Marketing Engineer Mentor Graphics • Mark Glasser • Verification Technologist • Mentor Graphics Shabtay Matalon ESL Market Development Manager • Mentor Graphics

2. Trends … • 15 billion connected devices by 2015 • Basic + Smart + Enhanced phones = 2 billion phones by 2012 • Mobile processor clock speed > 1 GHz (32 nm HKMG) • Smart phone > 200 million triangles/sec by 2011 • Highly integrated devices with audio, video, 3D graphics, text connected to Internet; require long battery life • Marvell’s ARMADA 628 SoC • 1.5 GHz tri-core processor • dual stream 1080p 3D video • 3D graphics performance with 200 million triangles per second • for ultra-low-power, long battery life smartphones and tablets

3. Trends … • Rapid proliferation of MP-SoC with multiple concurrent software applications 2010 2012 Source: Next Generation Embedded Hardware Architecture - VDC 2010

4. It’s a struggle … It’s a development struggle It’s a power struggle Source: The International Technology Roadmap for Semiconductors (ITRS), 2008 Update) Power requirement vs. power trends Cost of design tasks per technology

5. Current Reality … Source : Semiconductor Industry Association. International Technology Roadmap for Semiconductors Chip complexity versus design productivity

6. ESL Verification Flow – Why? • Transaction-level models (TLM) allow designers to: • Build platforms for software development and hardware architecture exploration before committing to RTL • Manage the complexity of sophisticated large-scale SoCs • Build and verify SoCs more quickly • Run simulations orders of magnitude faster than RTL • Reuse TLM as RTL verification testbench component • Standards-driven: OSCI TLM, SystemC, C++, OVM, SystemVerilog

7. ESL Verification Flow Benefits • Demonstrates verification methodology early in the design before RTL is created or synthesized • Designers can validate their design specification at the TLM • Verification engineers can reduce RTL verification effort by starting validation at the TLM • Common design and testbench throughout the flow, from C++/SystemC to RTL • Design block and stimulus reuse

8. MENTOR SOLUTION (release on TSMC-online) TSMC Reference Flow 11

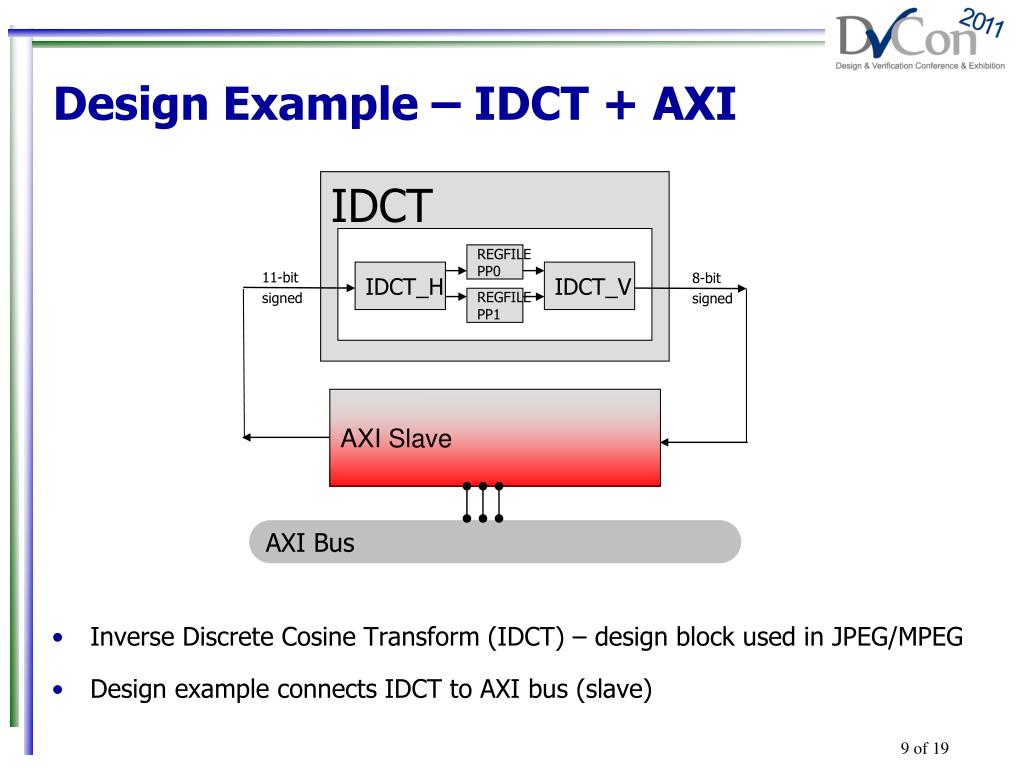

9. IDCT REGFILE PP0 11-bit signed IDCT_H IDCT_V 8-bit signed REGFILE PP1 Design Example – IDCT + AXI • Inverse Discrete Cosine Transform (IDCT) – design block used in JPEG/MPEG • Design example connects IDCT to AXI bus (slave) AXI Slave AXI Bus

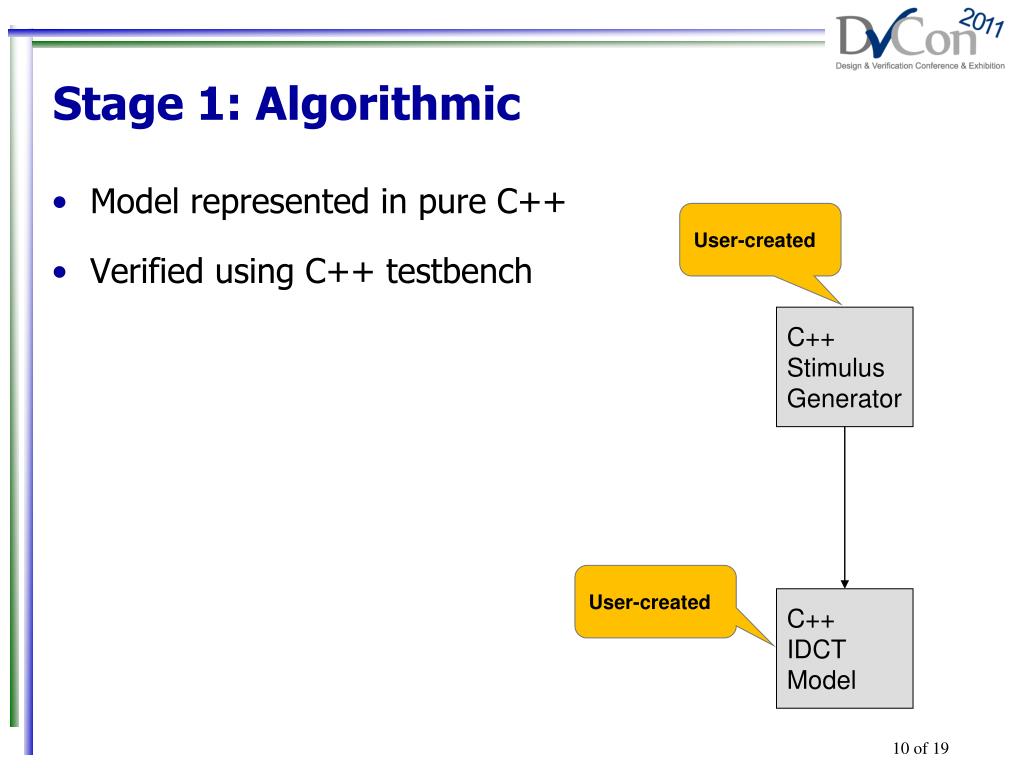

10. Stage 1: Algorithmic • Model represented in pure C++ • Verified using C++ testbench User-created C++ Stimulus Generator User-created C++ IDCT Model

11. Stage 2: Transaction Level Model • Algorithmic models transformed to SystemC transaction-level models • TLM2.0 for interface protocol • Timing/Power policies added • TLM assembled to create the transaction-level platform SystemC model Stimulus Generator TLM User-created (from Stage1) C++ Stimulus Generator C++ Stimulus Generator Vista Model Builder SystemC/TLM2.0 provides standard interfaces for communication between models User-created (from Stage1) IDCT TLM C++ IDCT Model C++ IDCT Model Vista Model Builder T P

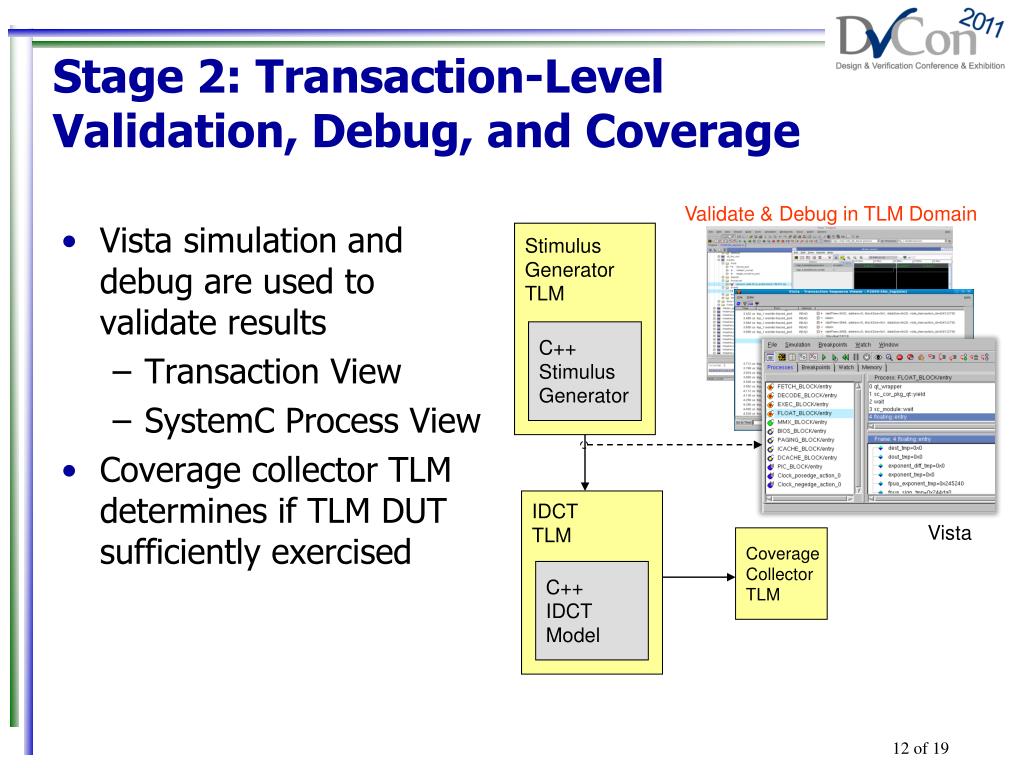

12. Coverage Collector TLM Stage 2:Transaction-Level Validation, Debug, and Coverage • Vista simulation and debug are used to validate results • Transaction View • SystemC Process View • Coverage collector TLM determines if TLM DUT sufficiently exercised Validate & Debug in TLM Domain Stimulus Generator TLM C++ Stimulus Generator IDCT TLM Vista C++ IDCT Model

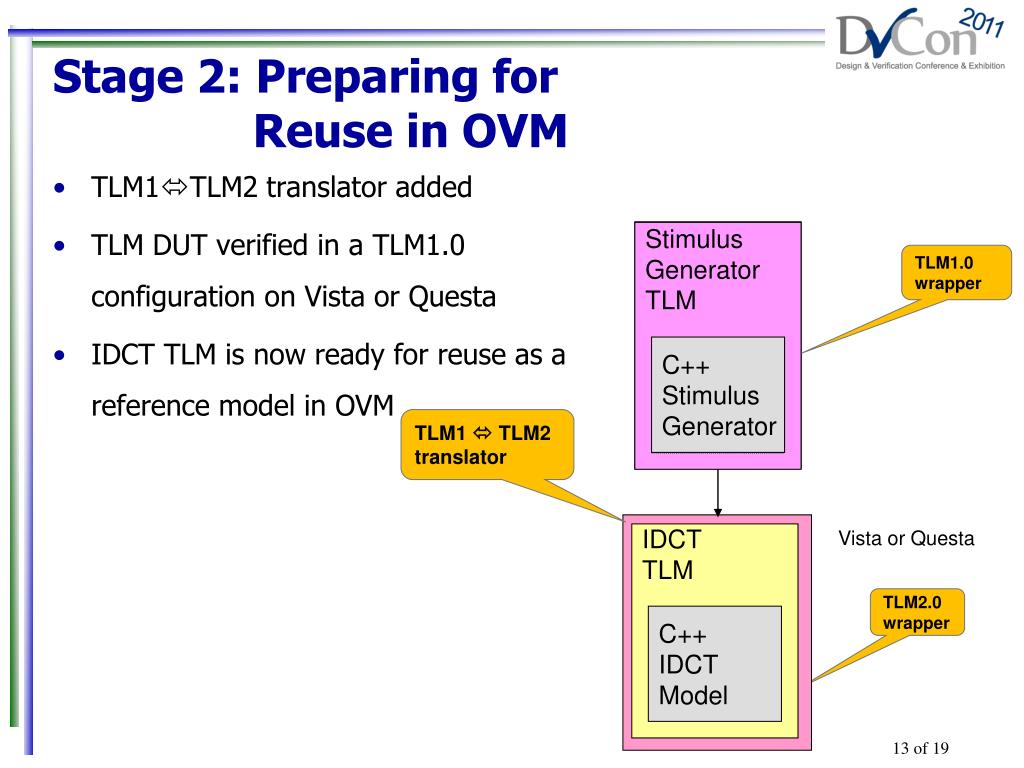

13. Stage 2: Preparing for Reuse in OVM • TLM1TLM2 translator added • TLM DUT verified in a TLM1.0configuration on Vista or Questa • IDCT TLM is now ready for reuse as a reference model in OVM Stimulus Generator TLM Stimulus Generator TLM TLM1.0 wrapper C++ Stimulus Generator C++ Stimulus Function TLM1  TLM2 translator IDCT TLM Vista or Questa IDCT TLM TLM2.0 wrapper C++ IDCT Model

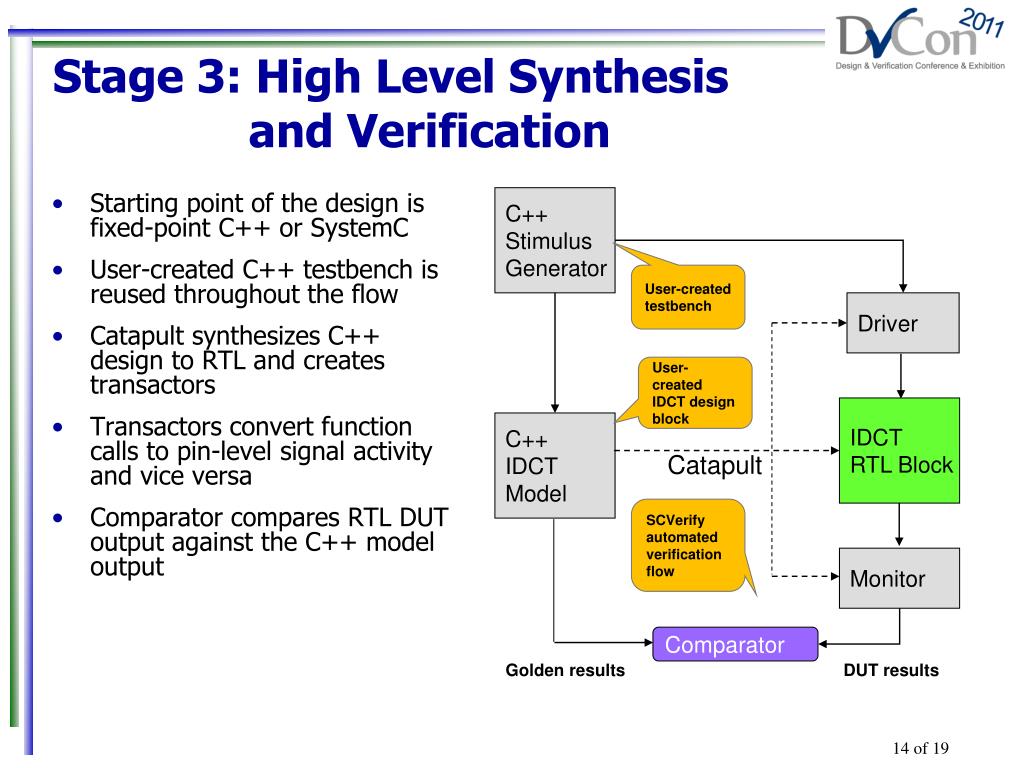

14. C++ Stimulus Generator Stage 3: High Level Synthesis and Verification • Starting point of the design is fixed-point C++ or SystemC • User-created C++ testbench is reused throughout the flow • Catapult synthesizes C++ design to RTL and creates transactors • Transactors convert function calls to pin-level signal activity and vice versa • Comparator compares RTL DUT output against the C++ model output User-created testbench Driver User- created IDCT design block IDCT RTL Block C++ IDCT Model Catapult SCVerify automated verification flow Monitor Comparator Golden results DUT results

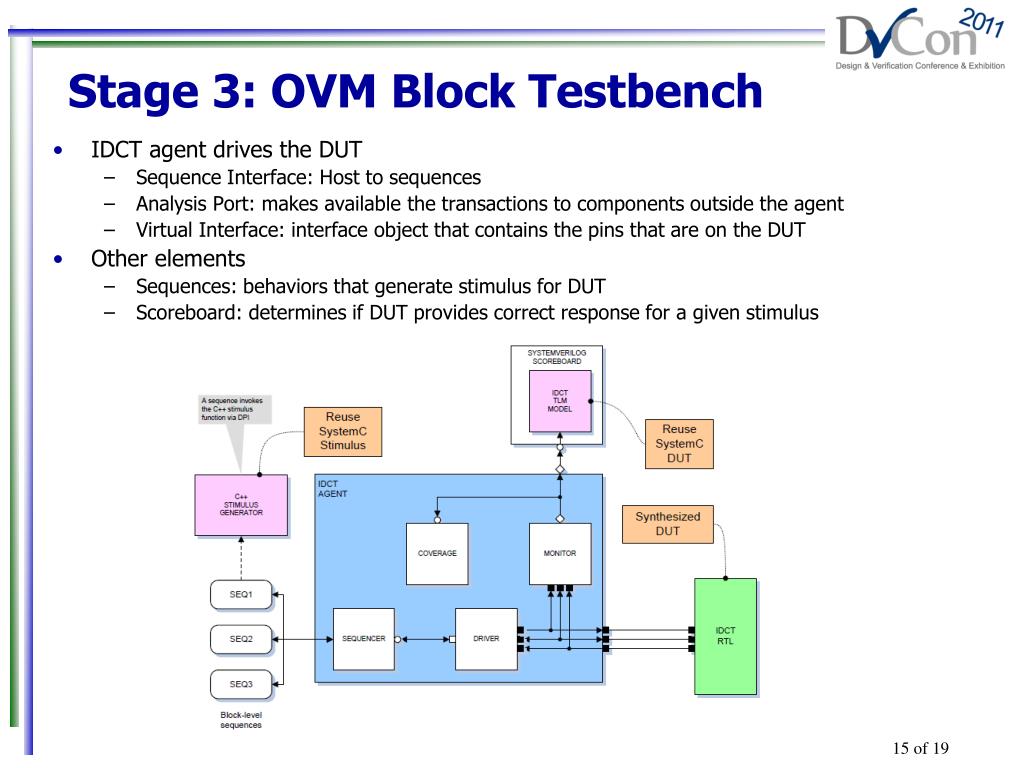

15. Stage 3: OVM Block Testbench • IDCT agent drives the DUT • Sequence Interface: Host to sequences • Analysis Port: makes available the transactions to components outside the agent • Virtual Interface: interface object that contains the pins that are on the DUT • Other elements • Sequences: behaviors that generate stimulus for DUT • Scoreboard: determines if DUT provides correct response for a given stimulus

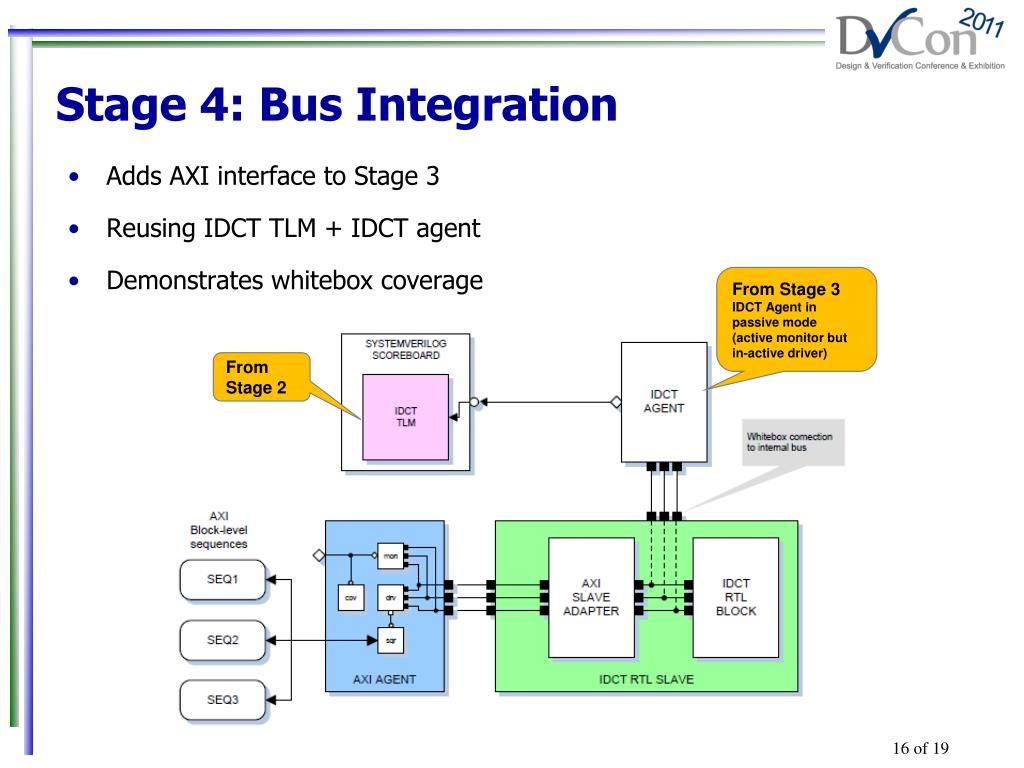

16. Stage 4: Bus Integration • Adds AXI interface to Stage 3 • Reusing IDCT TLM + IDCT agent • Demonstrates whitebox coverage From Stage 3 IDCT Agent in passive mode (active monitor but in-active driver) From Stage 2

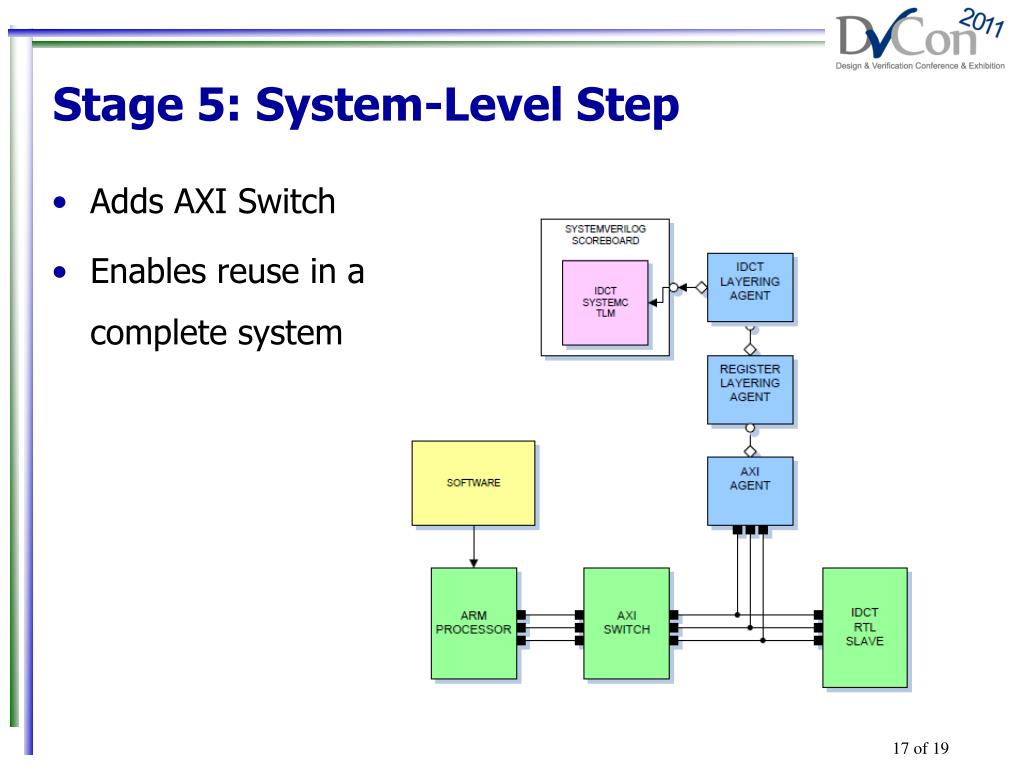

17. Stage 5: System-Level Step • Adds AXI Switch • Enables reuse in a complete system

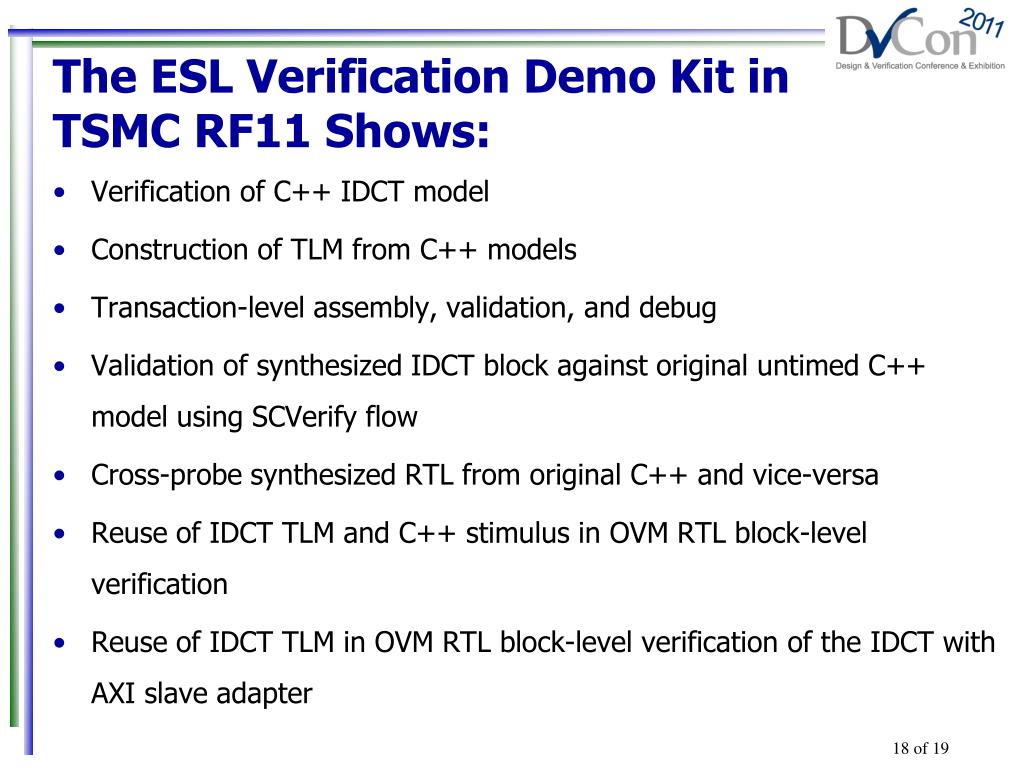

18. The ESL Verification Demo Kit in TSMC RF11 Shows: • Verification of C++ IDCT model • Construction of TLM from C++ models • Transaction-level assembly, validation, and debug • Validation of synthesized IDCT block against original untimed C++ model using SCVerify flow • Cross-probe synthesized RTL from original C++ and vice-versa • Reuse of IDCT TLM and C++ stimulus in OVM RTL block-level verification • Reuse of IDCT TLM in OVM RTL block-level verification of the IDCT with AXI slave adapter

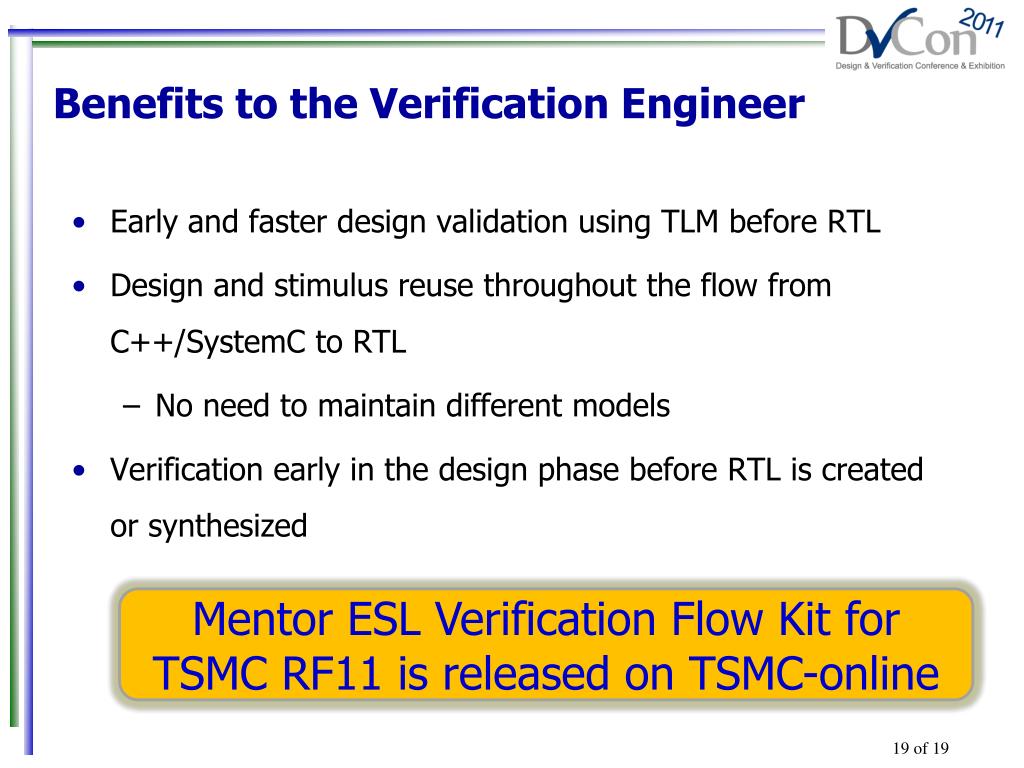

19. Benefits to the Verification Engineer • Early and faster design validation using TLM before RTL • Design and stimulus reuse throughout the flow from C++/SystemC to RTL • No need to maintain different models • Verification early in the design phase before RTL is created or synthesized Mentor ESL Verification Flow Kit for TSMC RF11 is released on TSMC-online
