  1. ScheduleWorX32 and GENESIS32 Redundancy G32-102 Roberto Penso, Italy Andrew Mellor, UK Dave Oravetz, Massachusetts Josh Obal, Massachusetts Rene Arnost, Czech Republic Guest Speaker Joost Verhofstad, Marathon Technologies ICONICS 2008 Worldwide Customer Summit Boston, MA

  2. Roberto Penso GENESIS32

  3. GENESIS32 V9.1 • ScheduleWorX32! • Facilitate scheduled management of many applications: • Lighting Control, • HVAC (Heating, Ventilation, and Air Conditioning) control, • Energy Management, • Many more ICONICS 2008 Worldwide Customer Summit – Boston, MA

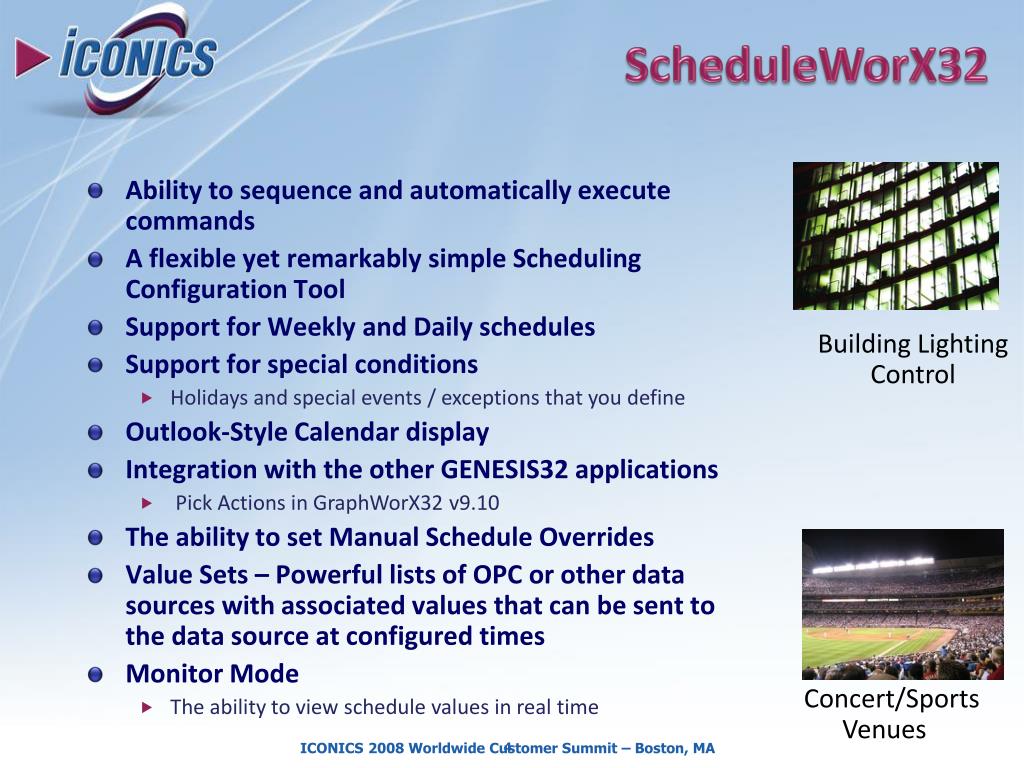

  4. ScheduleWorX32 • Ability to sequence and automatically execute commands • A flexible yet remarkably simple Scheduling Configuration Tool • Support for Weekly and Daily schedules • Support for special conditions • Holidays and special events / exceptions that you define • Outlook-Style Calendar display • Integration with the other GENESIS32 applications • Pick Actions in GraphWorX32 v9.10 • The ability to set Manual Schedule Overrides • Value Sets – Powerful lists of OPC or other data sources with associated values that can be sent to the data source at configured times • Monitor Mode • The ability to view schedule values in real time • Building LightingControl Concert/Sports Venues ICONICS 2008 Worldwide Customer Summit – Boston, MA

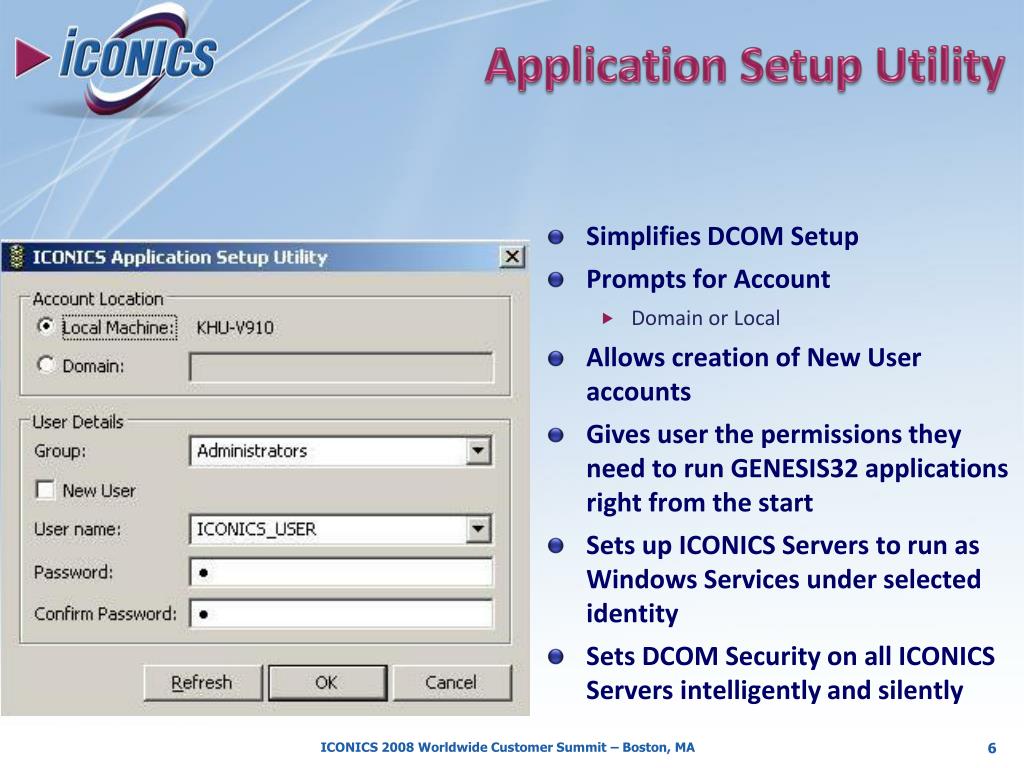

  5. Application Setup Utility • Simplifies DCOM Setup • Prompts for Account • Domain or Local • Allows creation of New User accounts • Gives user the permissions they need to run GENESIS32 applications right from the start • Sets up ICONICS Servers to run as Windows Services under selected identity • Sets DCOM Security on all ICONICS Servers intelligently and silently ICONICS 2008 Worldwide Customer Summit – Boston, MA

  6. GENESIS32 V9.1 • TrendWorX32 • TrendWorX32 Report • Simpler access to TrendWorX32 logged data • NT service support, Append data, Data management • TrendWorX32 Viewer • show values to the current time • Zoom in during runtime mode • Columns that show historical values and times • The ability to display historical values without freezing the screen ICONICS 2008 Worldwide Customer Summit – Boston, MA

  7. GENESIS32 V9.1 • Data Mining Control • The ability to change color of a certain cell based on the value of a cell • Second level of column headers • Data Mining OPC Server • The ability to run the DB OPC Server as a service • Data Mining OPC Server • The ability to create a MS SQL based configuration database • Redundancy ICONICS 2008 Worldwide Customer Summit – Boston, MA

  8. GENESIS32 V9.1 • AlarmWorX32 Viewer • Browsing for Sources directly from the Filter wizard • Access advanced filters in the standard Filter wizard using the Expression Editor • Added automation to improve sorting, to control a flashing header, and to optionally suppress the beep • AlarmWorX32 Server • Significantly improved OPC DA performance • A greater variety of Alarm DA tags can now be defined (number of active alarms, highest severity,…) ICONICS 2008 Worldwide Customer Summit – Boston, MA

  9. GENESIS32 V9.1 • Unified Data Manager • Support for Registers • Support for Schedules, and for ScheduleWorX32 • Unified Data Browser • Make the UI (User Interface) easier to use and more intuitive ICONICS 2008 Worldwide Customer Summit – Boston, MA

  10. GENESIS32 V9.1 • ICONICS Licensing Utility • Full Windows Vista UAC (User Account Control) compatibility • New HW USB Key • RAID Support enhancements • System Requirements • Windows Vista, Windows Vista x64 • Windows Server 2003 x64 • Windows Server 2003 R2 • Windows Server 2003 SP2 • Windows Server 2003 • Windows XP Professional x64 • Windows XP Professional SP2 • Windows XP Professional SP1 • Windows 2000 Server SP4 • Windows 2000 SP4 ICONICS 2008 Worldwide Customer Summit – Boston, MA

  11. GENESIS32 V9.1 • ICONICS Licensing Utility • Full Windows Vista UAC (User Account Control) compatibility • New HW USB Key • RAID Support enhancements ICONICS 2008 Worldwide Customer Summit – Boston, MA

  12. ScheduleWorX32 Andy Mellor

  13. ScheduleWorX32 • New for GENESIS32 v9.10! • Facilitate scheduled management of many applications: • Lighting Control, • HVAC (Heating, Ventilation, and Air Conditioning) control, • Energy Management, • Many more ICONICS 2008 Worldwide Customer Summit – Boston, MA 15

  14. Applications - HVAC Air handlers Boilers Chillers ICONICS 2008 Worldwide Customer Summit – Boston, MA 16

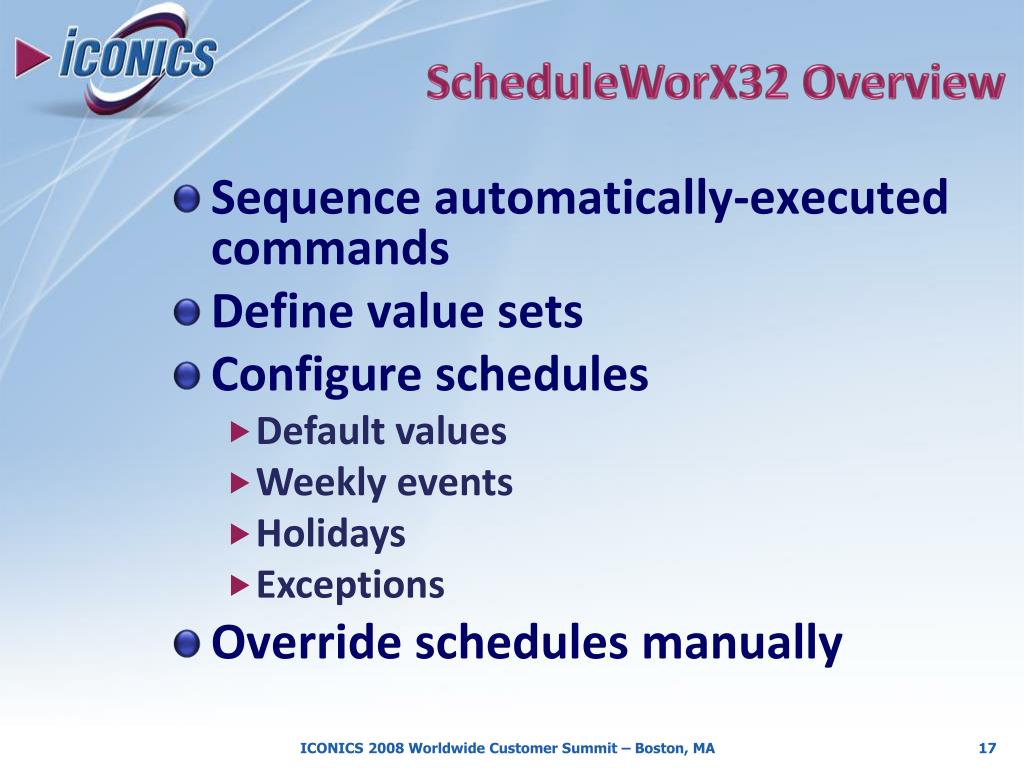

  15. ScheduleWorX32 Overview • Sequence automatically-executed commands • Define value sets • Configure schedules • Default values • Weekly events • Holidays • Exceptions • Override schedules manually ICONICS 2008 Worldwide Customer Summit – Boston, MA 17

  16. Key Features • Installation Options: • Stand-alone product • Integrated w/GENESIS32 • Licensed as an add-on • View and modify schedules • Directly with ScheduleWorX32 • GraphWorX32 • Remotely using WebHMI • Override schedules • ScheduleWorX32 • Via GraphWorX32 or WebHMI ICONICS 2008 Worldwide Customer Summit – Boston, MA 18

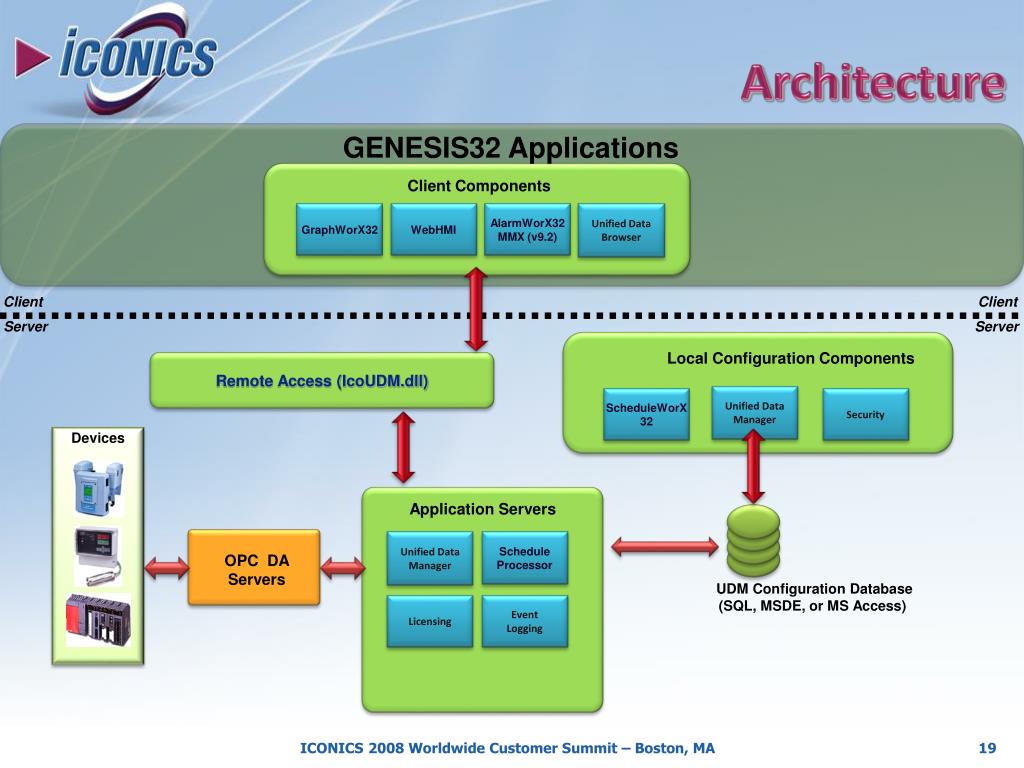

  17. Architecture GENESIS32 Applications Client Components Unified Data Browser GraphWorX32 WebHMI AlarmWorX32 MMX (v9.2) Client Client Server Server Local Configuration Components Remote Access (IcoUDM.dll) Unified Data Manager Security ScheduleWorX32 Devices Application Servers Unified Data Manager ScheduleProcessor OPC DA Servers UDM Configuration Database (SQL, MSDE, or MS Access) Licensing Event Logging ICONICS 2008 Worldwide Customer Summit – Boston, MA 19

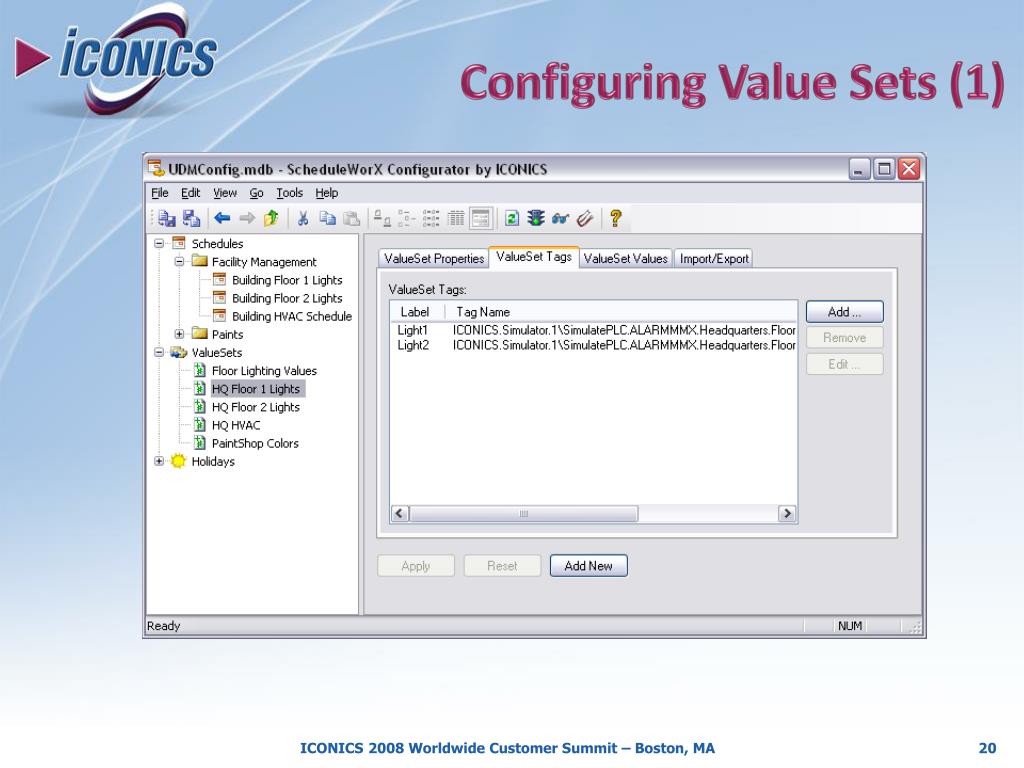

  18. Configuring Value Sets (1) ICONICS 2008 Worldwide Customer Summit – Boston, MA 20

  19. Configuring Value Sets (2) ICONICS 2008 Worldwide Customer Summit – Boston, MA 21

  20. Week-based Events ICONICS 2008 Worldwide Customer Summit – Boston, MA 22

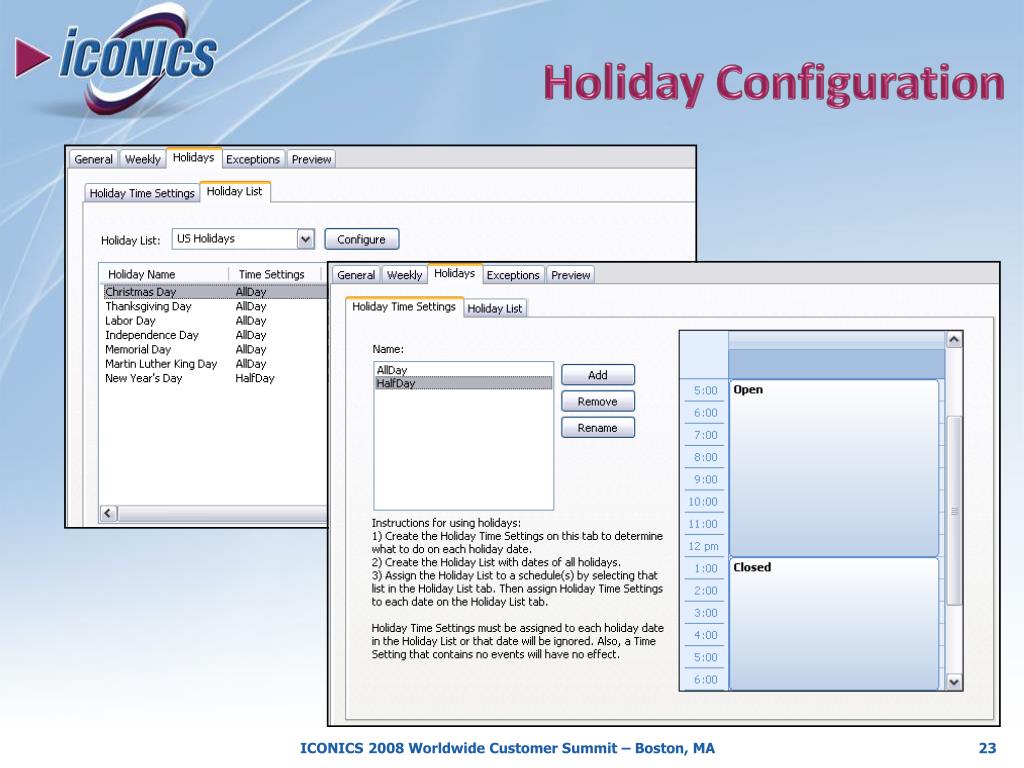

  21. Holiday Configuration ICONICS 2008 Worldwide Customer Summit – Boston, MA 23

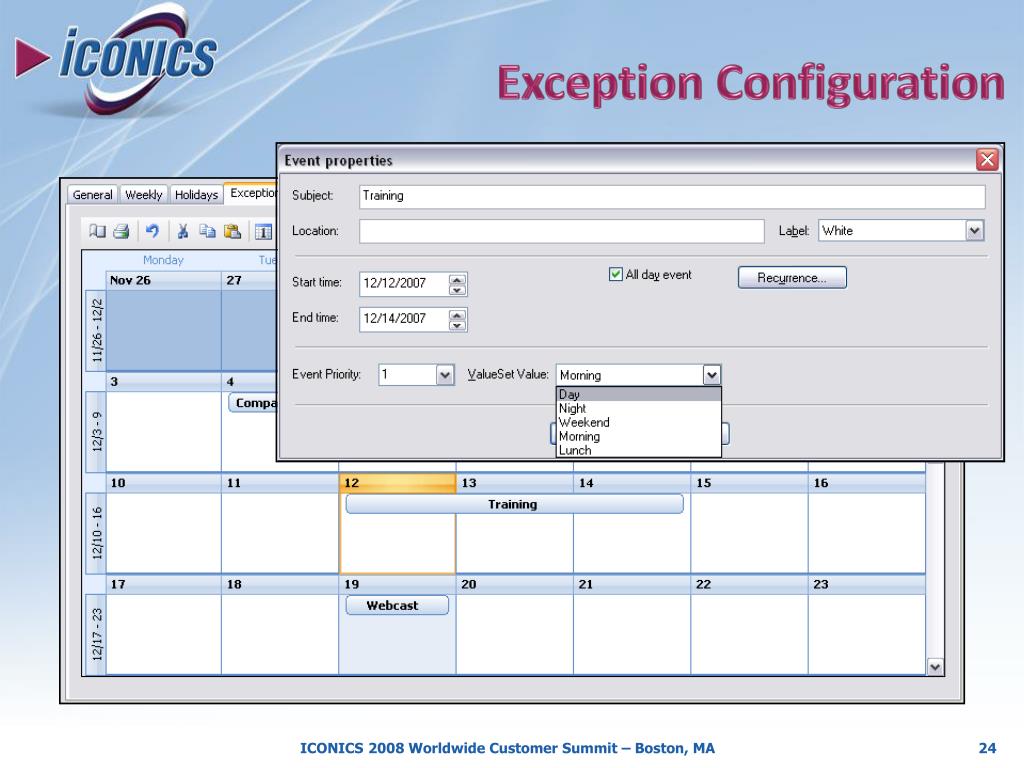

  22. Exception Configuration ICONICS 2008 Worldwide Customer Summit – Boston, MA 24

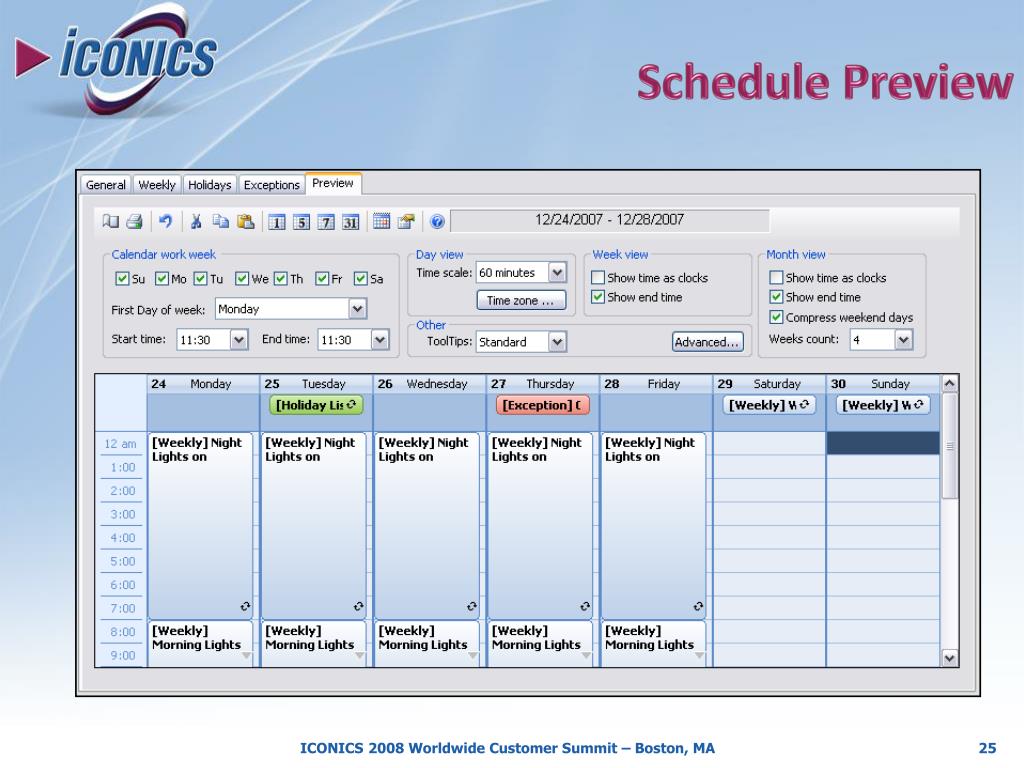

  23. Schedule Preview ICONICS 2008 Worldwide Customer Summit – Boston, MA 25

  24. Holiday Schedules ICONICS 2008 Worldwide Customer Summit – Boston, MA 26

  25. Schedule Monitoring • Live monitoring of schedules • Easily execute override commands ICONICS 2008 Worldwide Customer Summit – Boston, MA 27

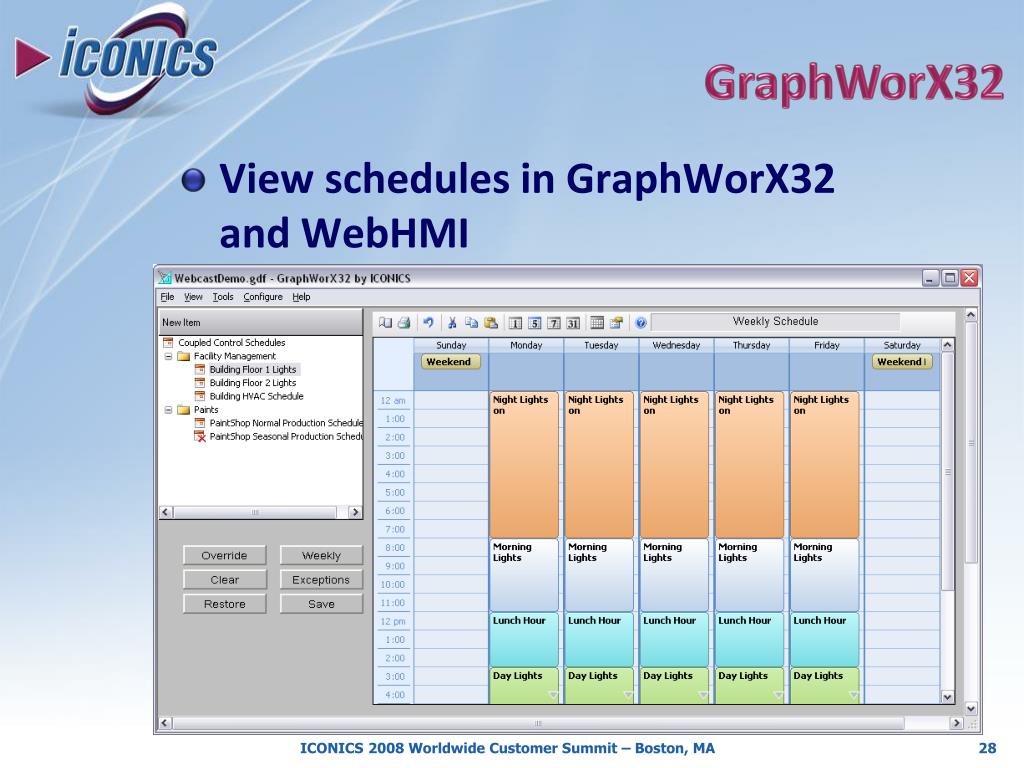

  26. GraphWorX32 • View schedules in GraphWorX32 and WebHMI ICONICS 2008 Worldwide Customer Summit – Boston, MA 28

  27. SCHEDULEWORX DEMO Andrew Mellor Josh Obal

  28. GENESIS32 Redundancywith DataWorX32 Professional Roberto Penso

  29. SCOPE • What is important • Uptime • Data Integrity • Record Keeping • Traceability • Achieve • High Reliability • High Availability ICONICS 2008 Worldwide Customer Summit – Boston, MA, April, 2008 31

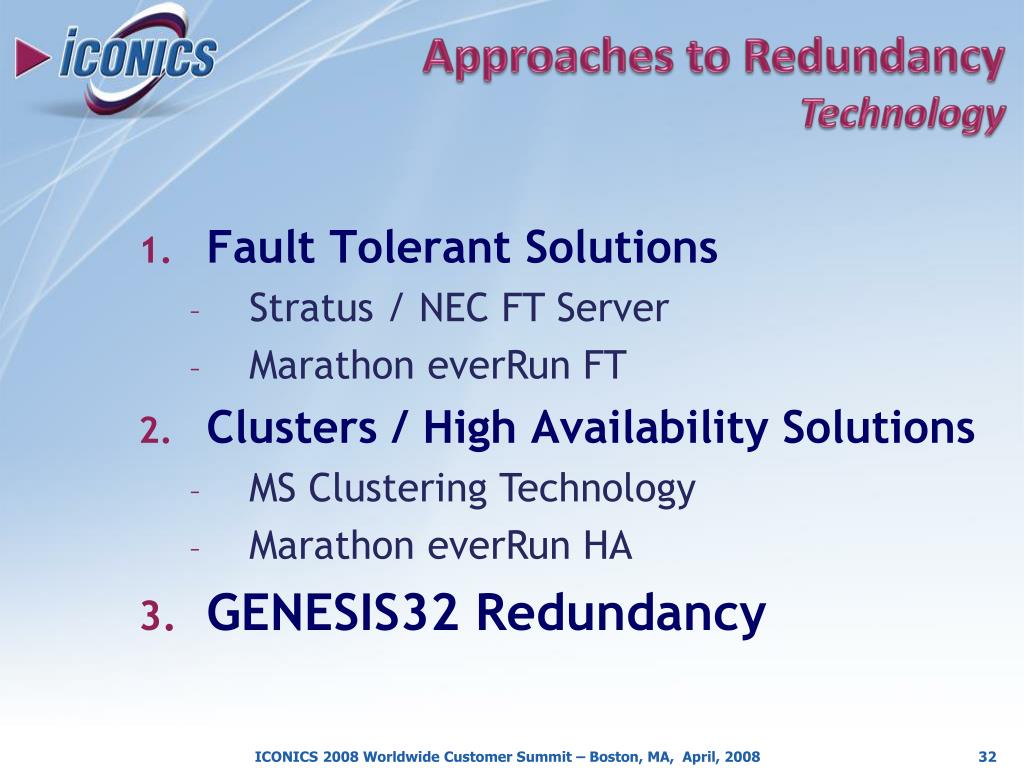

  30. Approaches to RedundancyTechnology • Fault Tolerant Solutions • Stratus / NEC FT Server • Marathon everRun FT • Clusters / High Availability Solutions • MS Clustering Technology • Marathon everRun HA • GENESIS32 Redundancy ICONICS 2008 Worldwide Customer Summit – Boston, MA, April, 2008 32

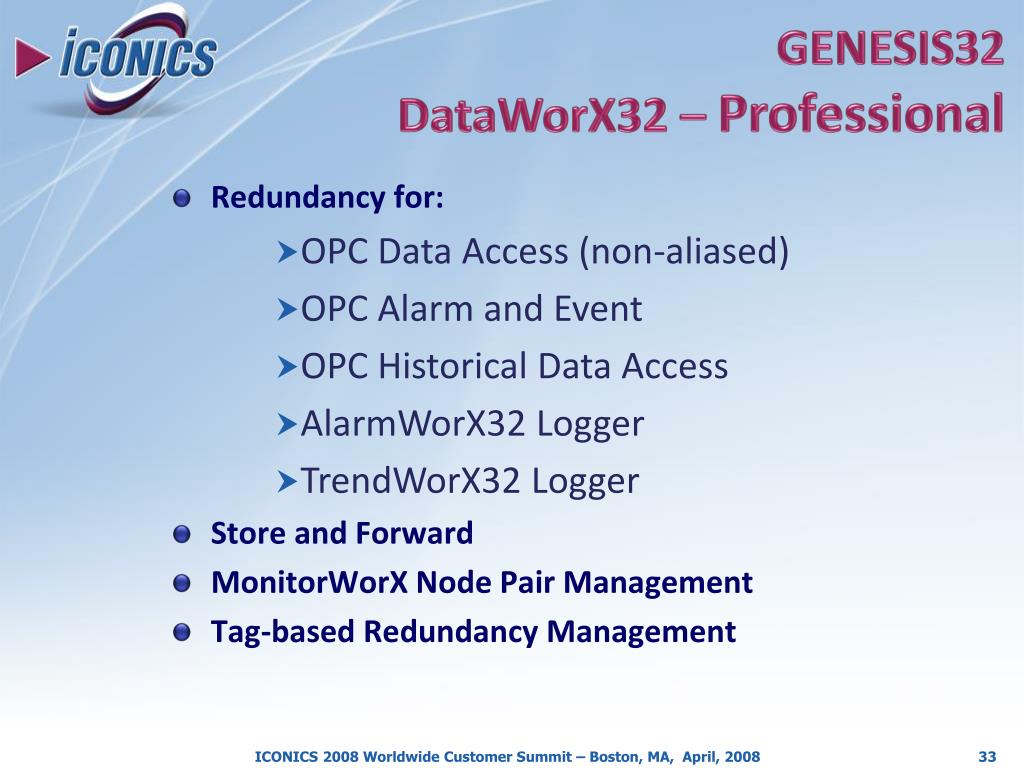

  31. GENESIS32 DataWorX32 – Professional • Redundancy for: • OPC Data Access (non-aliased) • OPC Alarm and Event • OPC Historical Data Access • AlarmWorX32 Logger • TrendWorX32 Logger • Store and Forward • MonitorWorX Node Pair Management • Tag-based Redundancy Management ICONICS 2008 Worldwide Customer Summit – Boston, MA, April, 2008 33

  32. OPC Data Access Primary Primary Primary GraphWorX32 GraphWorX32 GraphWorX32 DataWorX32Pro DataWorX32Pro DataWorX32Pro Secondary Secondary Secondary Redundancy for any OPC DA Server Active Active Active ICONICS 2008 Worldwide Customer Summit – Boston, MA, April, 2008 34

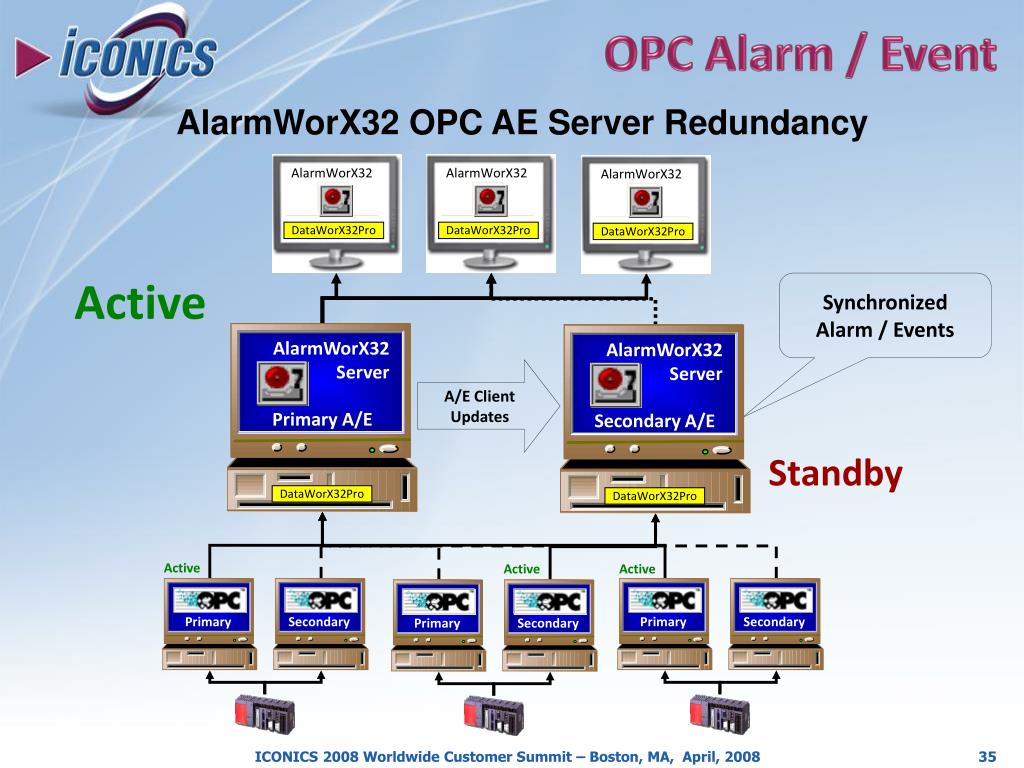

  33. OPC Alarm / Event AlarmWorX32 AlarmWorX32 Primary Primary Primary DataWorX32Pro DataWorX32Pro Secondary Secondary Secondary AlarmWorX32 OPC AE Server Redundancy AlarmWorX32 DataWorX32Pro Active Synchronized Alarm / Events AlarmWorX32 Server AlarmWorX32 Server A/E Client Updates Primary A/E Secondary A/E Standby DataWorX32Pro DataWorX32Pro Active Active Active ICONICS 2008 Worldwide Customer Summit – Boston, MA, April, 2008 35

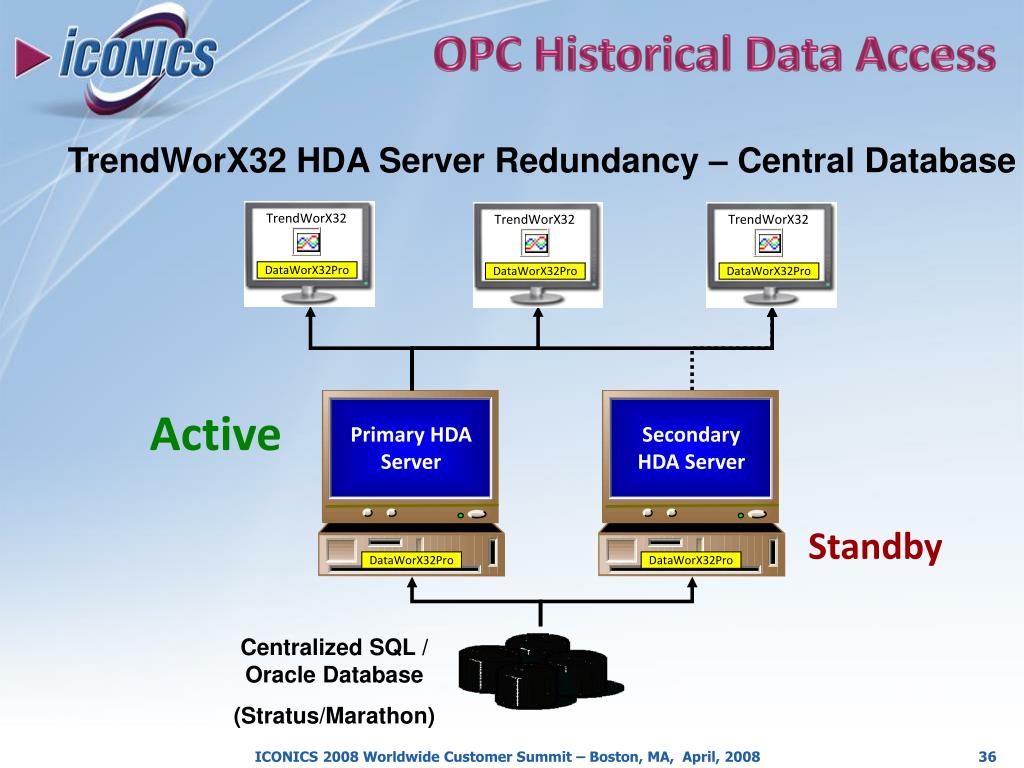

  34. OPC Historical Data Access TrendWorX32 TrendWorX32 TrendWorX32 DataWorX32Pro DataWorX32Pro DataWorX32Pro TrendWorX32 HDA Server Redundancy – Central Database Active Primary HDA Server Secondary HDA Server Standby DataWorX32Pro DataWorX32Pro Centralized SQL / Oracle Database (Stratus/Marathon) ICONICS 2008 Worldwide Customer Summit – Boston, MA, April, 2008 36

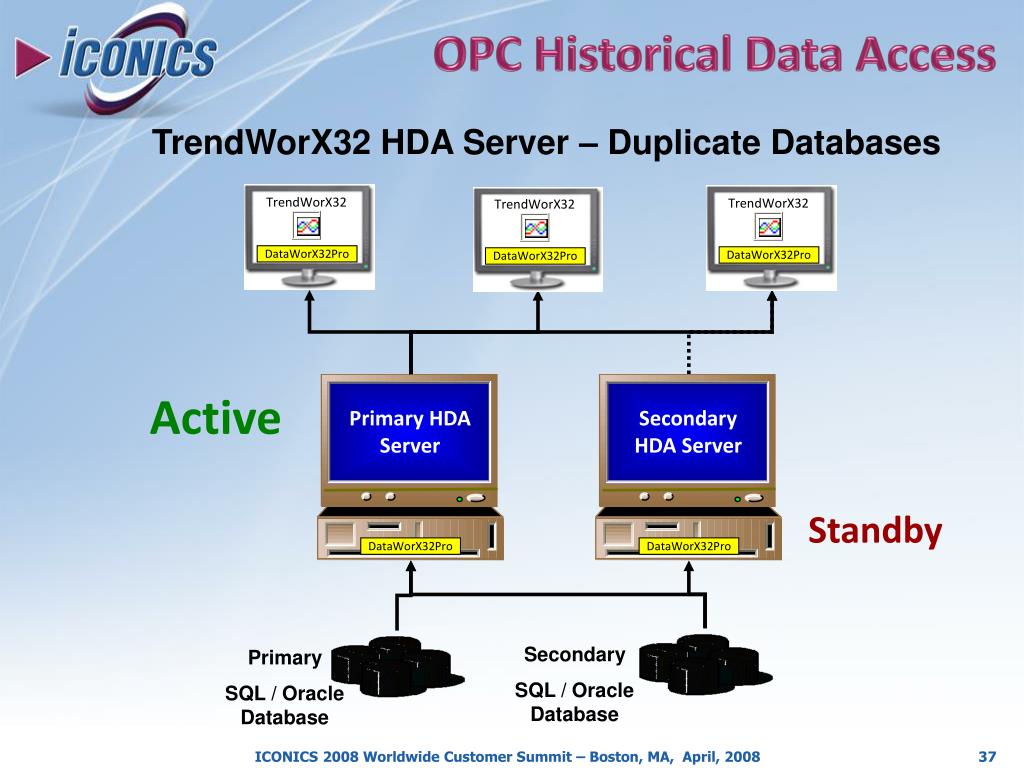

  35. OPC Historical Data Access TrendWorX32 TrendWorX32 TrendWorX32 DataWorX32Pro DataWorX32Pro DataWorX32Pro Primary HDA Server Secondary HDA Server TrendWorX32 HDA Server – Duplicate Databases Active Standby DataWorX32Pro DataWorX32Pro Secondary SQL / Oracle Database Primary SQL / Oracle Database ICONICS 2008 Worldwide Customer Summit – Boston, MA, April, 2008 37

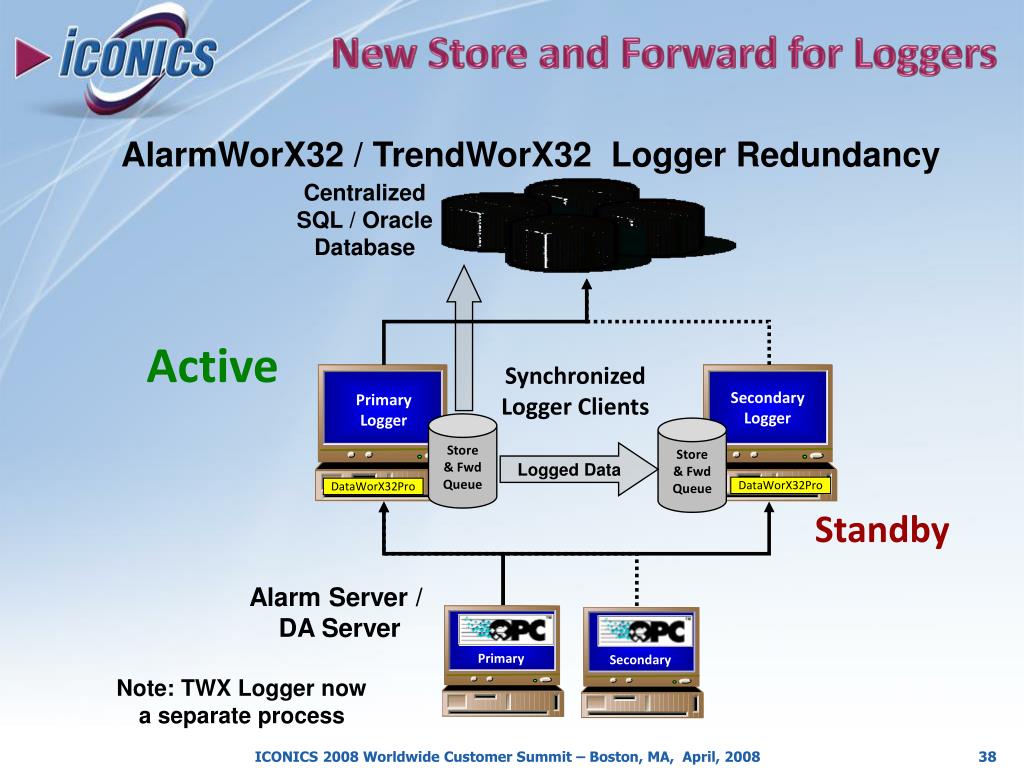

  36. New Store and Forward for Loggers AlarmWorX32 / TrendWorX32 Logger Redundancy Centralized SQL / Oracle Database Active Synchronized Logger Clients Secondary Logger Primary Logger Store & Fwd Queue Store & Fwd Queue Logged Data DataWorX32Pro DataWorX32Pro Standby Alarm Server / DA Server Primary Secondary Note: TWX Logger now a separate process ICONICS 2008 Worldwide Customer Summit – Boston, MA, April, 2008 38

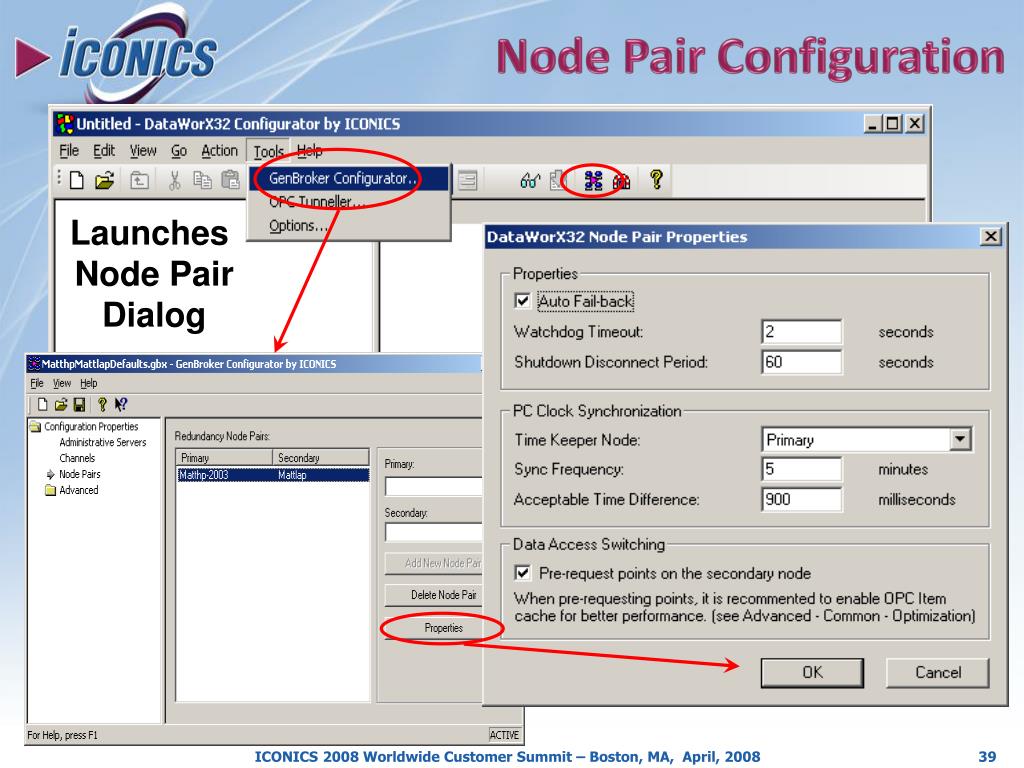

  37. Node Pair Configuration Launches Node Pair Dialog ICONICS 2008 Worldwide Customer Summit – Boston, MA, April, 2008 39

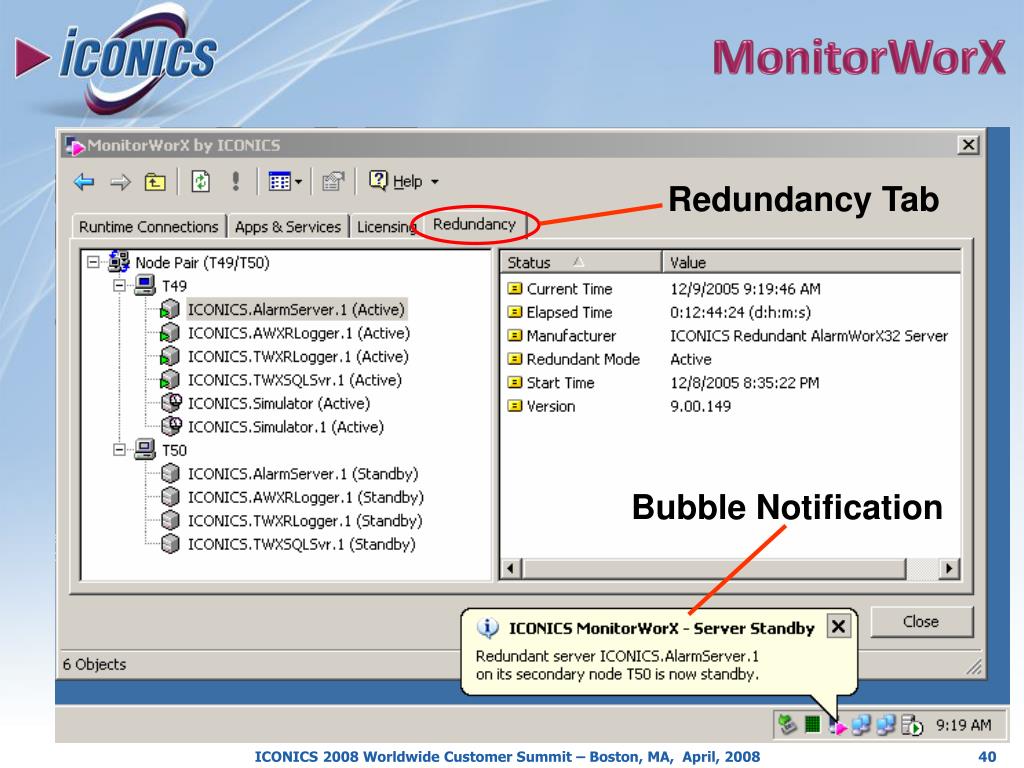

  38. MonitorWorX Redundancy Tab Bubble Notification ICONICS 2008 Worldwide Customer Summit – Boston, MA, April, 2008 40

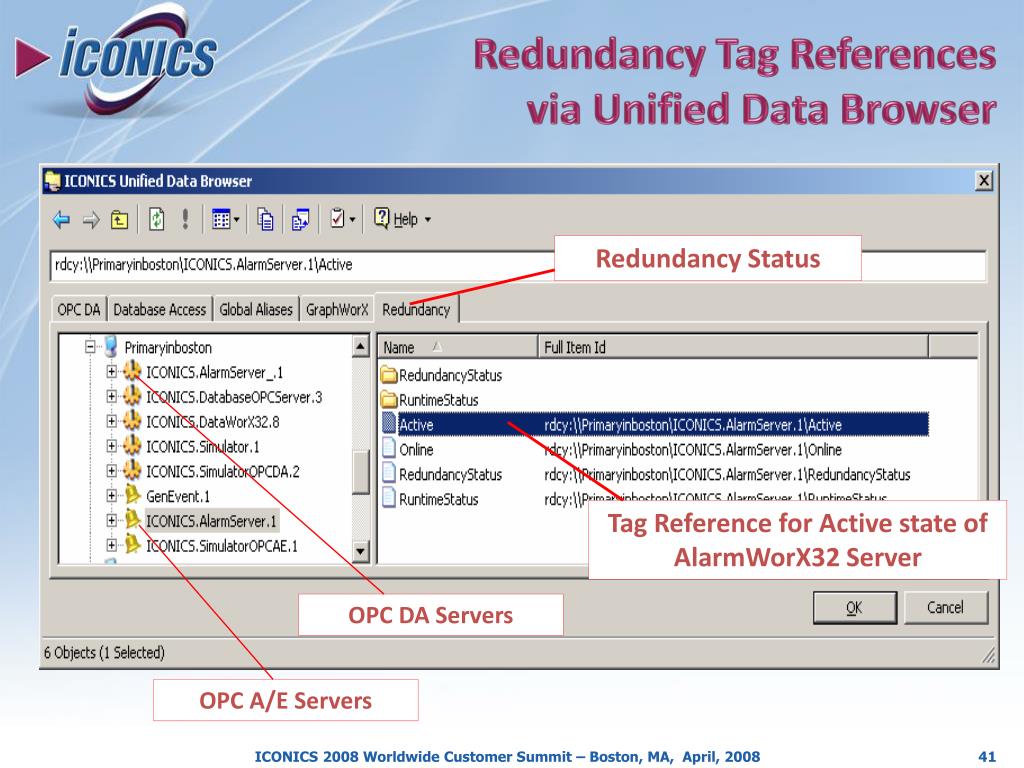

  39. Redundancy Tag Referencesvia Unified Data Browser Redundancy Status Tag Reference for Active state of AlarmWorX32 Server OPC DA Servers OPC A/E Servers ICONICS 2008 Worldwide Customer Summit – Boston, MA, April, 2008 41

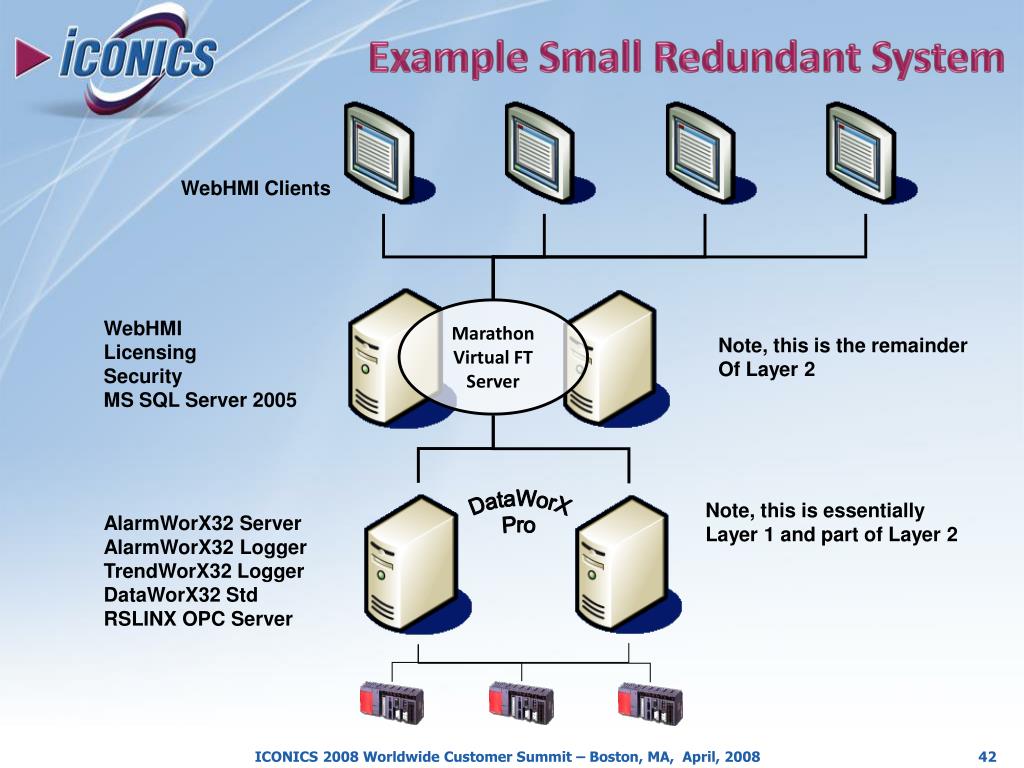

  40. Example Small Redundant System WebHMI Clients Marathon Virtual FT Server WebHMI Licensing Security MS SQL Server 2005 Note, this is the remainder Of Layer 2 Note, this is essentially Layer 1 and part of Layer 2 AlarmWorX32 Server AlarmWorX32 Logger TrendWorX32 Logger DataWorX32 Std RSLINX OPC Server DataWorX Pro ICONICS 2008 Worldwide Customer Summit – Boston, MA, April, 2008 42

  41. GENESIS32 RedundancyDEMOWith DataWorX32 Professional Rene Arnost Dave Oravetz Roberto Penso

  42. Virtual Fault Tolerant Solutions JoostVerhofstad Marathon Technologies Corporation Boxborough, MA ICONICS 2008 Worldwide Customer Summit Boston, MA

  43. GENESIS32 V9.2 Productivity • Unified Configuration • BACnet Integration • Integration of Hyper Historian • Other Enhancements 45

  44. Unified Configuration • New Unified Data Configurator • Centralized configuration for: • Tags • Alarms • Trends • Based on DataWorX32 • Define Registers (Aliases) • Import Tags • Online • CSV • Manually Selected • Optional Hierarchical View 46

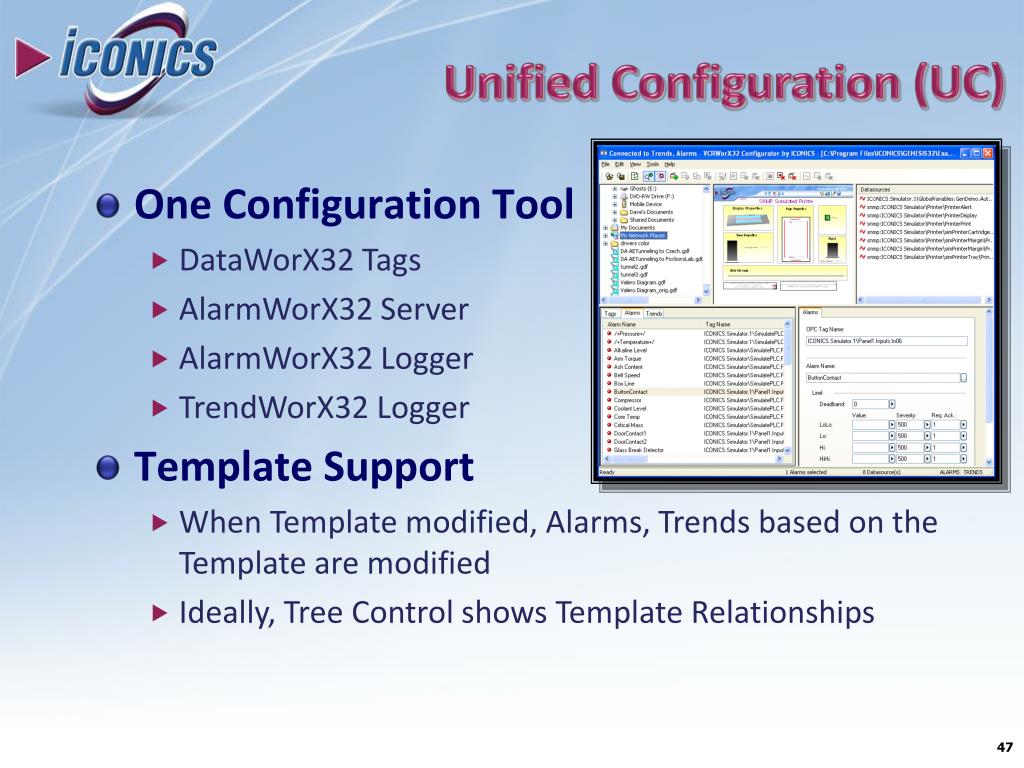

  45. Unified Configuration (UC) • One Configuration Tool • DataWorX32 Tags • AlarmWorX32 Server • AlarmWorX32 Logger • TrendWorX32 Logger • Template Support • When Template modified, Alarms, Trends based on the Template are modified • Ideally, Tree Control shows Template Relationships 47

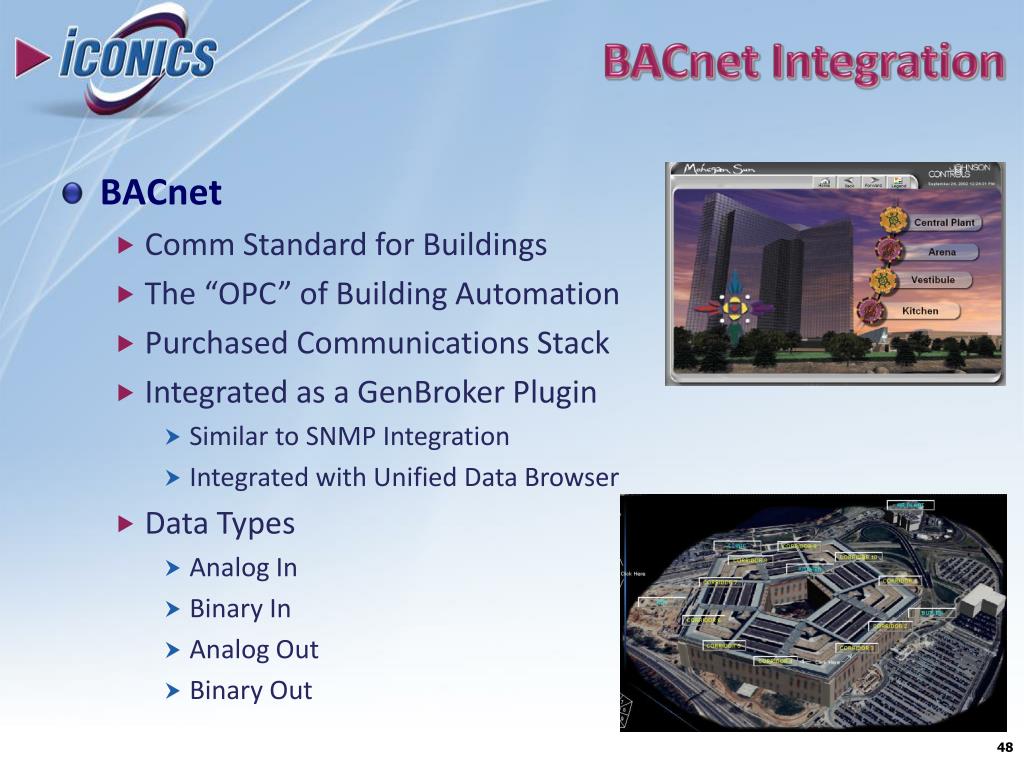

  46. BACnet Integration • BACnet • Comm Standard for Buildings • The “OPC” of Building Automation • Purchased Communications Stack • Integrated as a GenBroker Plugin • Similar to SNMP Integration • Integrated with Unified Data Browser • Data Types • Analog In • Binary In • Analog Out • Binary Out 48

  47. GENESIS32 5-Year Product Roadmap 2006 2007 2008 2009 2013 • V9.0 • OPC UA Client • Unified Data Manager • Redundancy • SNMP • ScriptWorX2006 • V9.1 • ScheduleWorX32 • Unified Data Manager • Redundancy • App Setup • Alarm Server Improvements • Vista Certification • 64-Bit Windows • V9.2 • VBA 6.5 • Unified Configuration • BacNET Integration • Configured Tag Licensing • MachineWorX+ • V9.3 • New Functions • New Features • Support for Operating Systems • V9.x+ • New Functions • Support for Operating Systems ICONICS 2008 Worldwide Customer Summit – Boston, MA, April, 2008

  48. ScheduleWorX32 and GENESIS32 Redundancy G32-102 Questions Exam ICONICS 2008 Worldwide Customer Summit Boston, MA
