λ. λ. λ. λ <d. λ =d. λ >d. d. d. d. Mie regime. Rayleigh regime. Intermediate regime. FOV’ is the incidence plane AWW’ is the vertical plane contains the ray. Z. d. X. O. Y. f. S. f: trap center O: bead center S: offset due to scattering force.

wayne
Download Presentation

λ >d

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. λ λ λ λ<d λ=d λ>d d d d Mie regime Rayleigh regime Intermediate regime

  2. FOV’ is the incidence plane AWW’ is the vertical plane contains the ray

  3. Z d X O Y f S f: trap center O: bead center S: offset due to scattering force

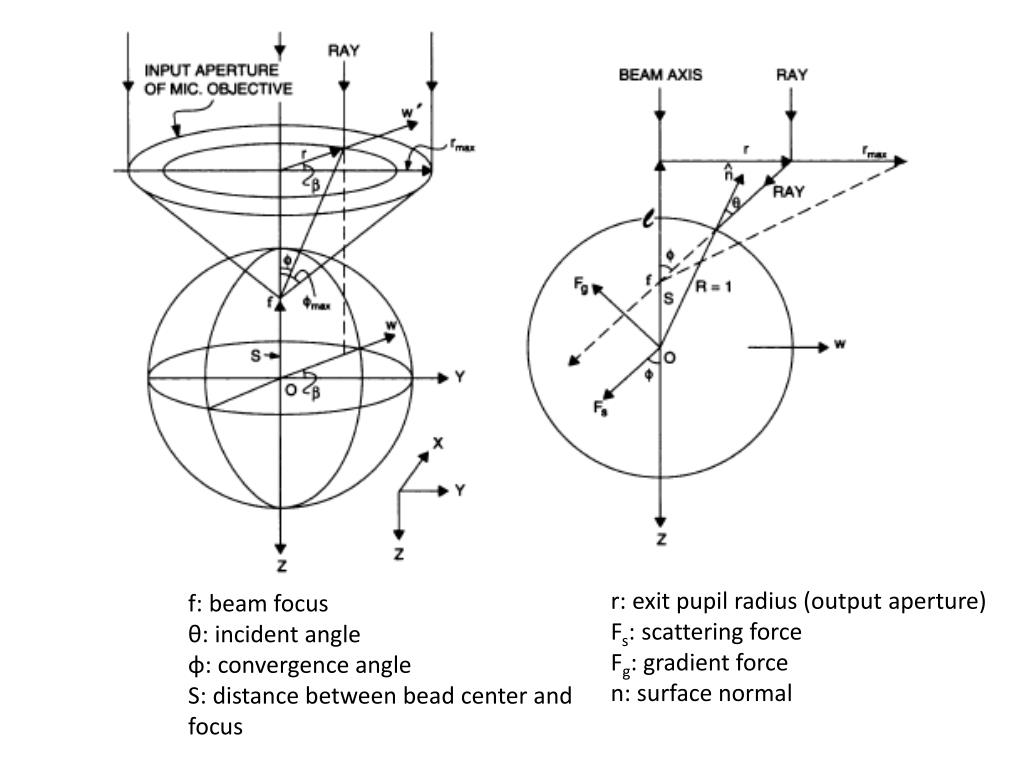

  4. r: exit pupil radius (output aperture) Fs: scattering force Fg: gradient force n: surface normal f: beam focus θ: incident angle φ: convergence angle S: distance between bead center and focus
