  1. Chapter 10:Transmission Efficiency Business Data Communications, 4e

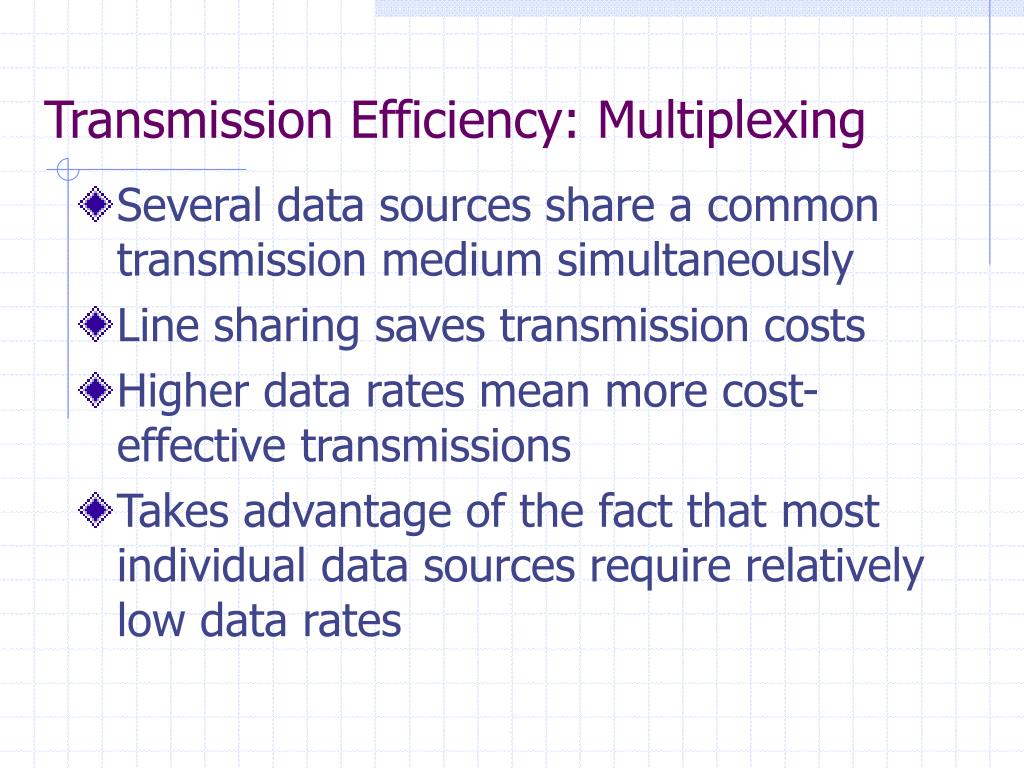

  2. Transmission Efficiency: Multiplexing • Several data sources share a common transmission medium simultaneously • Line sharing saves transmission costs • Higher data rates mean more cost-effective transmissions • Takes advantage of the fact that most individual data sources require relatively low data rates

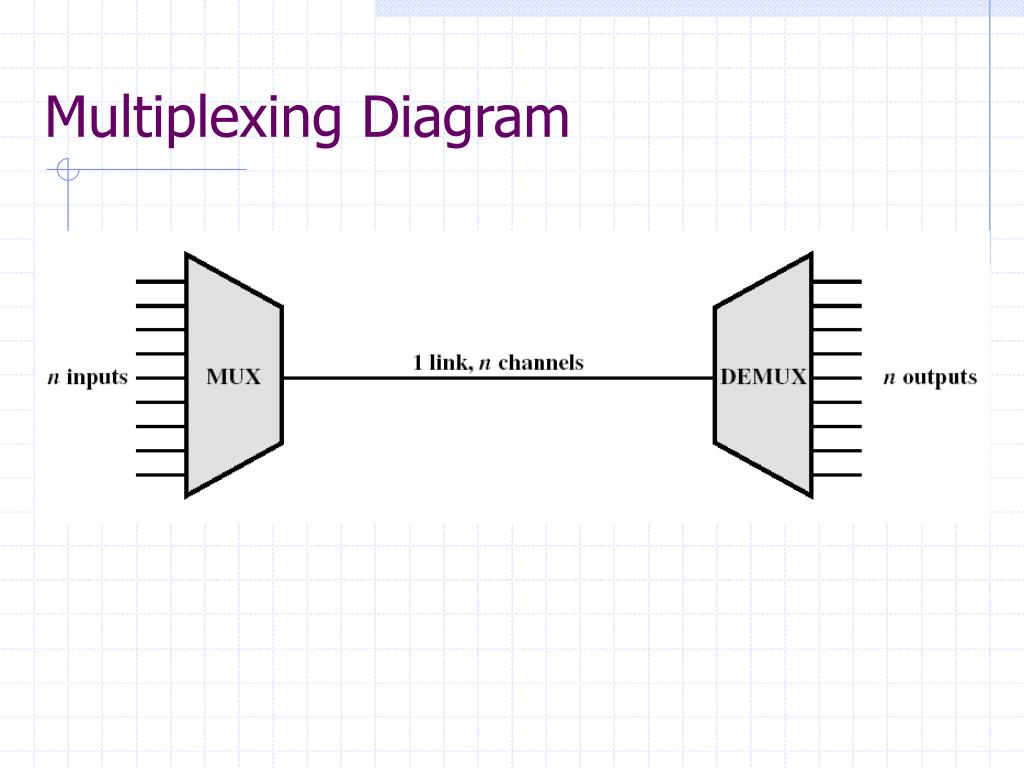

  3. Multiplexing Diagram

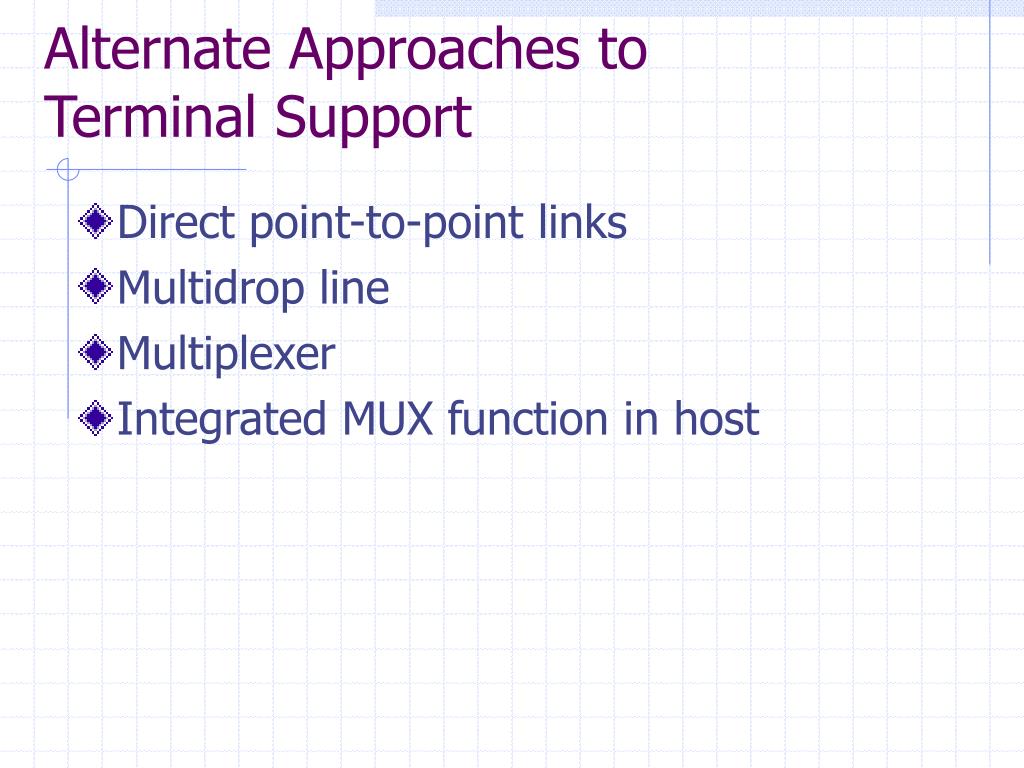

  4. Alternate Approaches to Terminal Support • Direct point-to-point links • Multidrop line • Multiplexer • Integrated MUX function in host

  5. Direct Point-to-Point

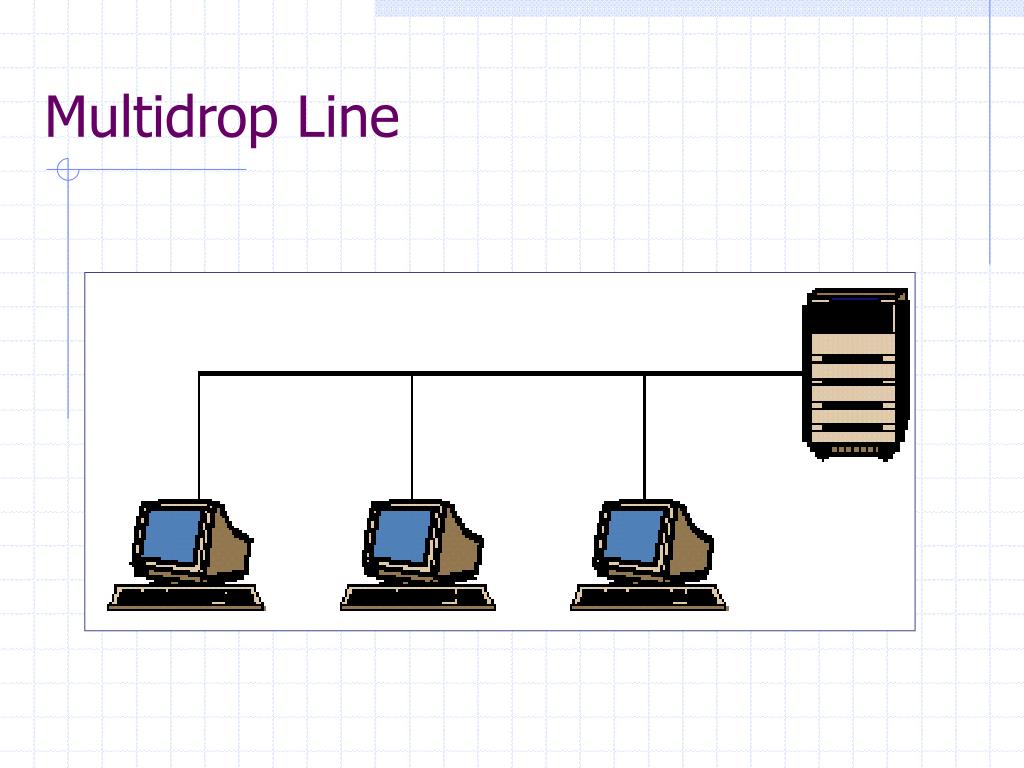

  6. Multidrop Line

  7. Multiplexer

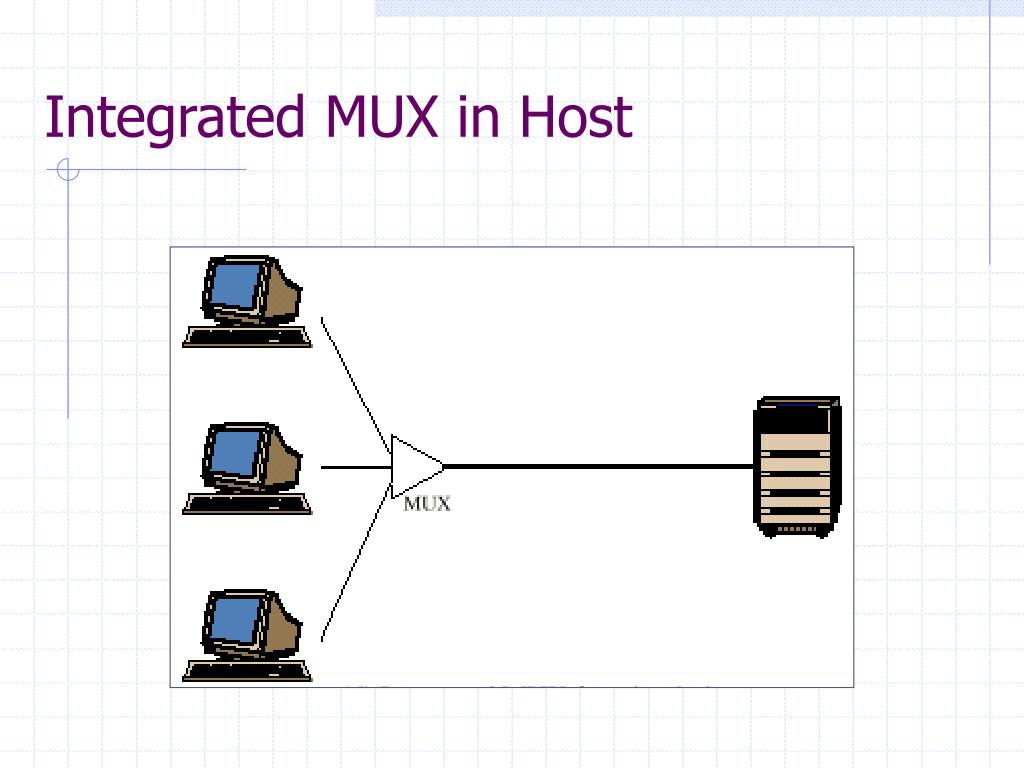

  8. Integrated MUX in Host

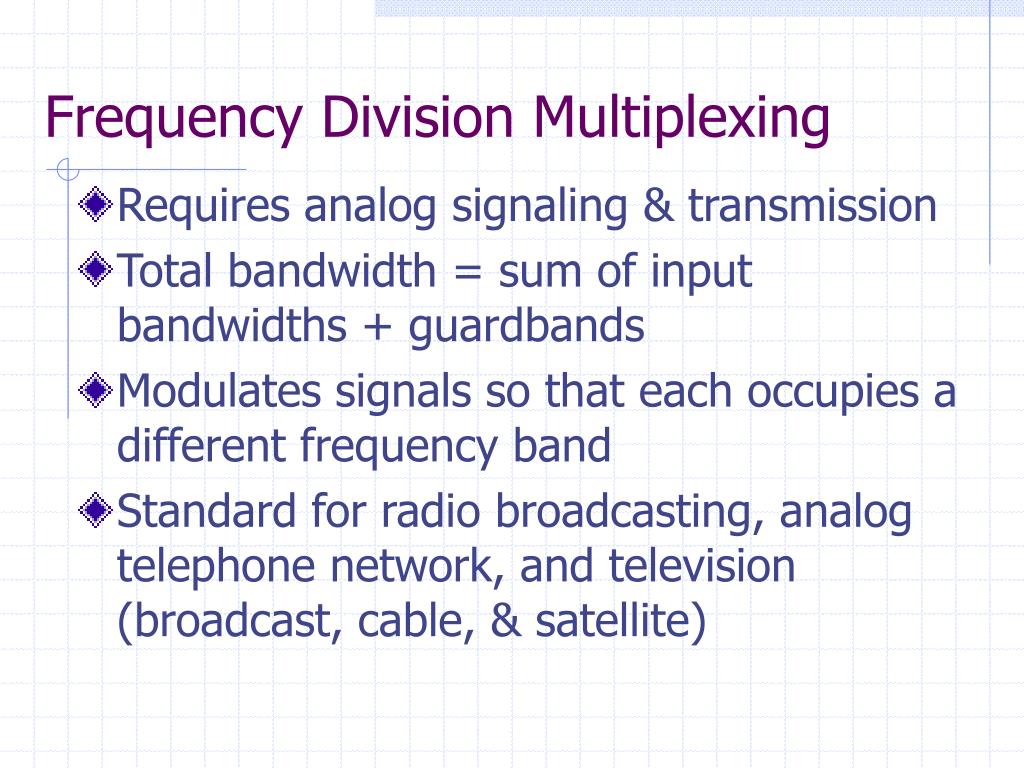

  9. Frequency Division Multiplexing • Requires analog signaling & transmission • Total bandwidth = sum of input bandwidths + guardbands • Modulates signals so that each occupies a different frequency band • Standard for radio broadcasting, analog telephone network, and television (broadcast, cable, & satellite)

  10. Frequency Division Multiplexing FDM

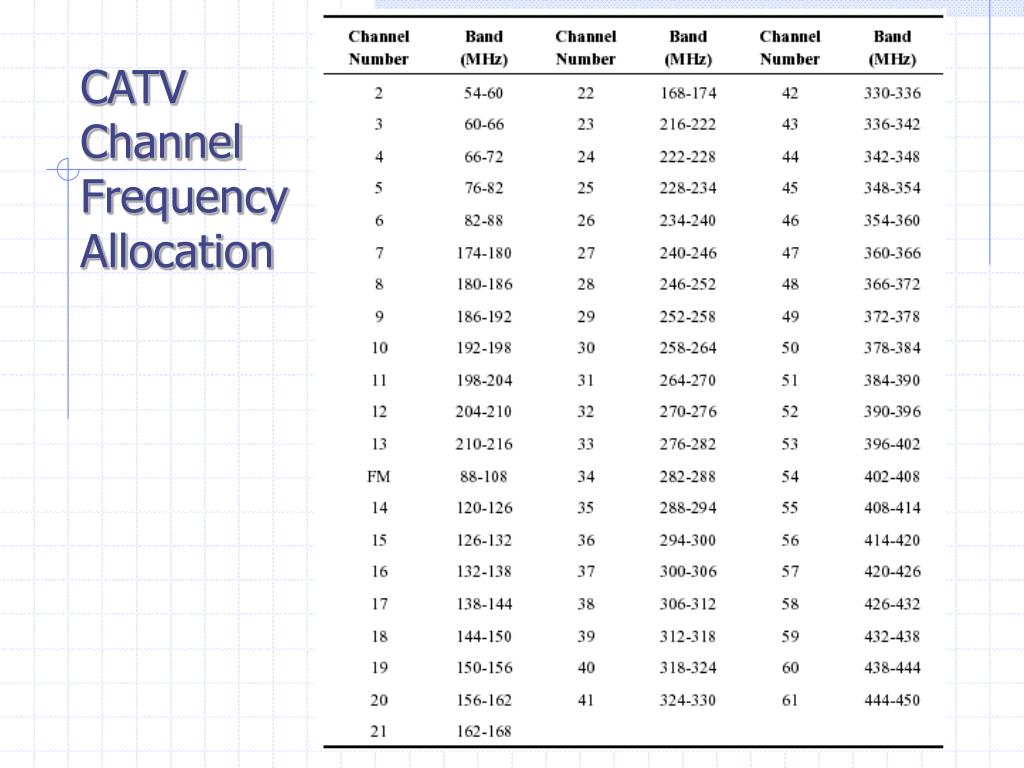

  11. CATV Channel Frequency Allocation

  12. FDM Example: ADSL • ADSL uses frequency-division modulation (FDM) to exploit the 1-MHz capacity of twisted pair. • There are three elements of the ADSL strategy • Reserve lowest 25 kHz for voice, known as POTS • Use echo cancellation or FDM to allocate a small upstream band and a larger downstream band • Use FDM within the upstream and downstream bands, using “discrete multitone”

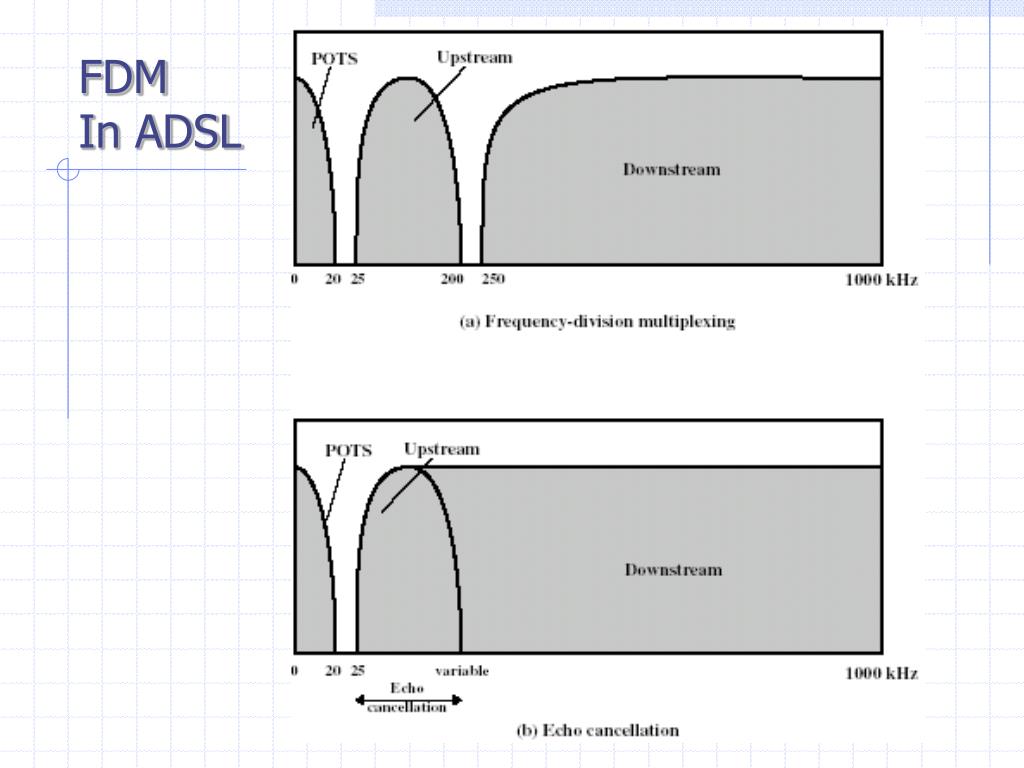

  13. FDM In ADSL

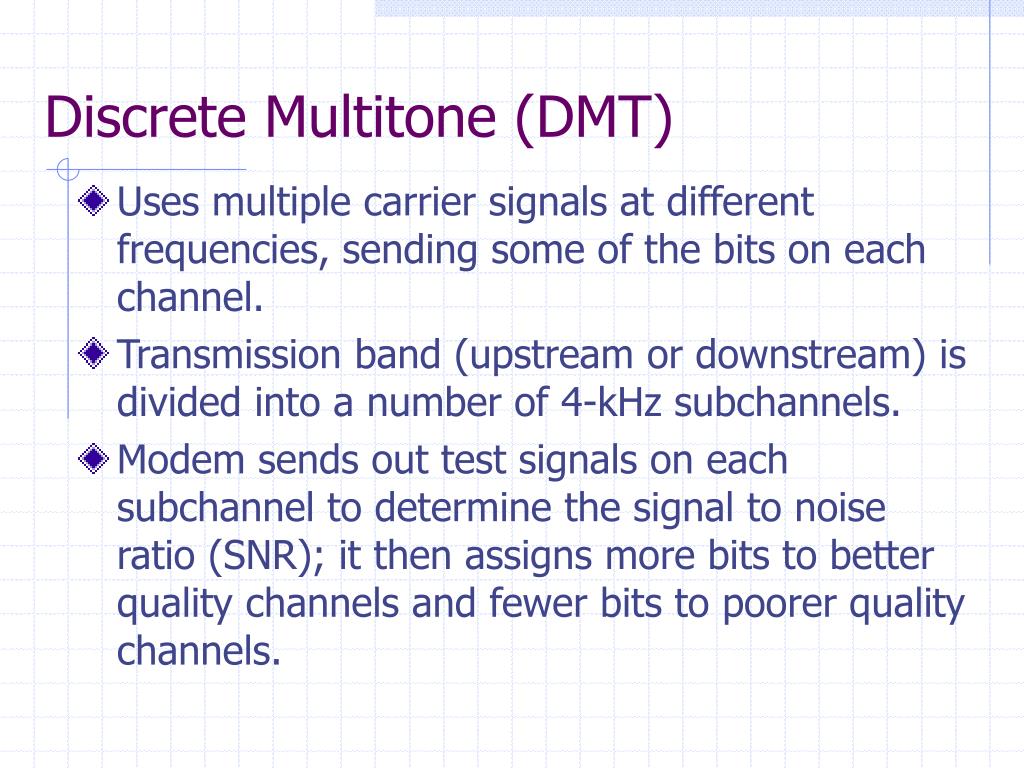

  14. Discrete Multitone (DMT) • Uses multiple carrier signals at different frequencies, sending some of the bits on each channel. • Transmission band (upstream or downstream) is divided into a number of 4-kHz subchannels. • Modem sends out test signals on each subchannel to determine the signal to noise ratio (SNR); it then assigns more bits to better quality channels and fewer bits to poorer quality channels.

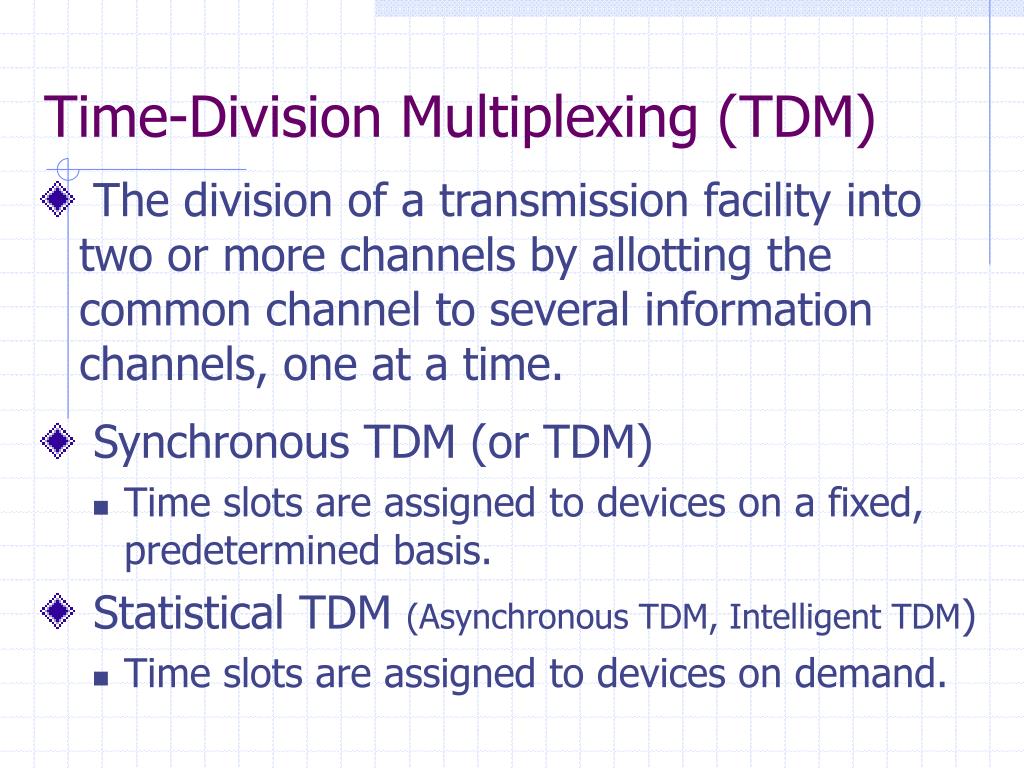

  15. Time-Division Multiplexing (TDM) • The division of a transmission facility into two or more channels by allotting the common channel to several information channels, one at a time. • Synchronous TDM (or TDM) • Time slots are assigned to devices on a fixed, predetermined basis. • Statistical TDM (Asynchronous TDM, Intelligent TDM) • Time slots are assigned to devices on demand.

  16. TDM

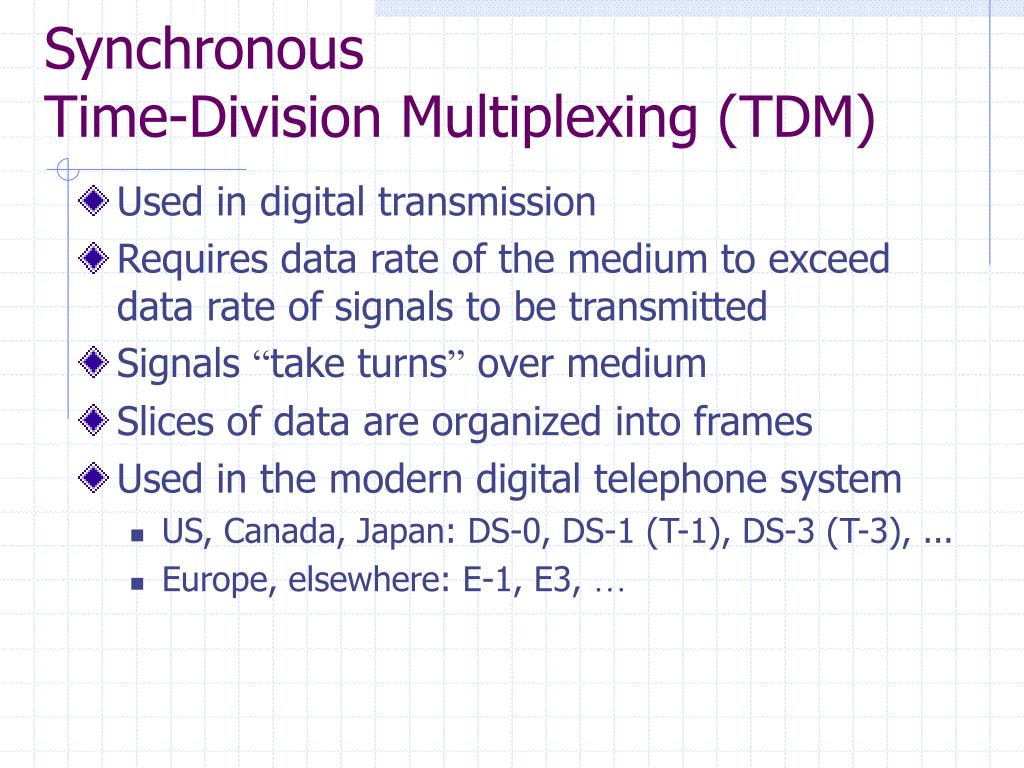

  17. SynchronousTime-Division Multiplexing (TDM) • Used in digital transmission • Requires data rate of the medium to exceed data rate of signals to be transmitted • Signals “take turns” over medium • Slices of data are organized into frames • Used in the modern digital telephone system • US, Canada, Japan: DS-0, DS-1 (T-1), DS-3 (T-3), ... • Europe, elsewhere: E-1, E3, …

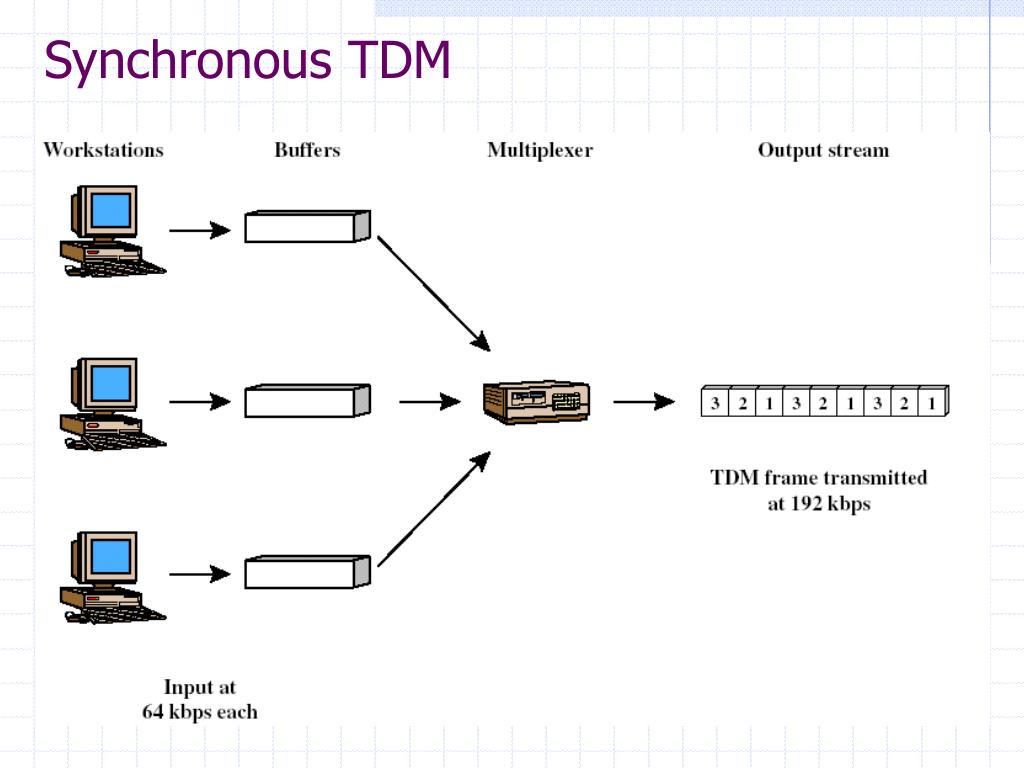

  18. Synchronous TDM

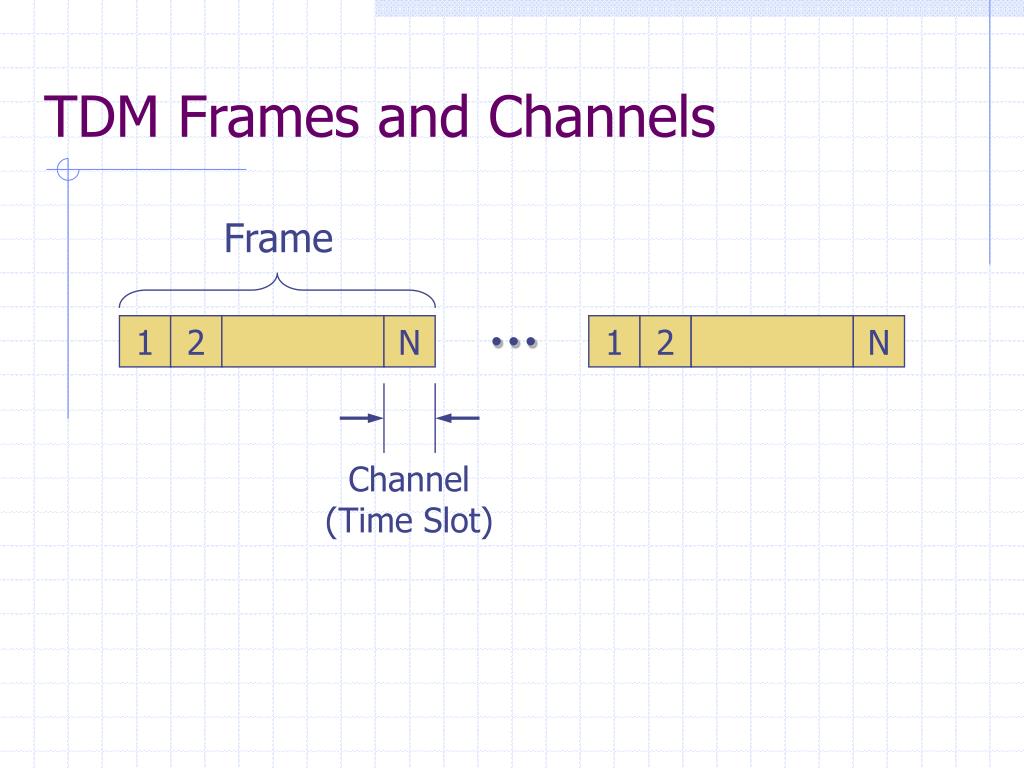

  19. 1 1 2 2 N N TDM Frames and Channels Frame … Channel (Time Slot)

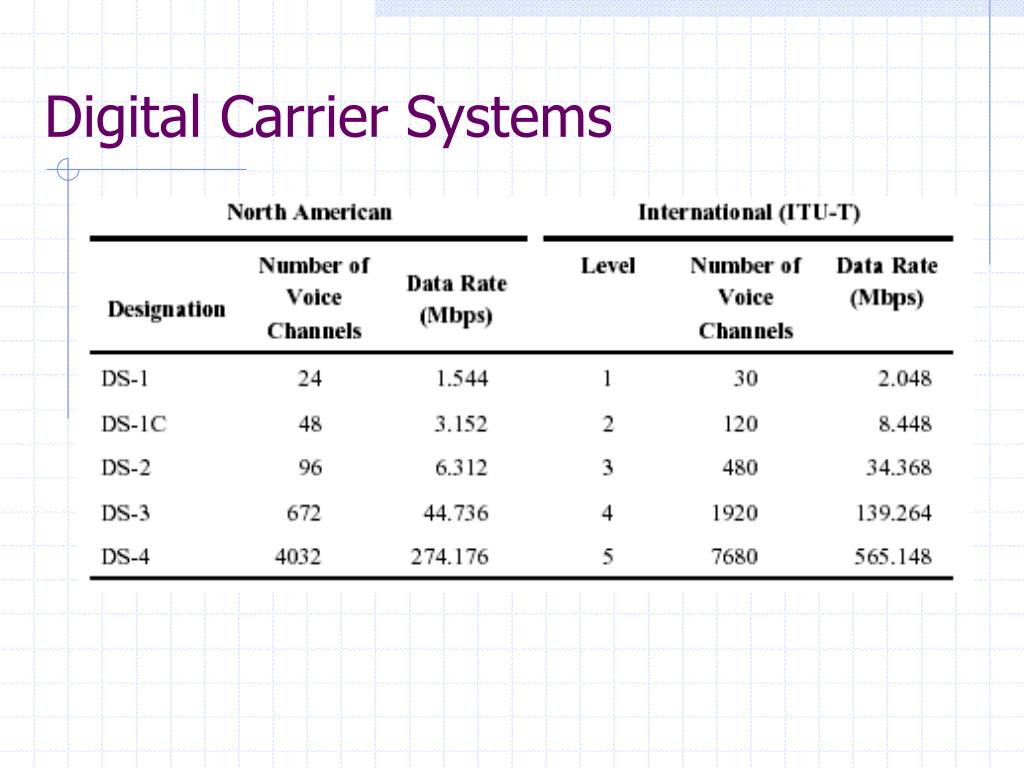

  20. Digital Carrier Systems

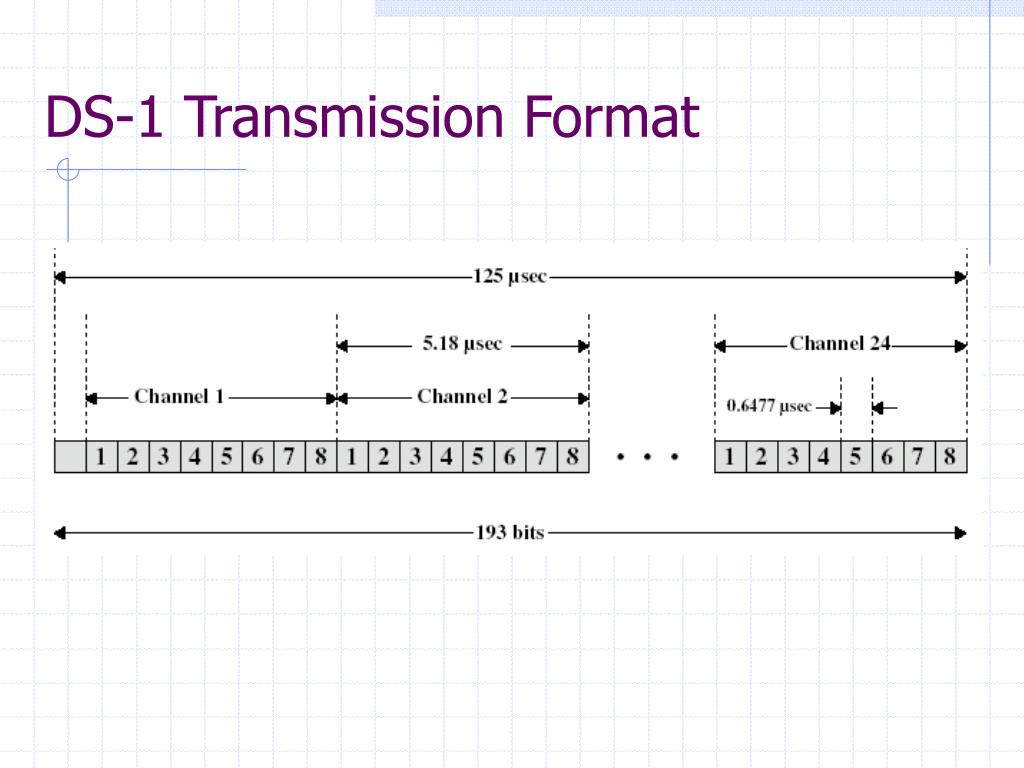

  21. DS-1 Transmission Format

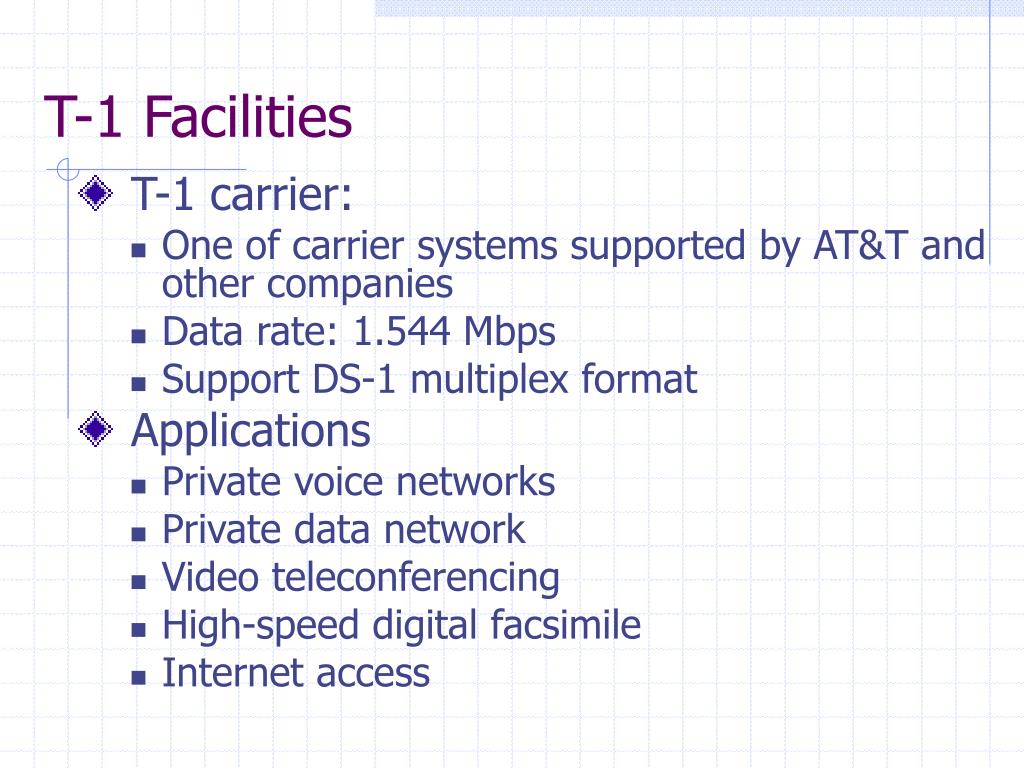

  22. T-1 Facilities • T-1 carrier: • One of carrier systems supported by AT&T and other companies • Data rate: 1.544 Mbps • Support DS-1 multiplex format • Applications • Private voice networks • Private data network • Video teleconferencing • High-speed digital facsimile • Internet access

  23. SONET/SDH • SONET (Synchronous Optical Network) is an optical transmission interface proposed by BellCore and standardized by ANSI. • Synchronous Digital Hierarchy (SDH), a compatible version, has been published by ITU-T • Specifications for taking advantage of the high-speed digital transmission capability of optical fiber.

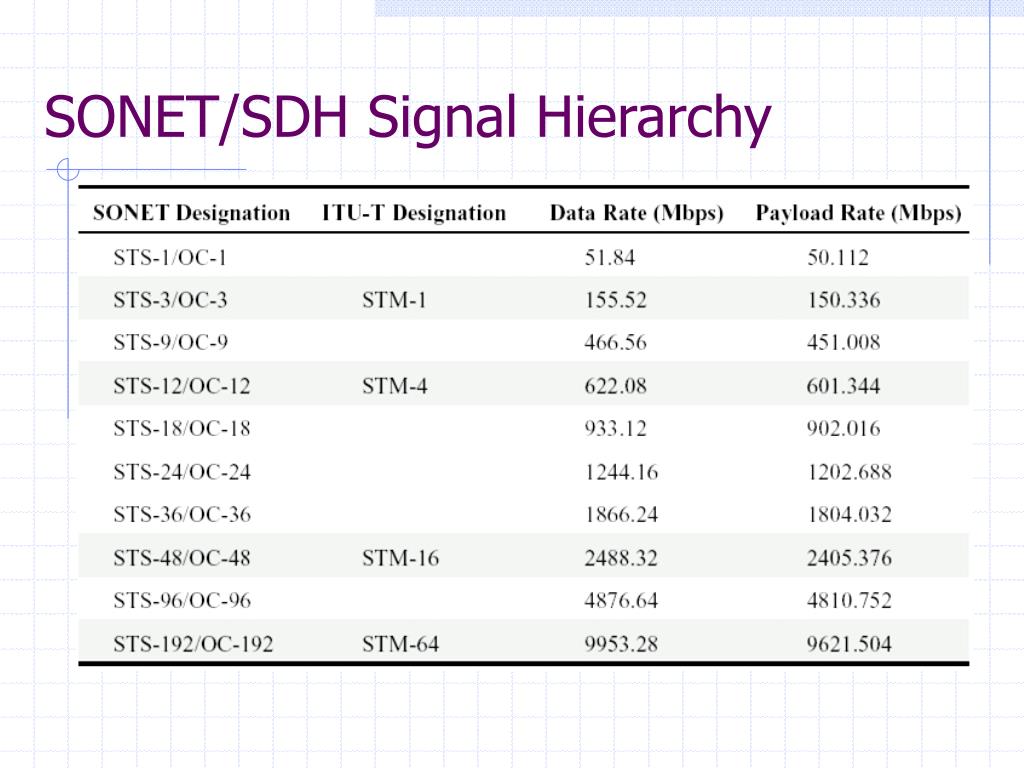

  24. SONET/SDH Signal Hierarchy

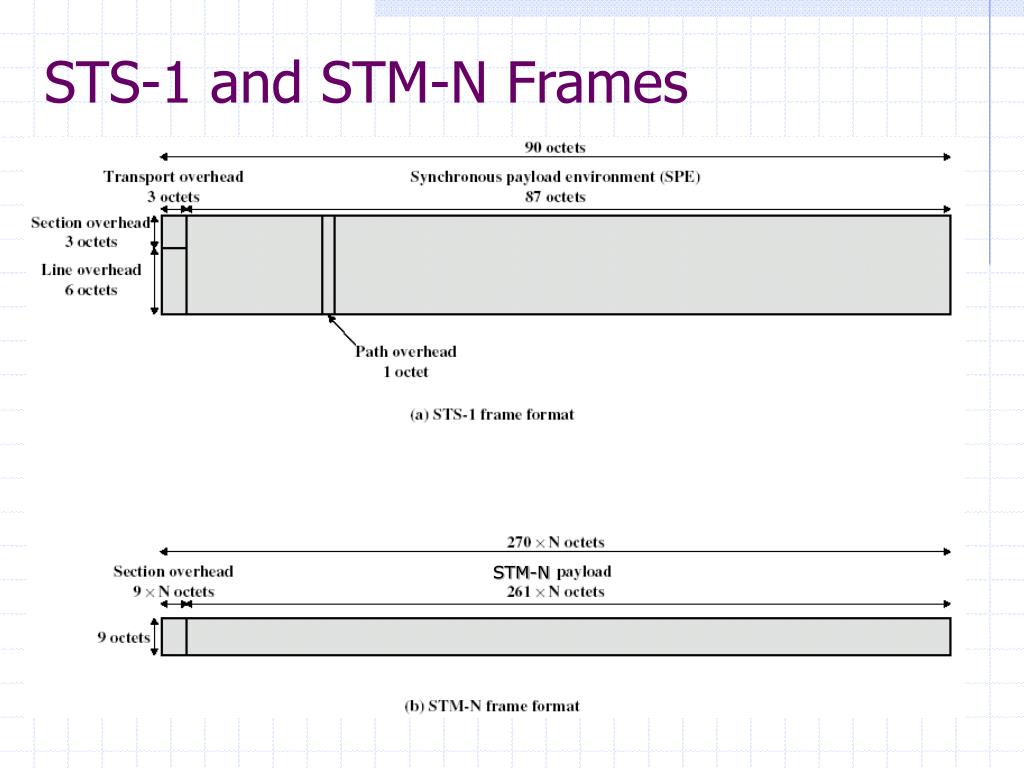

  25. STS-1 and STM-N Frames STM-N

  26. SONET STS-1 Frame Structure

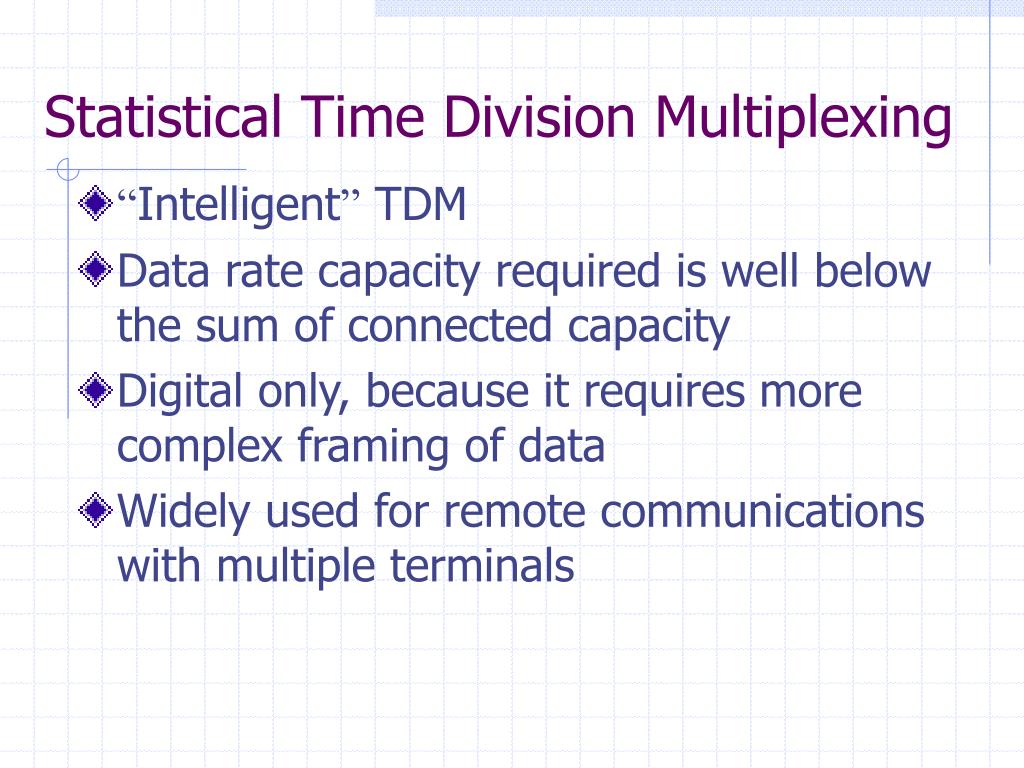

  27. Statistical Time Division Multiplexing • “Intelligent” TDM • Data rate capacity required is well below the sum of connected capacity • Digital only, because it requires more complex framing of data • Widely used for remote communications with multiple terminals

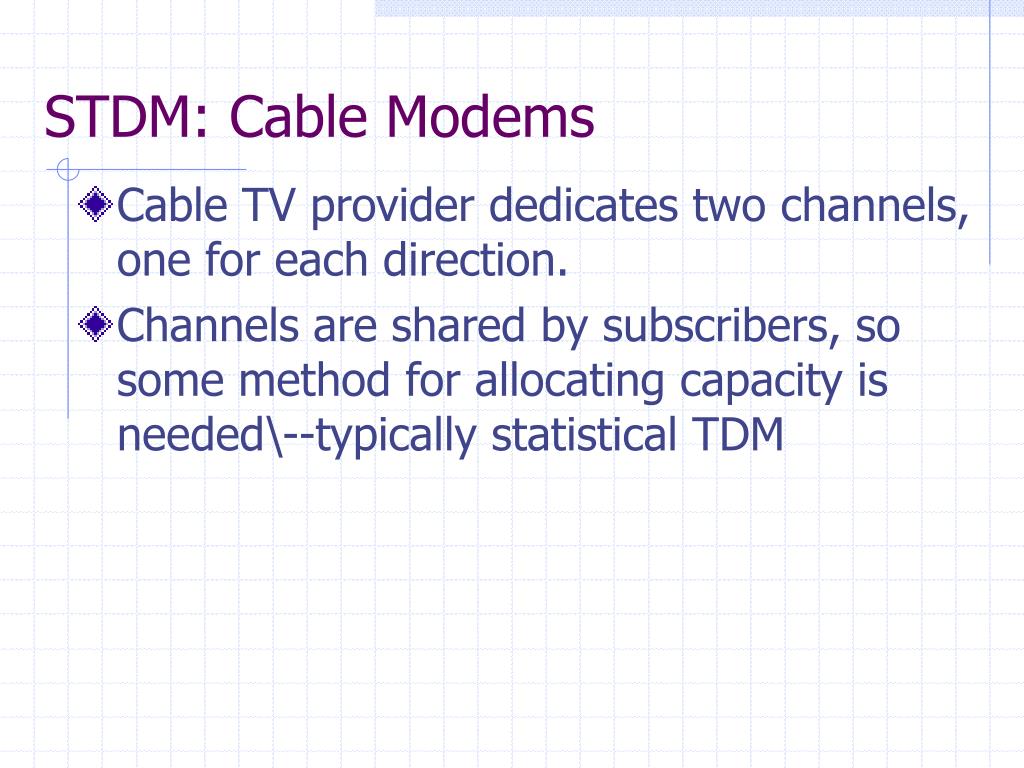

  28. STDM: Cable Modems • Cable TV provider dedicates two channels, one for each direction. • Channels are shared by subscribers, so some method for allocating capacity is needed\--typically statistical TDM

  29. Cable Modem Scheme

  30. Reduces the size of data files to move more information with fewer bits Used for transmission and for storage Combines w/ multiplexing to increase efficiency Works on the principle of eliminating redundancy Codes are substituted for compressed portions of data Lossless: reconstituted data is identical to original (ZIP, GIF) Lossy: reconstituted data is only “perceptually equivalent” (JPEG, MPEG) Transmission Efficiency: Data Compression

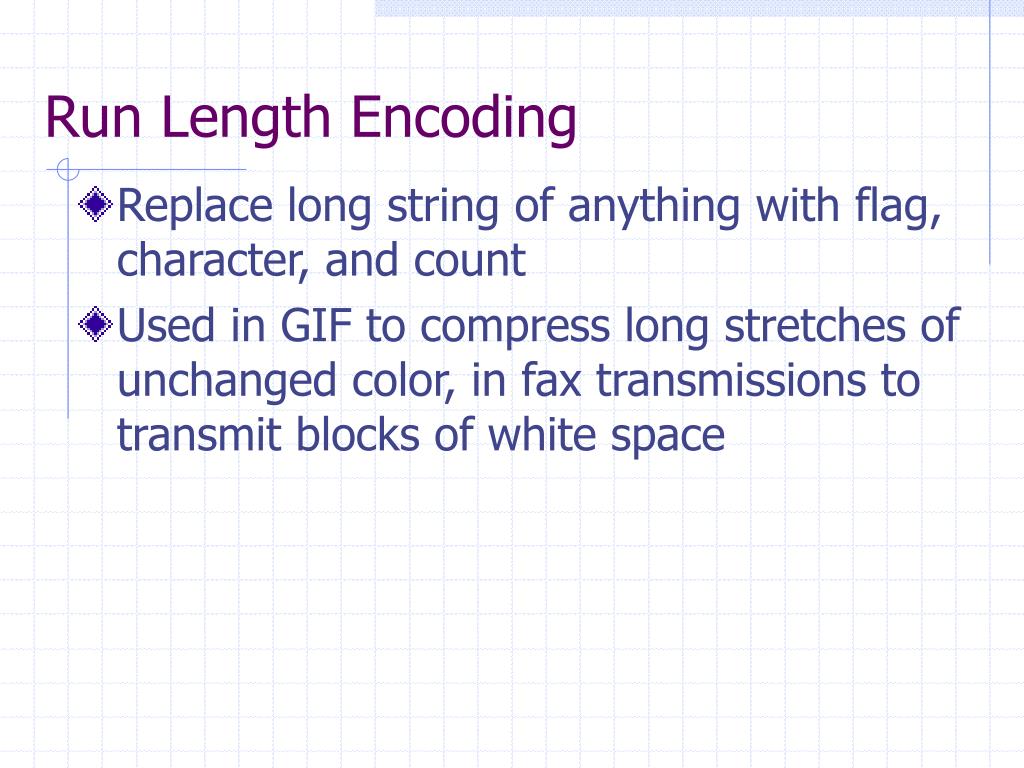

  31. Run Length Encoding • Replace long string of anything with flag, character, and count • Used in GIF to compress long stretches of unchanged color, in fax transmissions to transmit blocks of white space

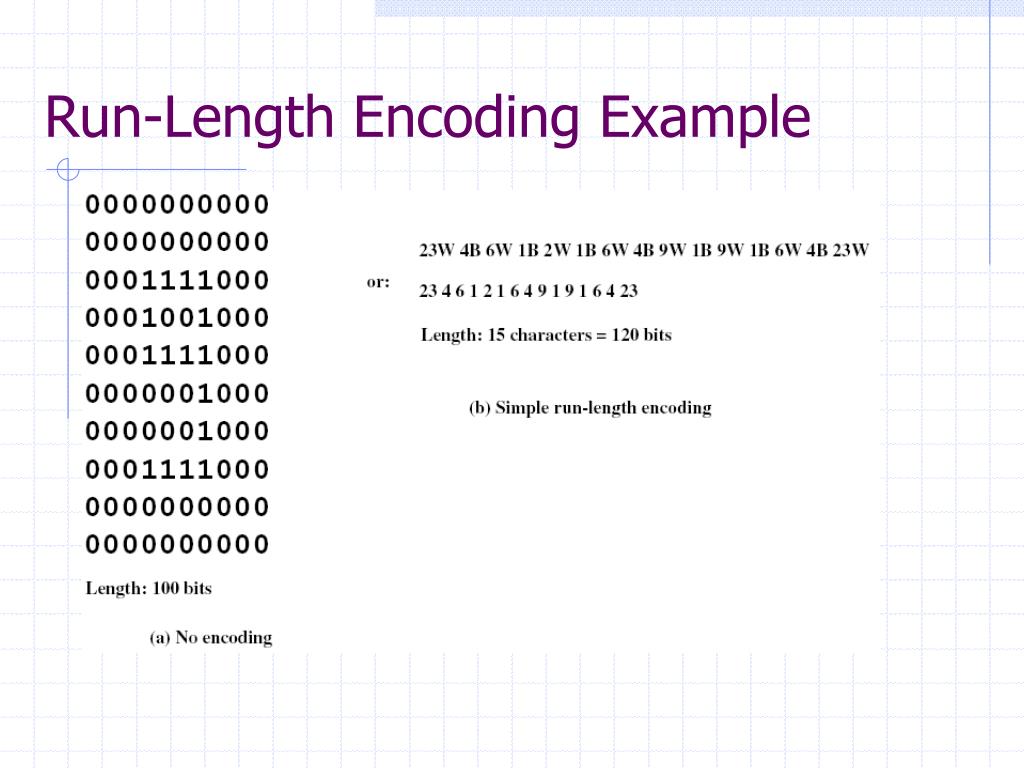

  32. Run-Length Encoding Example

  33. Huffman Encoding • Length of each character code based on statistical frequency in text • Tree-based dictionary of characters • Encoding is the string of symbols on each branch followed. String Encoding TEA 10 00 010 SEA 011 00 010 TEN 10 00 110

  34. Lempel-Ziv Encoding • Used in V.42 bis, ZIP • buffer strings at transmitter and receiver • replace strings with pointer to location of previous occurrence • algorithm creates a tree-based dictionary of character strings

  35. Lempel-Ziv Example

  36. http://www.data-compression.com/lempelziv.html Dictionary

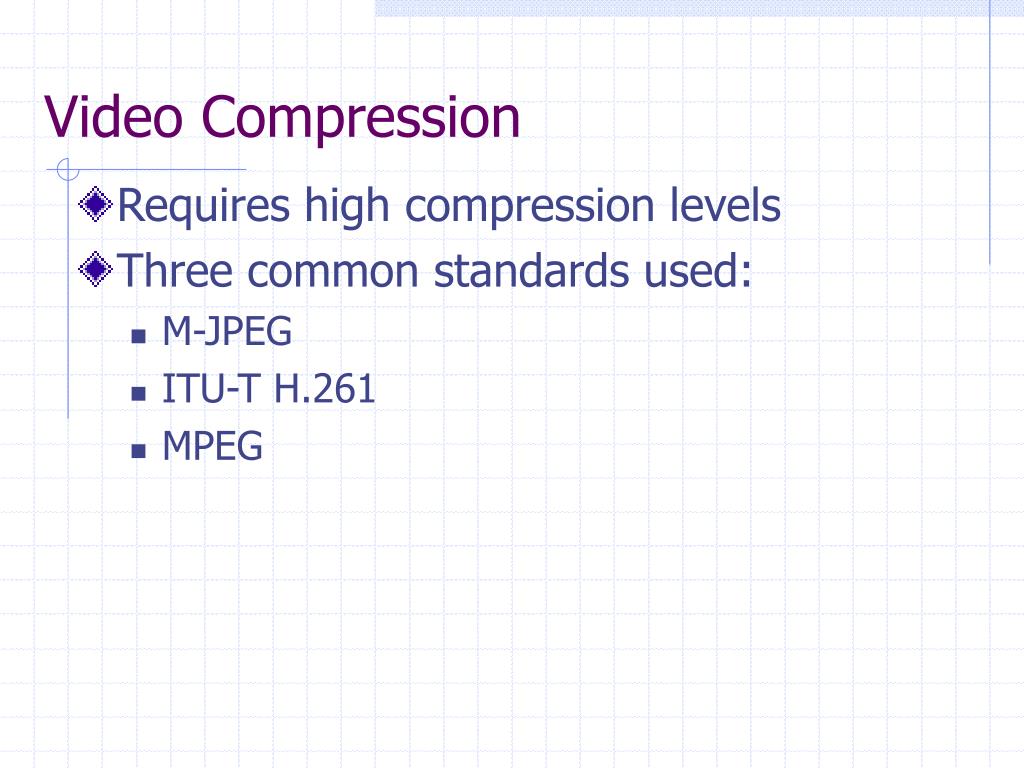

  37. Video Compression • Requires high compression levels • Three common standards used: • M-JPEG • ITU-T H.261 • MPEG

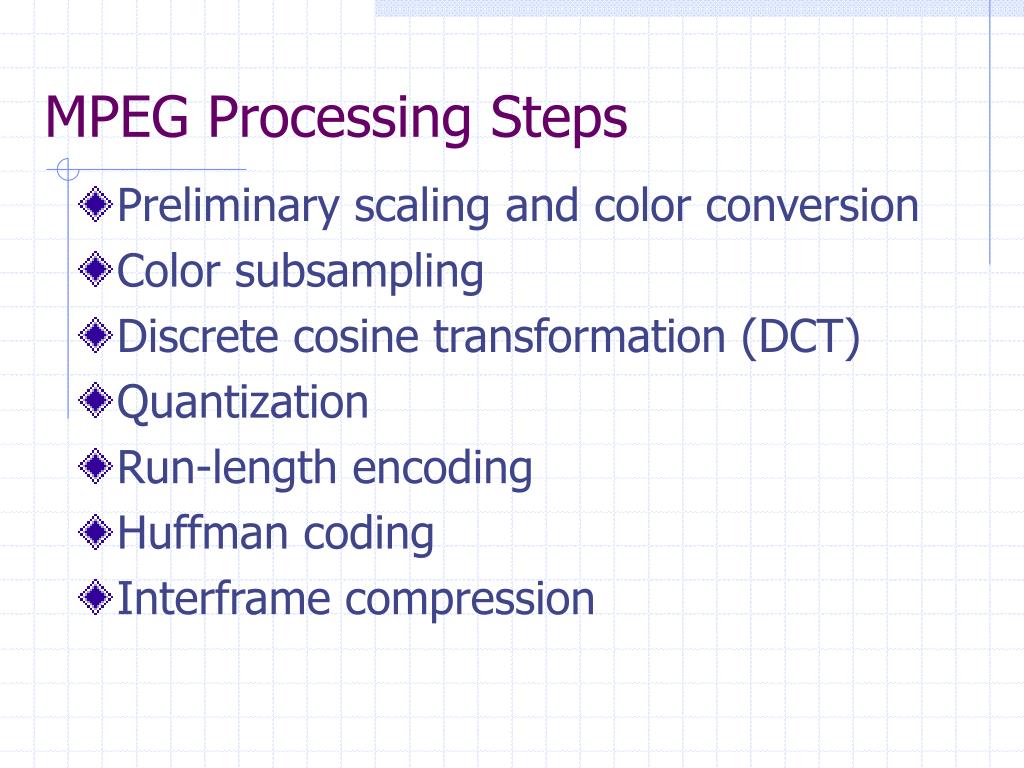

  38. MPEG Processing Steps • Preliminary scaling and color conversion • Color subsampling • Discrete cosine transformation (DCT) • Quantization • Run-length encoding • Huffman coding • Interframe compression
