slide1

IN-SITU CHEMICAL OXIDATION USING JETTING DELIVERY TECHNOLOGY

Environmental Bio-Systems, Inc.

Jim Jacobs, RG, REA, CHG

Environmental Bio-Systems, Inc.

overview of compounds that can be oxidized

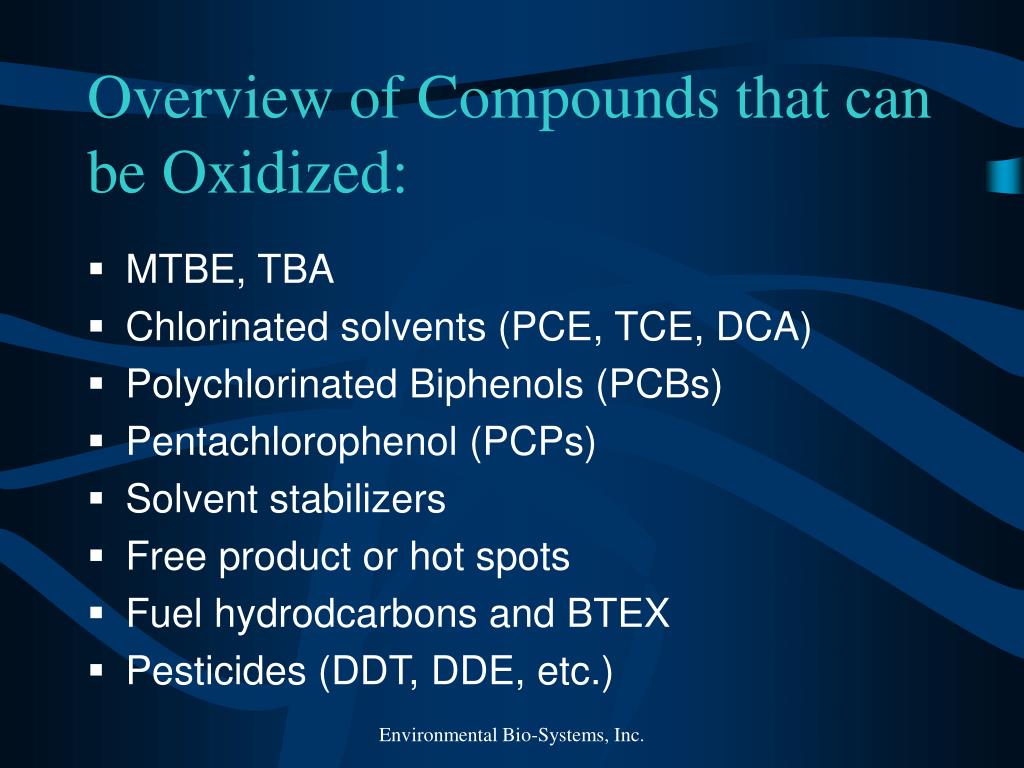

Overview of Compounds that can be Oxidized:
  • MTBE, TBA
  • Chlorinated solvents (PCE, TCE, DCA)
  • Polychlorinated Biphenols (PCBs)
  • Pentachlorophenol (PCPs)
  • Solvent stabilizers
  • Free product or hot spots
  • Fuel hydrodcarbons and BTEX
  • Pesticides (DDT, DDE, etc.)

Environmental Bio-Systems, Inc.

chemical oxidation

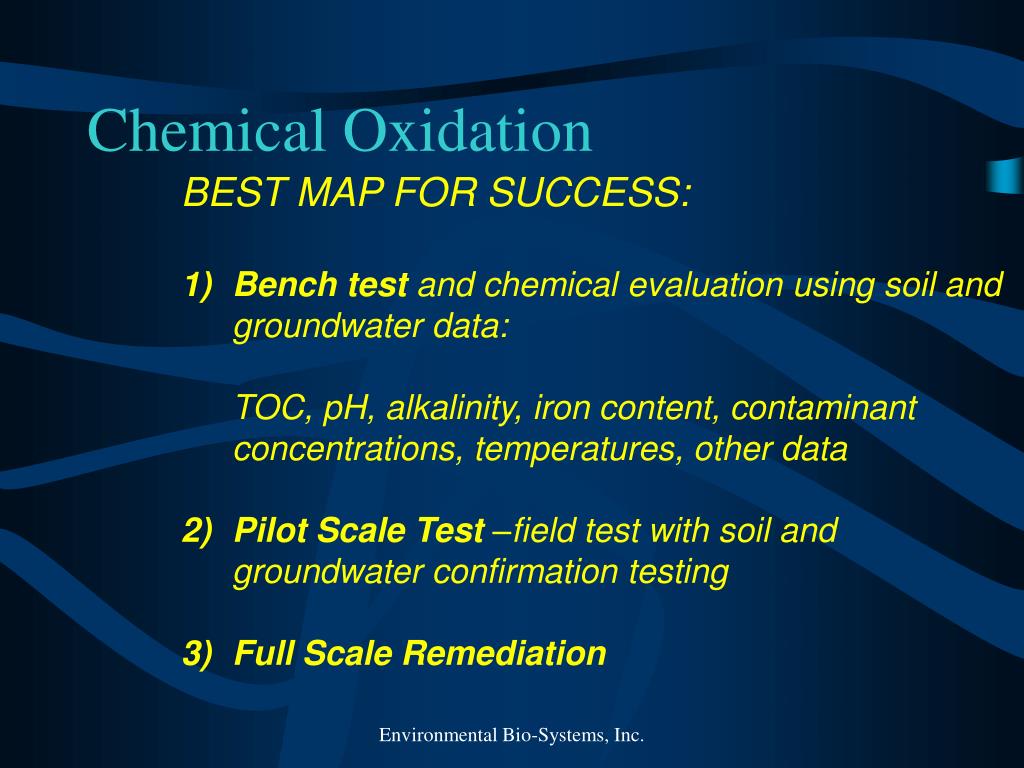

Chemical Oxidation
  • BEST MAP FOR SUCCESS:
  • Bench test and chemical evaluation using soil and
  • groundwater data:
  • TOC, pH, alkalinity, iron content, contaminant
  • concentrations, temperatures, other data
  • Pilot Scale Test –field test with soil and
  • groundwater confirmation testing
  • 3) Full Scale Remediation

Environmental Bio-Systems, Inc.

selected remediation case studies

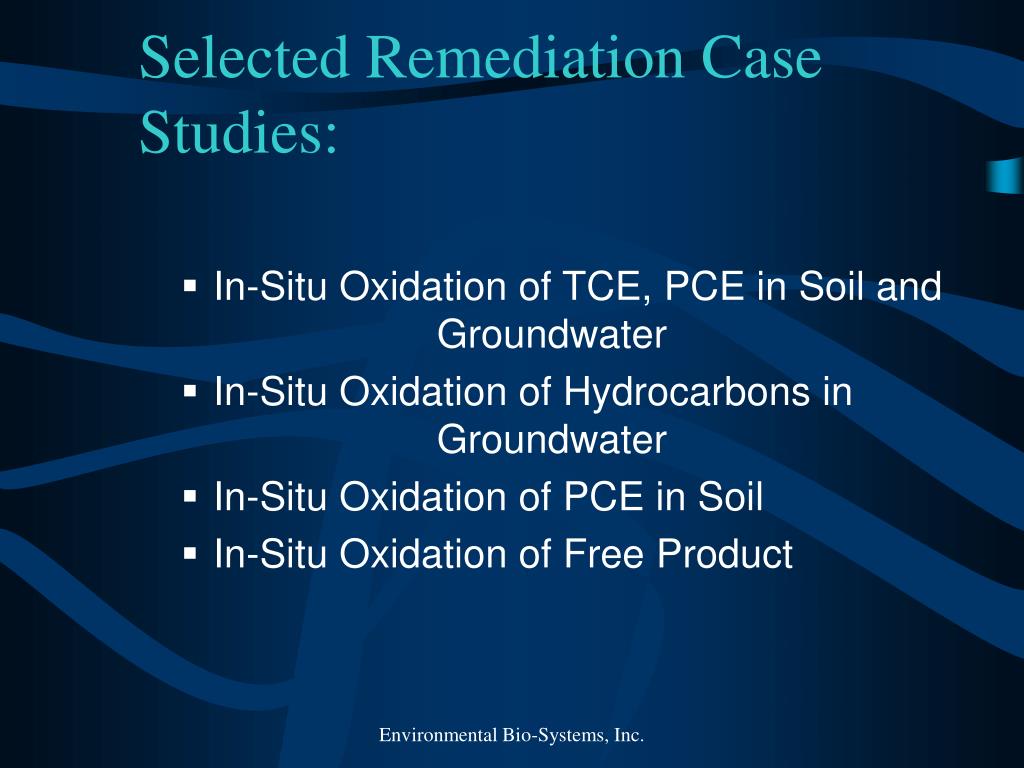

Selected Remediation Case Studies:
  • In-Situ Oxidation of TCE, PCE in Soil and Groundwater
  • In-Situ Oxidation of Hydrocarbons in Groundwater
  • In-Situ Oxidation of PCE in Soil
  • In-Situ Oxidation of Free Product

Environmental Bio-Systems, Inc.

rip case study 1

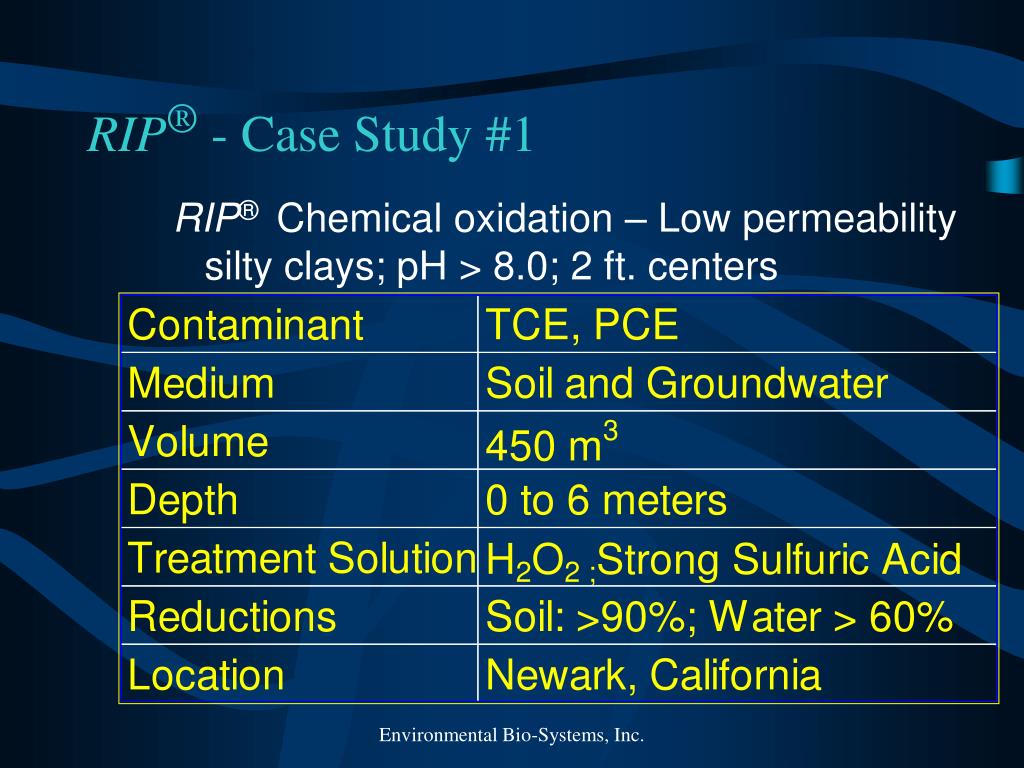

RIP® - Case Study #1

RIP® Chemical oxidation – Low permeability silty clays; pH > 8.0; 2 ft. centers

Environmental Bio-Systems, Inc.

rip case study 1 details

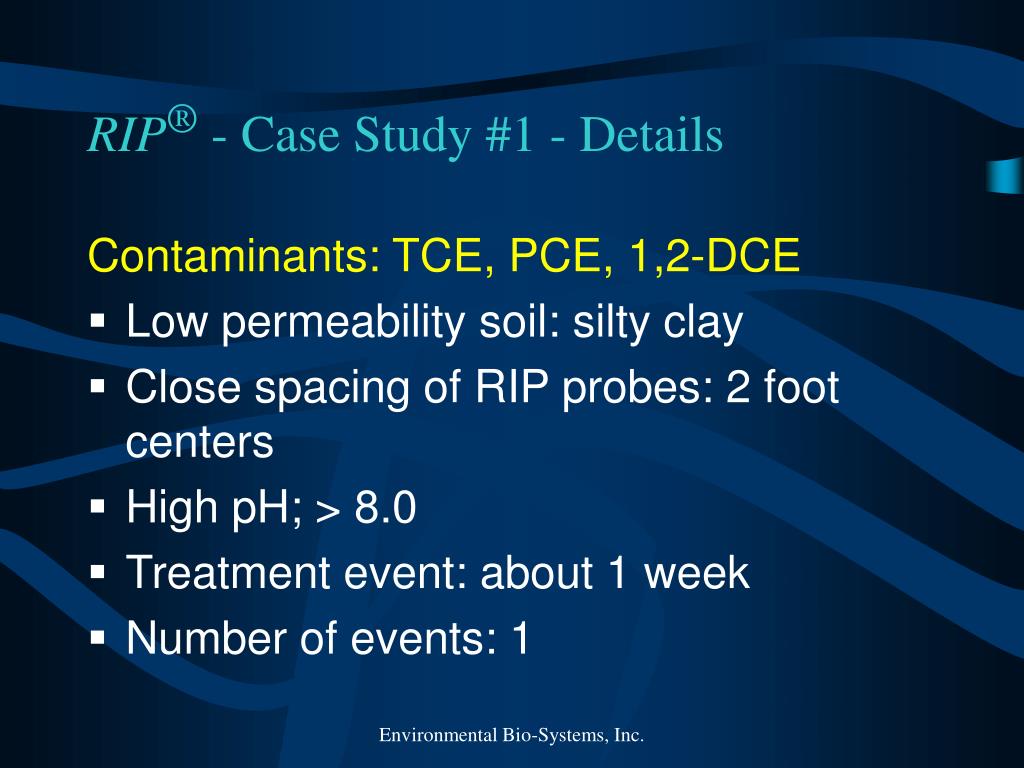

RIP® - Case Study #1 - Details

Contaminants: TCE, PCE, 1,2-DCE

  • Low permeability soil: silty clay
  • Close spacing of RIP probes: 2 foot centers
  • High pH; > 8.0
  • Treatment event: about 1 week
  • Number of events: 1

Environmental Bio-Systems, Inc.

rip case study 11

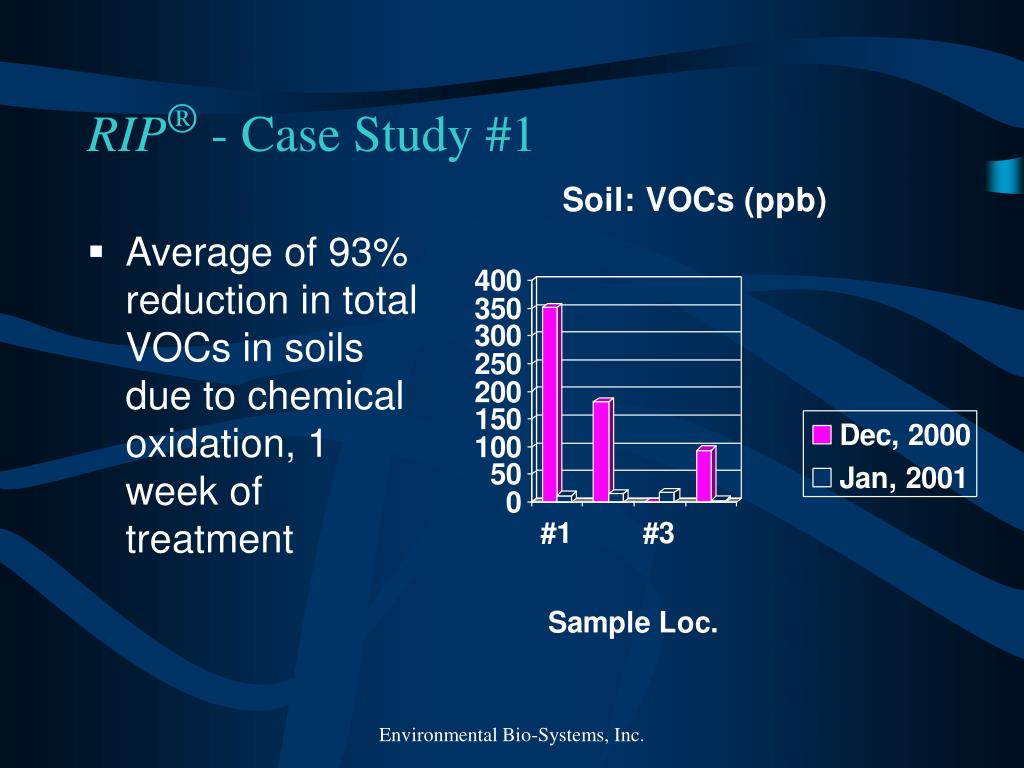

RIP® - Case Study #1
  • Average of 93% reduction in total VOCs in soils due to chemical oxidation, 1 week of treatment

Environmental Bio-Systems, Inc.

rip case study 12
RIP® - Case Study #1
  • Average of 61% reduction in groundwater based on 1 treatment event

Environmental Bio-Systems, Inc.

rip case study 2

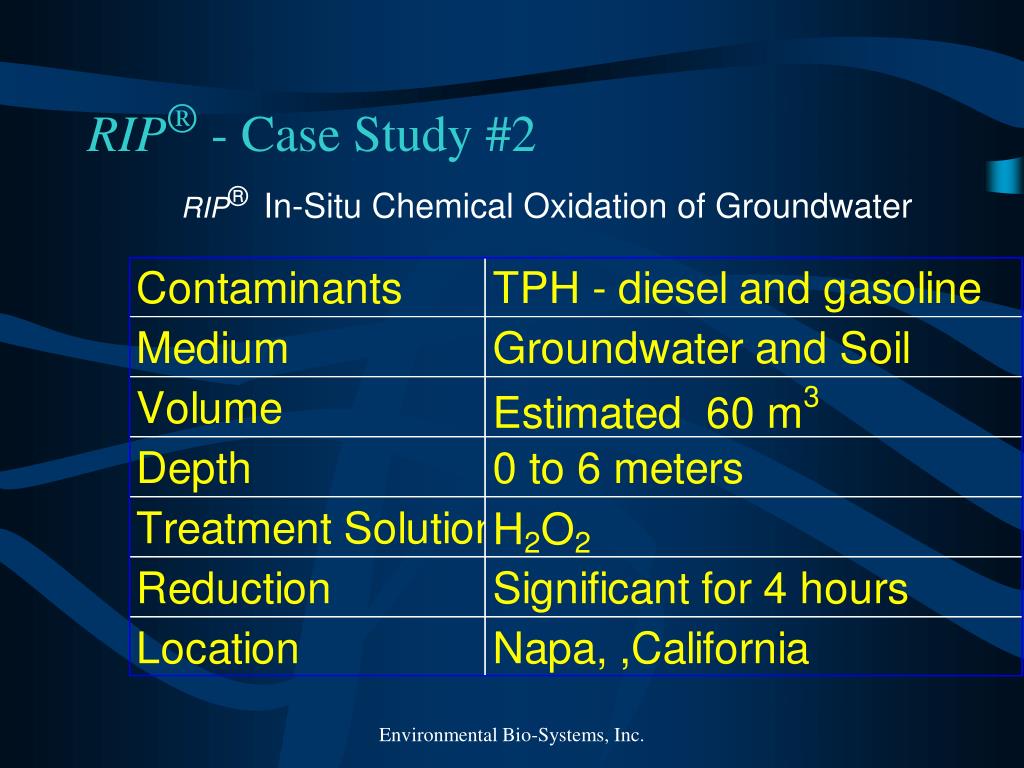

RIP® - Case Study #2

RIP®In-Situ Chemical Oxidation of Groundwater

Environmental Bio-Systems, Inc.

rip case study 21

x

x

x

x

x

x

x

x

x

x

x

x

x

x

x

x

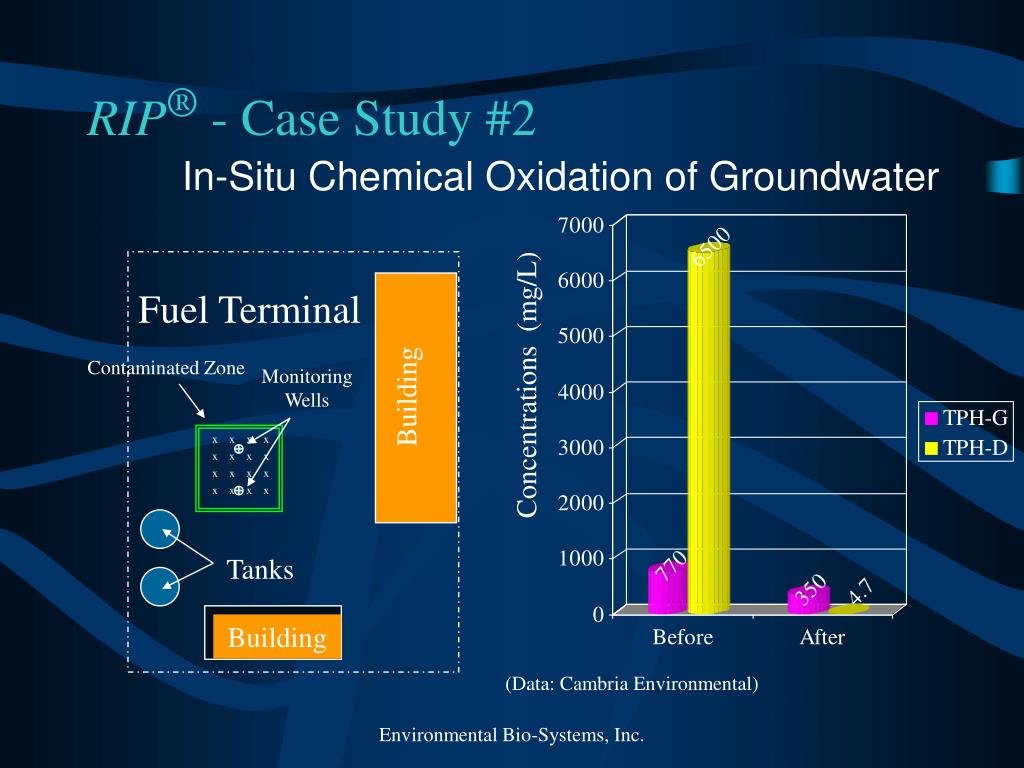

RIP® - Case Study #2

In-Situ Chemical Oxidation of Groundwater

Fuel Terminal

Contaminated Zone

Monitoring Wells

Concentrations (mg/L)

Building

Tanks

Building

(Data: Cambria Environmental)

Environmental Bio-Systems, Inc.

rip case study 3
RIP® - Case Study #3

In-Situ Chemical Oxidation of Soil with PCE

Environmental Bio-Systems, Inc.

rip case study 31

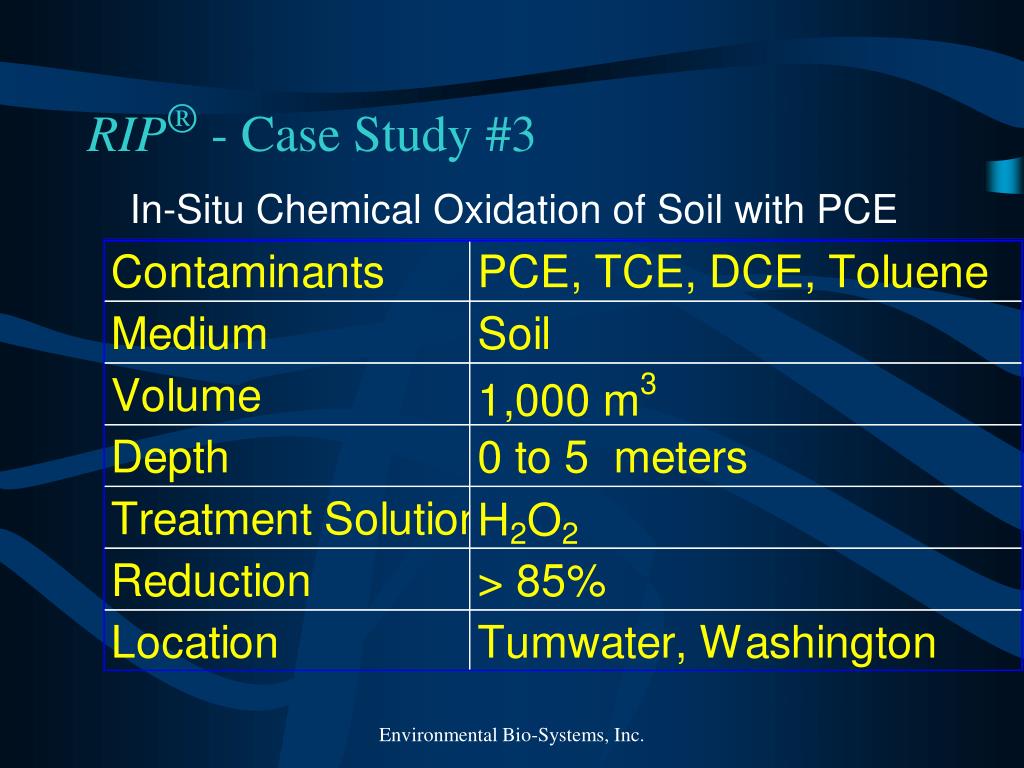

RIP PROJECTRIP® - Case Study #3

In-Situ Chemical Oxidation of Soil with PCE

* US EPA Residential PRG; (Data MFG, Inc)

Environmental Bio-Systems, Inc.

rip case study 4
RIP® - Case Study #4

In-Situ Oxidation of 1.5 cm of Free Product

RIP PROJECT

Environmental Bio-Systems, Inc.

rip case study 41
RIP ® – Case Study #4

In-Situ Oxidation of 1.5 cm of Diesel in Groundwater

(Data: SECOR International)

Environmental Bio-Systems, Inc.

in situ soil washing using surfactants

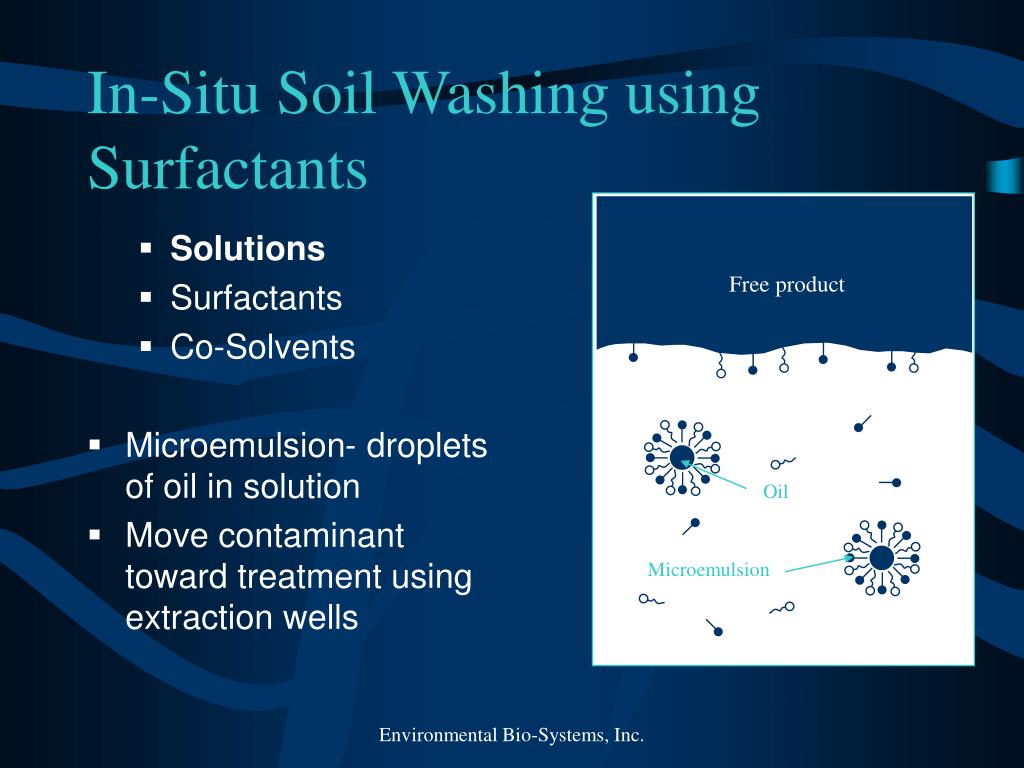

In-Situ Soil Washing using Surfactants
    • Solutions
    • Surfactants
    • Co-Solvents
  • Microemulsion- droplets of oil in solution
  • Move contaminant toward treatment using extraction wells

Free product

Oil

Microemulsion

Environmental Bio-Systems, Inc.

in situ soil washing using surfactants1

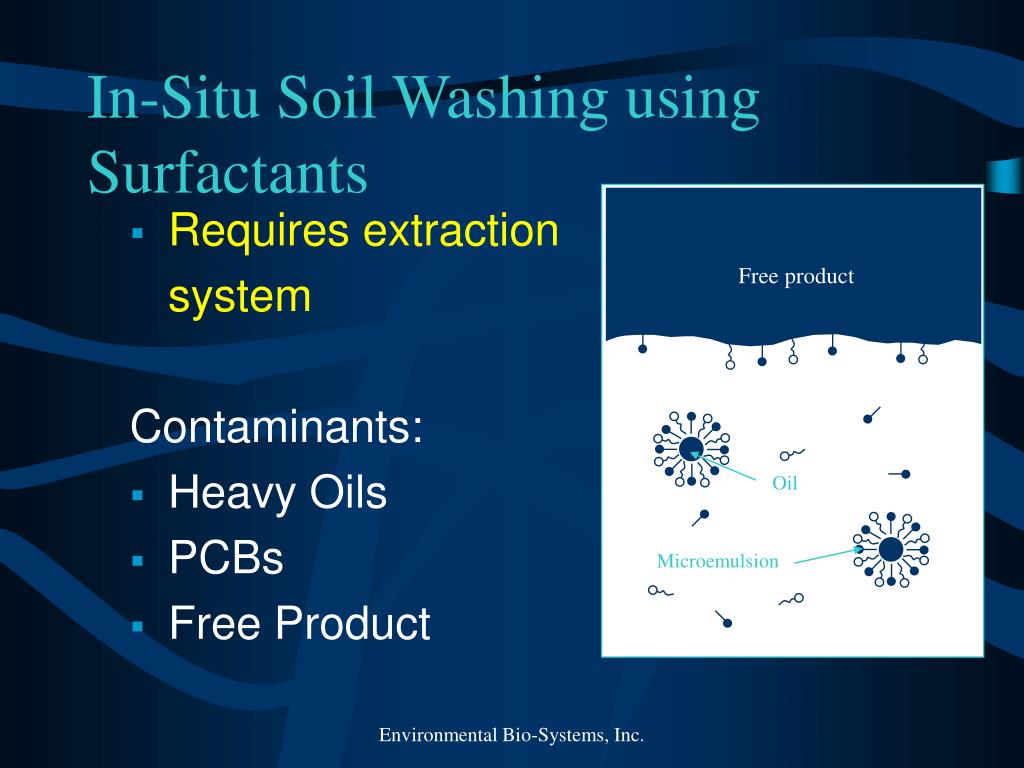

In-Situ Soil Washing using Surfactants
  • Requires extraction

system

Contaminants:

  • Heavy Oils
  • PCBs
  • Free Product

Free product

Oil

Microemulsion

Environmental Bio-Systems, Inc.

environmental bio systems inc www ebsinfo com

Environmental Bio-Systems, Inc.www.EBSinfo.com

QUESTIONS….

James A. Jacobs, RG, REA, CHG

Tel: 415-381-5195 Fax: 415-381-5816

Email:augerpro@sbcglobal.net
