  1. Synthesizing and Testing LEON on ADM-XRC Anup Gangwar Embedded Systems Group Department of Computer Science & Engineering IIT Delhi

  2. Presentation Outline • Introduction • LEON processor architecture and development toolkit • ADM-XRC board architecture • Why it took so long? • Interfacing ZBT SRAM • Building external hardware interface • Booting LEON • From here • Acknowledgements

  3. Introduction • What is LEON? • A Sparc V8 compliant soft processor core • No support for paging • Has been synthesized and tested on many FPGA platforms • Mainly written by Jiri Gaisler at European Space Agency • Supporting toolkit (compiler, assembler, simulator) available • RTEMS successfully ported to LEON with support for n/w interface • How is this relevant to our work? • Real performance/cost nos. give valuable feedback to our tools • Prototyping adds credibility to our work • System design experience lets us identify new problems • Working demonstrations help motivate new people

  4. Presentation Outline • Introduction • LEON processor architecture and development toolkit • ADM-XRC board architecture • Why it took so long? • Interfacing ZBT SRAM • Building external hardware interface • Booting LEON • From here • Acknowledgements

  5. The LEON Processor Architecture FPU LEON IU PCI Co-Proc AHB Controller I-Cache D-Cache User I/O AMBA AHB AHB/APB Bridge Timers/UARTs/ I/O Ctrl/IRQ Ctrl Memory Controller AMBA APB PROM/RAM/ I/O

  6. LEON Development Tools Suite C-Code RTEMS Library GCC - Ported GNU Cross Compiler System TSIM - LEON Functional Simulator Modify C Code N Performance and Functionality Okay? Y ObjCopy - Ported GNU Binutils System SREC File - Containing Stripped Relocatable Symbols

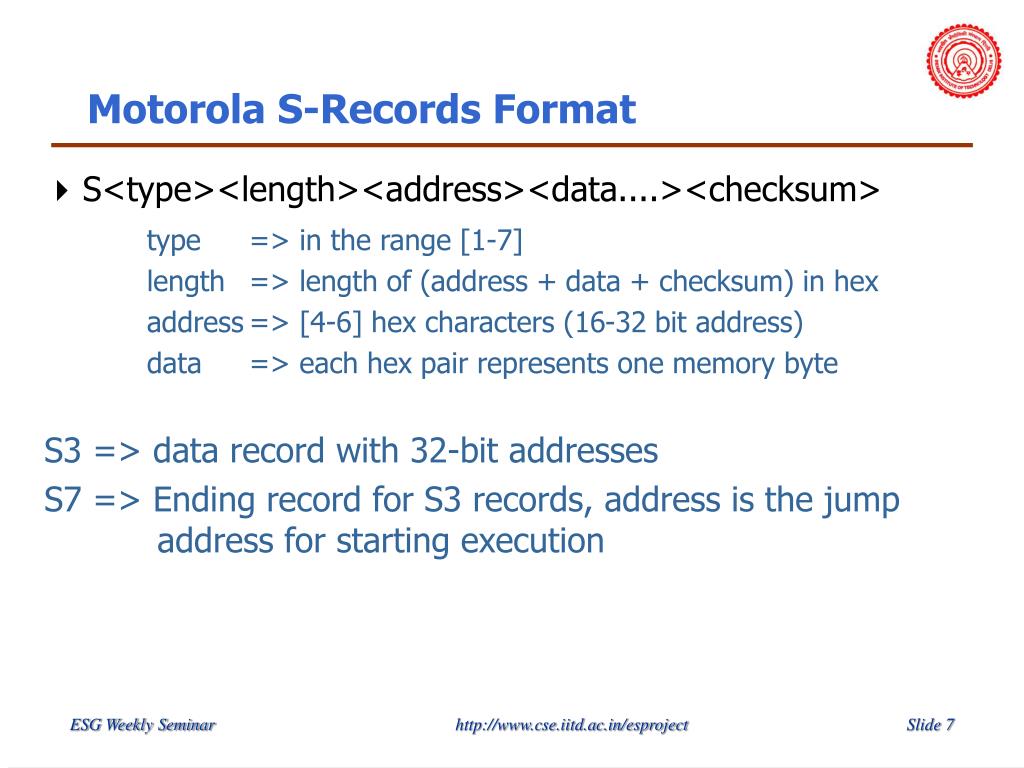

  7. Motorola S-Records Format • S<type><length><address><data....><checksum> type => in the range [1-7] length => length of (address + data + checksum) in hex address => [4-6] hex characters (16-32 bit address) data => each hex pair represents one memory byte S3 => data record with 32-bit addresses S7 => Ending record for S3 records, address is the jump address for starting execution

  8. Presentation Outline • Introduction • LEON processor architecture and development toolkit • ADM-XRC board architecture • Why it took so long? • Interfacing ZBT SRAM • Building external hardware interface • Booting LEON • From here • Acknowledgements

  9. ADM-XRC Architecture RAM0 RAM1 RAM2 RAM3 Clock Gen. XCV800-BG560-6 34 I/O pins on SCSI-II style connector PLX 9080 ADM-XRC HOST PCI Bus

  10. ADM-XRC Software API • Supported platforms are GNU-Linux and Windows NT • API Supports: • Functions for configuring the Virtex device over PCI • DMA mode for data transfer from/to PLX-9080 • Both master/slave mode supported for PLX-9080 • Examples demonstrate: • Simple PCI interface • RAM interface with address space segregation • DMA Master and slave interfaces • External I/O interfaces

  11. Presentation Outline • Introduction • LEON processor architecture and development toolkit • ADM-XRC board architecture • Why it took so long? • Interfacing ZBT SRAM • Building external hardware interface • Booting LEON • From here • Acknowledgements

  12. Why it took so long? • Inability to comprehend the problem properly • Improper documentation of ZBT memory interface • Improper methodology for prototyping and testing • Synthesis being used as testing vehicle which is incorrect • After thorough simulation synthesis should be a one-shot process unless the synthesis tools are buggy • External H/W interface was incorrect • Unnecessary additional logic inversion • Position of Rx and Tx in 9-pin and 25-pin connectors is interchanged • LEON and memory address lines were not properly mapped • LEON address lines select individual bytes! • Memory word is 32 bits here hence LEON A[1:0] need to be left free

  13. Presentation Outline • Introduction • LEON processor architecture and development toolkit • ADM-XRC board architecture • Why it took so long? • Interfacing ZBT SRAM • Building external hardware interface • Booting LEON • From here • Acknowledgements

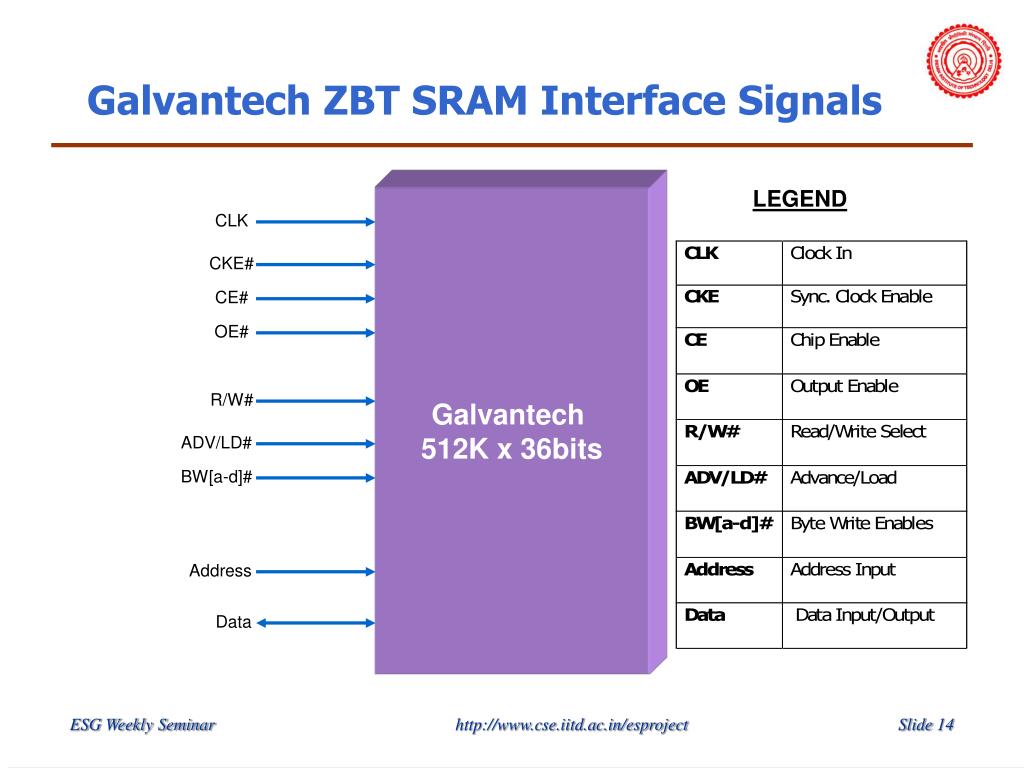

  14. Galvantech ZBT SRAM Interface Signals LEGEND Galvantech 512K x 36bits CLK CKE# CE# OE# R/W# ADV/LD# BW[a-d]# Address Data

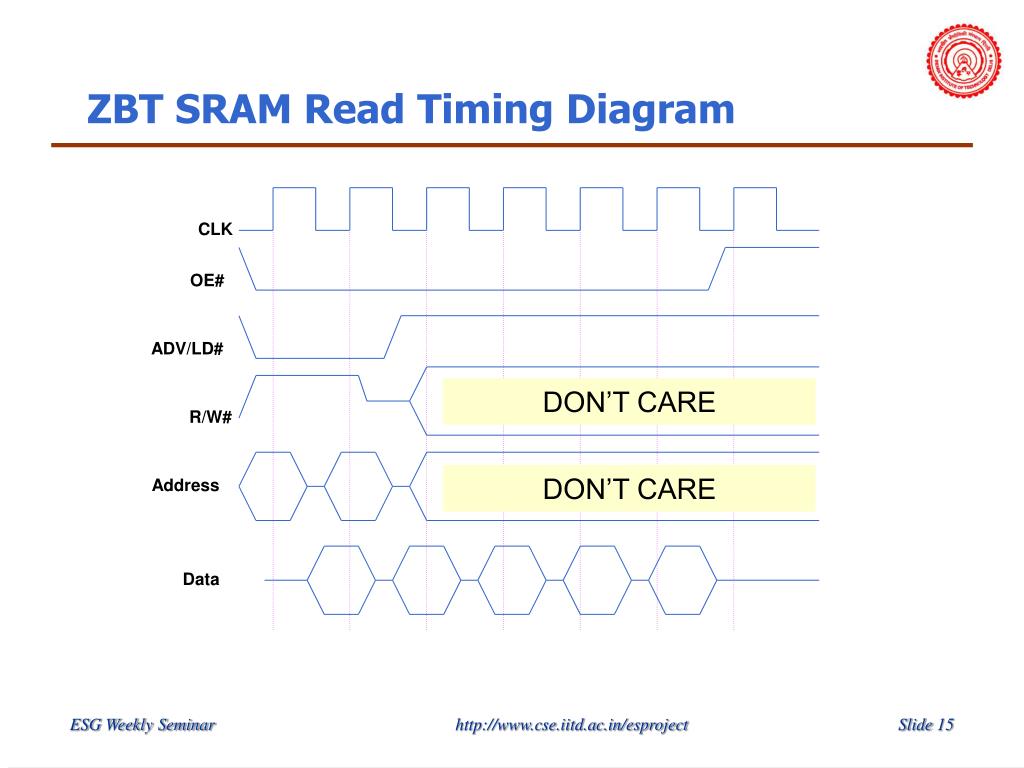

  15. ZBT SRAM Read Timing Diagram CLK OE# ADV/LD# DON’T CARE R/W# DON’T CARE Address Data

  16. ZBT SRAM Write Timing Diagram CLK DON’T CARE OE# ADV/LD# DON’T CARE R/W# DON’T CARE Address Data

  17. LEON SRAM Read Timing Diagram CLK RAMOEN RAMSN Address Data

  18. LEON SRAM Write Timing Diagram CLK RWEN RAMSN Address Data

  19. Presentation Outline • Introduction • LEON processor architecture and development toolkit • ADM-XRC board architecture • Why it took so long? • Interfacing memory • Building external hardware interface • Booting LEON • From here • Acknowledgements

  20. External Hardware Interface • Why is external hardware circuitry needed? • Virtex SelectIOTM supports PCI3.3, LVTTL etc. logic levels • RS-232C voltage conversion required for TxD and RxD pins • Choices for interface chips • Motorola MC1488/1489 • Require dual supply, +5V, ±12V • Better noise immunity but bigger circuitry • LVTTL to RS232C and RS232C to LVTTL requires two chips • Maxim Max232 • Single power supply, +5V • Each chip contains two RS232C to LVTTL and two LVTTL to RS232C converters • Lesser noise immunity but more compact circuitry

  21. H/W Interface Board Layout MAX 232 (RS-232C voltage level converters) Host serial port connections 15 I/O connections from ADM-XRC mapped here Supporting Circuitry Power Supply Probe Points Power LED Error LED

  22. Presentation Outline • Introduction • LEON processor architecture and development toolkit • ADM-XRC board architecture • Why it took so long? • Interfacing memory • Building external hardware interface • Booting LEON • From here • Acknowledgements

  23. Boot Configuration ADM-XRC Onboard ZBT SSRAMs used as LEON RAMs RAM0 RAM1 RAM2 RAM3 H/W Interface Board Xilinx Virtex XCV800-BG560-6 (virtex_2k_2k_blockprom) Errorn, Resetn, UART1 and UART2 ports mapped to 34 I/O pins for interface BlockRAMs containing boot-prom, Register Files, Caches etc (These are instantiated not inferred) PLX9080 Host PCI Bus (Used for configuring Virtex) Host Serial Port - 1 (stdin/stdout) Host Serial Port - 2 (UNIX File Descriptors 2 & 3) Host Computer

  24. Presentation Outline • Introduction • LEON processor architecture and development toolkit • ADM-XRC board architecture • Why it took so long? • Interfacing memory • Building external hardware interface • Booting LEON • From here • Acknowledgements

  25. From Here: • Small Scope Projects: • Try various hardware synthesis configurations for LEON • Build S/W and H/W estimator models for LEON • Medium Scope Projects: • Build a host of coprocessors for LEON • Test some PCI cards with LEON-PCI • Port some real applications to LEON-RTEMS • Build Ethernet interface for LEON (RTEMS support is already present) • Large Scope Projects: • Extend LEON configuration for multiprocessors • Customize RTEMS for a particular application/LEON configuration

  26. Presentation Outline • Introduction • LEON processor architecture and development toolkit • ADM-XRC board architecture • Why it took so long? • Interfacing memory • Building external hardware interface • Booting LEON • From here • Acknowledgements

  27. Acknowledgements • Main ideas, motivation and support • Prof. M. Balakrishnan and Prof. Anshul Kumar • Co-Proc interface, Local Bus interface, Bugs in memory interface • Amarjeet Singh • Debugging, Memory interface, External RS-232C hardware interface circuitry • Amit Aggarwal, Puneet Wadhawan

  28. Thank You
