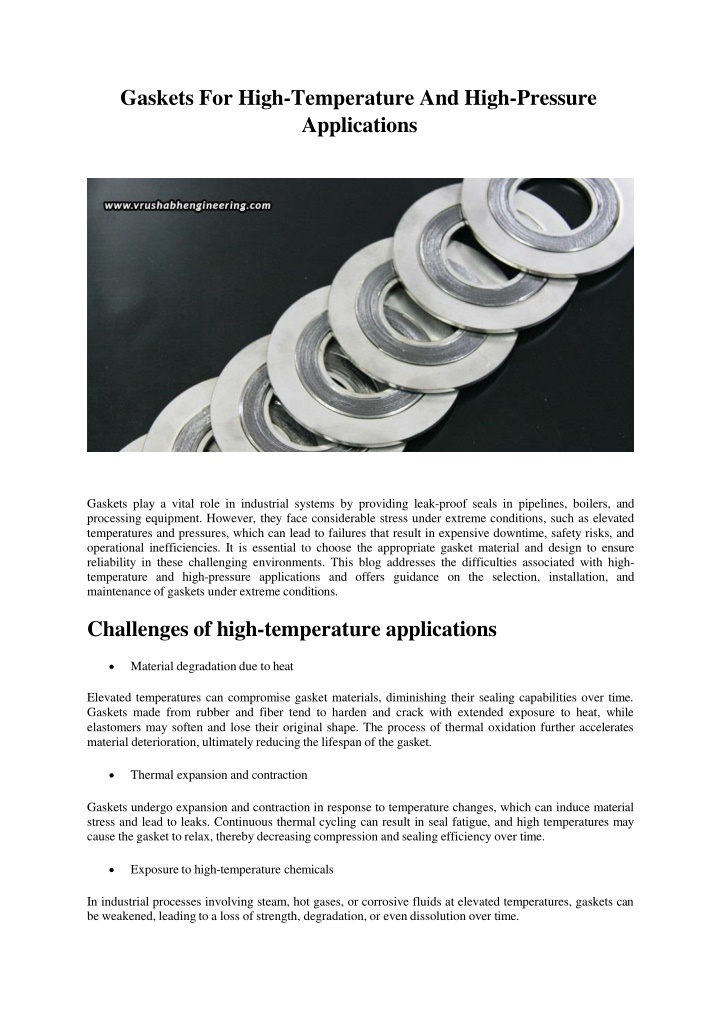

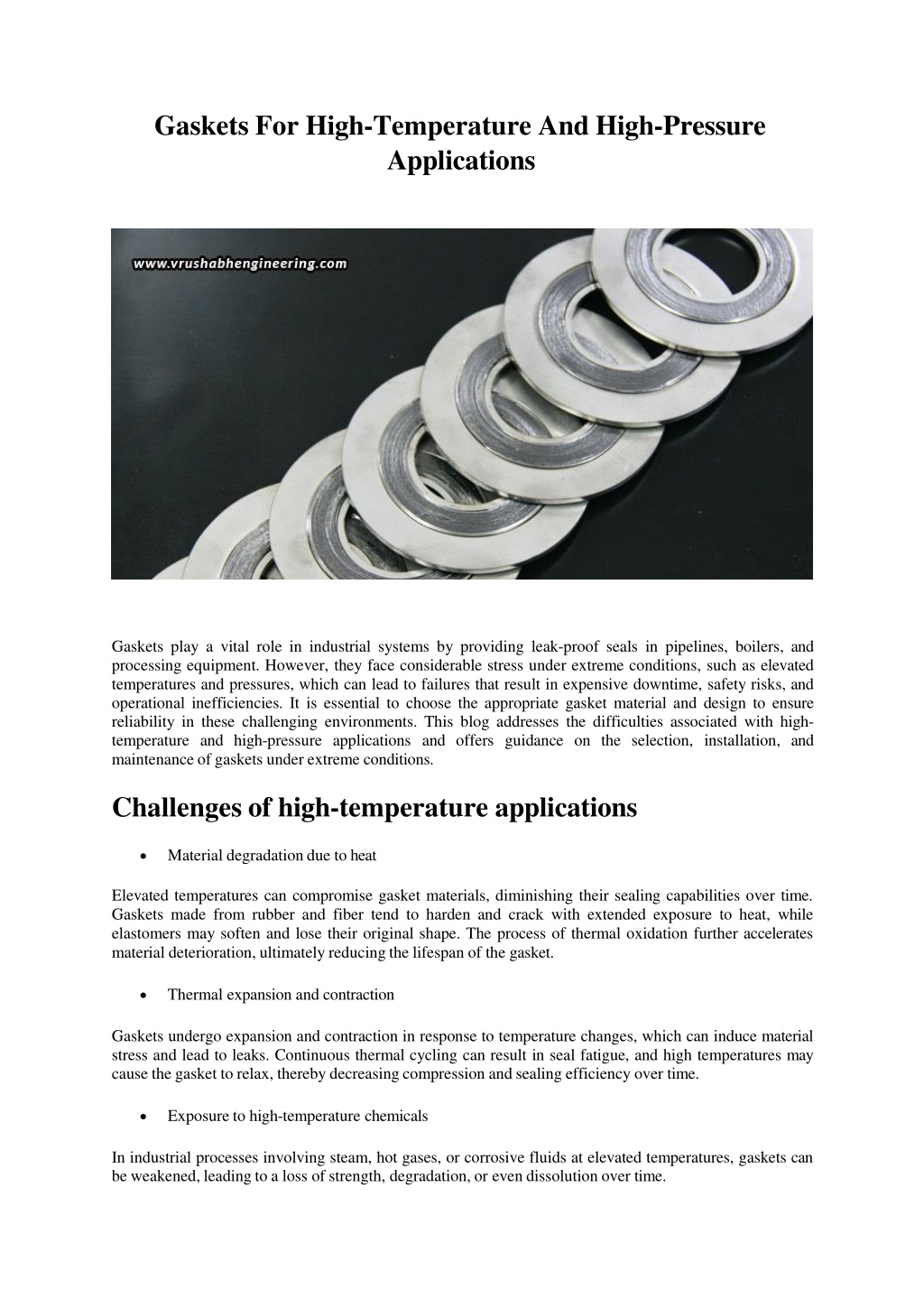

  1. GasketsForHigh-TemperatureAndHigh-Pressure Applications • Gasketsplayavitalroleinindustrialsystemsbyprovidingleak-proofsealsinpipelines,boilers,and processingequipment.However,theyfaceconsiderablestressunderextremeconditions,suchaselevated temperaturesandpressures,whichcanleadtofailuresthatresultinexpensivedowntime,safetyrisks,and operationalinefficiencies.Itisessentialtochoosetheappropriategasketmaterialanddesigntoensure reliabilityinthesechallengingenvironments.Thisblogaddressesthedifficultiesassociatedwithhigh- temperatureandhigh-pressureapplicationsandoffersguidanceontheselection,installation,and maintenanceofgasketsunderextremeconditions. • Challengesofhigh-temperatureapplications • Materialdegradationduetoheat • Elevatedtemperaturescancompromisegasketmaterials,diminishingtheirsealingcapabilitiesovertime. Gasketsmadefromrubberandfibertendtohardenandcrackwithextendedexposuretoheat,while elastomersmaysoftenandlosetheiroriginalshape.Theprocessofthermaloxidationfurtheraccelerates materialdeterioration,ultimatelyreducingthelifespanof the gasket. • Thermalexpansionand contraction • Gasketsundergoexpansionandcontractioninresponse totemperaturechanges,whichcaninducematerial stressandleadtoleaks.Continuousthermalcyclingcanresultinsealfatigue,andhightemperaturesmay causethegaskettorelax,therebydecreasingcompressionandsealingefficiencyover time. • Exposuretohigh-temperaturechemicals • Inindustrialprocesses involvingsteam,hotgases, orcorrosivefluids atelevatedtemperatures, gaskets can beweakened,leadingtoaloss ofstrength,degradation,orevendissolutionover time.

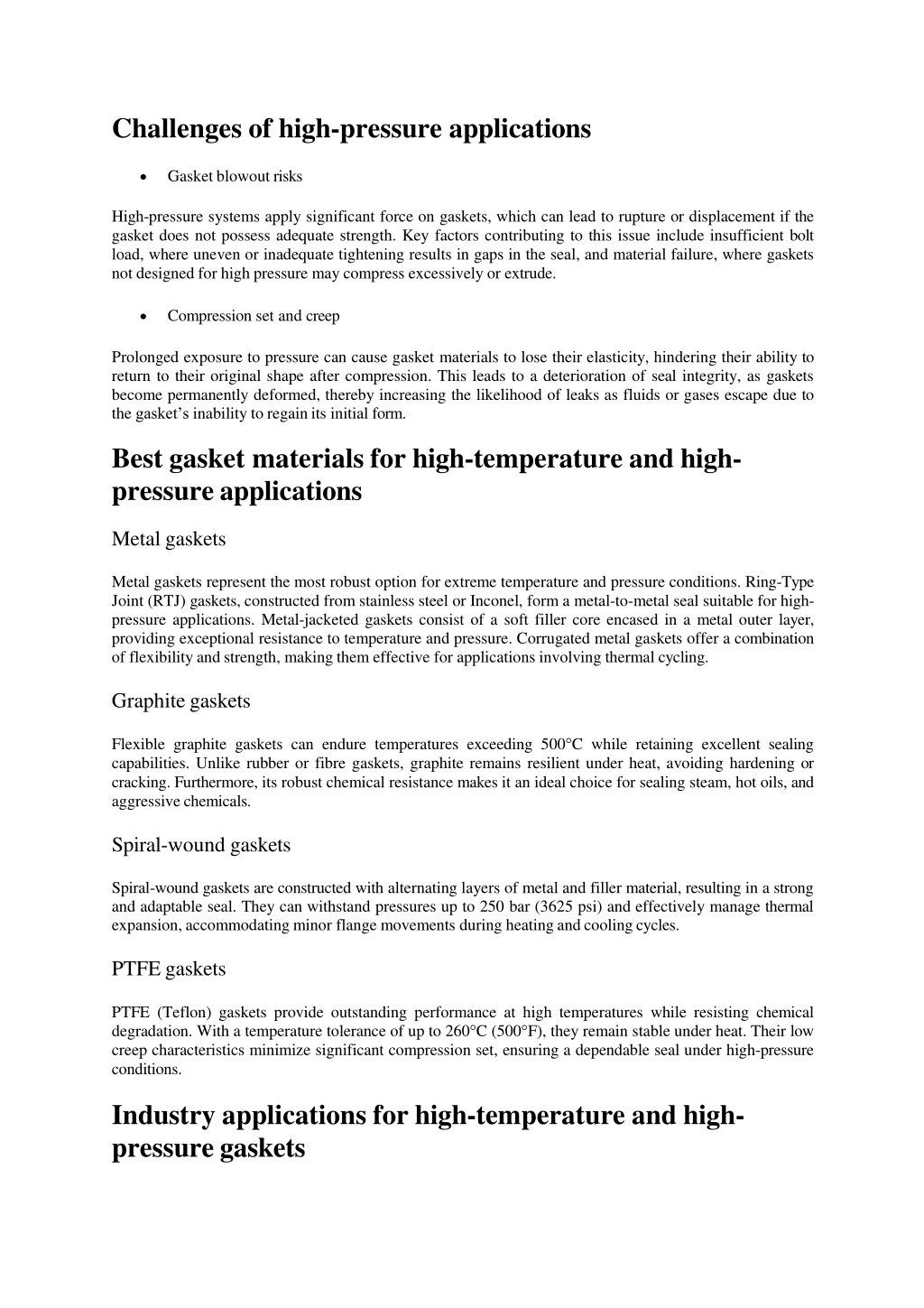

  2. Challengesofhigh-pressureapplications • Gasketblowoutrisks • High-pressuresystemsapplysignificantforceongaskets,whichcanleadtoruptureordisplacementifthe gasketdoesnotpossessadequatestrength.Keyfactorscontributingtothisissueincludeinsufficientbolt load,whereunevenorinadequatetighteningresultsingapsinthe seal,andmaterial failure,wheregaskets notdesignedforhighpressuremaycompressexcessivelyorextrude. • Compression setandcreep • Prolongedexposuretopressurecancausegasketmaterialstolosetheirelasticity,hinderingtheirabilityto returntotheiroriginalshapeaftercompression.Thisleadstoadeteriorationofsealintegrity,asgaskets becomepermanentlydeformed,therebyincreasingthelikelihoodofleaksasfluidsorgasesescapedueto the gasket’sinabilitytoregainitsinitialform. Bestgasket materialsforhigh-temperatureandhigh- pressureapplications Metalgaskets Metalgasketsrepresentthemostrobustoptionforextremetemperatureandpressureconditions.Ring-Type Joint(RTJ)gaskets,constructedfromstainlesssteelorInconel,formametal-to-metalsealsuitableforhigh- pressureapplications.Metal-jacketedgasketsconsistofasoftfillercoreencasedinametalouterlayer, providingexceptionalresistancetotemperatureandpressure.Corrugatedmetalgaskets offera combination offlexibilityandstrength,makingthemeffective forapplicationsinvolvingthermalcycling. Graphitegaskets Flexiblegraphitegasketscanenduretemperaturesexceeding500°Cwhileretainingexcellentsealing capabilities.Unlikerubberorfibregaskets,graphiteremainsresilientunderheat,avoidinghardeningor cracking.Furthermore,itsrobustchemicalresistance makesitanidealchoiceforsealingsteam,hotoils, and aggressivechemicals. Spiral-wound gaskets Spiral-woundgasketsareconstructedwithalternatinglayersofmetalandfillermaterial,resultingina strong andadaptableseal.Theycanwithstandpressuresupto250bar(3625psi)andeffectivelymanagethermal expansion,accommodatingminorflangemovements duringheatingandcoolingcycles. PTFEgaskets PTFE(Teflon)gasketsprovideoutstandingperformanceathightemperatureswhileresistingchemical degradation.Witha temperaturetoleranceofupto260°C(500°F),theyremainstableunderheat.Theirlow creepcharacteristicsminimize significantcompressionset,ensuringadependable sealunderhigh-pressure conditions. Industryapplicationsforhigh-temperatureandhigh- pressuregaskets

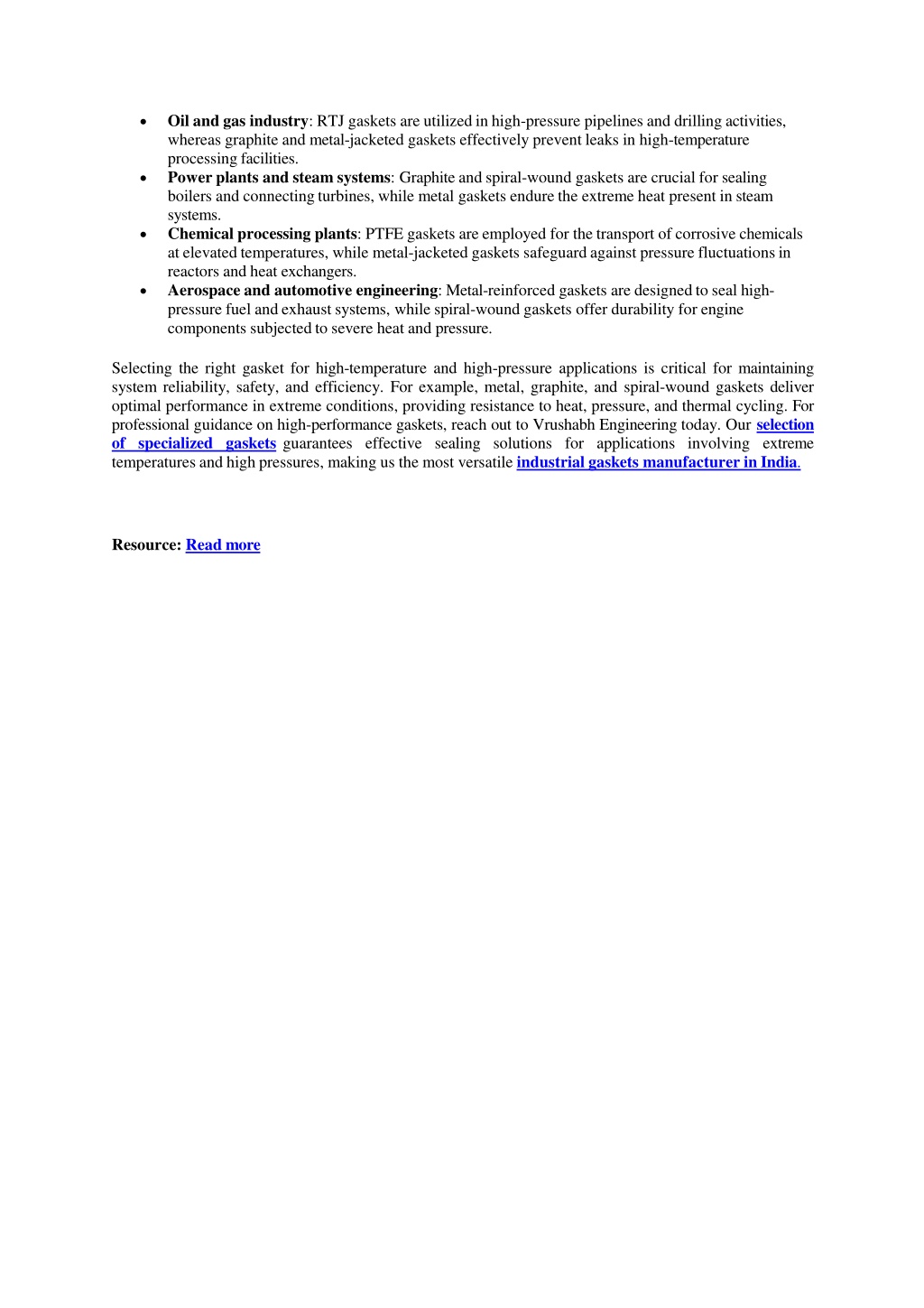

  3. Oilandgasindustry:RTJgasketsareutilizedinhigh-pressurepipelinesanddrillingactivities, whereasgraphiteand metal-jacketedgasketseffectivelypreventleaksinhigh-temperature processingfacilities. • Power plantsandsteamsystems: Graphiteandspiral-woundgasketsarecrucialforsealing boilersandconnectingturbines,whilemetal gasketsenduretheextremeheat presentinsteam systems. • Chemicalprocessingplants:PTFEgasketsareemployedforthetransportofcorrosivechemicals atelevatedtemperatures,whilemetal-jacketedgasketssafeguardagainstpressurefluctuationsin reactorsandheat exchangers. • Aerospace andautomotive engineering:Metal-reinforcedgasketsaredesignedtoseal high- pressurefuelandexhaustsystems,whilespiral-woundgasketsofferdurabilityforengine componentssubjectedtosevere heatandpressure. • Selectingtherightgasketforhigh-temperatureandhigh-pressureapplicationsiscriticalformaintaining systemreliability,safety,andefficiency.Forexample,metal,graphite,andspiral-woundgasketsdeliver optimal performanceinextremeconditions,providingresistancetoheat,pressure,andthermalcycling.For professionalguidance onhigh-performancegaskets,reachouttoVrushabhEngineeringtoday.Ourselectionofspecializedgasketsguaranteeseffectivesealingsolutionsforapplicationsinvolvingextreme temperaturesandhighpressures,makingusthemostversatileindustrialgasketsmanufacturerinIndia. Resource:Read more
