  1. BEAM LOSS MONITORS • The BLM system • Status of the monitors • Status of the electronics • Delivery schedule, Integration, Installation • Summary B. Dehning, G. Ferioli, J.L. Gonzalez, G. Guaglio, E.B. Holzer, V. Prieto, C. Zamantzas AB-LTC Technical Review November 19, 2003

  2. THE BLM SYSTEM • Purpose: • Machine protection against damage of equipment and magnet quenches. • Setup of the collimators • Localization of beam losses and help in identification of loss mechanism • Machine setup and studies • Challenges: • Reliable (tolerable failure rate 10-7 per hour) • High dynamic range (108) • Fast (1 turn trigger generation for dump signal)

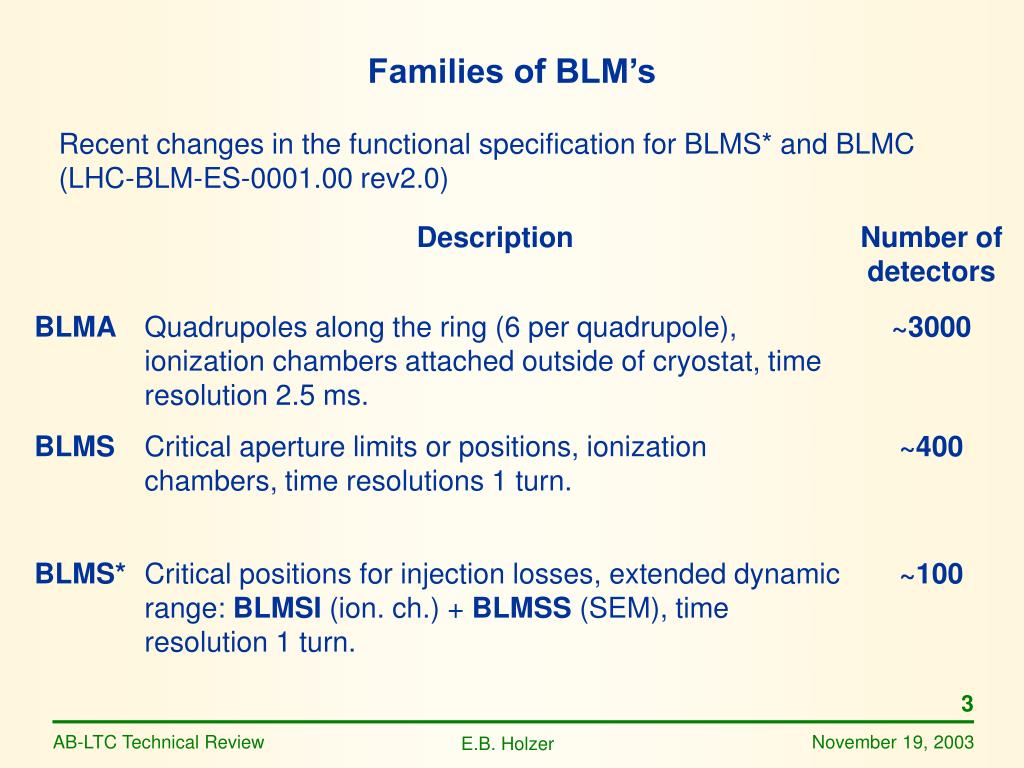

  3. Families of BLM’s Recent changes in the functional specification for BLMS* and BLMC (LHC-BLM-ES-0001.00 rev2.0)

  4. Inside view of an ionization chamber from SPS, Volume: ~ 1 Liter, Gas: N2, 30 Al disks of 0.5 mm, Typical bias voltage: 1500 V. Installation of BLMAs on a SSS quadrupole

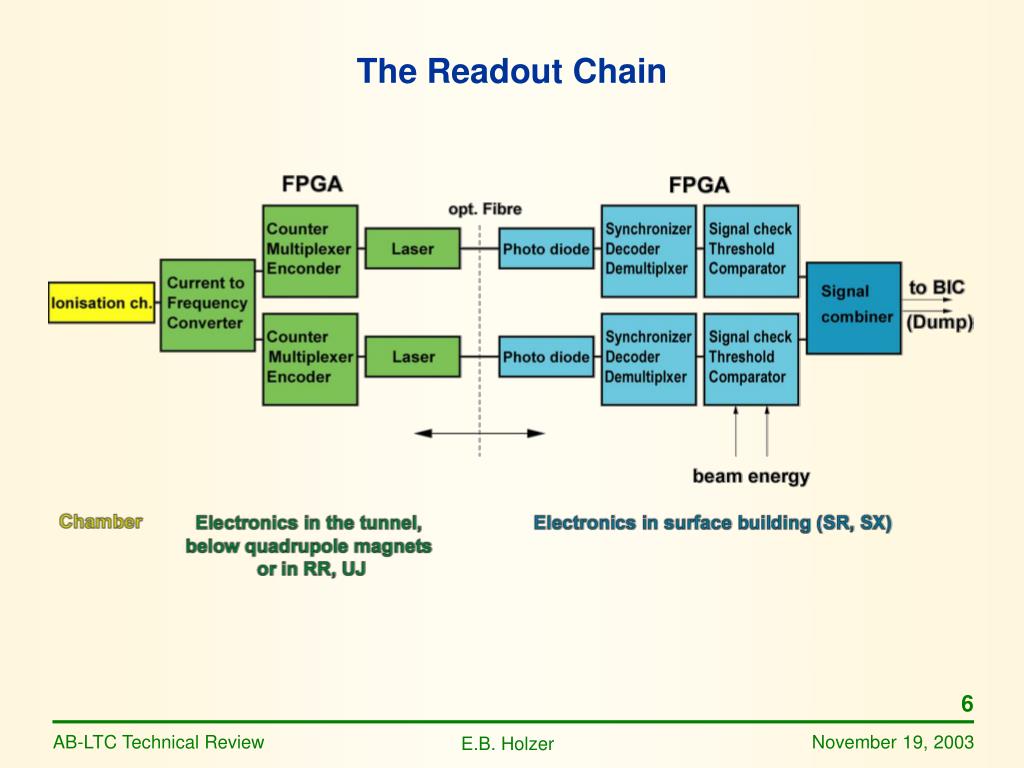

  5. The Readout Chain

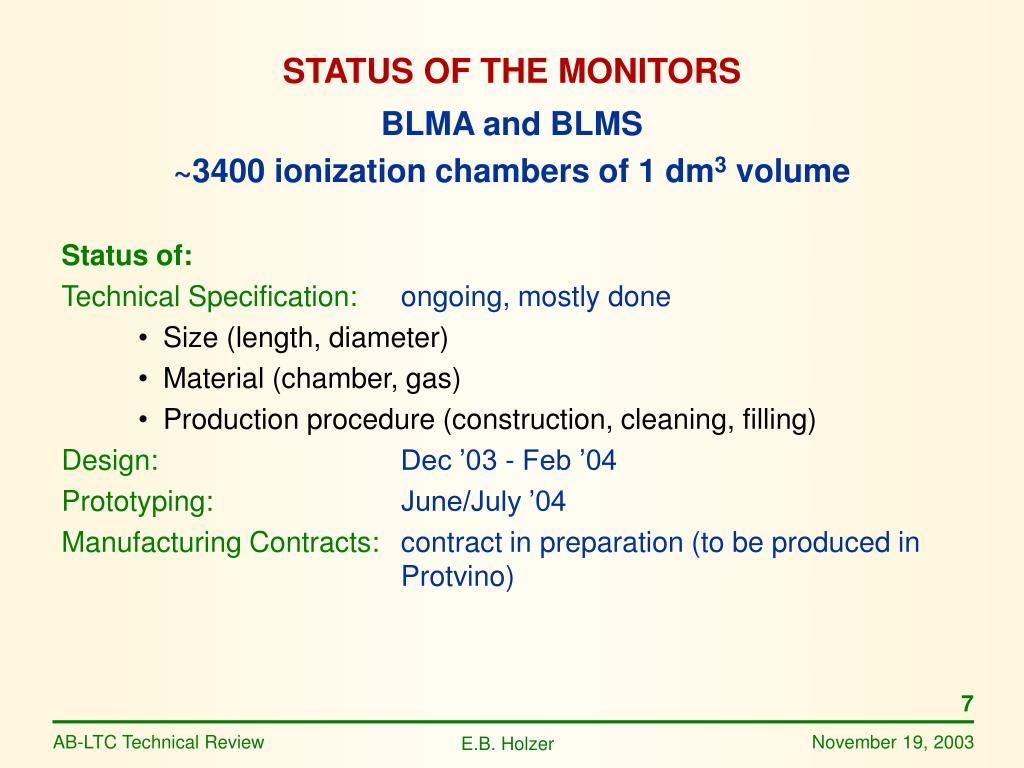

  6. STATUS OF THE MONITORS • BLMA and BLMS • ~3400 ionization chambers of 1 dm3 volume • Status of: • Technical Specification: ongoing, mostly done • Size (length, diameter) • Material (chamber, gas) • Production procedure (construction, cleaning, filling) • Design: Dec ’03 - Feb ’04 • Prototyping: June/July ’04 • Manufacturing Contracts: contract in preparation (to be produced in Protvino)

  7. Difficulties and possible consequences: • Ageing of chambers (investigate SPS chambers at next shutdown) • Schedule does not leave time to test different chambers (gases, cleaning, filling procedures) for ageing. • Consequence of ageing is an increased need for calibration. • Size of chamber to be coordinated with the requirements for transport space along the magnets.

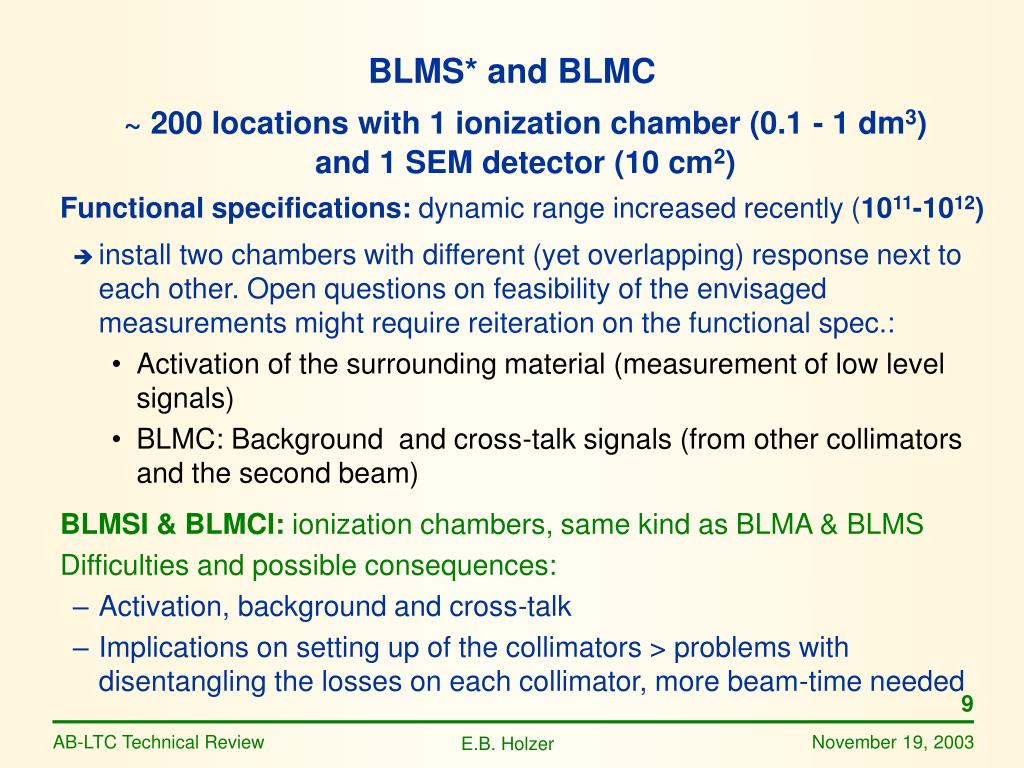

  8. BLMS* and BLMC • ~ 200 locations with 1 ionization chamber (0.1 - 1 dm3) • and 1 SEM detector (10 cm2) • Functional specifications: dynamic range increased recently (1011-1012) • install two chambers with different (yet overlapping) response next to each other. Open questions on feasibility of the envisaged measurements might require reiteration on the functional spec.: • Activation of the surrounding material (measurement of low level signals) • BLMC: Background and cross-talk signals (from other collimators and the second beam) • BLMSI & BLMCI: ionization chambers, same kind as BLMA & BLMS • Difficulties and possible consequences: • Activation, background and cross-talk • Implications on setting up of the collimators > problems with disentangling the losses on each collimator, more beam-time needed

  9. BLMSS & BLMCS: SEM detectors. Deadline for production now advanced by 1 year, because BLMS* probably needed for sector test. • Status of SEM: • Technical Specification and Design: throughout 2004, will try to find existing chamber design which matches our requirements. • Manufacturing Contracts: Q4 ’04 • Difficulties and possible consequences : • Vacuum needs to hold for the whole lifetime. • Test of chambers before installation (beam test). • Calibration of installed chambers will not be possible. • If no existing design can be reused, problem with schedule: • BLMSS: for monitoring, not for machine protection • BLMCS: scheduled one year later

  10. BLMB • 10 detectors • Planned to use standard ACEM detectors (or photo-multipliers), and acquisition systems of LHC BCT. Not part of baseline scenario,for refined beam observation. • Status: • Detectors on stock • Difficulties or trade-offs: • Lower end of signal limited by background from activation (installed at primary collimators) • Possible redefinition of functional specifications after simulation studies

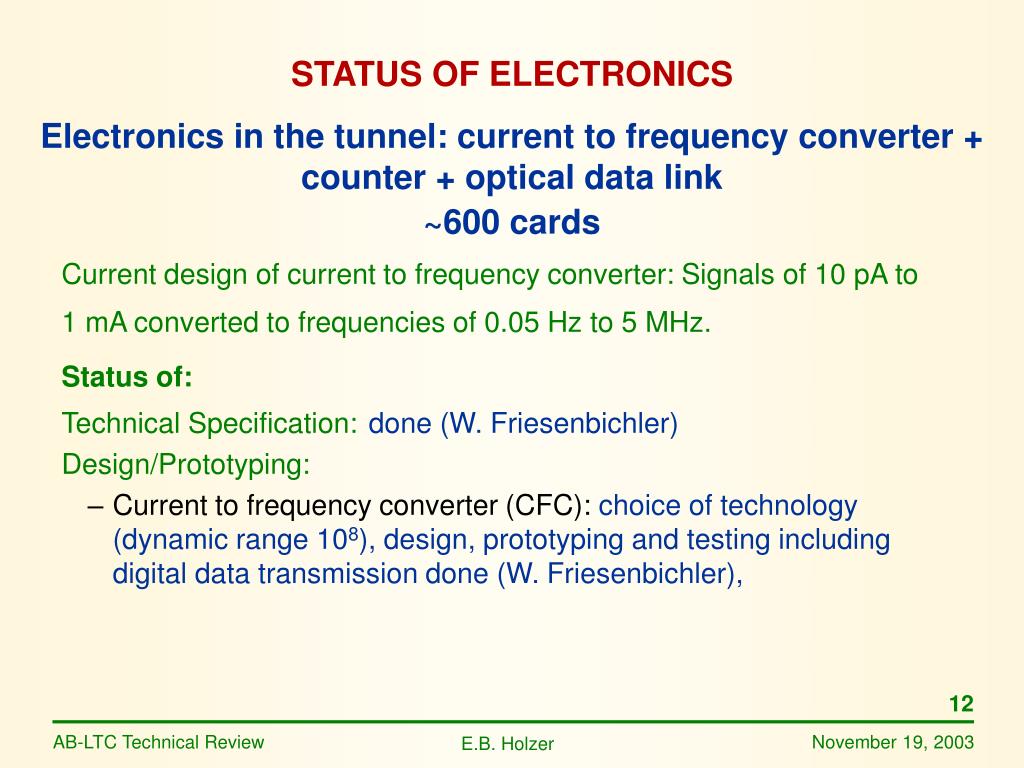

  11. STATUS OF ELECTRONICS • ~600 cards • Current design of current to frequency converter: Signals of 10 pA to 1 mA converted to frequencies of 0.05 Hz to 5 MHz. • Status of: • Technical Specification: done (W. Friesenbichler) • Design/Prototyping: • Current to frequency converter (CFC): choice of technology (dynamic range 108), design, prototyping and testing including digital data transmission done (W. Friesenbichler), Electronics in the tunnel: current to frequency converter + counter + optical data link

  12. improvements pending (E. Effinger, 2004): • Test and calibration procedure implementation • Protection against high signal levels • Increase mean time between failures (double the analogue electronics) • Radiation hardness (change of components) • Dynamic range (add ADC to get additional sensitivity below the one count rate - 2 pA) • Operating conditions (temperature range) • Counter and data link: to be done (2004) • Manufacturing Contracts: to be done • Pre-series to be delivered Q4 ’04 • Series to be delivered Q2 ’05

  13. Difficulties and possible consequences: • Low signal limit (noise on up to 250 m long cables from monitor to current to frequency converter in LSS and DS) > more beam-time for machine set-up and tuning (loss minimization). • Radiation hardness, ageing > Calibration • Temperature dependence after irradiation > Calibration • Protection against high signal levels > change electronics in tunnel • Reliability: Taking the conservative assumption that the loss is seen by one detector only, the estimated failure rate of the current design is 10-100 times to high (2*10-6/h). That corresponds to 0.7% of dangerous losses passing undetected and resulting in magnet destruction.

  14. At Surface: Threshold Comparator + data receiving • ~340 cards (DAB with FPGA and VME64 interface) • Status of: • Technical Specification: done (C. Zamantzas) • Design/Prototyping: • Hardware developed together with BPM (J.L. Gonzalez) and collaboration with TRIUMF: • First prototypes tested (SPS) done • Prototype boards May ’04 • Software (C. Zamantzas): • Design + software simulation first version (Jan. ’04) • FPGA implementation on test board Q1 ’04 on prototype board Q3 ’04 • Data link (LASER/diode) selection of components: ongoing (test measurement at PSI)

  15. Manufacturing Contracts: • Digital analysis board (DAB): together with BPM • Prototype cards: May ’04 • Pre-series all cards: August ’04 • Contract: Q4 ’04 • Delivery of all cards Q4 ’05 • LASER/Diode: off shelf • Difficulties or trade-offs: • Expected to fulfill the specifications

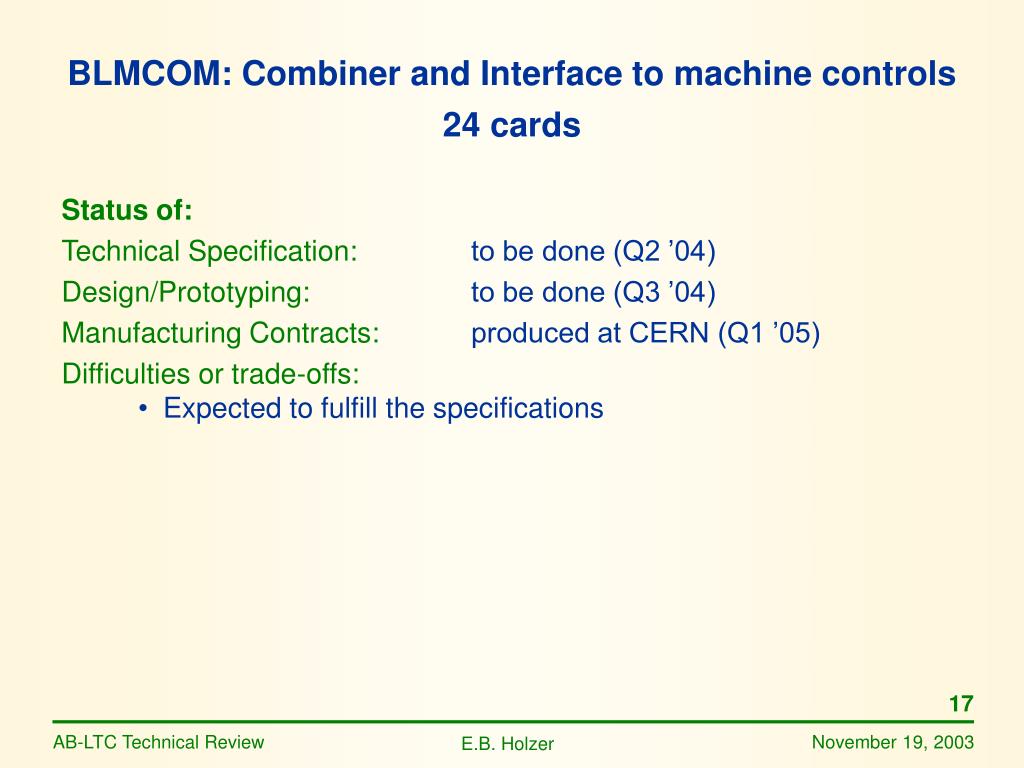

  16. BLMCOM: Combiner and Interface to machine controls • 24 cards • Status of: • Technical Specification: to be done (Q2 ’04) • Design/Prototyping: to be done (Q3 ’04) • Manufacturing Contracts: produced at CERN (Q1 ’05) • Difficulties or trade-offs: • Expected to fulfill the specifications

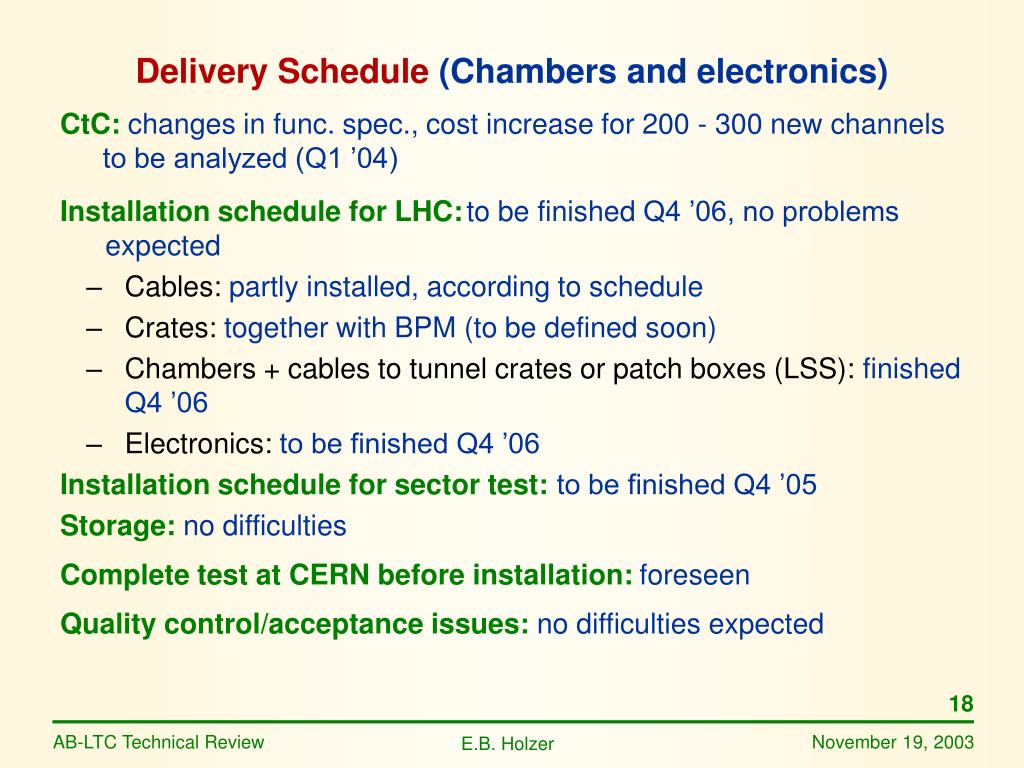

  17. Delivery Schedule (Chambers and electronics) • CtC:changes in func. spec., cost increase for 200 - 300 new channels to be analyzed (Q1 ’04) • Installation schedule for LHC:to be finishedQ4 ’06, no problems expected • Cables: partly installed, according to schedule • Crates: together with BPM (to be defined soon) • Chambers + cables to tunnel crates or patch boxes (LSS): finished Q4 ’06 • Electronics: to be finished Q4 ’06 • Installation schedule for sector test: to be finished Q4 ’05 • Storage:no difficulties • Complete testat CERN before installation: foreseen • Quality control/acceptance issues:no difficulties expected

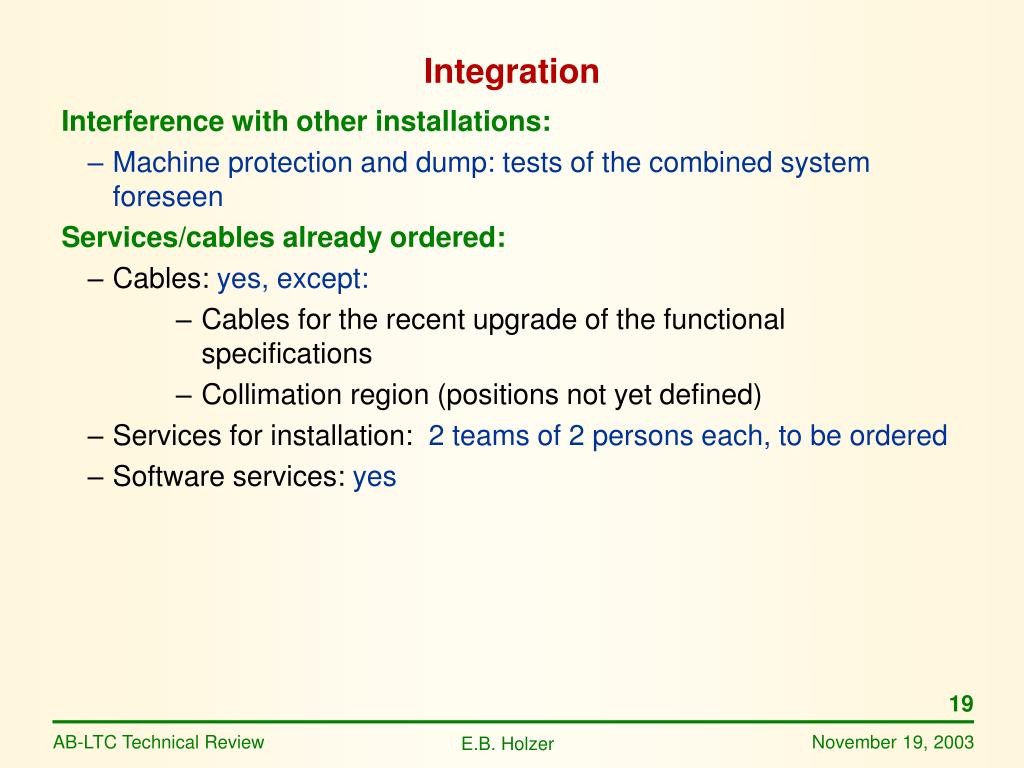

  18. Integration • Interference with other installations: • Machine protection and dump: tests of the combined system foreseen • Services/cables already ordered: • Cables: yes, except: • Cables for the recent upgrade of the functional specifications • Collimation region (positions not yet defined) • Services for installation: 2 teams of 2 persons each, to be ordered • Software services: yes

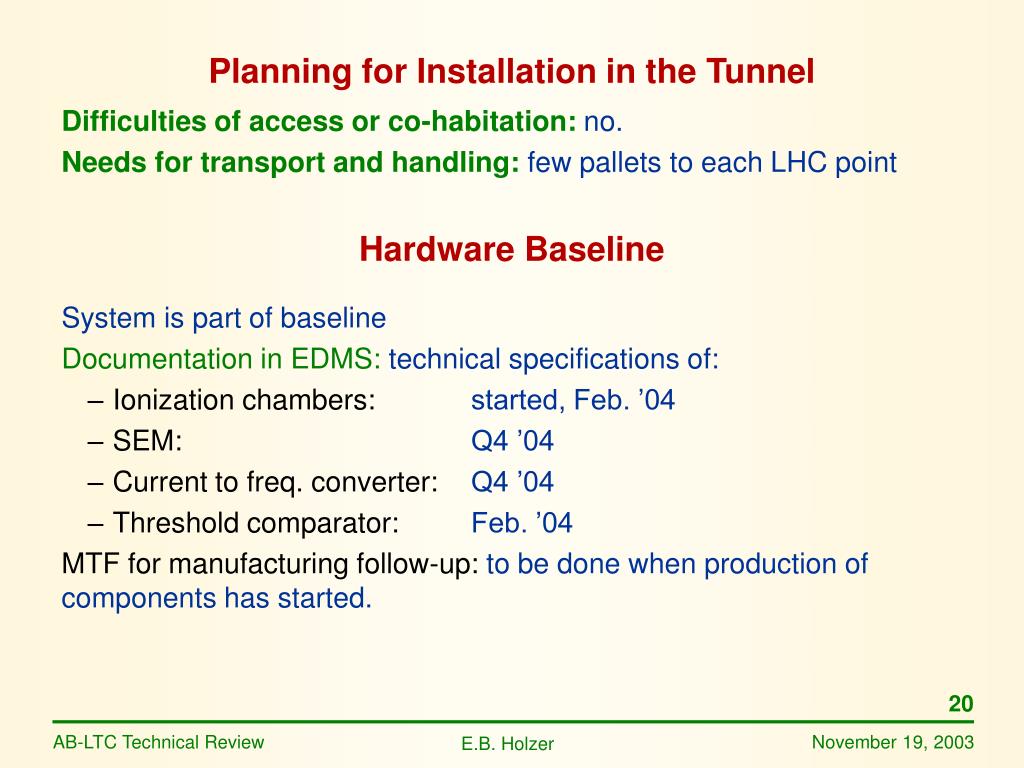

  19. Planning for Installation in the Tunnel • Difficulties of access or co-habitation:no. • Needs for transport and handling:few pallets to each LHC point • Hardware Baseline • System is part of baseline • Documentation in EDMS: technical specifications of: • Ionization chambers: started, Feb. ’04 • SEM: Q4 ’04 • Current to freq. converter: Q4 ’04 • Threshold comparator: Feb. ’04 • MTF for manufacturing follow-up: to be done when production of components has started.

  20. SUMMARY • Schedule is tight: • Analog electronics is late by about 1 year (lack of manpower). • Digital electronics is late by about 3 months (DAB board 7 month late). • Ionization chamber still on schedule, but problems with availability of technical designer. • SEM: If no existing system can be adapted - problem with the schedule. • Demands on system have recently increased - implications on the schedule (SEM detectors for sector test) and on cost (200-300 new channels not yet financed).

  21. The BLM design is based on the functional specifications, which in turn rely on a provisional strategy for machine protection. Further changes in the BLM system will become more and more expensive. • Identified possible conceptual and/or technical limitations. The main consequences, in case they cannot be solved will be • higher need for beam-time for set-up and tuning of the machine • increased number of downtimes. • Apart from these limitations - production and installation of the BLM system can be in time for sector test and LHC.
