Presentation Transcript

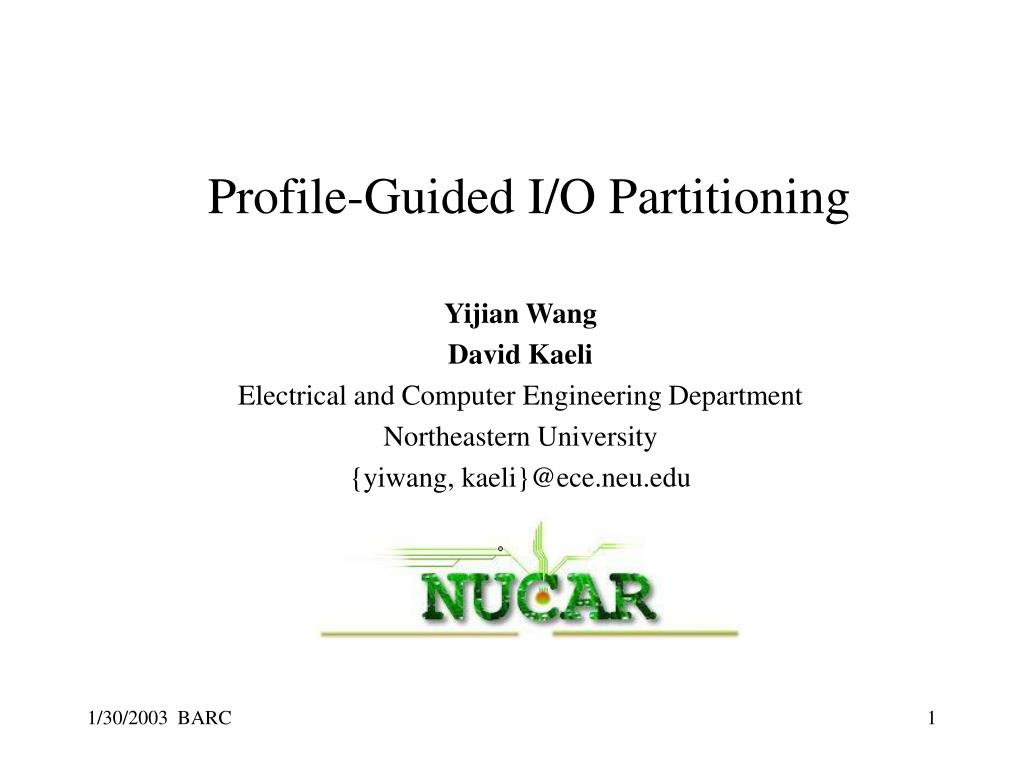

slide1

Profile-Guided I/O Partitioning

Yijian Wang

David Kaeli

Electrical and Computer Engineering Department

Northeastern University

{yiwang, kaeli}@ece.neu.edu

slide2

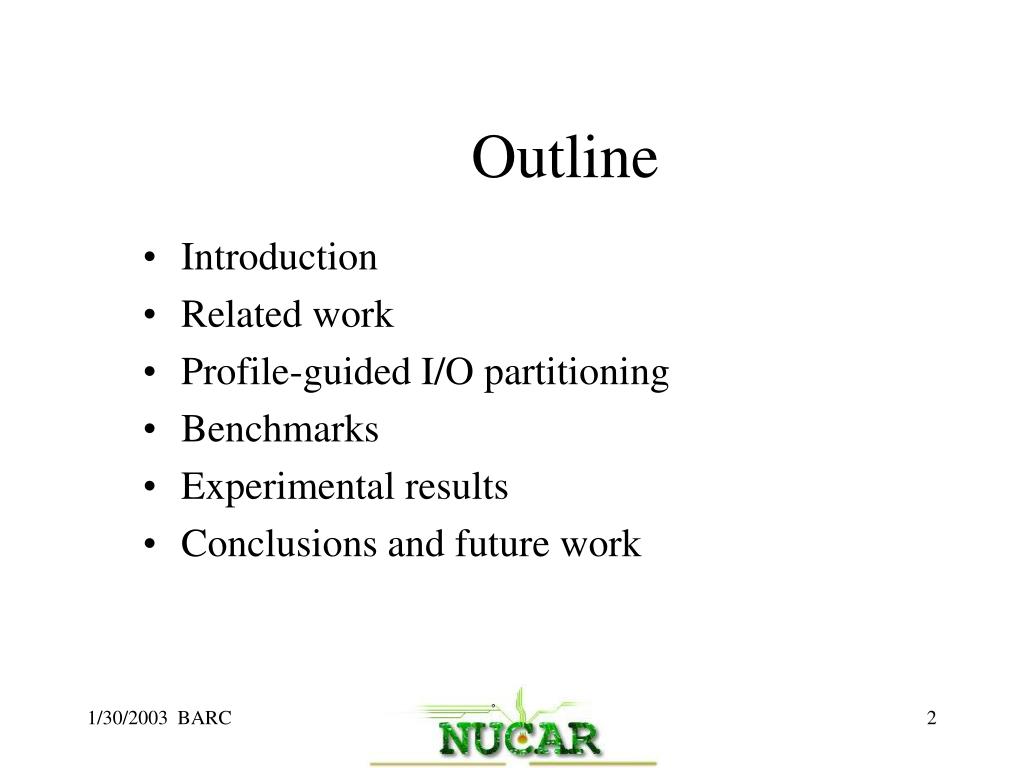

Outline

  • Introduction
  • Related work
  • Profile-guided I/O partitioning
  • Benchmarks
  • Experimental results
  • Conclusions and future work
slide3

Introduction

  • The I/O bottleneck
    • The growing gap between the speed of processors and I/O devices
    • Some applications access disks very frequently
  • I/O intensive applications
    • Multimedia applications
    • Database applications
    • Parallel scientific applications
slide4

Related work

  • Fast disks
    • FC-connected SCSI disks
    • Smart caching I/O controller (EMC, IO Integrity)
  • Parallel I/O
    • Parallel disks (i.e., RAID)
    • Parallel file systems (NFS, PIOF, HPS, etc.)
    • Runtime parallel systems (MPI-IO, ROMIO, ADIO)
    • Compiler technology
      • (Loop tiling, compiler-directed collective I/O)
    • To achieve high performance, I/O should be parallelized at multiple levels (application, file system, disks)
slide5

I/O Partitioning

  • Our target applications are parallel scientific codes running on Beowulf clusters
  • I/O is parallelized at both the application level (using MPI and MPI-IO) and the disk level (using file partitioning)
  • Ideally, every process will only access files on local disk (though this is typically not possible due to data sharing)
  • How to recognize the access patterns ?
    • dynamically (profiling)
    • statically (compiler)
profile generation

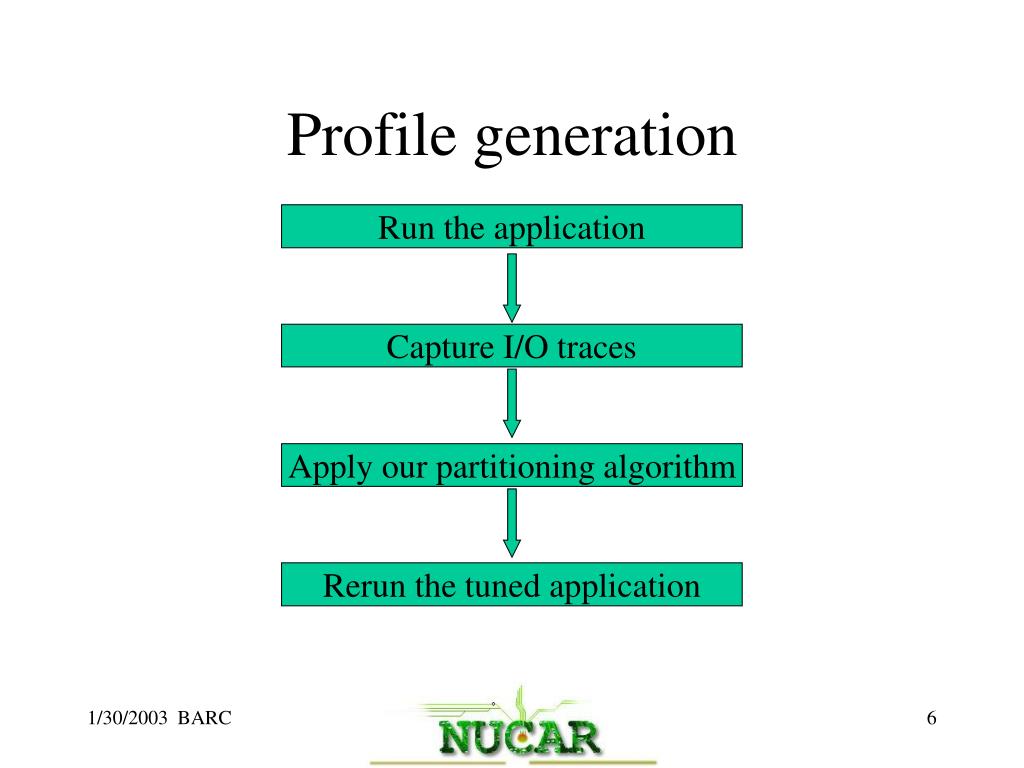

Profile generation

Run the application

Capture I/O traces

Apply our partitioning algorithm

Rerun the tuned application

slide7

I/O traces and partitioning

  • For every process, for every contiguous file access, we capture the following I/O profile information:
    • Process ID
    • File ID
    • Address
    • Chunk size
    • I/O operation (read/write)
    • Timestamp
  • Generate a partition for every process
  • Partitioning is NP-complete
slide8

Our Greedy Algorithm

For each MPI-IO process

create a file partition;

For each contiguous data chunk

identify the process that most frequently accesses this chunk;

assign the chunk to the associated partition;

For each partition

reorder data in the partition based on first access to each chunk;

benchmarks
Benchmarks
  • NASA Parallel Benchmark (NPB2.4)/BT
    • Computational fluid dynamics
    • Generates a file (~1.6 GB) dynamically and then reads it
    • Writes/reads sequentially in chunk sizes of 2040 Bytes
  • SPEChpc96/seismic
    • Seismic processing
    • Generates a file (~1.5 GB) dynamically and then reads it back
    • Writes sequential chunks of 96 KB and reads sequential chunks of 2 KB
  • mpi-tile-io
    • Parallel Benchmarking Consortium
    • Tile access to a two-dimensional matrix (~1 GB) with overlap
    • Writes/reads sequentially chunks of 32 KB, with 2KB of overlap
  • All applications uses MPI and MPI-IO for computation, communication and I/O
slide16

Conclusions and future work

  • We obtain scalable speedup due to:
    • creating parallel I/O channels
    • reducing disk seek time
    • reducing communication overhead
  • I/O access patterns are generally independent of data values, for the applications studied
  • Investigating static (compile time) approaches to I/O partitioning
northeastern university computer architecture research group http www ece neu edu groups nucar

Northeastern University Computer Architecture Research Grouphttp://www.ece.neu.edu/groups/nucar

This project is supported by the NSF-funded

Center for Subsurface Sensing and Imaging System (CenSSIS)
