chapter 33 cgi technology for dynamic web documents

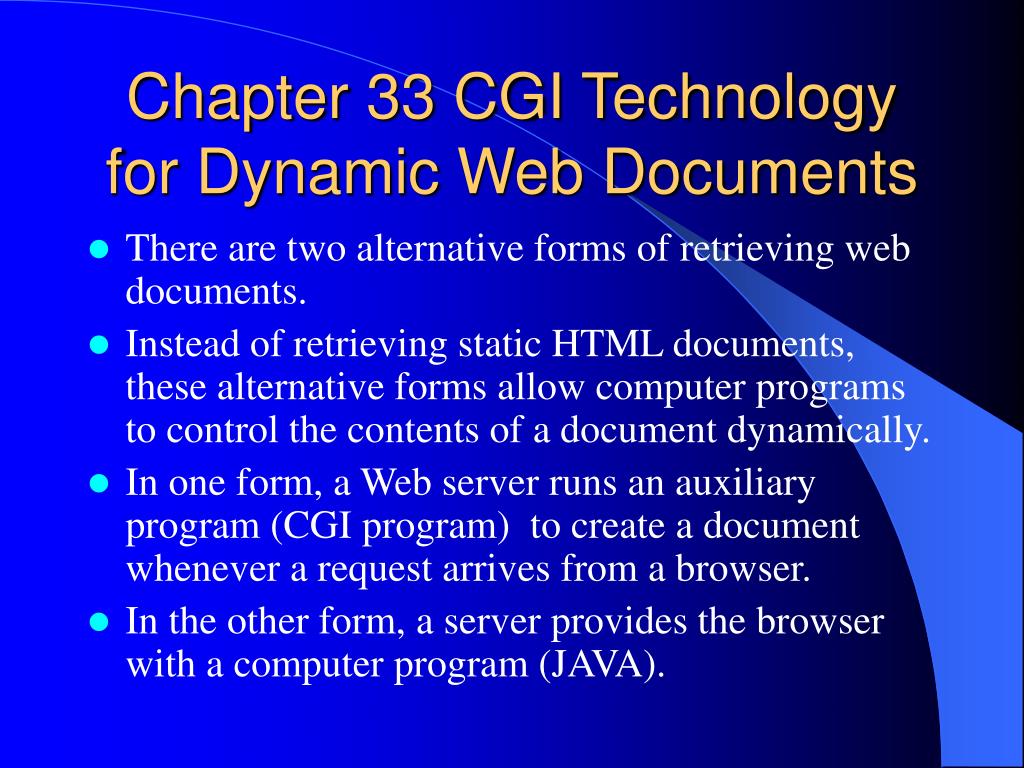

Chapter 33 CGI Technology for Dynamic Web Documents
  • There are two alternative forms of retrieving web documents.
  • Instead of retrieving static HTML documents, these alternative forms allow computer programs to control the contents of a document dynamically.
  • In one form, a Web server runs an auxiliary program (CGI program) to create a document whenever a request arrives from a browser.
  • In the other form, a server provides the browser with a computer program (JAVA).
three types of web documents

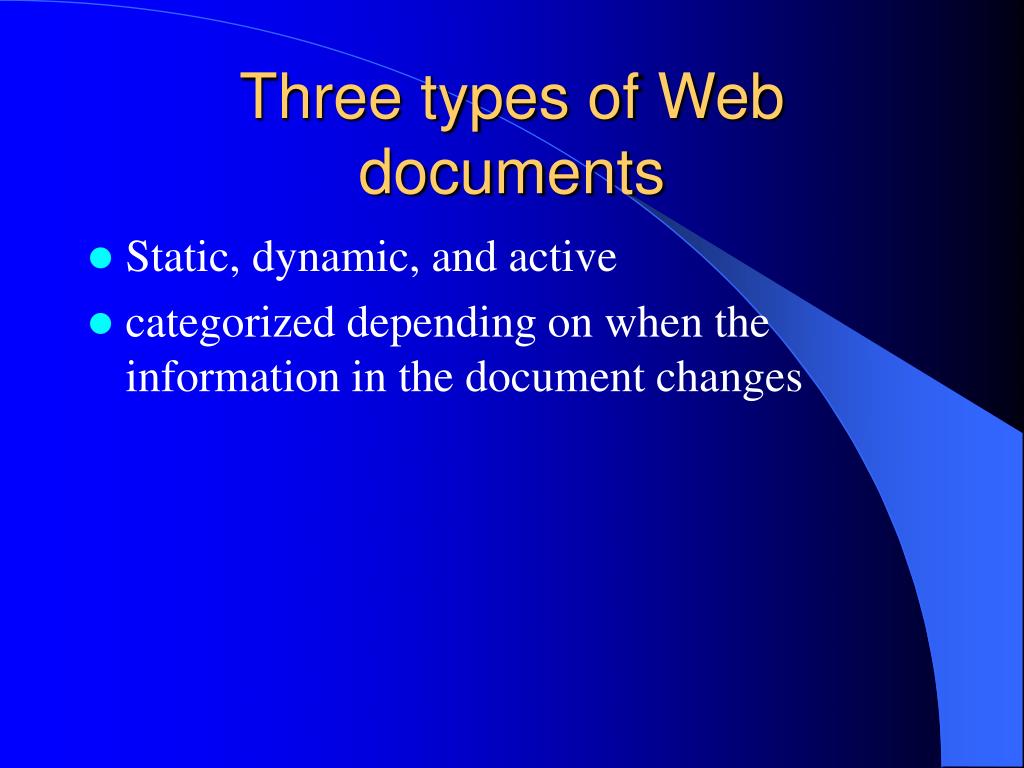

Three types of Web documents
  • Static, dynamic, and active
  • categorized depending on when the information in the document changes
static documents

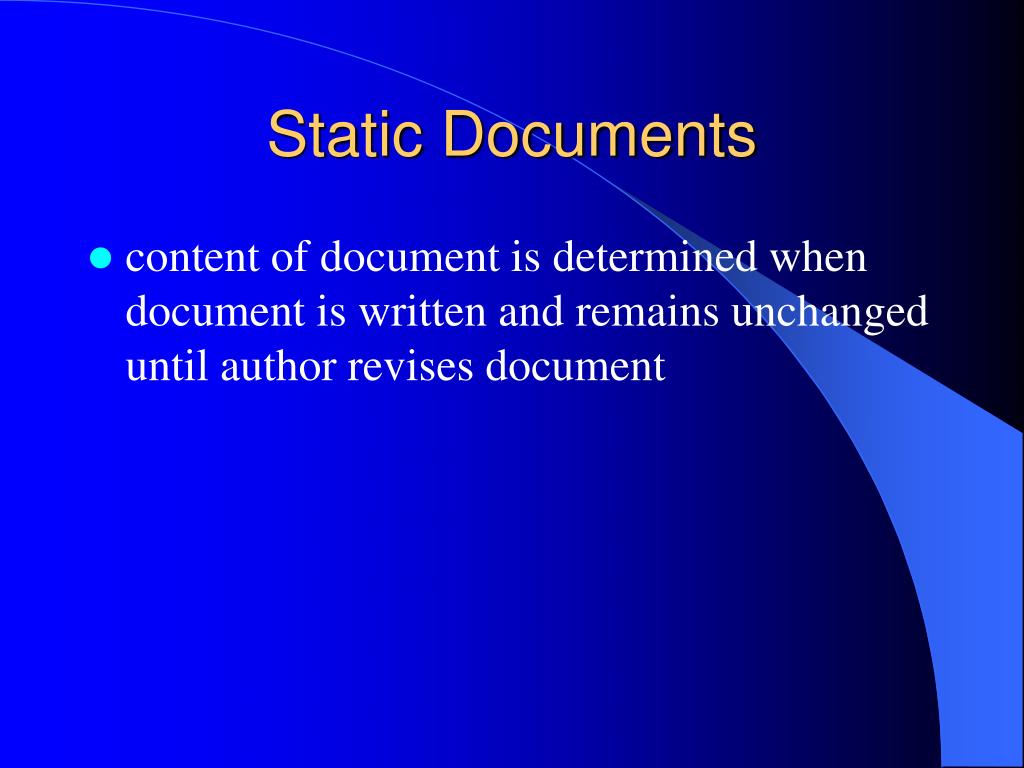

Static Documents
  • content of document is determined when document is written and remains unchanged until author revises document
dynamic documents

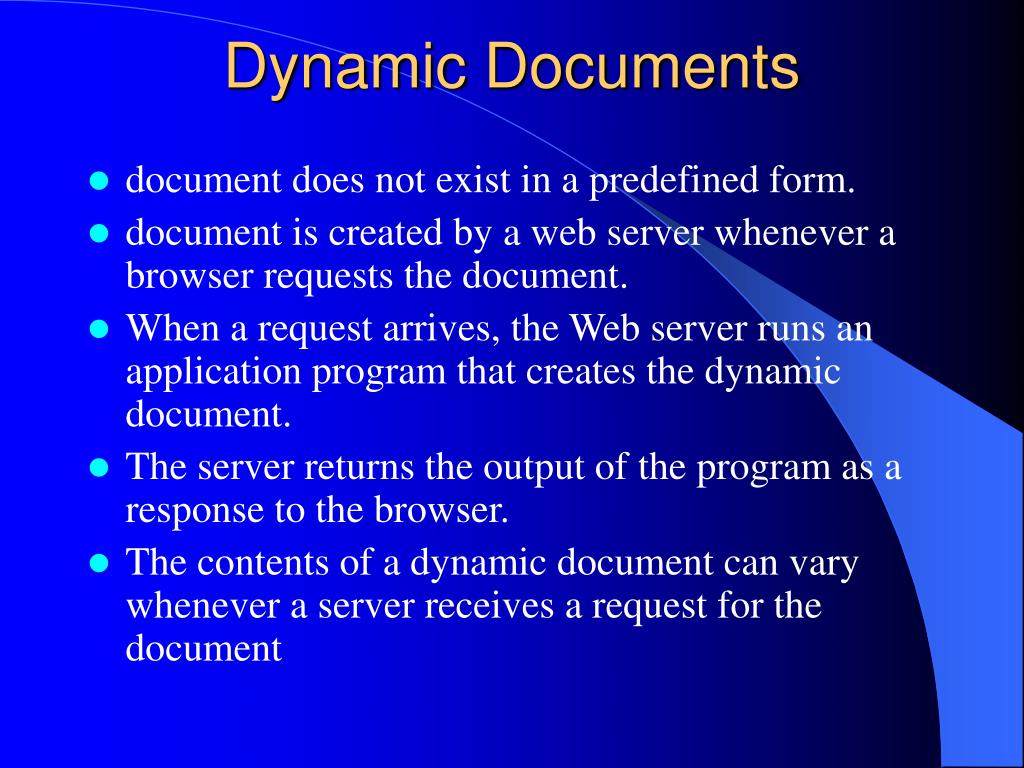

Dynamic Documents
  • document does not exist in a predefined form.
  • document is created by a web server whenever a browser requests the document.
  • When a request arrives, the Web server runs an application program that creates the dynamic document.
  • The server returns the output of the program as a response to the browser.
  • The contents of a dynamic document can vary whenever a server receives a request for the document
active document

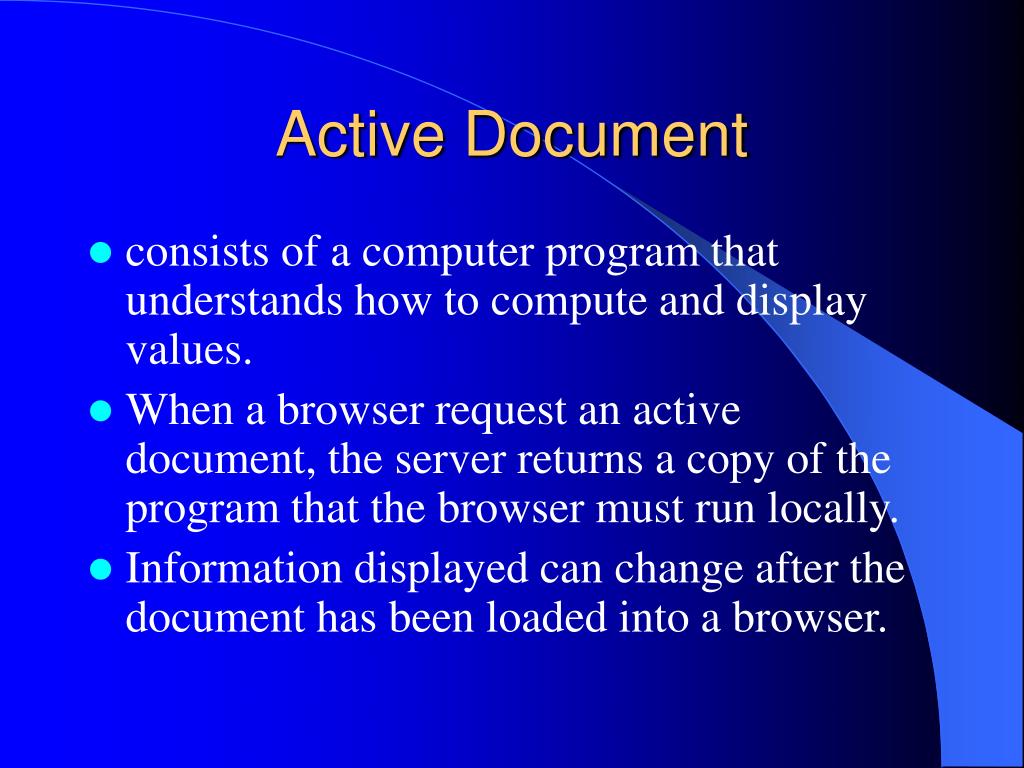

Active Document
  • consists of a computer program that understands how to compute and display values.
  • When a browser request an active document, the server returns a copy of the program that the browser must run locally.
  • Information displayed can change after the document has been loaded into a browser.
common gateway interface cgi

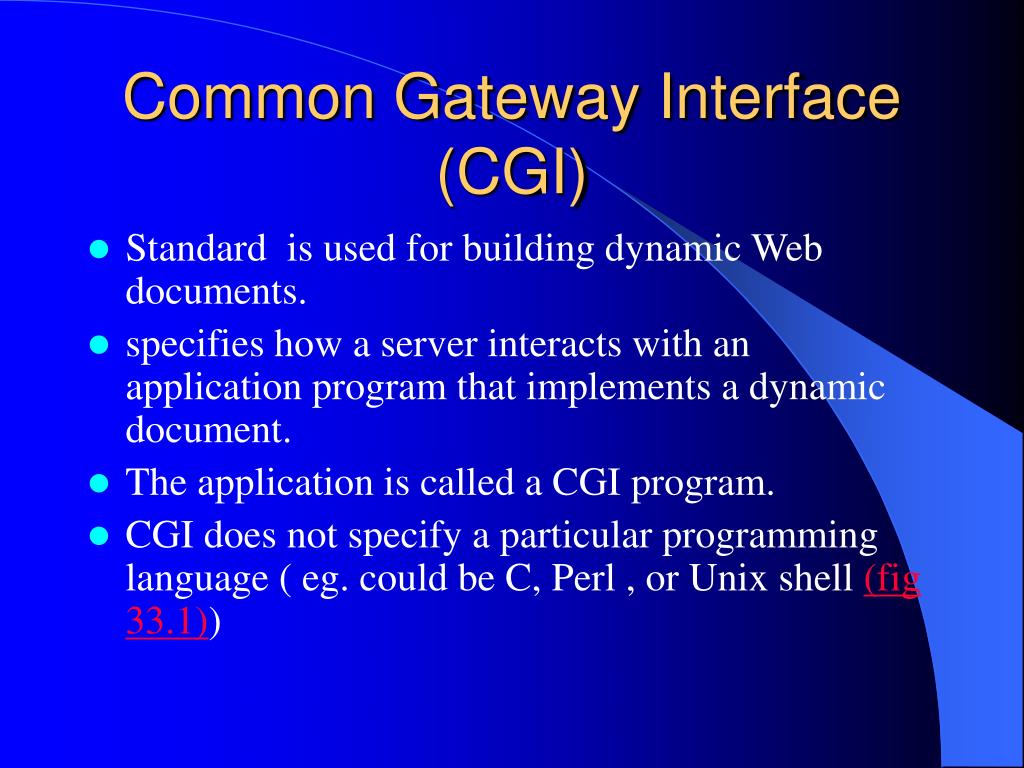

Common Gateway Interface (CGI)
  • Standard is used for building dynamic Web documents.
  • specifies how a server interacts with an application program that implements a dynamic document.
  • The application is called a CGI program.
  • CGI does not specify a particular programming language ( eg. could be C, Perl , or Unix shell (fig 33.1))
cgi program output

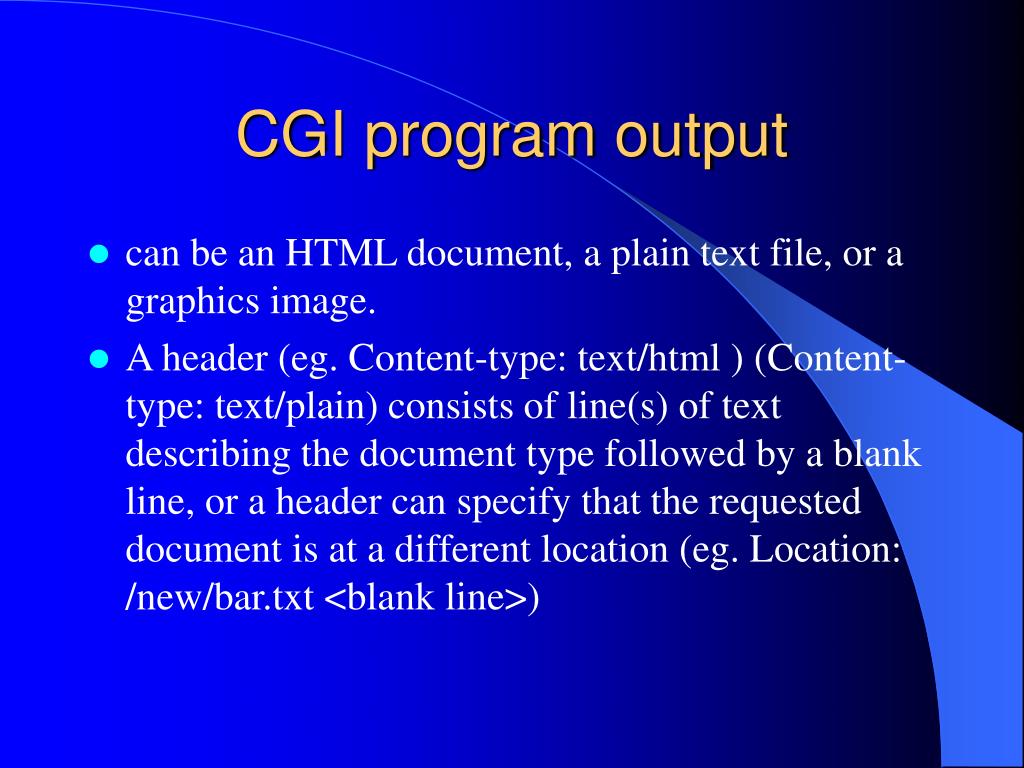

CGI program output
  • can be an HTML document, a plain text file, or a graphics image.
  • A header (eg. Content-type: text/html ) (Content-type: text/plain) consists of line(s) of text describing the document type followed by a blank line, or a header can specify that the requested document is at a different location (eg. Location: /new/bar.txt <blank line>)
cgi application support
CGI application support
  • A server that is capable of running CGI programs must be configured before it can invoke a CGI program or script.
  • When the a browser contacts the server and request the specified URL, the server runs the CGI program
parameters and environment variables

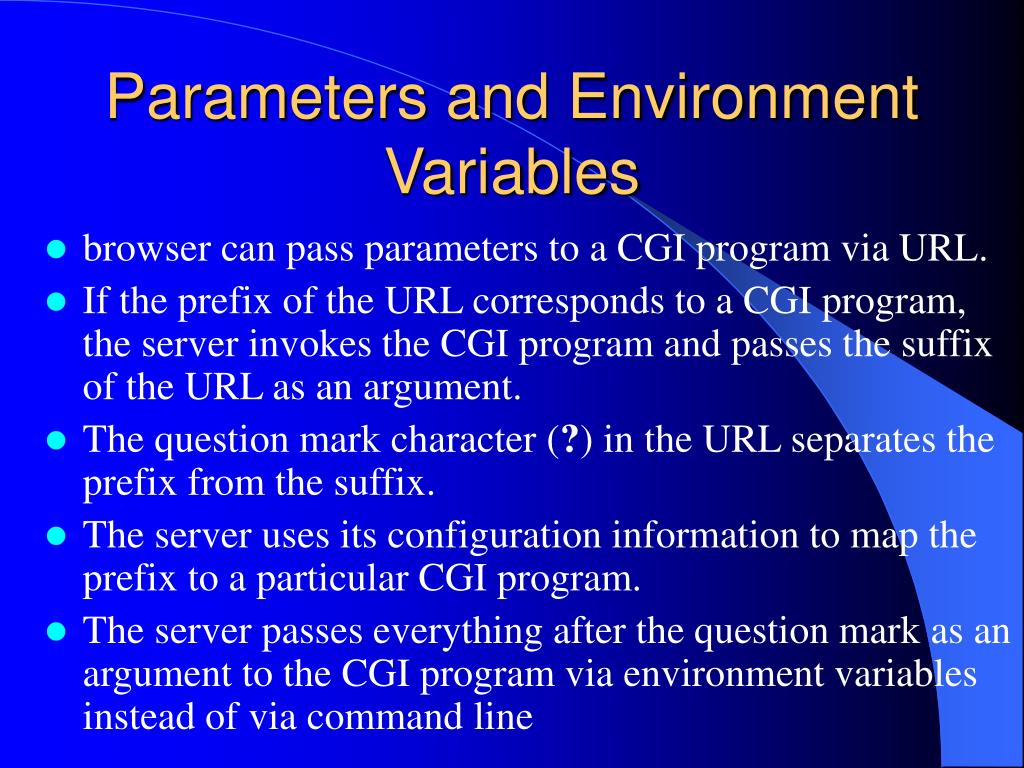

Parameters and Environment Variables
  • browser can pass parameters to a CGI program via URL.
  • If the prefix of the URL corresponds to a CGI program, the server invokes the CGI program and passes the suffix of the URL as an argument.
  • The question mark character (?) in the URL separates the prefix from the suffix.
  • The server uses its configuration information to map the prefix to a particular CGI program.
  • The server passes everything after the question mark as an argument to the CGI program via environment variables instead of via command line
environment variables inherited by a cgi program

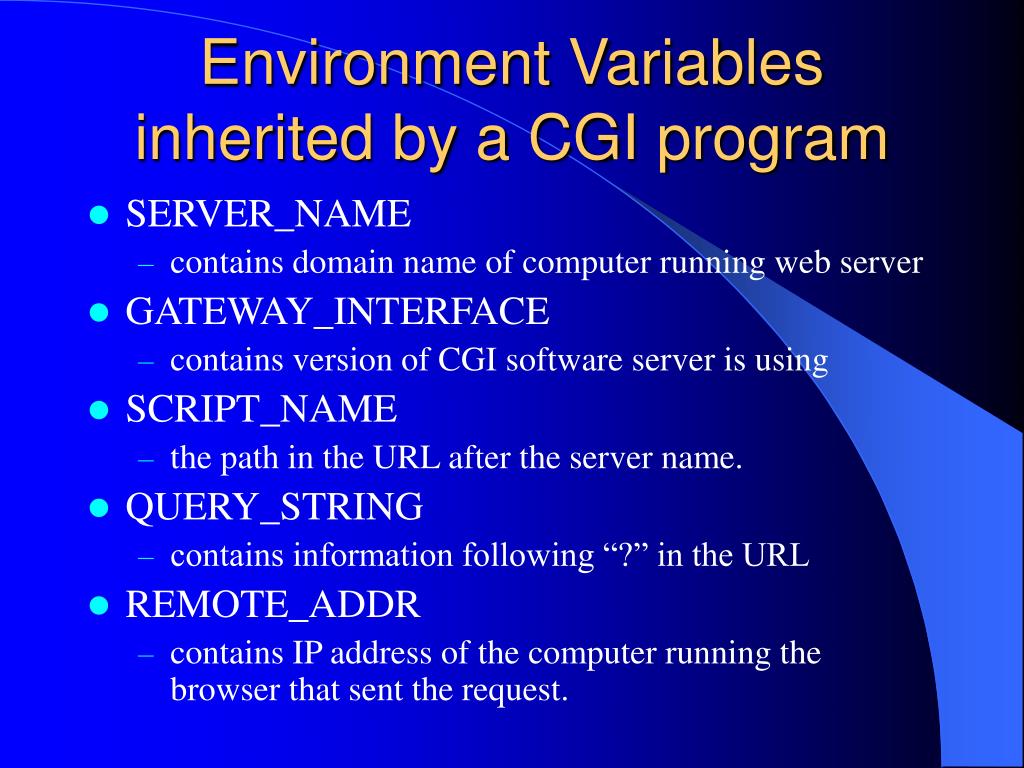

Environment Variables inherited by a CGI program
  • SERVER_NAME
    • contains domain name of computer running web server
  • GATEWAY_INTERFACE
    • contains version of CGI software server is using
  • SCRIPT_NAME
    • the path in the URL after the server name.
  • QUERY_STRING
    • contains information following “?” in the URL
  • REMOTE_ADDR
    • contains IP address of the computer running the browser that sent the request.
state information

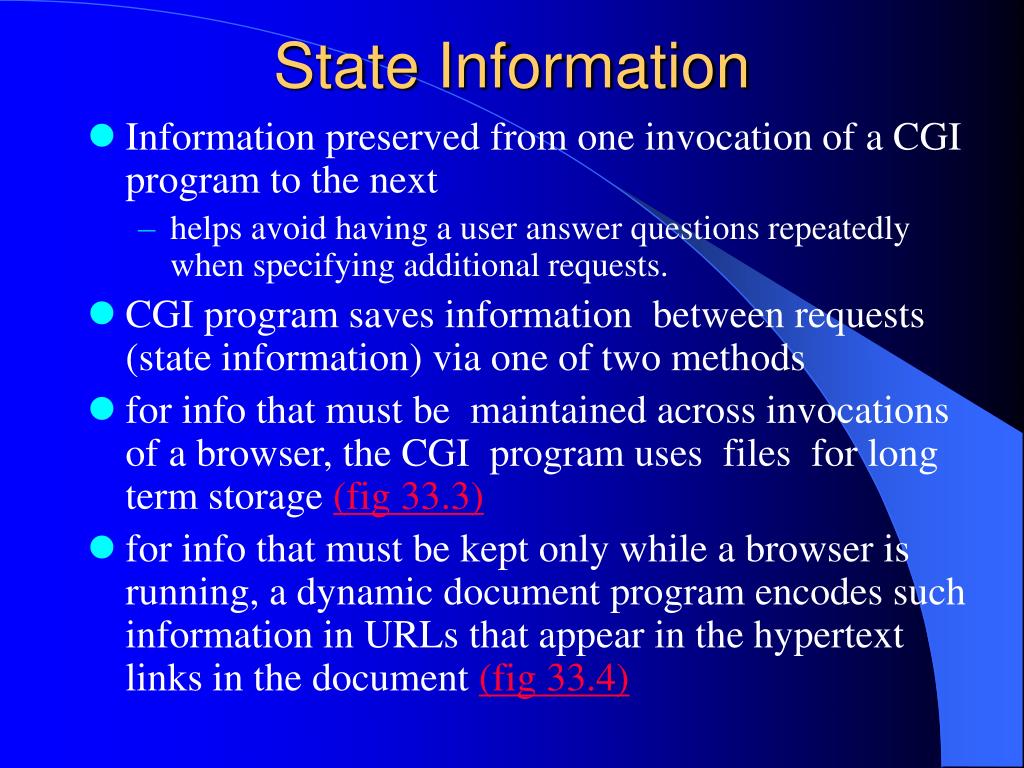

State Information
  • Information preserved from one invocation of a CGI program to the next
    • helps avoid having a user answer questions repeatedly when specifying additional requests.
  • CGI program saves information between requests (state information) via one of two methods
  • for info that must be maintained across invocations of a browser, the CGI program uses files for long term storage (fig 33.3)
  • for info that must be kept only while a browser is running, a dynamic document program encodes such information in URLs that appear in the hypertext links in the document(fig 33.4)
server side scripting technologies

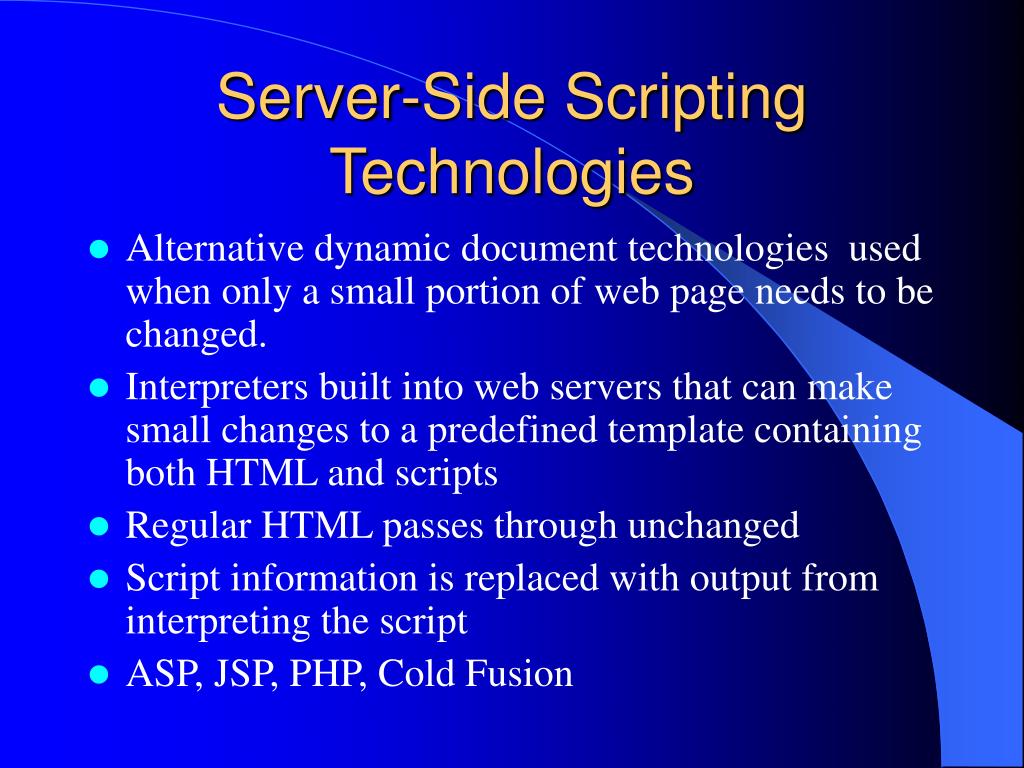

Server-Side Scripting Technologies
  • Alternative dynamic document technologies used when only a small portion of web page needs to be changed.
  • Interpreters built into web servers that can make small changes to a predefined template containing both HTML and scripts
  • Regular HTML passes through unchanged
  • Script information is replaced with output from interpreting the script
  • ASP, JSP, PHP, Cold Fusion
