physical sc. ch. 21

physical sc. ch. 21. Voc#3: Transformers & Batteries 39. transformer 40. primary coil 41. secondary coil 42. step-up transformer 43. step-down transformer 44. Thomas Edison 45. Nikola Telsa 46. advantage of AC for power transmission 47. George Westinghouse

vivi
Download Presentation

physical sc. ch. 21

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

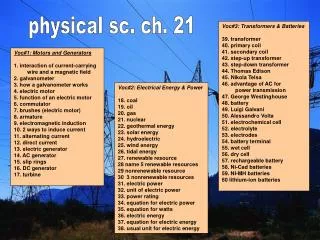

  1. physical sc. ch. 21 Voc#3: Transformers & Batteries 39. transformer 40. primary coil 41. secondary coil 42. step-up transformer 43. step-down transformer 44. Thomas Edison 45. Nikola Telsa 46. advantage of AC for power transmission 47. George Westinghouse 48. battery 49. Luigi Galvani 50. Alessandro Volta 51. electrochemical cell 52. electrolyte 53. electrodes 54. battery terminal 55. wet cell 56. dry cell 57. rechargeable battery 58. Ni-Cad batteries 59. NI-MH batteries 60 lithium-ion batteries Voc#1: Motors and Generators 1. interaction of current-carrying wire and a magnetic field 2. galvanometer 3. how a galvanometer works 4. electric motor 5. function of an electric motor 6. commutator 7. brushes (electric motor) 8. armature 9. electromagnetic induction 10. 2 ways to induce current 11. alternating current 12. direct current 13. electric generator 14. AC generator 15. slip rings 16. DC generator 17. turbine Voc#2: Electrical Energy & Power 18. coal 19. oil 20. gas 21. nuclear 22. geothermal energy 23. solar energy 24. hydroelectric 25. wind energy 26. tidal energy 27. renewable resource 28 name 5 renewable resources 29 nonrenewable resource 30 3 nonrenewable resources 31. electric power 32. unit of electric power 33. power rating 34. equation for electric power 35. equation for watts 36. electric energy 37. equation for electric energy 38. usual unit for electric energy

  2. physical sc. ch. 21 CONVERTING ELECTRICAL ENERGY TO MECHANICAL ENERGY • CURRENT-CARING WIRE IN MAGNETIC FIELD CONVERTS ELECTRICAL ENERGY TO MECHANICAL ENERGY • GALVANOMETER: MEASURES TINY MAGNETIC FIELDS • WIRE LOOPS ATTACHED TO NEEDLE HELD BETWEEN MAGNETIC FIELDS • STRONGER CURRENTS CAUSE LARGER MOVEMENTS OF THE NEEDLE • ELECTRIC MOTORS: USES ELECTRICITY TO TURN AN AXLE • MADE OF WIRE LOOPS BETWEEN MAGNETS, COMMUTATOR, BRUSHES • COMMUTATOR REVERSES DC CURRENT DIRECTION & MAGNETIC FIELD • BRUSHES: APPLY ELECTRICITY TO COMMUTATOR OF MOTOR • ARMATURE: HUNDREDS OF WIRE LOOPS ON AN IRON CORE 1

  3. GENERATORS: CHANGE MECHANICAL ENERGY TO ELECTRICAL ENERGY • CURRENT MADE WHEN A CONDUCTOR MOVES ACROSS MAGNETIC FIELD • ELECTROMAGNETICINDUCTION: PROCESS OF GENERATING ELECTRIC • CURRENT FROM THE MOTION OF A CONDUCTOR IN A MAGNETIC FIELD • ALTERNATINGCURRENT (AC): CURRENT IN WIRE REVERSES DIRECTION • DIRECTCURRENT (DC): CURRENT FLOWS ONLY IN ONE DIRECTION • SLIPRINGS CONTINUALLY REVERSE CURRENT DIRECTION • DCGENERATORS: USES COMMUTATOR, RESEMBLES A MOTOR TURBINES: A CIRCULAR, BLADED DEVICE ROTATED BY A MOVING FLUID • MAY USE WATER, WIND, STEAM, OCEAN CURRENTS • TURBINES OFTEN USED TO TURN GENERATORS, MAKE ELECTRICITY 2

  4. COMMON SOURCES OF ELECTRICAL ENERGY • COAL: PLENTIFUL RELATIVELY INEXPENSIVE, NON-RENEWABLE FOSSILFUEL, • BURNED TO MAKE STEAM, STEAM TURNS ELECTRIC TURBINE • CAUSES GREENHOUSEGASE CARBON DIOXIDE, AIR POLLUTION • OIL: LESS ABUNDANT NON-RENEWABLE FOSSIL FUEL, BURNED TO MAKE STEAM • STEAM TURNS ELECTRIC TURBINE, CAUSES GREENHOUSE GASES • USED FOR GAS, DESIEL, BECOMING INCREASINGLY EXPRENSIVE • NATURALGAS: LESS ABUNDANT NON-RENEWABLE FOSSIL FUEL • BURNED TO MAKE STEAM, STEAM TURNS ELECTRIC TURBINES • INCREASINGLY EXPENSIBVE, CAUSES GREENHOUSE GASE CARBON DIOXIDE 3

  5. COMMON ENERGY SOURCES continued • NUCLEAR : NON-RENEWABLE ,NUCLEAR REACTION’S HEAT PRODUCES STEAM • STEAM TURBINE PRODUCES ELECTRICITY • NO GREENHOUSE GASES, BUT NUCLEARWASTE IS A SERIOUS PROBLEM • HYDROELECTRIC: CLEAN, LOW COST, NONPOLLUTING , NO GREENHOUSE GASES • WATER TURNS TURBINES DIRECTLY • RENEWABLE, BUT LIMITED TO SPECIFIC BODIES OF WATER • TIDES: CLEAN BUT UNCOMMON ,TURNS TURBINES DIRECTLY • NO GREENHOUSE GASES PRODUCED • RENEWABLE, BUT CAN ONLY BE BUILD IN VERY LIMITED SHORE AREAS 4

  6. COMMON ENERGY SOURCES continued • WIND: RENEWABLE, CLEAN, LOW COST, NON-POLLUTING • WIND TURNS ELECTRIC TURBINE DIRECTLY • LIMITED TO AREAS OF HIGH, CONSISTENT WINDS • SOLAR: CLEAN, UNLIMITED, RENEWABLE • PHOTO-ELECTRIC REACTION PRODUCES ELECTRICITY • EXPENSIVE TO PRODUCE, TECHNOLOGY STILL BEING DEVELOPED • CONFINED TO AREAS OF STRONG, CONSISTENT SUNLIGHT • GEOTHERMAL: MODERATE COSTS, NON-POLLUTING • HEAT CHANNELED FROM VOLCANIC AREAS TO TURN STEAM TURBINES • CONFINED TO VERY LIMITED SITES 5

  7. RENEWABLE RESOURCES: NOT FIXED, REPLACEABLE RESOURCES • NONRENEWABLE RESOURCES: FIXED, DIMINISHING RESOURCES • ELECTRICPOWER: RATE THAT ELECTRIC ENERGY CHANGES TO ANOTHER FORM • EQUATION: POWER = VOLTAGE x CURRENT (P = V x I) • UNIT: WATTS(W), WATTS = VOLTS TIMES AMPS • ELECTRICENERGY: THE AMOUNT OF POWER USED TIMES TIME • ENERGY EQUATION : E = P x T (KILOWATT-HOURS = KILOWATTS x HOURS) • UNIT USED BY THE ELECTRIC COMPANY TO MEASURE ELECTRICITY USED 6

  8. TRANSFORMERS: DEVICE WHICH INCREASES OR DECREASES VOLTAGE. • GENERAL STRUCTURE: PRIMARY AND SECONDARY COILS • PRIMARYCOIL: CONNECTED TO INCOMING CURRENT • SECONDARYCOIL: CONNECTED TO OUTGOING CURRENT • SOFTIRONCORE: TRANSFERS CURRENT TO SECONDARY BY INDUCTION • STEP-UP TRANSFORMER: INCREASES VOLTAGE, MORE COILS IN SECONDARY • STEP-DOWN TRANSFORMER: LOWERS VOLTAGE, HAS FEWER COILS IN SECONDARY COIL 7

  9. PIONEERS IN ELECTRICAL POWER SUPPLY • EDISON ELECTRIC LIGHT COMPANY: 1ST TO SUPPLY ELECTRICITY • SUPPLIED 120v DC, MUCH LOST DUE TO POWER LINE RESISTANCE • EDISON’S GENERATING PLANTS HAD TO BE SMALL, CLOSE TOGETHER • EDISON LATER HAD TO CHANGE TO AC: TODAY HIS COMPANY IS G.E. • NIKOLA TELSA: USED AC CURRENT, HIGH VOLTAGE AND TRANSFORMERS • MUCH MORE EFFICIENT IN CONDUCTING ELECTRICITY • MADE 1ST HYDRO-ELECTRIC PLANT AT NIAGARAFALLS 8

  10. ELECTROCHEMICAL CELLS: CHANGE CHEMICAL ENERGY TO ELECTRICAL ENERGY • VOLTAIC CELL: HAS 2 ELECTRODES AND AN ELECTROLYTE • ELECTRODE: A METAL STRIP WHICH COLLECTS OR GIVES AWAY ELECTRONS • SILVER, COPPER COLLECT ELECTRONS; ZINC & ALUMINUM RELEASE THEM • TERMINALS: THE CONNECTION POINT TO THE ELECTRODES • ELECTROLYTE: A CHEMICAL WHICH PULLS ELECTRONS FROM ONE • ELECTRODE AND MOVES THEM TO THE OTHER • FIRST DEVELOPED BY ALESSANDRO VOLTA IN EARLY 1800’S 9

  11. IMPORTANT PEOPLE IN ITS DEVELOPMENT • LUIGI GALVANI EXPERIMENTED ANIMAL TISSUE (late 1700’S) • APPLIED ELECTRIC CURRENT TO FROGS’ LEGS • DISEMBODIED FROGS’ LEGS MOVED IN RESPONSE • INSPIRED THE FRANKENSTEINBY MARY SHELLY • ALESSANDRO VOLTA MADE FIRST WET CELL • BASED ON GALVANI’S WORK WITH ELECTRICITY • WET CELL BASED ON REACTIONS BETWEEN FLUIDS, METALS 10

  12. BATTERY: A COMBINATION OF TWO OR MORE ELECTROCHEMICAL CELLS • WET CELL: USE LIQUID ELECTROLYTES (SULFURIC OR HYDROCHLORIC ACID) • ELECTRONS FLOW FROM NEGATIVE ELECTRODE TO POSITIVE • CHEMICAL REACTIONS WITH ELECTROLYTE CAUSES ELECTRONS TO MOVE • DRY CELL: USES A PASTE-LIKE ELECTROLYTE • DEADCELL: REACTANTS HAVE ALL BEEN CHANGED, STOP REACTING • REACTANTS: ACTIVE PART OF ELECTROLYTE, TRANSFERS ELECTRONS • RECHARGEABLEBATTERIES: CAN REGAIN ENERGY BY APPLYING ENERGY • ENERGY APPLIED IN REVERSE DIRECTION • ENERGY RE-ENERGIZES REACTANTS • EXAMPLES INCLUDE NICKLE-HYDROXIDE, NICKLE-CADIUM, LITHIUM 11
