  1. Title 0:30 Superconductivity February 2005 Ady Stern, Baruch Rosenstein, Eli Zeldov

  2. Superconductivity Theoretical predictions of resistivity of metals at low T Kamerlingh Onnes, 1911

  3. Superconductivity perfect conductivity Kamerlingh Onnes, 1911

  4. R(T) at low temperatures Experiment Theoretical predictions 1) perfect conductivity

  5. Tc M - M Isotope effect

  6. Tc M - M Isotope effect 2) Lattice is important

  7. superconductor B = 0 zero flux Meissner effect Meissner effect Perfect diamagnetism Meissner and Ochsenfeld, 1933 perfect conductor =0 =>E =0 => dB/dt = 0 constant flux 3) Perfect diamagnetism

  8. paramagnetic B > H diamagnetic B < H Magnetization of superconductors normal metal B = H B = H B H

  9. Magnetization of superconductors superconductor (type I) B = H B B=0 H Hc B=0 Meissner B=H normal

  10. 4M Magnetization of superconductors superconductor (type I) B = H B B=0 H Hc B=0 Meissner B=H normal 4M = B - H 4M Hc H Meissner normal 4M = -H M = 0

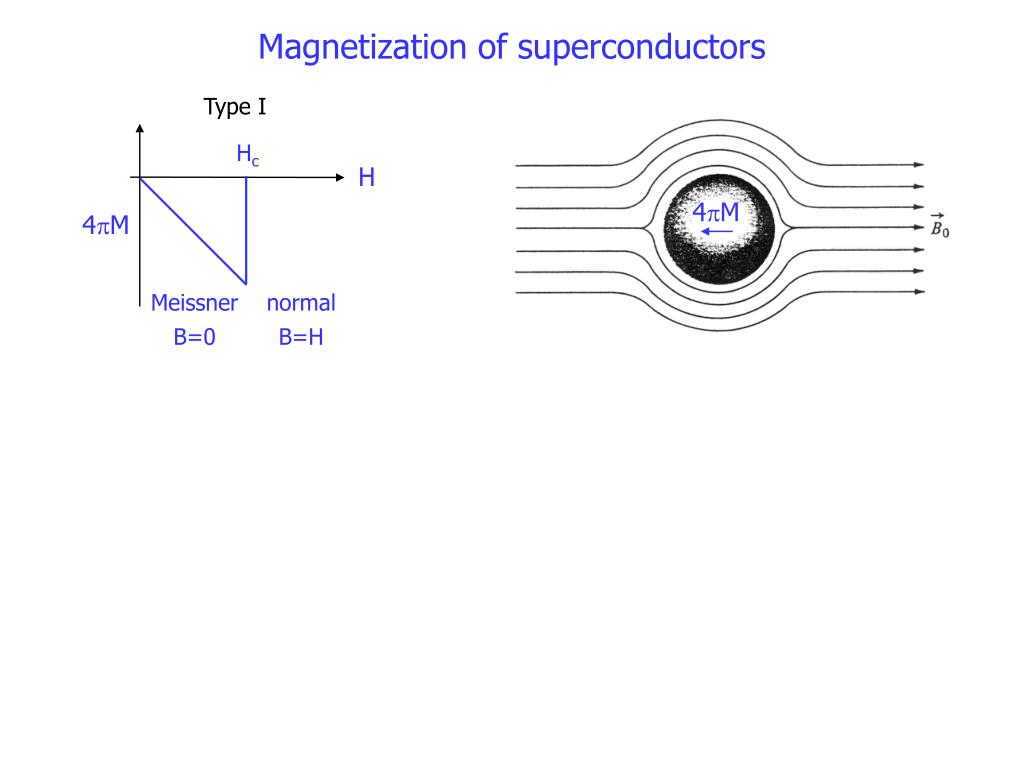

  11. 4M Magnetization of superconductors Type I Hc H 4M Meissner B=0 normal B=H

  12. Type II Hc1 Hc2 H 4M Meissner B=0 mixed B<H normal B=H Magnetization of superconductors Type I Hc H 4M Meissner B=0 normal B=H 4) Magnetic field suppresses superconductivity

  13. Magnetization of superconductors Type I Type II Hc Hc1 Hc2 H H 4M 4M Meissner B=0 normal B=H Meissner B=0 mixed B<H normal B=H Magnetization loop in Bi2Sr2CaCu2O8

  14. Type II Hc2(T) Normal mixed state H metal Hc1(T) Meissner state Tc T Phase diagram Type I H Normal Hc(T) Hc metal Meissner state Tc T

  15. thin insulator normal SC Tunneling experiments Nobel 1973 Al Al-Al2O3-Pb Al-Al2O3

  16. D thin insulator normal SC dI/dV V Tunneling experiments I Al Pb Pb normal Pb superconducting V 5) Energy gap in density of states

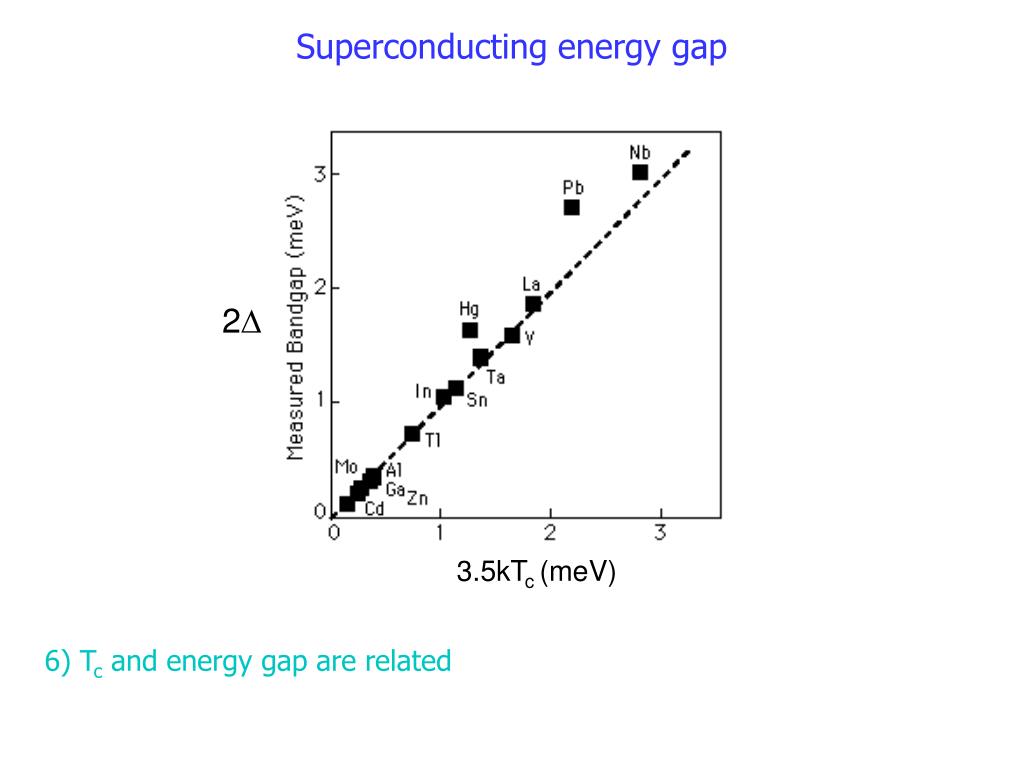

  17. Superconducting energy gap 2D 3.5kTc (meV) 6) Tc and energy gap are related

  18. H + H I V - R F0=h/2e=2.07x10-7 Gcm2 Little-Parks experiment time

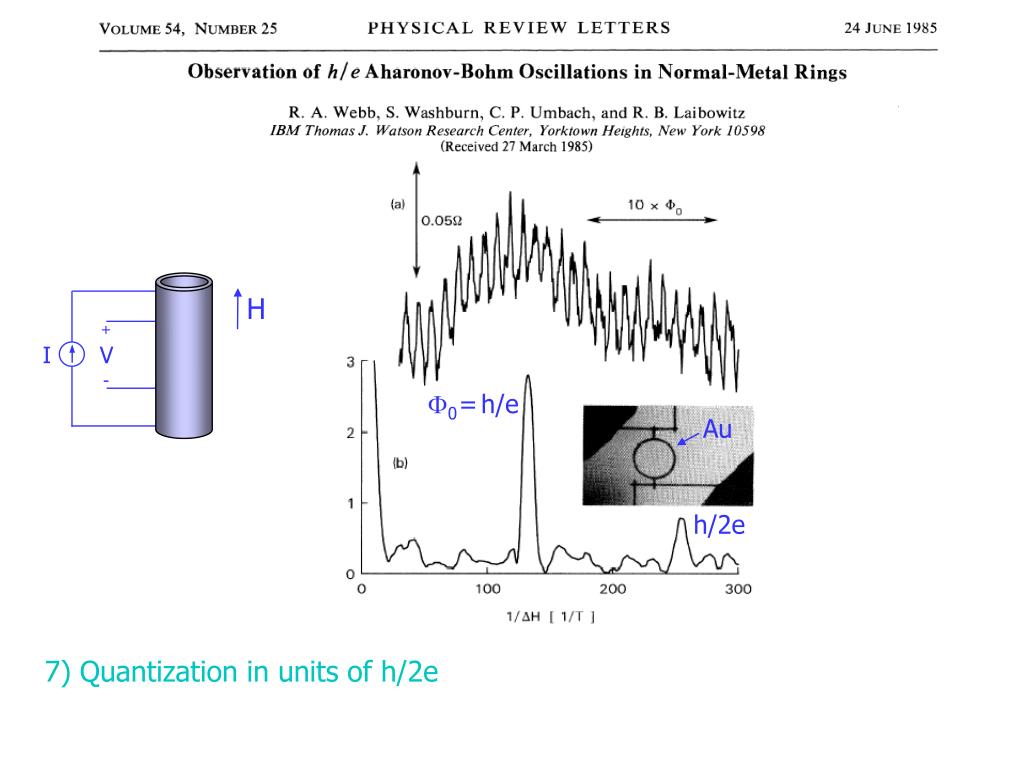

  19. H + I V - 7) Quantization in units of h/2e F0=h/e Au h/2e

  20. Critical temperature of superconductors Tc < 30 K conventional superconductors

  21. Critical temperature of superconductors High-temperature superconductors (HTS) Tc > 140 K 8) Superconductivity mechanism in HTS is different from LTS

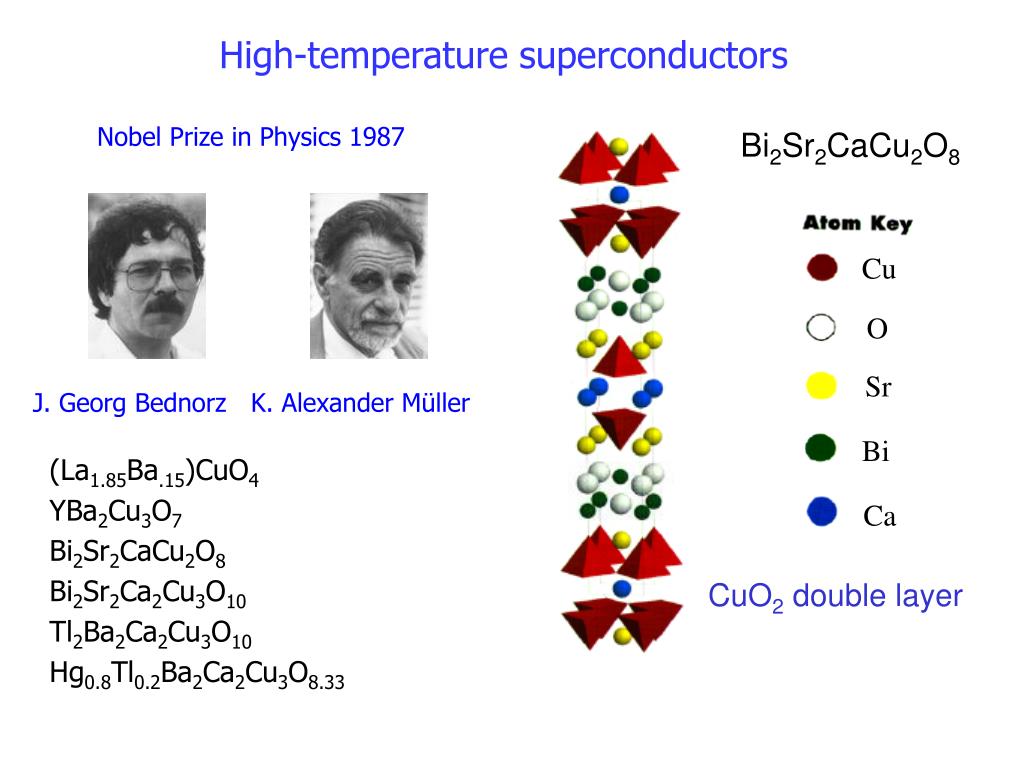

  22. High-temperature superconductors Nobel Prize in Physics 1987 Bi2Sr2CaCu2O8 J. Georg Bednorz K. Alexander Müller (La1.85Ba.15)CuO4 YBa2Cu3O7 Bi2Sr2CaCu2O8 Bi2Sr2Ca2Cu3O10 CuO2 double layer Tl2Ba2Ca2Cu3O10 Hg0.8Tl0.2Ba2Ca2Cu3O8.33

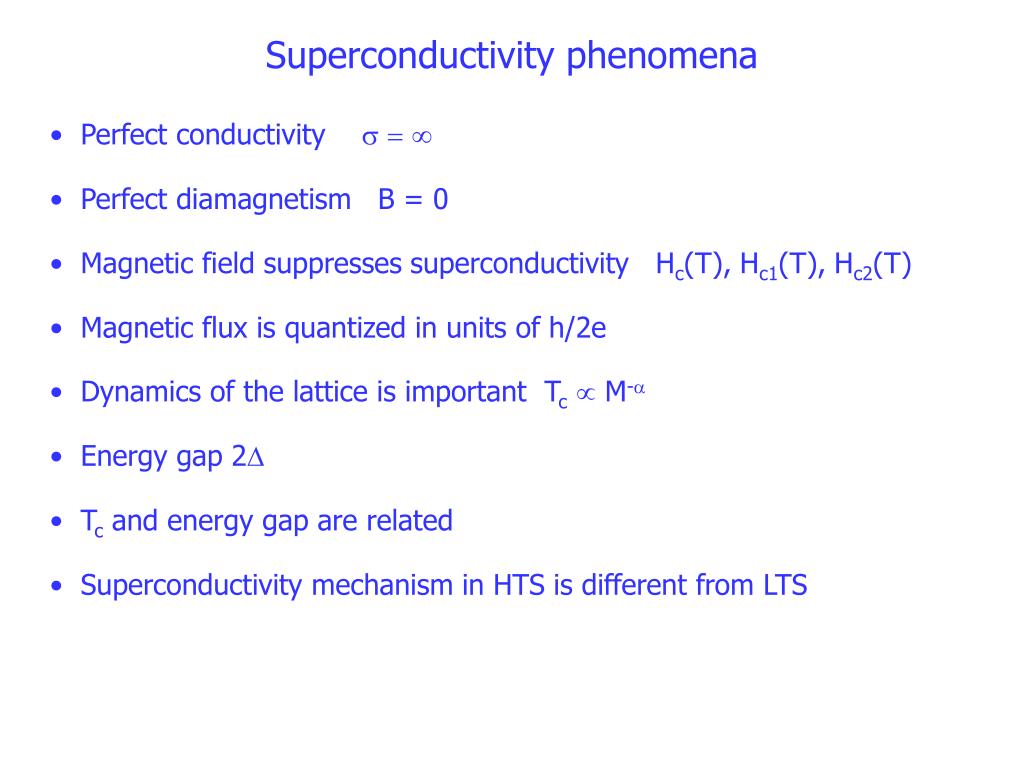

  23. Superconductivity phenomena • Perfect conductivity    • Perfect diamagnetism B = 0 • Magnetic field suppresses superconductivity Hc(T), Hc1(T), Hc2(T) • Magnetic flux is quantized in units of h/2e • Dynamics of the lattice is important Tc M- • Energy gap 2 • Tc and energy gap are related • Superconductivity mechanism in HTS is different from LTS
