Taguchi Loss Function pp. 110-111 , 604-607

Taguchi Loss Function pp. 110-111 , 604-607. Quality is variation from desired mean expressed as an economic loss function. Function is Loss at measure x = constant times distance from desired measure to x squared. Lx = k((x-T)^2).

vito
Download Presentation

Taguchi Loss Function pp. 110-111 , 604-607

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Taguchi Loss Function pp. 110-111, 604-607

  2. Quality is variation from desired mean expressed as an economic loss function

  3. Function is Loss at measure x = constant times distance from desired measure to x squared. Lx = k((x-T)^2) • k is the part of a Parabola equation that controls how flat or vertical the wings are

  4. Find k with a known cost at some measure, usually cost when out of specification (scrap, warranty)

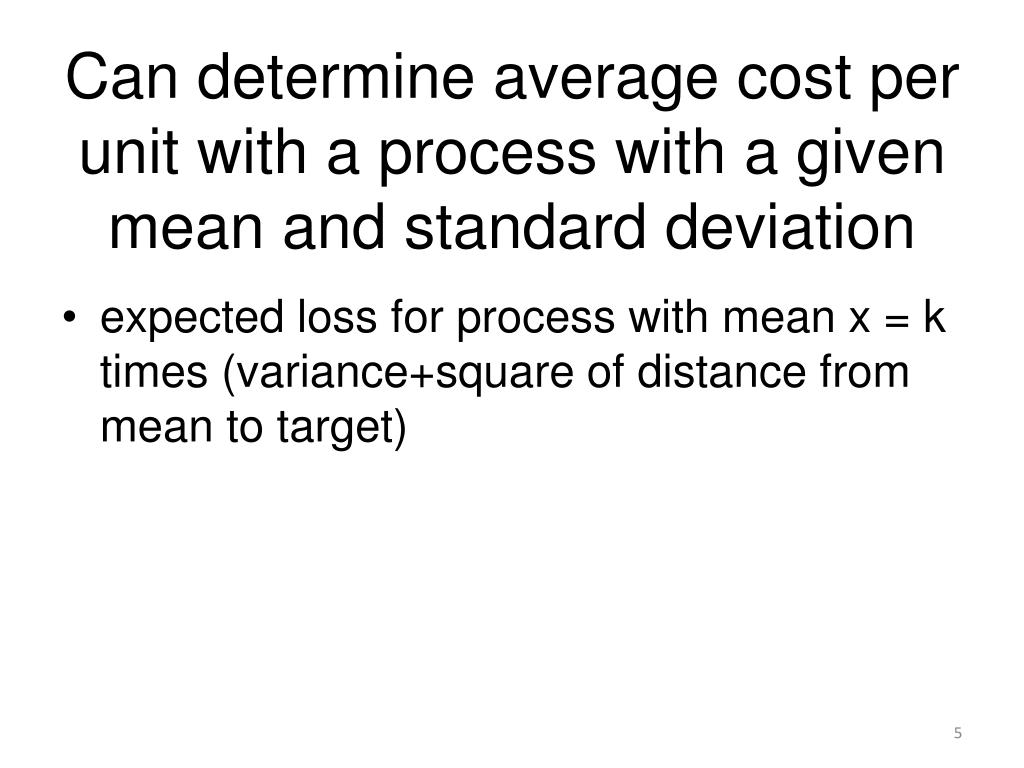

  5. Can determine average cost per unit with a process with a given mean and standard deviation • expected loss for process with mean x = k times (variance+square of distance from mean to target)

  6. Can utilize this for one sided situations (better if bigger or smaller) • smaller is better than target L at x = k times x^2 • bigger is better than target L at x = k time 1/x^2

  7. Set parameters to make sure to minimize cost to company and customers

  8. Truncated curves, see accompanying excel sheet
