2006 land judging contest

2006 Land Judging Contest

Tifton, Georgia

August 26, 2006

Photos Taken By Jeri Bozeman

Slideshow Assembled By Kasey Bozeman

station one south ga

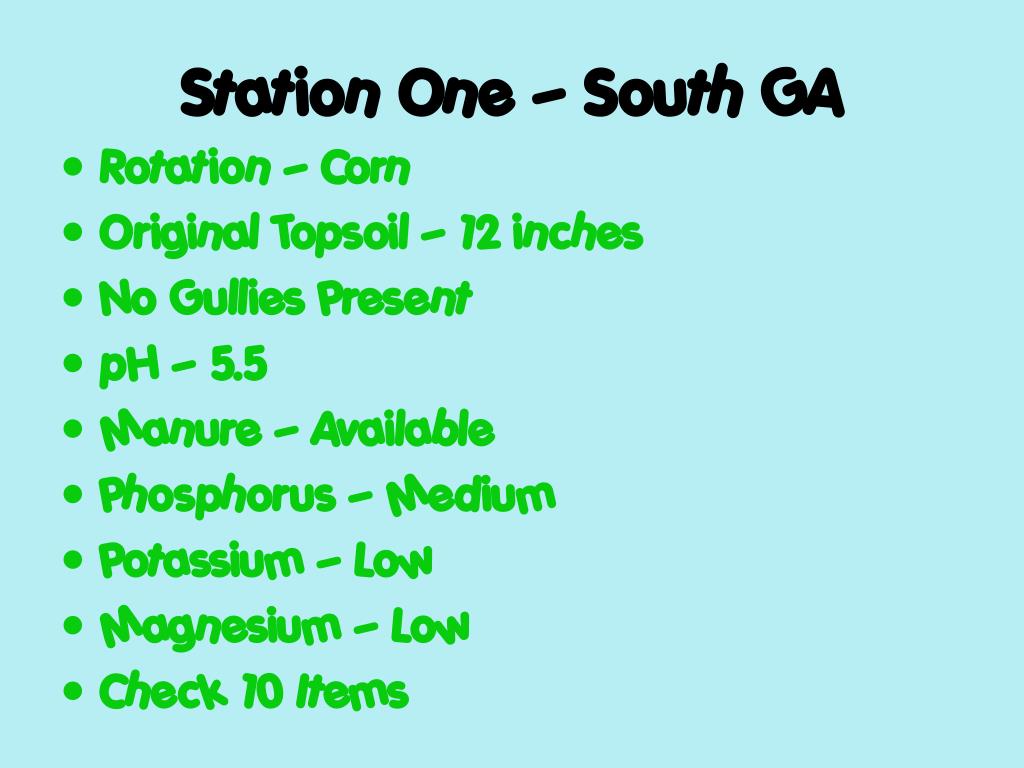

Station One – South GA
  • Rotation – Corn
  • Original Topsoil – 12 inches
  • No Gullies Present
  • pH – 5.5
  • Manure – Available
  • Phosphorus – Medium
  • Potassium – Low
  • Magnesium – Low
  • Check 10 Items
station one south ga3
Station One – South GA
  • Notice the topsoil texture. What does it look like? Remember this is a South Georgia Pit.
  • Where is the point of change?
  • Where does the subsoil end?
  • What is the soil’s permeability? What mostly composes the soil?
  • What is the slope of the land?
  • After finding the topsoil thickness, calculate the erosion.
  • Are gray mottles present? If so, how deep are they?
  • What Land Capability Class is it?
slide4
From the photo on the left, you can see the slope of the land. Below, is the actual informational poster from the contest.
station one answers

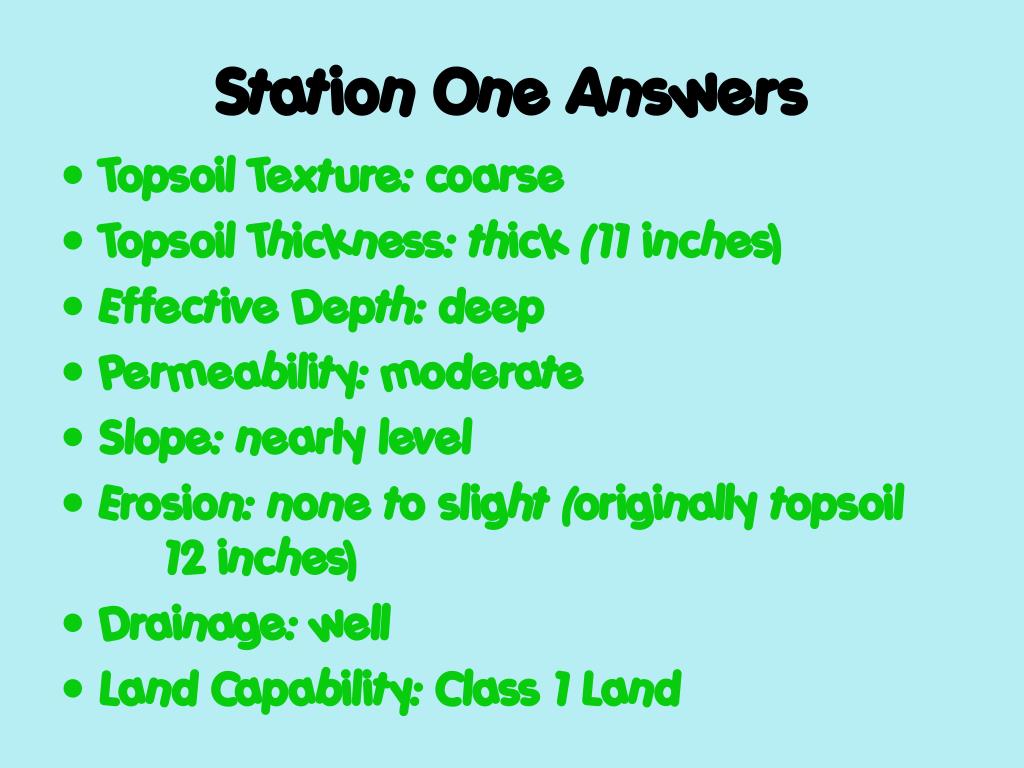

Station One Answers
  • Topsoil Texture: coarse
  • Topsoil Thickness: thick (11 inches)
  • Effective Depth: deep
  • Permeability: moderate
  • Slope: nearly level
  • Erosion: none to slight (originally topsoil 12 inches)
  • Drainage: well
  • Land Capability: Class 1 Land
station one profile
Station One Profile

The black arrow in the photograph shows the point of change. The original topsoil thickness was 12 inches. Now, there are only 11 inches remaining. That means that about 8% of the topsoil has been lost due to erosion.

station one answers continued
Station One Answers Continued

10 Items Checked –

  • 1 – because it was Class 1 Crop Land
  • 5 – because its use was Crop Land
  • 6 – because its use was Crop Land
  • 9 – because its use was Crop Land
  • 21 – because pH was below 6
  • 22 – because manure was available
  • 23 – because Phosphorus was medium
  • 24 – because Potassium was low
  • 25 – because non-legume crops were planted
  • 26 – because Magnesium was low
station two south ga
Station Two – South GA
  • New Forest Area
  • Original Topsoil –

24 inches

  • No Gullies Present
  • pH – 6.0
  • Manure – Not

Available

  • Phosphorus – High
  • Potassium – High
  • Magnesium – Low
  • Check 1 Item
station two south ga9

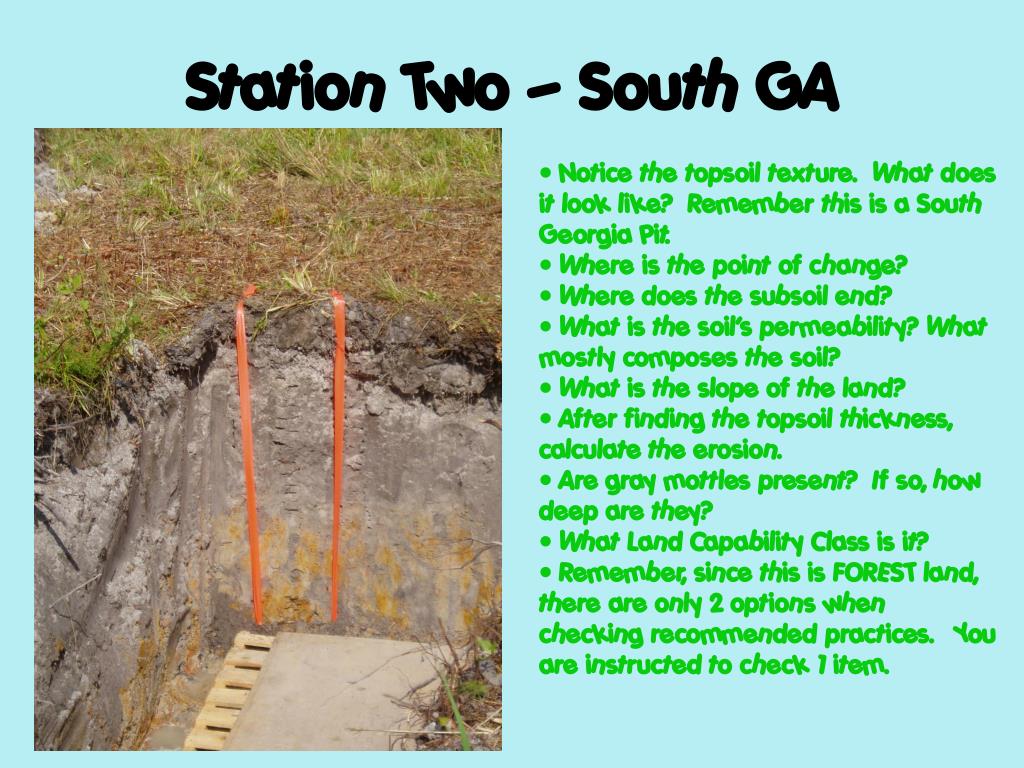

Station Two – South GA
  • Notice the topsoil texture. What does it look like? Remember this is a South Georgia Pit.
  • Where is the point of change?
  • Where does the subsoil end?
  • What is the soil’s permeability? What mostly composes the soil?
  • What is the slope of the land?
  • After finding the topsoil thickness, calculate the erosion.
  • Are gray mottles present? If so, how deep are they?
  • What Land Capability Class is it?
  • Remember, since this is FOREST land, there are only 2 options when checking recommended practices. You are instructed to check 1 item.
station two answers

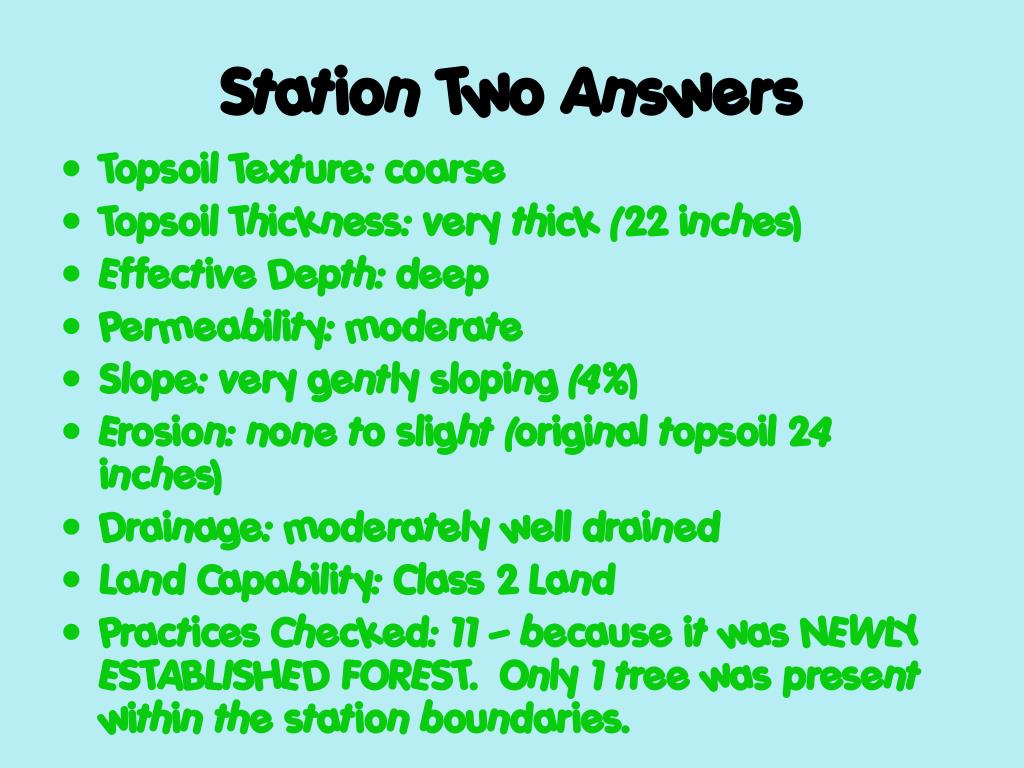

Station Two Answers
  • Topsoil Texture: coarse
  • Topsoil Thickness: very thick (22 inches)
  • Effective Depth: deep
  • Permeability: moderate
  • Slope: very gently sloping (4%)
  • Erosion: none to slight (original topsoil 24 inches)
  • Drainage: moderately well drained
  • Land Capability: Class 2 Land
  • Practices Checked: 11 – because it was NEWLY ESTABLISHED FOREST. Only 1 tree was present within the station boundaries.
station two profile

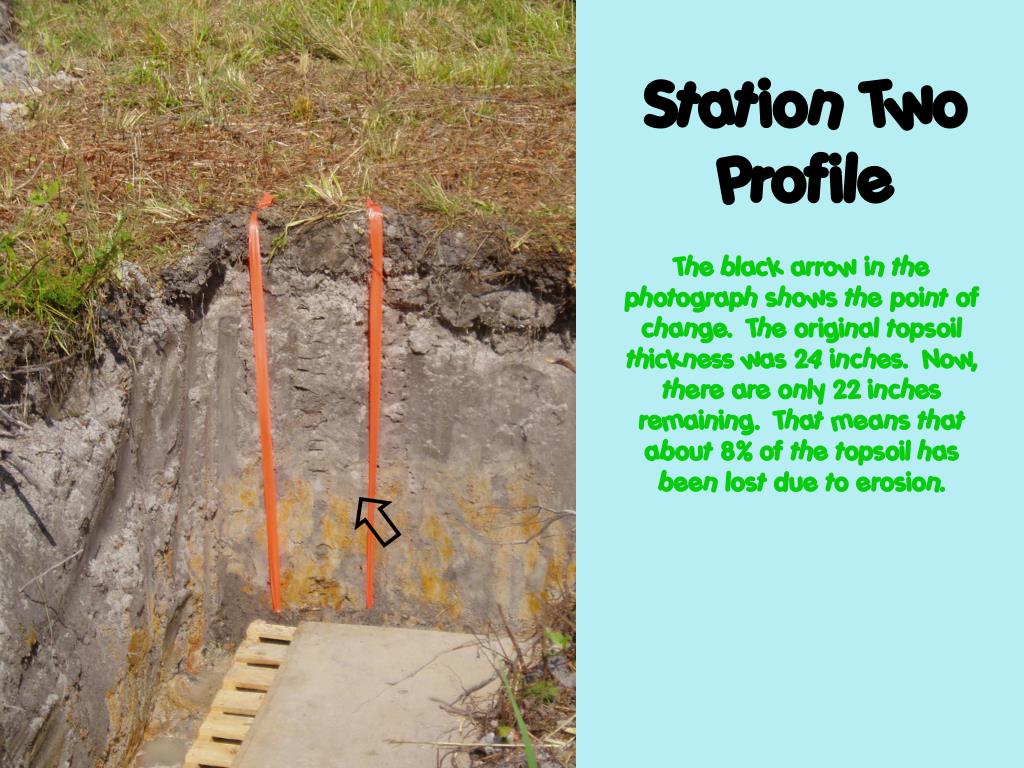

Station Two Profile

The black arrow in the photograph shows the point of change. The original topsoil thickness was 24 inches. Now, there are only 22 inches remaining. That means that about 8% of the topsoil has been lost due to erosion.

station three north ga
Station Three – North GA
  • Rotation – Cotton
  • Original Topsoil – 8 inches
  • No Gullies Present
  • pH – 6.1
  • Manure – Available
  • Phosphorus – High
  • Potassium – High
  • Magnesium – Adequate
  • Check 10 Items
station three north ga14
Station Three – North GA
  • Notice the topsoil texture. What does it look like? Remember this is a North Georgia Pit.
  • Where is the point of change?
  • Where does the subsoil end?
  • What is the soil’s permeability? What mostly composes the soil?
  • What is the slope of the land? (use poster at contest)
  • After finding the topsoil thickness, calculate the erosion.
  • Are gray mottles present? If so, how deep are they?
  • What Land Capability Class is it?
station three answers
Station Three Answers
  • Topsoil Texture: medium
  • Topsoil Thickness: moderately thick (7 inches)
  • Effective Depth: deep
  • Permeability: moderate
  • Slope: very gently sloping (4%)
  • Erosion: none to slight (originally topsoil 8 inches)
  • Drainage: well drained
  • Land Capability: Class 2 Land
station three profile
Station Three Profile

The black arrow in the photograph shows the point of change. The original topsoil thickness was 8 inches. Now, there are only 7 inches remaining. That means that about 12.5% of the topsoil has been lost due to erosion.

station three answers continued

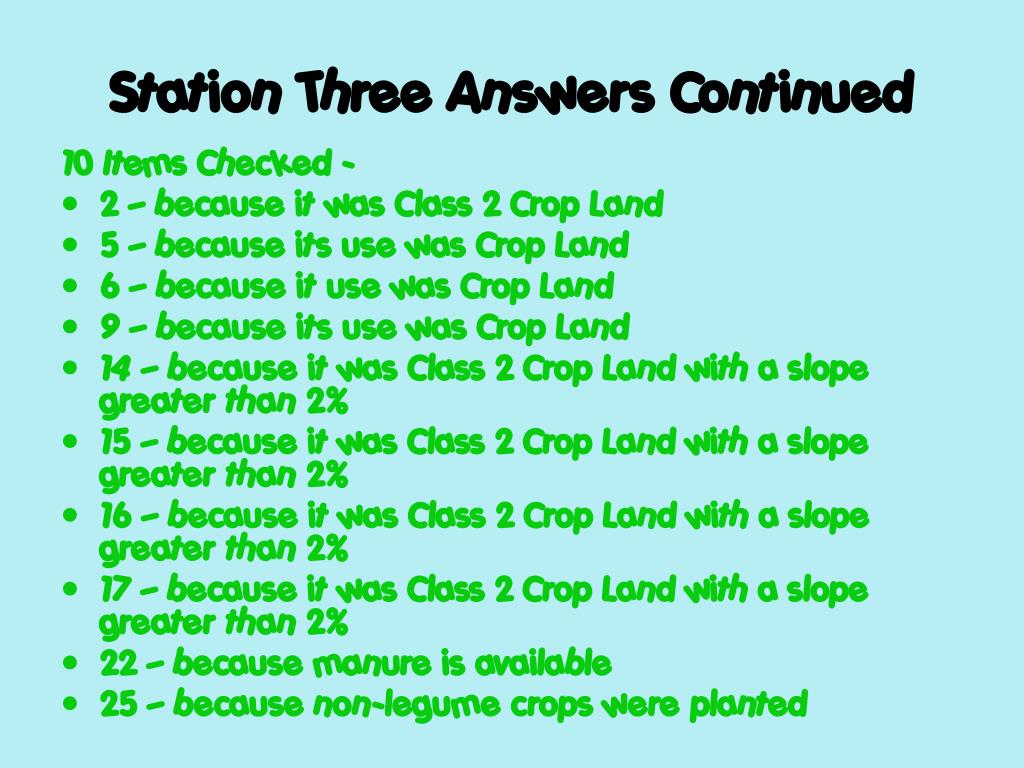

Station Three Answers Continued

10 Items Checked -

  • 2 – because it was Class 2 Crop Land
  • 5 – because its use was Crop Land
  • 6 – because it use was Crop Land
  • 9 – because its use was Crop Land
  • 14 – because it was Class 2 Crop Land with a slope greater than 2%
  • 15 – because it was Class 2 Crop Land with a slope greater than 2%
  • 16 – because it was Class 2 Crop Land with a slope greater than 2%
  • 17 – because it was Class 2 Crop Land with a slope greater than 2%
  • 22 – because manure is available
  • 25 – because non-legume crops were planted
station four north ga
Station Four – North GA
  • Established Grass Pasture
  • Original Topsoil – 7 inches
  • No Gullies Present
  • pH – 5.7
  • Manure – Available
  • Phosphorus – High
  • Potassium – Medium
  • Magnesium – Low
  • Check 8 Items
slide20
Notice the topsoil texture. What does it look like? Remember this is a North Georgia Pit.
  • Where is the point of change?
  • Where does the subsoil end?
  • What is the soil’s permeability? What mostly composes the soil?
  • What is the slope of the land? (use poster at contest)
  • After finding the topsoil thickness, calculate the erosion.
  • Are gray mottles present? If so, how deep are they?
  • What Land Capability Class is it?
station four answers

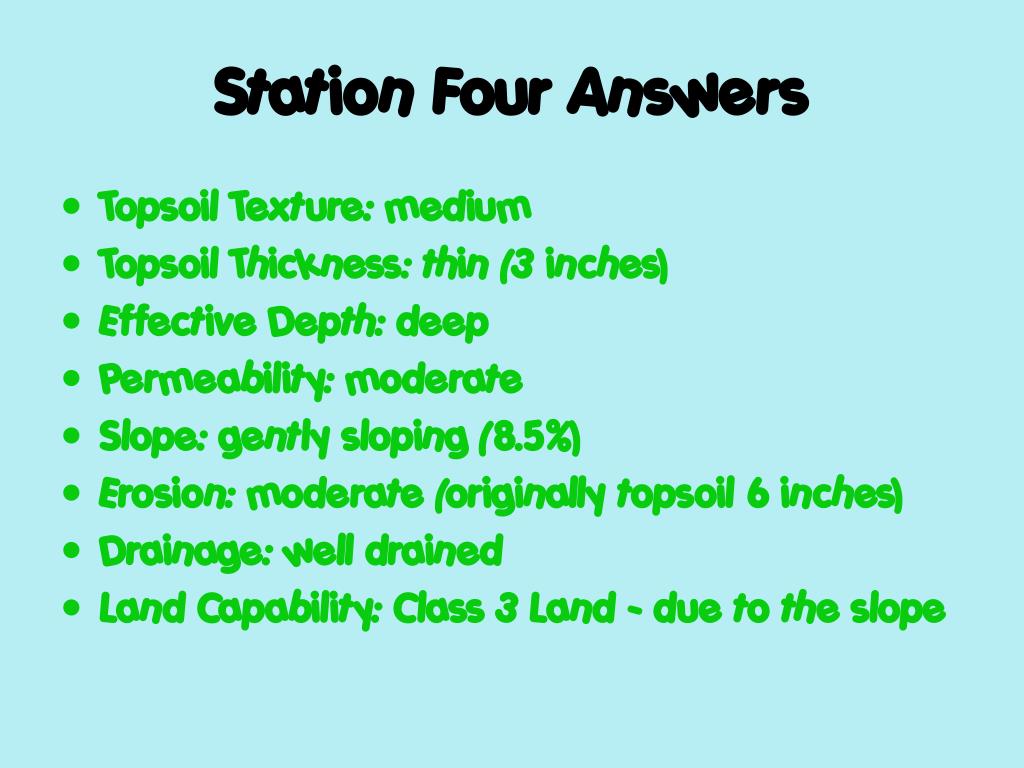

Station Four Answers
  • Topsoil Texture: medium
  • Topsoil Thickness: thin (3 inches)
  • Effective Depth: deep
  • Permeability: moderate
  • Slope: gently sloping (8.5%)
  • Erosion: moderate (originally topsoil 6 inches)
  • Drainage: well drained
  • Land Capability: Class 3 Land - due to the slope
station four profile
Station Four Profile

The black arrow in the photograph shows the point of change. The original topsoil thickness was 7 inches. Now, there are only 3 inches remaining. That means that about 57% of the topsoil has been lost due to erosion.

station four answers continued

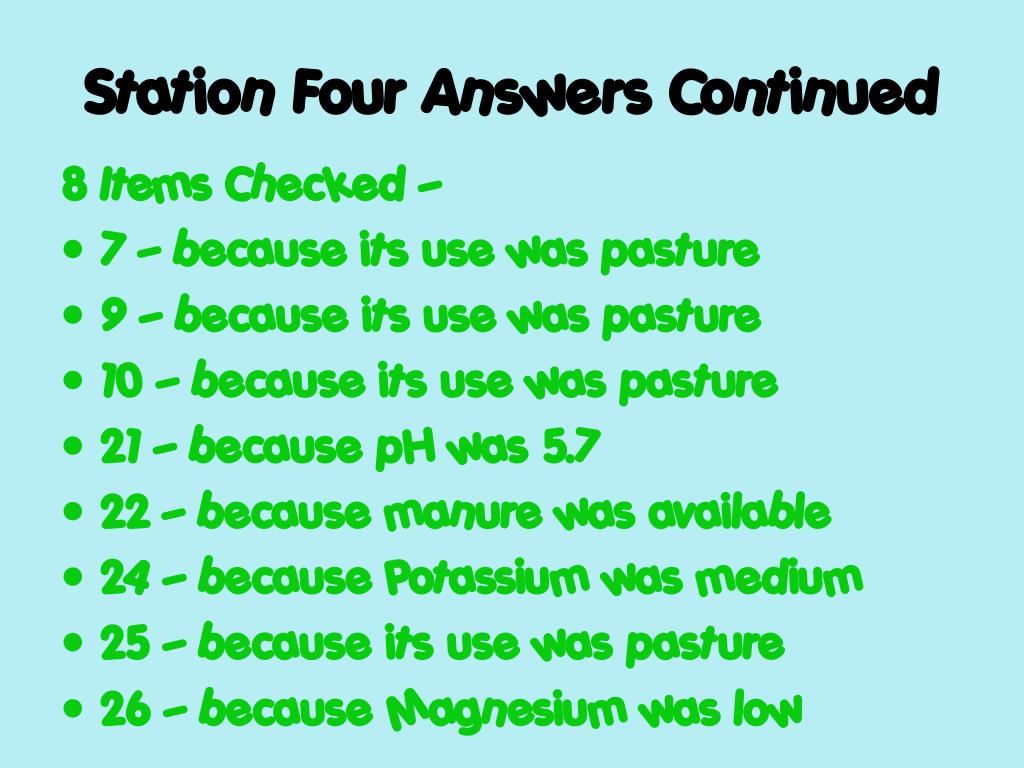

Station Four Answers Continued

8 Items Checked –

  • 7 – because its use was pasture
  • 9 – because its use was pasture
  • 10 – because its use was pasture
  • 21 – because pH was 5.7
  • 22 – because manure was available
  • 24 – because Potassium was medium
  • 25 – because its use was pasture
  • 26 – because Magnesium was low
