Presentation Transcript
dna methodologies
DNA Methodologies
  • Sterilization
    • Clean the workstation with alcohol and bleach.
    • Autoclaving and ultraviolet light (UV radiation).
      • Consumables and reagents.
  • Equipment
    • Pipettes- P20, P200, P1000
    • Block heater
    • Vortex
    • Centrifuge
    • PCR machine
    • Electrophoresis box and power supply
    • DNA sequencing machine
    • Computer
slide2

Tissue Sample

DNA Extraction

DNA Quantitation

PCR mtDNA

PCR STRs

Genetic Analyzer- mtDNA sequencing and STR analysis

Analysis of Results

Conclusion/s

dna protocol
DNA Protocol
  • DNA Extraction
    • FTA Card
    • Chelex
    • Spin columns
    • Organic- simple and differential.
  • DNA Quantitation
    • Direct, non-blot
    • Direct, slot-blot
    • Real Time PCR
  • PCR Amplification
    • Polymerase Chain Reaction
  • DNA Sequencing or Typing
  • Analysis and Interpretation
dna extraction protocols 1

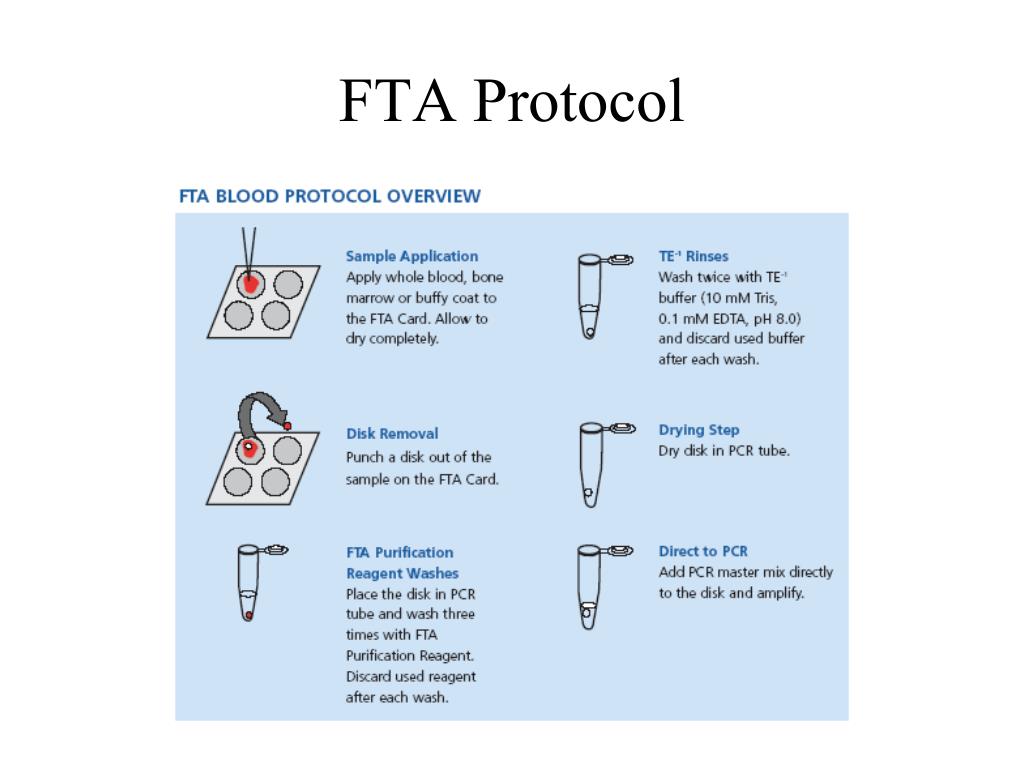

DNA Extraction Protocols #1
  • FTA Card
    • Pipette aliquot on card.
    • WBCs lyse on paper and DNA is trapped.
    • Use hole punch to remove paper for DNA analysis.
    • Wash.
    • Analysis.
dna extraction protocols 2
DNA Extraction Protocols #2
  • Chelex
    • Incubate blood sample in 5% Chelex at 56°C for 30 min.
    • Boil for 8 min.
    • Centrifuge to remove inhibitors and cellular debris.
dna extraction protocols 3
DNA Extraction Protocols #3
  • Column Extraction
    • Lyse cells and digest proteins.
      • Physical, heat, detergent
      • Proteinase K
    • Bind DNA to silica membrane by centrifugation.
    • Wash with 70% ethanol by centrifugation.
    • Elute DNA with TAE (Tris-Acetate - EDTA) or water by centrifugation.
dna extraction protocols 4
DNA Extraction Protocols #4
  • Organic Extraction
    • Lyse cells and digest proteins.
      • Physical, heat, detergent
      • Proteinase K
    • Organic extraction.
      • Phenol-chloroform
    • Centrifuge to remove supernatant.
    • Precipitate DNA.
      • Ethanol or isopropanol
    • Centrifugation to pellet DNA.
    • Elute DNA with TAE or water.
differential extraction
Differential Extraction
  • Technique used to separate sperm cells from non-sperm cells (epithelial cells).
        • Vaginal swabs

1. Epithelial cells are lysed with a mild extraction buffer containing Sodium Dodecyl Sulfate (SDS).

2. Centrifugation to pellet sperm cells, DNA from epithelial cells is in the supernatant.

3. Lyse sperm cells using Dithiothreitol (DTT).

dna quantitation
DNA Quantitation
  • DNA Quantitation
    • Direct, non-blot
    • Direct, slot-blot
    • Real Time PCR
  • Why quantitate?
    • U.S. FBI Standards require it!
    • 1ng-2.5ng yields consistent typing results.
      • 1 cell= 6.1pg (164 cells needed for analysis)
    • Too much DNA leads to artifacts and too much signal.
    • Too little DNA leads to allelic dropout.
dna quantitation 1
DNA Quantitation #1
  • Direct, non-blot
    • AluQuant (Promega Corp.)
      • Human-specific probe that binds to Alu insertions (highly repetitious DNA).
      • Luciferin-luciferase reaction and a luminometer to detect the amount of light.
      • Emission is compared against standards.
    • Yield Gel
      • Standards of known concentration are compared against a sample.
dna quantitation 2
DNA Quantitation #2
  • Direct, slot-blot
    • QuantiBlot (Applied Biosystems)
      • Human-specific probe (D17Z1) binds to DNA.
      • Chemiluminescence is used to determine the DNA concentration against a set of standards.
dna quantitation 3
DNA Quantitation #3
  • Real Time PCR
    • Quantifiler (Applied Biosystems)
      • Human genes are amplified.
      • Gene number doubles after each cycle.
      • Each cycle yields more fluorescence.
      • Fluorescence is recorded and compared against standards to determine DNA concentration.
pcr product amount is proportional to the amount of input dna template
PCR Product Amount is Proportional to the Amount of Input DNA Template

During the exponential expansion of the PCR the amount of product produced is proportional to the amount of template. Here we show the total amount of product following 32 cycles.

2ng template

1ng template

0.5ng template

slide20

5.0 ng

1.3 ng

0.31 ng

0.0 ng

0.078 ng

Ct

Develop a standard curve

(reagent blank)
