  1. How to Go Digital (Advanced) Press Space Bar or Click Mouse to Advance

  2. Benefits of Digital • Improved patient care • More time in direct patient care & more patients • Perceived value of digital allows for higher fee • Elimination of film developing • Elimination of darkroom & supplies • Elimination of film retrieval & filing space • Elimination of film labeling & storage supplies • Elimination of filing for new studies • Freeing up the techs' time for other responsibilities • Transmit images electronically saves time & cost Main Benefit: Digital is Cool

  3. Analog Small Practice X-Ray captures patient images using phosphor plates and CR cassettes CR systems scan and erase phosphor plates and create digital DICOM images to be sent over the network Digital Viewer gives doctor all the tools for diagnosis and runs on any Windows computer Facility burns DVDs for long-term storage and single patient CDs for referring doctors Capture 4 Process 4 Display 4 Store Digital Small Practice

  4. Analog Large Practice X-Ray with embedded digital detector plate captures patient images with no cassette required Because there are no cassettes to process, this step is eliminated. DICOM images are sent directly to the Web PACS and Digital Viewer Digital Viewer gives doctor all the tools for diagnosis, runs on Windows and supports high-resolution monitors Web PACS provides long-term storage, routes images to Digital Viewers and allows secure Web access Capture 4 Process 4 Display 4 Store Digital Large Practice

  5. Computed Radiography (CR) Orex ACL2 (20 plates/hour) Orex ACL4 (40 plates/hour) PoC 120 (20 plates/hour) PoC 140 (40 plates/hour) PoC 260 (60 plates/hour) Agfa CR30 Veterinary (50 plates/hour)

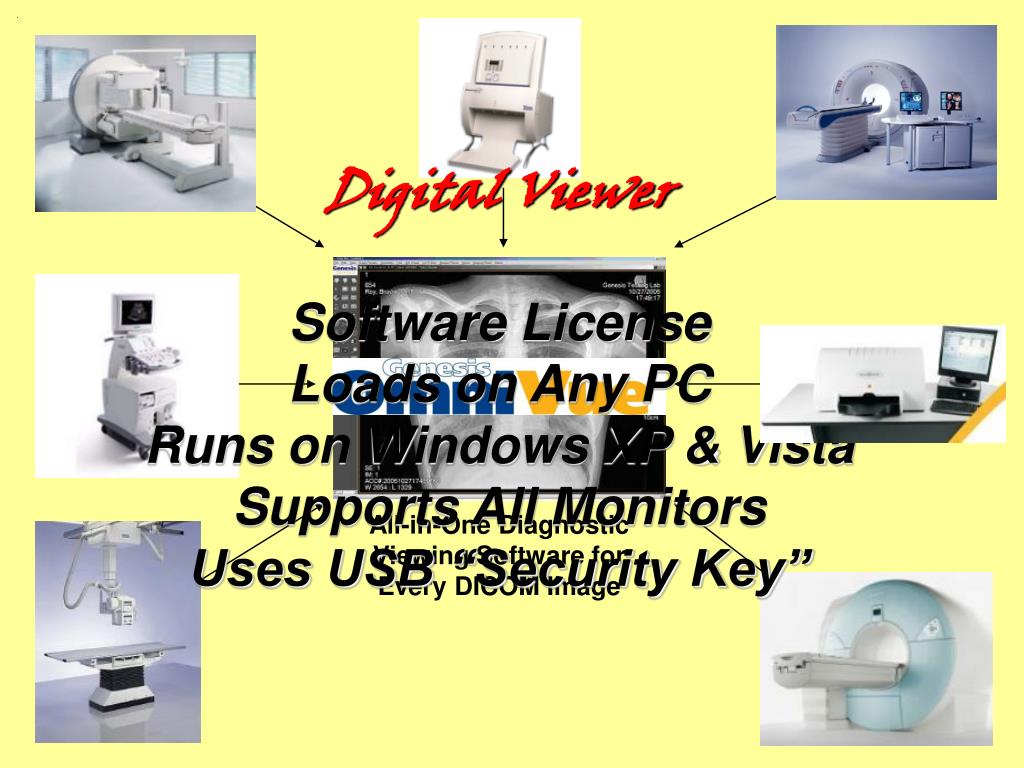

  6. Digital Viewer Software License Loads on Any PC Runs on Windows XP & Vista Supports All Monitors Uses USB “Security Key” All-in-One Diagnostic Viewing Software for Every DICOM Image

  7. Viewer Software Features • Diagnostic Interpretation • Search & selection from patient list • Magnify, pan & zoom • Measure & annotate • Display in multiple formats (1:2, 1:4, 2:4, etc.) • Import non-DICOM images for review • Archive Studies to CD or DVD • Burn Patient Referral CDs with mini-Viewer • Stitch any CR & DR Images Together • Email Images in DICOM, JPG, BMP, TFF, J2K • Print to Film & Paper

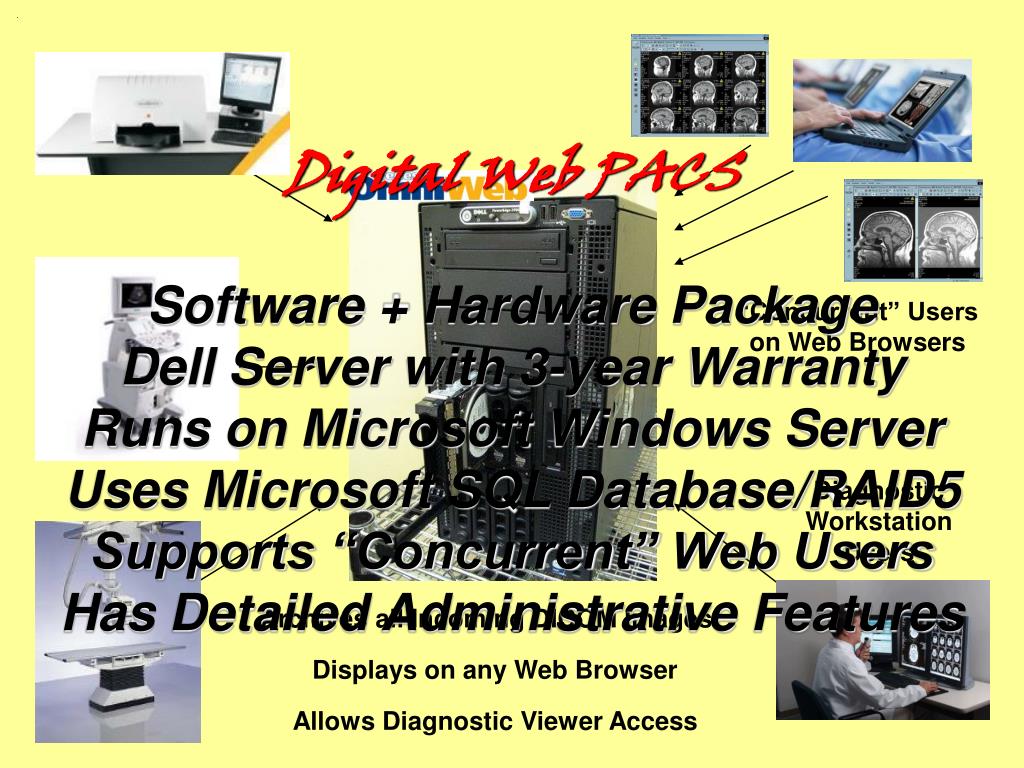

  8. Digital Web PACS Software + Hardware Package Dell Server with 3-year Warranty Runs on Microsoft Windows Server Uses Microsoft SQL Database/RAID5 Supports “Concurrent” Web Users Has Detailed Administrative Features “Concurrent” Users on Web Browsers Diagnostic Workstation Users Archives all Incoming DICOM Images Displays on any Web Browser Allows Diagnostic Viewer Access

  9. Web PACS Software Features • Upgradeable from 100,000 to 1 million CR images • Upgradeable from 5 to 500 Web Users • Accepts images from multiple DICOM modalities • Forwards images to multiple Digital Viewer locations • Archives images in multiple formats across multiple hard drives for redundancy • Supports Web browser access from any location • Allows another facility’s DICOM Viewers to search patient list and import images • Stores images on multiple media formats (CD, DVD) • Prints to film and paper

  10. Key Accessories for All Markets Templating Software Film Digitizers DICOM Film Printers Extra CR Plates Diagnostic Display Monitors

  11. Multiple Levels of Support • Level 1 • Local Dealer supports x-ray system, CR/DR, Viewer and PACS systems • Level 2 • Genesis Support backs up Dealer when required • Level 3 • Remote system access via Internet and VNC • Secure Internet connection into your network • “We see what you see” • We move the mouse and drive your screen • We download software patches when required

  12. www.genesisdigital.com 30-Day Free Trial Software User Manuals Training Videos Product Data Sheets Downloadable Software Updates Cool Digital Stuff
