  1. TECHNOLOGY AND SERVICES FOR EXPLORATION AND PRODUCTION

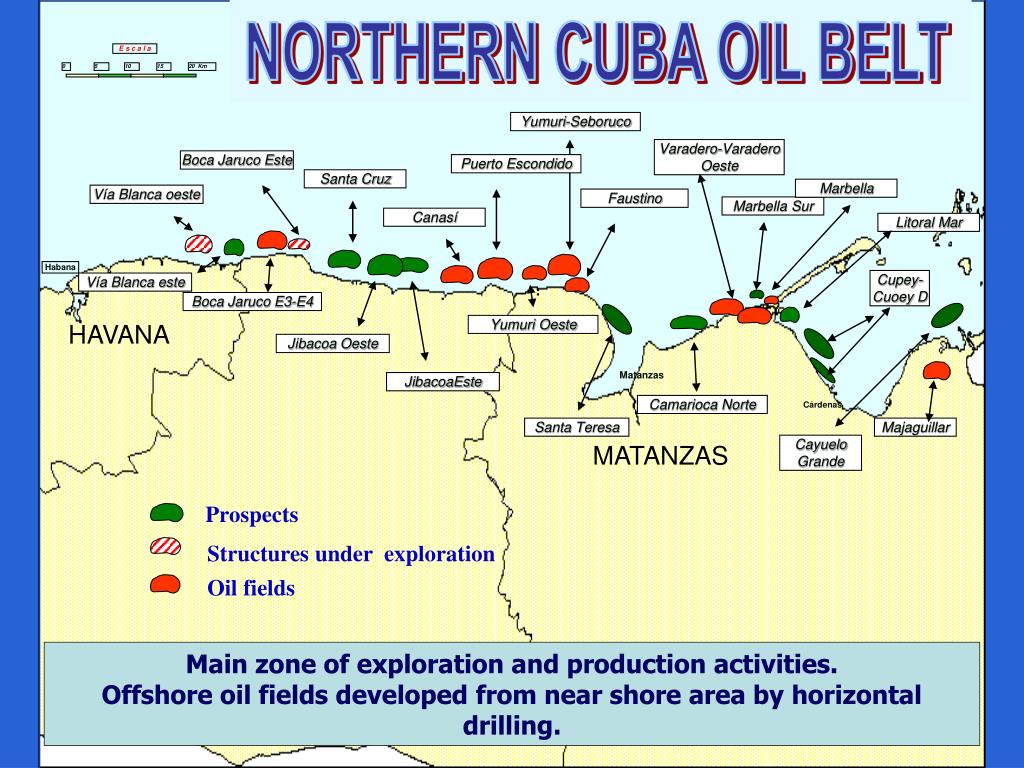

  2. E s c a l a 0 5 10 15 20 Km NORTHERN CUBA OIL BELT FRANJA NORTE DE PETROLEOS PESADOS. Yumuri-Seboruco Varadero-Varadero Oeste Boca Jaruco Este Puerto Escondido Santa Cruz Marbella Vía Blanca oeste Faustino Marbella Sur Canasí Litoral Mar Habana Cupey-Cuoey D Vía Blanca este Boca Jaruco E3-E4 HAVANA Yumuri Oeste Jibacoa Oeste Matanzas JibacoaEste Camarioca Norte Cárdenas Santa Teresa Majaguillar MATANZAS Cayuelo Grande Prospects Structures under exploration Oil fields Main zone of exploration and production activities. Offshore oil fields developed from near shore area by horizontal drilling.

  3. EXPLORATORY PROGRAM IN NEW AREAS • SEISMIC ACQUISITION • PROCESSING AND ACQUISITION TECHNOLOGIES AND SERVICES. • UPGRADING PROCESSING CENTER.

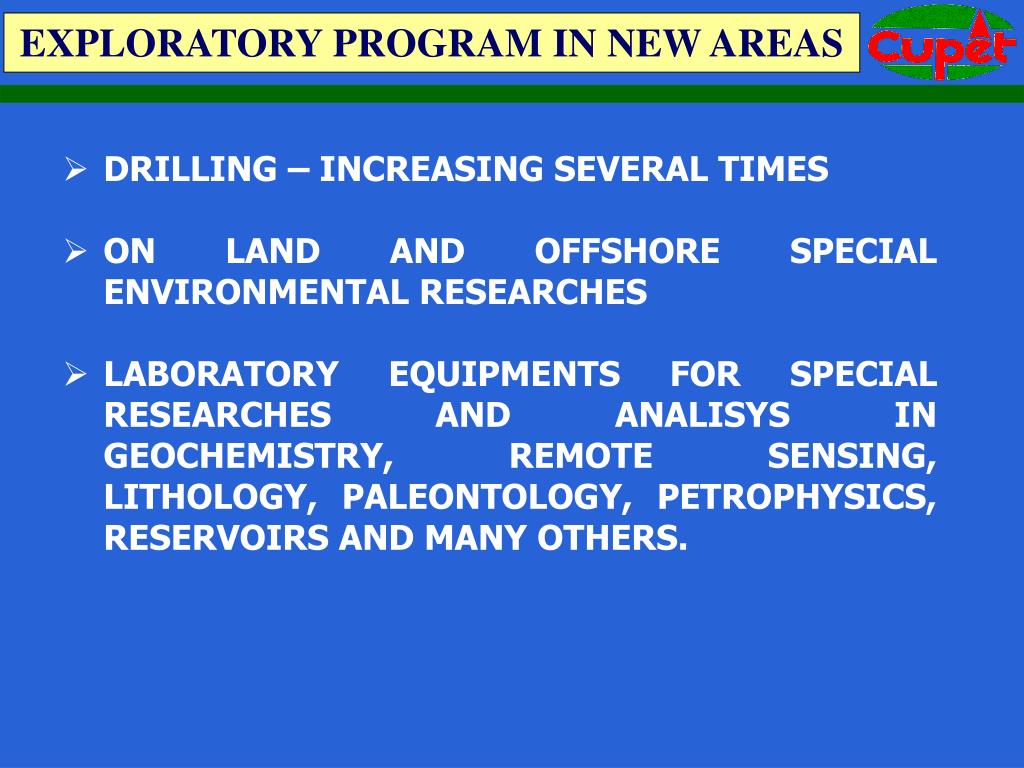

  4. EXPLORATORY PROGRAM IN NEW AREAS • DRILLING – INCREASING SEVERAL TIMES • ON LAND AND OFFSHORE SPECIAL ENVIRONMENTAL RESEARCHES • LABORATORY EQUIPMENTS FOR SPECIAL RESEARCHES AND ANALISYS IN GEOCHEMISTRY, REMOTE SENSING, LITHOLOGY, PALEONTOLOGY, PETROPHYSICS, RESERVOIRS AND MANY OTHERS.

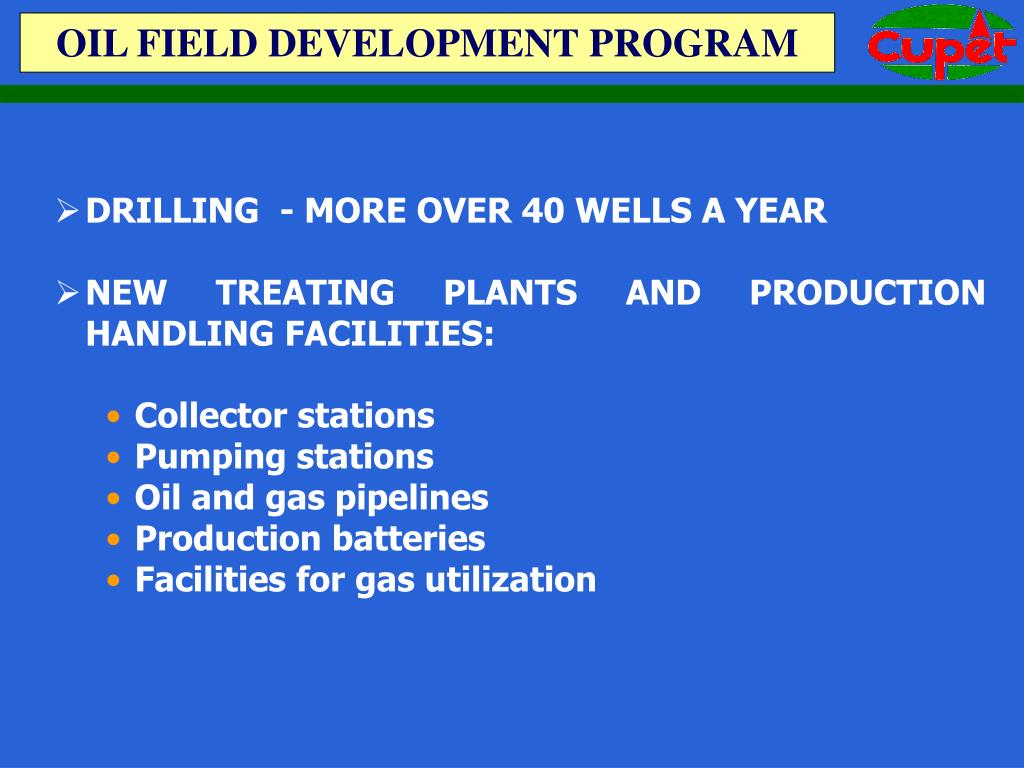

  5. OIL FIELD DEVELOPMENT PROGRAM • DRILLING - MORE OVER 40 WELLS A YEAR • NEW TREATING PLANTS AND PRODUCTION HANDLING FACILITIES: • Collector stations • Pumping stations • Oil and gas pipelines • Production batteries • Facilities for gas utilization

  6. NEW TECHNOLOGIES • DRILLING • Long reach horizontal wells: 6 km horizontal, deviation at 1500 – 1700 m vertical depth • Technology innovations in: • Mud systems • Bottom hole drilling tools • Drilling bits • MWD and LWD instruments • Improved drilling rigs • Multi lateral drilling • Slim hole and underbalance drilling

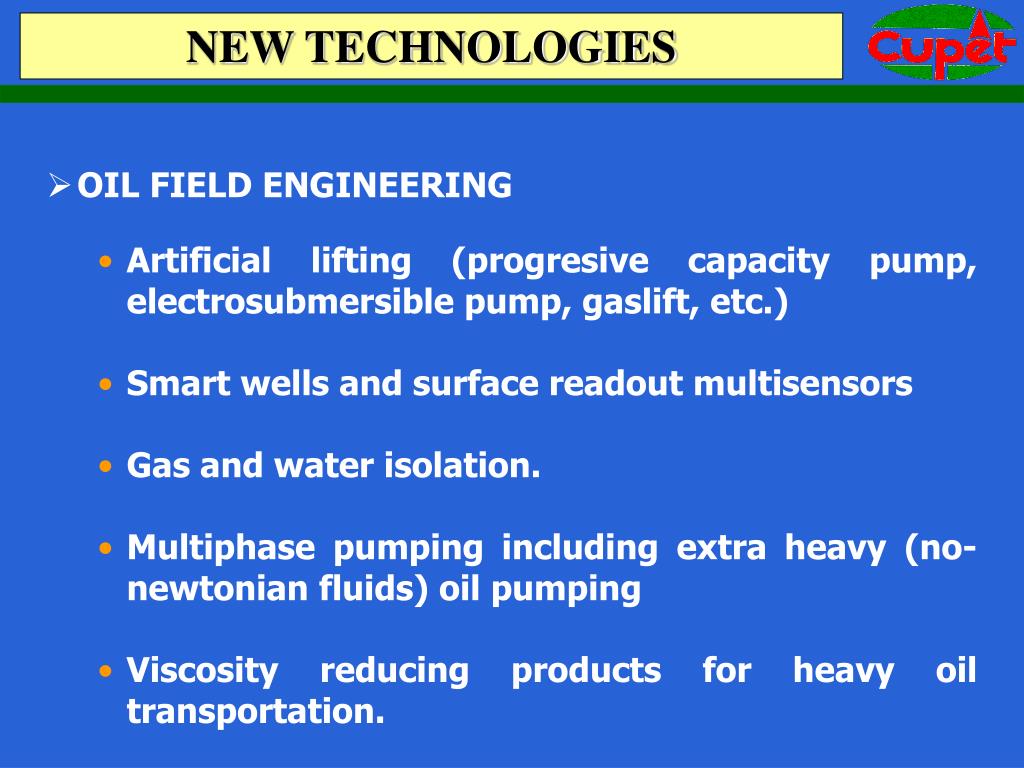

  7. NEW TECHNOLOGIES • OIL FIELD ENGINEERING • Artificial lifting (progresive capacity pump, electrosubmersible pump, gaslift, etc.) • Smart wells and surface readout multisensors • Gas and water isolation. • Multiphase pumping including extra heavy (no-newtonian fluids) oil pumping • Viscosity reducing products for heavy oil transportation.

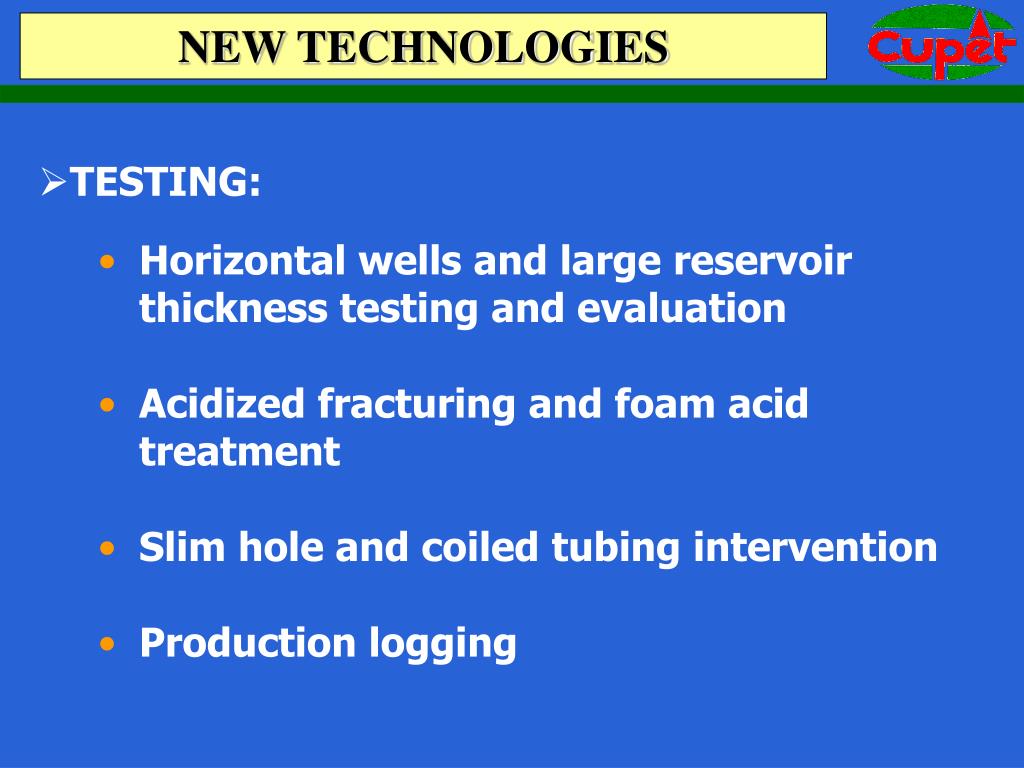

  8. NEW TECHNOLOGIES • TESTING: • Horizontal wells and large reservoir thickness testing and evaluation • Acidized fracturing and foam acid treatment • Slim hole and coiled tubing intervention • Production logging

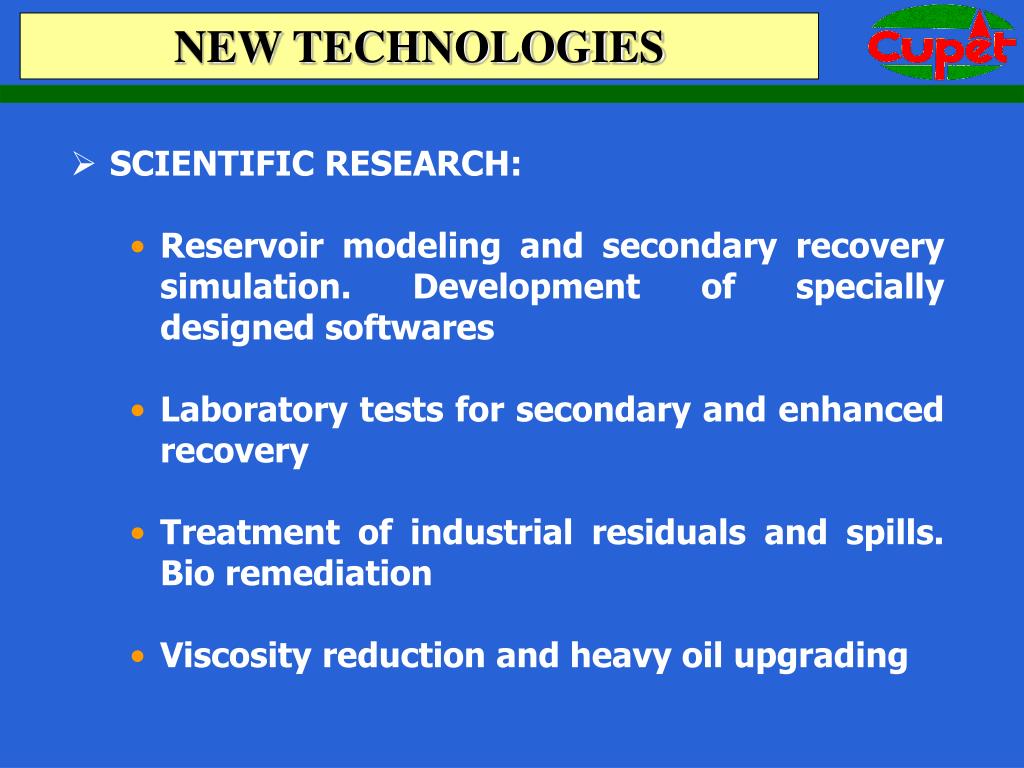

  9. NEW TECHNOLOGIES • SCIENTIFIC RESEARCH: • Reservoir modeling and secondary recovery simulation. Development of specially designed softwares • Laboratory tests for secondary and enhanced recovery • Treatment of industrial residuals and spills. Bio remediation • Viscosity reduction and heavy oil upgrading

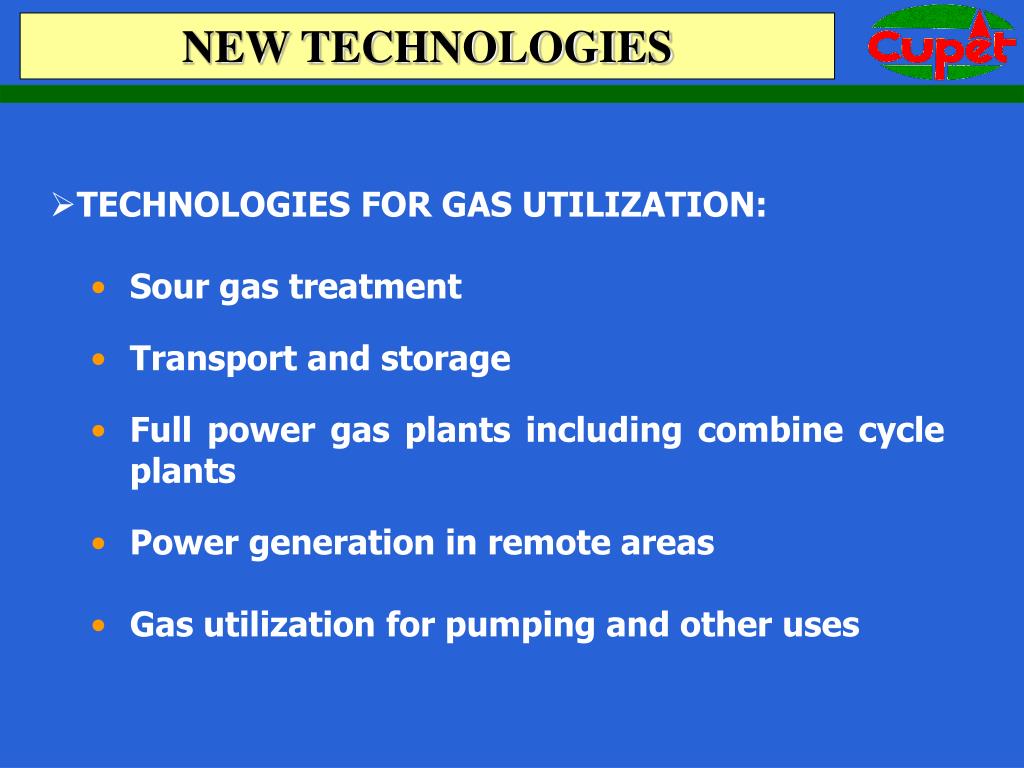

  10. NEW TECHNOLOGIES • TECHNOLOGIES FOR GAS UTILIZATION: • Sour gas treatment • Transport and storage • Full power gas plants including combine cycle plants • Power generation in remote areas • Gas utilization for pumping and other uses

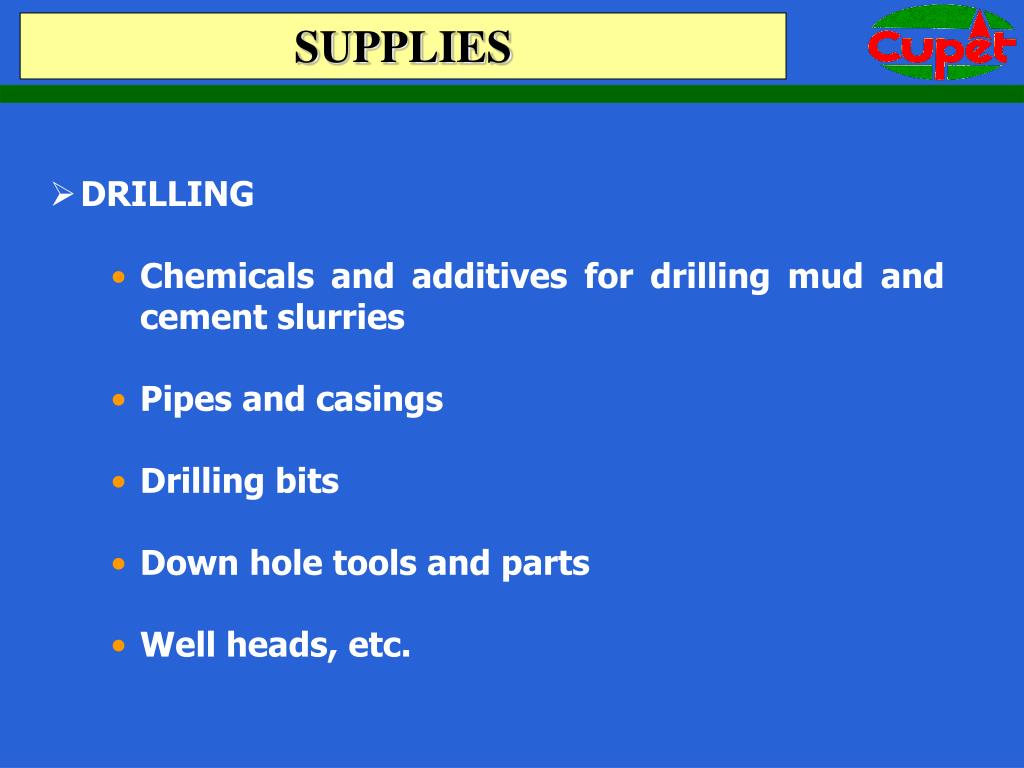

  11. SUPPLIES • DRILLING • Chemicals and additives for drilling mud and cement slurries • Pipes and casings • Drilling bits • Down hole tools and parts • Well heads, etc.

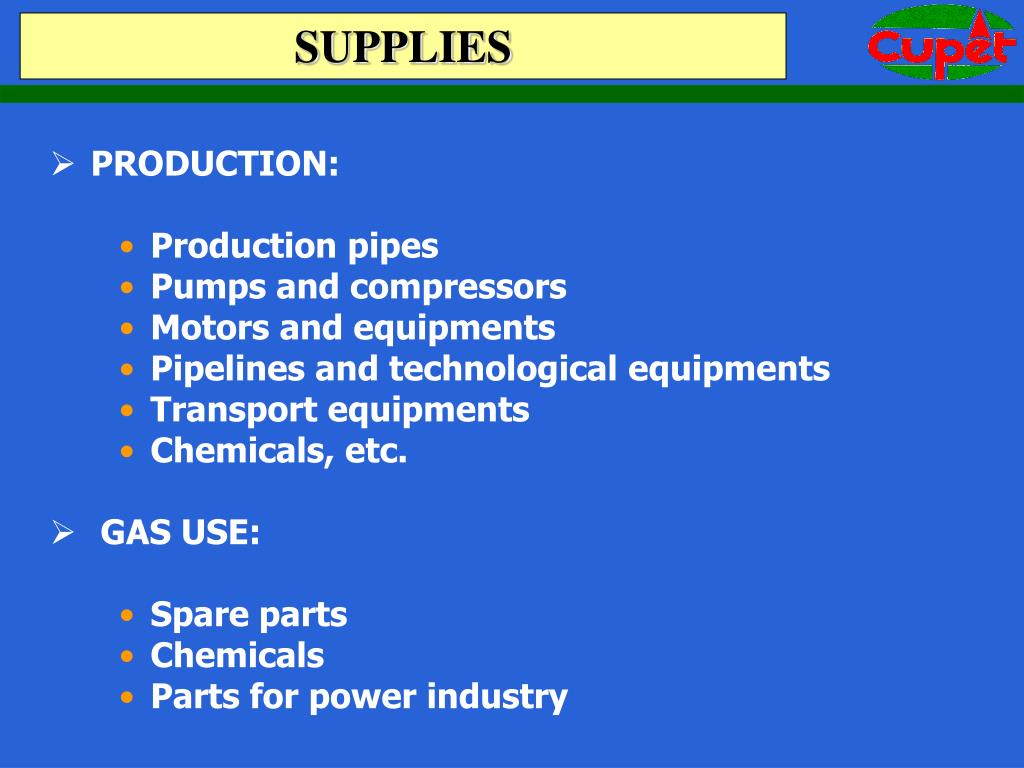

  12. SUPPLIES • PRODUCTION: • Production pipes • Pumps and compressors • Motors and equipments • Pipelines and technological equipments • Transport equipments • Chemicals, etc. • GAS USE: • Spare parts • Chemicals • Parts for power industry

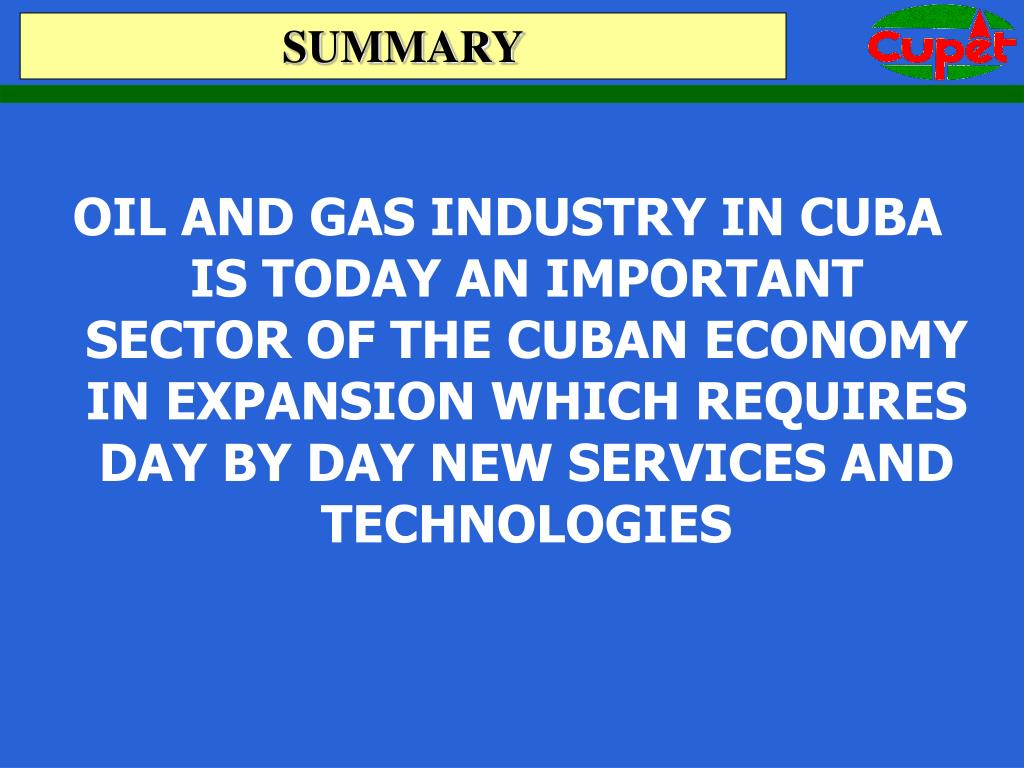

  13. SUMMARY OIL AND GAS INDUSTRY IN CUBA IS TODAY AN IMPORTANT SECTOR OF THE CUBAN ECONOMY IN EXPANSION WHICH REQUIRES DAY BY DAY NEW SERVICES AND TECHNOLOGIES
