chem 150 unit 8 organic molecules iii alcohols thiols ethers aldehydes and ketones

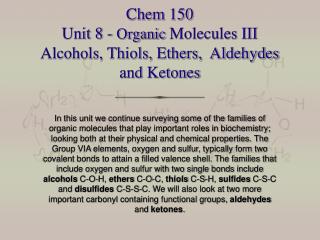

Chem 150Unit 8 - Organic Molecules IIIAlcohols, Thiols, Ethers, Aldehydes and Ketones
  • In this unit we continue surveying some of the families of organic molecules that play important roles in biochemistry; looking both at their physical and chemical properties. The Group VIA elements, oxygen and sulfur, typically form two covalent bonds to attain a filled valence shell. The families that include oxygen and sulfur with two single bonds include alcohols C-O-H, ethers C-O-C, thiols C-S-H, sulfides C-S-C and disulfides C-S-S-C. We will also look at two more important carbonyl containing functional groups, aldehydes and ketones.
introduction
Introduction
  • The organic groups covered in this Unit all have important biological roles
    • Alcohols
      • Triglycerides
      • Amino acids and proteins
    • Ethers
      • Biologically active molecules
    • Thiols
      • Amino acids and proteins
      • Odorants
    • Sulfides
      • Amino acids and proteins
    • Ketones
      • Carbohydrates and metabolic intermediates
    • Aldehydes
      • Carbohydrates and metabolic intermediates
introduction3
Introduction
  • Alcohols were first encountered back in Unit 2
    • Alcohols comprise a hydroxyl group (-OH) attached to an alkane-type carbon atom.
introduction4
Introduction
  • Ethers
    • Ethers have an oxygen attached to two alkane-type carbon atoms.
introduction5
Introduction
  • Sulfur containing functional groups
    • Sulfur, like oxygen, is a Group VIA element
    • Sulfur forms functional groups which are analogous to some of the groups formed by oxygen.
introduction6
Introduction
  • Thiol
    • Thiols look similar to alcohols and comprise a sulfhydryl (also called mercaptan) group (-SH) bonded to an alkane-type carbon.
introduction7
Introduction
  • Sulfides
    • Sulfides look similar to ethers and contain a sulfur atom that is bonded to two alkane-type carbon atoms.
introduction8
Introduction
  • Disulfides
    • Disulfides look similar to a sulfide, but contain two sulfur atoms that are bonded to each other and to two alkane-type carbon atoms.
introduction9
Introduction
  • Ketones
    • Ketones are a carbonyl containing functional group in which the carbonyl carbon is bonded to two other carbon atoms.
introduction10
Introduction
  • Ketones in the news; Diacetyl
    • http://www.usatoday.com/news/health/2007-10-27-diacetyl_N.htm
introduction11
Introduction
  • Aldehydes
    • Aldehydes are a carbonyl containing functional group in which the carbonyl carbon is bonded to at least one hydrogen atom.
question

alkene

alcohol

alkene

alcohol

ether

ether

ketone

amine

ether

Question
  • Circle and label the functional groups found in the following compounds.
question13

alkene

thiol

sulfide

ammonium

ion

carboxylate

ion

disulfide

thiol

sulfide

Question
  • Circle and label the functional groups found in the following compounds.
question14

alcohol

ketone

aldehyde

aldehyde

ketone

ether

phenol

Question
  • Circle and label the functional groups found in the following compounds.
alcohols ethers thiols sulfides and disulfides
Alcohols, Ethers, Thiols, Sulfides and Disulfides
  • The IUPAC rules for naming alcohols
    • Find the longest carbon chain containing the carbon to which the hydroxyl group is attached.
    • Remove the “-e” ending and replace with “-ol”
    • Number the carbon chain from the end closest to the hydroxyl group.
    • Identify, name and locate any substituent groups
  • If the hydroxyl group is being treated as a substituent group, refer to it as a “hydroxyl” group.
alcohols ethers thiols sulfides and disulfides17
Alcohols, Ethers, Thiols, Sulfides and Disulfides
  • The IUPAC rules for naming thiols
    • Find the longest carbon chain containing the carbon to which the sulfhydryl group is attached.
    • Add the ending“-thiol”, without removing the “-e”
    • Number the carbon chain from the end closest to the sulfhydryl group.
    • Identify, name and locate any substituent groups
alcohols ethers thiols sulfides and disulfides18
Alcohols, Ethers, Thiols, Sulfides and Disulfides
  • Examples of thiol names

(Common names are shown in parentheses)

alcohols ethers thiols sulfides and disulfides19
Alcohols, Ethers, Thiols, Sulfides and Disulfides
  • We will not use the IUPAC rules for naming the ethers, sulfides and disulfides.
    • Instead of using an ending, the substituents attached to the oxygen or sulfur will be listed in front fo the family name.
alcohols ethers thiols sulfides and disulfides20
Alcohols, Ethers, Thiols, Sulfides and Disulfides
  • Examples of ether, sulfide and disulfide names
question21
Question
  • Name the following structures.
alcohols ethers thiols sulfides and disulfides22
Alcohols, Ethers, Thiols, Sulfides and Disulfides
  • Alcohols are also labeled according to the number of carbons that are attached to the carbon that the hydroxyl group is attached to.
    • This will be important for predicting the products of oxidation reactions involving alcohols.
alcohols ethers thiols sulfides and disulfides23
Alcohols, Ethers, Thiols, Sulfides and Disulfides
  • The hydroxyl groups of alcohols are good hydrogen bonding donors and acceptors
alcohols ethers thiols sulfides and disulfides24
Alcohols, Ethers, Thiols, Sulfides and Disulfides
  • The other functional groups are not as good at forming hydrogen bonds.
    • Ethers can only accept hydrogen bonds.
    • Sulfur has about the same electronegativity as carbon, and therefore, is non-polar.
  • This is reflected in the boiling points and solubilities of these molecules.
preparations of alcohols ethers thiols and sulfides
Preparations of Alcohols, Ethers, Thiols and Sulfides
  • In this unit we will be learn many new reactions.
  • Pages 346 and 347 in Raymond contains a nice summary of all of the reactions that will will cover in this unit.
preparations of alcohols ethers thiols and sulfides27
Preparations of Alcohols, Ethers, Thiols and Sulfides
  • Alcohols, Ethers, Thiols and Sulfides can be prepared from alkyl halides using nucleophilic substitution reactions.
    • A nucleophile is an electron rich atom or group or atoms.
    • The halogen atom make a good leaving group.
    • The nucleophile “attacks” that atom to which the halogen is attached and the halogen leaves.
    • This results in the the nucleophile substituting for the leaving group.
preparations of alcohols ethers thiols and sulfides28
Preparations of Alcohols, Ethers, Thiols and Sulfides
  • Using nucleophilic substitution to prepare alcohols from alkyl halides:

The OH- attacks

The Cl- leaves

The OH- attacks

The Br- leaves

The OH- attacks

The I- leaves

preparations of alcohols ethers thiols and sulfides29
Preparations of Alcohols, Ethers, Thiols and Sulfides
  • Using nucleophilic substitution to prepare ethers, thiols and sulfides from alkyl halides:
preparations of alcohols ethers thiols and sulfides30
Preparations of Alcohols, Ethers, Thiols and Sulfides
  • Another way to produce alcohols is the hydration of alkenes
    • We saw this reaction back in Unit 2
reactions involving water unit 4
Reactions Involving Water (Unit 4)
  • Hydration
    • In the hydration reaction water is also split, but instead of being used to split another molecule, it is added to another molecule to produce a single product.
    • The water it is added to either an alkene or alkyne:
    • The hydration of an alkene produces an alcohol.
reactions involving water unit 432
Reactions Involving Water (Unit 4)
  • Hydration
    • This can also be written in shorthand as:
      • The H+ below the reaction arrow is used to indicate that this is an acid-catalyzed reaction.
      • The shorthand is used to emphasize what happens to the key reactant.
reactions involving water unit 433
Reactions Involving Water (Unit 4)
  • Hydration example
    • On an earlier slide a reaction from the Citric Acid Cycle was shown, which involved the dehydrogenation of succinic acid to produce fumaric acid.
    • The sequent reaction in the Citric Acid Cycle is an example of a hydration reaction:
preparations of alcohols ethers thiols and sulfides34
Preparations of Alcohols, Ethers, Thiols and Sulfides
  • Another way to produce alcohols is the hydration of alkenes
    • When we looked at hydration reactions back in Unit 2 we conveniently picked reactants that would only produce one product.
    • It is possible to have multiple products in hydration reactions.
preparations of alcohols ethers thiols and sulfides35
Preparations of Alcohols, Ethers, Thiols and Sulfides
  • Multiple products occur whenever there are a different number of hydrogen atoms attached to the two carbons double-bonded carbons in the alkene.
    • Markovnikov’s Rule can be used to predict which of the two products is predicted to be the major product.
      • The hydrogen from the water in a hydration reaction is added to the double-bonded carbon atom that originally carried the most hydrogen atoms.
    • If you consider hydrogens as a source of wealth, this can be more simply stated as
      • “The rich get richer!”
preparations of alcohols
Preparations of Alcohols ...
  • More examples of hydration reactions:
reactions of alcohols and thiols
Reactions of Alcohols and Thiols
  • Back in Unit 4 we developed several definitions for Oxidation-Reduction Reactions.
oxidation and reduction unit 4

Oxidation

Reduction

An atom loses electrons

An atom gains electrons

An atom gains a bond to oxygen

An atom loses a bond to oxygen

An atom loses a bond to hydrogen

An atom gains a bond to hydrogen

Oxidation and Reduction (Unit 4)
  • Ways of recognizing oxidation/reduction reactions:
    • Oxidation and reductions always occur together
reactions of alcohols and thiols39
Reactions of Alcohols and Thiols
  • Back in Unit 7 we saw how the definition “loses hydrogens” could be applied to the oxidation of hydroquinones to produce quinones
carboxylic acids phenols other reactions unit 7
Carboxylic Acids & Phenols, Other Reactions (Unit 7)
  • The oxidation of hydroquinones is also an important biological reaction.
    • A chemical oxidation of hydroquinones can be carried out the oxidizing agent K2Cr2O7 (potassium dichromate)
      • The K2Cr2O7 is not acting as a base to remove 2 H+ ions, instead it is removing 2 H• atoms.
reactions of alcohols and thiols41
Reactions of Alcohols and Thiols
  • This same definition can also be applied to the oxidation of alcohols by potassium dichromate (K2Cr2O7).

The oxidation requires that there are hydrogens to be removed on the carbon to which the hydroxyl is bound

reactions of alcohols and thiols42
Reactions of Alcohols and Thiols
  • Application: Breathalyzer(http://science.howstuffworks.com/breathalyzer3.htm

1. The sulfuric acid removes the alcohol from the air into a liquid solution.

2. The alcohol reacts with potassium dichromate to produce:

* chromium sulfate

* potassium sulfate

* acetic acid

* water

The silver nitrate is a catalyst,

reactions of alcohols and thiols43
Reactions of Alcohols and Thiols
  • The oxidation of primary (1°) alcohols is a way for preparing aldehydes and carboxylic acids.
  • The oxidation of secondary (2°) alcohols is a way for preparing ketones.
  • The oxidation of tertiary (3°) alcohols does not occur because there are not hydrogens attached to the carbon to to which the hydroxyl is attached
reactions of alcohols and thiols45
Reactions of Alcohols and Thiols
  • In biological reactions the coenzyme NAD+ is often used as the oxidizing agent.
    • The NAD+ takes the electrons away from alcohols to produce aldehydes, carboxylic acids and ketones.
reactions of alcohols and thiols46
Reactions of Alcohols and Thiols
  • Example
    • The oxidation of malate to oxaloacetate that occurs in the citric acid cycle:
reactions of alcohols and thiols47
Reactions of Alcohols and Thiols
  • Thiols can be oxidized to form disulfides using I2 as oxidizing agent
    • We will see this oxidation reaction when we discuss proteins in Unit 10
preparations of alcohols ethers thiols and sulfides48
Preparations of Alcohols, Ethers, Thiols and Sulfides
  • Another reaction that we saw back in Unit 2 was the dehydration of alcohols to produce alkenes.
    • We saw this reaction back in Unit 2
preparations of alcohols ethers thiols and sulfides49
Preparations of Alcohols, Ethers, Thiols and Sulfides
  • Like the complement hydration reaction, dehydration can also produce multiple products.
preparations of alcohols ethers thiols and sulfides50
Preparations of Alcohols, Ethers, Thiols and Sulfides
  • Multiple products occur whenever there are a different number of hydrogen atoms attached to the two carbons that are on either side of the carbon to which the hydroxyl is attached.
    • There is a rule that can be used to predict which of the two products is predicted to be the major product.
      • In a dehydration of an alcohol, the hydrogen will be removed from the neighboring carbon atom that carries the fewest hydrogen atoms.
    • If you consider hydrogens as a source of wealth, and since we are removing wealth, this can be more simply stated as
      • “The poor get poor!”
aldehydes and ketones
Aldehydes and Ketones
  • Aldehydes and ketones are carbonyl containing functional group.
    • They have an array of important roles to play in biological chemistry.
    • We just saw how they can be prepared from the oxidation of primary and secondary alcohols.
    • Back in Unit 7, we also saw how they can be prepared from the decarboxylation of α-keto acids and β-keto acids.

aldehyde

ketone

carboxylic acids phenols other reactions unit 753
Carboxylic Acids & Phenols, Other Reactions (Unit 7)
  • The decarboxylation of β-keto acids produces ketones
  • The decarboxylation of α-keto acids produces aldehydes

(Raymond’s answers to problems 10.27b and 10.31 are wrong)

aldehydes and ketones54
Aldehydes and Ketones
  • The IUPAC rules for naming aldehydes
    • Find the longest carbon chain containing the carbon to which the hydroxyl group is attached.
    • Remove the “-e” ending and replace with “-al”
    • Number the carbon chain from the carbonyl carbon.
    • Identify, name and locate any substituent groups
  • Some of the smaller aldehydes have common names which are more often used than the IUPAC names.
aldehydes and ketones55
Aldehydes and Ketones
  • The IUPAC rules for naming ketones
    • Find the longest carbon chain containing the carbon to which the hydroxyl group is attached.
    • Remove the “-e” ending and replace with “-one”
    • Number the carbon chain from end of the chain closest tothe carbonyl carbon.
    • Identify, name and locate any substituent groups
  • Common names are also used ketones
    • The names of the two substituent groups connected to the carbonyl carbon are listed and followed by the family name ketone.
aldehydes and ketones56
Aldehydes and Ketones
  • Examples of names for aldehydes and ketones
aldehydes and ketones57
Aldehydes and Ketones
  • Aldehydes and ketones can serve has hydrogen bond acceptors, but not donors.
    • This means that they cannot hydrogen bond to themselves, and so have much lower boiling points than alcohols
    • However, they can hydrogen bond to water, so small aldehydes and ketones are soluble in water.
question59
Question
  • Draw structures for the following molecules:
    • 3-Methylheptanal
    • 3-Methy-2-pentanone
    • Methyl s-butyl ketone
oxidation of aldehydes
Oxidation of Aldehydes
  • We have already seen how aldehydes and alcohols can be oxidized to carboxylic acids with K2Cr2O7
oxidation of aldehydes61
Oxidation of Aldehydes
  • Aldehydes can also be oxidized with the copper(II) ion (Cu2+)
    • This reaction oxidizes aldehydes, but not alcohols.
      • The Cu2+ ion forms a clear blue solution
      • The Cu+ that is produced in the reaction forms an orange/red precipitate.
oxidation of aldehydes62
Oxidation of Aldehydes
  • Aldehydes can also be oxidized with the copper(II) ion (Cu2+)
    • The reaction is called the Benedict’s reaction, and has been used for years in a clinical setting to test for the presence of glucose in the urine.

Cu2+

Cu2+ + Cu+

Cu+

reduction of aldehydes and ketones
Reduction of Aldehydes and Ketones
  • In Unit 4 we saw how H2 could be used to reduce alkenes to alkanes in the hydrogenation reaction.
    • Because this reaction involves adding hydrogens to a molelcule, it is a reduction reaction.
oxidation and reduction unit 464
Oxidation and Reduction (Unit 4)
  • Hydrogenation
    • Another type of oxidation/reduction reaction is the hydrogenation reaction:
      • In this example, an alkene is reduced to an alkane.
        • This is considered reduction, because the hydrogen is bringing in additional electrons to the molecule.
      • The alkane that is produced in this reaction is considered “saturated” because it can no longer absorb any more hydrogen atoms.

unsaturated

saturated

oxidation and reduction unit 465
Oxidation and Reduction (Unit 4)
  • Often chemist use a shorthand method of writing equations like these:
    • The equation shown on the previous slide can be written as follows:
      • One of the reactants, H2, is placed above the reaction arrow
        • Technically, this equation is no longer balanced
      • The shorthand method of writing a chemical equation is used to emphasize what happens to a key component of the reaction
        • In this case it is the alkene.
reduction of aldehydes and ketones66
Reduction of Aldehydes and Ketones
  • The same reaction can also be used to reduce aldehydes and ketones to alcohols:
reduction of aldehydes and ketones67
Reduction of Aldehydes and Ketones
  • In biochemistry, NADH + H+ is used instead of H2
    • The reduction of a ketone containing steroid by the enzyme Hydroxsteroid dehydrogenase.
reactions of alcohols with aldehydes and ketones
Reactions of Alcohols with Aldehydes and Ketones
  • Aldehydes and ketones can react with alcohols to form hemiacetals, hemiketals, acetals and ketals.
    • Theses reactions will become in important in the next unit when we talk about carbohydrates.
    • This is because carbohydrates are rich in aldehydes, ketones and alcohols
reactions of alcohols with aldehydes and ketones69
Reactions of Alcohols with Aldehydes and Ketones
  • The first reaction, which is similar to the reduction of aldehydes and ketones, involves adding an alcohol across the carbonyl to form a hemiacetal (from aldehydes) or a hemiketal (from ketones).
reactions of alcohols with aldehydes and ketones70
Reactions of Alcohols with Aldehydes and Ketones
  • Hemiacetal and hemiketal formation is catalyzed by acids.
reactions of alcohols with aldehydes and ketones71
Reactions of Alcohols with Aldehydes and Ketones
  • As we will see with the carbohydrates, the carbonyl group and the alchohol that react can come from the same molecule.
    • This will produce a ring molecule.
reactions of alcohols with aldehydes and ketones72
Reactions of Alcohols with Aldehydes and Ketones
  • A hemiacetal or hemiketal can react with a second alcohol to form an acetal or ketal.
    • This is a substitution reaction and produces an water molecule:
reactions of alcohols with aldehydes and ketones73
Reactions of Alcohols with Aldehydes and Ketones
  • Sometimes the two reactions are combined into a single reaction equation:
question74
Question
  • Complete the following reaction:
question75
Question
  • Draw the structure of the hemiacetal that can form from this molecule:
