KMT and Graham’s Law PowerPoint Presentation
Download Presentation
KMT and Graham’s Law

Loading in 2 Seconds...

play fullscreen
1 / 9

KMT and Graham’s Law - PowerPoint PPT Presentation


  • 96 Views
  • Uploaded on

KMT and Graham’s Law. Molecular Speed Of A Gas. Depends on the mass of the gas molecules and the temperature they are at R is in different units and has a different value ( R=8.3145) M is molar mass in kg/mole. Example. Find the speed of hydrogen gas at 25 o C.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'KMT and Graham’s Law' - vinnie


Download Now An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
molecular speed of a gas

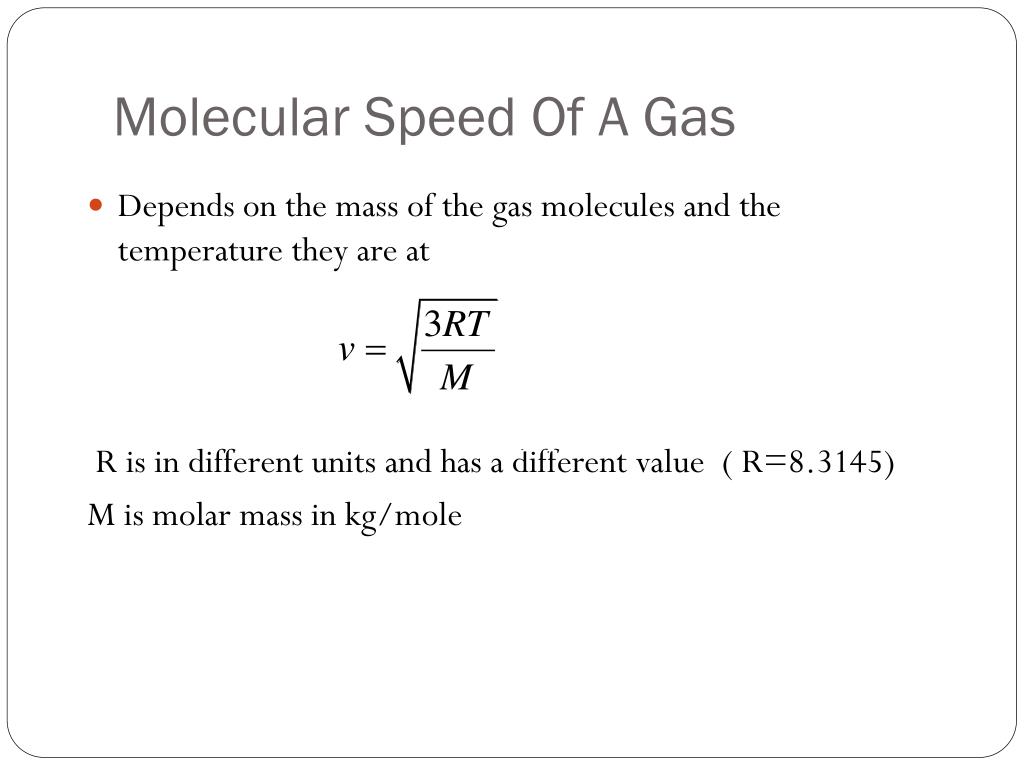

Molecular Speed Of A Gas
  • Depends on the mass of the gas molecules and the temperature they are at

R is in different units and has a different value ( R=8.3145)

M is molar mass in kg/mole

example
Example
  • Find the speed of hydrogen gas at 25o C.
  • Find the speed of oxygen gas at 25o C.
effusion
Effusion
  • Gas escapes through tiny holes when a pressure difference is present
diffusion
Diffusion
  • Gases will mix uniformly
graham s law
Graham’s Law
  • Rate of both effusion and diffusion is inversely related to the square root of their weights
  • Shows the relationship between rate and molecular weight
example1

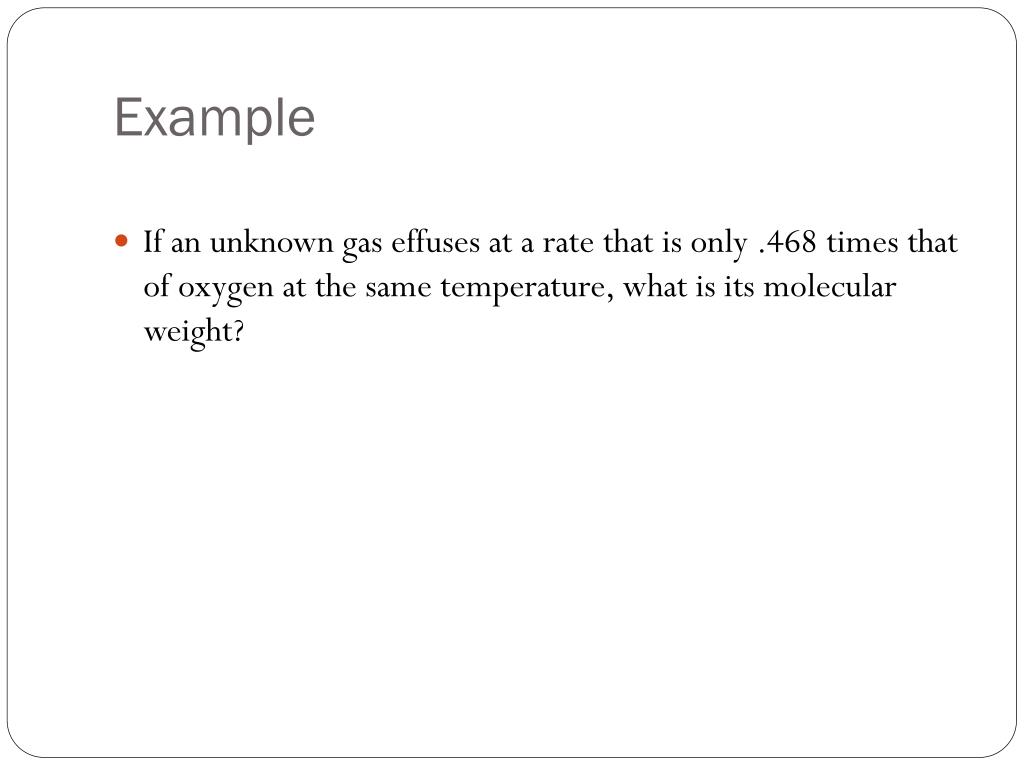

Example
  • If an unknown gas effuses at a rate that is only .468 times that of oxygen at the same temperature, what is its molecular weight?
ideal vs real gas behavior

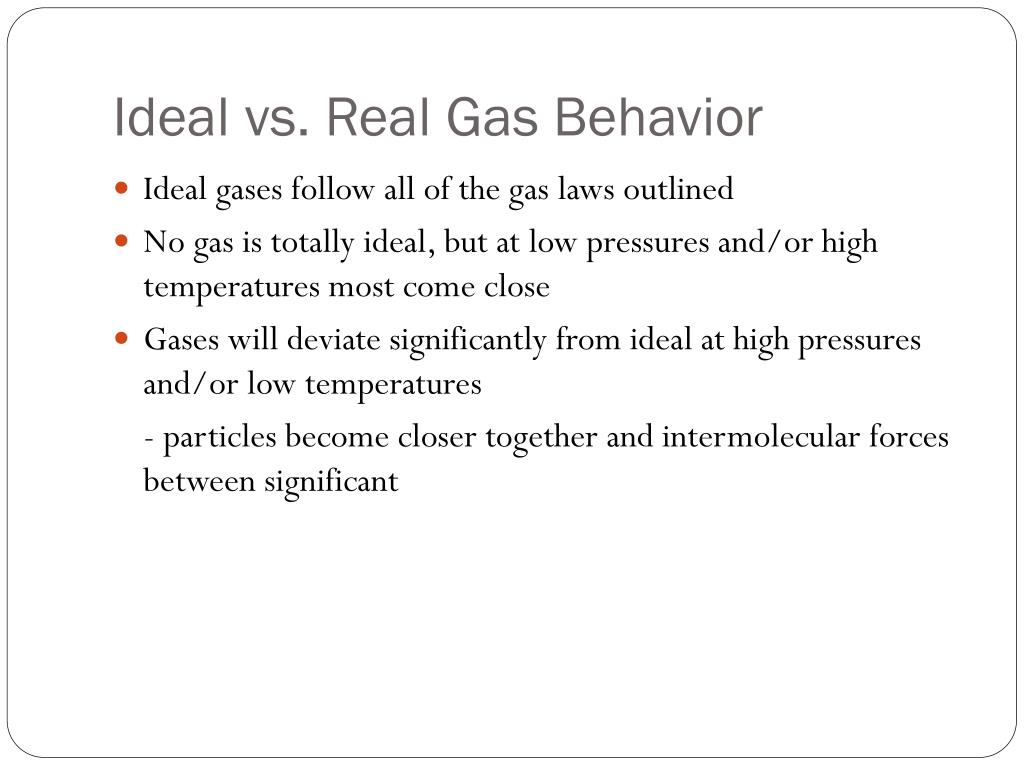

Ideal vs. Real Gas Behavior
  • Ideal gases follow all of the gas laws outlined
  • No gas is totally ideal, but at low pressures and/or high temperatures most come close
  • Gases will deviate significantly from ideal at high pressures and/or low temperatures

- particles become closer together and intermolecular forces between significant
