EB88 Development Board for Fast Field Applications

Professional development board with 4K Flash Memory, LCD display, temperature sensor, and more. Program in ANSI C, ideal for robotics, security, and control applications. Includes MPLAB IDE software. No cables needed for connection.

vine
Download Presentation

EB88 Development Board for Fast Field Applications

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

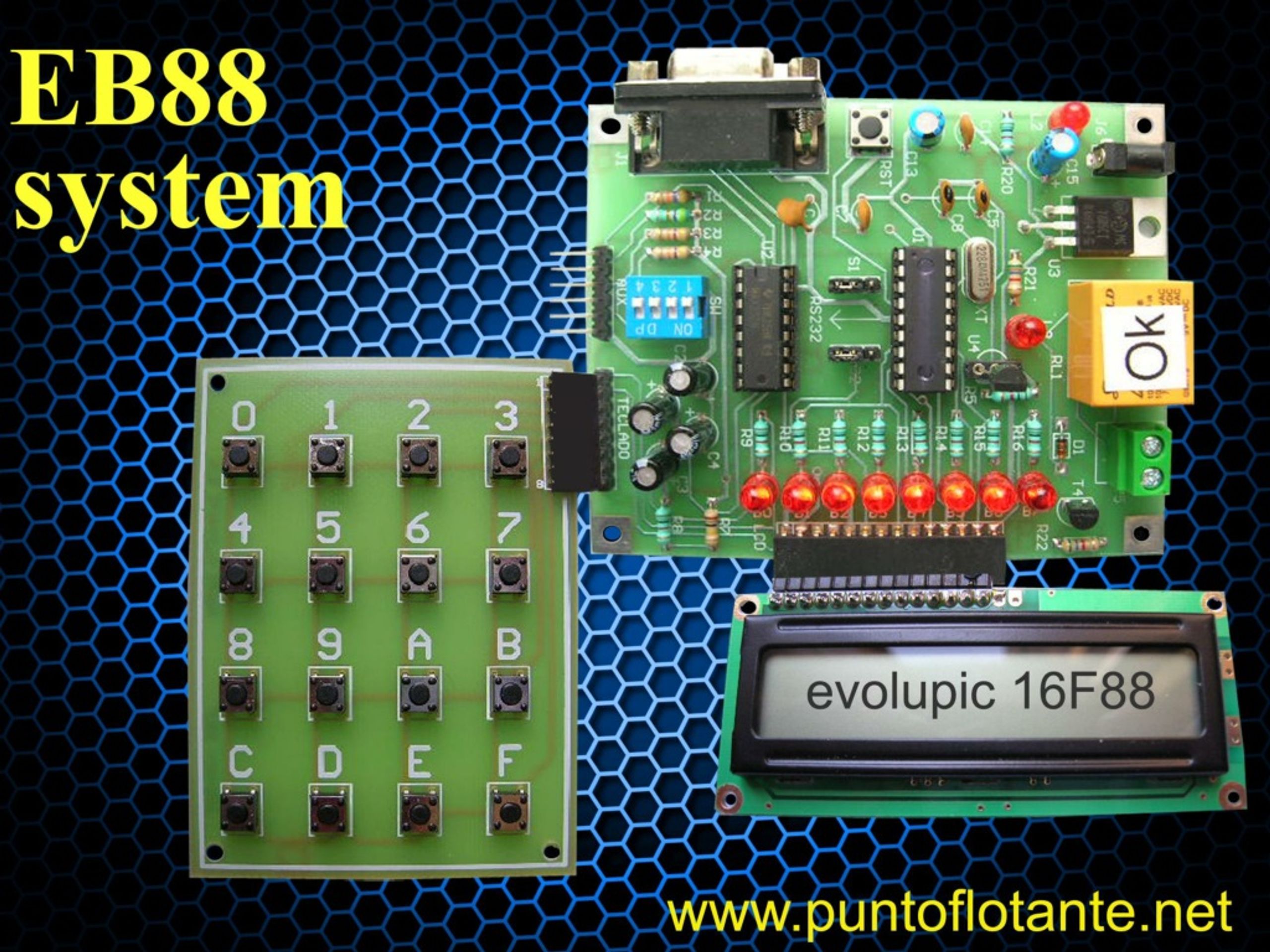

  1. www.puntoflotante.net

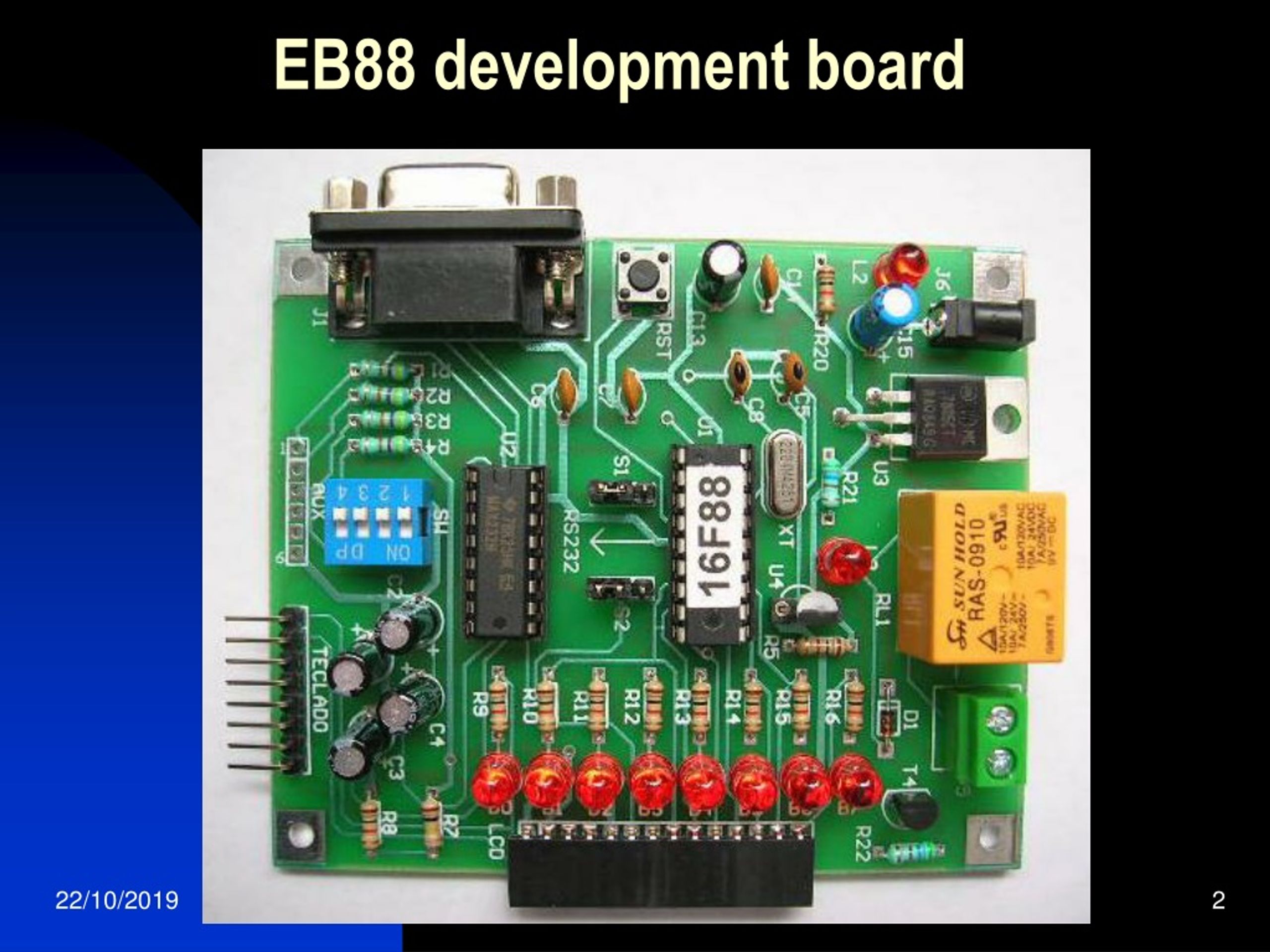

  2. EB88 development board EDUPIC 16F84 www.puntoflotante.net

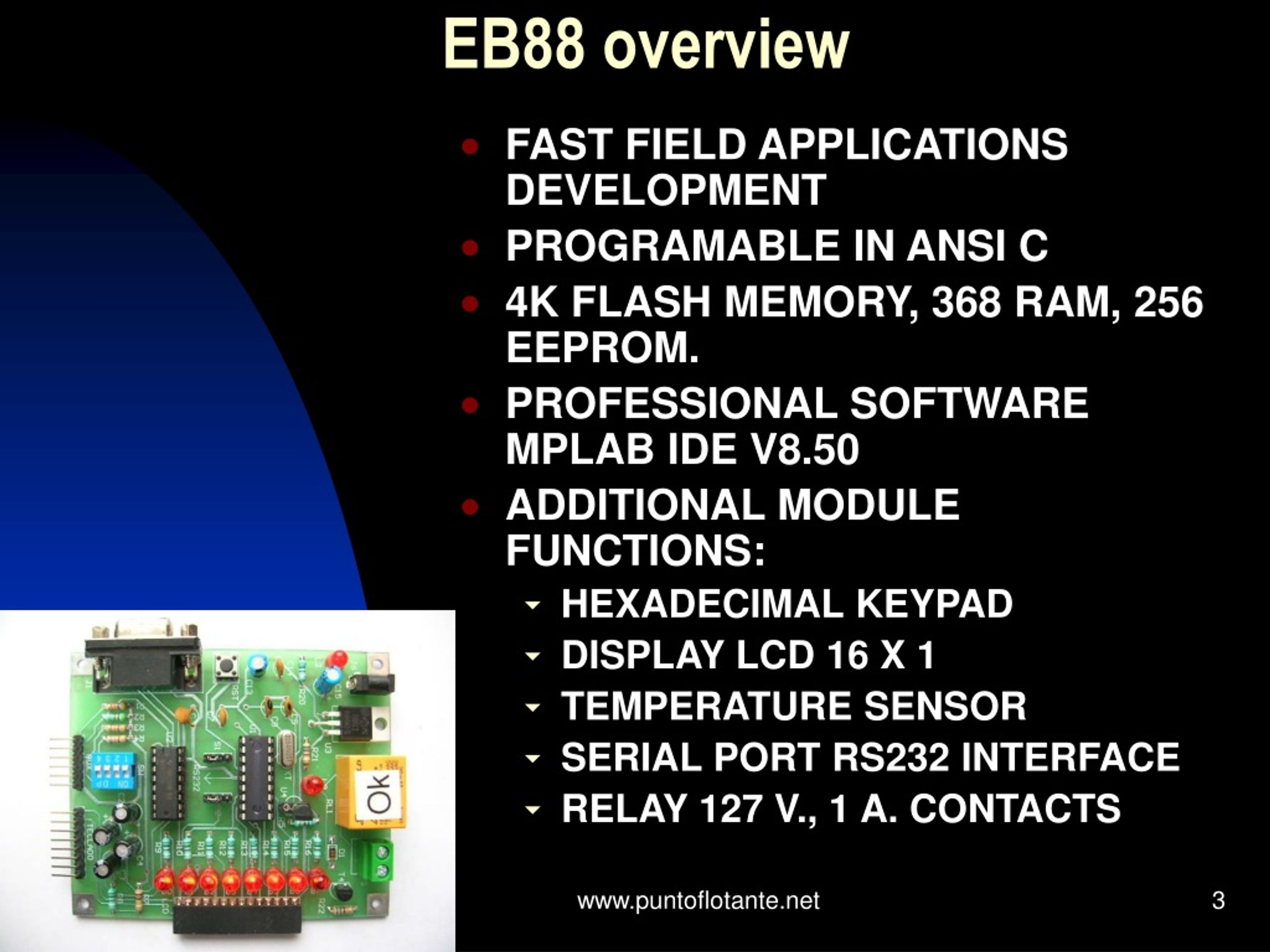

  3. EB88 overview • FAST FIELD APPLICATIONS DEVELOPMENT • PROGRAMABLE IN ANSI C • 4K FLASH MEMORY, 368 RAM, 256 EEPROM. • PROFESSIONAL SOFTWARE MPLAB IDE V8.50 • ADDITIONAL MODULE FUNCTIONS: • HEXADECIMAL KEYPAD • DISPLAY LCD 16 X 1 • TEMPERATURE SENSOR • SERIAL PORT RS232 INTERFACE • RELAY 127 V., 1 A. CONTACTS www.puntoflotante.net

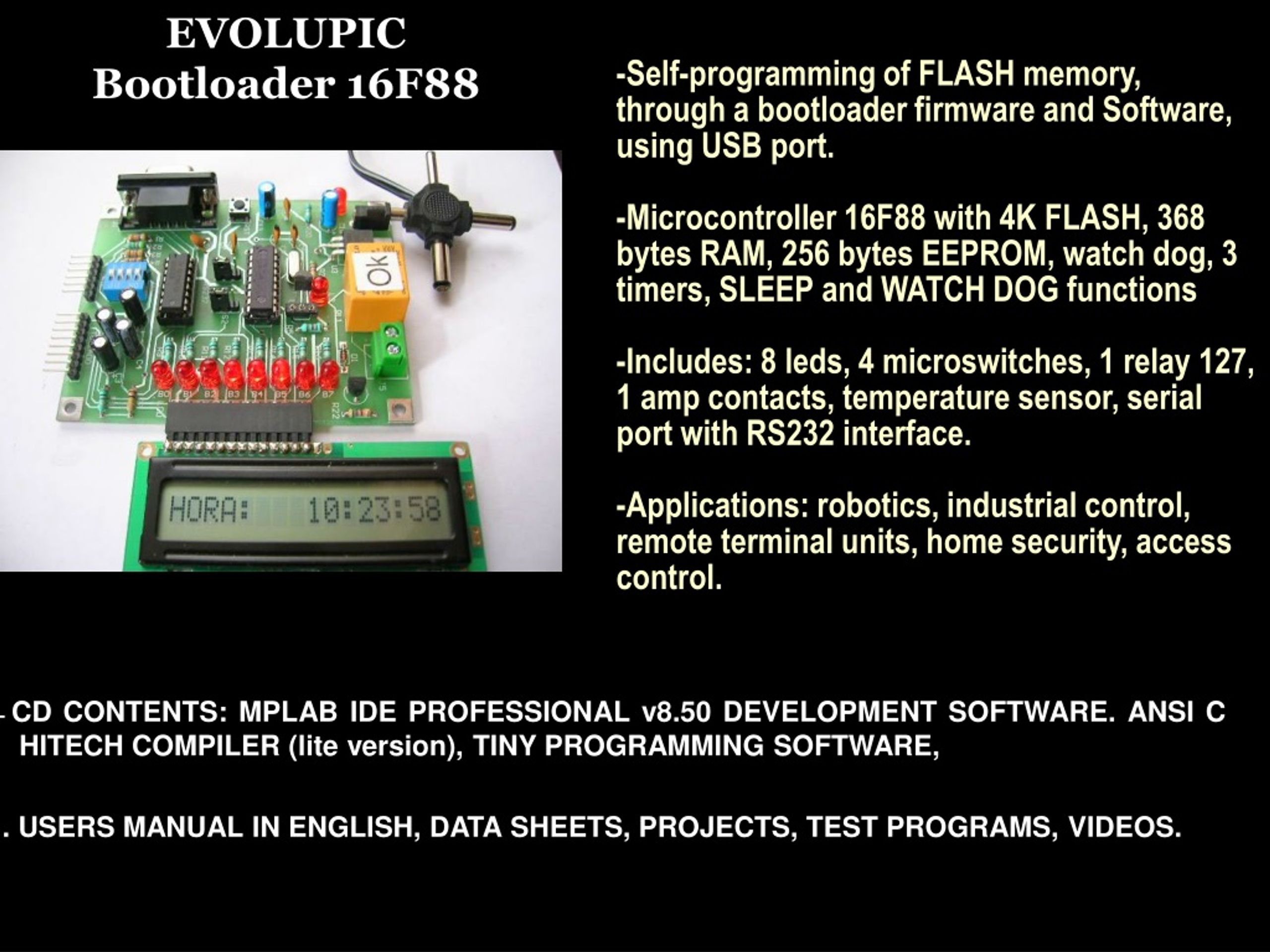

  4. EVOLUPIC Bootloader 16F88 -Self-programming of FLASH memory, through a bootloader firmware and Software, using USB port.-Microcontroller 16F88 with 4K FLASH, 368 bytes RAM, 256 bytes EEPROM, watch dog, 3 timers, SLEEP and WATCH DOG functions -Includes: 8 leds, 4 microswitches, 1 relay 127, 1 amp contacts, temperature sensor, serial port with RS232 interface.-Applications: robotics, industrial control, remote terminal units, home security, access control. - CD CONTENTS: MPLAB IDE PROFESSIONAL v8.50 DEVELOPMENT SOFTWARE. ANSI C HITECH COMPILER (lite version), TINY PROGRAMMING SOFTWARE, . USERS MANUAL IN ENGLISH, DATA SHEETS, PROJECTS, TEST PROGRAMS, VIDEOS.

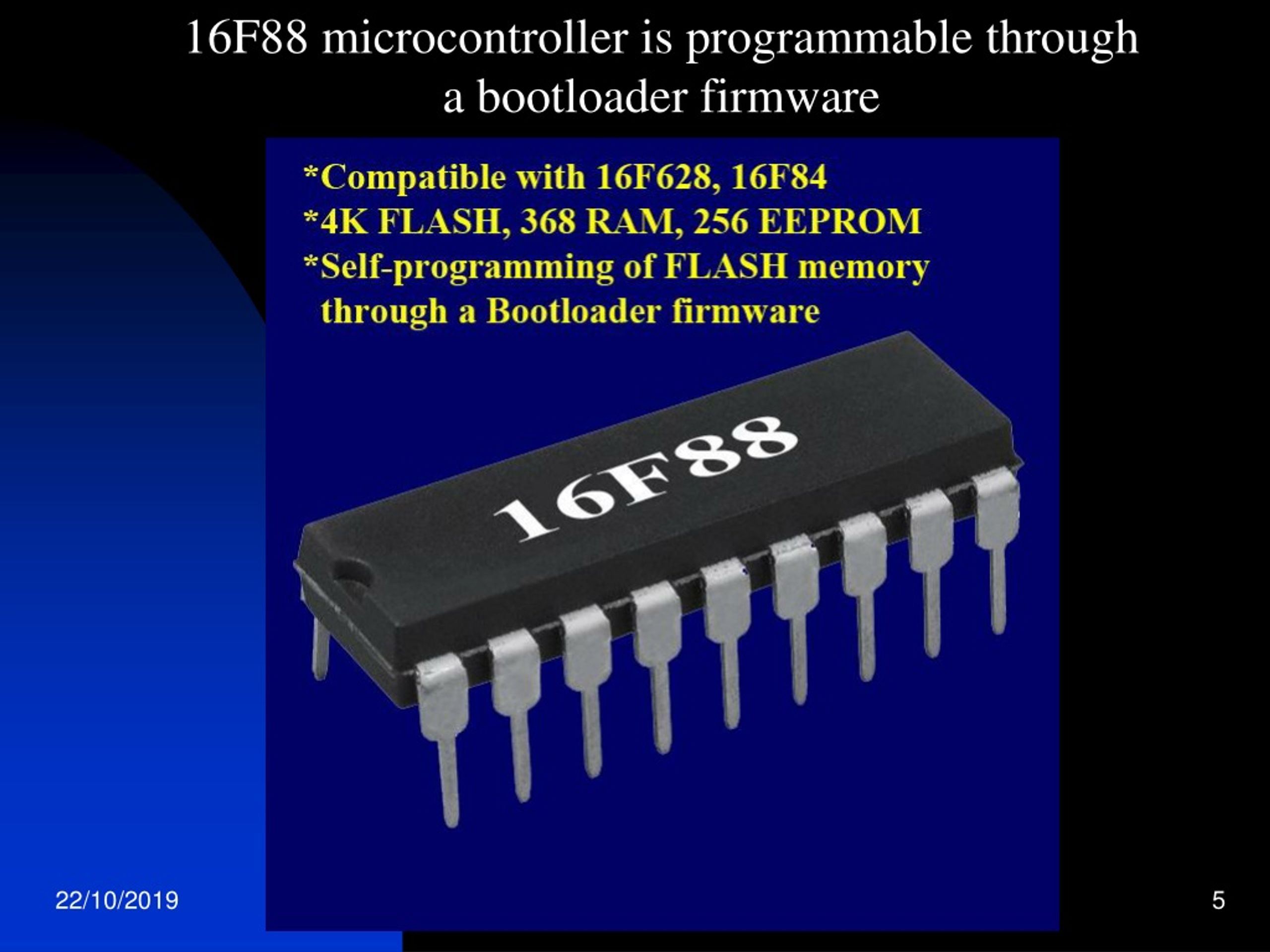

  5. 16F88 microcontroller is programmable through a bootloader firmware www.puntoflotante.net

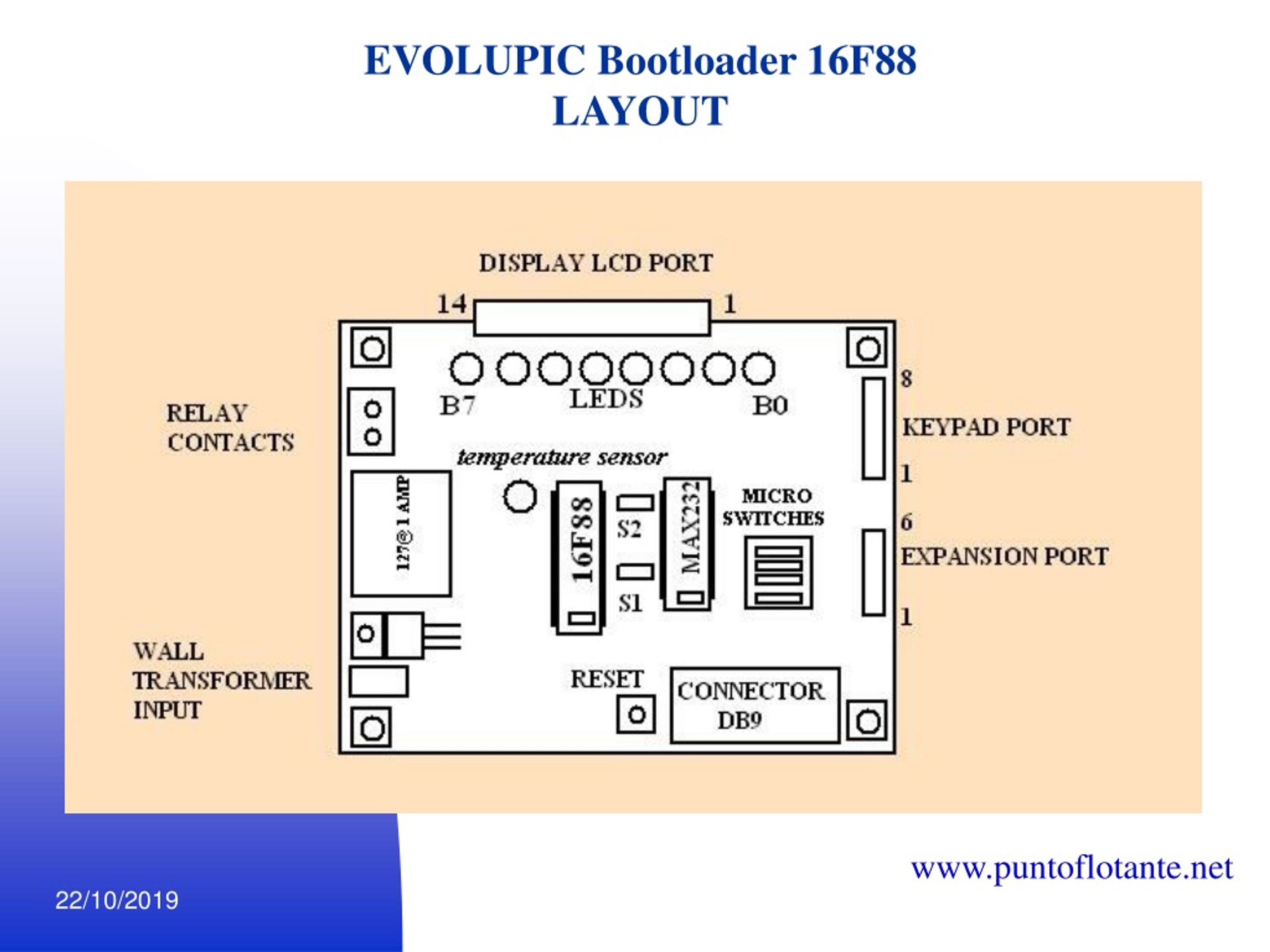

  6. EVOLUPIC Bootloader 16F88 LAYOUT www.puntoflotante.net www.puntoflotante.net

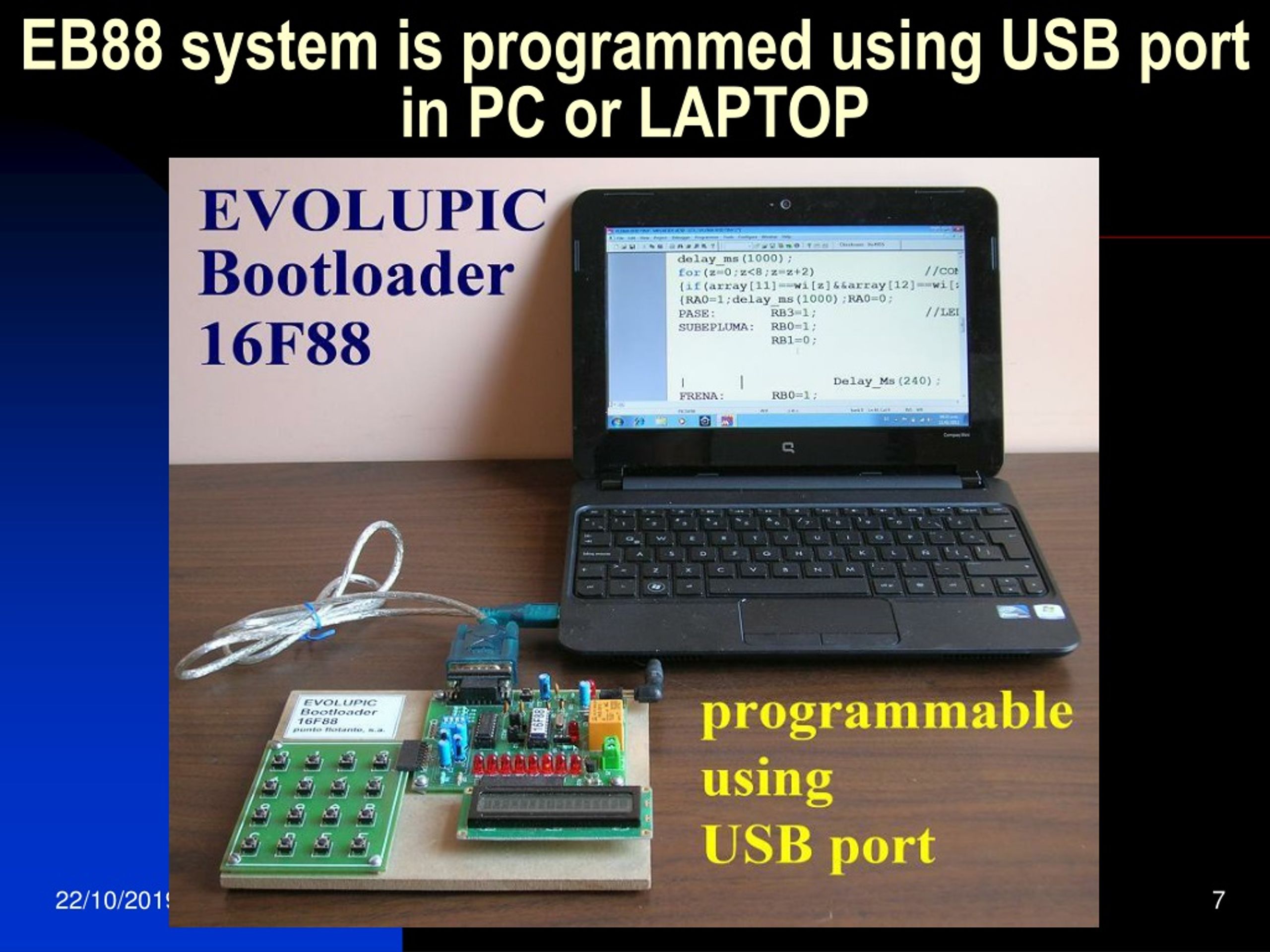

  7. EB88 system is programmed using USB port in PC or LAPTOP www.puntoflotante.net

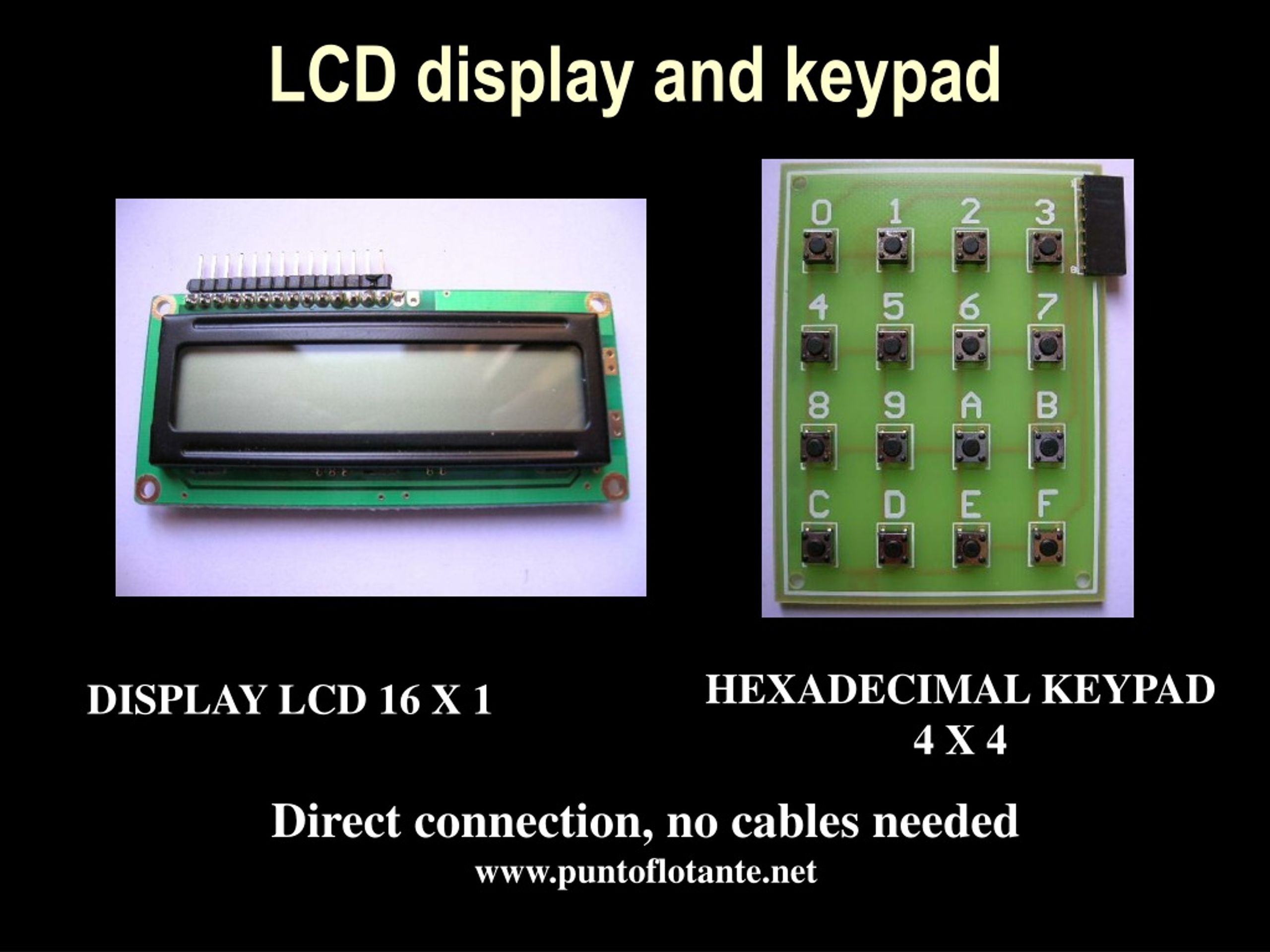

  8. LCD display and keypad HEXADECIMAL KEYPAD 4 X 4 DISPLAY LCD 16 X 1 Direct connection, no cables needed www.puntoflotante.net

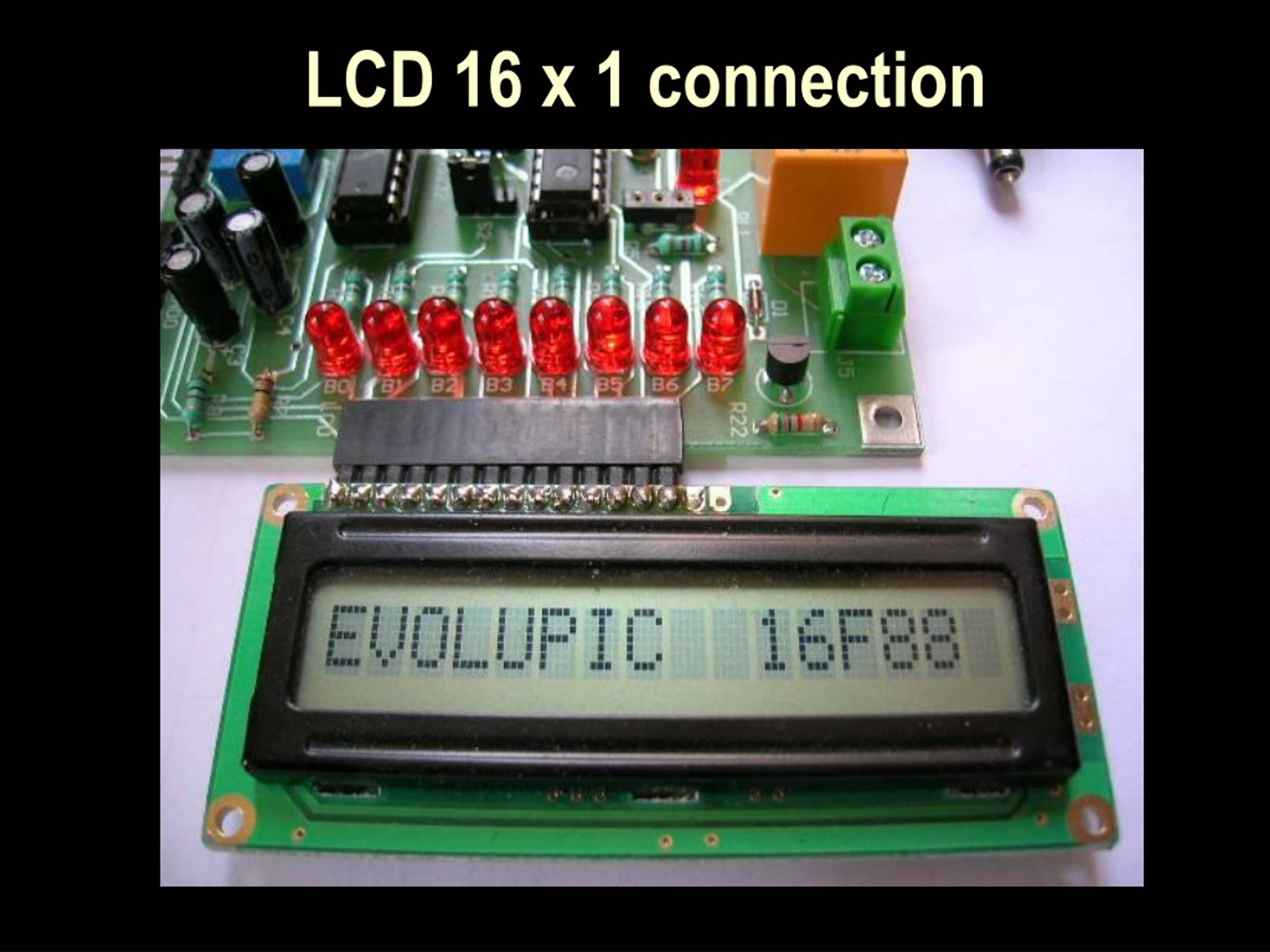

  9. LCD 16 x 1 connection

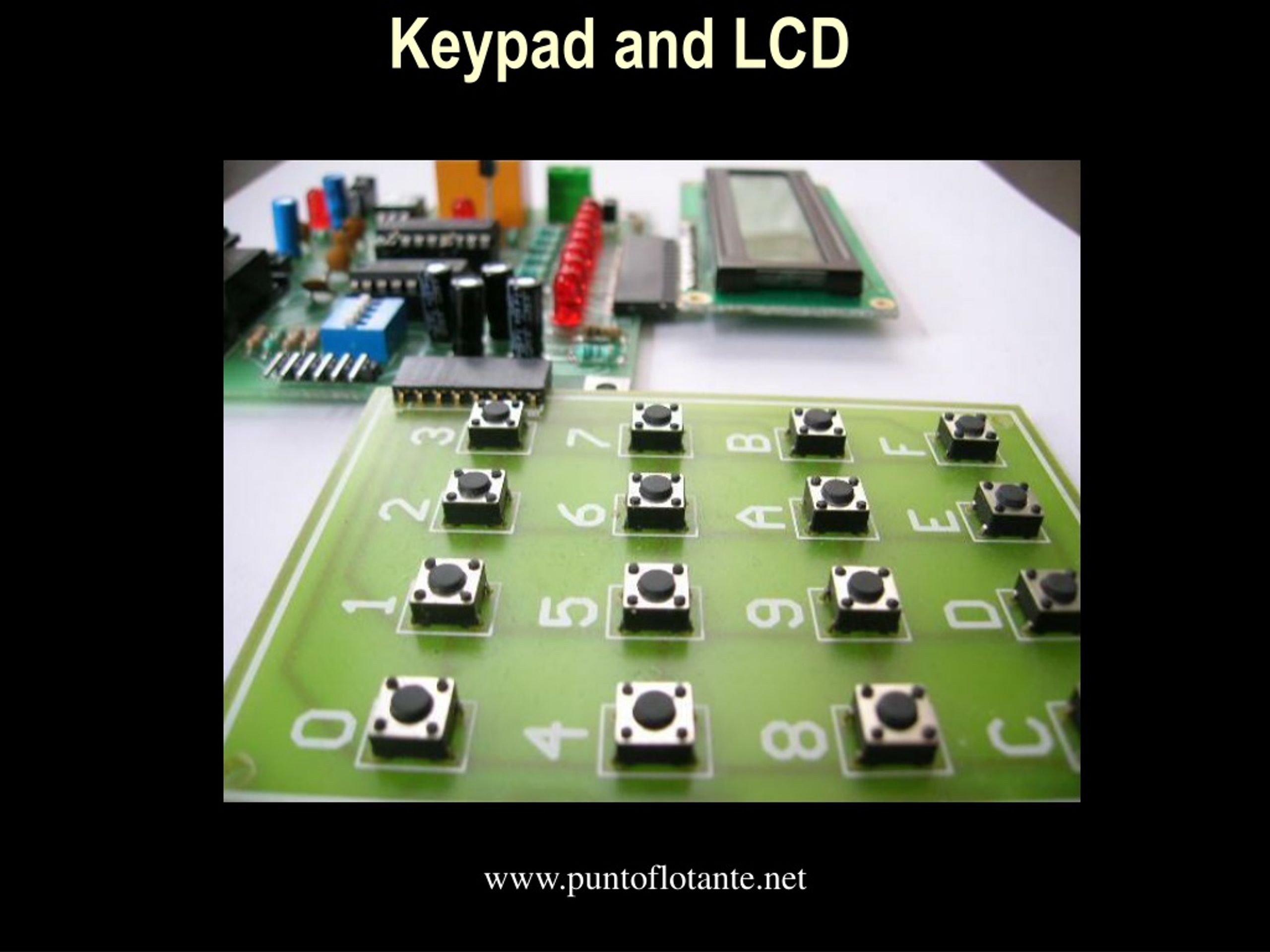

  10. Keypad and LCD www.puntoflotante.net

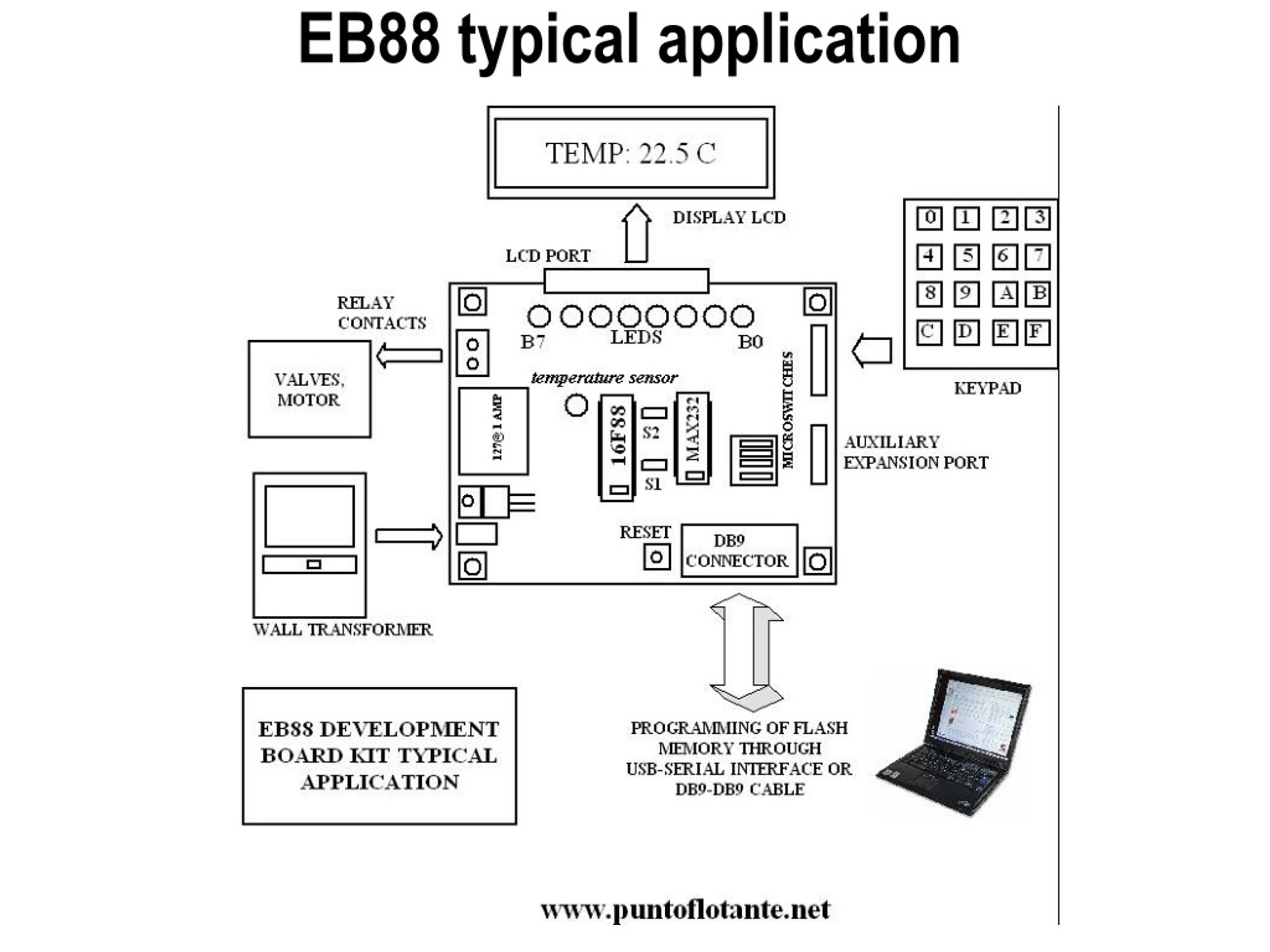

  11. EB88 typical application

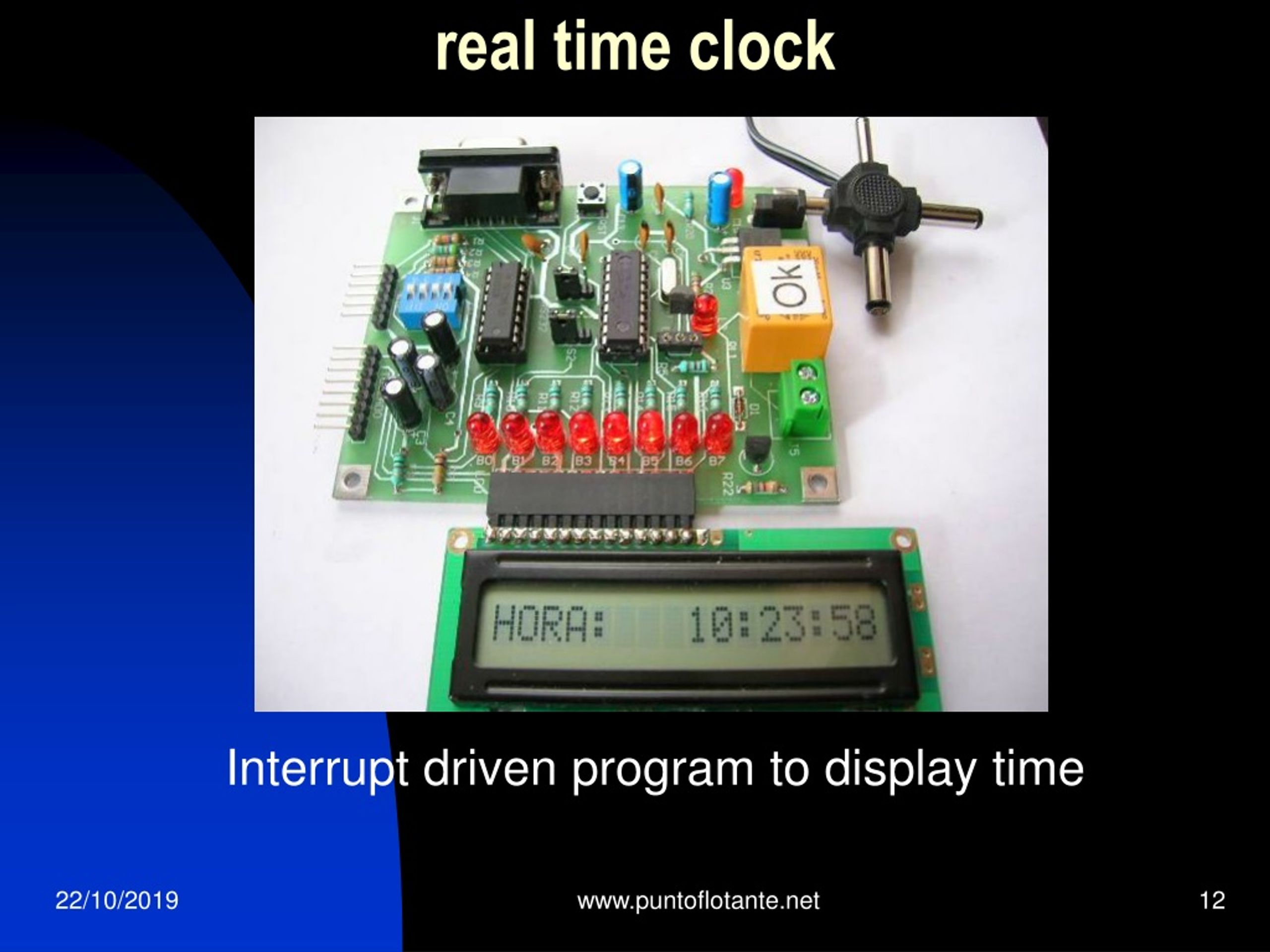

  12. real time clock Interrupt driven program to display time www.puntoflotante.net

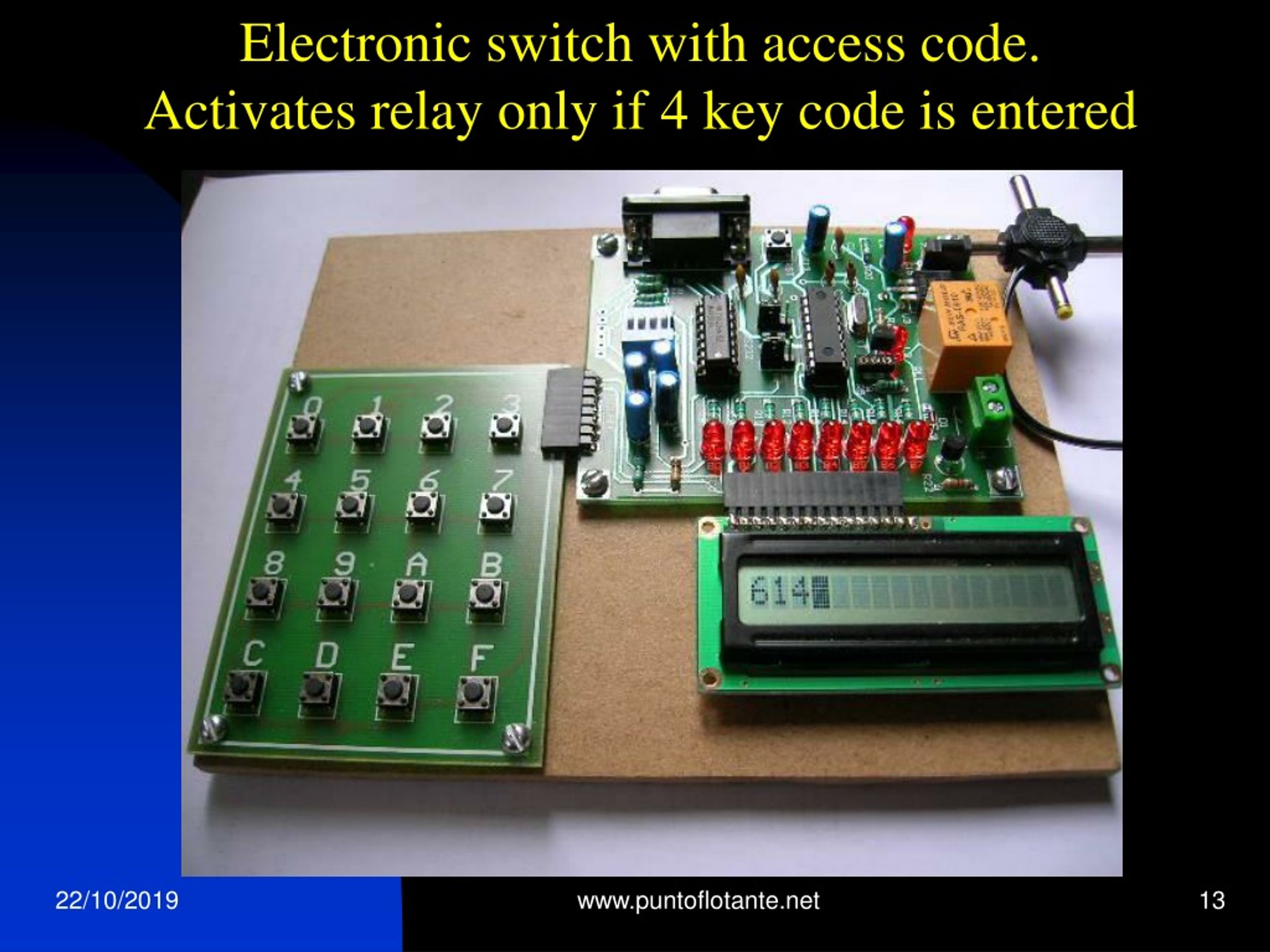

  13. Electronic switch with access code. Activates relay only if 4 key code is entered www.puntoflotante.net

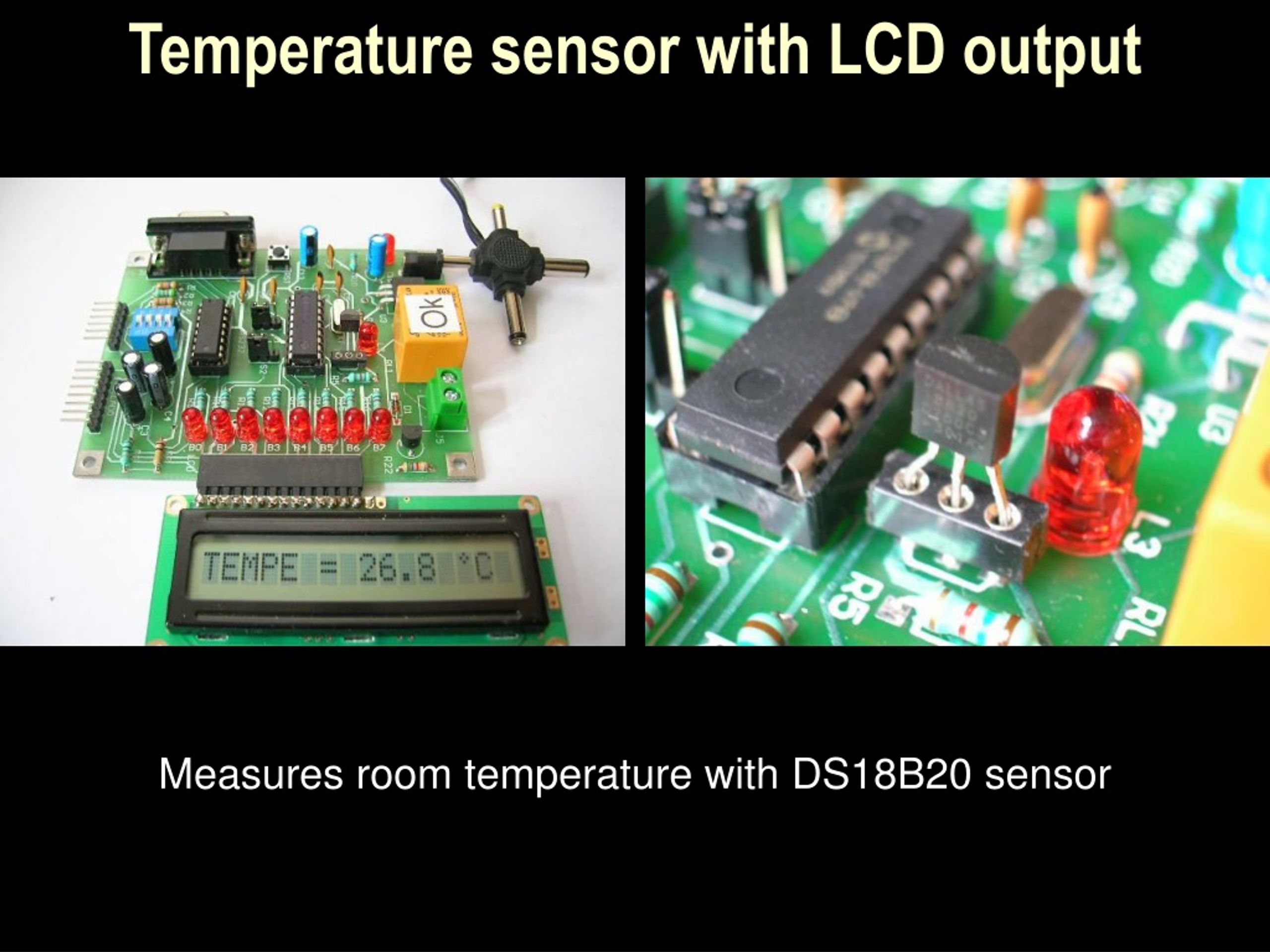

  14. Temperature sensor with LCD output Measures room temperature with DS18B20 sensor

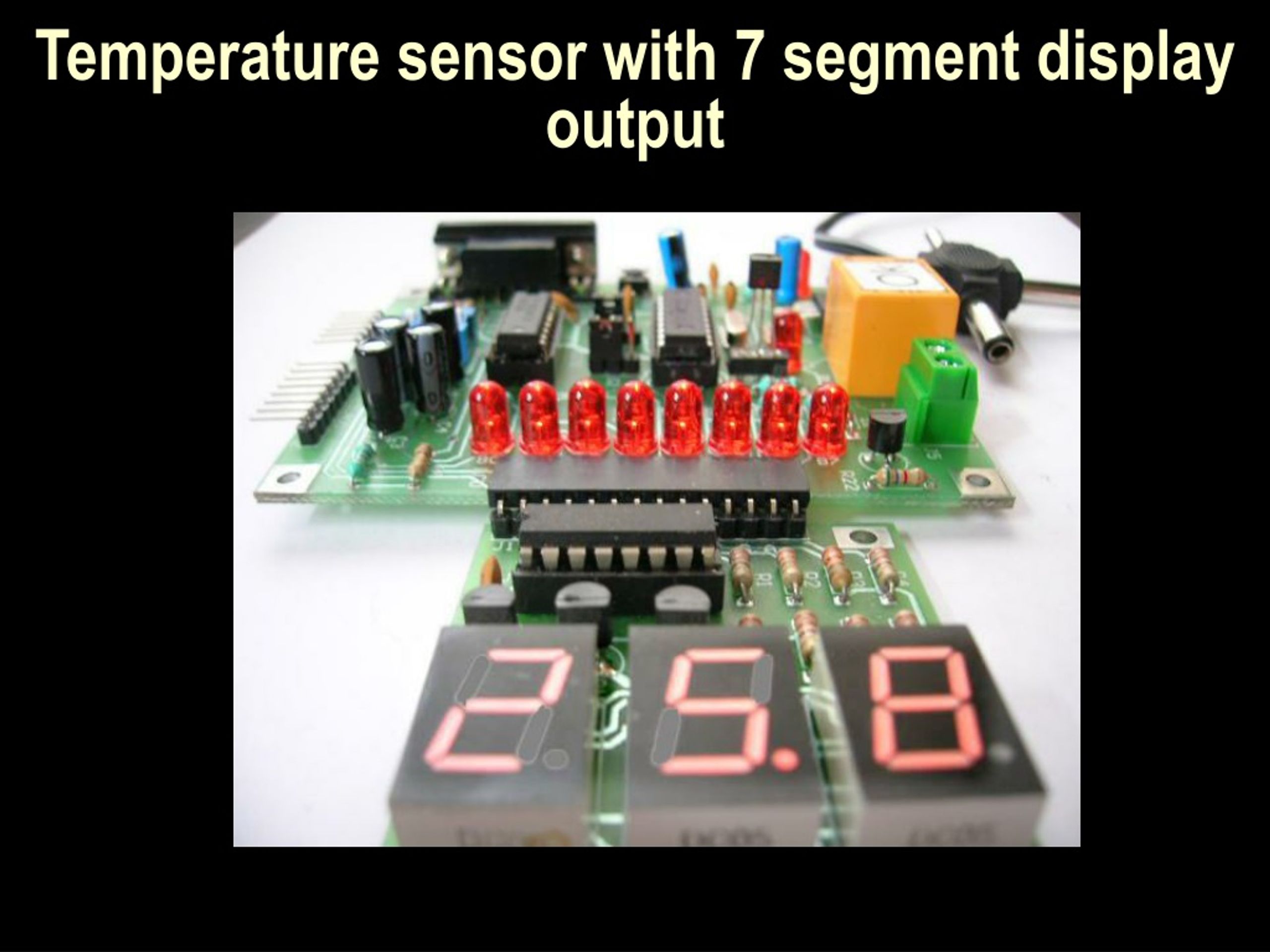

  15. Temperature sensor with 7 segment display output

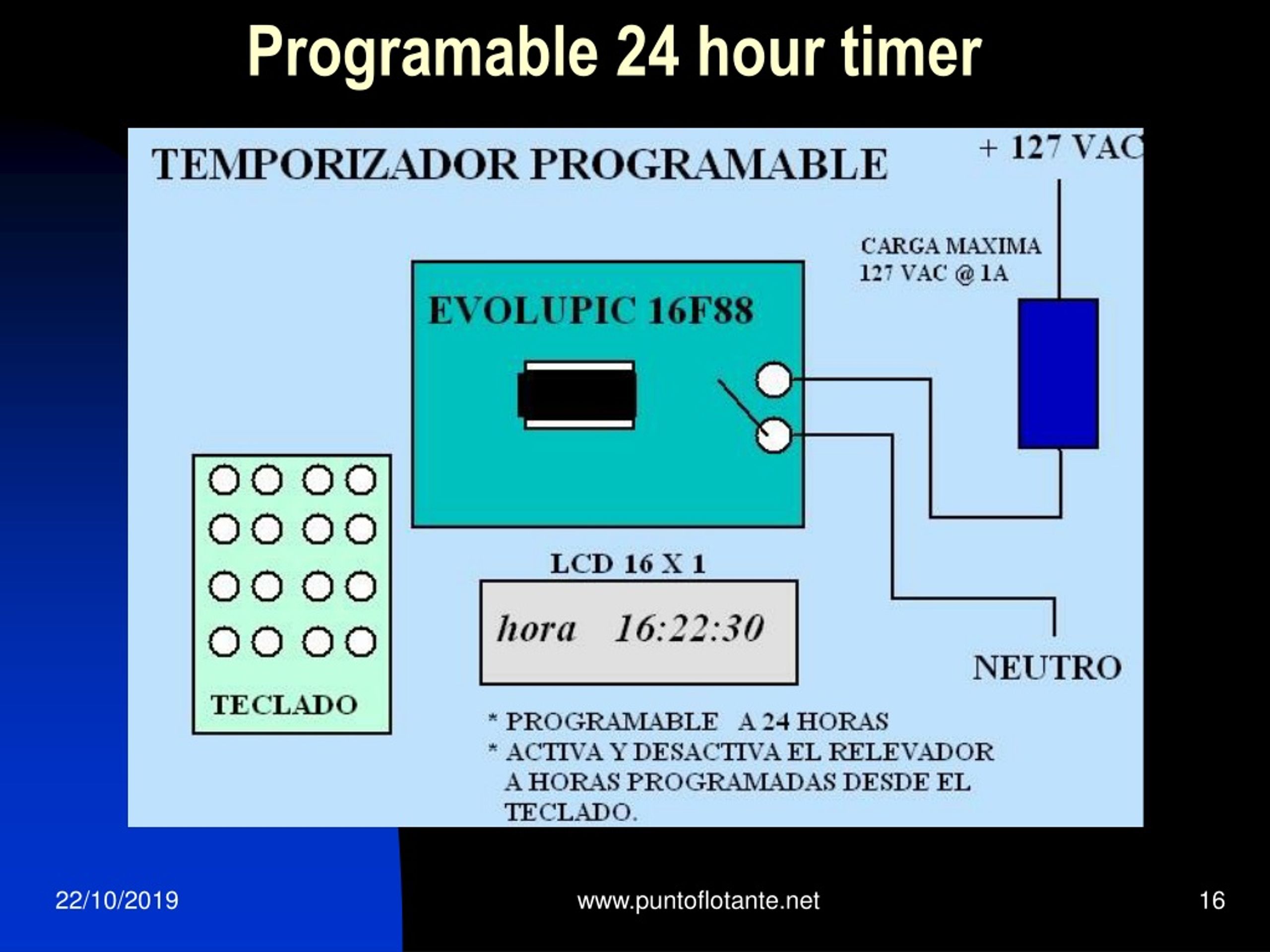

  16. Programable 24 hour timer www.puntoflotante.net

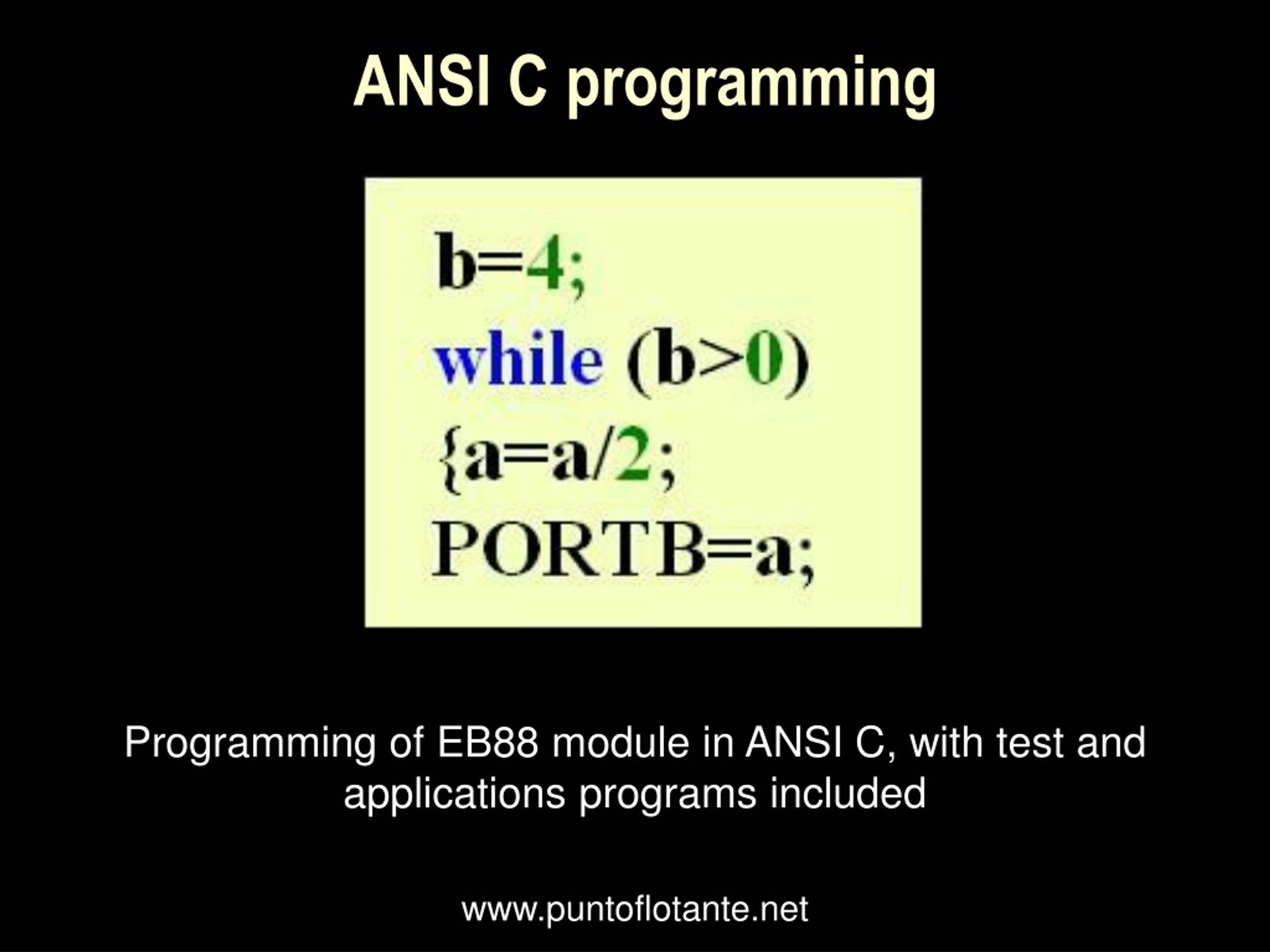

  17. ANSI C programming Programming of EB88 module in ANSI C, with test and applications programs included www.puntoflotante.net

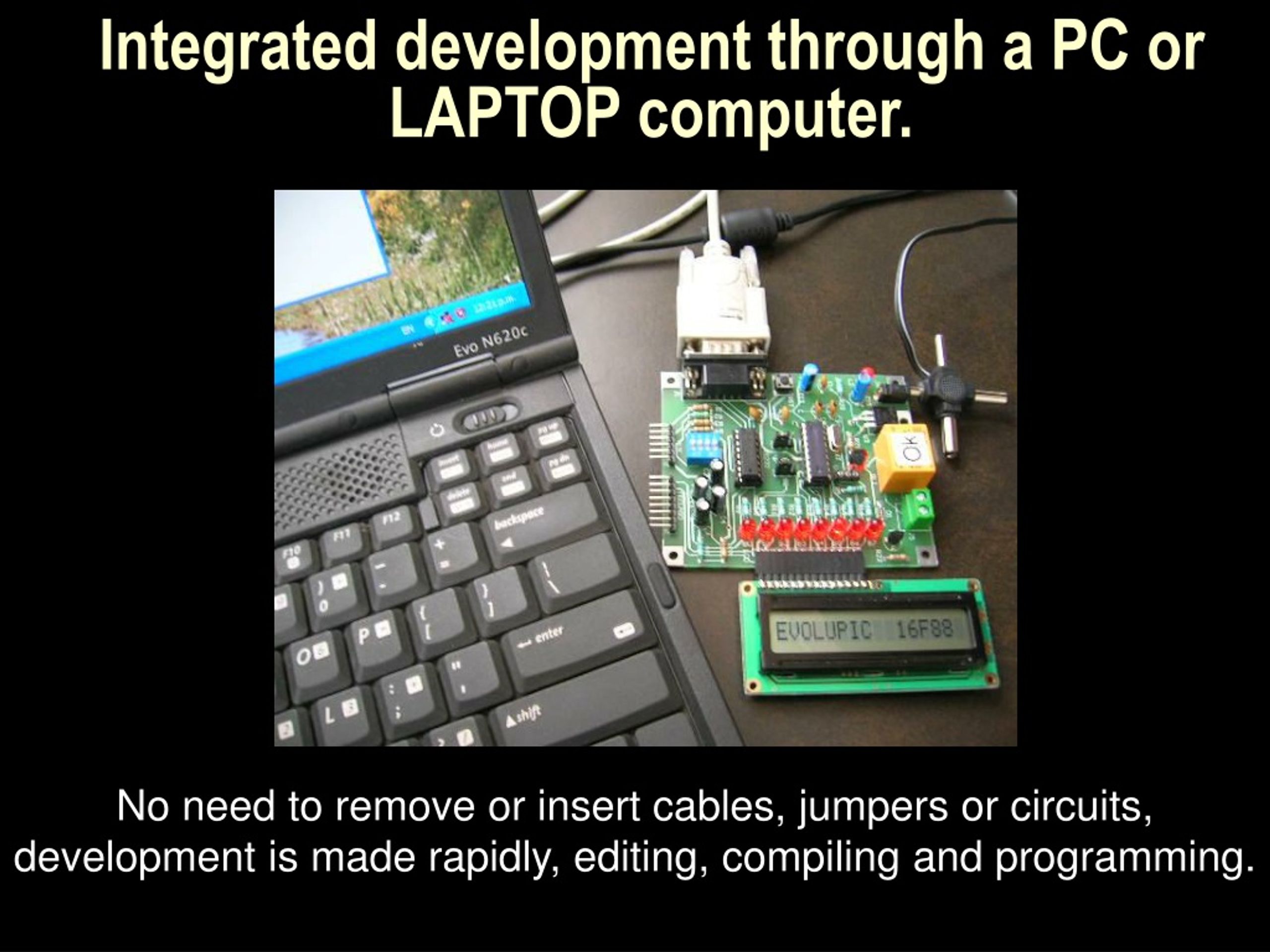

  18. Integrated development through a PC or LAPTOP computer. No need to remove or insert cables, jumpers or circuits, development is made rapidly, editing, compiling and programming.

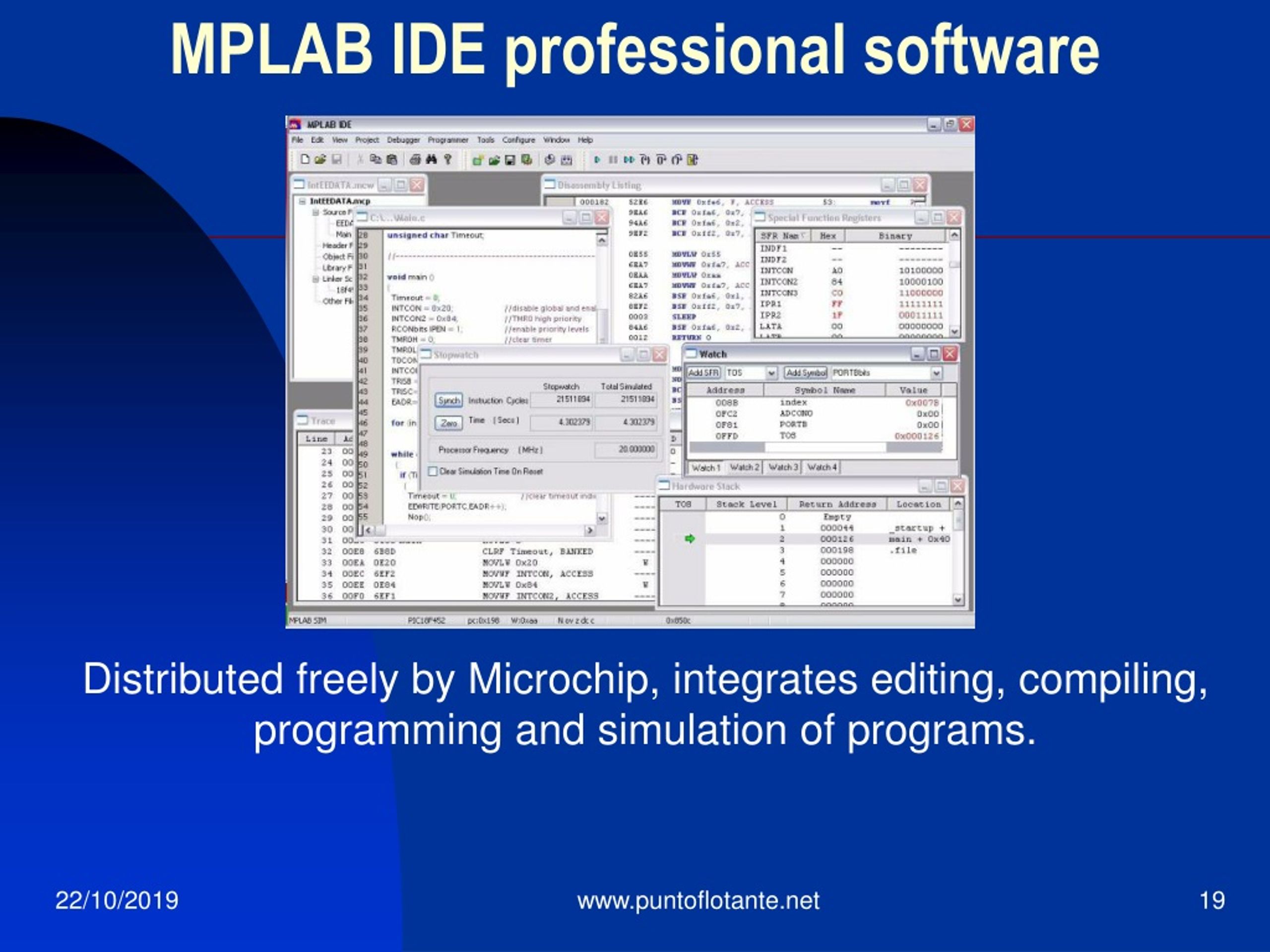

  19. MPLAB IDE professional software Distributed freely by Microchip, integrates editing, compiling, programming and simulation of programs. www.puntoflotante.net
