Jumping, Climbing, and Tactical Reasoning Section 2.5

1. Jumping, Climbing, and Tactical ReasoningSection 2.5 Tom Schaible CSE 497 – AI & Game Programming

2. Jumping, Climbing, and Tactical Reasoning • Christopher Reed • Benjamic Geisler • Raven Software/Activison • Soldier of Fortune II: Double Helix

3. Standard Navigation System Recap • Graph Theory • Point – A location • Edge – A route to get from location to location • Use A* to efficiently navigate through the graph in game • This can be extended to • Climbing • Jumping • Throwing Grenades

4. Finding Cover using Teams • Embed appropriate cover information in points • Teammate waits, Leader chooses cover and advances • Leader waits, Leader chooses cover and advances • Repeat

5. Finding Cover Using Teams

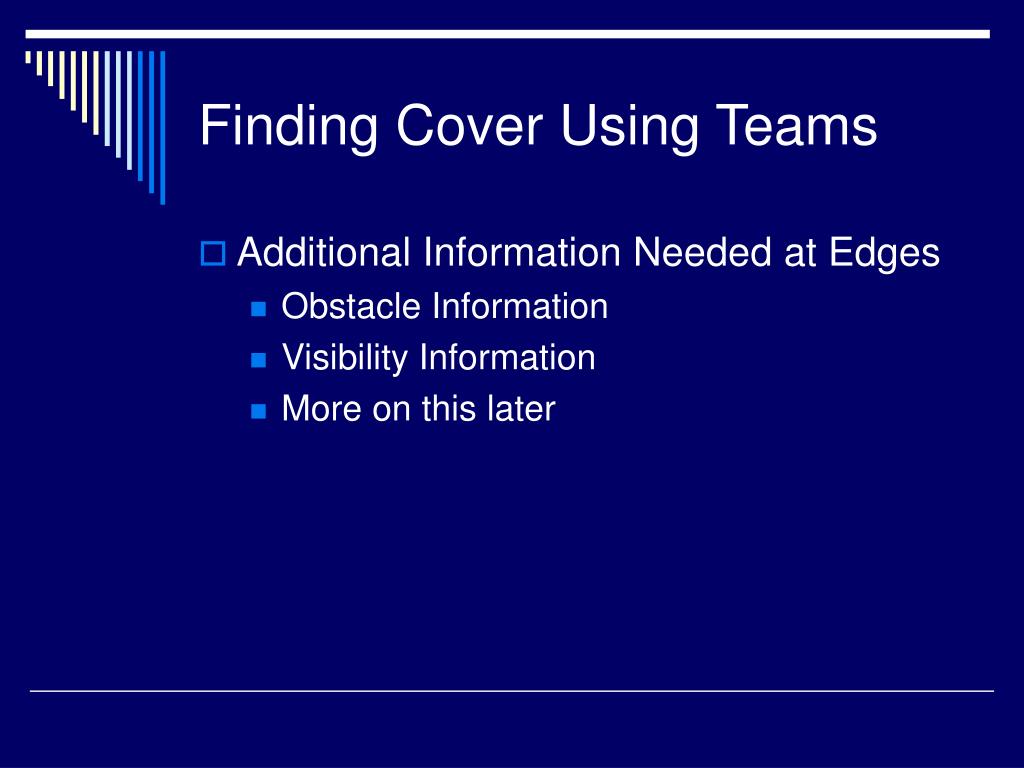

6. Finding Cover Using Teams • Additional Information Needed at Edges • Obstacle Information • Visibility Information • More on this later

7. Throwing Grenades • Choice of scripting behavior or encoding data into decision system • Compute edges to points in grenade throwing radius • If it is possible to throw a grenade (encode trajectory) add a grenade throwing edge

8. Throwing Grenades

9. Throwing Grenades

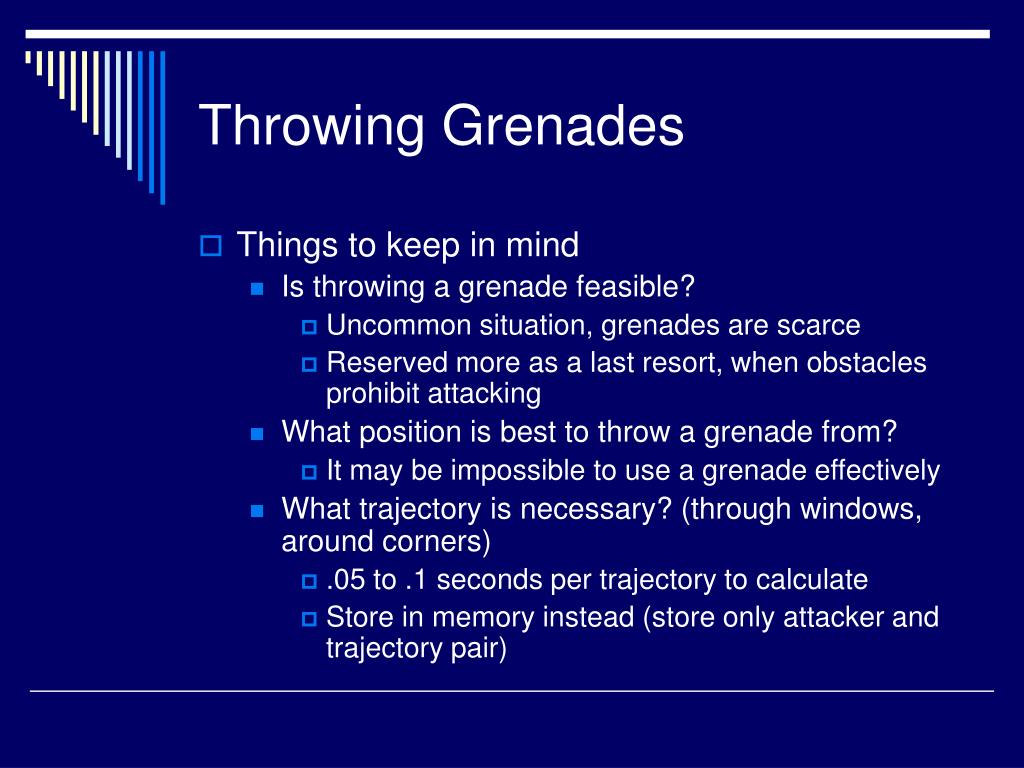

10. Throwing Grenades • Things to keep in mind • Is throwing a grenade feasible? • Uncommon situation, grenades are scarce • Reserved more as a last resort, when obstacles prohibit attacking • What position is best to throw a grenade from? • It may be impossible to use a grenade effectively • What trajectory is necessary? (through windows, around corners) • .05 to .1 seconds per trajectory to calculate • Store in memory instead (store only attacker and trajectory pair)

11. How to Bias Edges • Data you are adding to points needs to show up in the edges ParentPoint = OpenList.GetFromOpenList() For each edge from ParentPoint Switch edge.type() Case GRENADE_EDGE: If ( point.trajectoryGood() ) edge.cost = actor.GrenadeBiasCost() Case FLY_EDGE: If ( actor.CanFly() ) edge.cost = actor.FlyBiasCost()

12. Non-Standard Movement Edges • Instead of scripting behavior, embed type of behavior in edge • Engine will automatically perform movement including animation and set up • Can be used for • Jumping • Flying • Opening Doors

13. How to Embed Information in Points • Store point size information for each point • Use a sphere to define the size • Can Detect obstacles and obstacle features • Obstacle Visibility – Vertical • Obstacle Visibility – Side to Side

14. Obstacle Visibility - Point

15. Object Visibility – Side to Side

16. Other Embedded Information • Safe Size • Use collision detection to determine how big of an actor can use the path • Jumping • Embed invisible geometry in game (preferred) or use extensive collision detection • Vaulting • Same as jumping but geometry is not invisible • Requires specific constraints for animation • Movable Objects and Doors • Collision detection will find tagged object • Retry collision detection after object is moved to test validity of edge (store movement info in the edge) • Stairs, Slopes, Ladders, and Ropes • Checking angle between points vertically can cause edges to be labeled with certain actions

17. Putting it all together Flying Edge Rappelling Edge Flying Edge Door Edge Vault Edge Jump Edge

18. Soldier of Fortune II

19. Hunting Down the Player in a Convincing Manner Section 2.6

20. Hunting Down the Player in a Convincing Manner • Alex McLean • Pivotal Game Ltd. • Conflict : Desert Storm

21. Hunting Down a Player in a Convincing Manner • Intelligent hunting is a good thing • The game needs to be somewhat challenging • Allows for strategy • Perfect hunting is a bad thing • Takes away from gameplay • Really isn’t realistic • It should be apparent that the hunter is exploring and cannot see the target when it is not visible

22. Parameterizing the Process • A parameter based process will work best • Controls the hunter to do different thigns at different times • Two major parameters we want control over • Speed – How quickly you are found • Directness – How direct is the path from hunter to target

23. Destination • Path finding will be used to direct the hunter • A destination is needed • Simplest solution is to move directly to the destination where the hunter is • This makes the AI too good • Destination must be more variable and robust

24. States • Break the decision of destination up into different states • The player is visible • The player was recently seen • The player has never been seen • Allows for more realistic destinations • Results in more realistic behaviors

25. The Player is Visible • Simplest Case • Start the attacking behavior • May be a direct route • May look for cover

26. The Player Was Recently Seen • Another simple case • Move to the last point where the character was seen • Provides for much more interesting game play to the player

27. The Player Was Recently Seen

28. The Player Was Not Recently Seen • Must start searching “intelligently” • Must generate a location • Direction – within an angle θ of the player • Distance – Some multiple of the exact direction to the target in an interval [Smin,Smax] (i.e. [.5,1.5]) x Smax Smin θ

29. Algorithm Detail • Smin, Smax, and θ control the parameters of hunting • Closeness of Smin, Smax to 1.0 and decreasing θ • Increase Speed • Increase Directness • Making θ > 180 can make the NPC somewhat dumb

30. How it Works

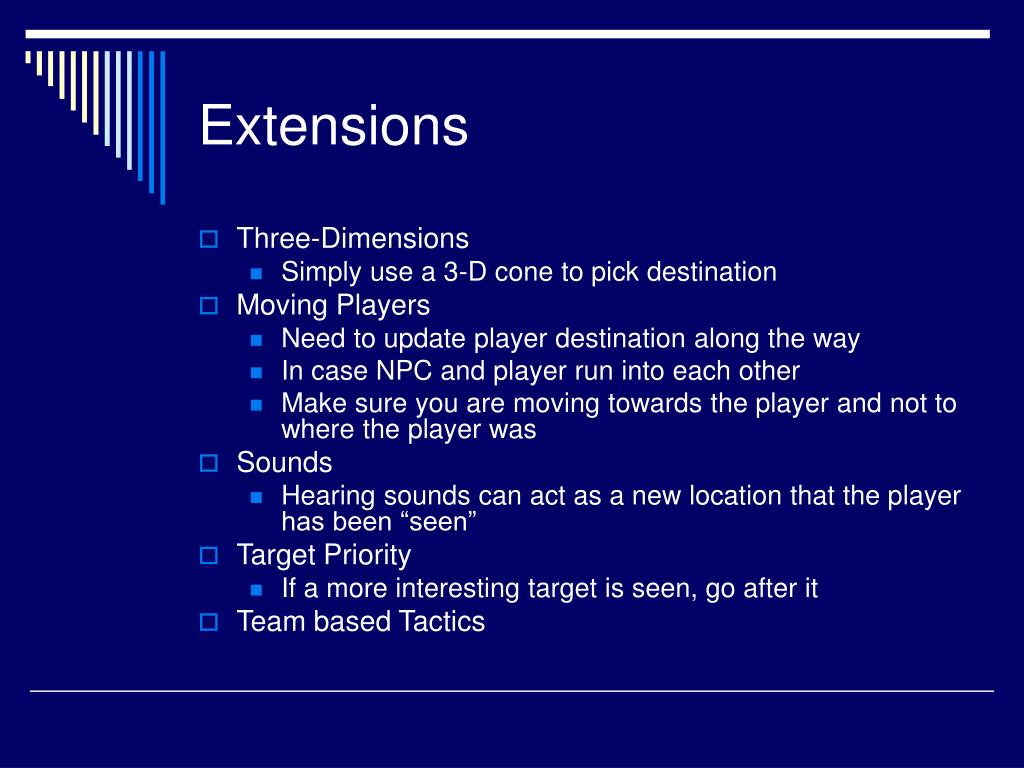

31. Extensions • Three-Dimensions • Simply use a 3-D cone to pick destination • Moving Players • Need to update player destination along the way • In case NPC and player run into each other • Make sure you are moving towards the player and not to where the player was • Sounds • Hearing sounds can act as a new location that the player has been “seen” • Target Priority • If a more interesting target is seen, go after it • Team based Tactics

32. Team Based Tactics

33. Conflict: Dessert Storm

34. Conclusion • A* and similar path finding algorithms can be used to provide dynamic motion • Edges in graphs can be used to encode motion-specific information • Edges can be biased to modify the search algorithm • Realistic hunting is an important part of an AI • The hunting AI should react intelligently to a player • It should be smart but not too smart
